Lot 7 - Hauser Jig Grinder

Description:

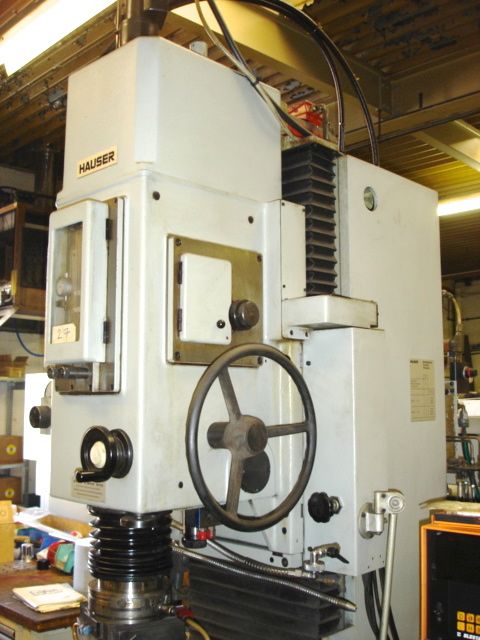

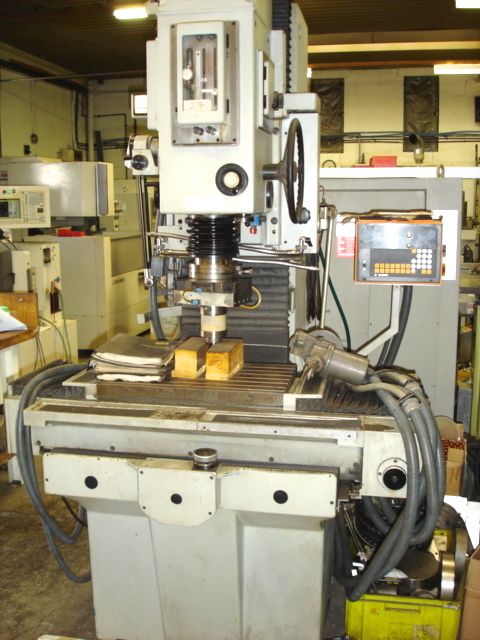

Hauser Jig Grinder

Strokes X x Y x Z : 400 x 250 x 450 [mm]
Grinding head stroke : 450 [mm]
Distance table-grinding wheel motor : 500 [mm]
Distance spindle-column : 340 [mm]
Grinding maxi diameter : 170 – 300 [mm]
Total angle cone : 16°
Table surface : 600 x 380 [mm]
6 T- slots : 10 [mm]
Maxi weight : 300 [kg]
Feeds axes X x Y x W : 500 x 1 000 x 900 [mm]
Sleeve diameter : 100 [mm]
Motor speed : 9 000 – 80 000 [rpm]
Turbine speed : 100 000 – 160 000 [rpm]
Planet speed : 4 500 – 22 500 [mm]
Vertical stroke : 120 [mm]
Radial feed : 6 [mm]
Reading accuracy X axis : 0.001 [mm]
Reading accuracy Y axis : 0.001 [mm]
Depth stop fine adjustment : 1 [mm]
Positionning accuracy : 0.002 [mm]
Air consumption : 12 [m²/h]
Air pressure : 5 bars

Machine Weight About 2200 kg
Overall Machine Dimensions: 1400 x 1600 x 2700 mm

Can be loaded onto transport if necessary.

Location: Yeovil, Somerset

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
