Lot 4 - Heid S500. P12 CNC Lathe with C axis and driven tooling and Siemens
Description:

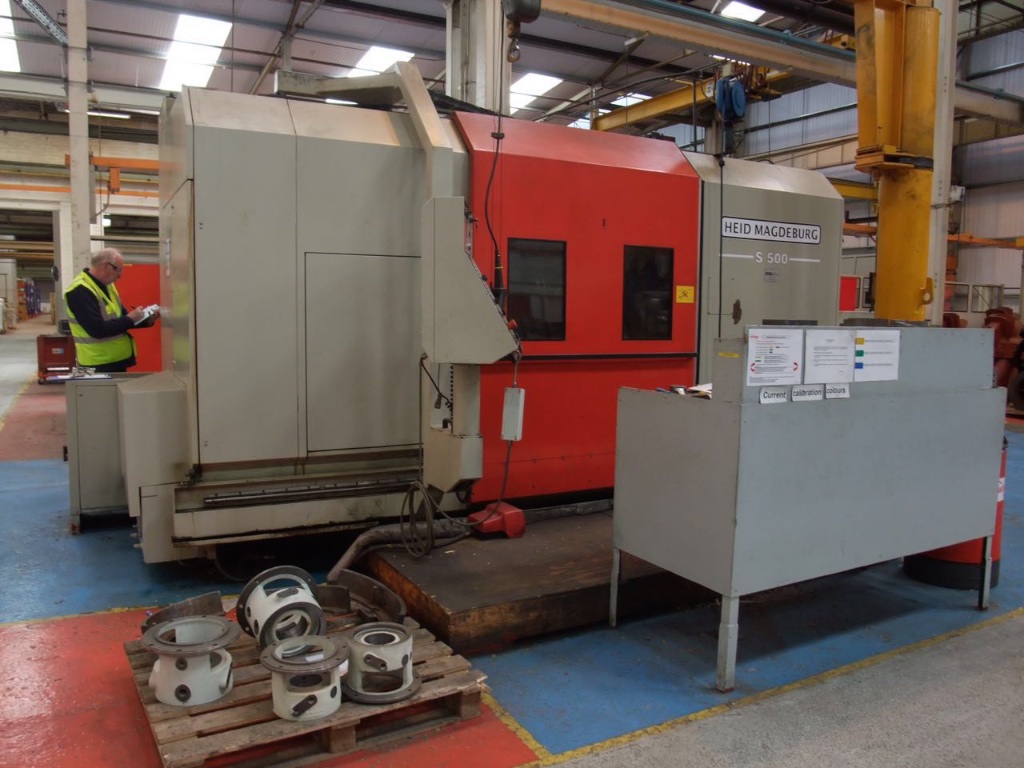

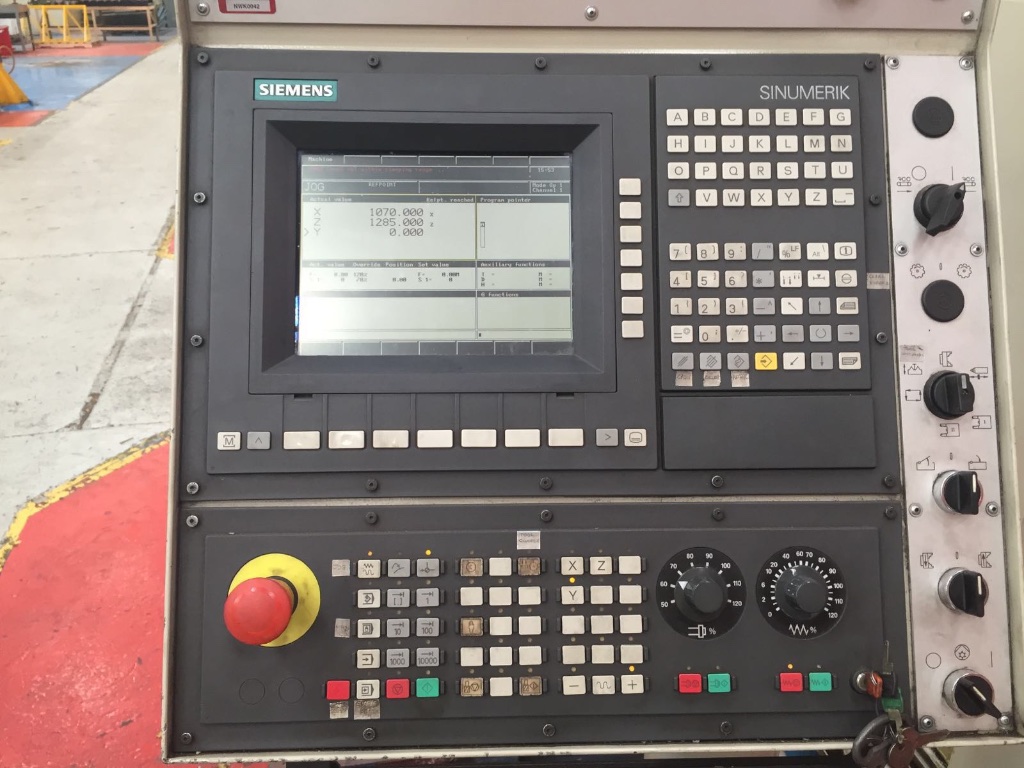

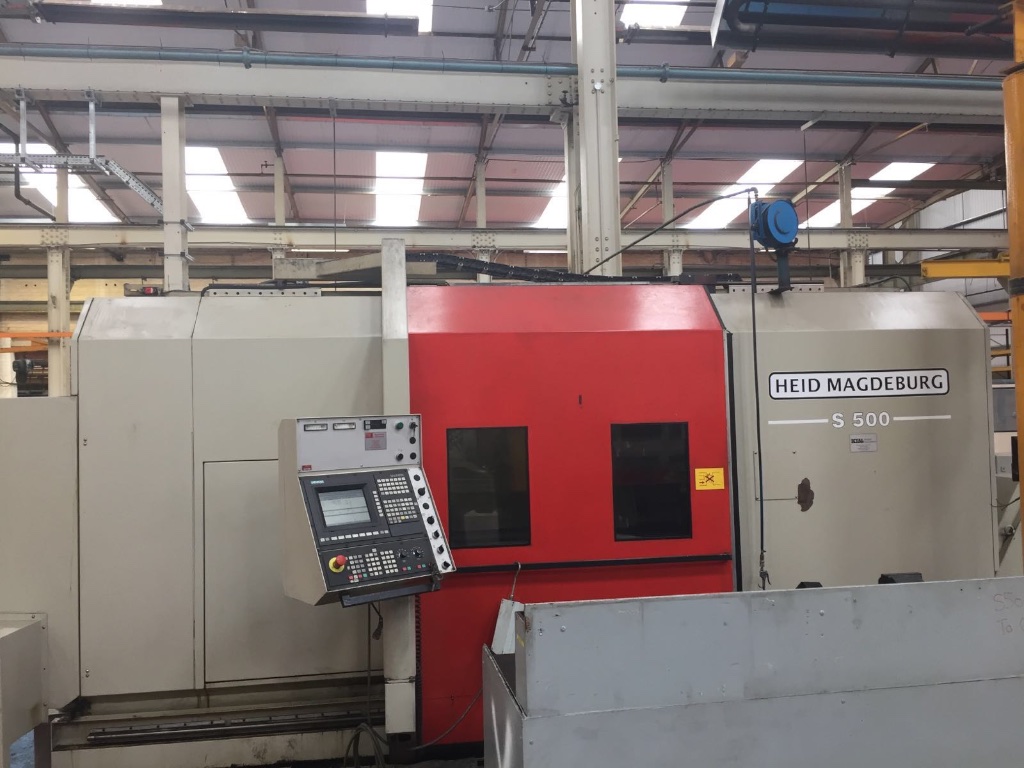

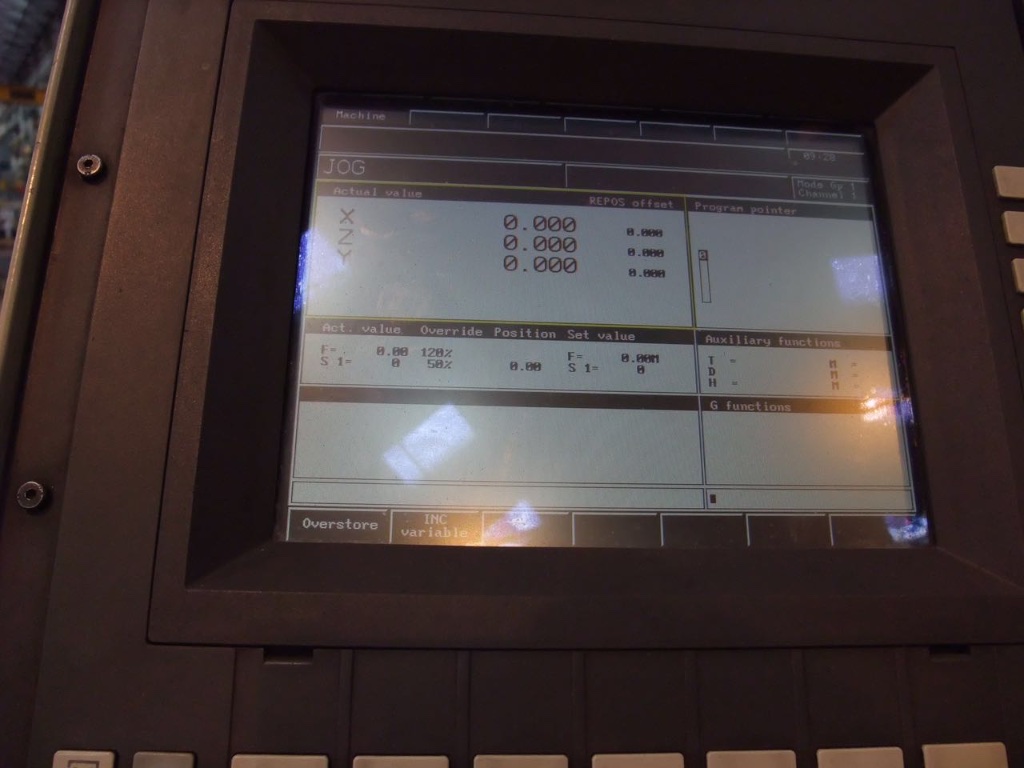

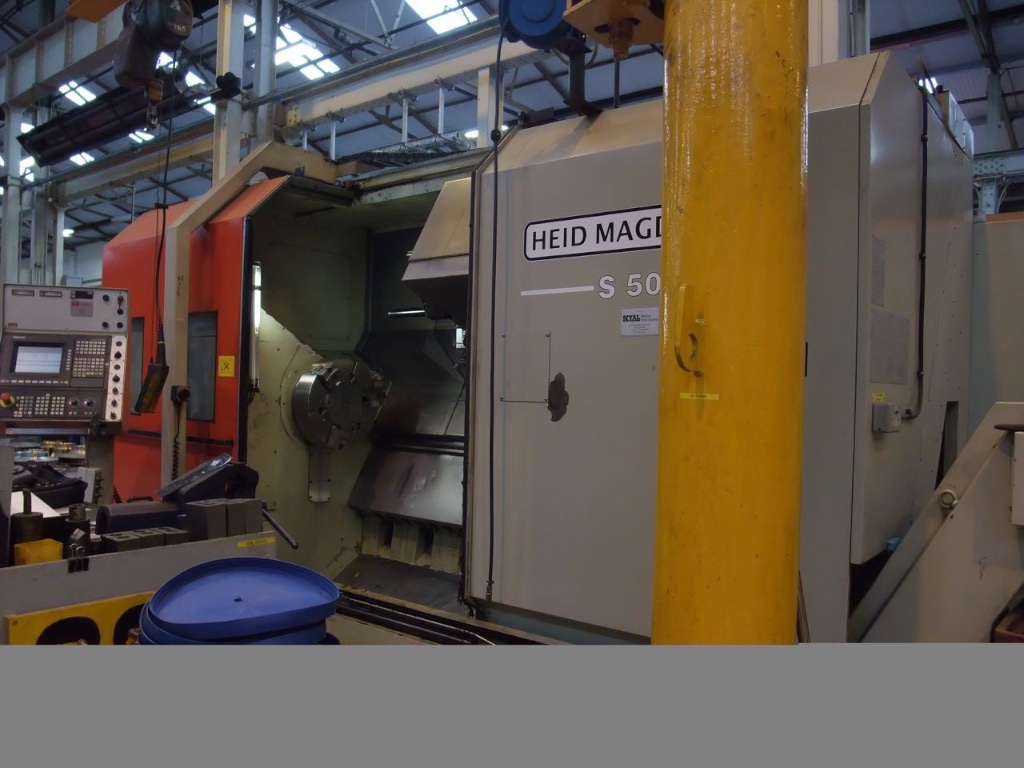

Heid S500. P12 CNC Lathe with C axis and driven tooling and seimens 840C control
Serial No. M150.C241007
(Year 1999)
Maximum swing over bed guards: 800mm
Maximum machining diameter with standard tool 690mm
Spindle bore daimater 150mm
Spindle speed 1400rpm
Spindle motor: 37/53Kw

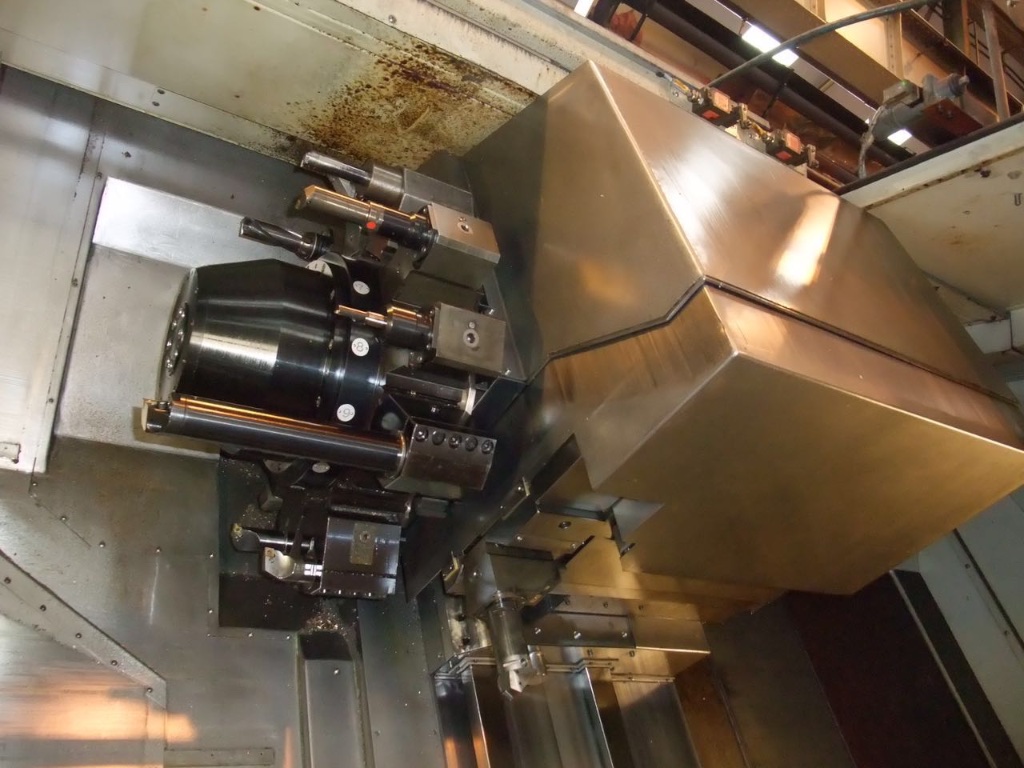

12 station turret
Driven tool speed 3000rpm

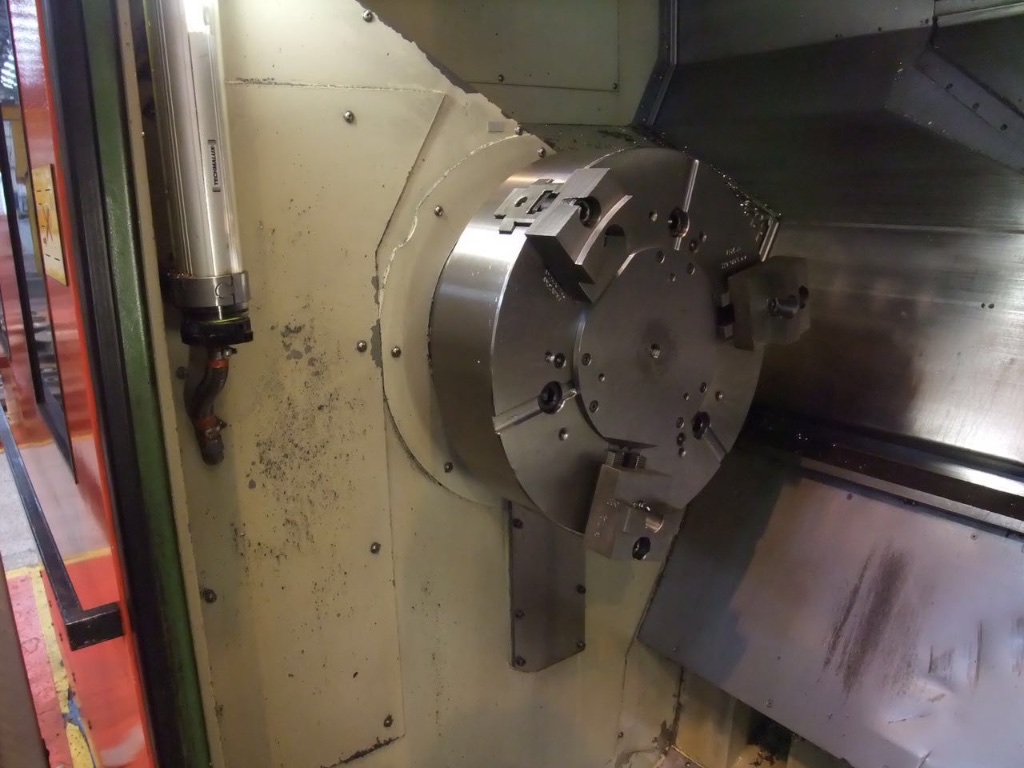

500mm 3 jaw power chuck
Lots of tooling
Driven tool holders

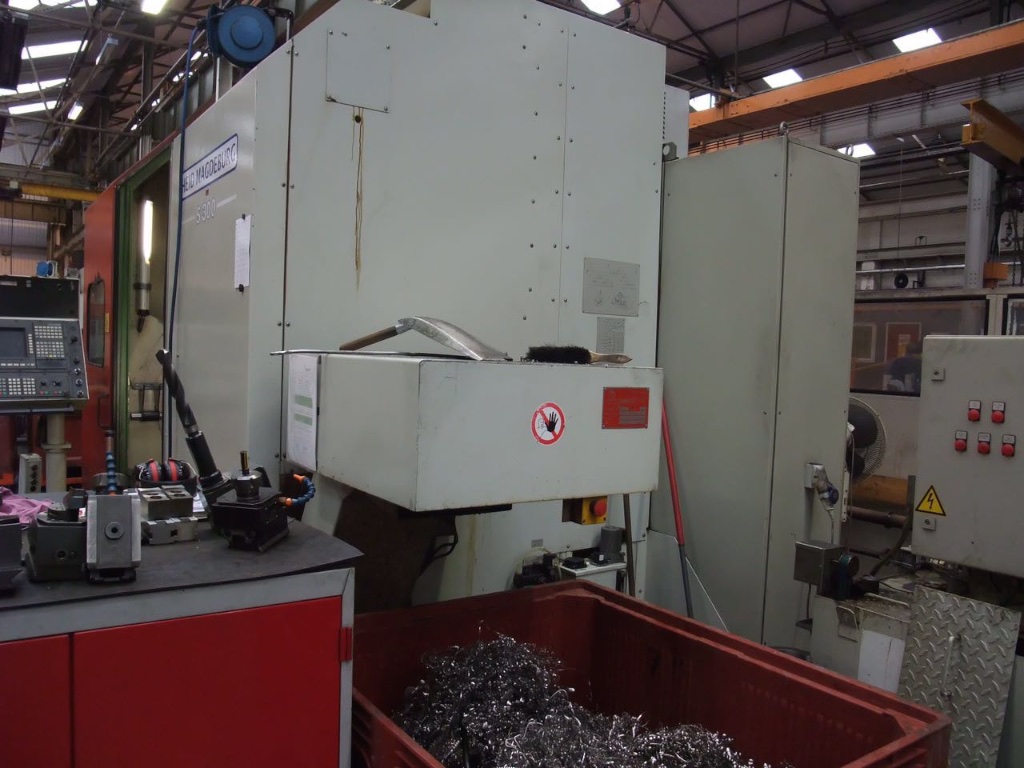

Swarf conveyor
Coolant
Extensive manuals
Dimesions: 6000mm x 3100mm x 2800mm
Weight: 11,000kg
Location: Leicester Machine Movers - Loaded to truck £100
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
