Lot 2 - Heid SDM12-802-2500 Slant Bed CNC Universal Lathe

Description:

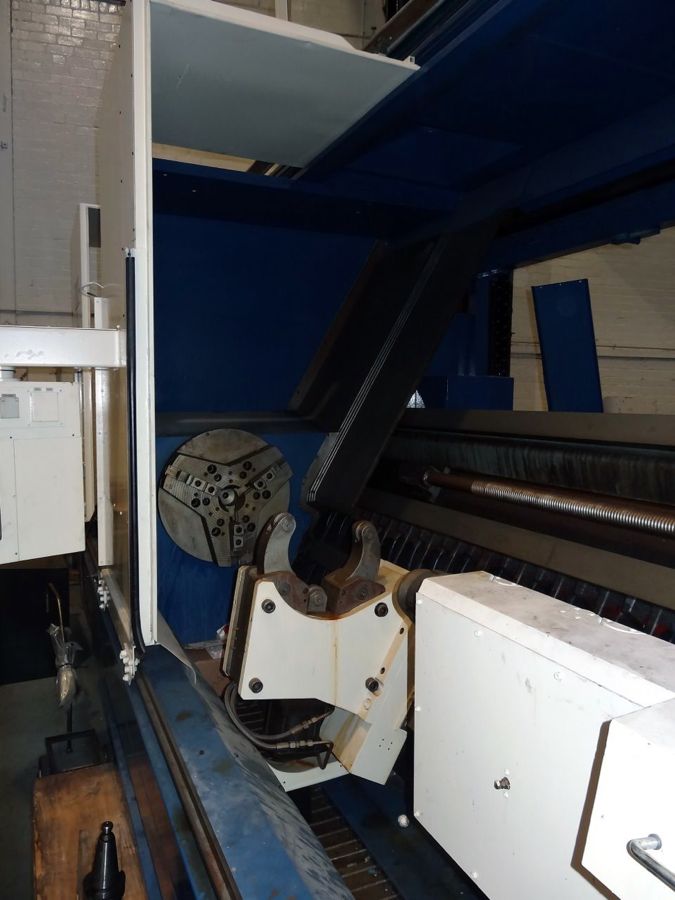

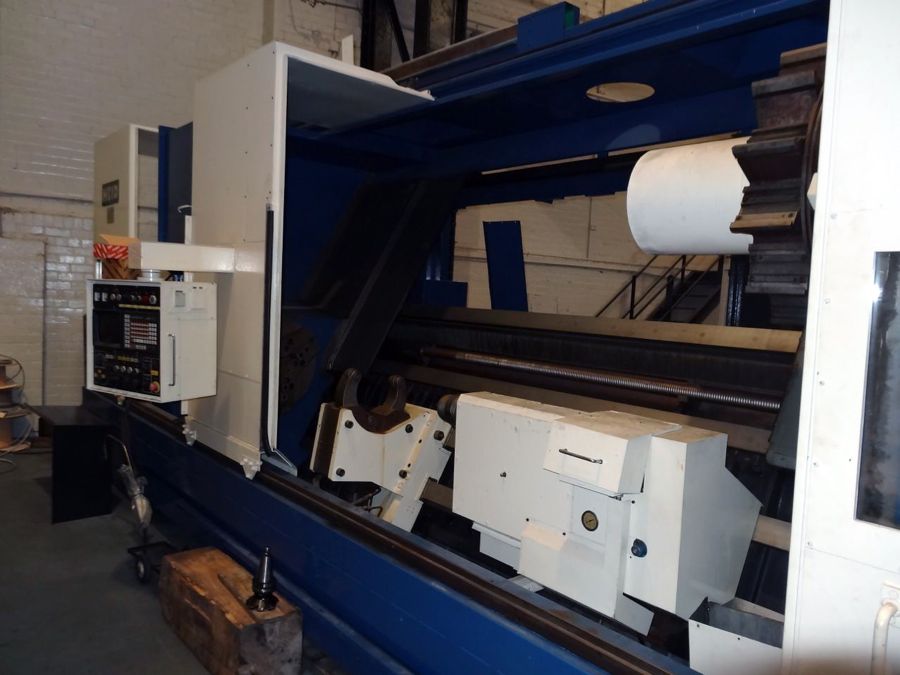

Heid SDM12-802-2500 Slant Bed CNC Universal Lathe
with hydraulic steady rest and 12 position tool turret.

Max. Swing over bed: 600 mm
Max. Turning diameter over full length : 500 mm
Max. Turning length: 2500 mm
Through bore capacity: 105 mm
Spindle speeds: 7.1 to 1,400 rpm

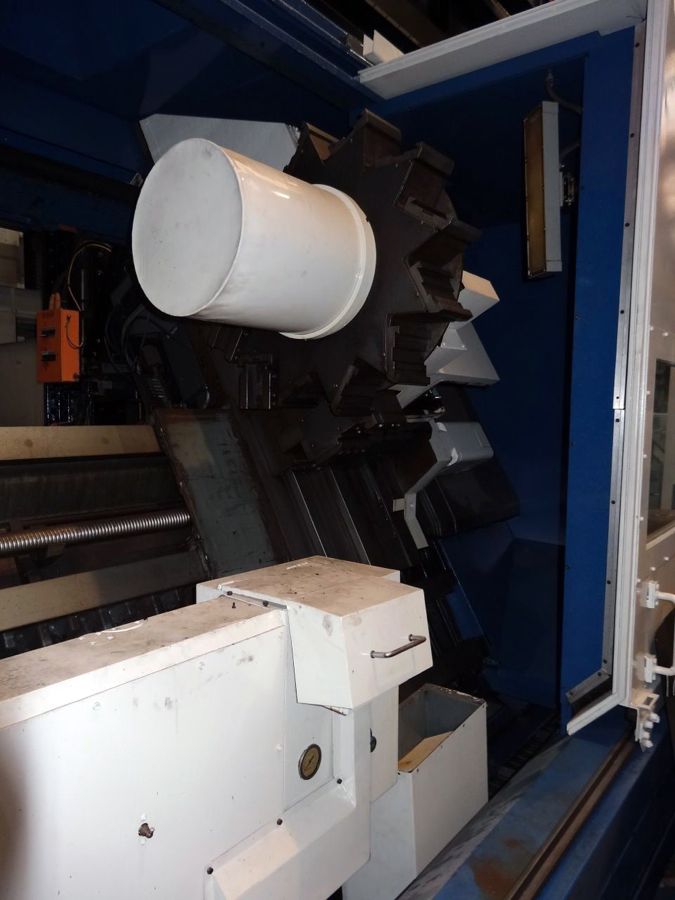

Turret type: 12 station drum type
Rapid traverse (x & z): 10,000 mm/min
Main spindle motor: 60 kw
Electrics: 415v, 3ph, 50hz

Includes
Set of standard toolholders,
Smw hydraulic steady,
Coolant equipment,
Swarf conveyor,
630 mm forkhardt 3-jaw hydraulic chuck

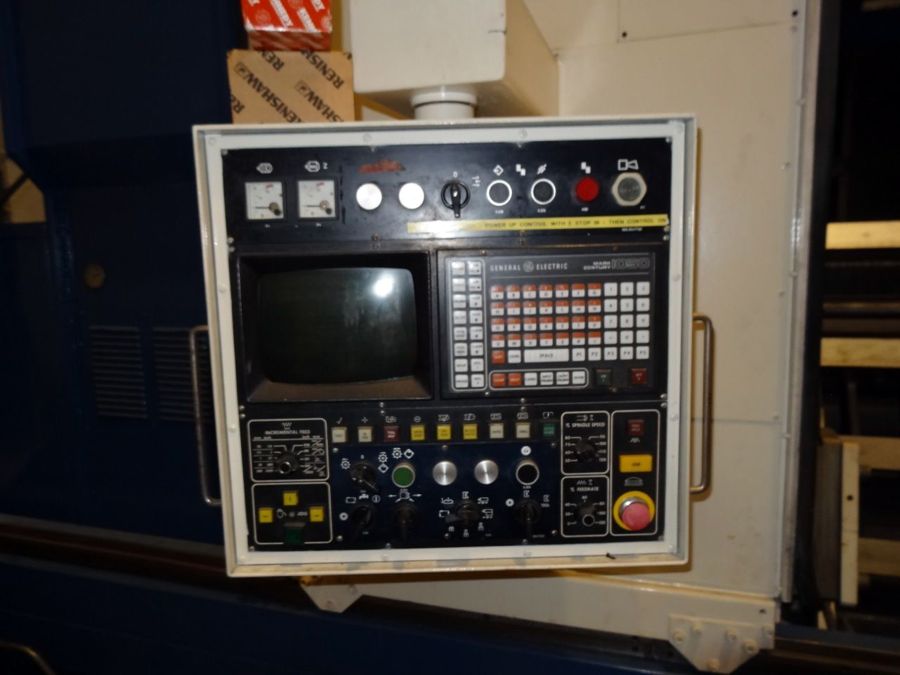

GE 1050 Control

Length (with conveyor): 9,100 mm
Width: 2,300 mm
Height: 3,200 mm
Weight: 26,000 kgs

Location: Sheffield
Loading is free to Flatbed Transport

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
