Lot 45 - Herkules Wetzlar Rotary Ring Bending Machine with Hydraulic Clamping
Description:

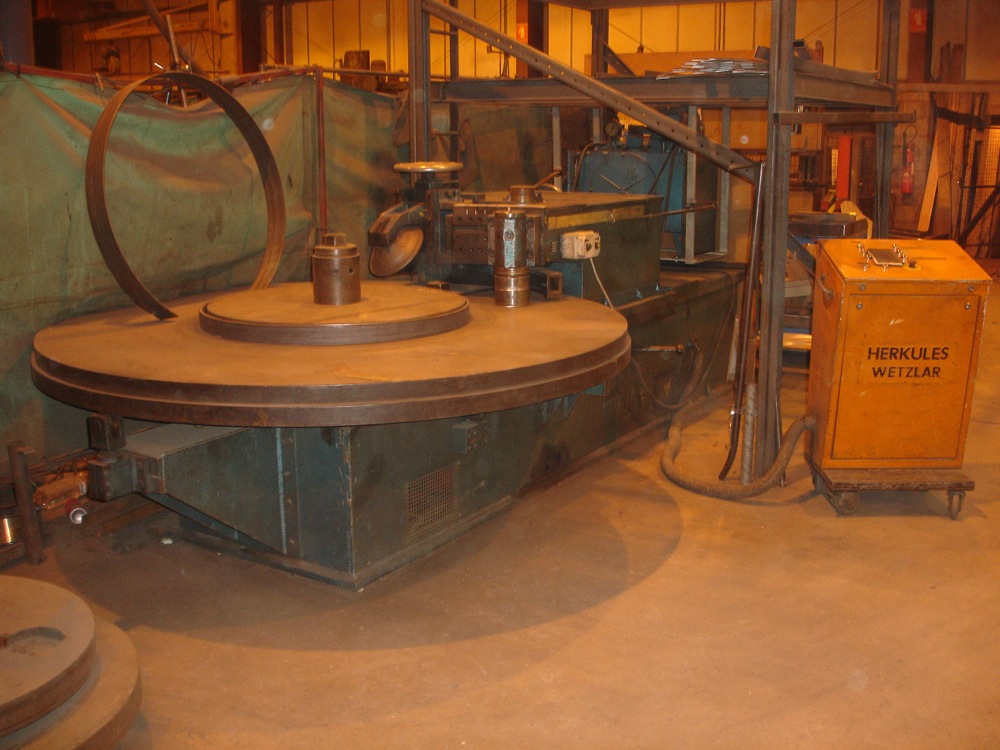

Herkules Wetzlar Rotary Ring Bending Machine with Hydraulic Clamping
Year 1979
Hot Bending 950 degrees C
Angles – leg out 101mm x 101mm x 19mm
Min. Internal Diameter 889mm
Flats on Edge 120mm x 41mm
Cold Bending
Angles legs-out 76mm x 76mm x 19mm
Min. Internal Diameter 889mm
Smallest Diameter 203mm

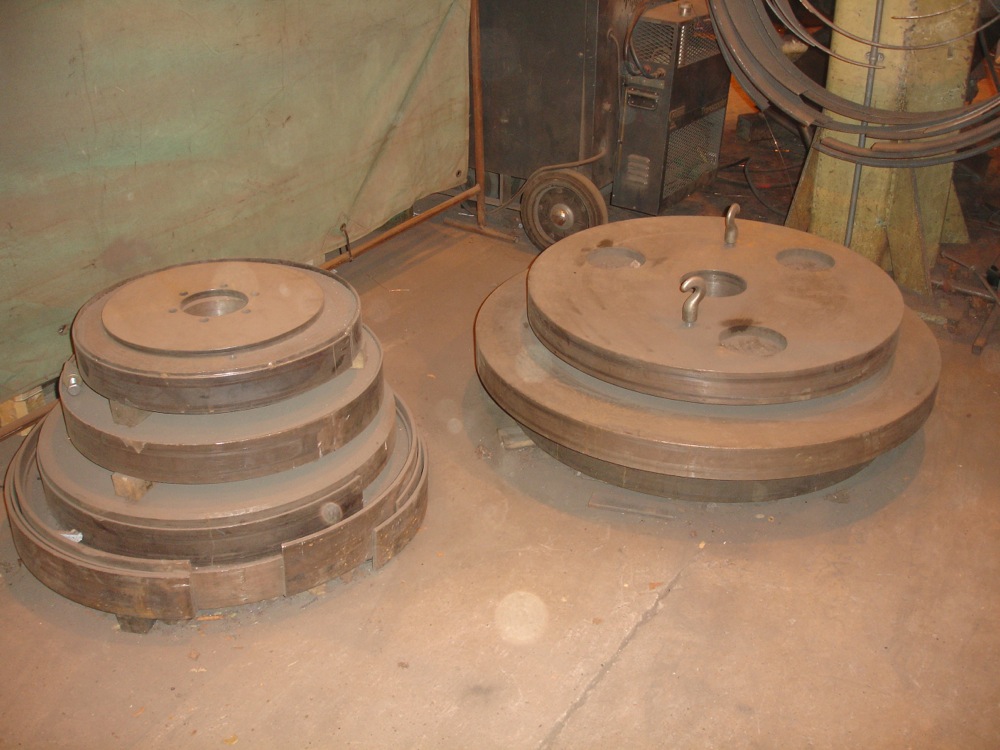

Rotary table diameter 1240mm, with enlarge ring 2230mm
3 Speeds 1.6 / 3.2 / 6.4rpm
Flange mounted to tank
Push button control panel
Machine diamensions:
L 4410mm x W2230mm x H1420mm
Approx Machine Weight 5000kgs
Location: Wisbech, Cambridgeshire
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
