Lot 16 - Herkules Wetzlar Rotary Ring Bending Machine with Hydraulic Clamping
Description:

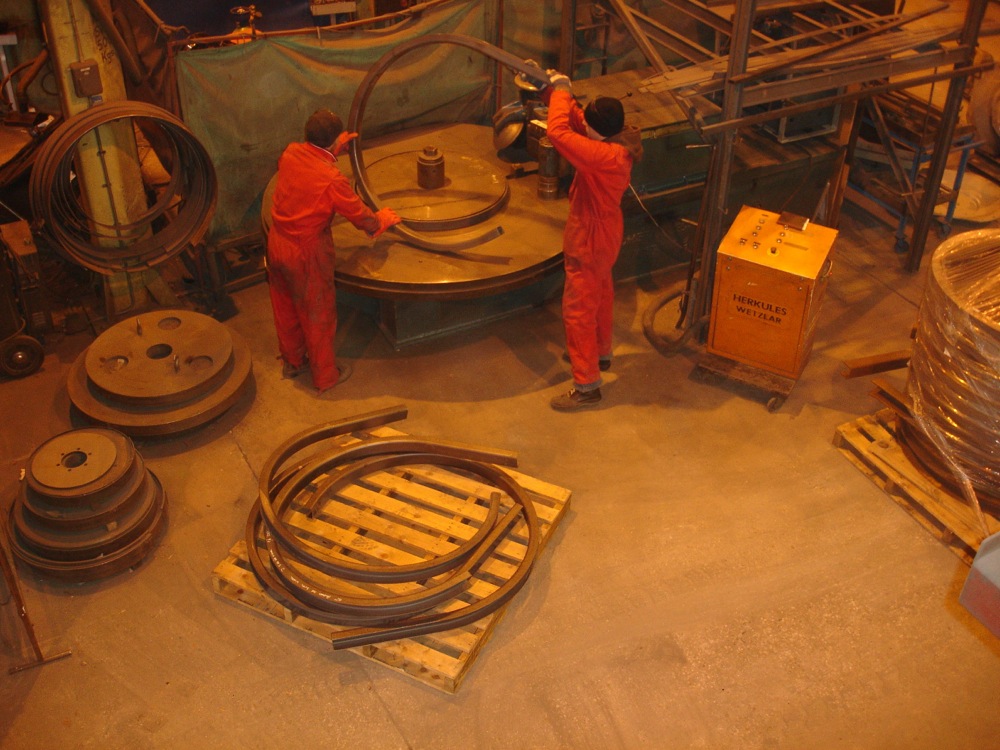

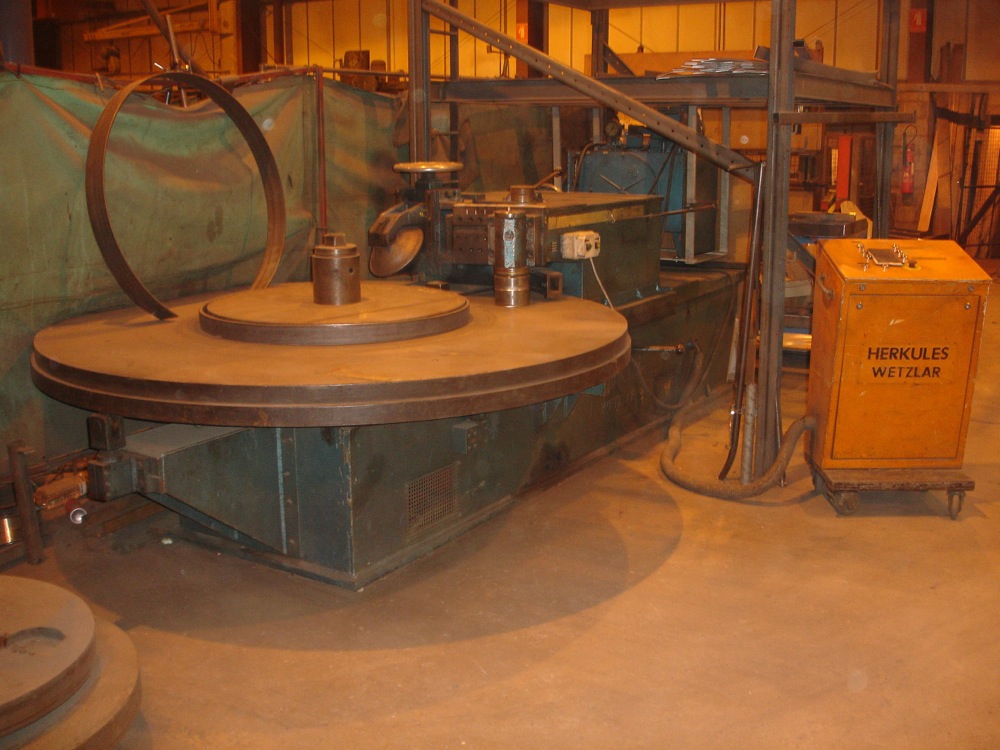

Herkules Wetzlar Rotary Ring Bending Machine with Hydraulic Clamping
Year 1979
Hot Bending 950 degrees C
Angles – leg out 101mm x 101mm x 19mm
Min. Internal Diameter 889mm
Flats on Edge 120mm x 41mm
Cold Bending
Angles legs-out 76mm x 76mm x 19mm
Min. Internal Diameter 889mm
Smallest Diameter 203mm
Rotary table diameter 1240mm, with enlarge ring 2230mm
3 Speeds 1.6 / 3.2 / 6.4rpm
Flange mounted to tank
Push button control panel
Machine diamensions:
L 4410mm x W2230mm x H1420mm
Approx Machine Weight 5000kgs
Location: Wisbech, Cambridgeshire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
