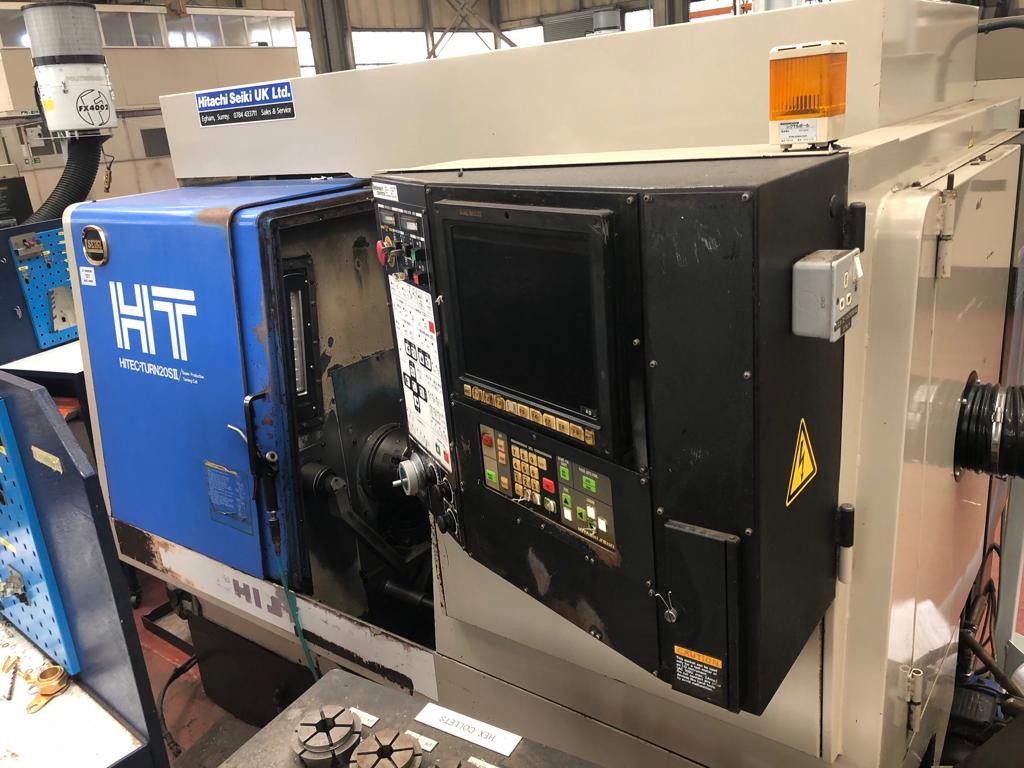

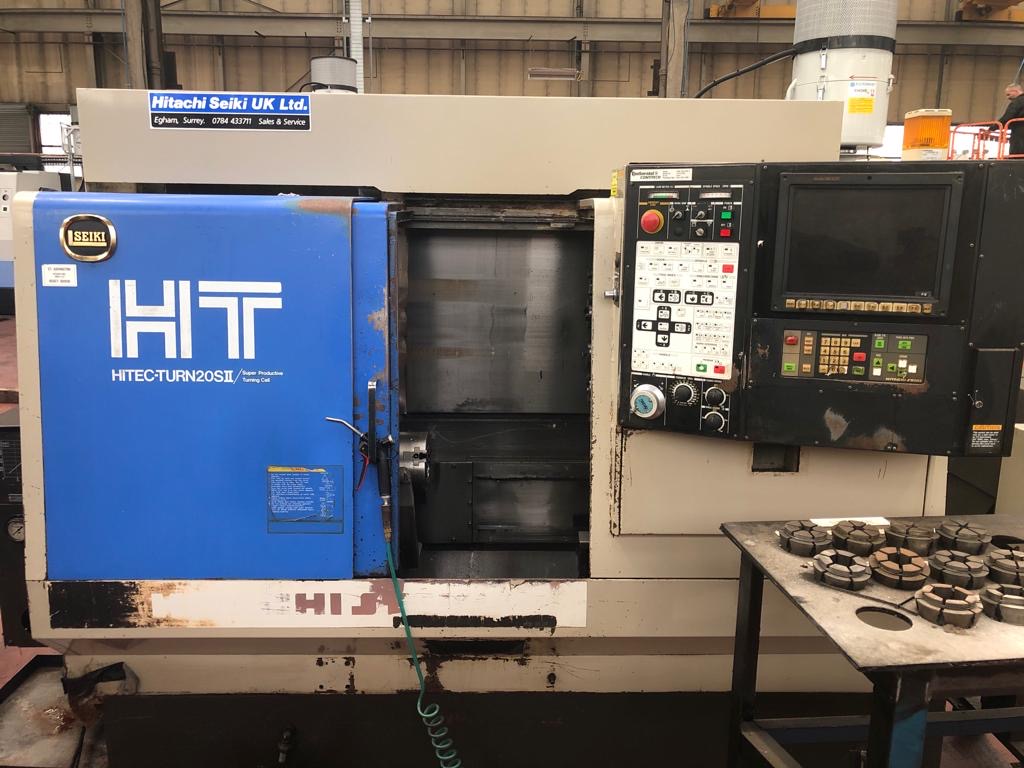

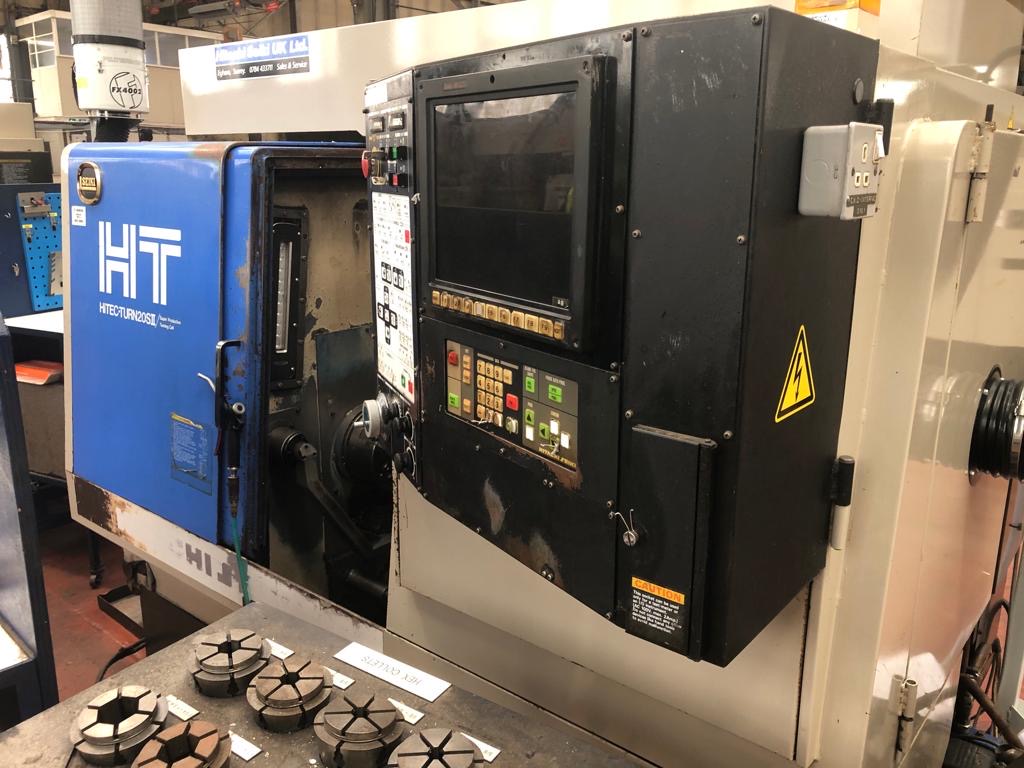

Lot 6 - Hitachi HT20SII CNC Lathe

Description:

Tailstock,

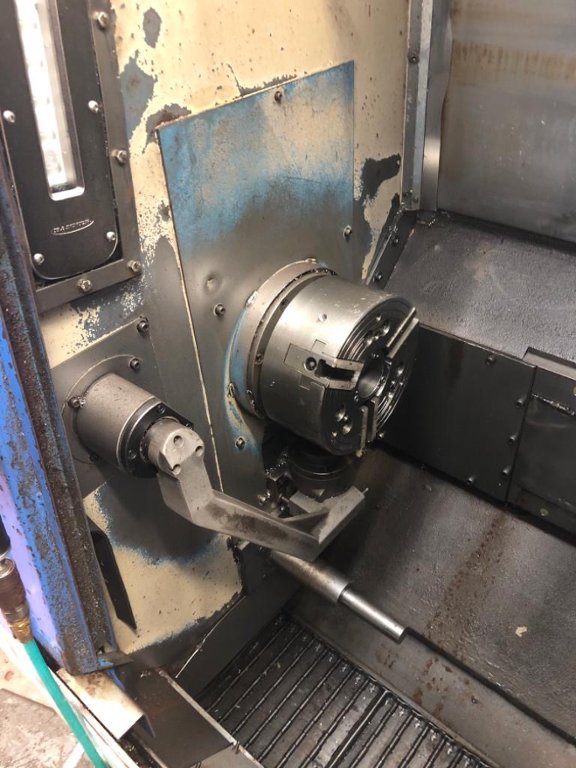

3 jaw 200mm power chuck,

Tool setter,

Swarf conveyor

Tooling as per photos

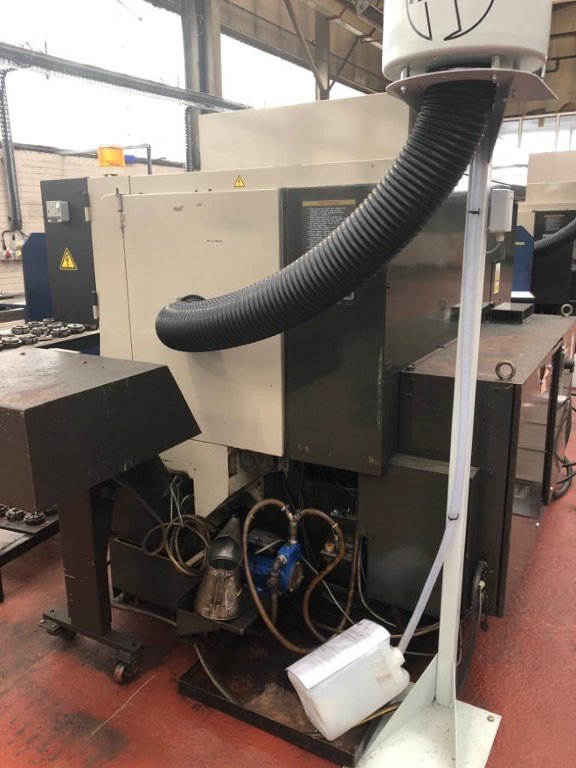

(FILTERMIST NOT INCLUDED)

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Distance between centres 630mm
Swing over bed 380mm
Spindle hole 59mm
Turning diameter 210mm
Bar diameter 51mm

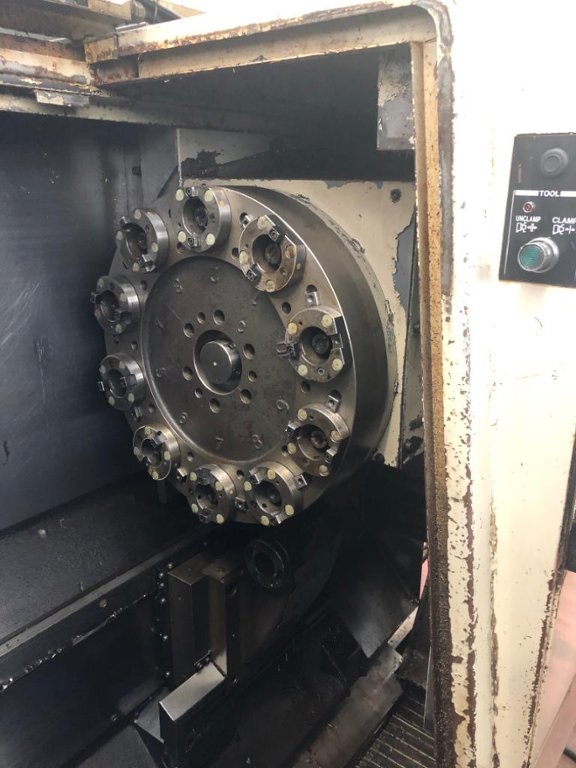

Number of positions turret 10
Camlock A2-6"
Spindle speeds: stepless from 30rpm up to 5000 rpm

Bid information

Time remaining

HRSMINSEC
000000

13 Feb 2020 16:00:00 GMT


Final remove by date: 27/Feb/2020

Location: Dudley

Lot location

Transport information

  • Width: 3403 mm
  • Depth: 2082 mm
  • Height: 2032 mm
  • Weight: 4100 kg
  • Other Transport Details: Loaded to suitable transport £150
