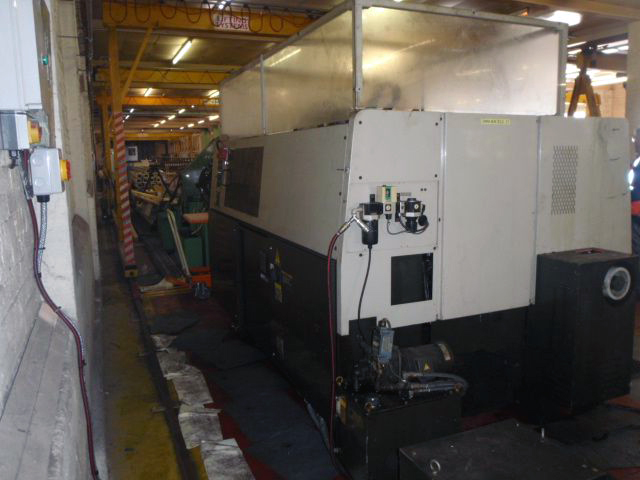

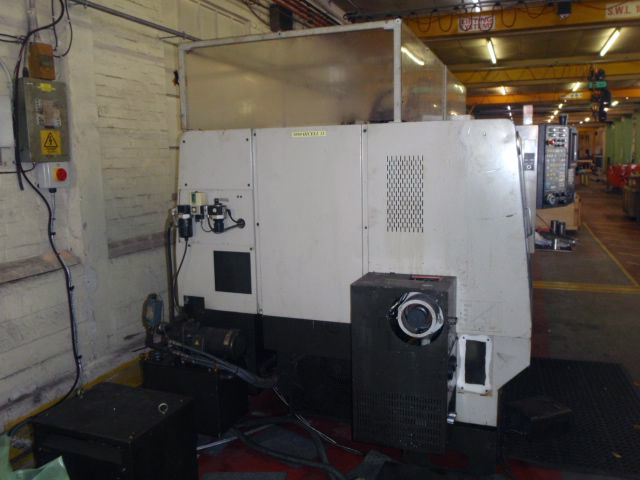

Hitachi Seiki HiCELL CA23 CNC Lathe

Lot 14 - Hitachi Seiki HiCELL CA23 CNC Lathe

Description:

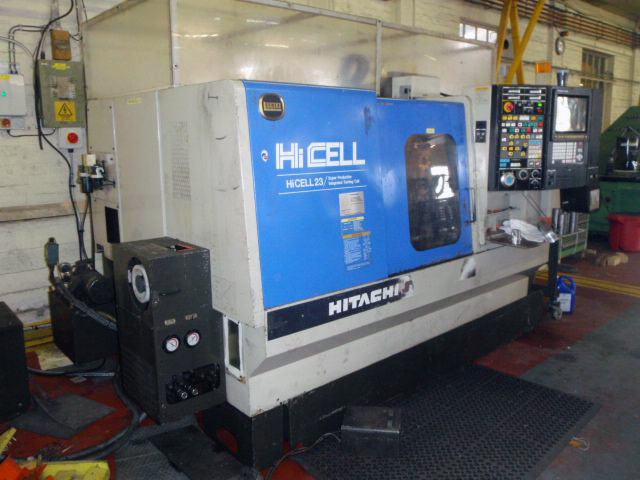

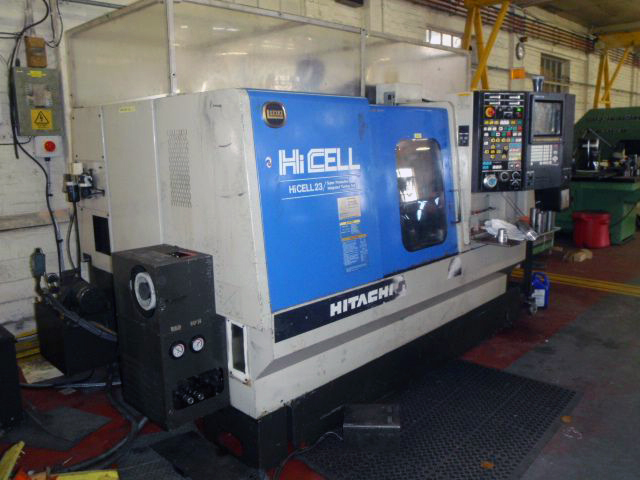

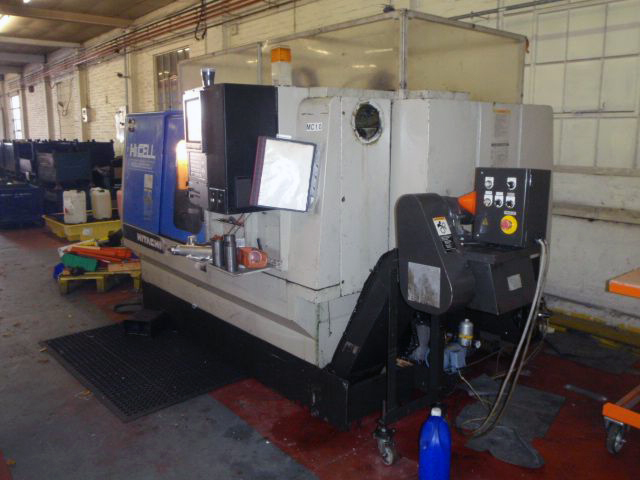

Hitachi Seiki HiCELL CA23 CNC Lathe

Year 1995

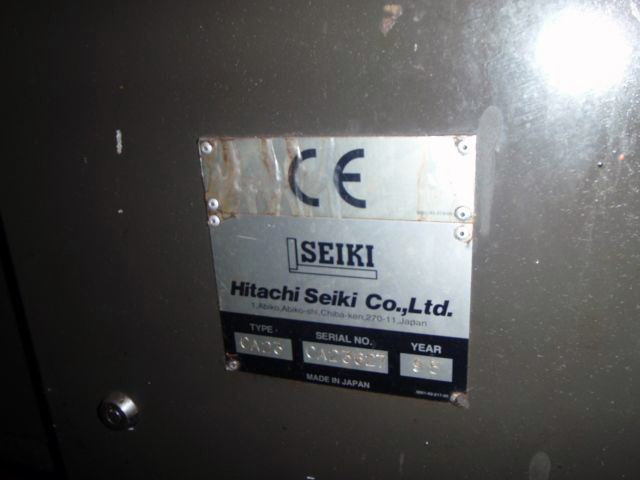

Serial Number: CA23627

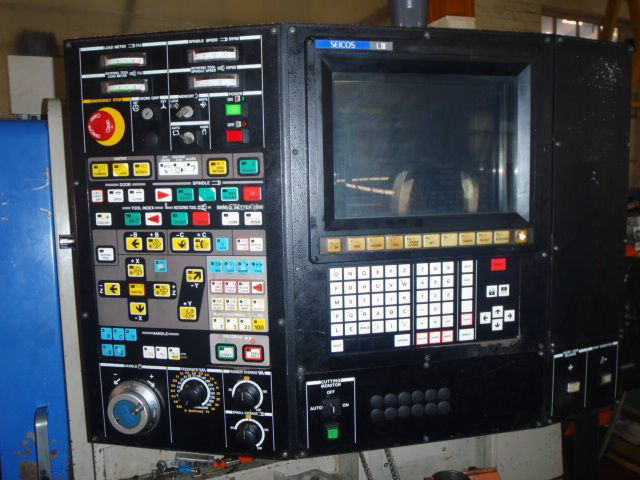

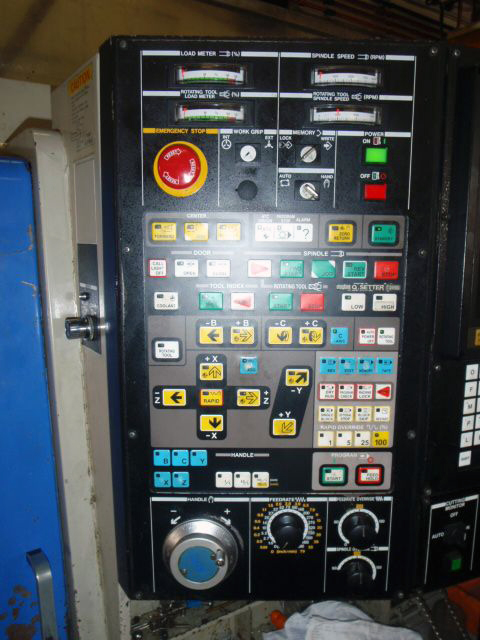

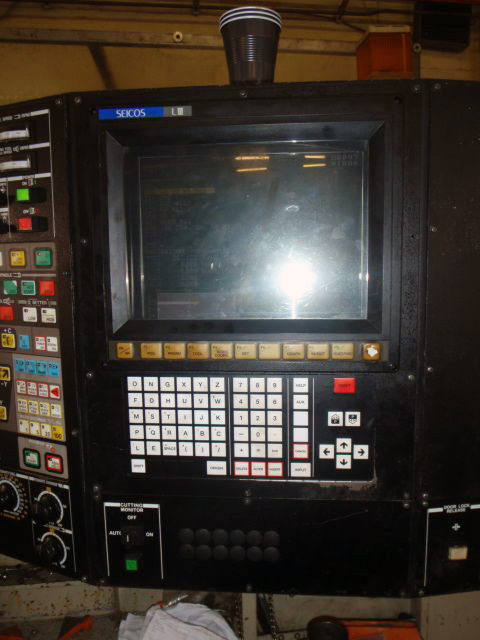

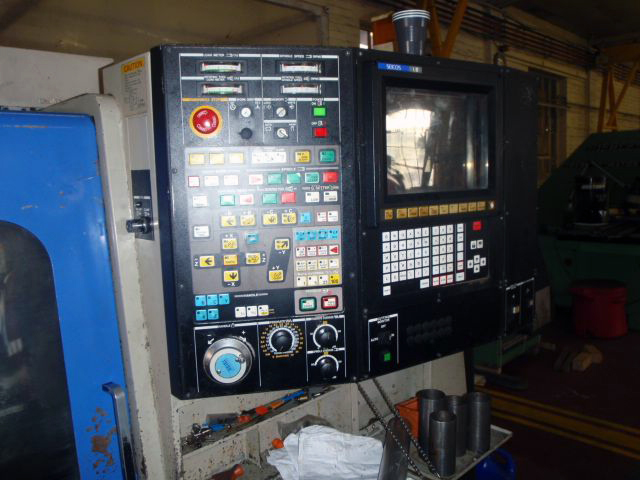

SEICOS LIII CNC Control
Swing Over Bed 400mm
Distance between Centres 500mm
Max. Turning Diameter over 500mm: 250mm
Bar Capacity 65mm
Spindle to Tool Edge 110~640mm
Spindle Speeds 20~3600rpm
Spindle Motor 15kw
Speed Ranges Stepless
Spindle Nose A2-8
Hole Through Spindle 78mm

X Axis Travel: 215mm
Z Axis Travel: 530mm
Y Axis Travel: 100mm (+/- 50mm)
C Axis: 360,000
C Axis RPM: 33.3

Rapid Traverses:
X Axis: 20000mm/min
Z Axis: 24000mm/min
Y Axis: 10000mm/min

Turret Type QCT
Style of Tool Shank No.40 Short Shank
No. of Tools 10
Driven Stations 5
Speed 100~3000rpm
Rorating Motor 5.5kw

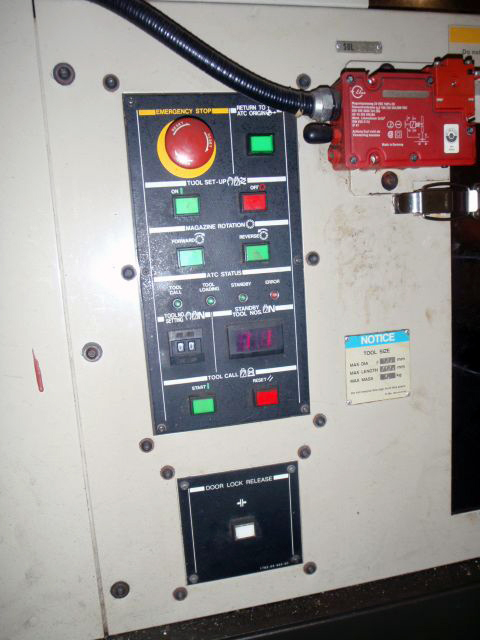

20 Station Automatic Tool Changer

Machine Dimensions:
Width 3103mm x Depth 2150mm x Weight 5000Kgs

Complete with:
Full Service History

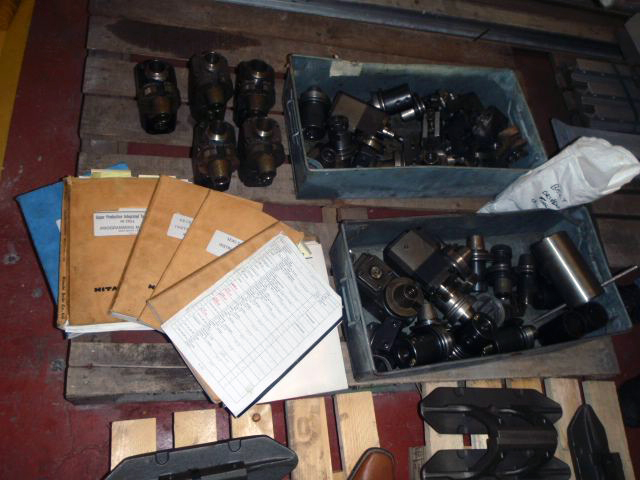

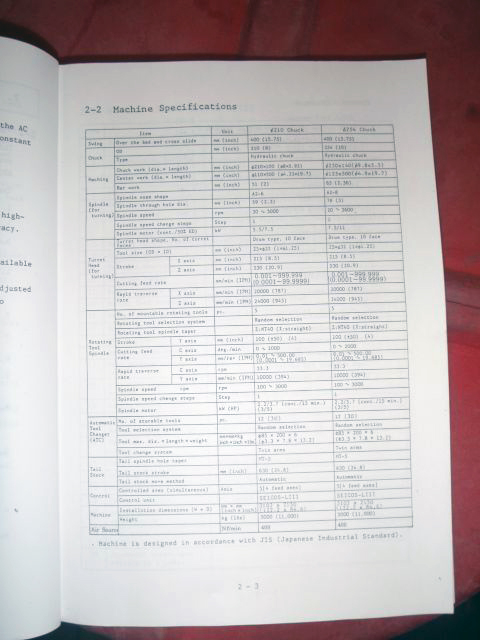

Manuals
254mm 3 Jaw Hydraulic Chuck
Selection of Jaws

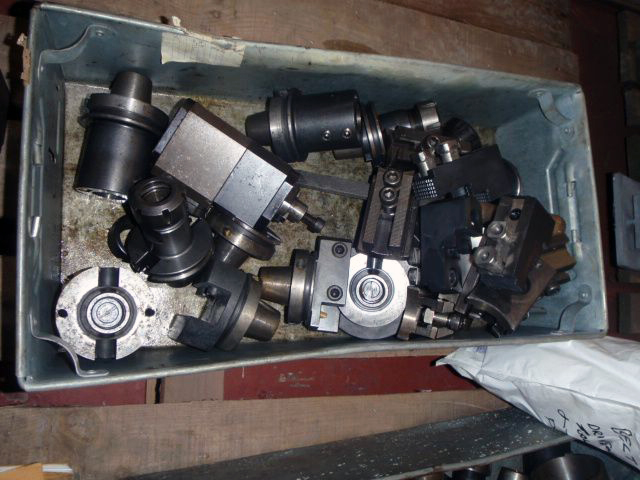

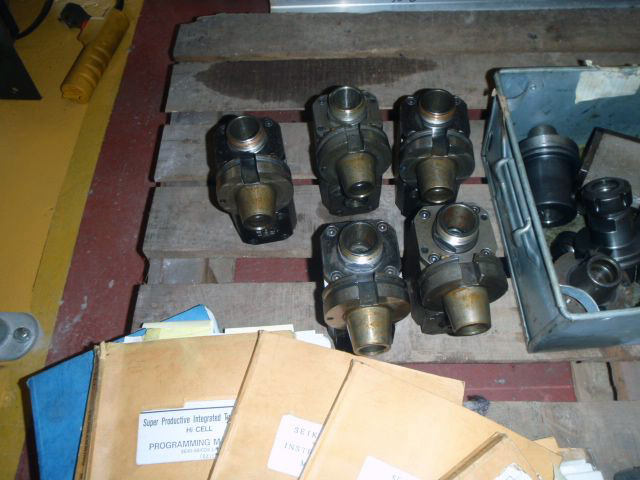

Live Tooling

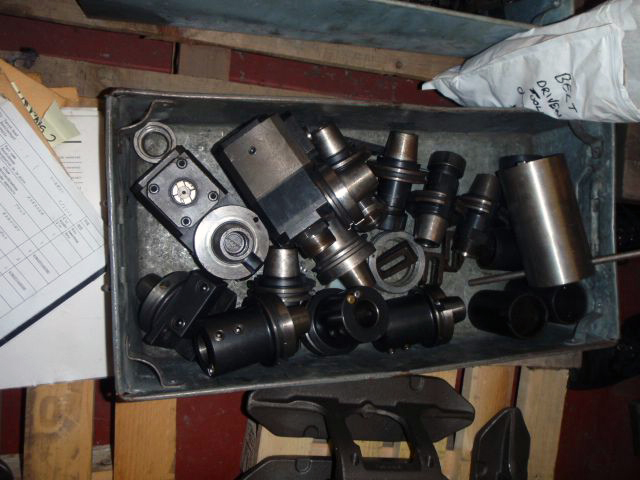

Turret Tooling
Coolant

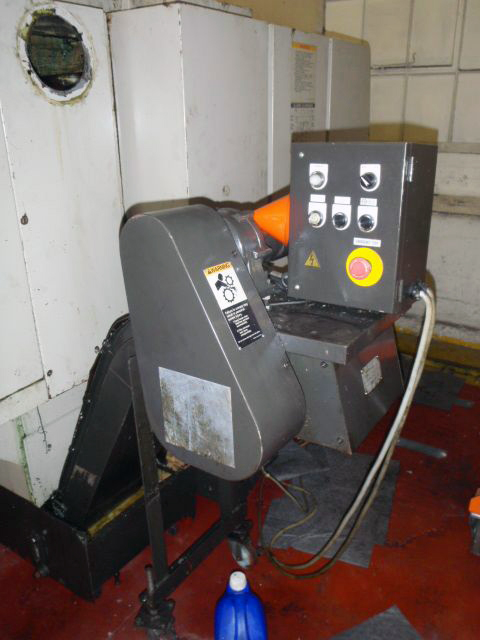

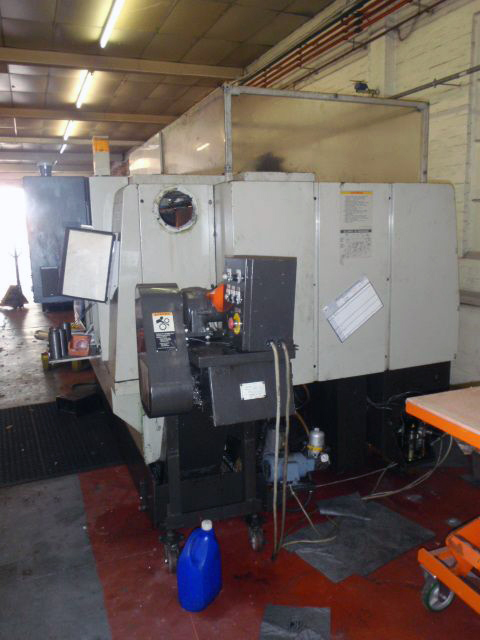

Swarf Conveyor
Automatic Tailstock

Location: Chard, Somerset

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
