Lot 5 - Hitachi Seiki Hit 20 CNC Lathe

Description:

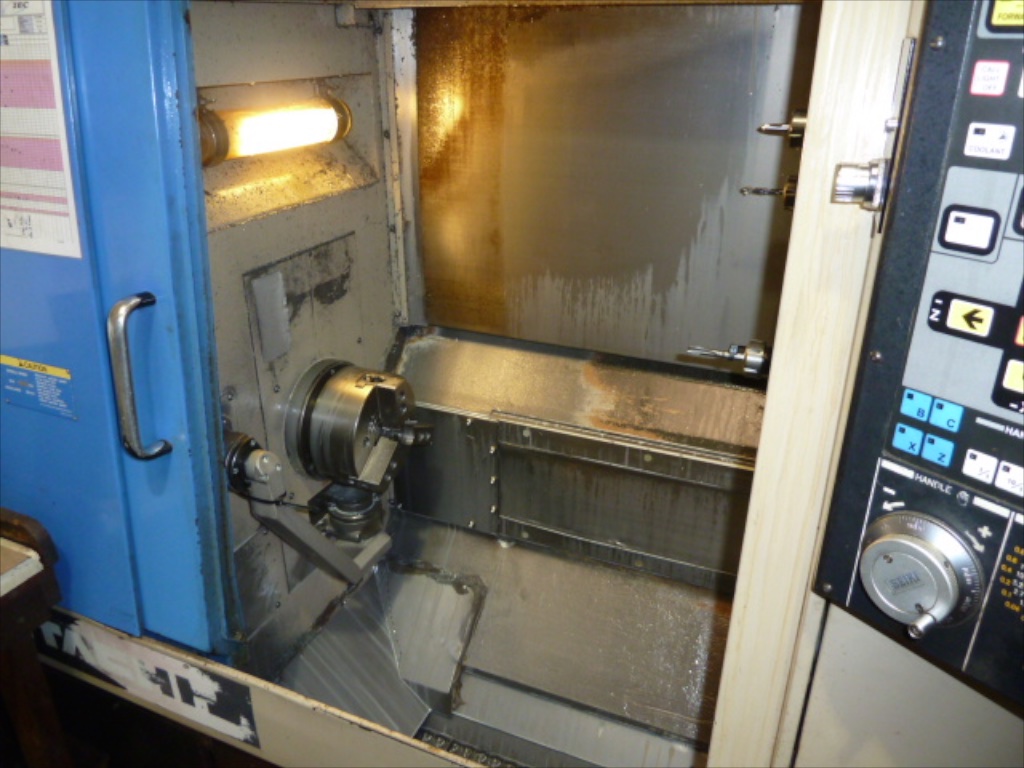

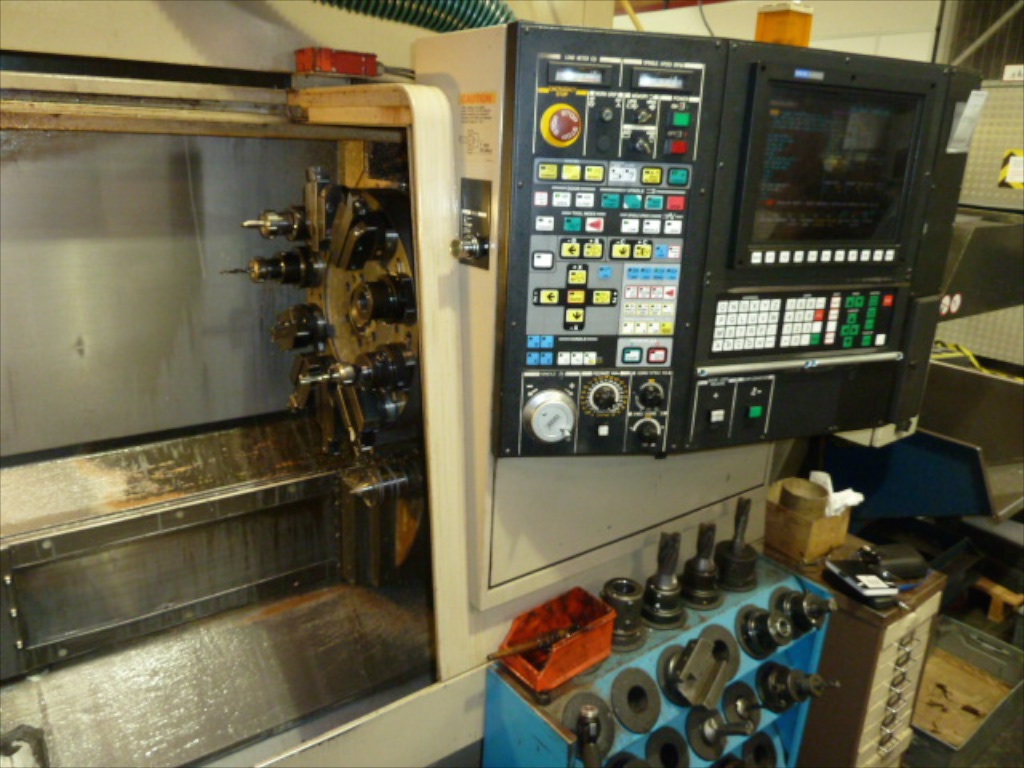

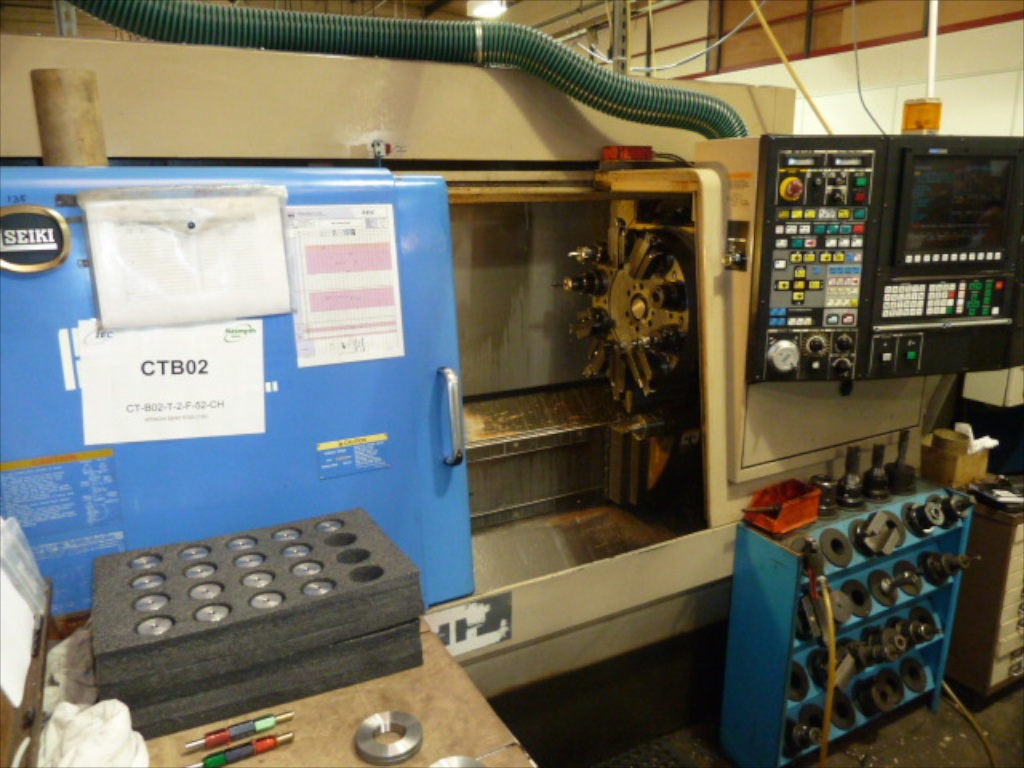

Hitachi Seiki Hit 20 CNC Lathe

Distance between centres 630mm
Swing over bed 380mm
Spindle hole 59mm
Turning diameter 210mm
Bar diameter 51mm
Clamping chuck diameter 210mm
Turning length 380mm
Carriage:
Longitudinal travel (Z-axis) 400mm
Transversal strocke (X axis) 200mm

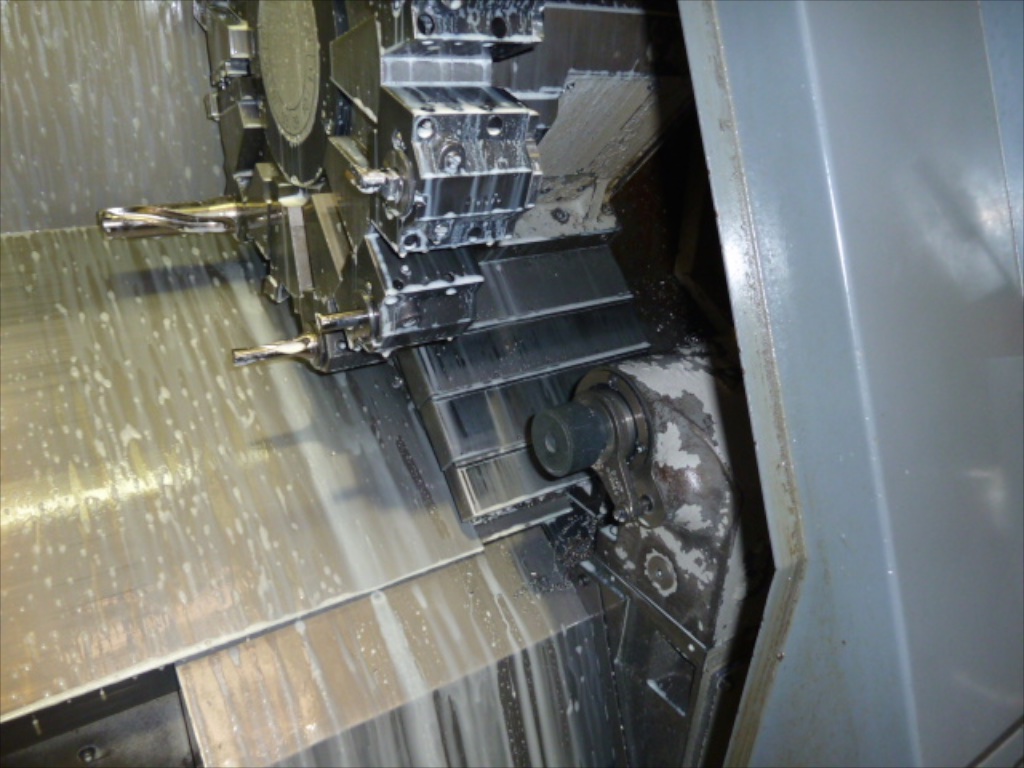

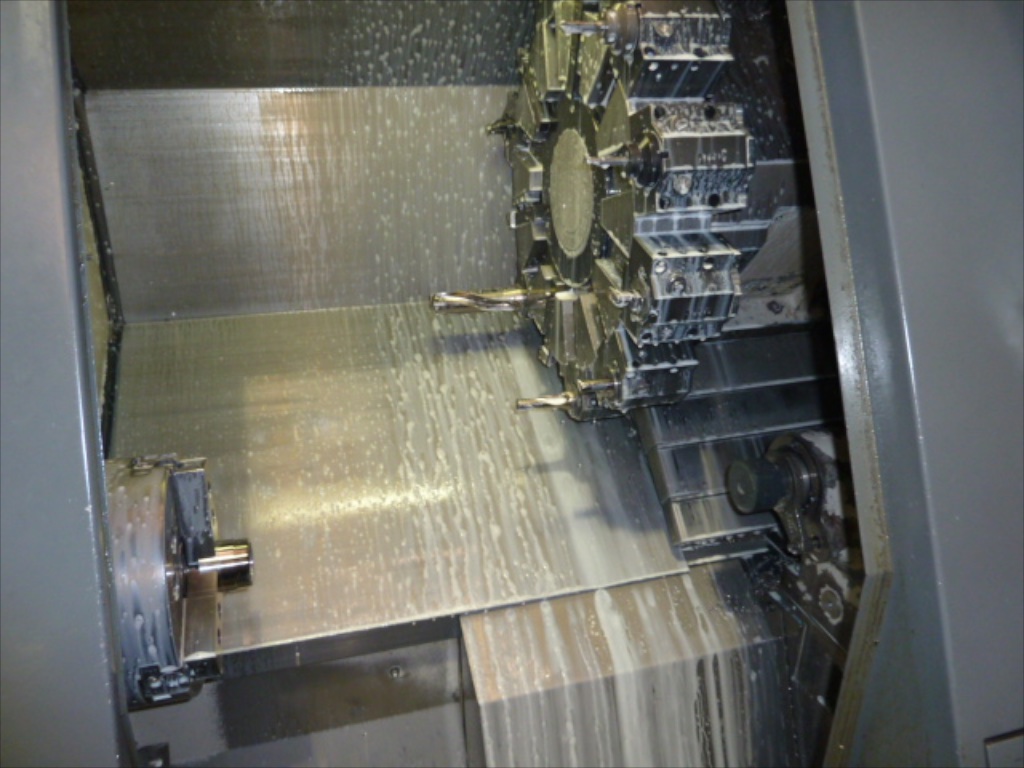

Number of positions turret 12
Camlock A2-6"
Spindle speeds: stepless from 30rpm up to 5000 rpm
Taper in tailstock: Morse taper 5

Tailstock,
3 Jaw chuck,
Collet chuck,
Hydrafeed ML1 barfeed

Machine Size 1700 x 2700 x 2100 high aprrox

Location: Leicester

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
