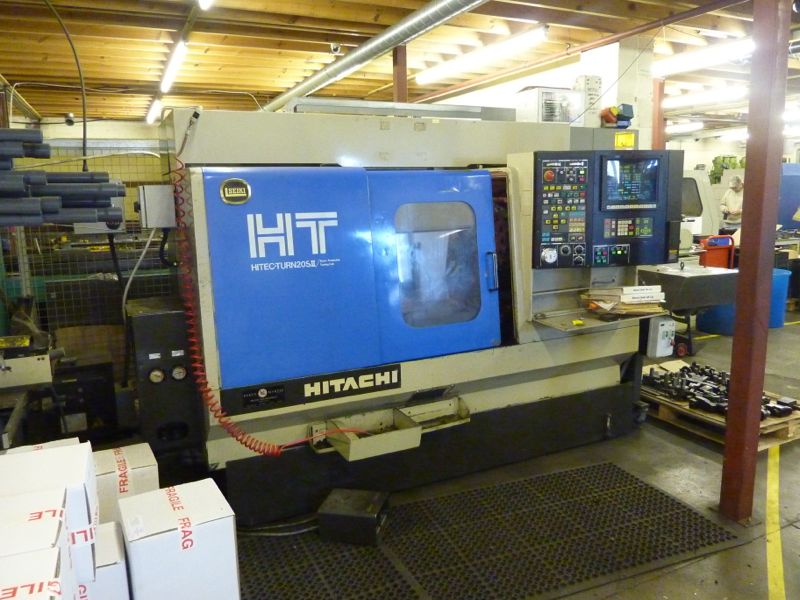

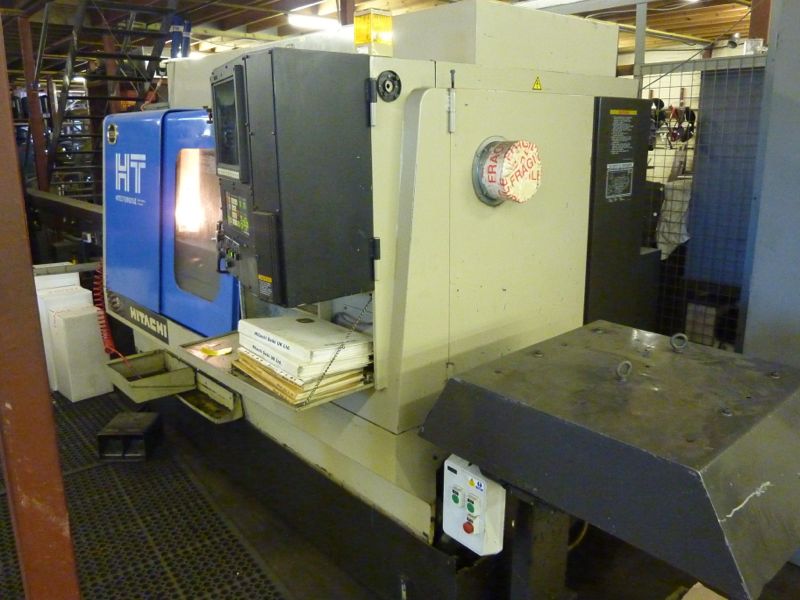

Hitachi Seiki HItec-turn20SII with Sub Spindle and Driven Tooling

Lot 4 - Hitachi Seiki HItec-turn20SII with Sub Spindle and Driven Tooling

Description:

Hitachi Seiki HItec-turn20SII
Sub Spindle with Driven Tooling, Drilling and Milling Facility

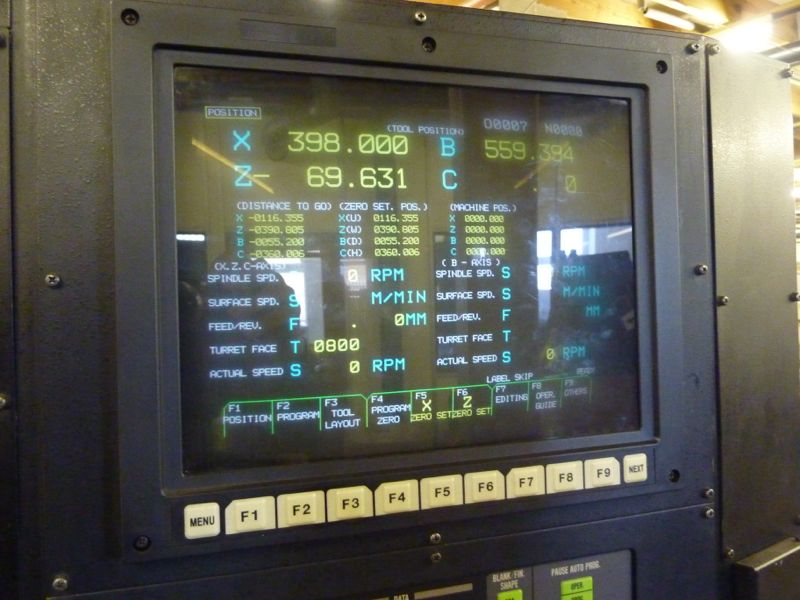

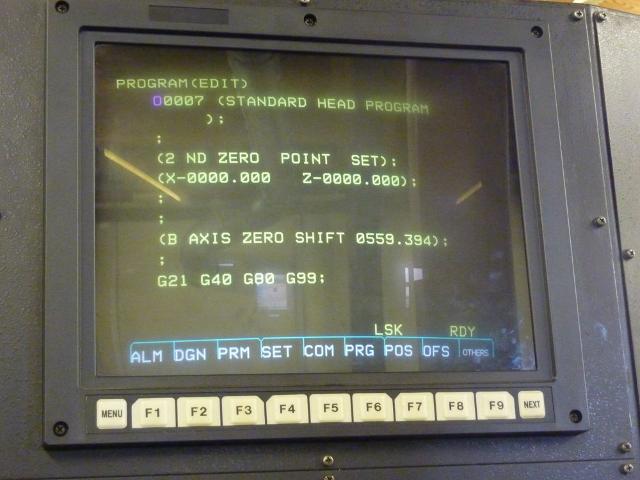

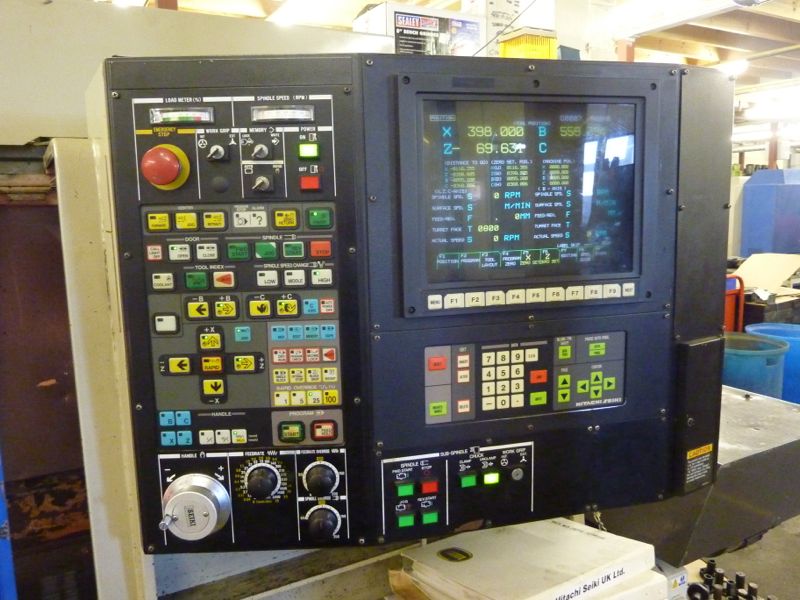

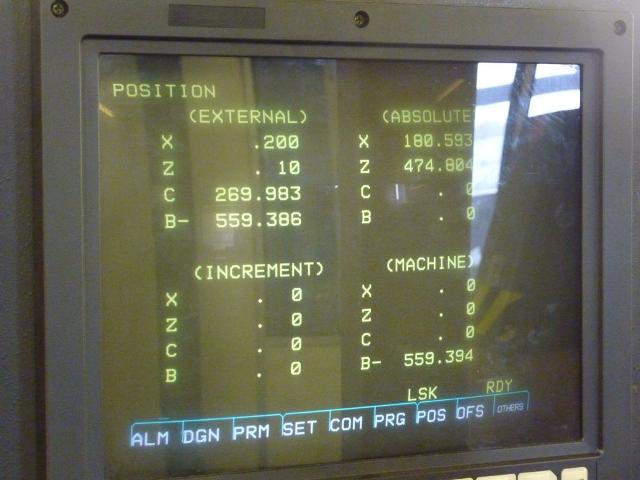

Seicos Multi CNC Control
Number of Axes: 4
Swing: 380mm
Turning Diameter: 210mm
Turning Length: 380mm
Country of Origin: Japan
Spindle Power: 11kw
Bar Capacity: 51mm
Spindle Nose: A2-6
Spindle Speed: 5000rpm
Chuck Size: 210mm
Face Plate: 1mm

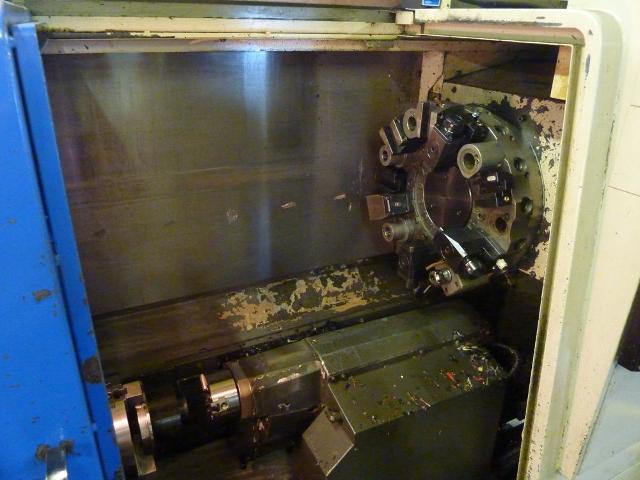

Tool Stations: 16
Driven Stations: 13
Axis X: (Standard)
X Travel 200mm
X Rapid 20m / min
Axis Z: (Standard)
Z Travel: 400mm
Z Rapid: 24m / min
VDI-40 Tooling

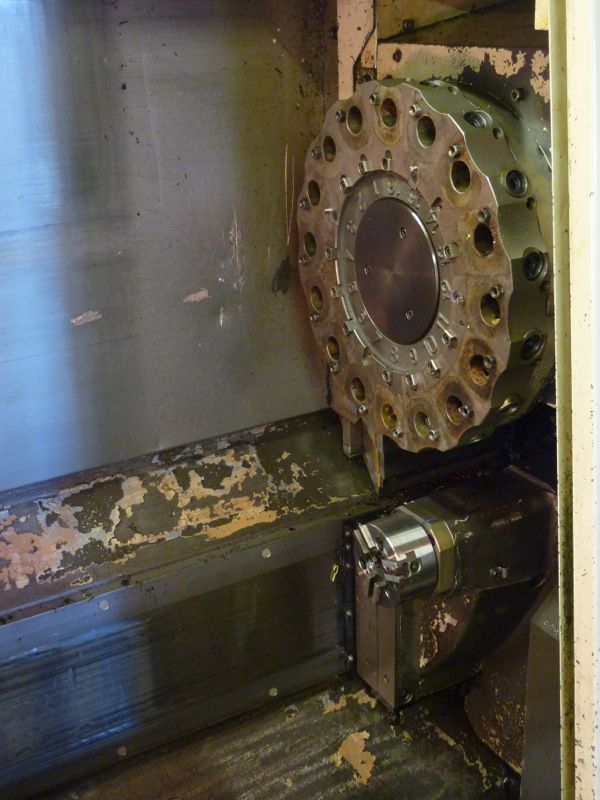

Sub Spindle
Chuck 110mm
Maximum Dia 100mm
Spindle Speed: 30-5000rpm
B Axis

C Axis for milling.

Mill/Drill

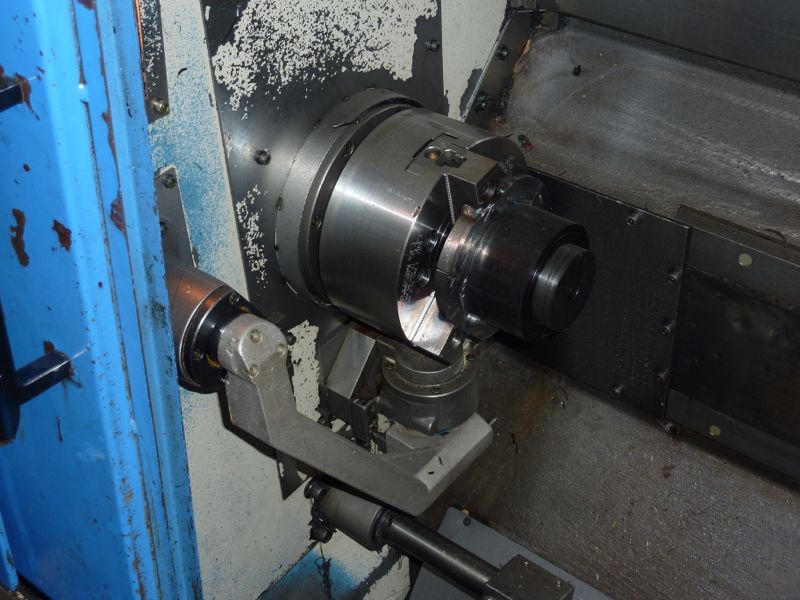

Parts catcher
Tool presetter

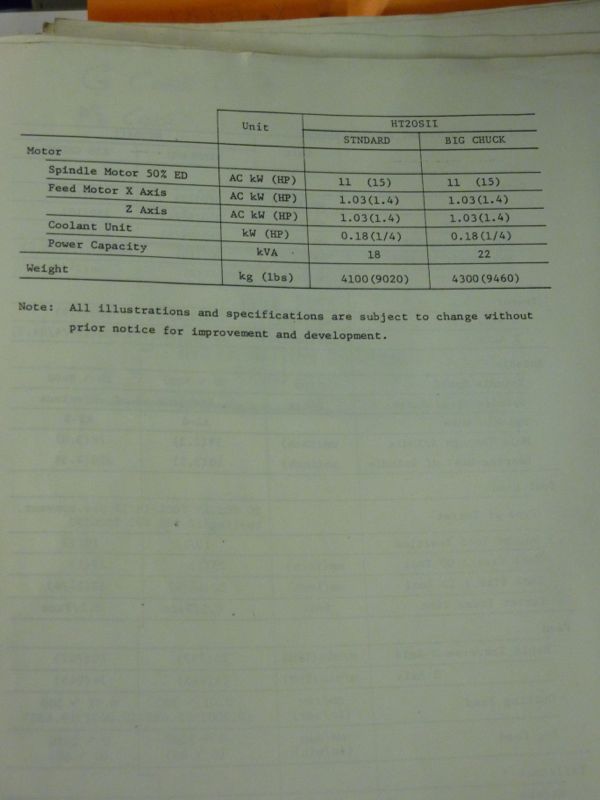

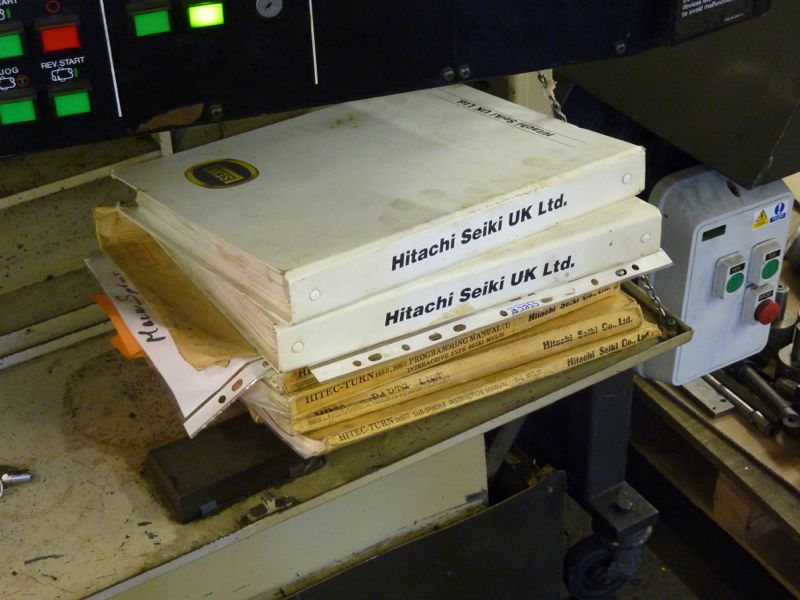

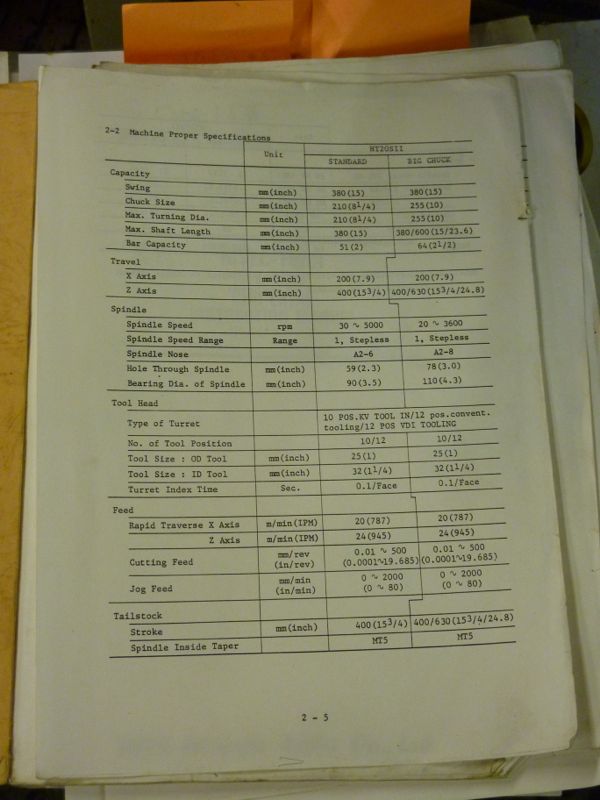

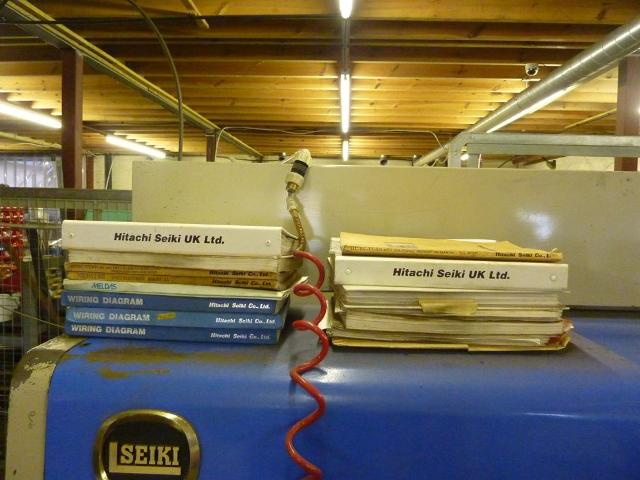

Manuals

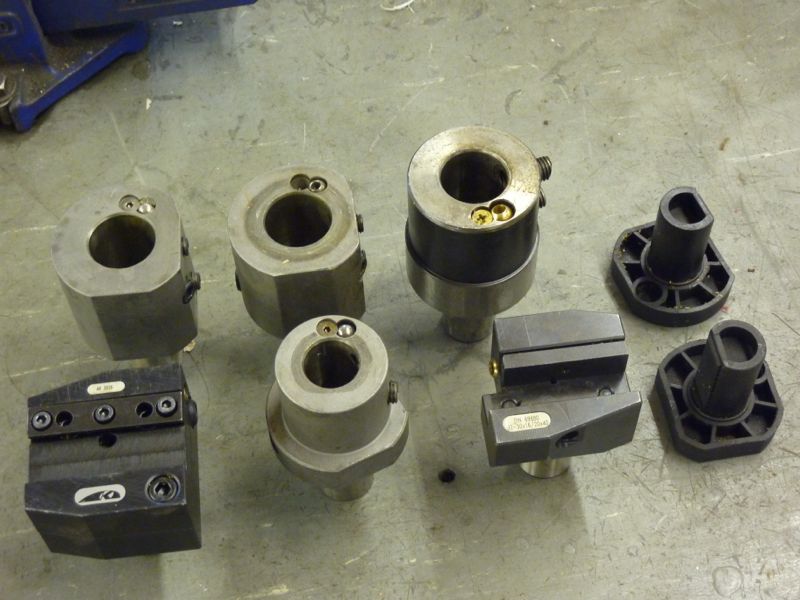

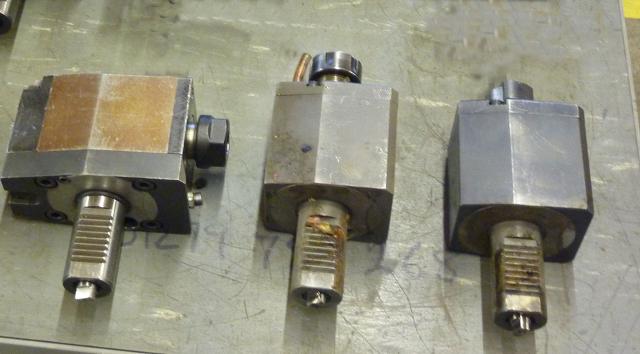

Includes 3 x Driven Tool Holders and 6 Standard Tool holders

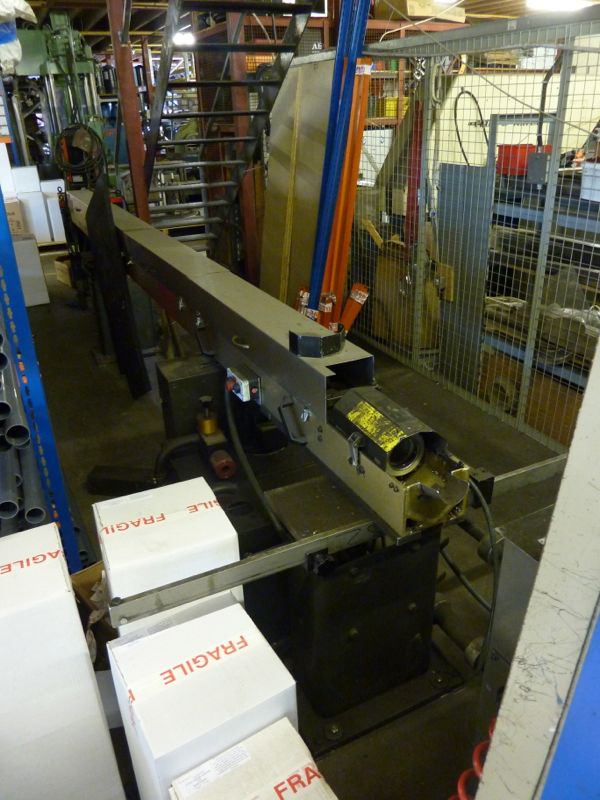

Sameca Monosam 65HS barfeed

Year: 1991

Location: Harlow, Essex

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
