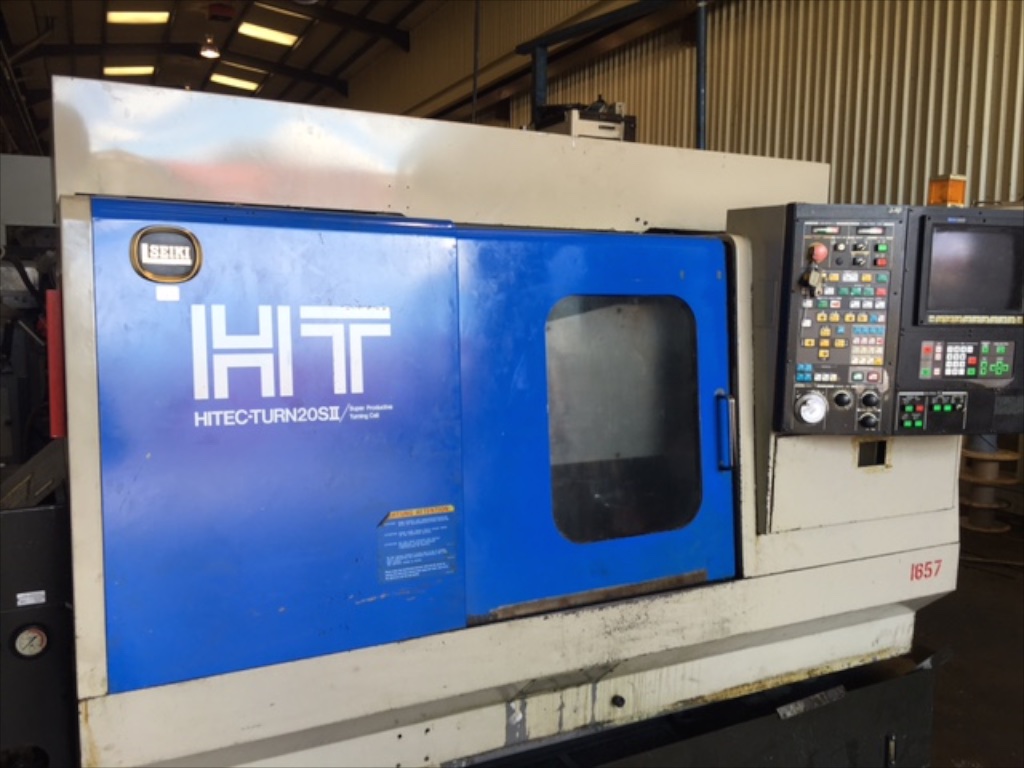

Lot 5 - Hitachi Seiki HT20SII – 400 CNC Lathe with C Axis, Milling and SubSpindle
Description:

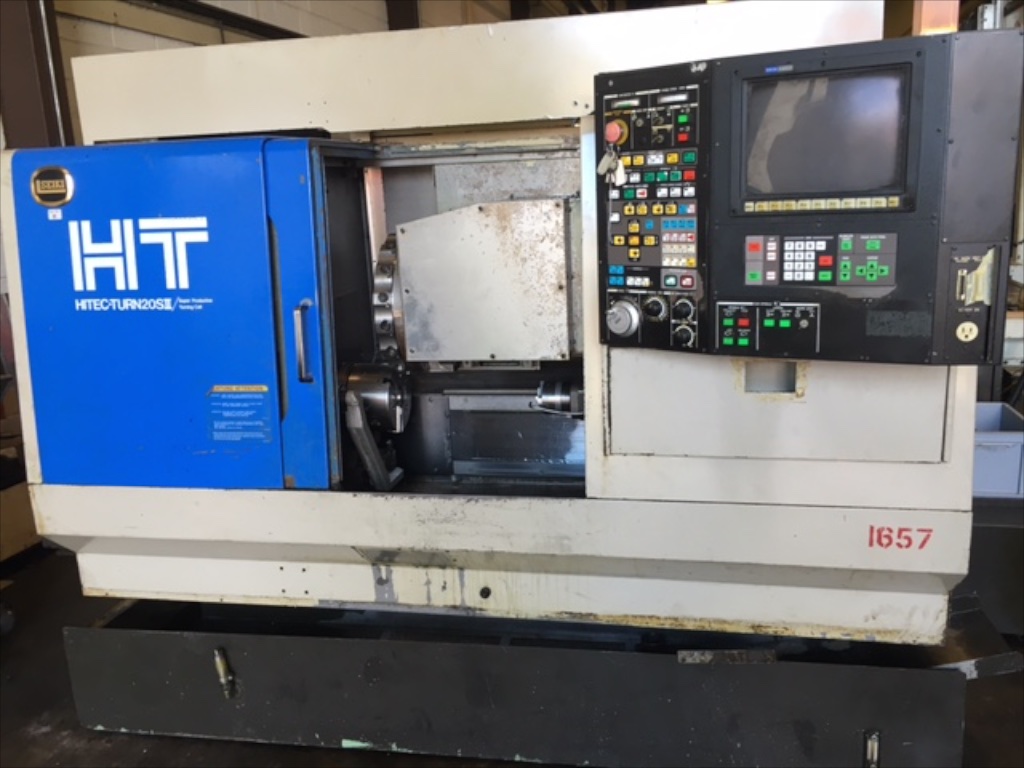

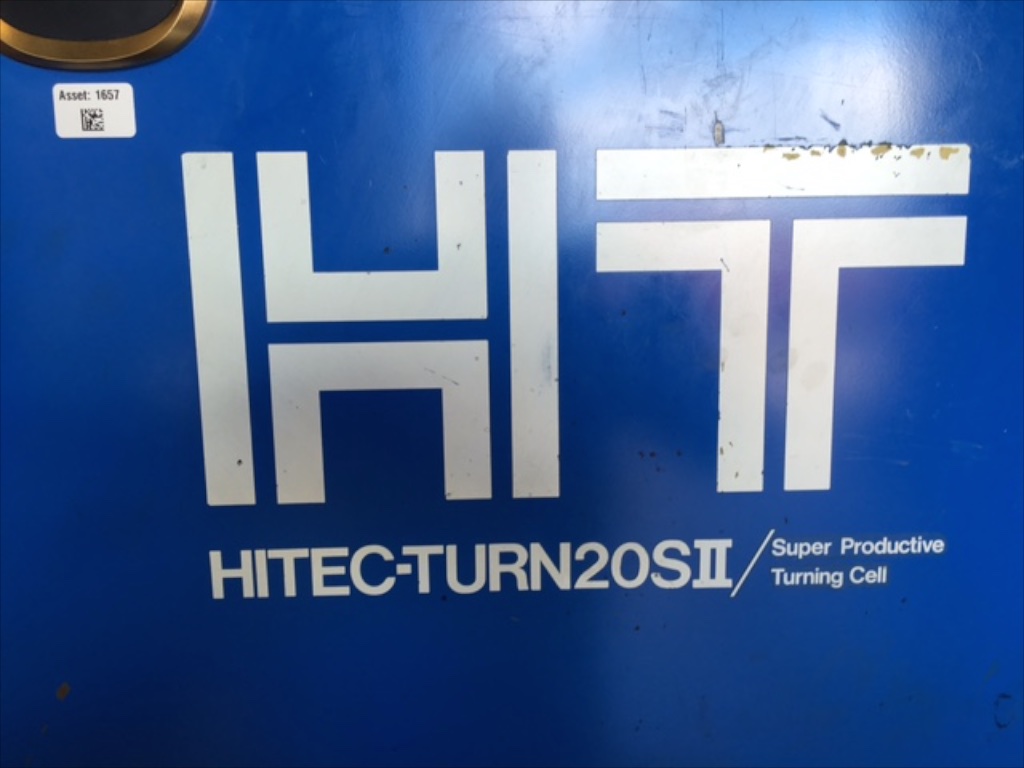

Hitachi Seiki HT20SII – 400 CNC Lathe with C Axis, Milling and Sub Spindle
Year installed 1995

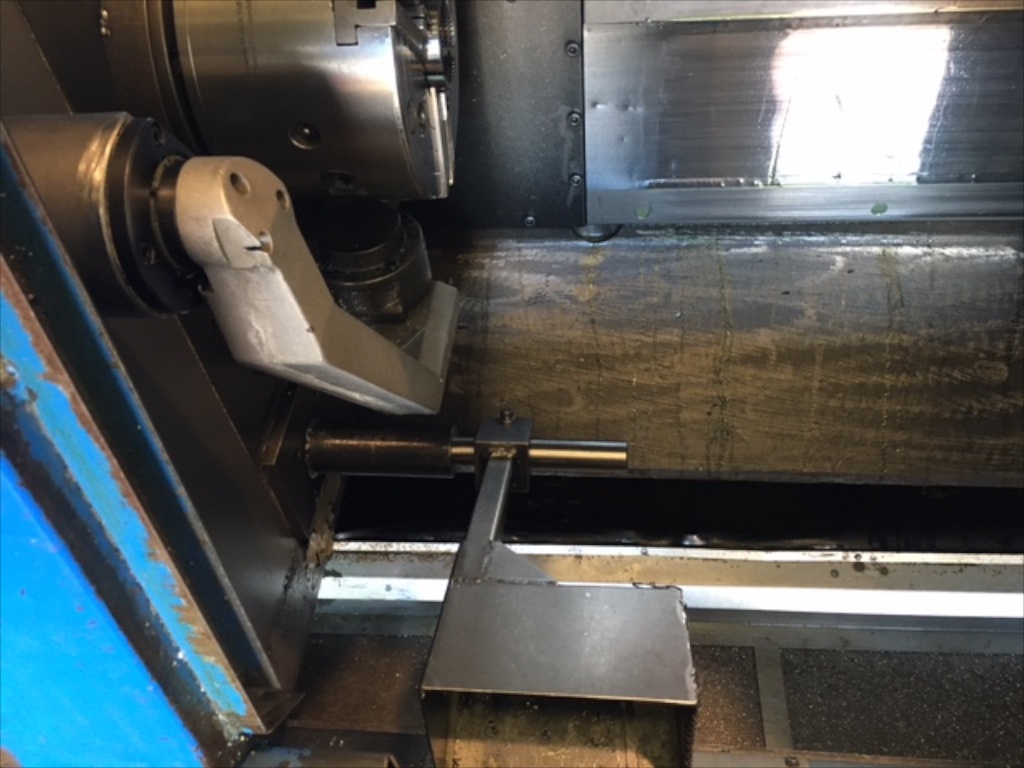

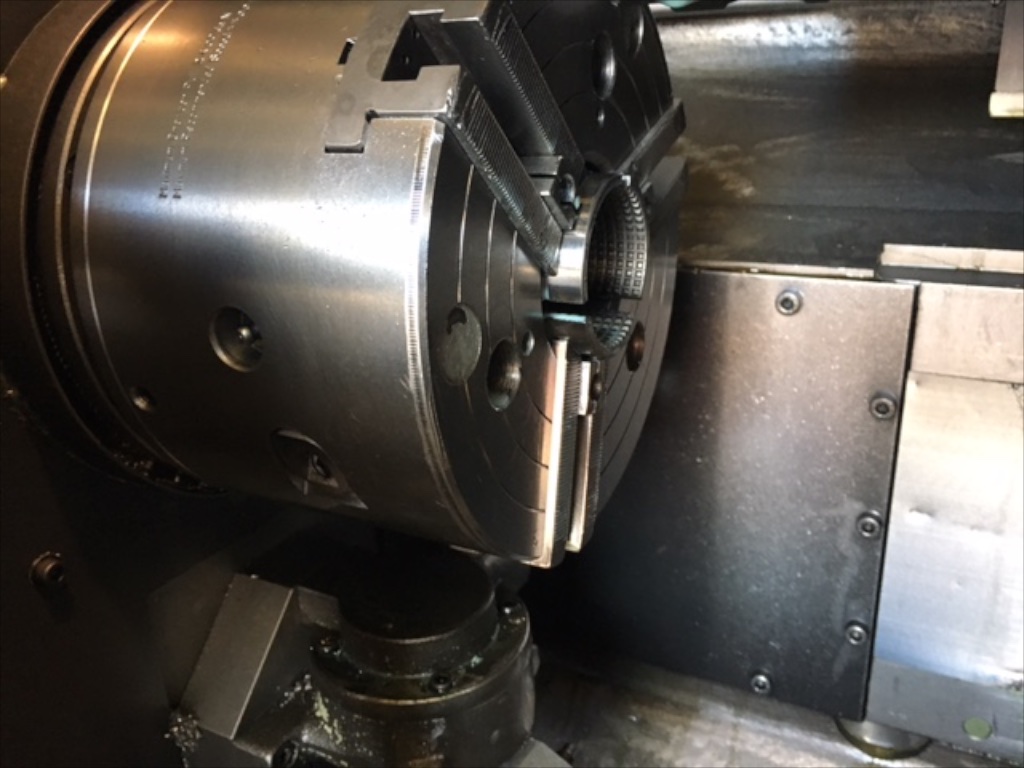

200mm 3 jaw power chuck

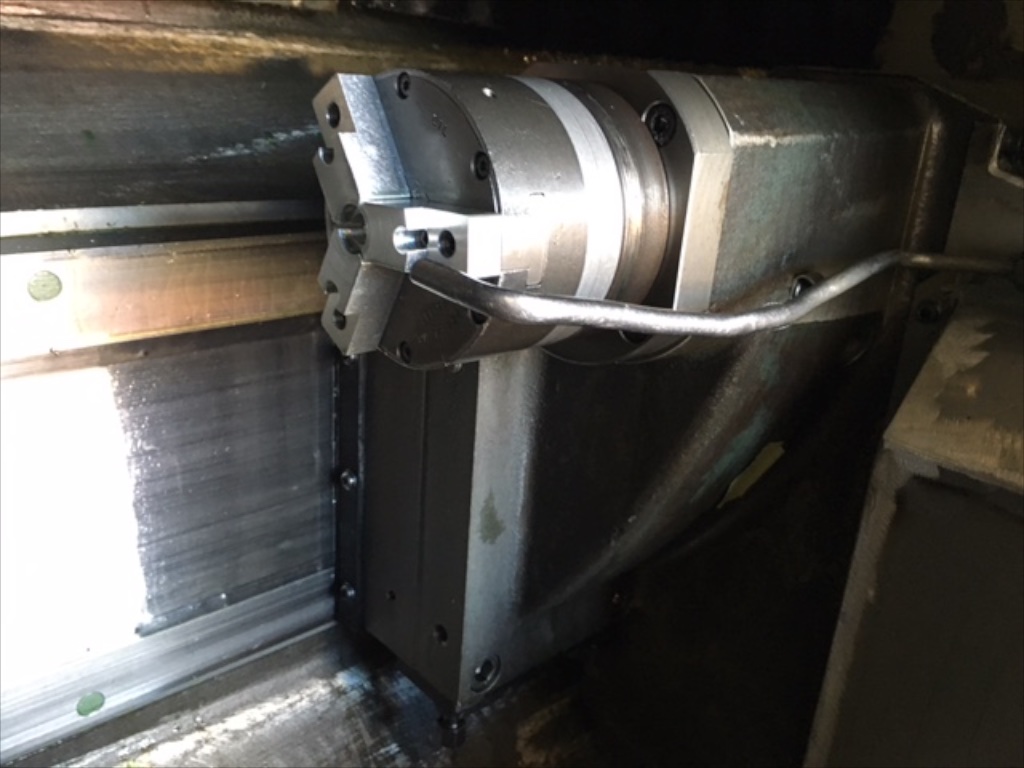

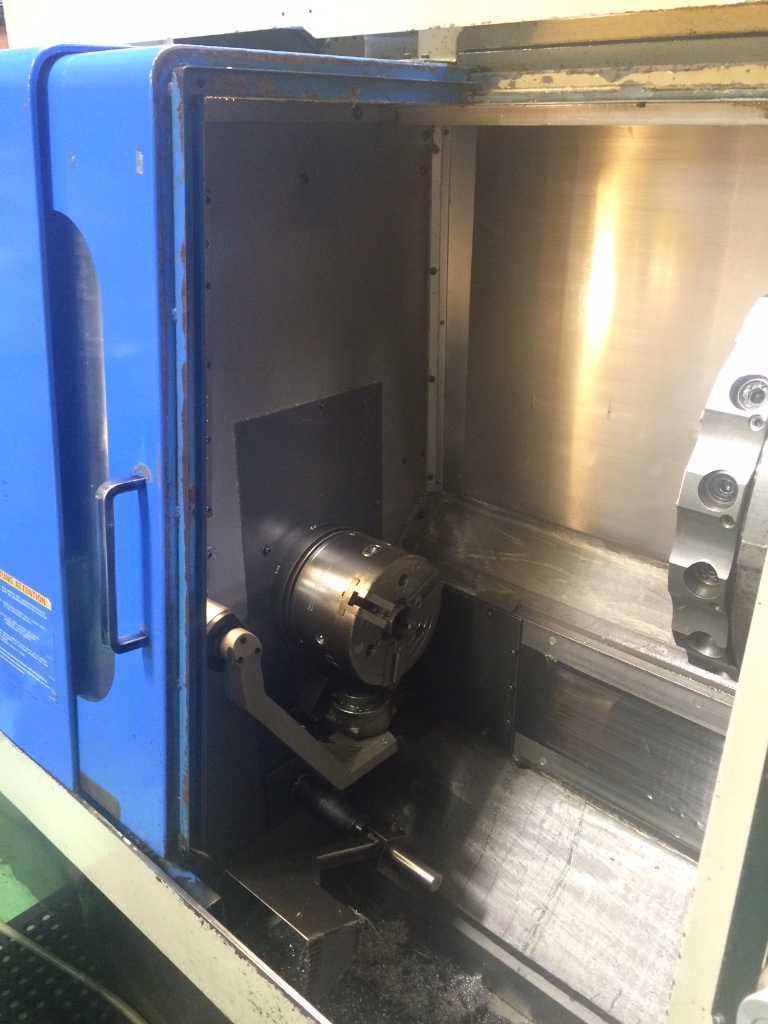

100mm sub spindle
51mm bar capacity
Spindle bore 59mm
Spindle nose A2-6
Max machining length 370mm
Max swing 380mm
5,000 rpm main spindle

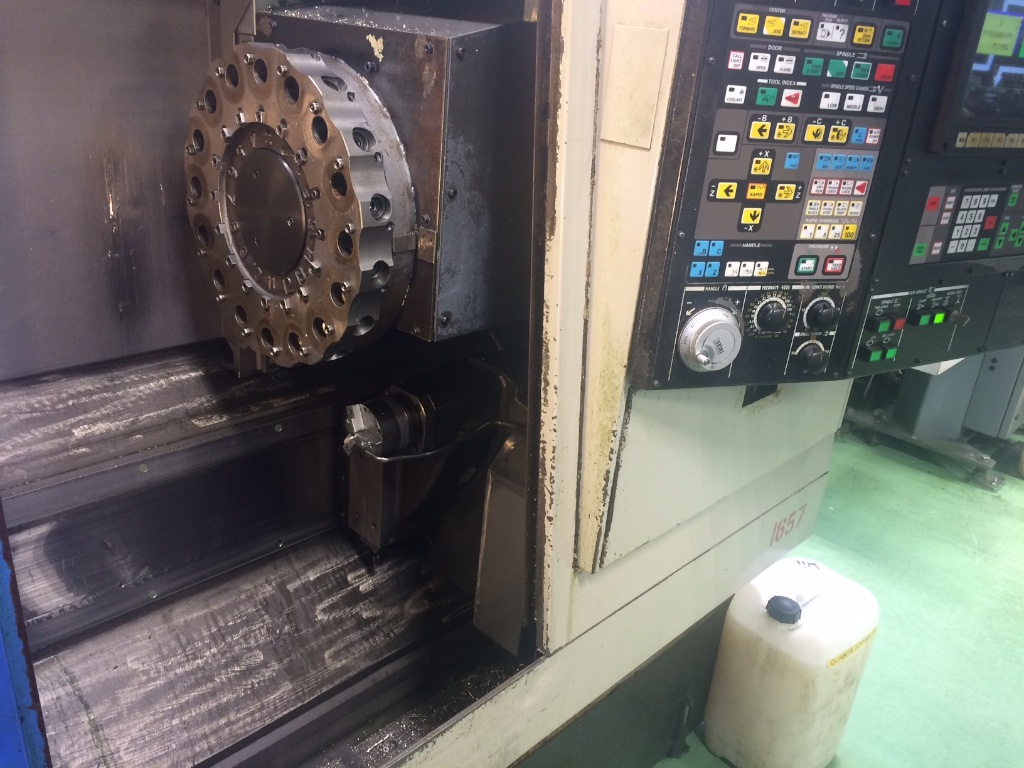

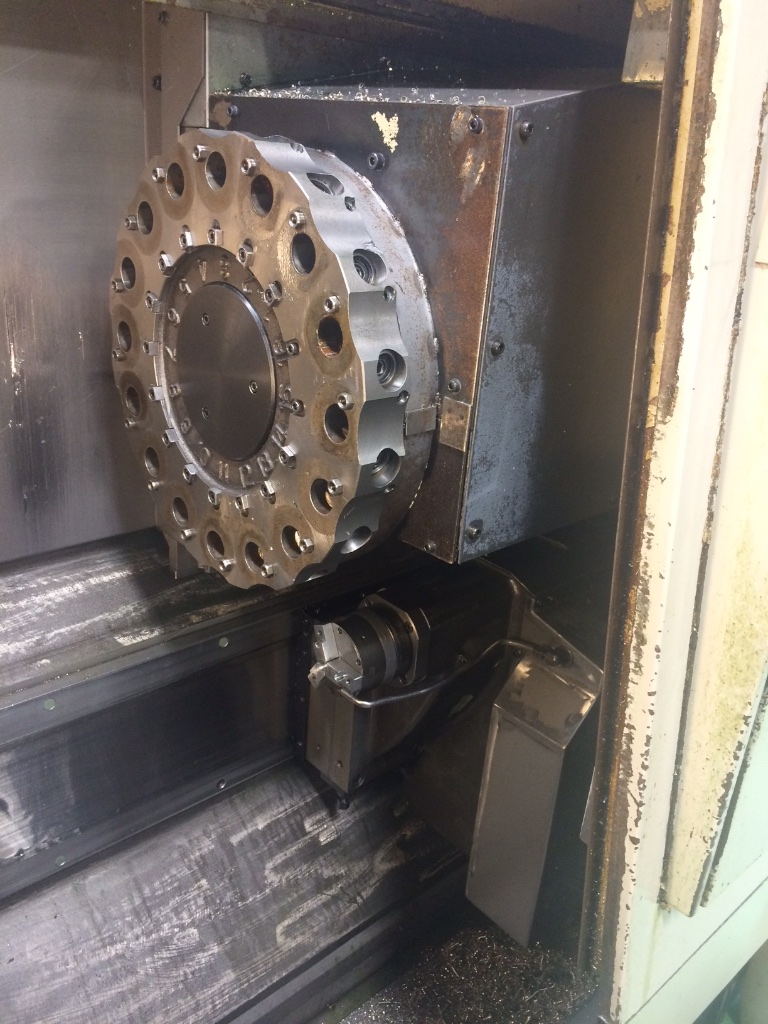

16 station turret with 16 driven positions

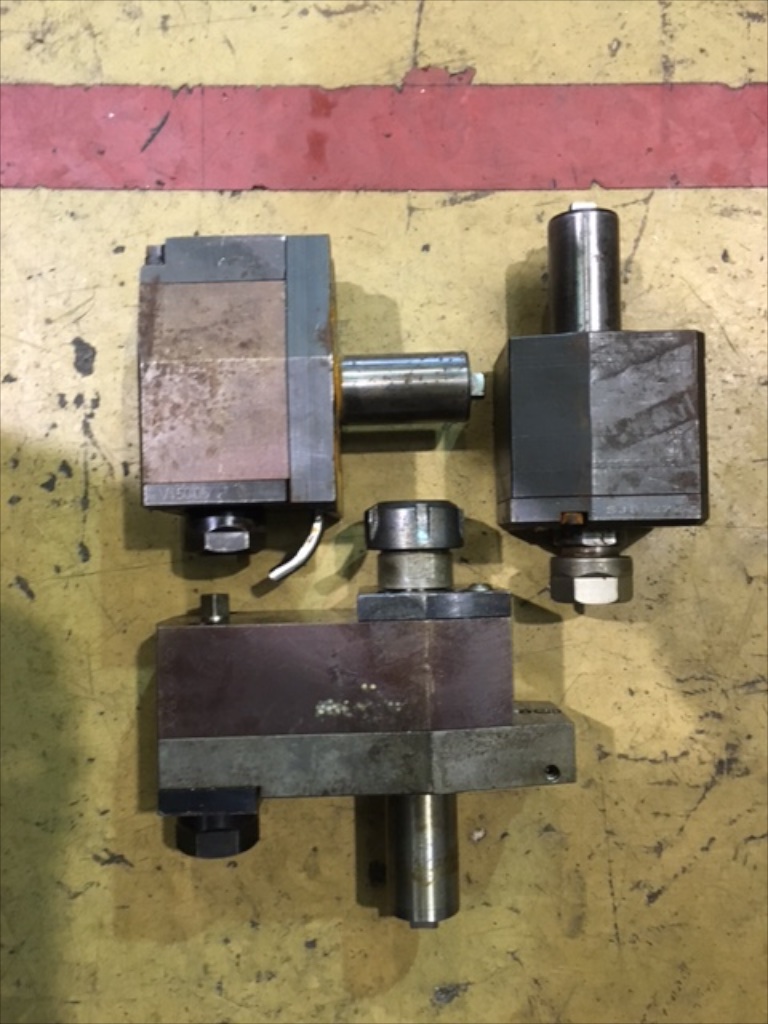

3 driven tools as per photos ( rotating tool spindle 3,000rpm)

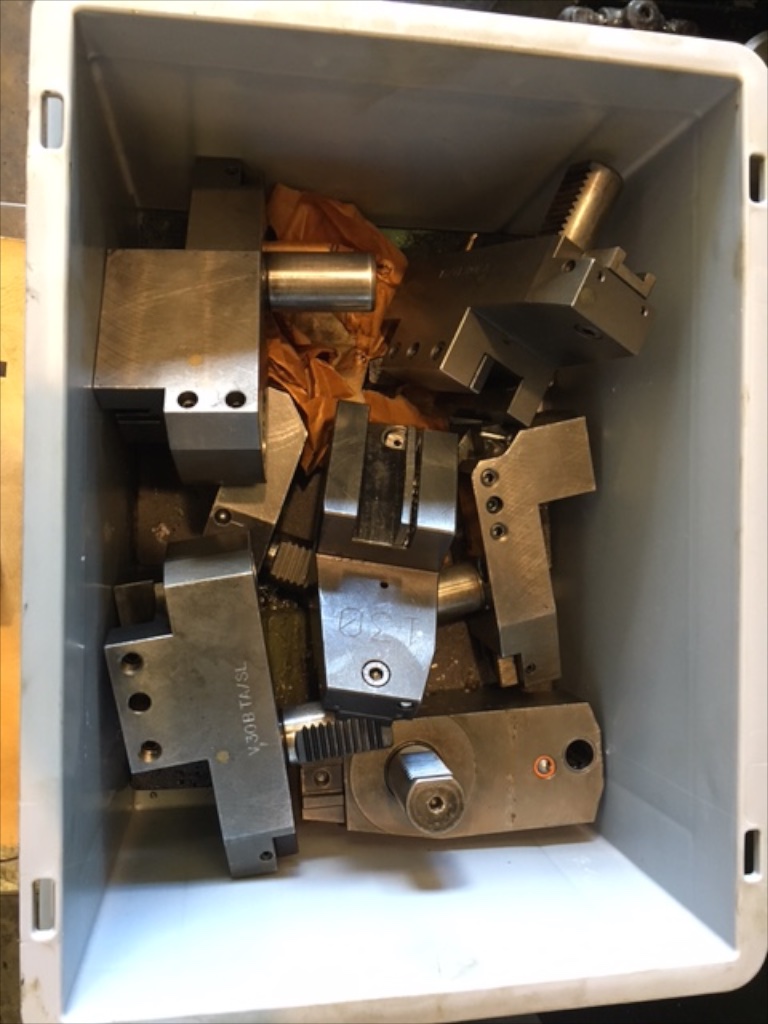

Selection of static tools as per photos

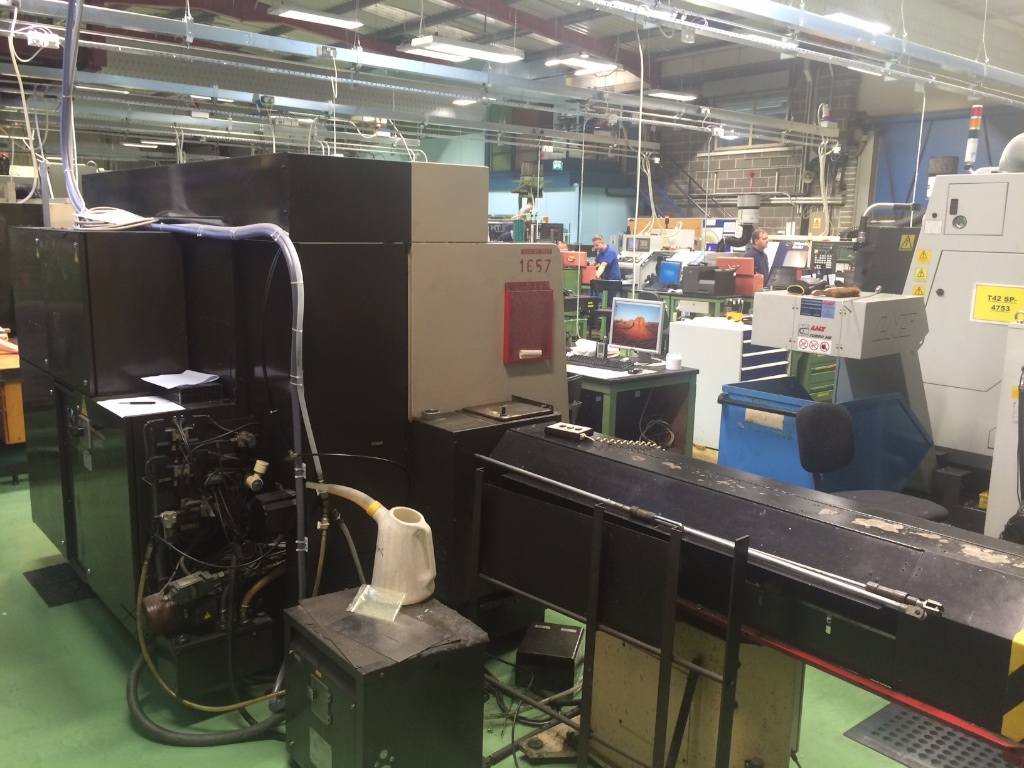

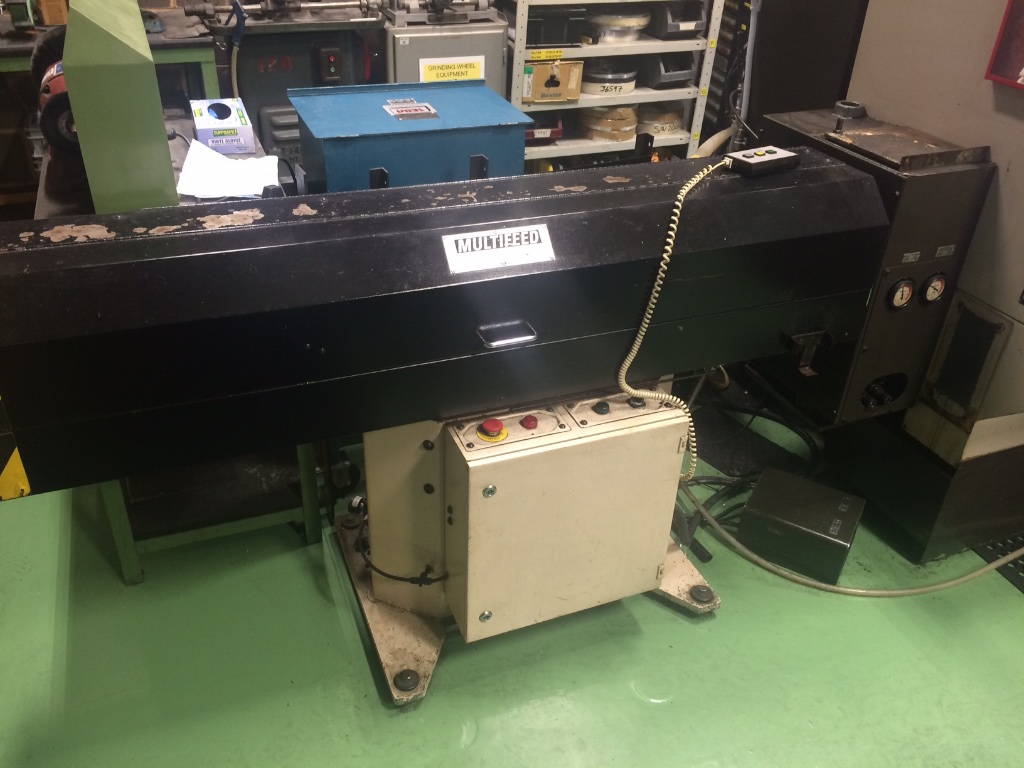

Fully interfaced Hydrafeed ML1 short Magazine barfeed

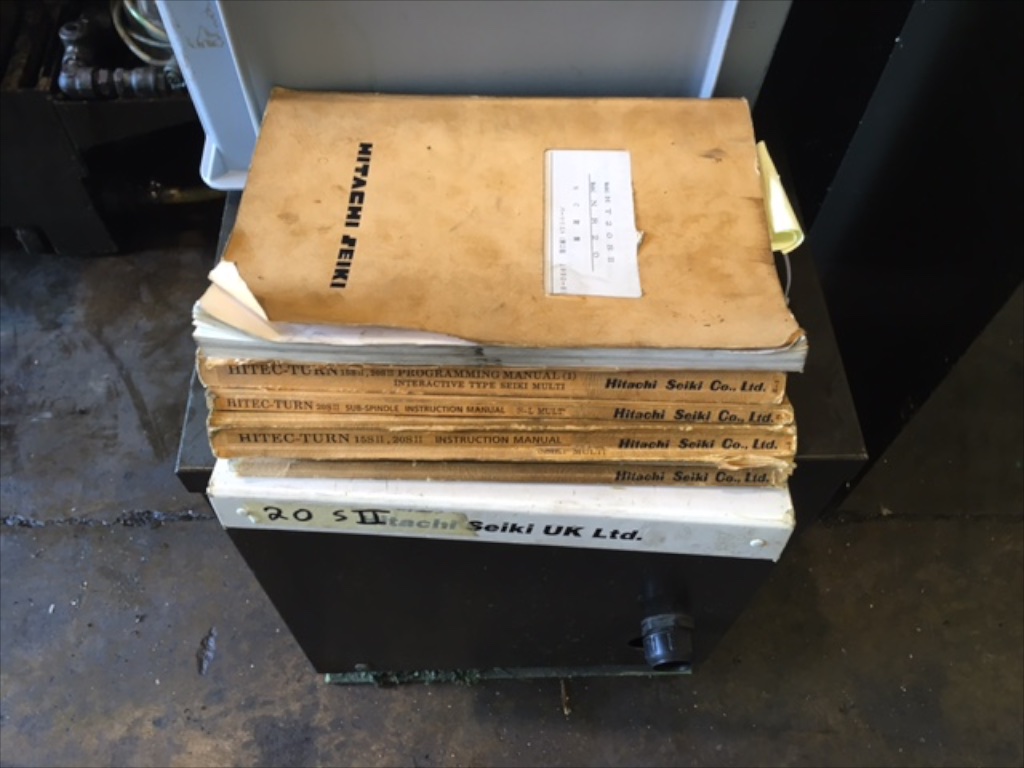

Machine Manuals
Located: Leicester, loaded Free to flat truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
