Lot 3 - Hitachi Seiki ST250 CNC Lathe (2002)

Description:

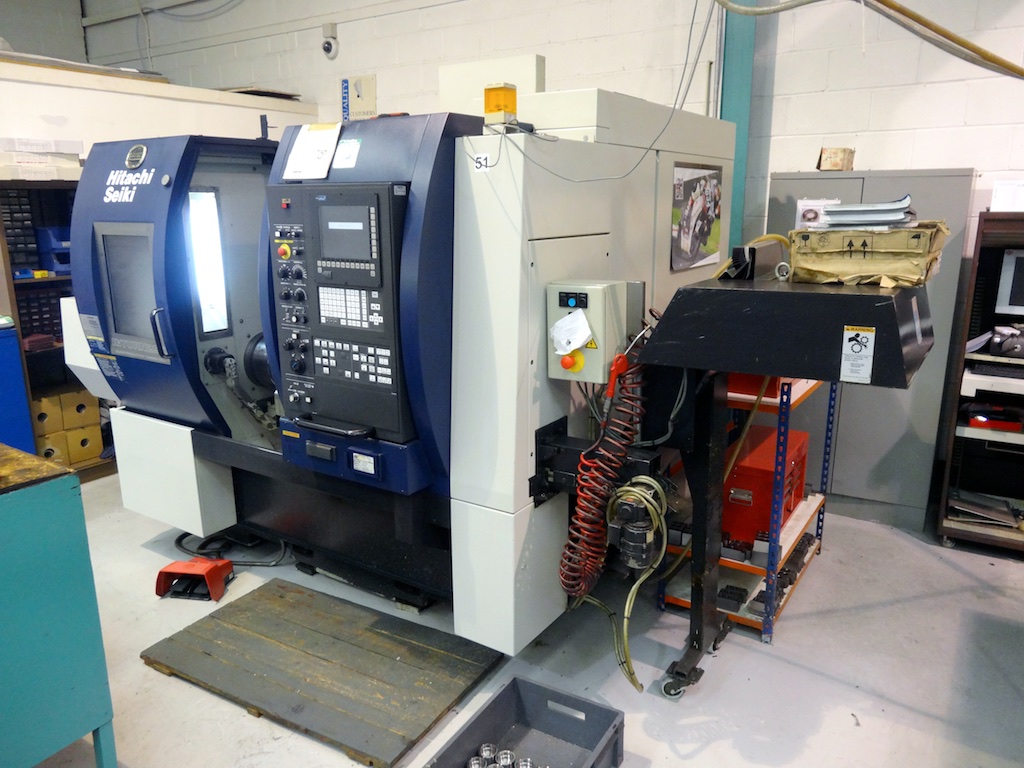

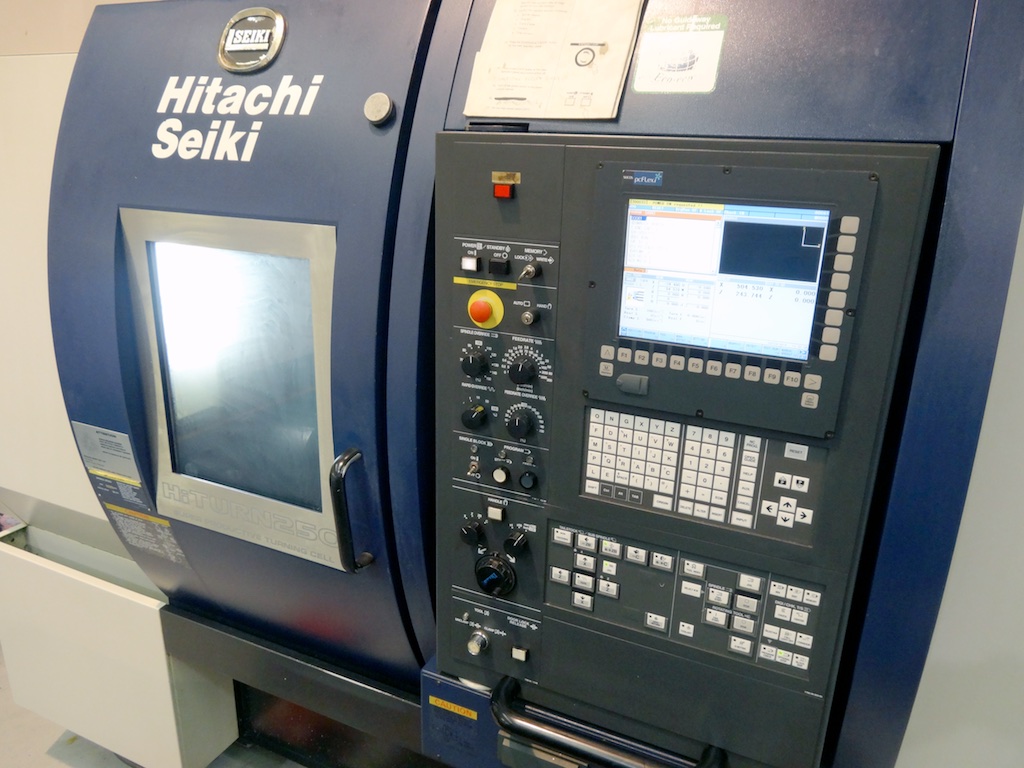

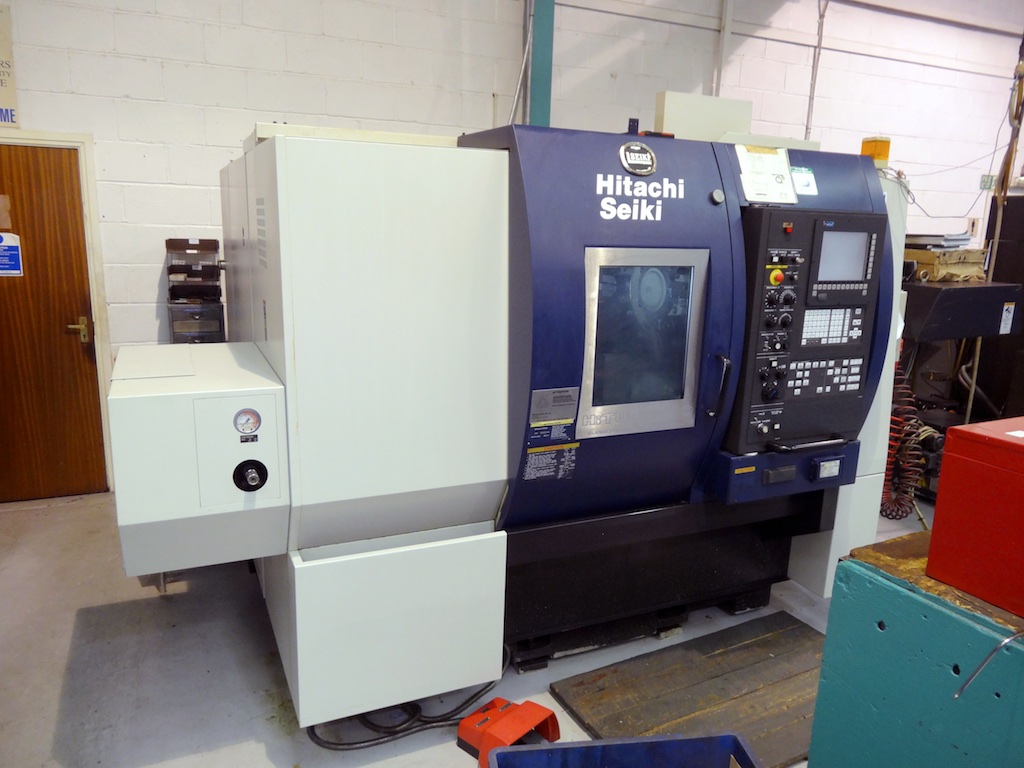

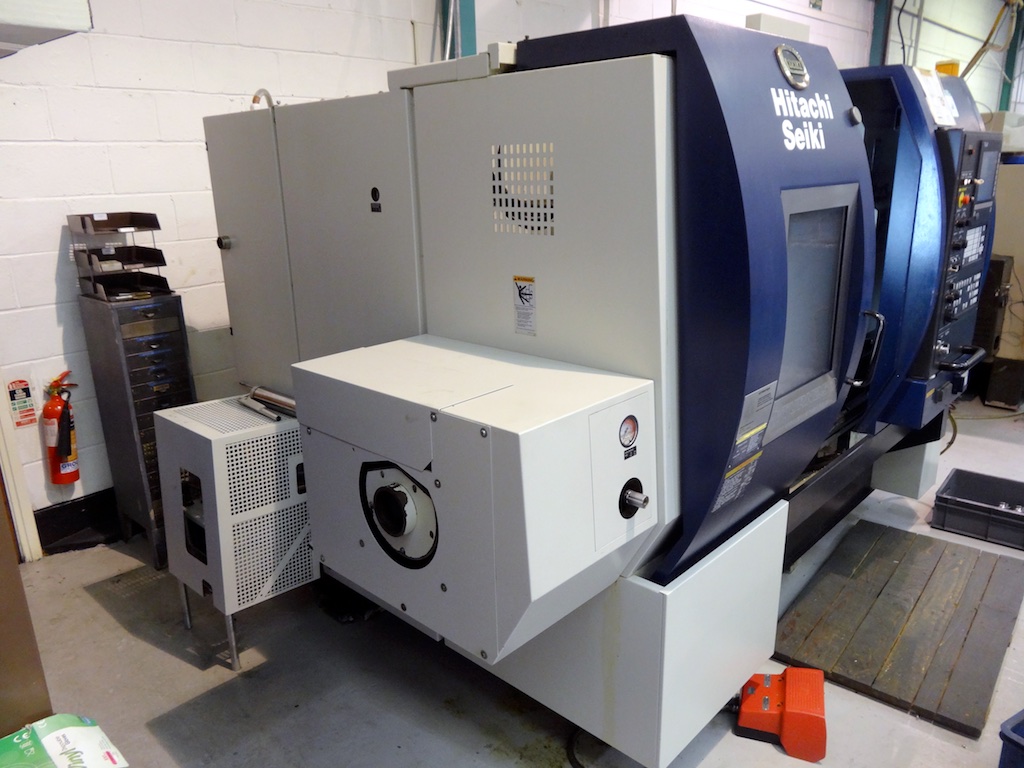

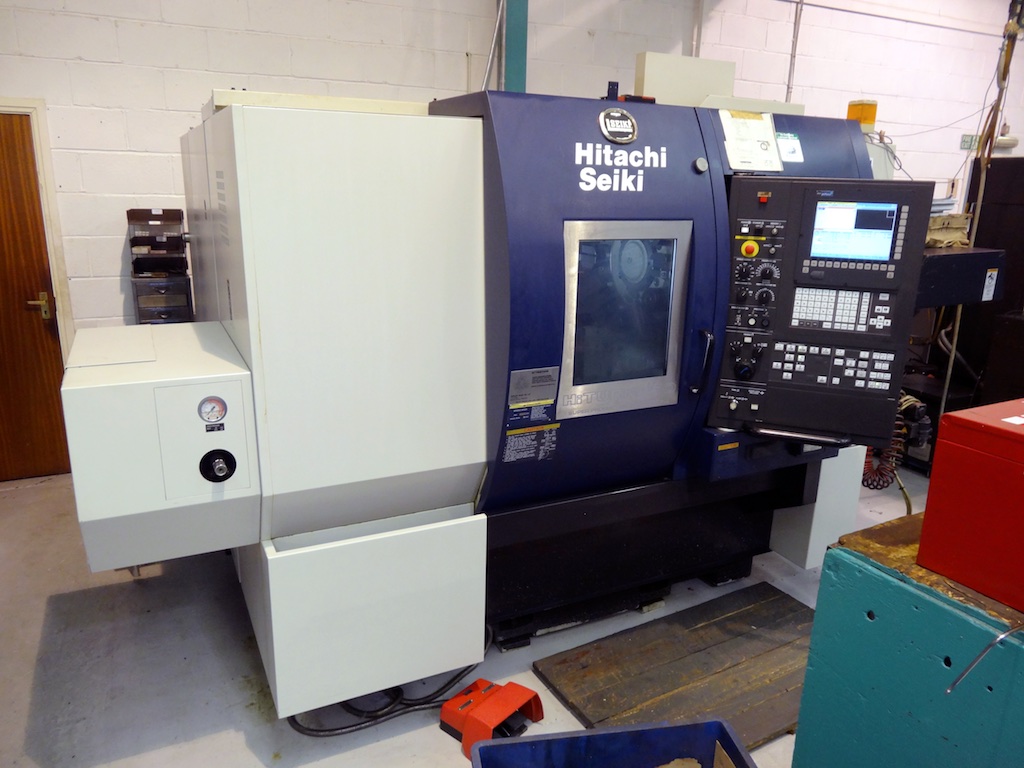

Hitachi Seiki ST250 CNC Lathe

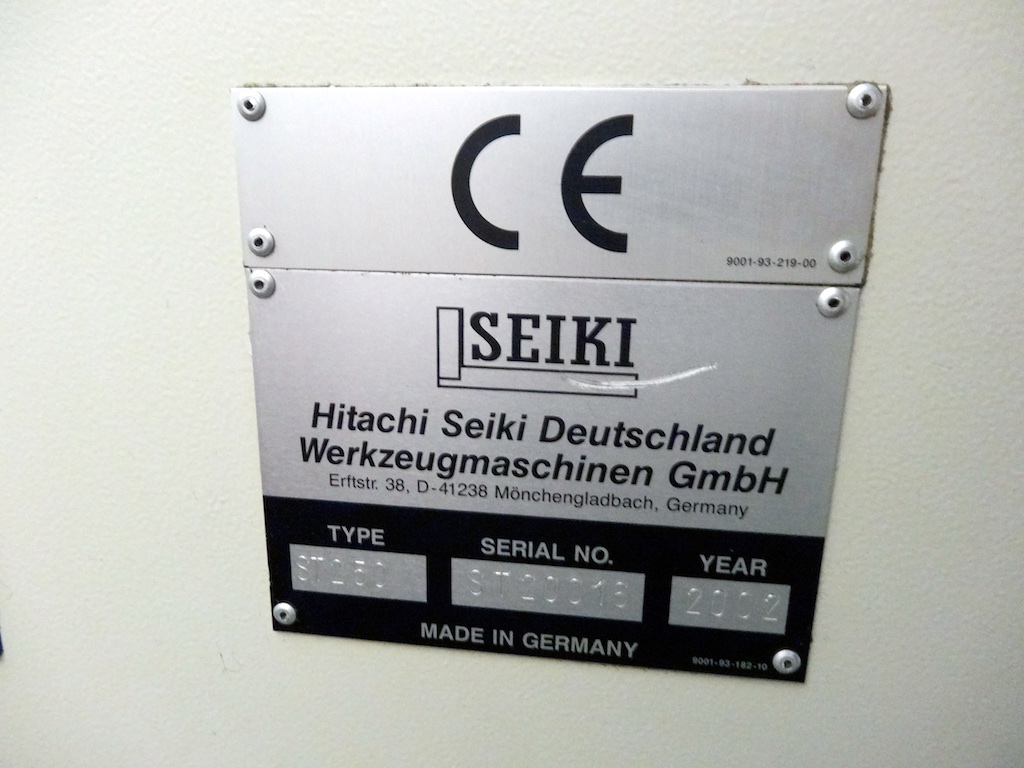

S/n: ST20016
Year: 2002
Weight: 4950kg

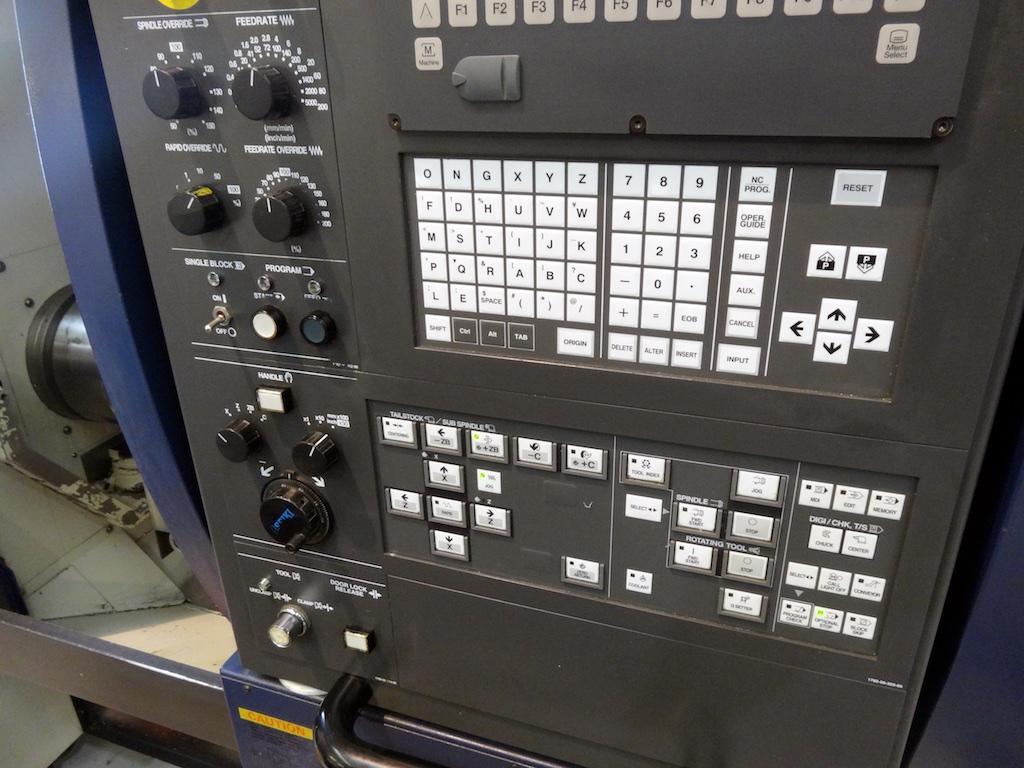

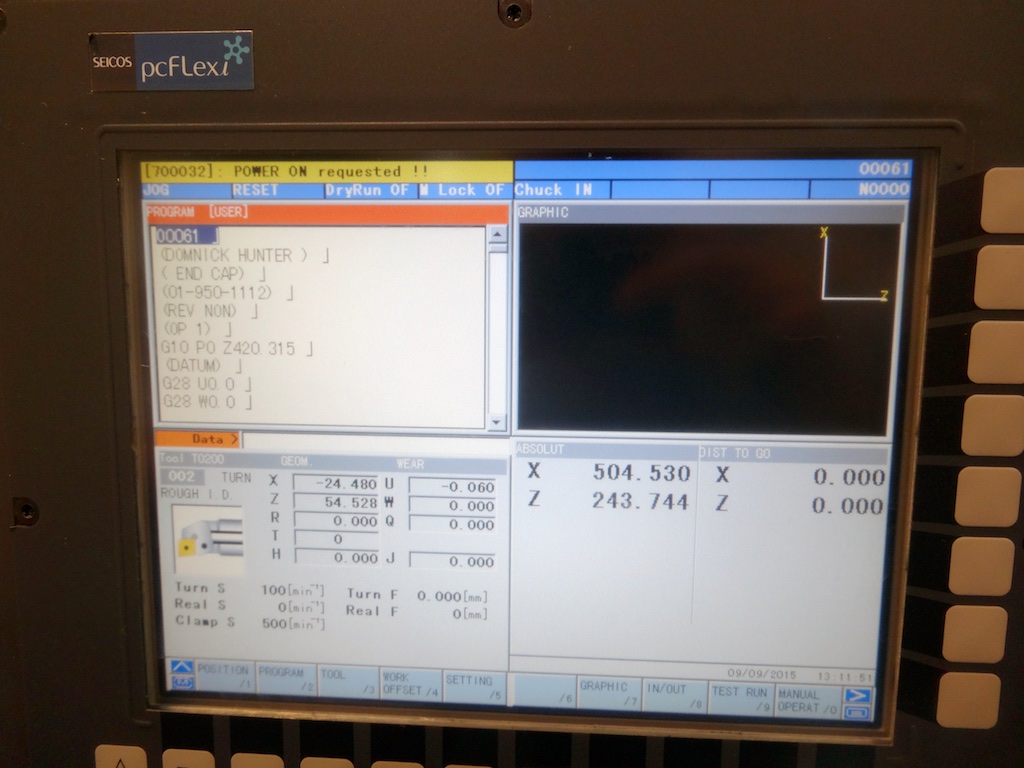

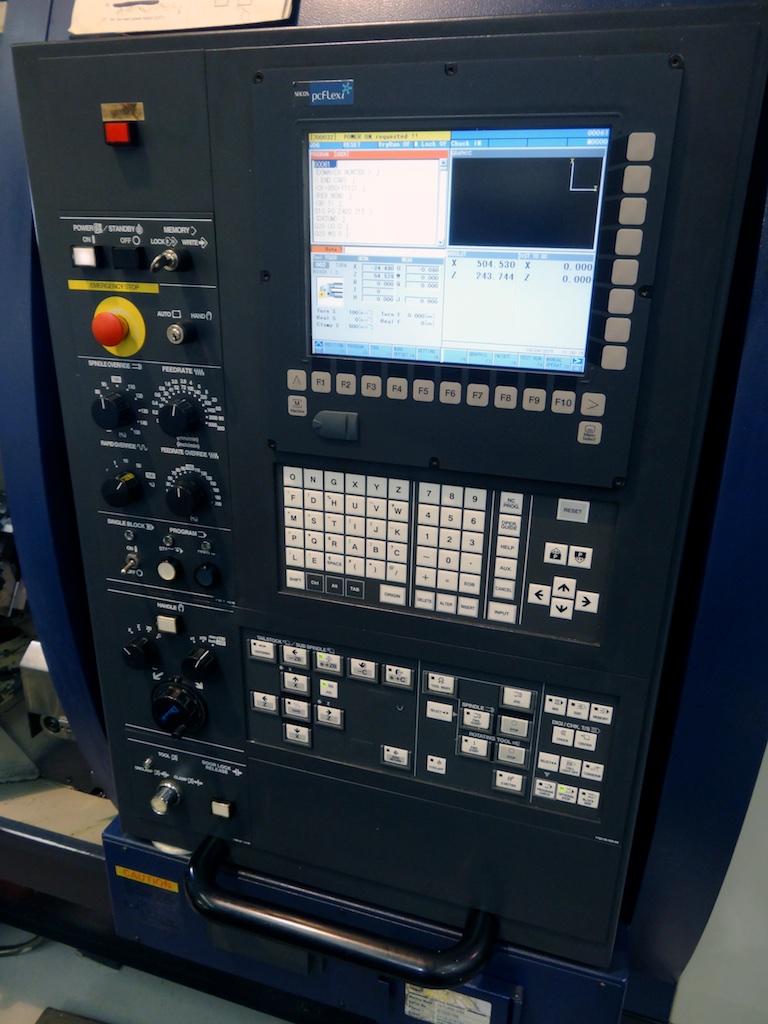

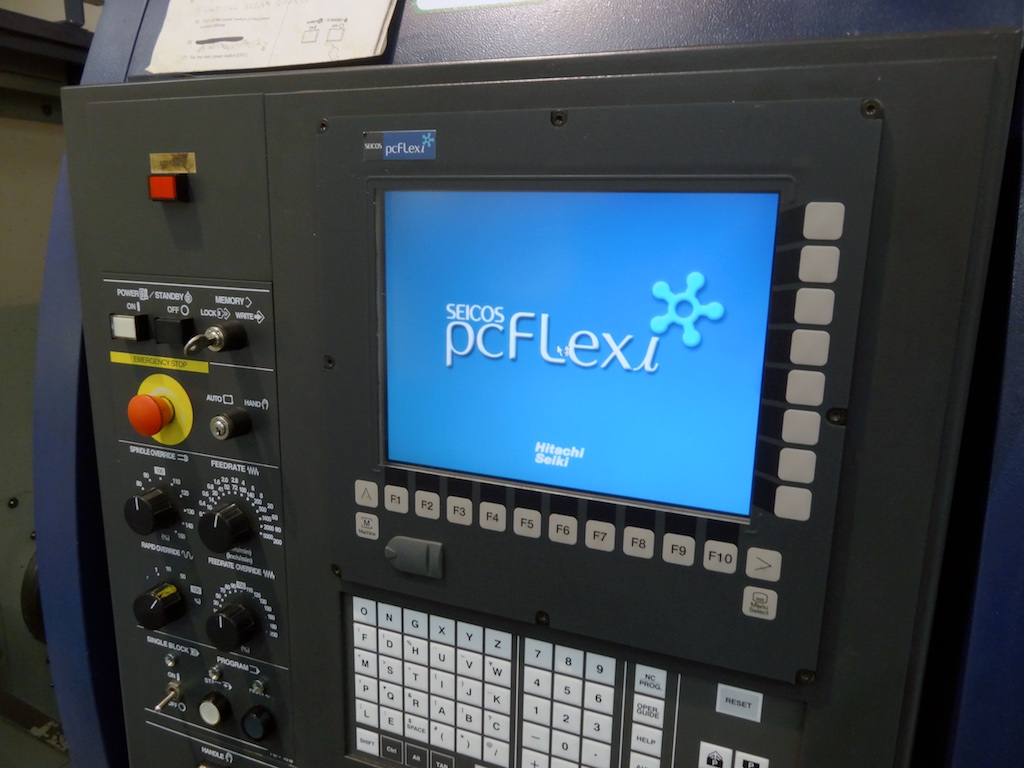

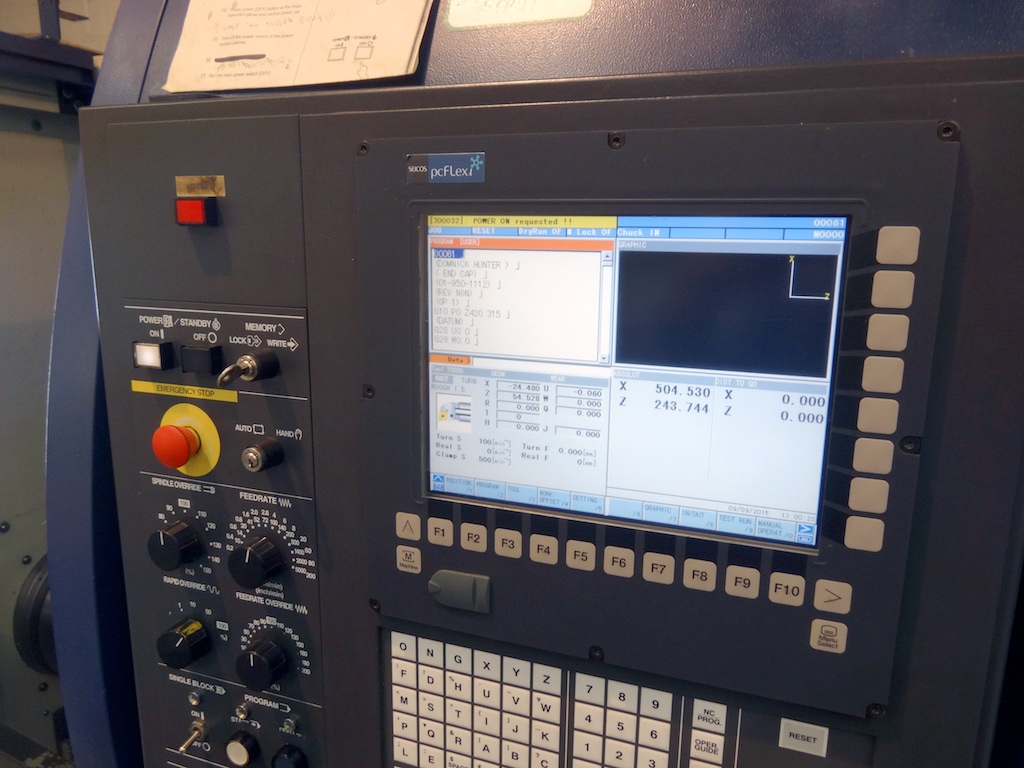

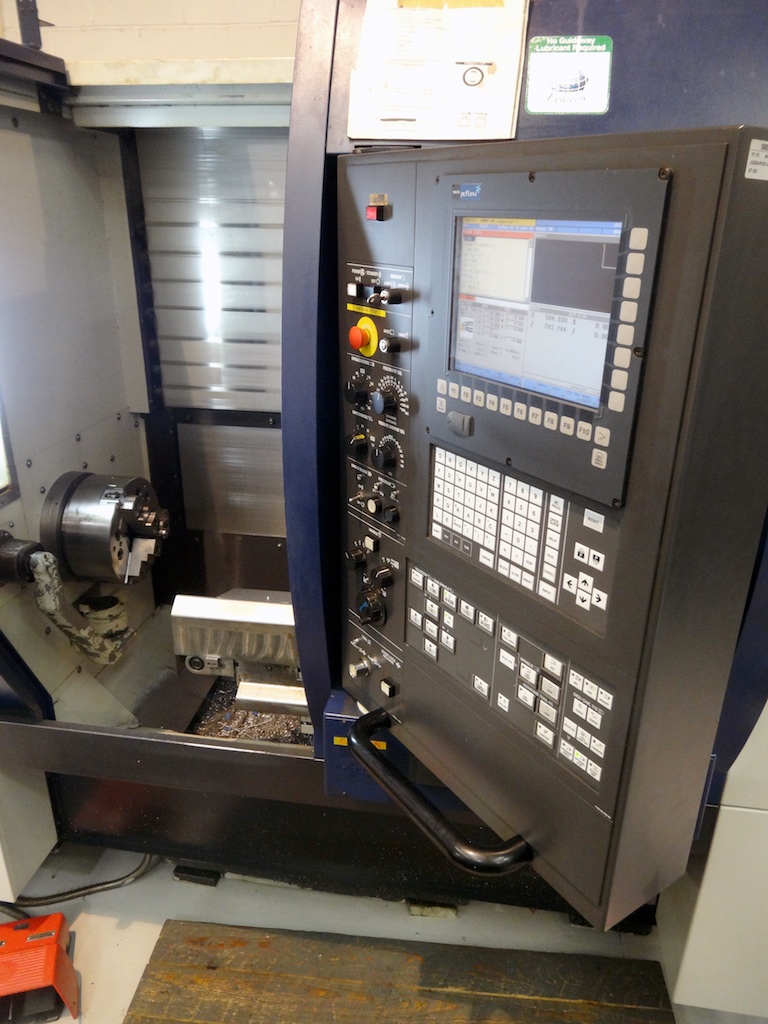

Control: Seicos PCFleixi

Capacity:
Swing over bed: 680mm
Chuck outer dia: 500mm
Max. maching dia: 254mm
Max. machining length: 470mm
Bar Capacity: 80mm

Stroke:
X axis: 260mm
z axis: 520mm

Spindle:
Spindle speed: 42~4200
Spindle speed range: Infinite
Spindle nose (type No): A2-8
Dia of spindle through hole: 95mm
Spindle bearing inside dia: 140mm

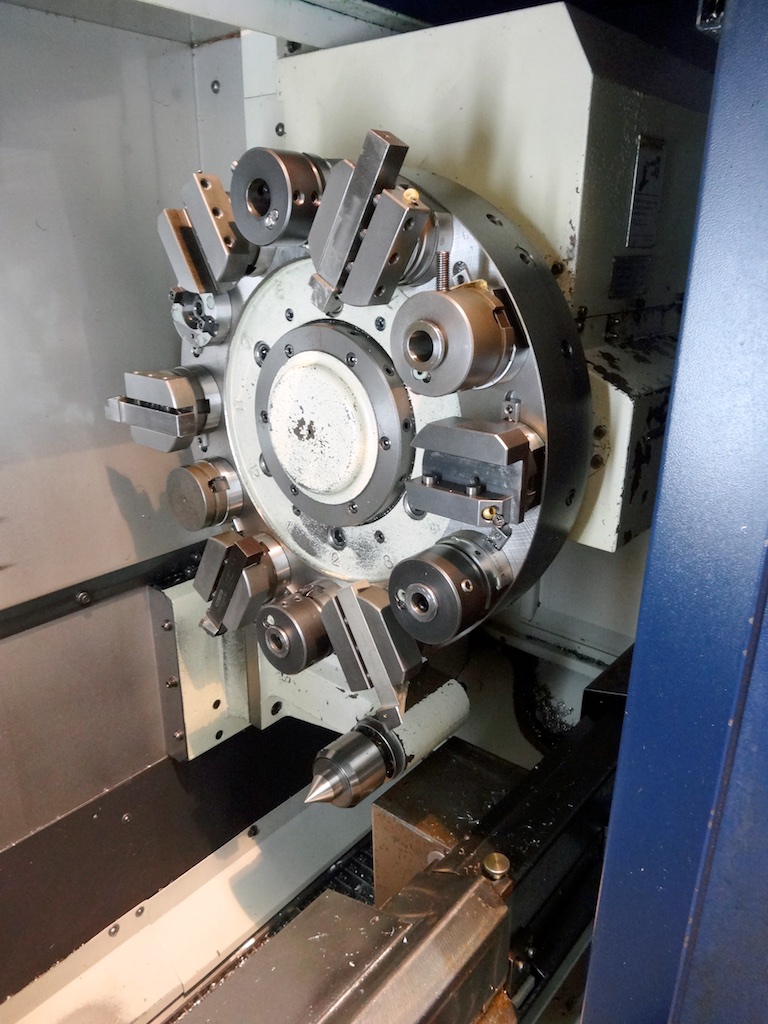

Turret Head:
Type: 12 station variable
No. of tool positions: 12
Shank height of square bite: 25mm
Shank dia of boring bar: 40mm

Feedrate:
Rapid traverse: X/Y: 40mm/min
Cutting feedrate, Per revolution: 0.001~1000
Jog feed: 0~5000mm/min

Standard Accessories:

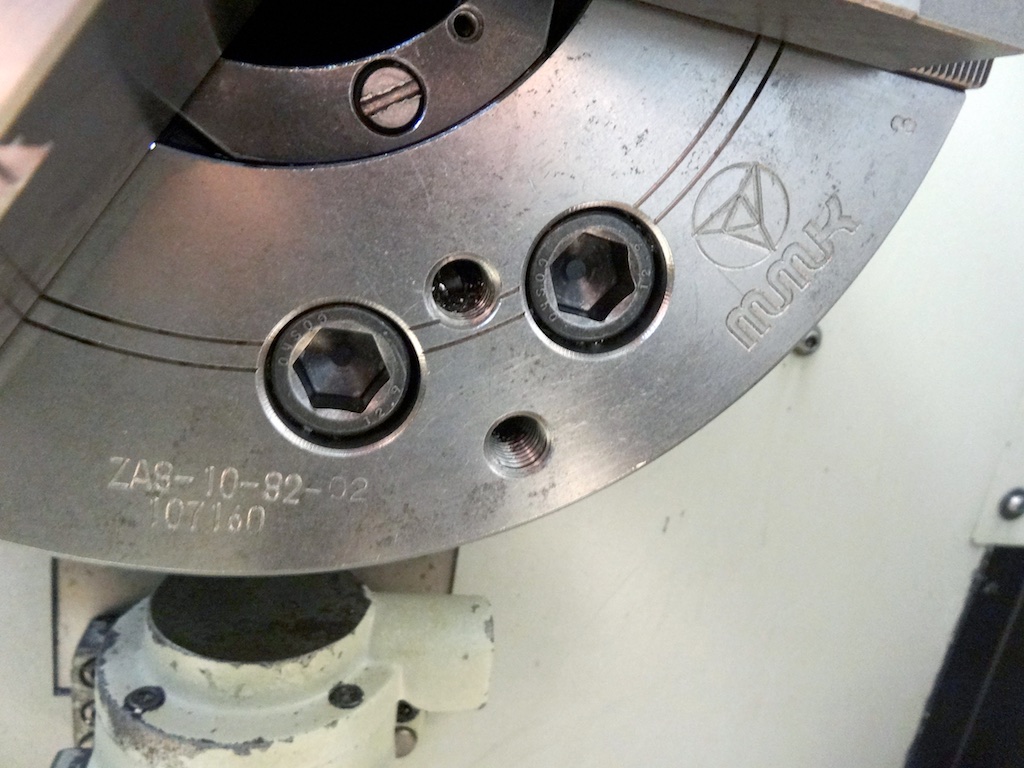

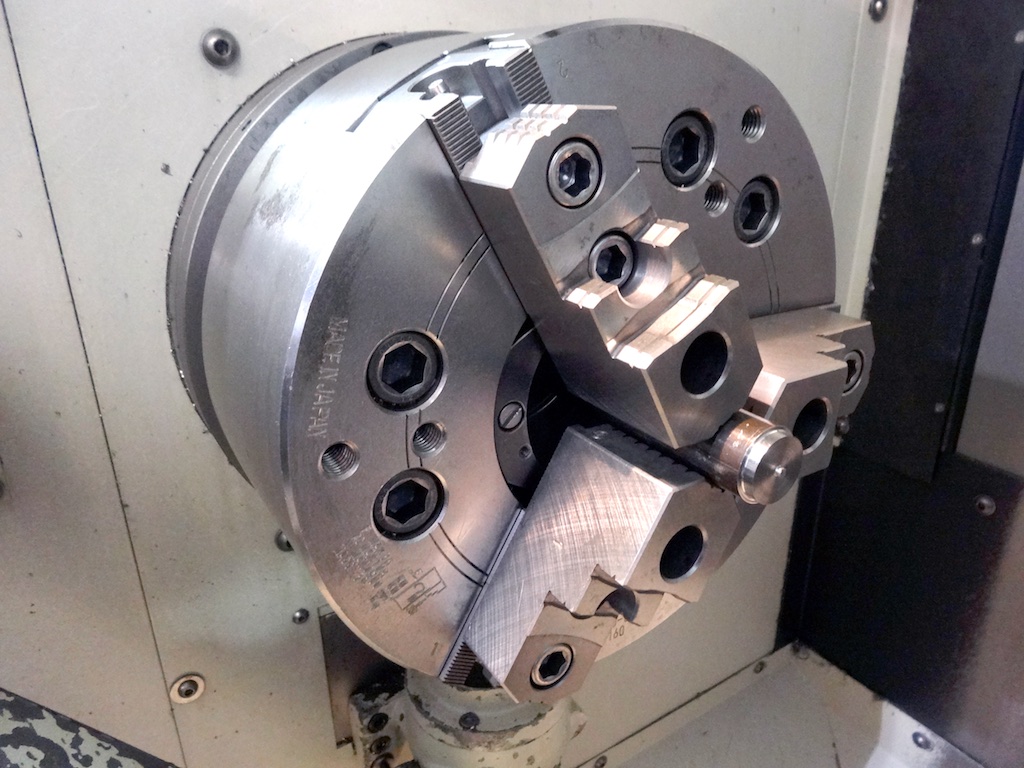

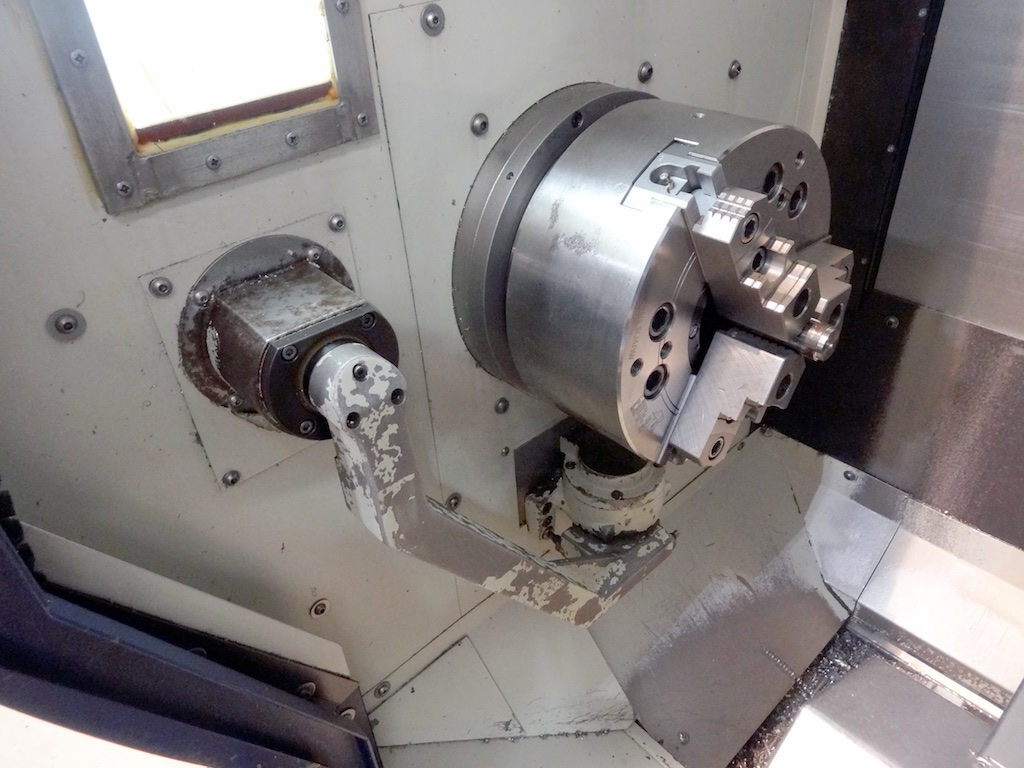

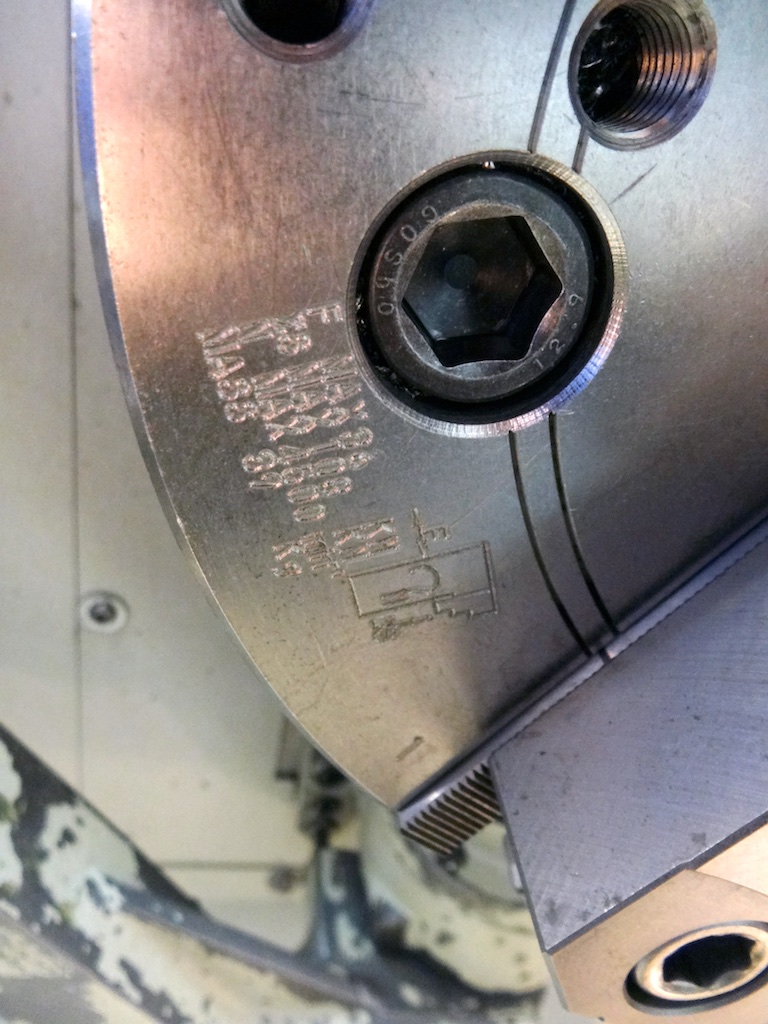

Chuck: MMK ZA9-10-92-02, 107160
Flood coolant
Splash cover
Operator side door interlock
Spindle speed meter on screen
Spindle /feedrate override
Call light (std yellow)
Electric leakage detector breaker
Machine competion pre-call/work counter/
Run hour display on screen
Work light

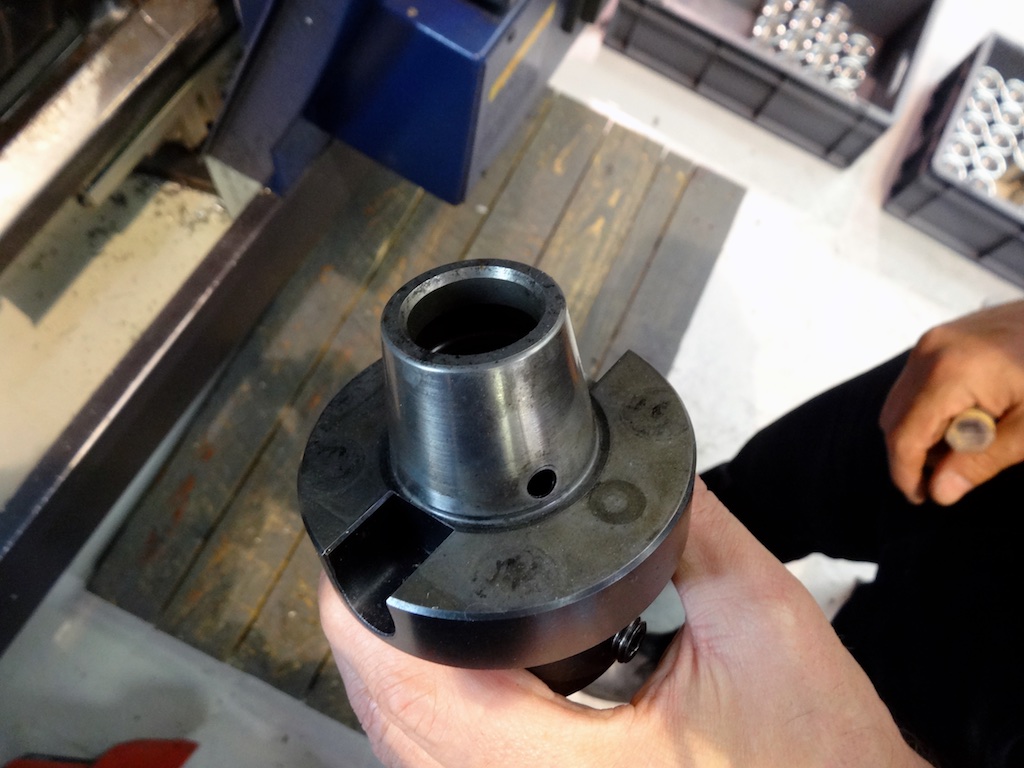

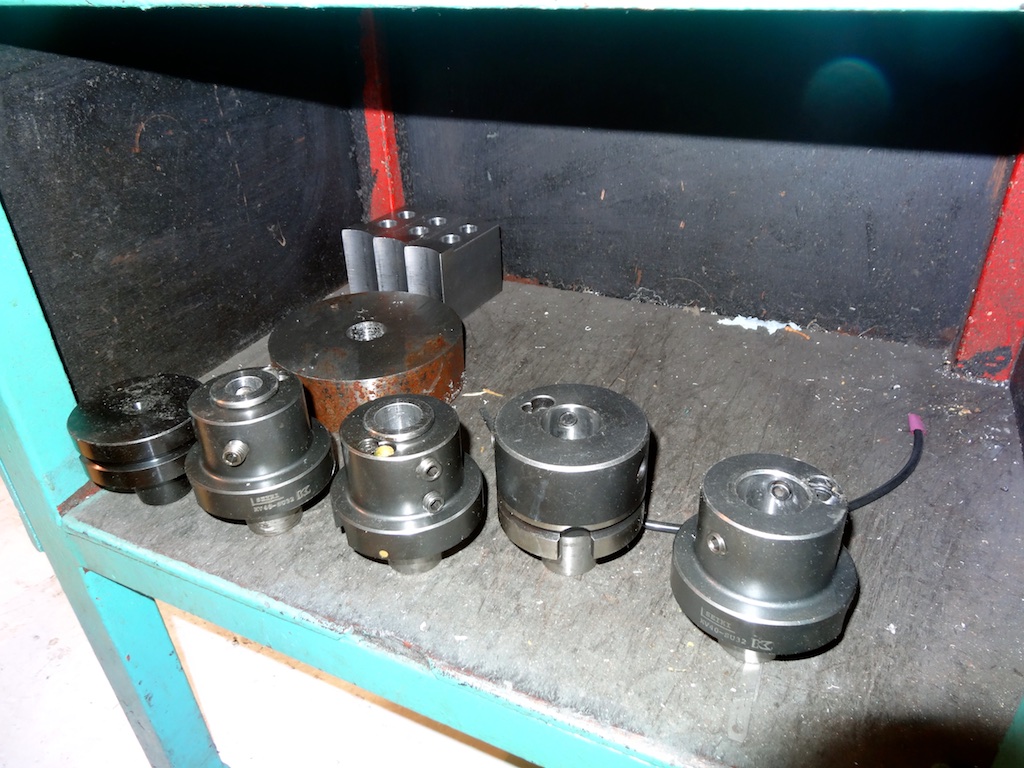

Approx 16 Tool Holders included (Cutting tools not included) (See Photos)

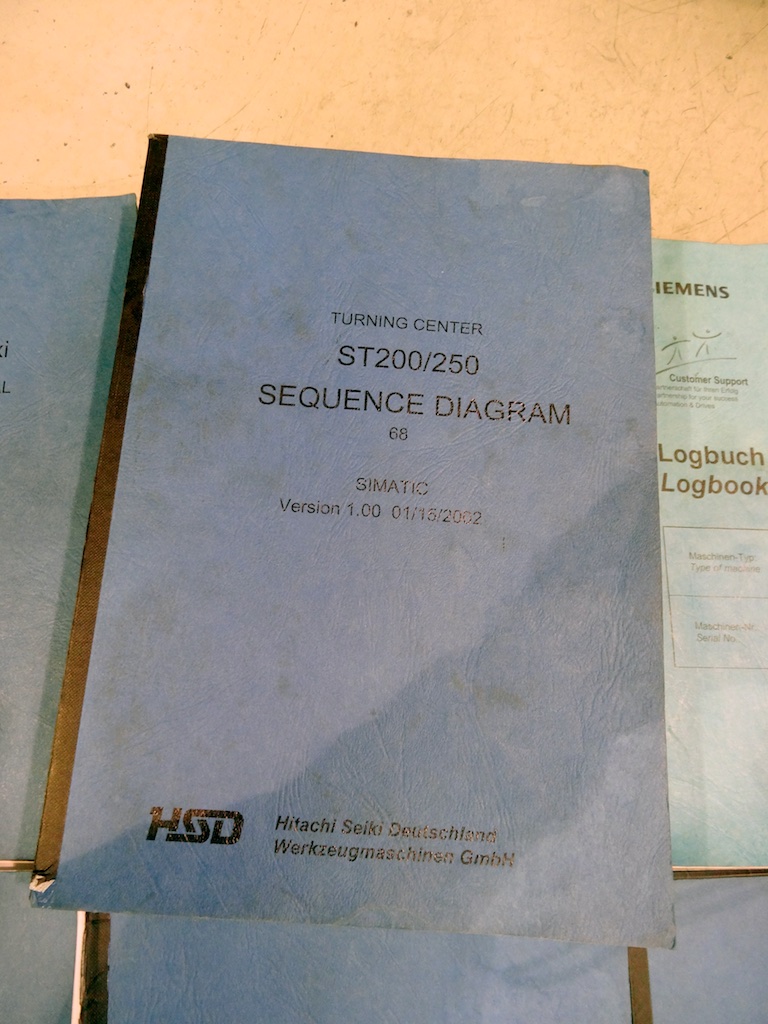

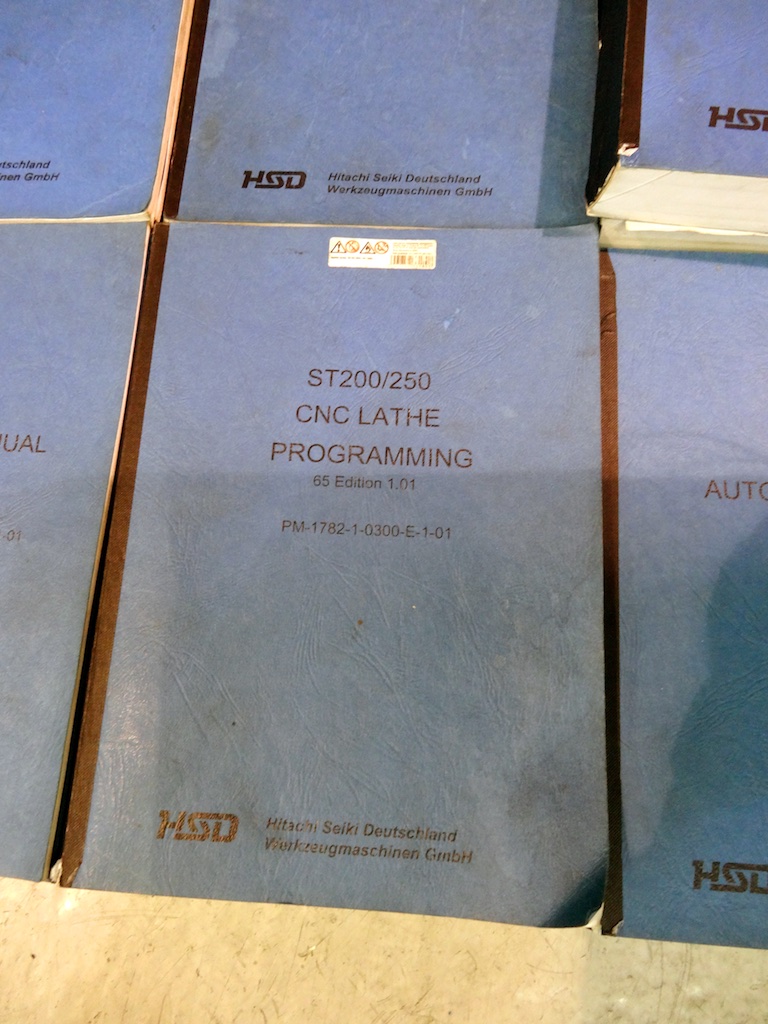

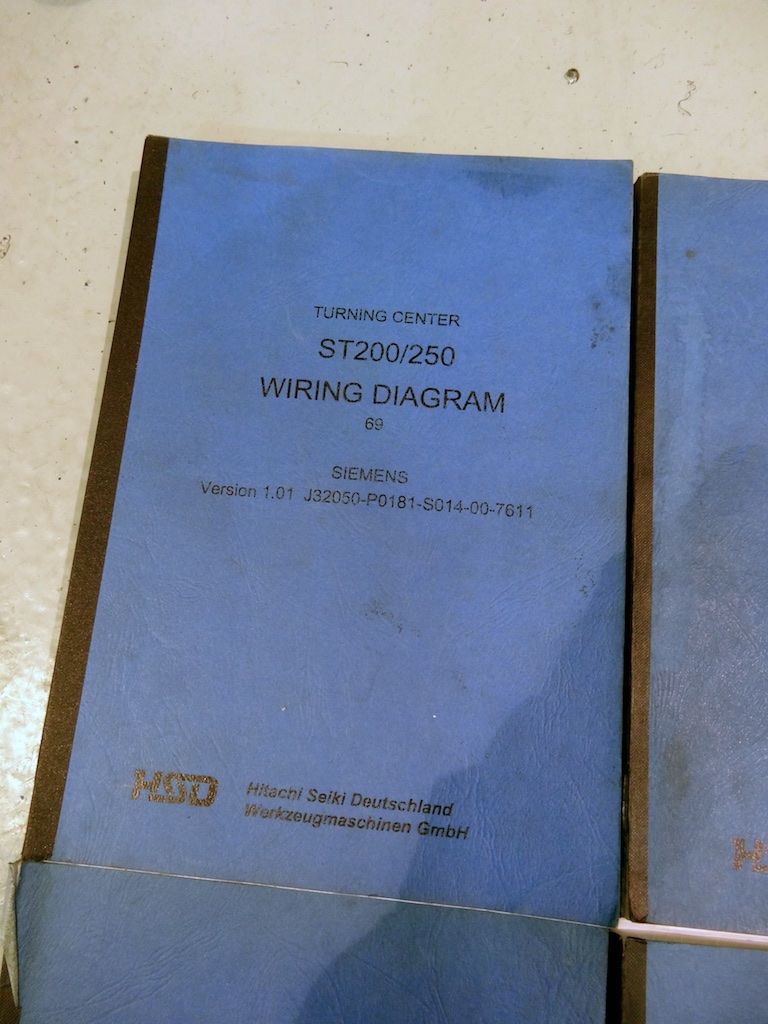

Manuals

Location: Leicester





* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
