Description:

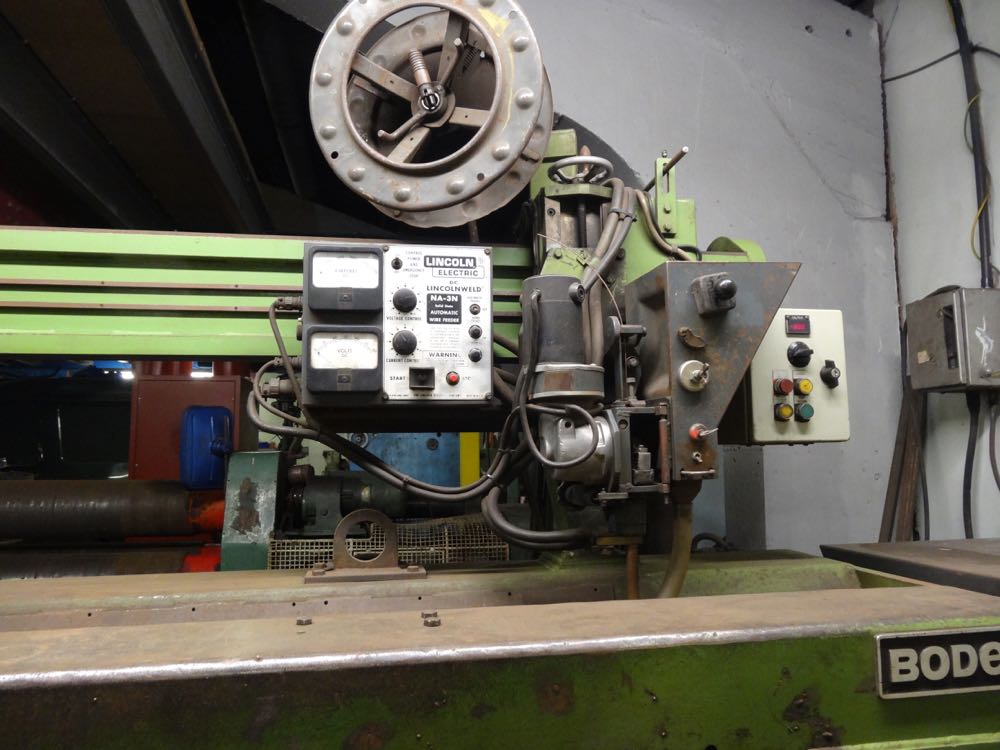

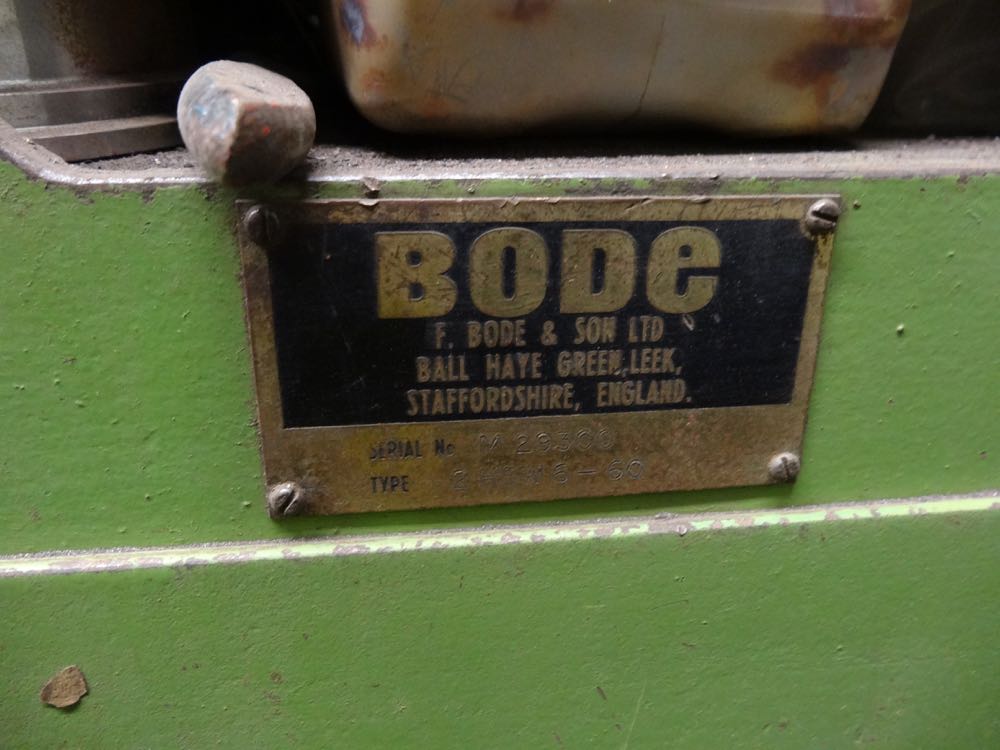

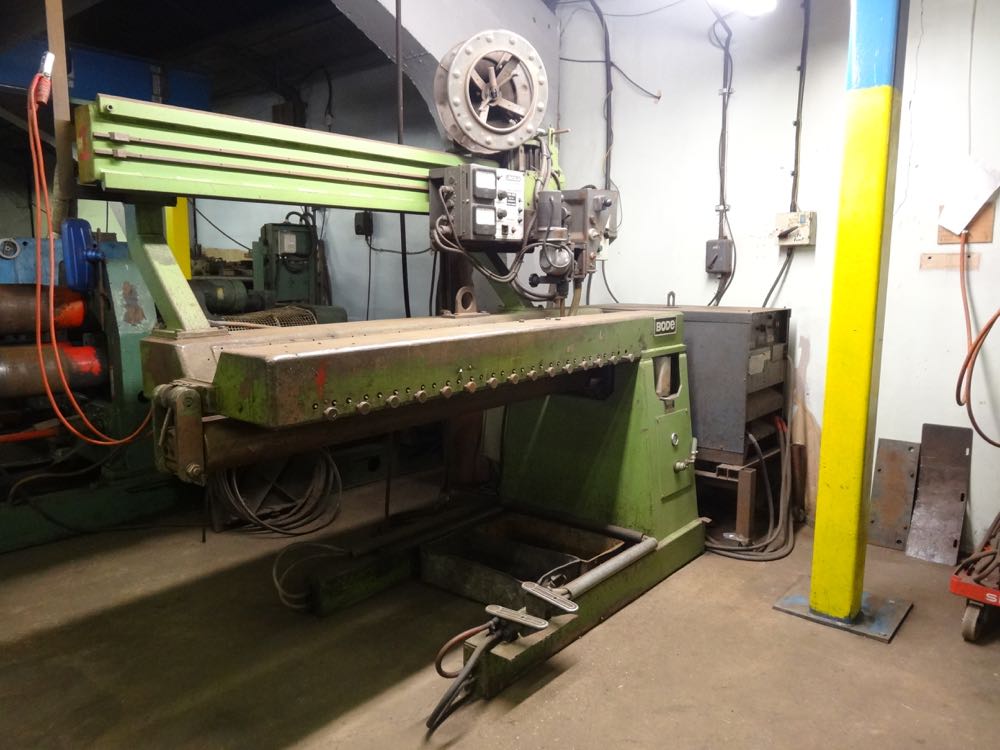

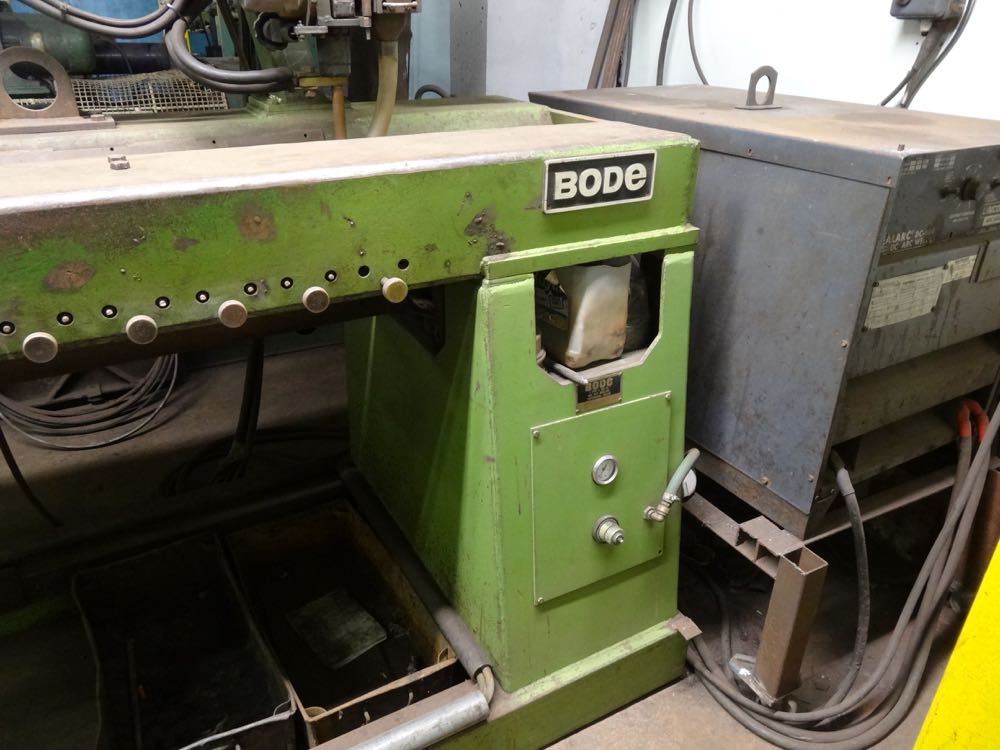

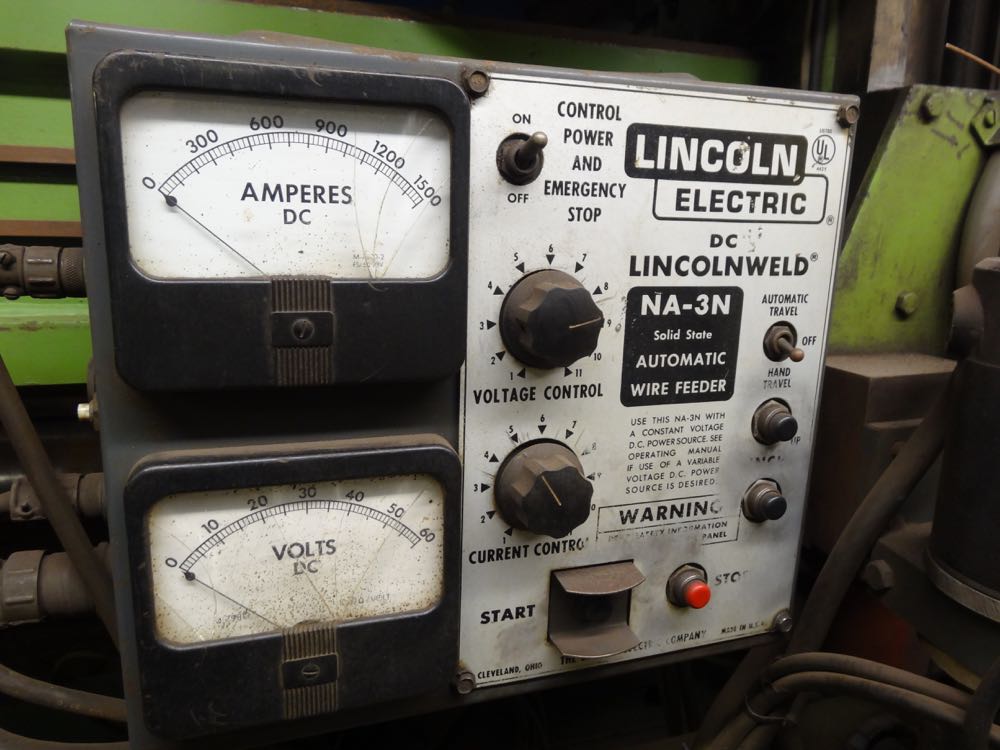

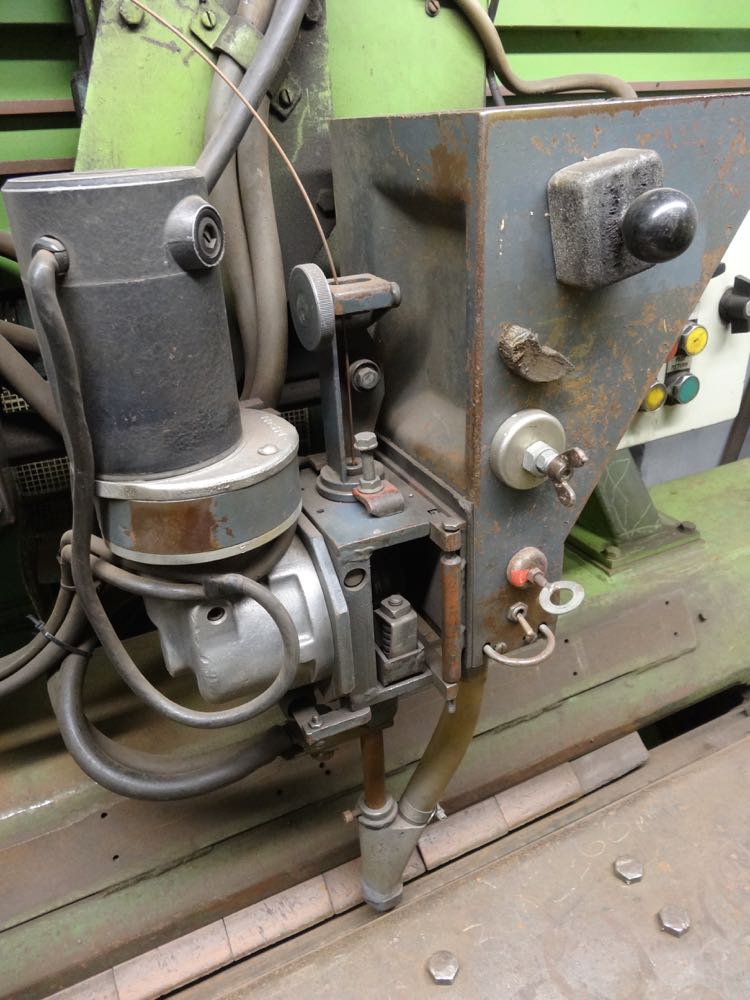

Horizontal longitudinal welding positioner with single Lincoln NA-3A submerged arc welding head mounted on FW Bode frame.

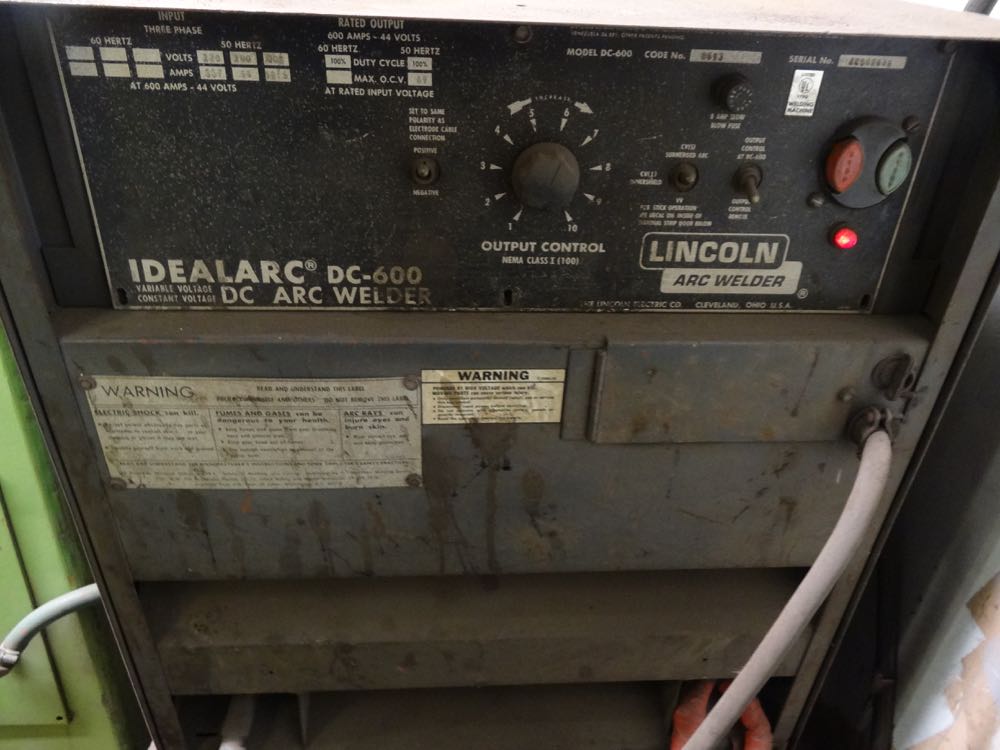

Upto 1.5mtrs weld travel. Comes with 1 off Lincoln DC600 power pack.
The min and max diameter of the vessel which can fit is approx 200mm to 1000mm
The min and max wall thickness of the vessel which can be welded is min 3mm, max 8/10mm with 1 pass
Machine, circa 1990
Weight approx 2 ton
Requires 3 phase supply & air
Private Treaty Auction for Automotive Tanks Ltd are the UK experts in bespoke Pressure Vessel design and manufacture.
Have a compete Vessel production Line for sale, Including Blaster, Rolling, Welding, Paint System and Xray inspection system. All lots are part of a complete system.
All offers must be in by March 31st 2015
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
