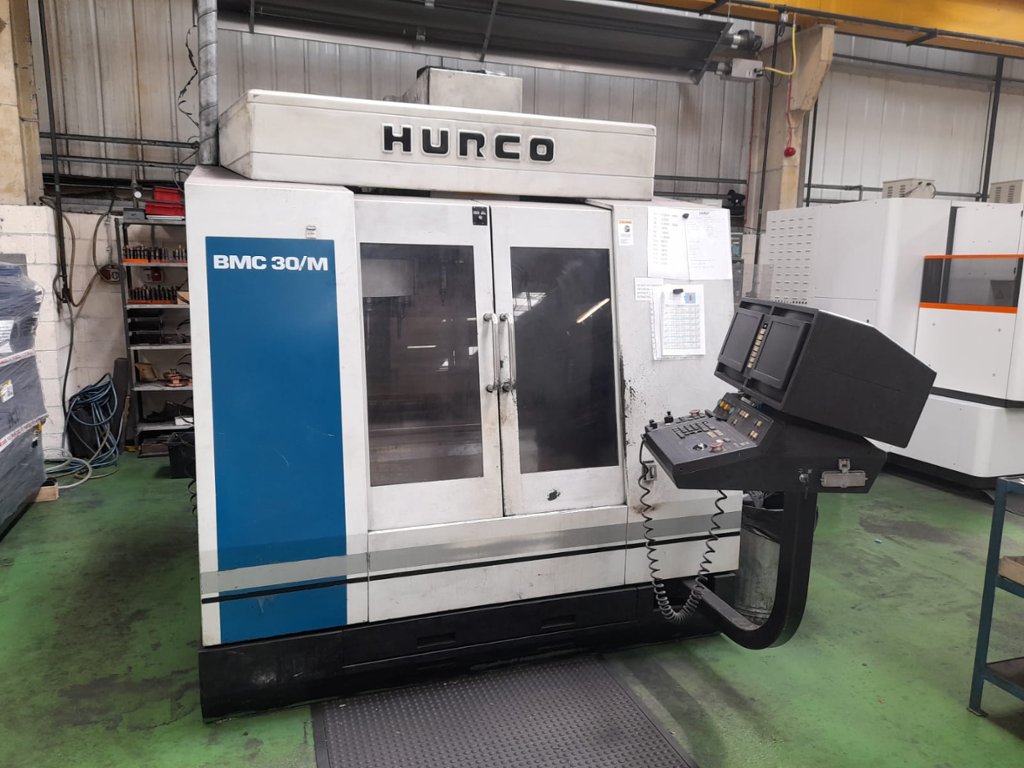

Hurco BMC 30M Vertical Machining Centre (1996)

Lot 4 - Hurco BMC 30M Vertical Machining Centre (1996)

Description:

Standard CAT 40

Bed size (not travel) 1015mm x 400mm

Motor HP Cont/30Min - 7.5/10Hp

Pulley Ratio - 1:1

Spindle RPM Range - 0-8000

Spindle Torque/RPM - 143 N-m/500

Travel Distance - X= 30 in (762 mm), Y = 18 in (457 mm), Z=24 in (609 mm)

Overall Operating Dimensions - W= 148.7 in (3777 mm), D= 163.1 in (4143 mm), H= 106 in (2692 mm)

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
