Lot 2 - Hurco Hawk 5 SSM 3 axis CNC Knee mill (1998)
Description:

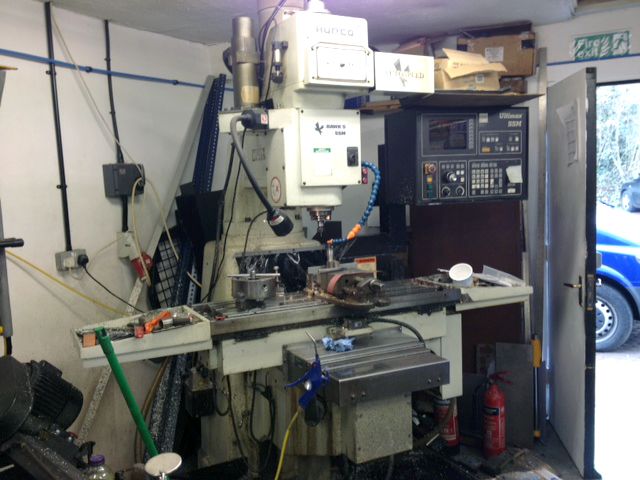

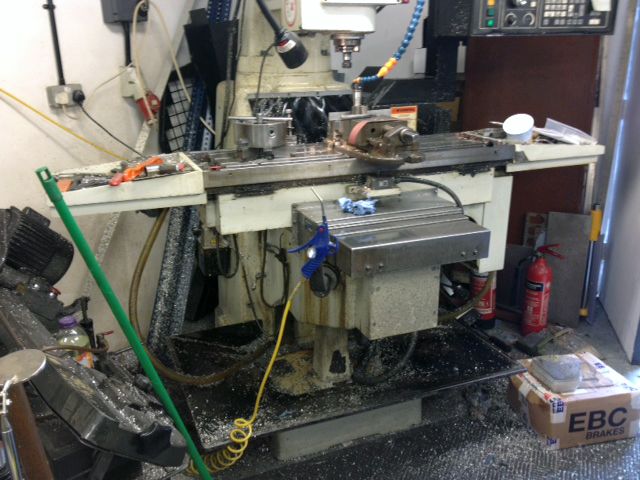

Hurco Hawk 5 SSM 3 axis CNC Knee mill
Year 1998
Table size..........................: 42" x 13"
Travels
X-axis..............................: 31"
Y-axis..............................: 14"
Z-axis..............................: 6"
Knee................................: 15.3"
Spindle nose to table top...........: 4.5" min to 19.4" max
Spindle center to column ways.......: 14.5"
Spindle speeds, variable through
Hi/Low gear.........................: 80 to 4,800 rpm
Spindle taper.......................: cat #40
Overall size........................: 86" (l-r) x 80" (f-b) x 105" (h)
Electrics...........................: 480v, 3 ph, 60 cycle, 5 hp

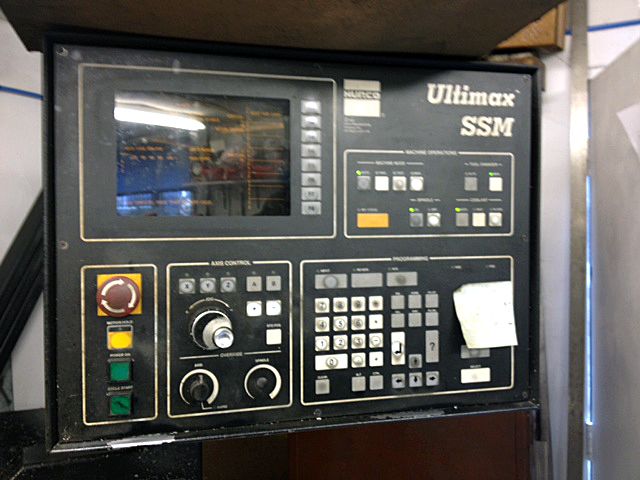

Hurco Ultimax SSM CNC
Power drawbar
Hard ways in good condition
Auto lubrication system
Coolant
Hard way covers on front saddle
Location: Leicester, Load for Free to Flatbed Truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
13 Jun 2013 15:30:00 BST
