Lot 13 - HURCO HAWK 5M CNC Knee Milling Machine
Description:

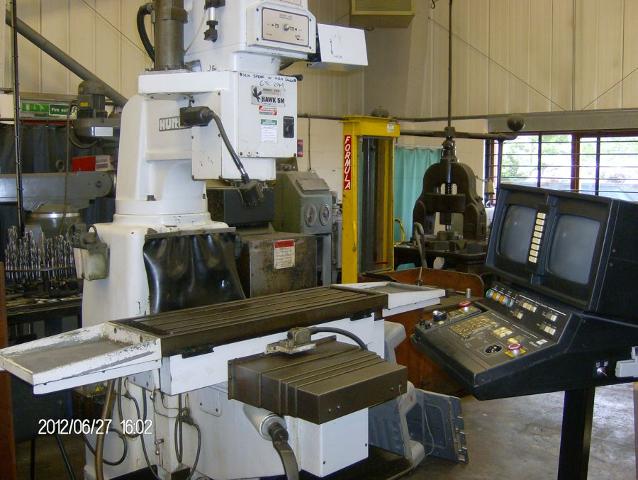

HURCO HAWK 5M CNC Knee Milling Machine
Year of manufacture 1995
Manufacturing Number 950214

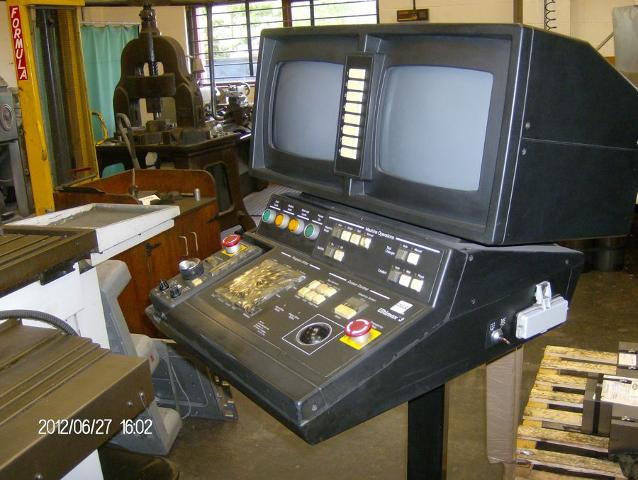

Ultimax 3 Control
Operating/programing Manual available
Parts Manual available
TABLE SIZE: 42" X 13"
TRAVELS
X-AXIS: 31"
Y-AXIS: 14"
Z-AXIS: 6"
KNEE: 15.3"
SPINDLE NOSE TO TABLE TOP: 4.5" MIN TO 19.4" MAX
SPINDLE CENTER TO COLUMN WAYS: 14.5"
SPINDLE SPEEDS, VARIABLE THROUGH
HI/LOW GEAR: 80 TO 3,800 RPM
SPINDLE TAPER: CAT #40
Location: Leicester, Loaded for Free to Flatbed Truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
