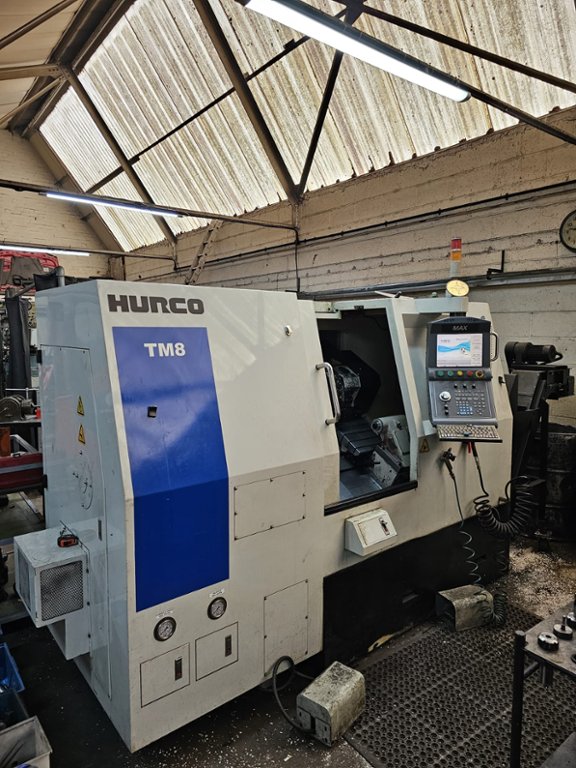

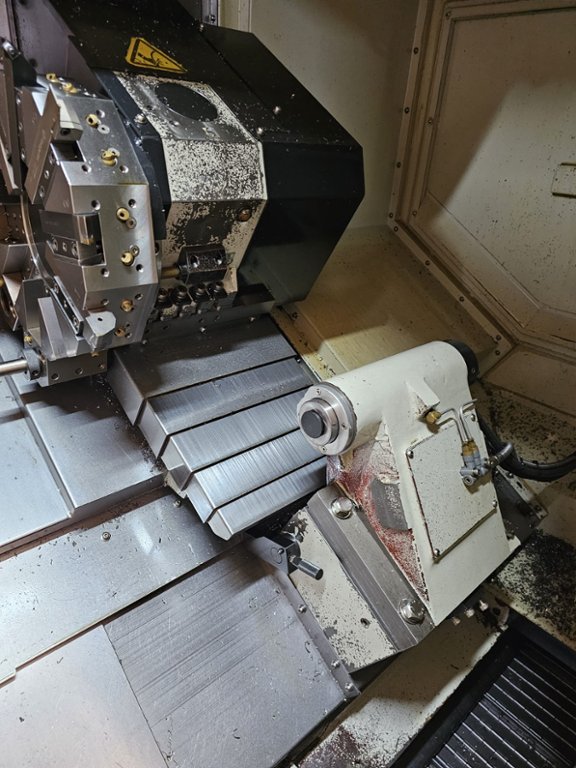

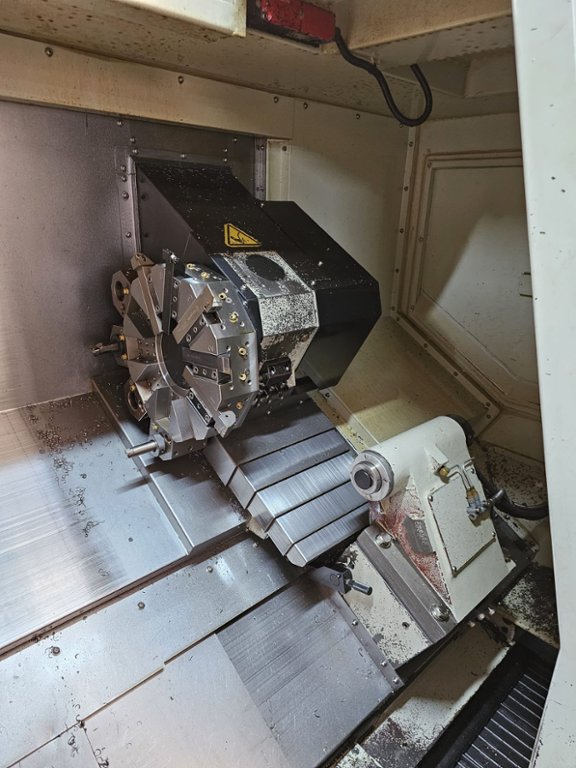

Lot 2 - Hurco TM8 CNC Lathe
Description:

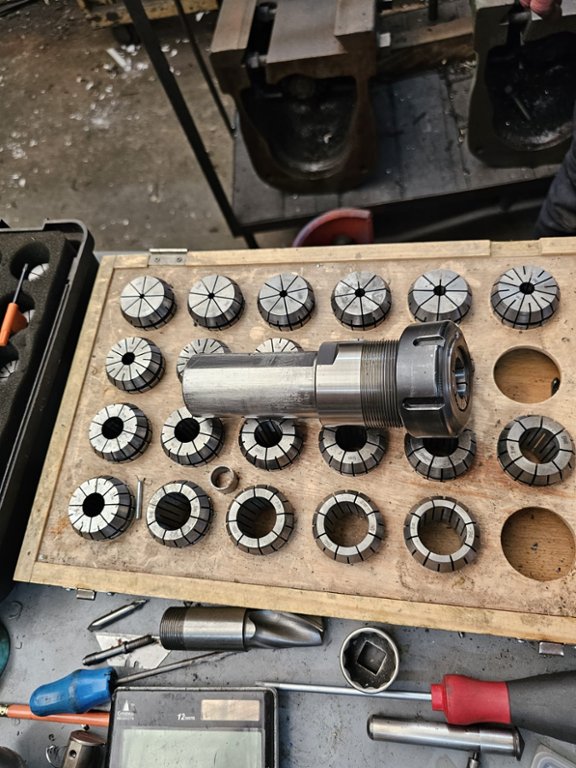

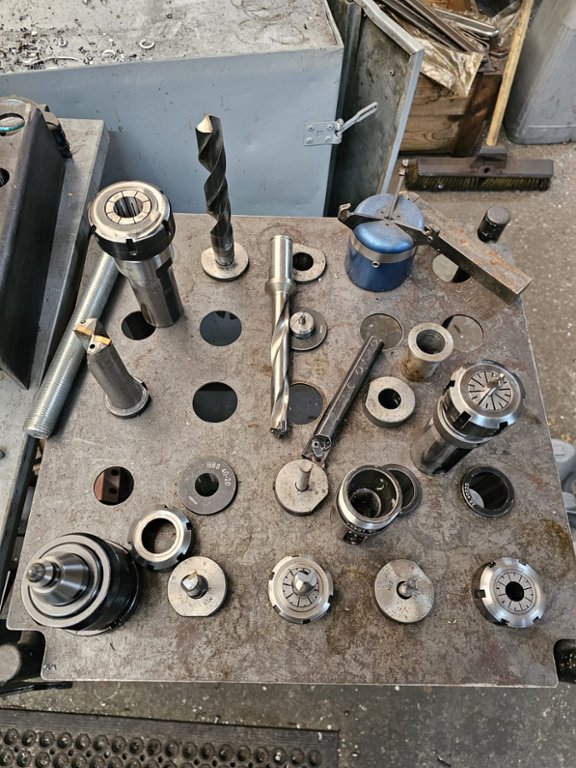

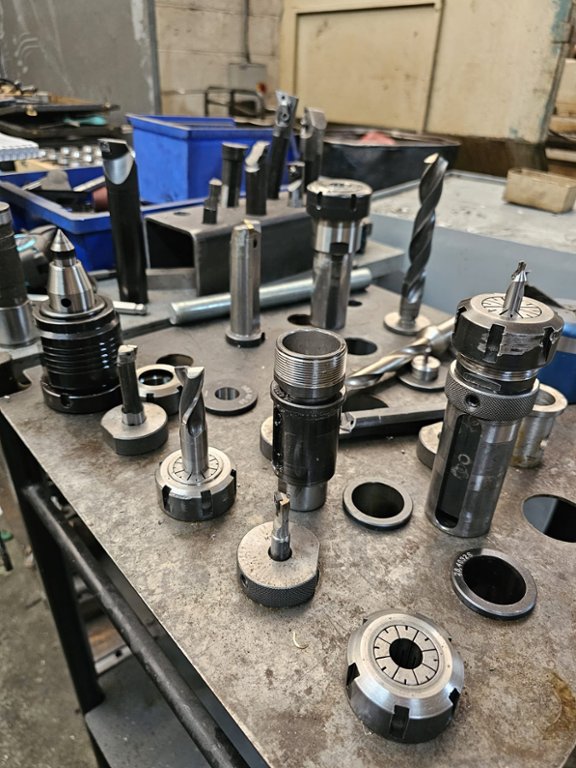

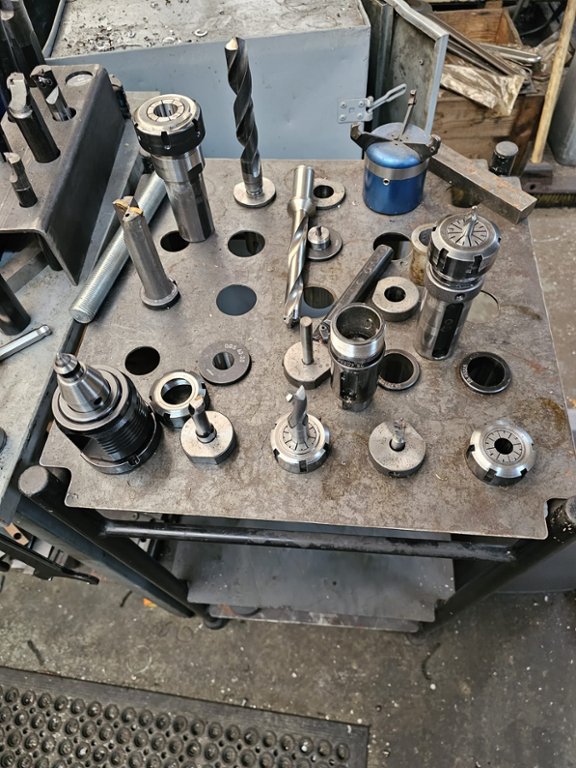

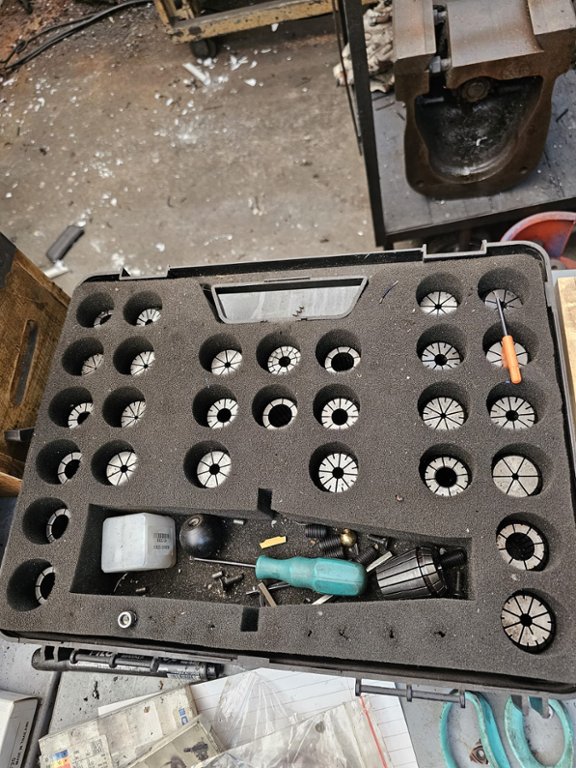

Comes with 8" Chuck, a selection of tooling
NO manuals
Swing Over Bed: 21.6″
Swing Over Cross Slide: 12.6″
Maximum Turning Diameter: 12″
Maximum Turning Length: 18.8″
X-Axis Travel: 8″
Z-Axis Travel: 20″
Distance Between Centers: 23″
Spindle Nose: A2-6
Spindle Speed: 4,800 RPM
A.C. Spindle Motor (Continuous): 15.0 HP

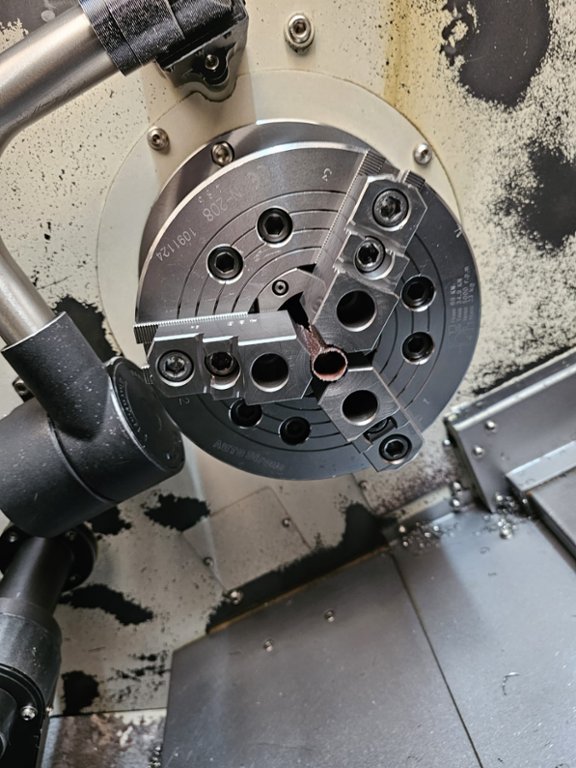

Spindle Chuck: 8″ Diameter 3-Jaw, Hydraulic
Spindle Bore Diameter: 2.44″
Maximum Bar Capacity: 2.04″
X-Axis Rapid Feed Rate: 750 IPM
Z-Axis Rapid Feed Rate: 945 IPM

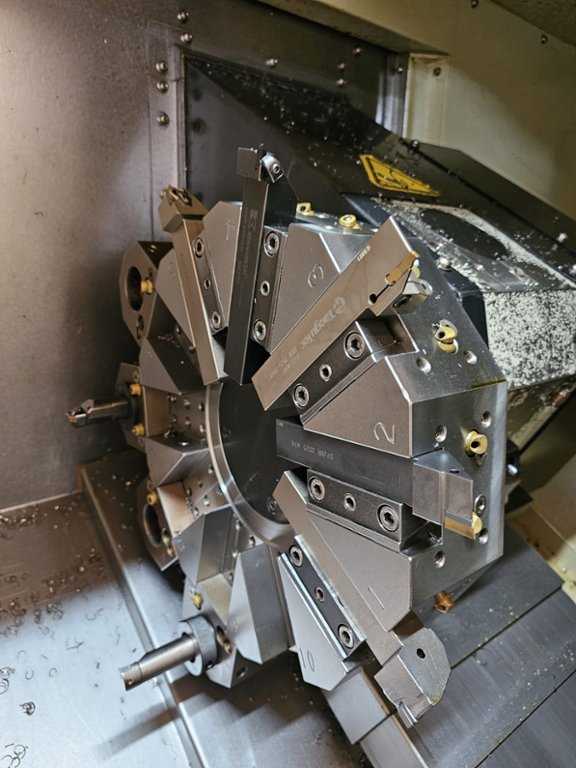

Number of Turret Stations: 10
Electrical: 230V/3PH
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
10 Aug 2023 15:50:00 BST
Serial Number: H-11103121BD7H
Location: Walsall
Transport information
- Width: 2311
- Depth: 2946mm
- Height: 2032
- Weight: 3855kg
- Other Transport Details: No loading facilities on site
