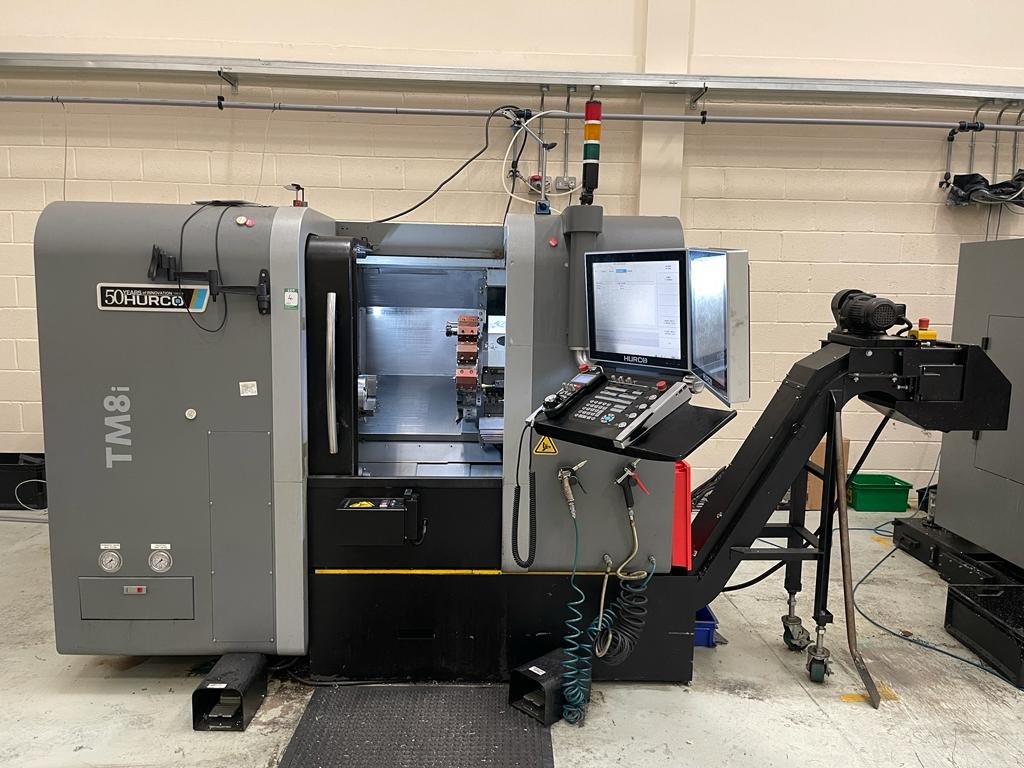

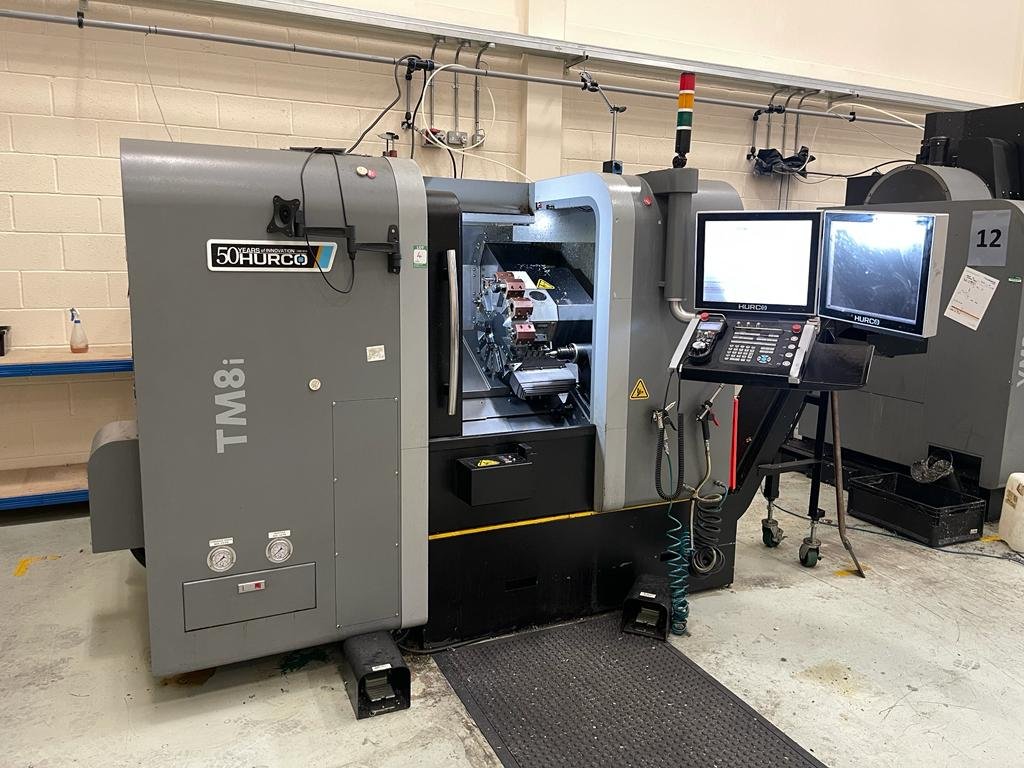

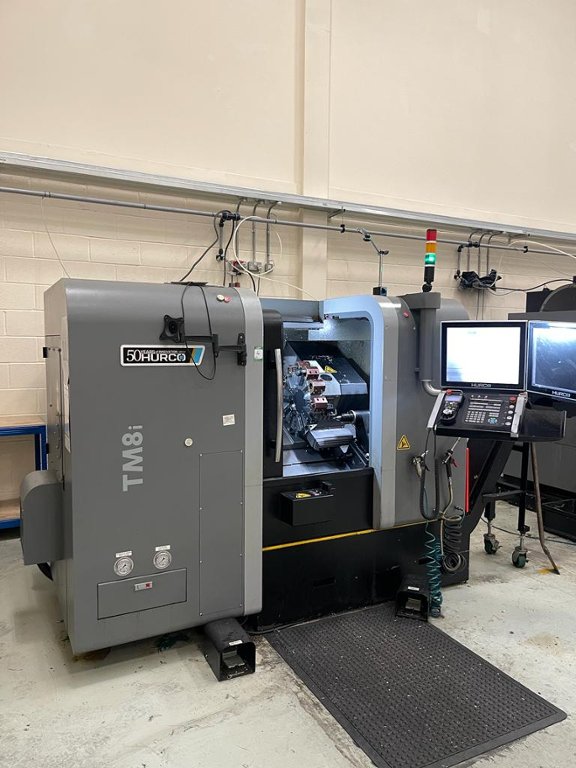

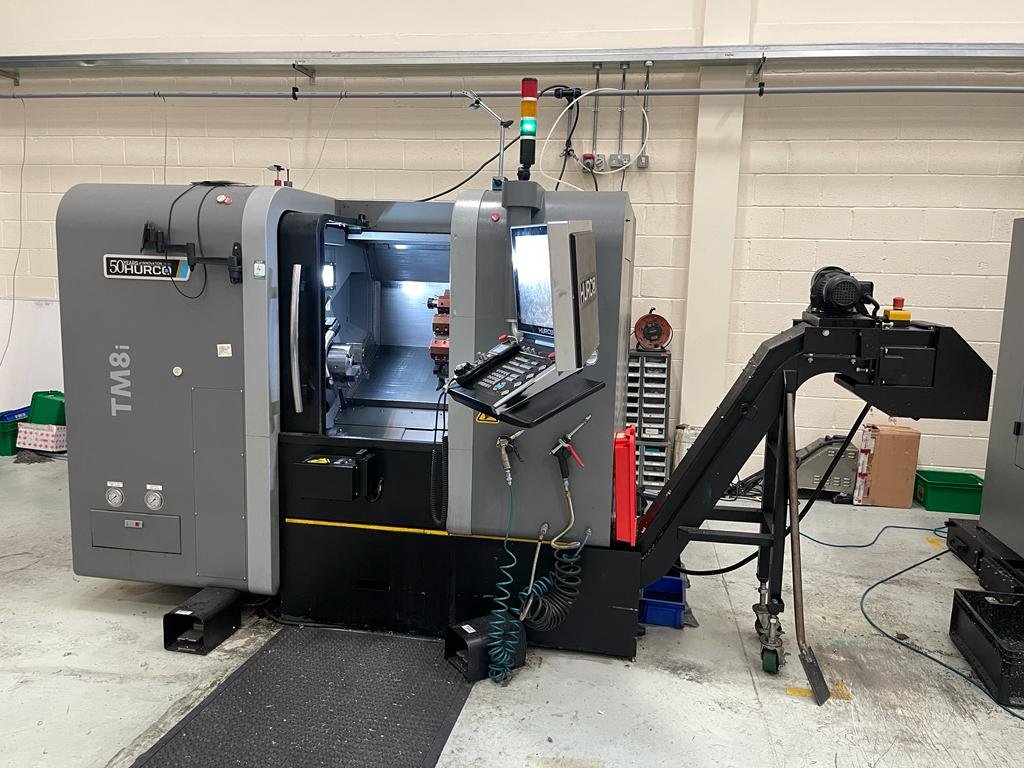

Lot 4 - Hurco TM8i CNC Lathe (2017)
Description:
Vice NOT included
TRAVELS & CAPACITY
Distance Between Centers 597 mm
Swing Over Bed Diameter 525 mm
Swing Over Cross Slide Diameter 300 mm
Max. Turning Diameter 356 mm
Max. Turning Length 525 mm
Max. Bar Capacity 63.5 mm

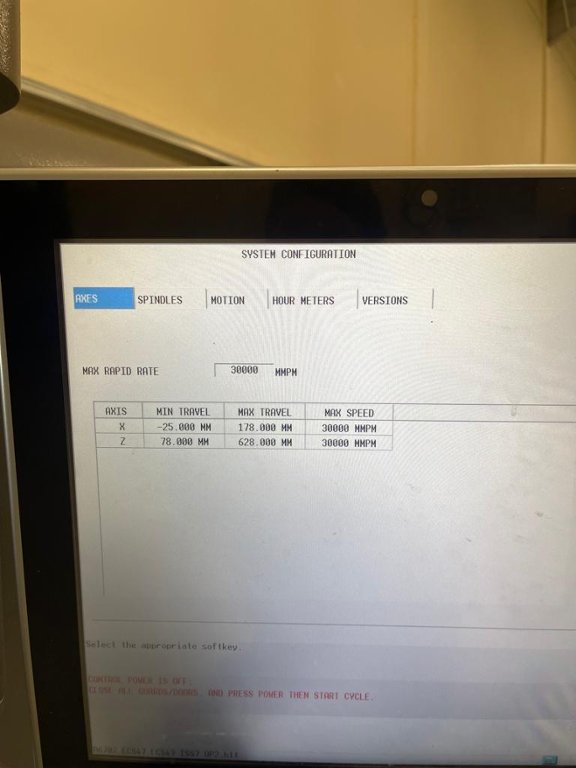

X, Z Axis Travel 203 x 550mm

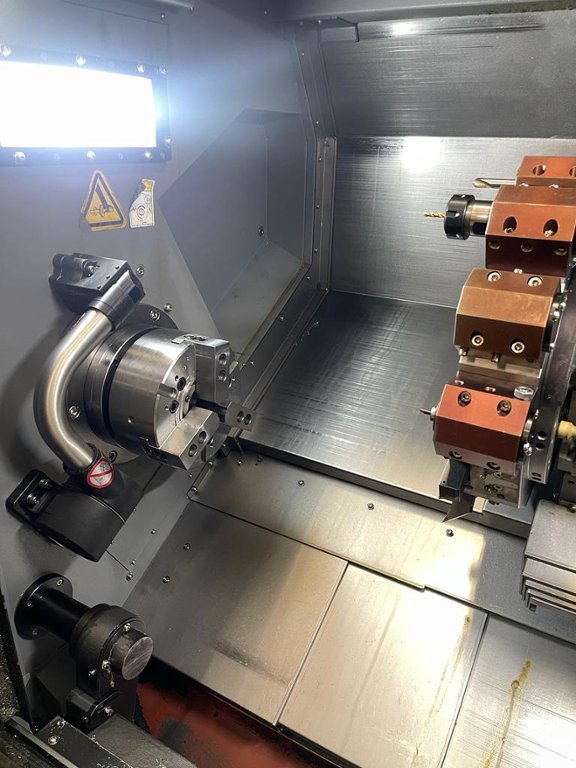

SPINDLE

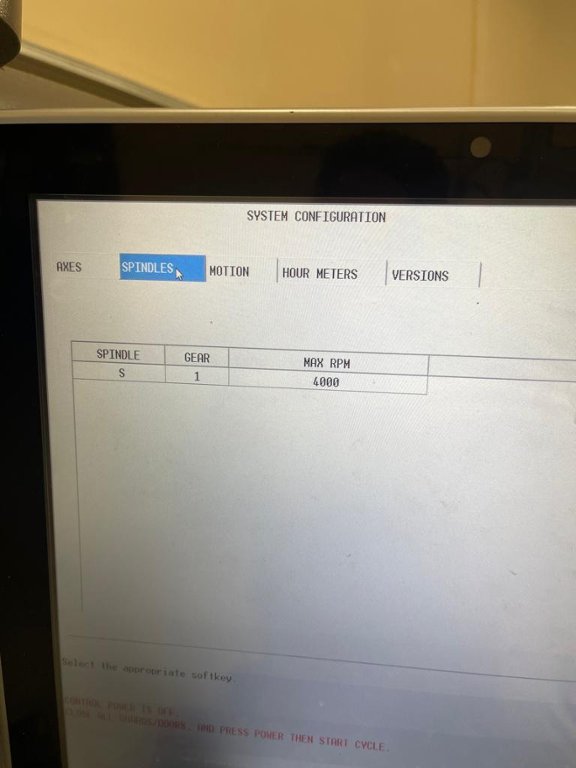

Max. Spindle Speed 4000 rpm
Max torque high gear 161.9 ft. lbs @ 1000 RPM (219 Nm @ 1000 RPM)
Spindle Power 24 hp (23.2 kw)
Spindle Nose A2-6

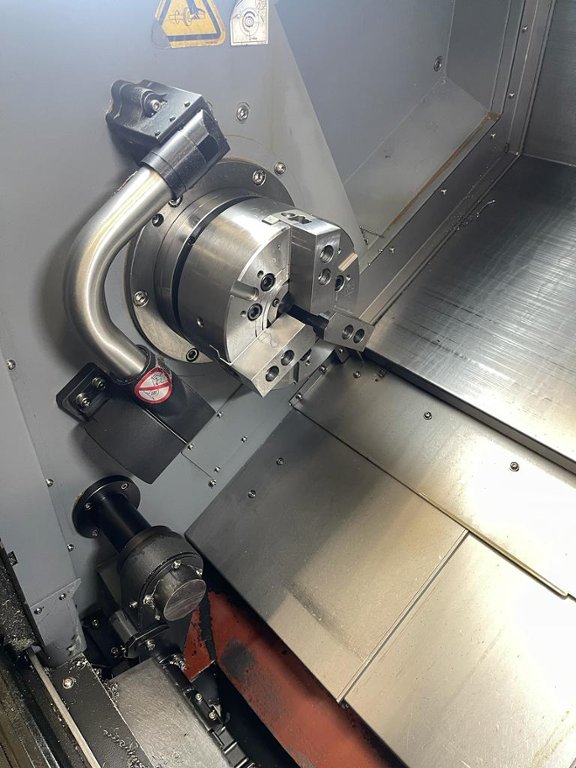

Chuck Diameter 8 in (203 mm)

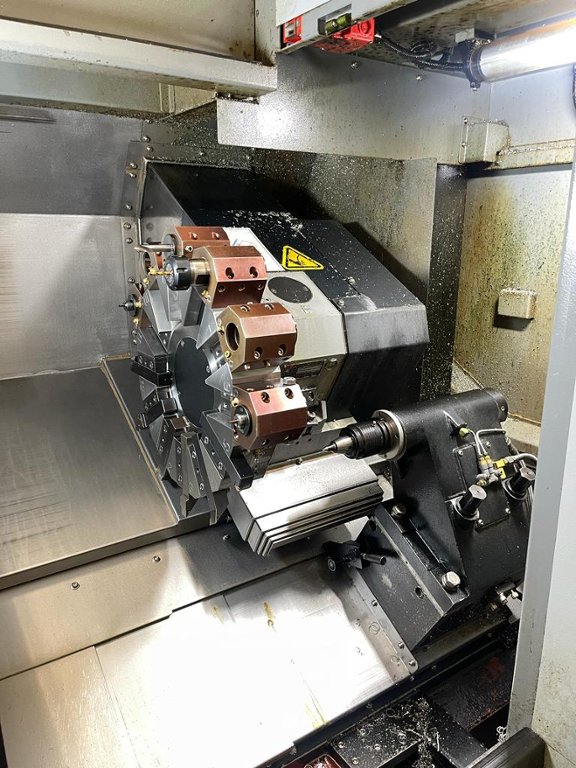

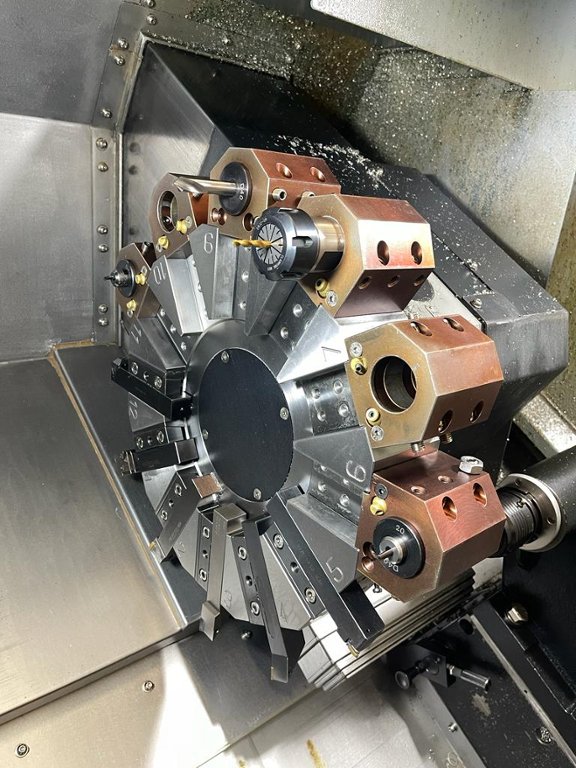

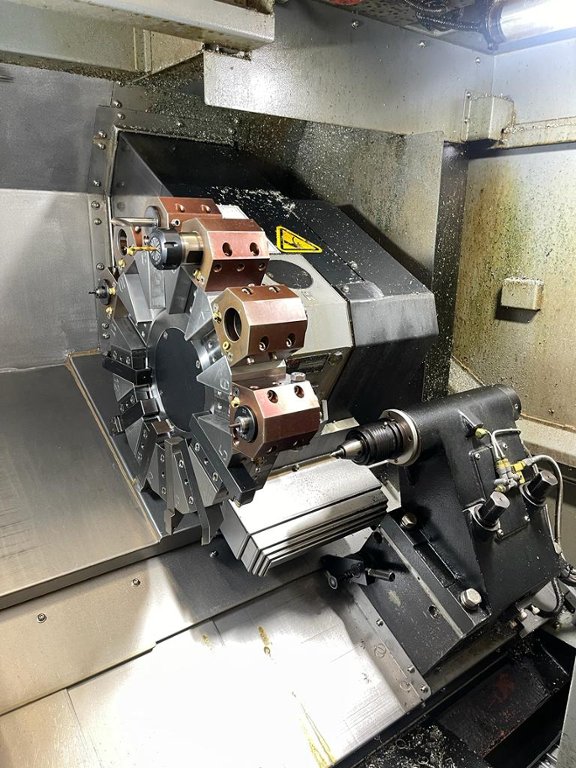

TURRET
Tool Type Slotted Disc
Tool Capacity 12 Stations
Turret Index Time-Adjacent 0.5 seconds
Turret Index Time-Furthest 1.5 seconds
FEEDRATES
Rapid Traverse X,Z Axis 1181, 1181 in/min (30, 30 m/min)
SIZE
Max. Operating Floor Space 4296 x 2729 mm
Machine Height 2185 mm
Machine Weight 4030 kg
Parts catcher dimensions 150 x 95 x 70 mm
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
20 Apr 2023 15:00:00 BST

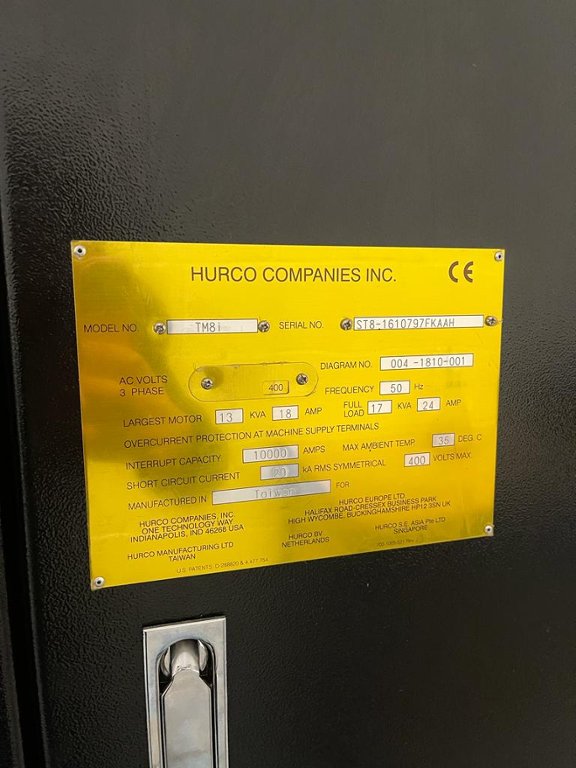

Serial Number: ST8-1610797FKAAH
Location: Bedfordshire
Transport information
- Width: 230cm
- Depth: 165cm
- Height: 185cm
- Other Transport Details: £350 - Machines will be disconnected, drained and loaded to suitable transport. Please note the loading charge will be automatically added to purchasers invoice. *No other loading companies will be allowed on to site
