Description:
* NOW SOLD*
Vice NOT included

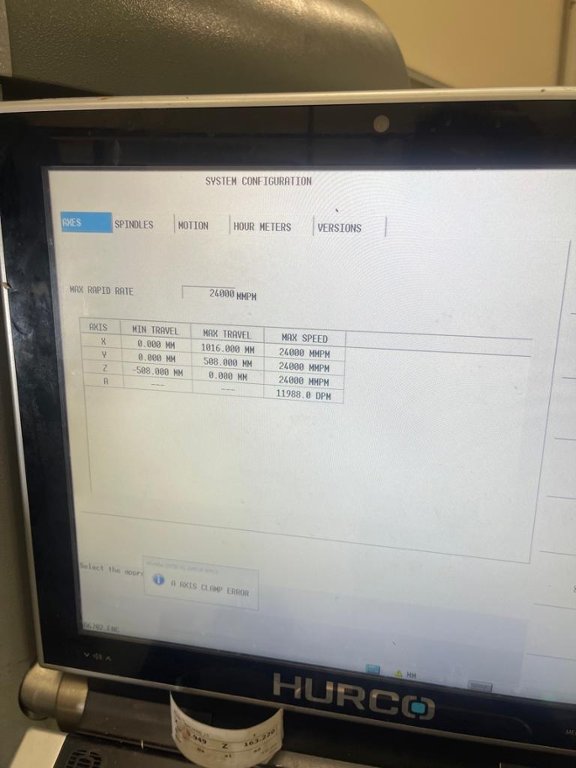

TRAVELS & CAPACITY
X, Y, Z Axis Travel 1016 x 508 x 508 mm

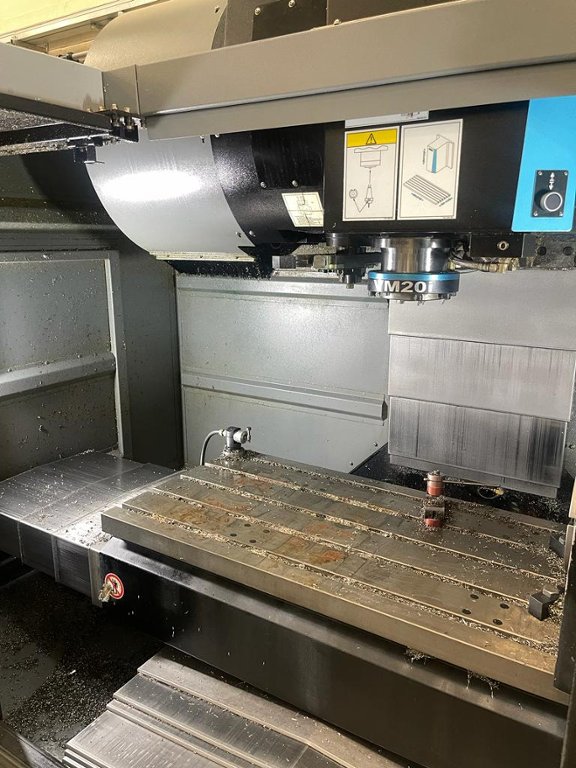

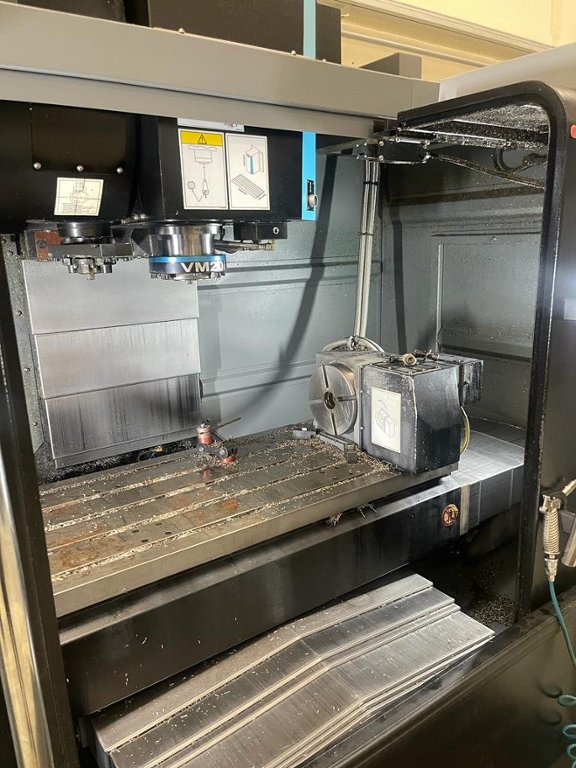

Table Size 1168 x 508 mm
Max. Weight on Table 1800 kg
Spindle Nose to Table Min/Max 102 / 610 mm
T-Slot Size 5 x 18 mm

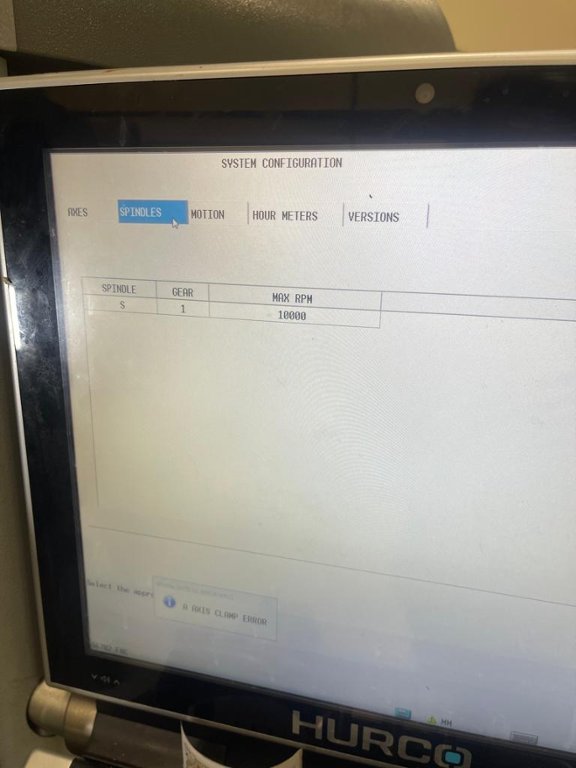

SPINDLE
Max. Spindle Speed 12000 rpm
Spindle Power (peak - 1 min) 20 hp (15.0 kW)
Spindle Torque (peak - 1 min) 75 ft-lbs @ 1450rpm (102 Nm @ 1450 rpm)

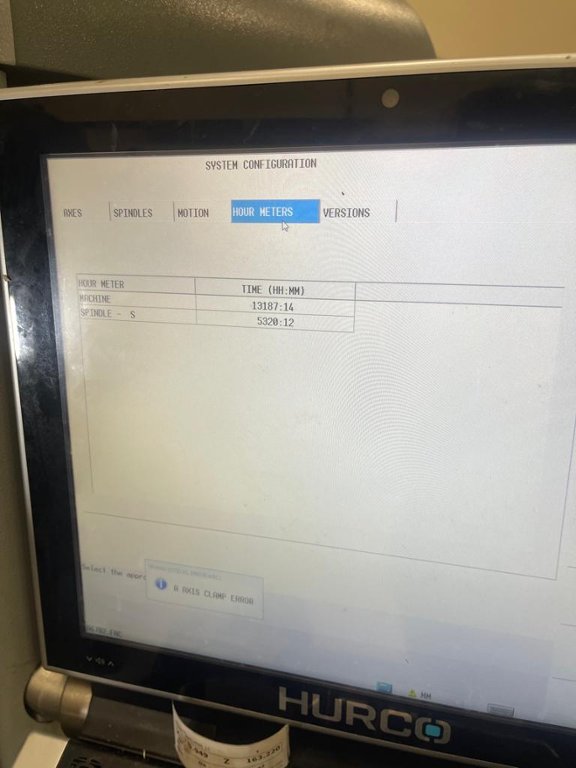

Spindle Hours -
TOOL CHANGER
Tool Type CAT 40 / Big Plus® (CAT/BT 40)
Number Of Tools 20 (24)
Max Tool Diameter 80 mm
Max Tool Length 250 mm
Max Tool Weight 7 kg
FEEDRATES
Rapid Traverse X,Y,Z Axis 1102 in/min (28 m/minute)
Max Programmable Feedrate 1102 inches/minute (25.5 m/minute)
SIZE
Max. Operating Floor Space 3703 x 3007 mm
Machine Height 2,576 mm
Machine Weight 4,100 kg
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Time remaining
20 Apr 2023 15:00:00 BST

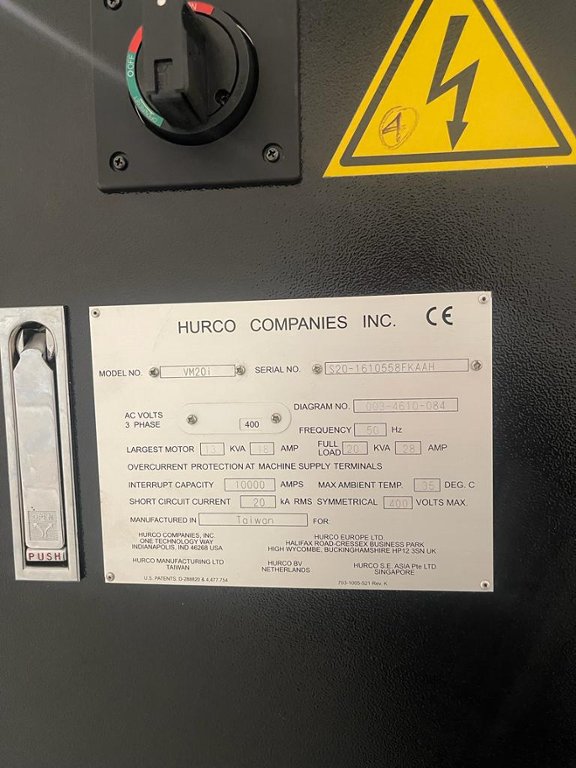

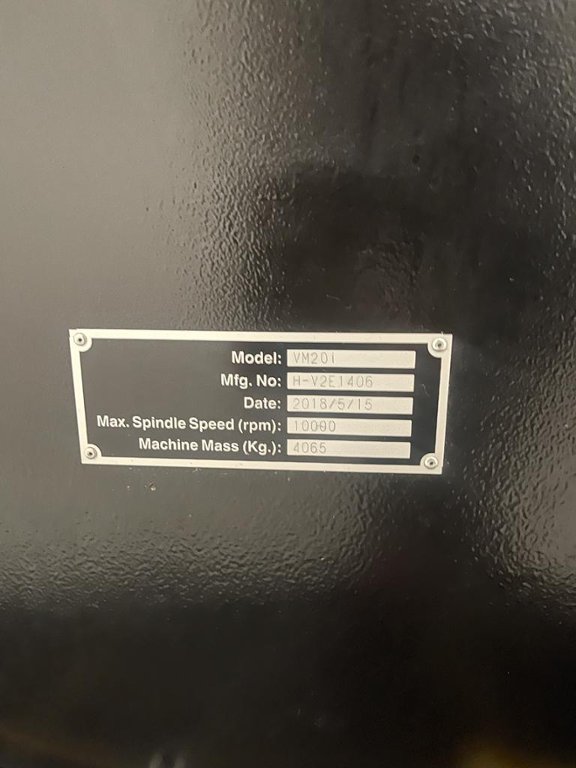

Serial Number: S20-1610558FKAAH
Location: Bedfordshire
