Description:
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
X, Y, Z Axis Travel 64 x 34 x 30 in (1625 x 864 x 762 mm)
T-Slot Size 7 x .71 in (7 x 18 x 125 mm)
Max. Weight on Table 6,000 lbs (2,722 kg)
Table Size 66 x 35 in (1676 x 889 mm)
Spindle Nose to Table 6.0 in (152 mm min / 732 mm max)
SPINDLE
Max. Spindle Speed 8000 rpm
Spindle Power (peak - 1 min) 30 hp (22.2 kW)
Spindle Torque (peak - 1 min) 260 ft. lbs @ 600 rpm (353 Nm @ 600 rpm)
TOOL CHANGER
Tool Type CAT 50 (CAT/BT 50)
Number Of Tools 32
Max Tool Diameter 4.9 in (125 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 33 lbs (15 kg)
FEEDRATES
Rapid Traverse X,Y,Z Axis 709 in/min, 709 in/min, 530 in/min ( 18 m/minute, 18 m/minute, 13.5 m/minute)
Max Programmable Feedrate 530 inches/minute (13.5 m/minute)
SIZE

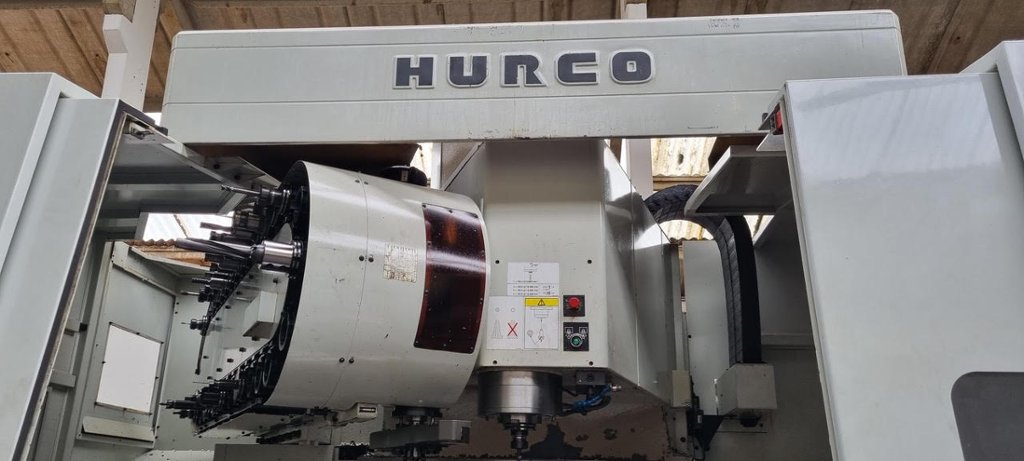

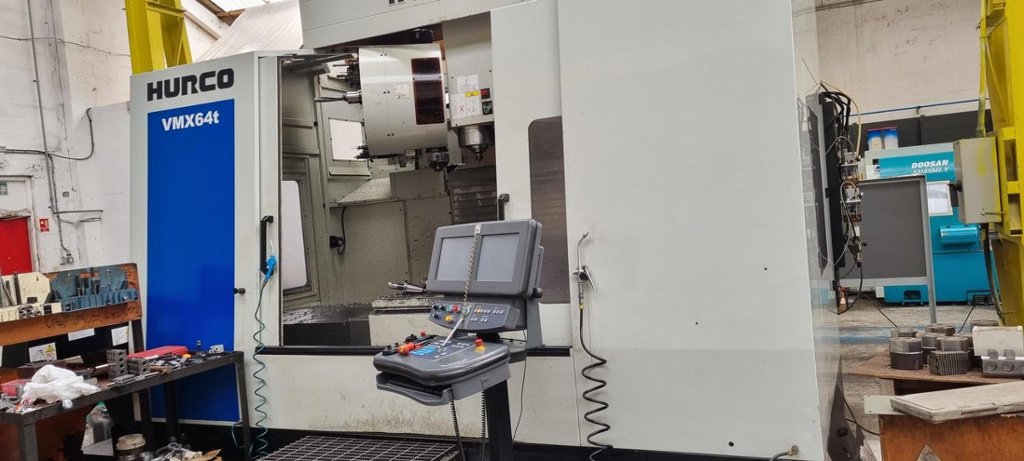

Comes with 32 Position Tool Changer & Hurco Control
Please see lot 20 if 4th Axis is required
Please see lot 33 if tailstock is required
