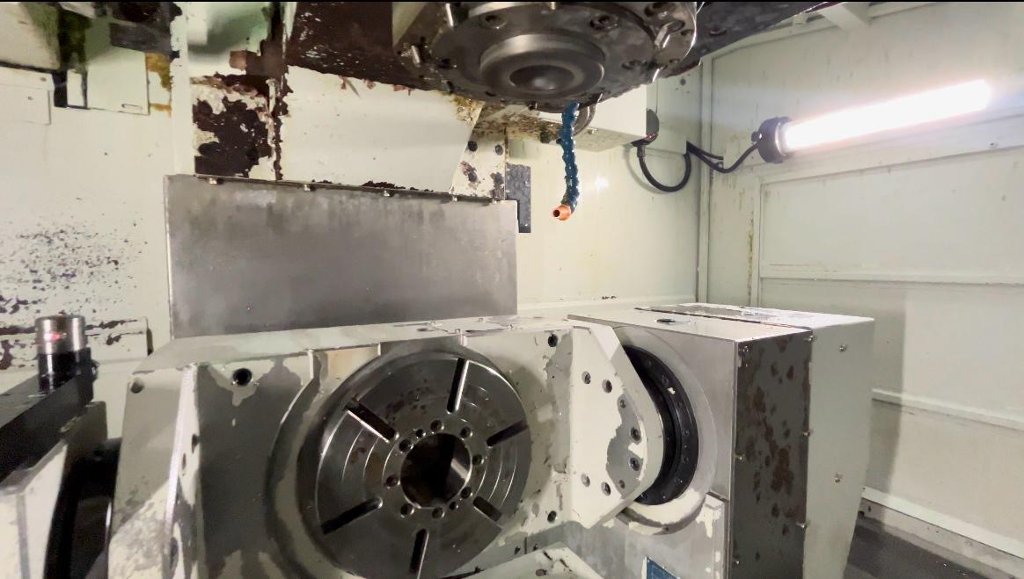

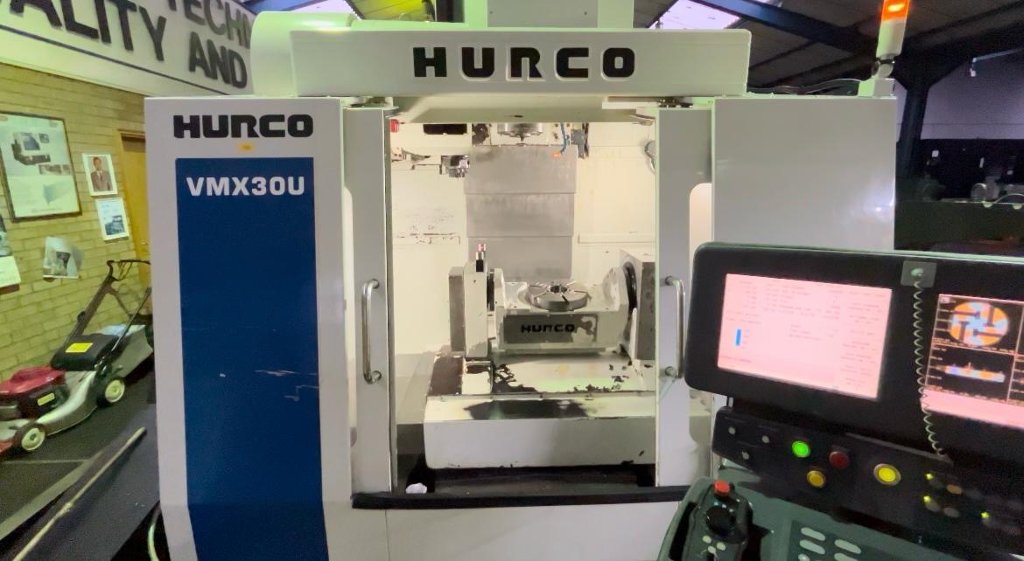

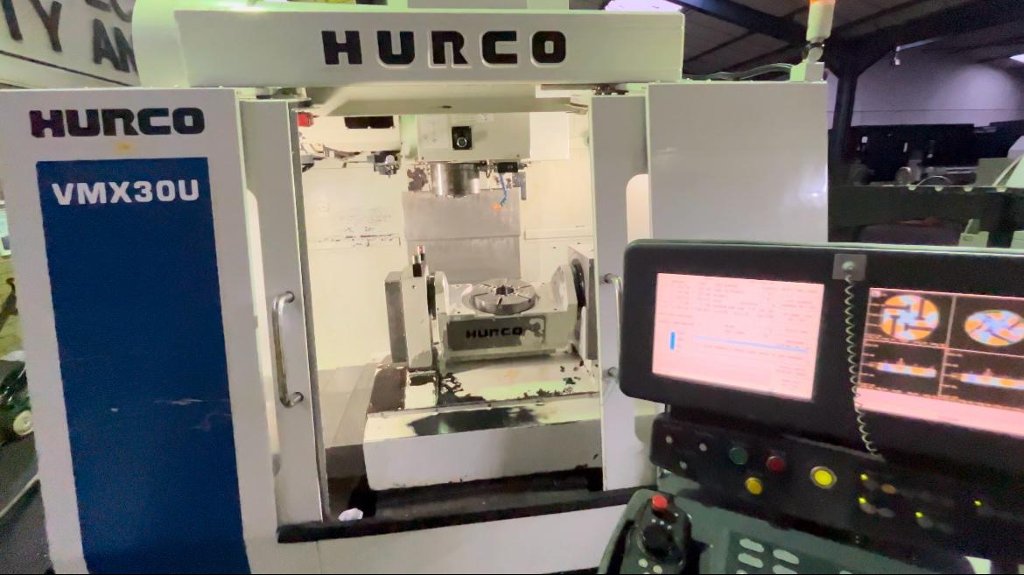

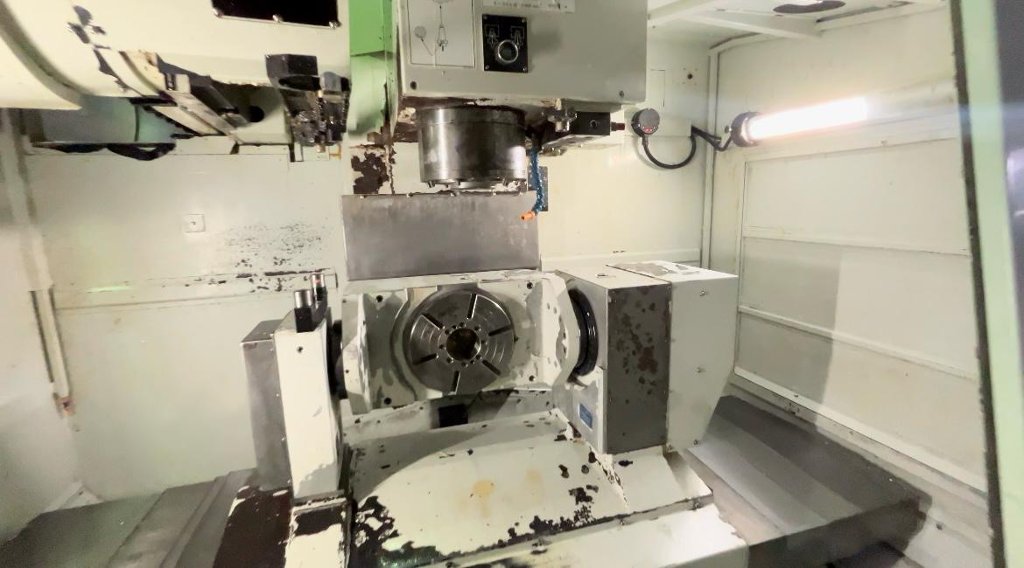

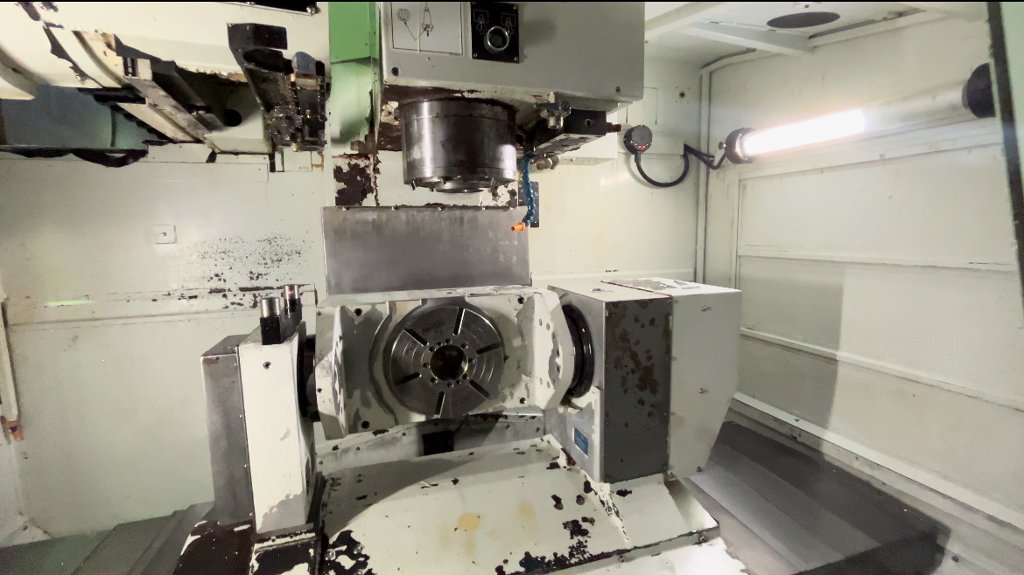

Hurco VMX30 U Vertical Machining Centre (2011)

Lot 2 - Hurco VMX30 U Vertical Machining Centre (2011)

Description:

Table: Table Size 9.8"
Maximum Table Load 440 Lbs
Travels: X-Axis Travel 30"
Y-Axis Travel 20"
Z-Axis Travel 20.5"
A-Axis Travel (Head Swivel) + 30° / - 110°
Spindle Nose to Table Top 3.5" - 24"
Spindle: Spindle Speeds Minimum - Maximum 40 - 12,000 RPM
Spindle Taper 40 Taper
Main Motor (30 min. / continuous) 18 / 10 HP
Tool Changer: Tool Changer Positions / Tool-to-Tool 40 ATC / 4 Sec
Rapids: Rapid Traverse (X, Y & Z) 1,181 IPM
Cutting Feed Rate 1,181 IPM
Dimensions: Floor Space (L x W x H) 95" x 86" x 109"
Weight (approx.) 12,000 Lbs

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
