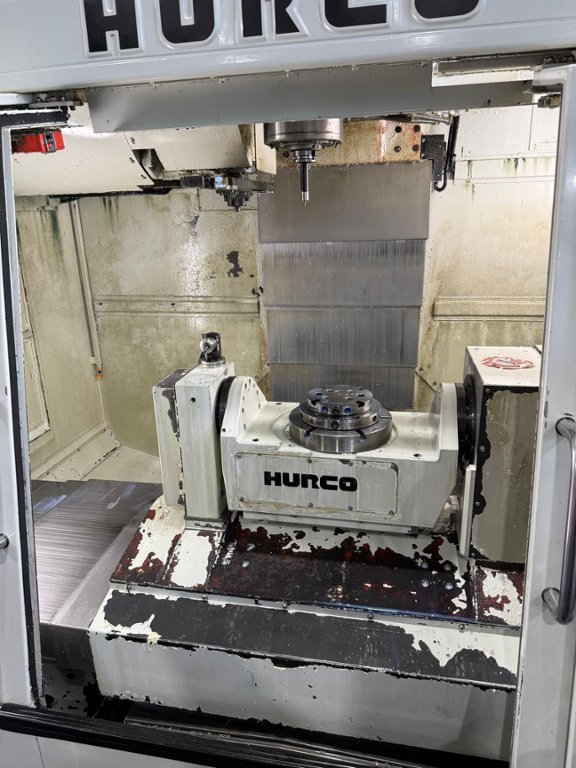

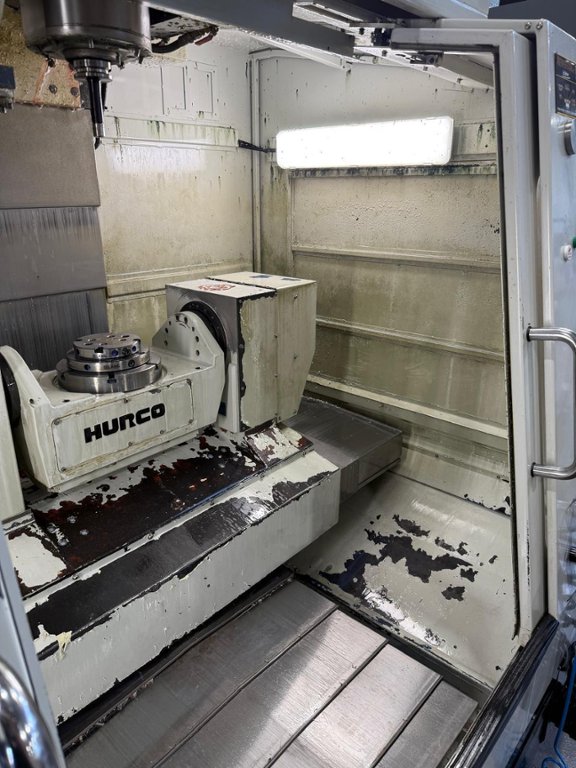

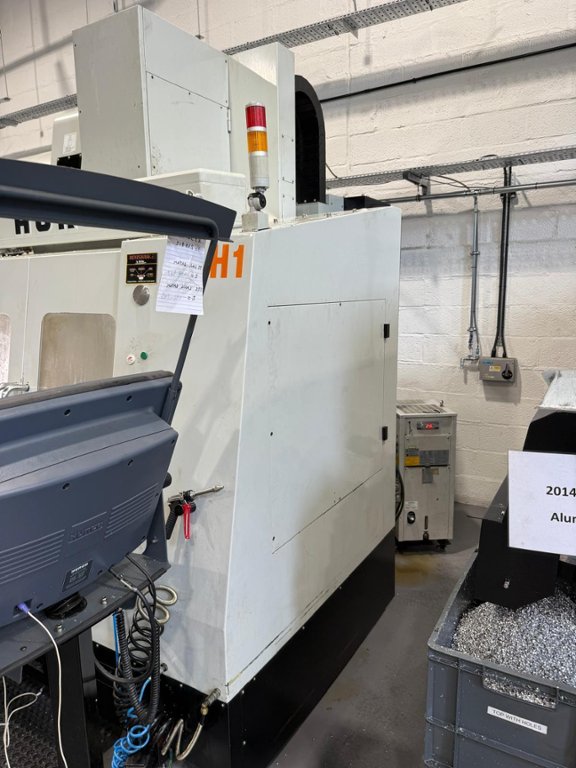

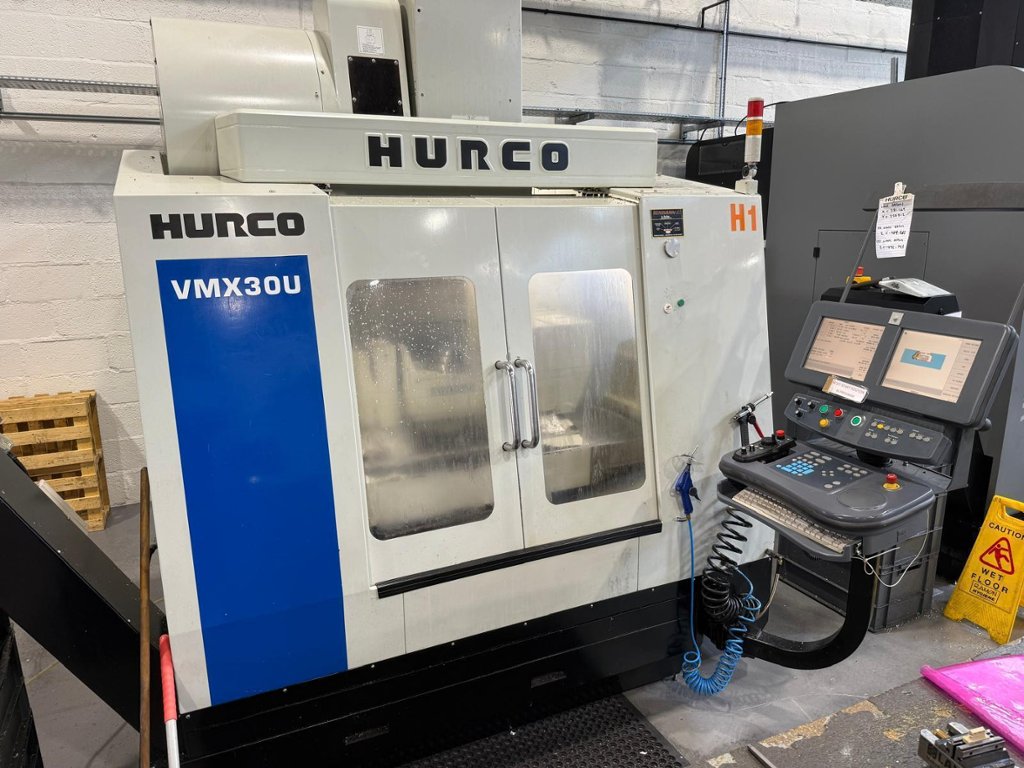

Hurco VMX30U 5 axis CNC Vertical Machining Centre (2012)

Lot 2 - Hurco VMX30U 5 axis CNC Vertical Machining Centre (2012)

Description:

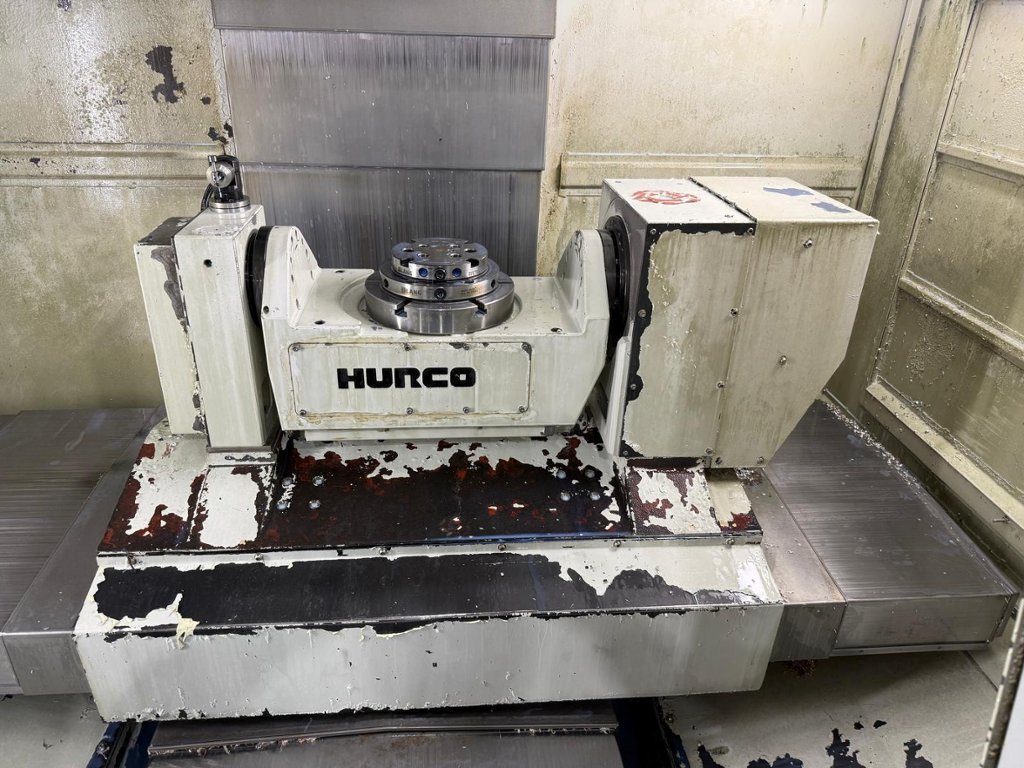

X, Y, Z Axis Travel - 762 x 508 x 520 mm, A-Axis Travel +30°/-110°, Spindle Nose to Table (Min-Max) - 90 mm / 610 mm, Table Diameter - 248 mm, Max. Weight on Table - 200 kg, T-Slot Size - 6 x 12 mm x 60°, Max. Spindle Speed - 12,000 rpm, Peak Spindle Motor - 11 kW
Spindle Torque (peak - 1 min) - 213.3 Nm @ 600 rpm

TOOL CHANGER

Tool Type - CAT, BT, DIN 40, Number Of Tools - 40, Max Tool Diameter - 76 mm, Max Tool Length - 300 mm, Max Tool Weight - 7 kg

FEEDRATES

Rapid Traverse X,Y,Z Axis - 38. 38, 32 m/min, Max Programmable Feedrate - 32 m/min
Rapid Traverse A, C Axis 25 rpm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
