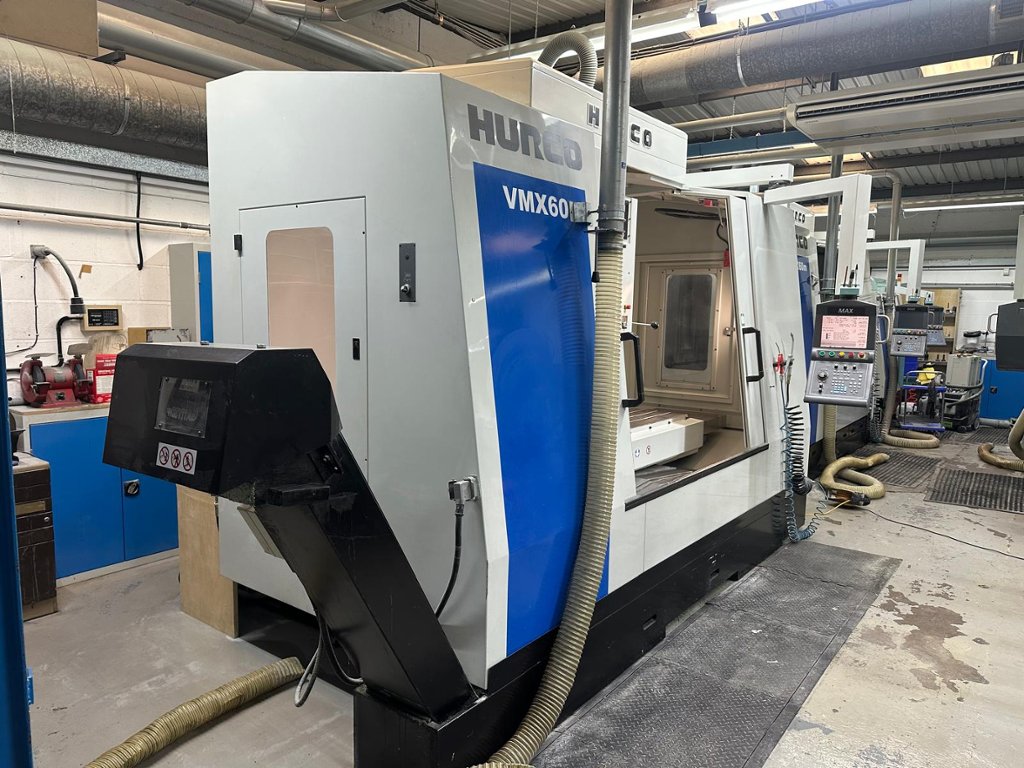

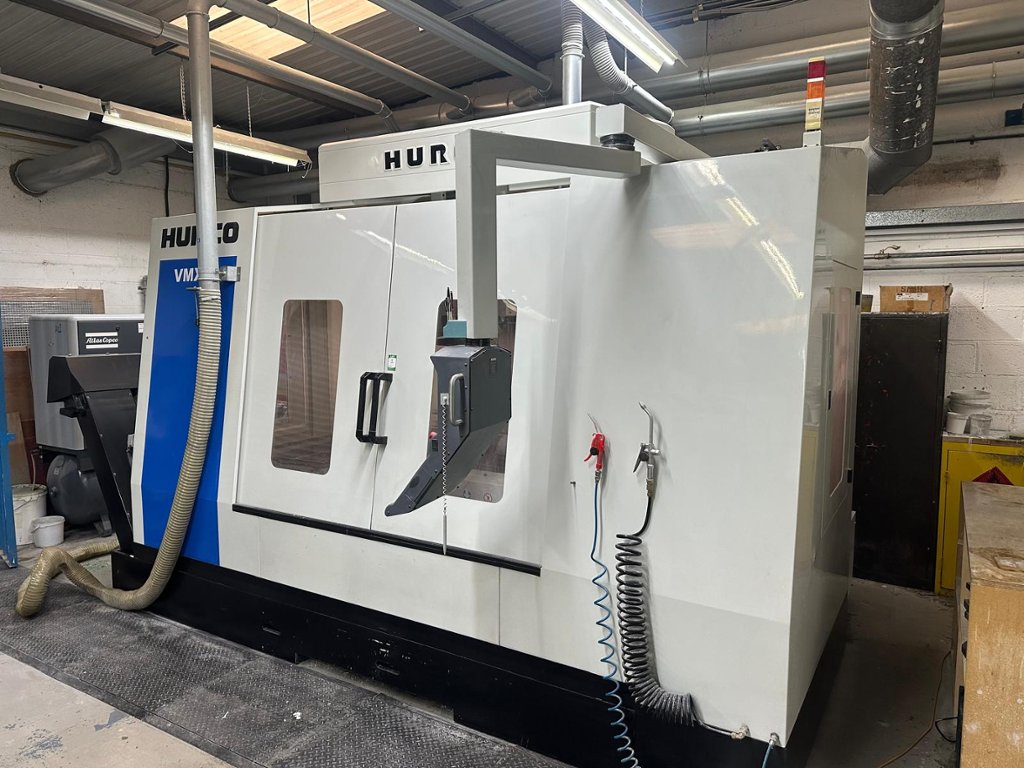

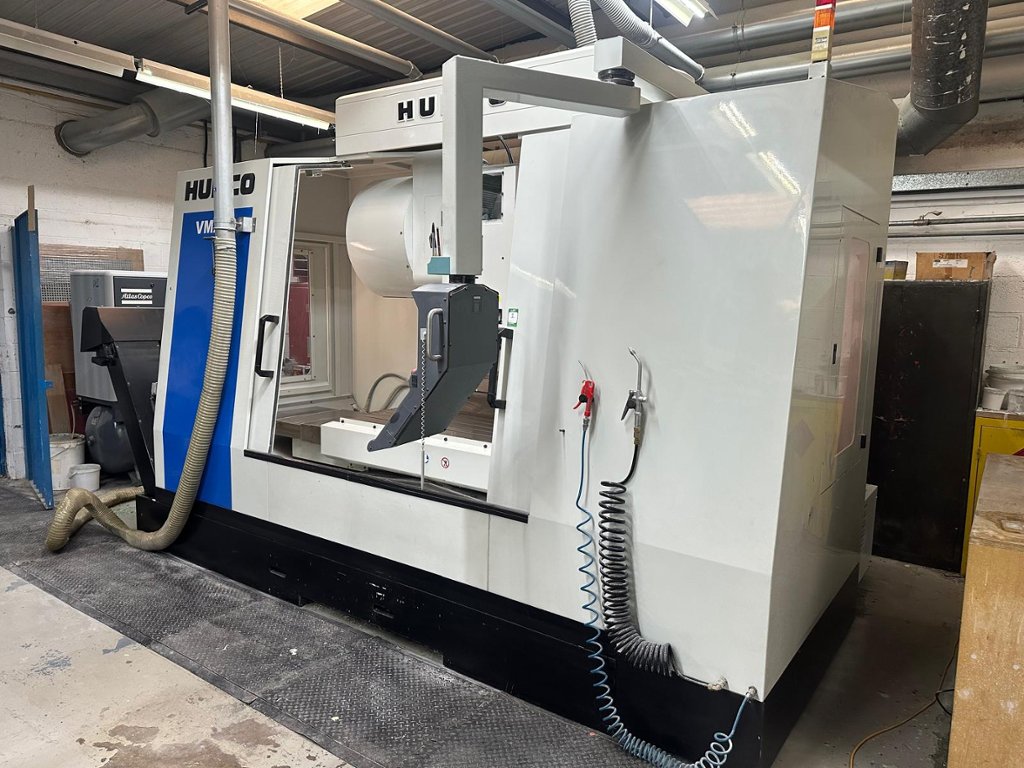

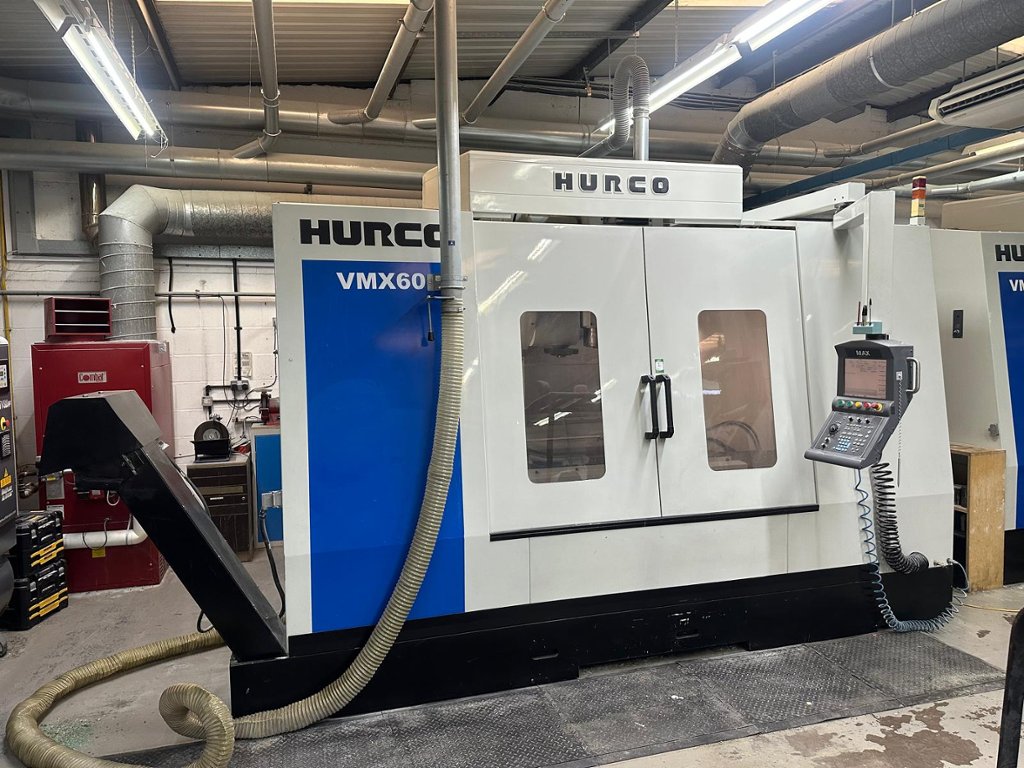

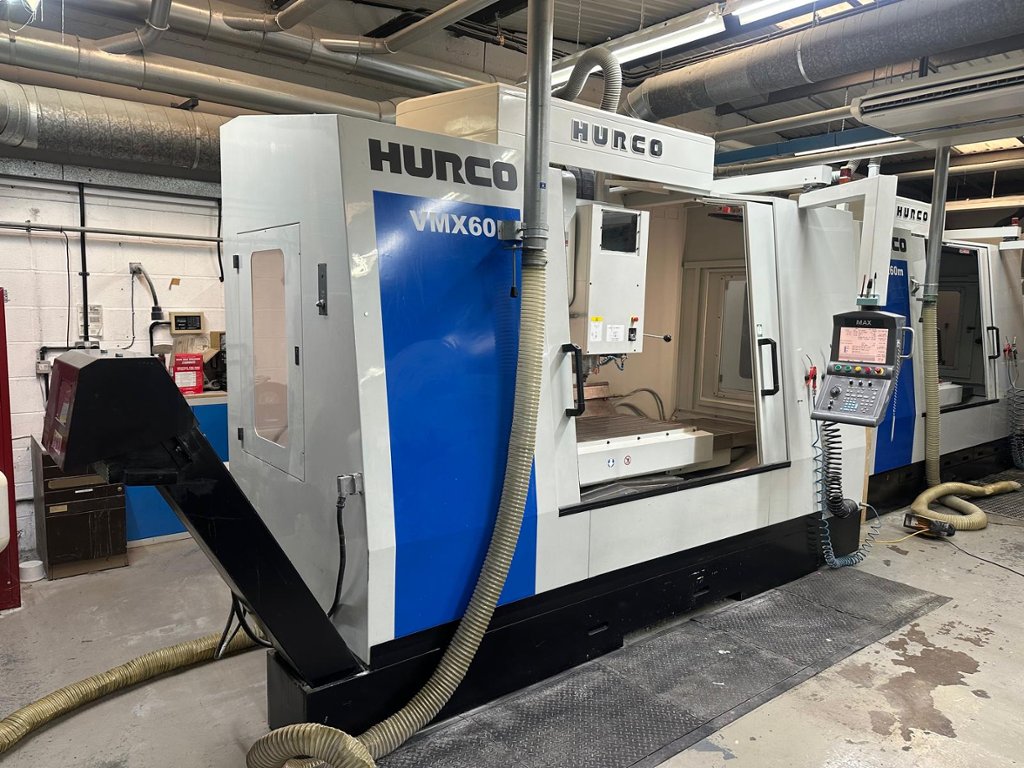

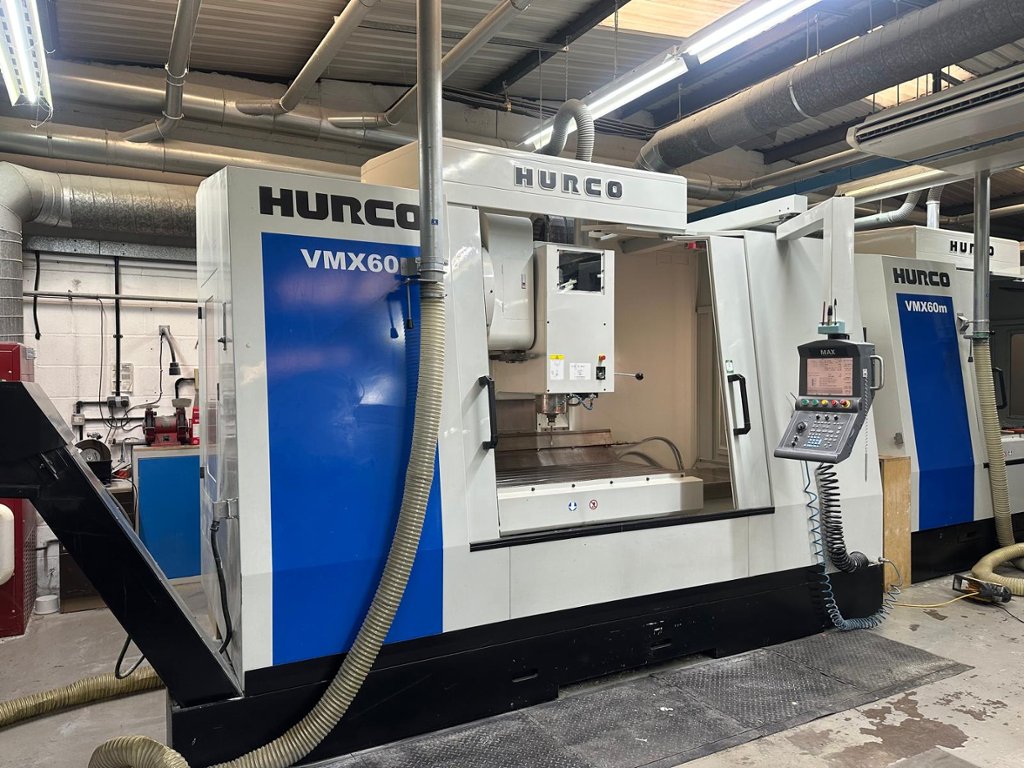

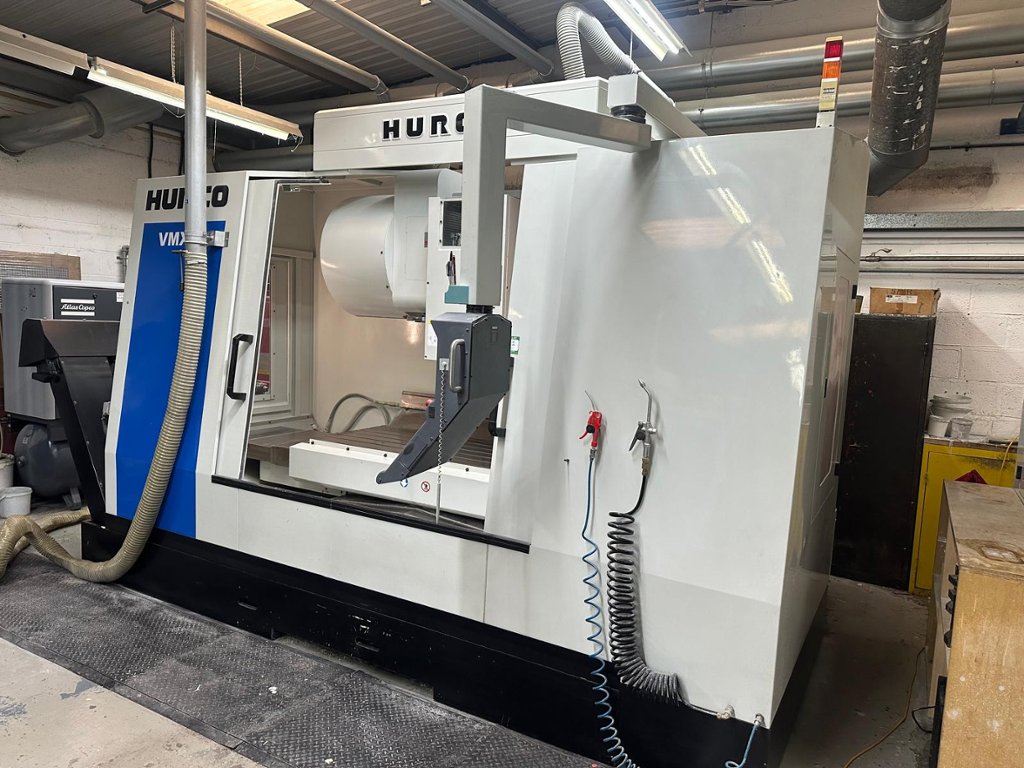

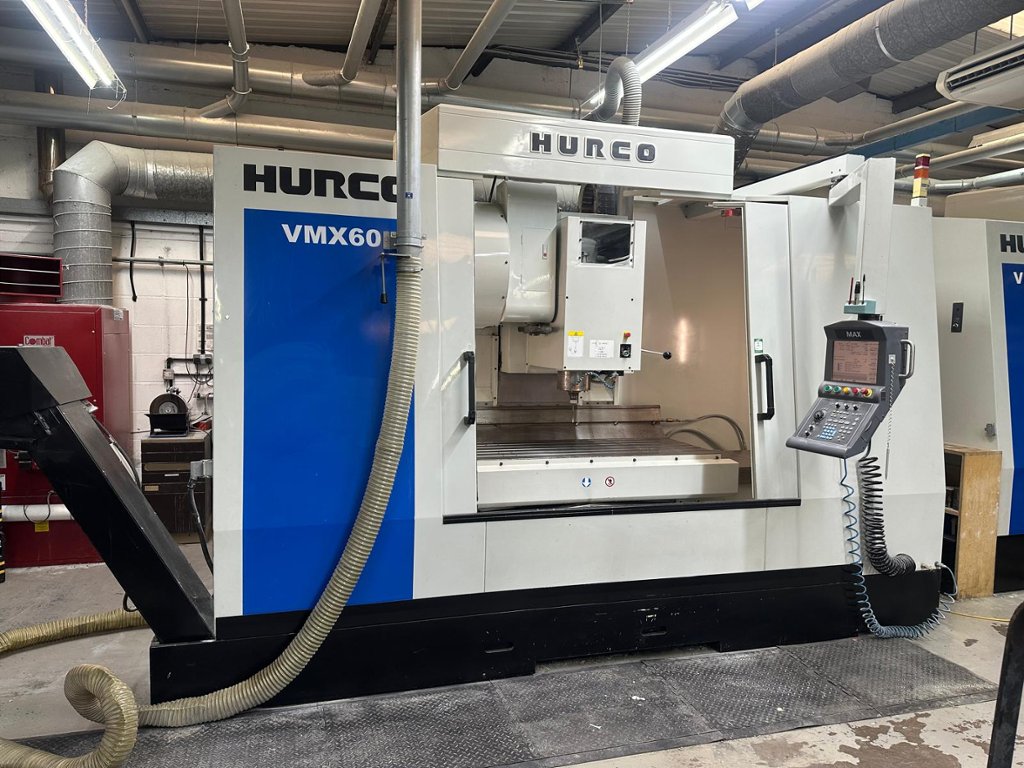

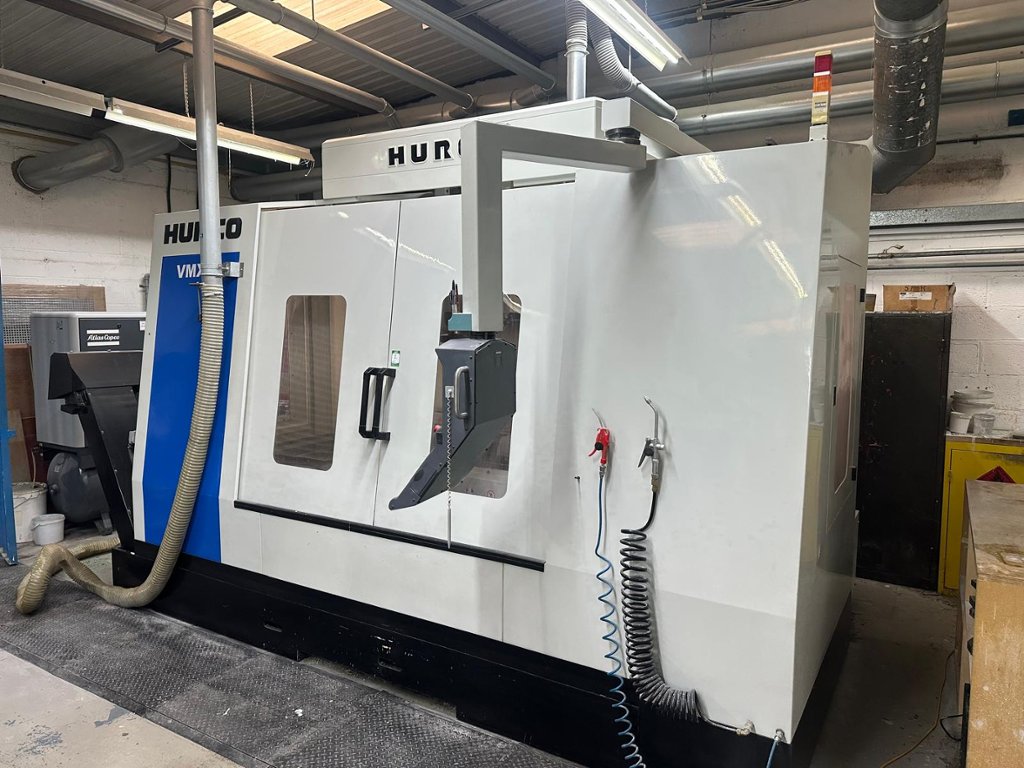

Hurco VMX60 Vertical Machining Centre (2007)

Lot 1 - Hurco VMX60 Vertical Machining Centre (2007)

Description:

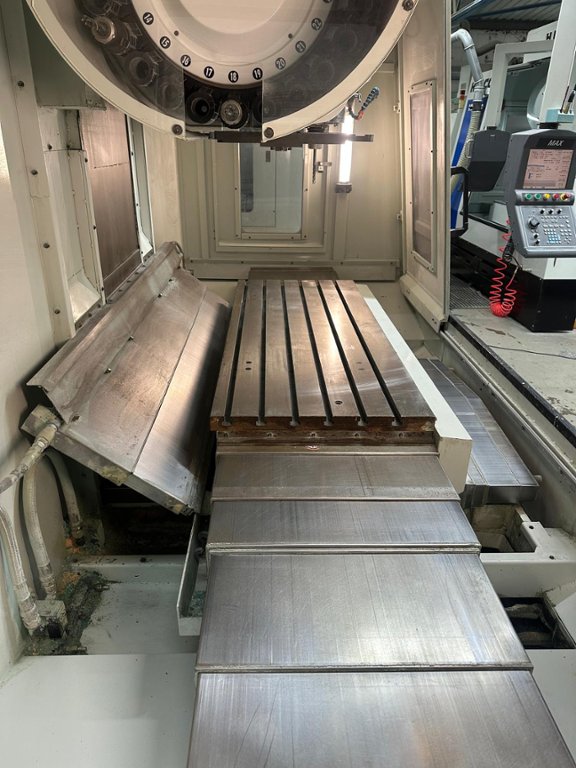

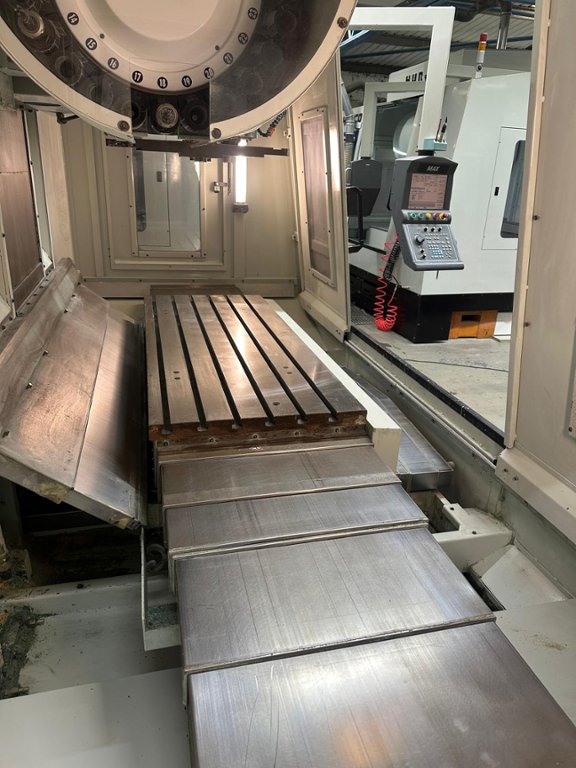

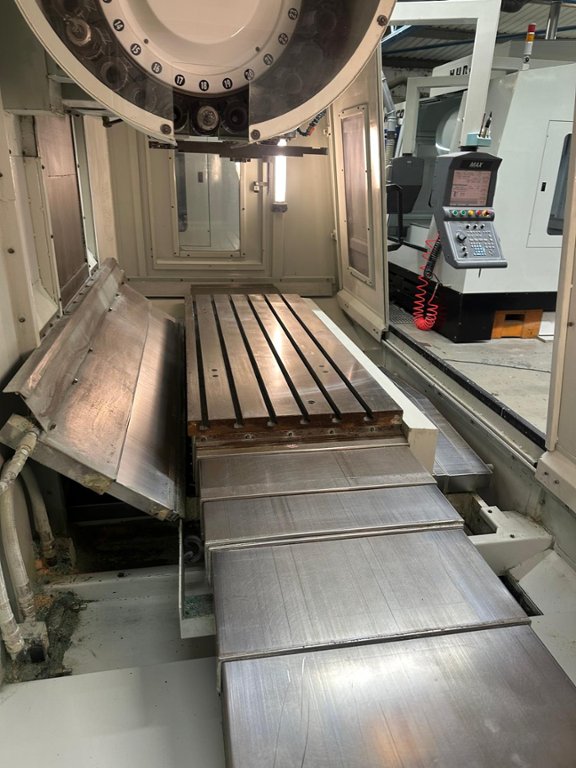

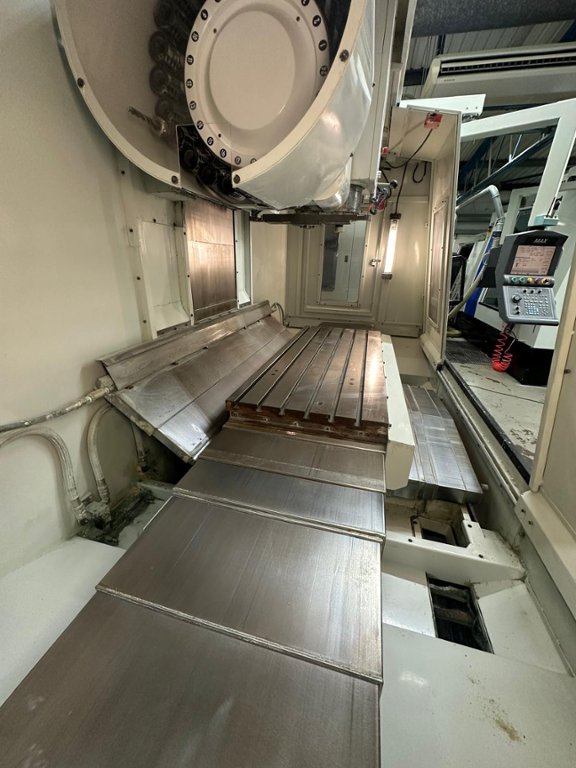

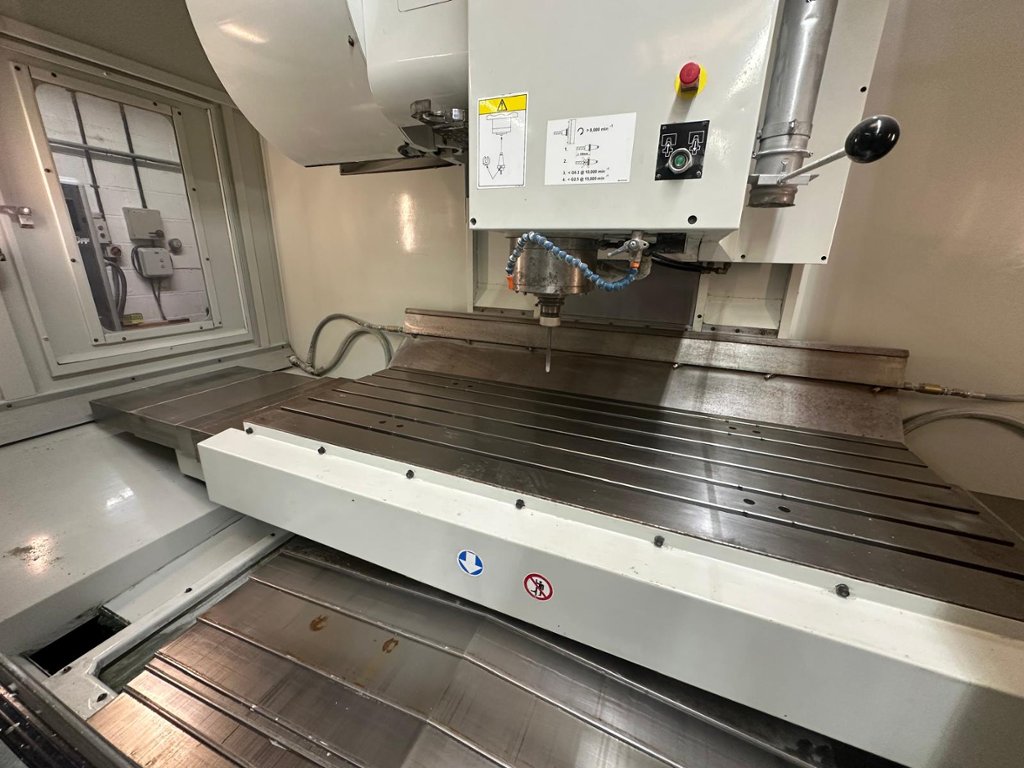

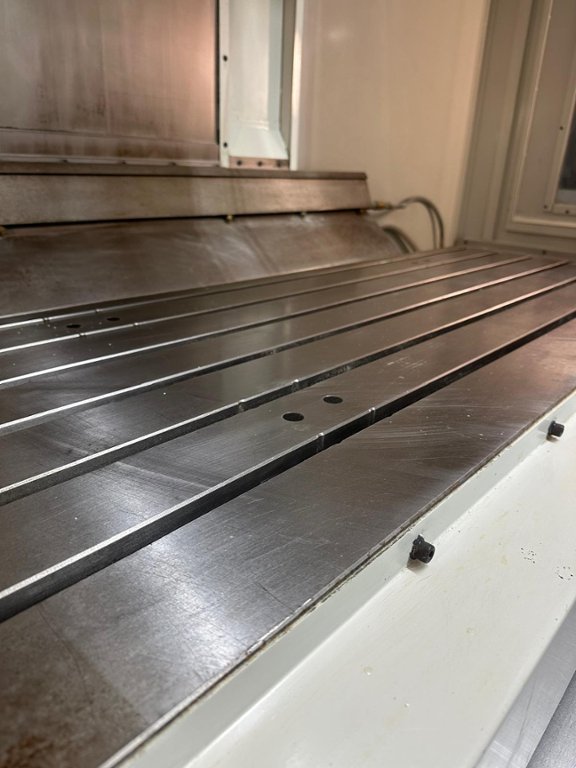

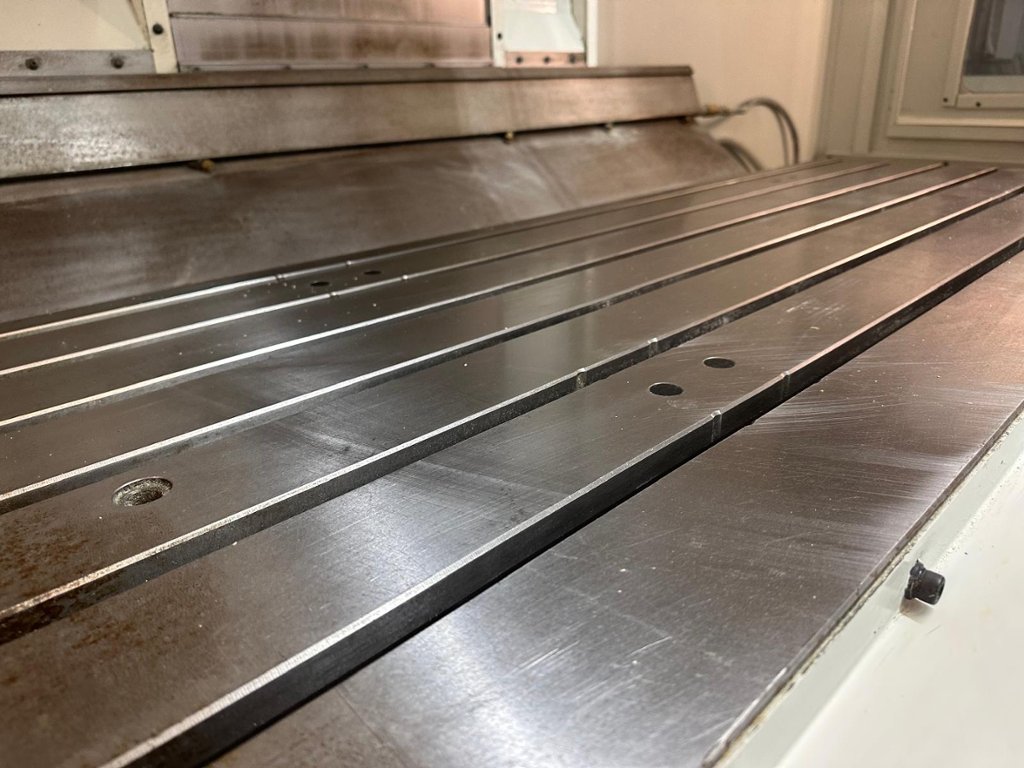

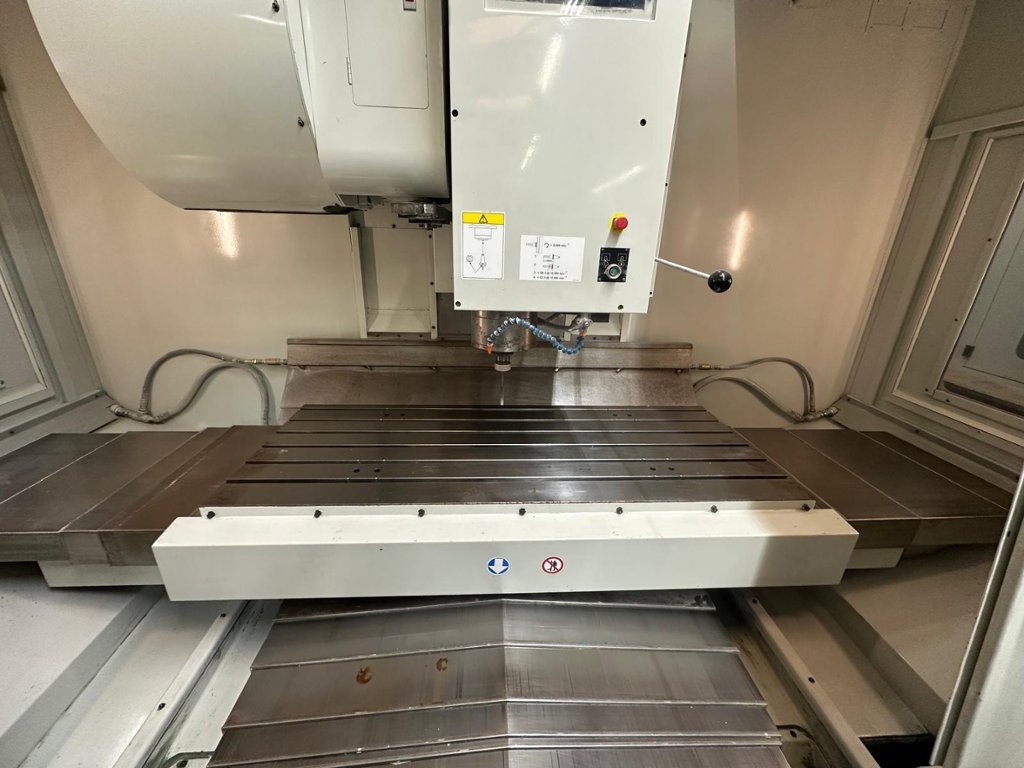

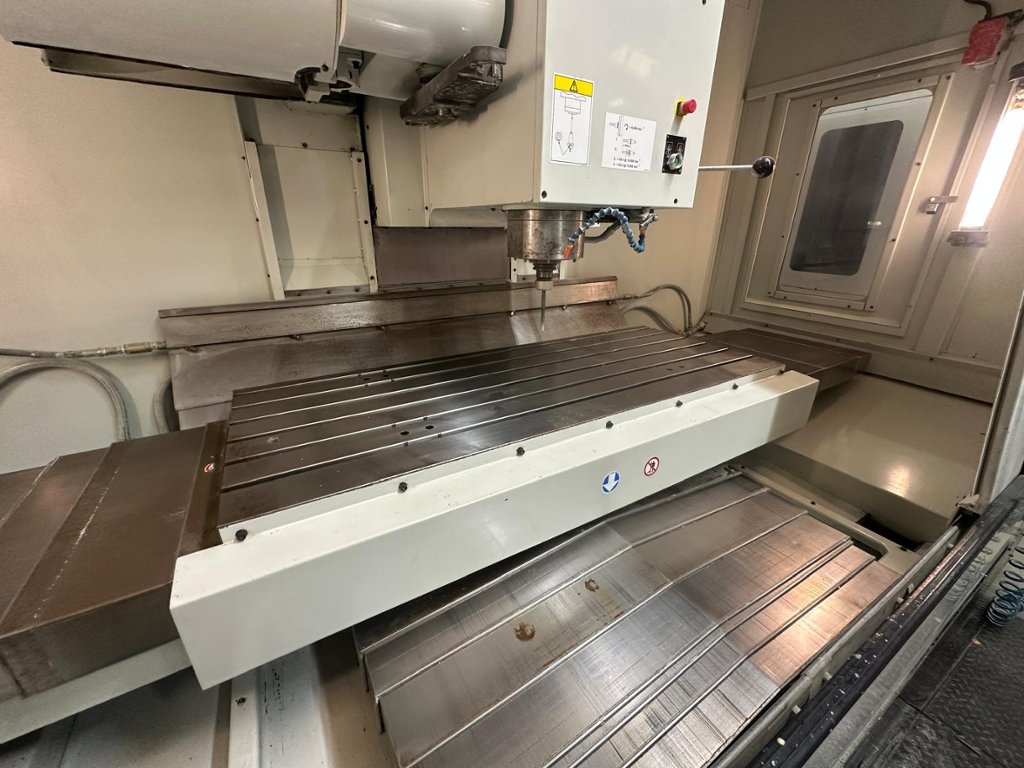

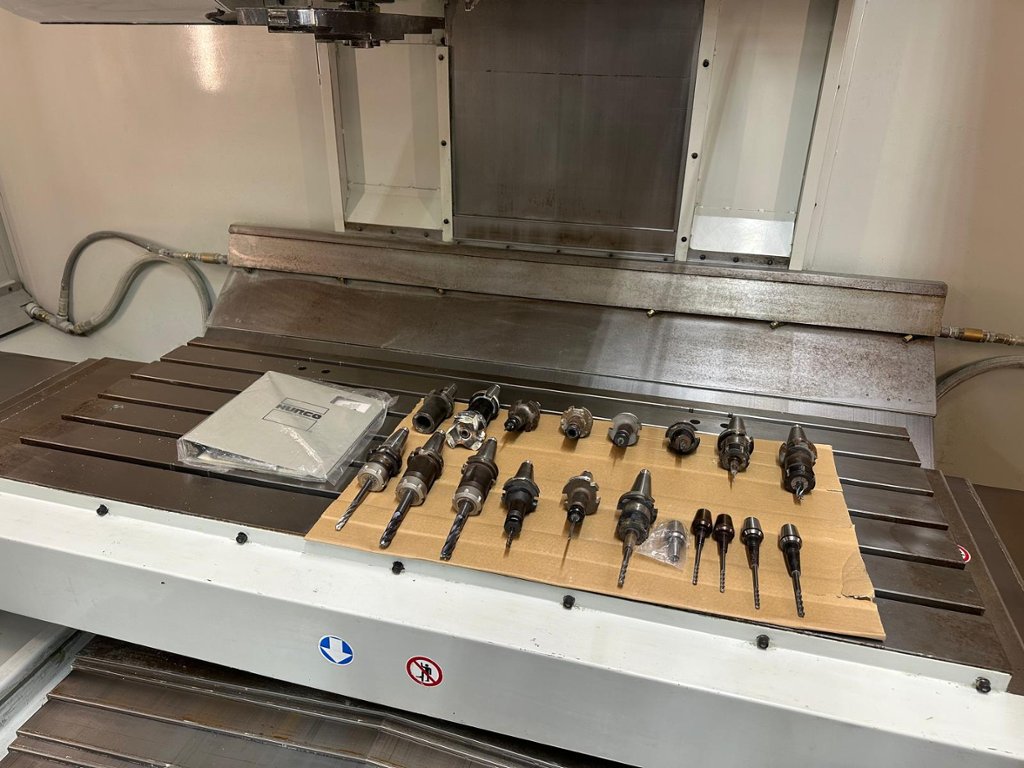

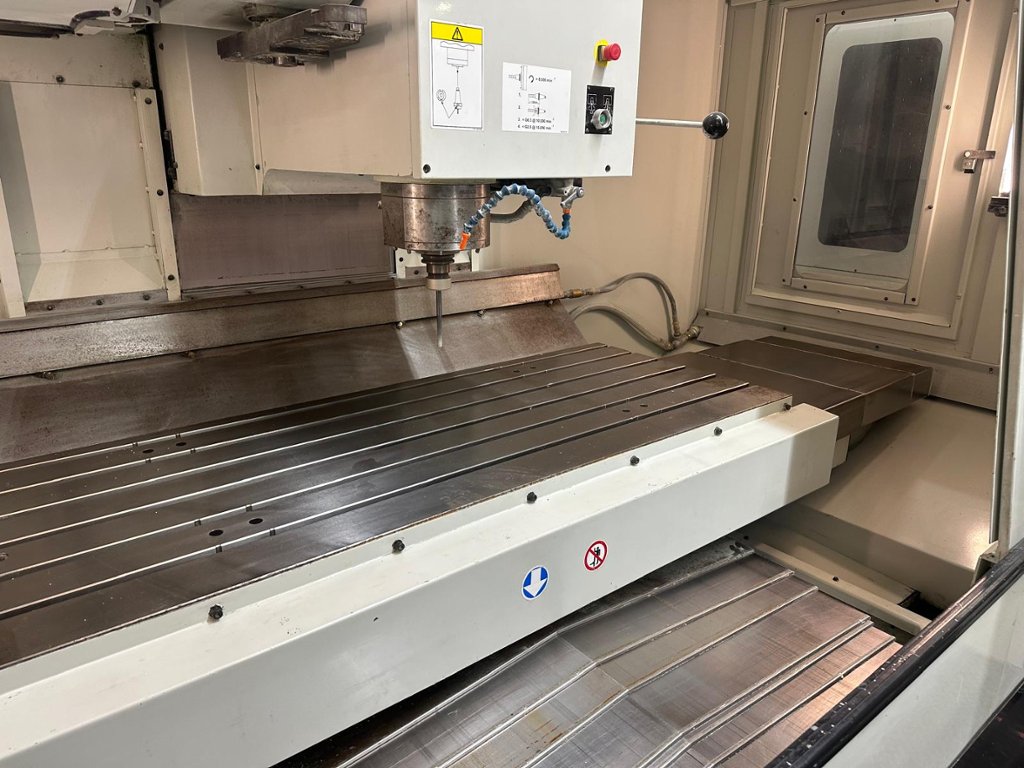

Table Working Surface 66” x 26” 1676mm x 660mm, T Slots 6 x 0.71” 6 x 18mm, T Slot Centres 3.94” 100mm, Maximum load 1500lb 680 kgs, Enclosed door opening 64” 1626mm, Spindle centre to column 29.5” 748mm, Spindle nose to table Min/Max 6”/30” 152mm/762mm

Spindle speed 12000 rpm, Spindle taper 40 DIN , Longitudinal travel 60” 1524mm, Cross travel 26” 660mm, Vertical travel 24” 610mm, Floor to table surface 36” 915mm

Feed rate X/Y/Z 300”/min 7.6m/min, Rapids X/Y 1181 “/min 30m/min, Programming resolution 0.0001” 0.002mm

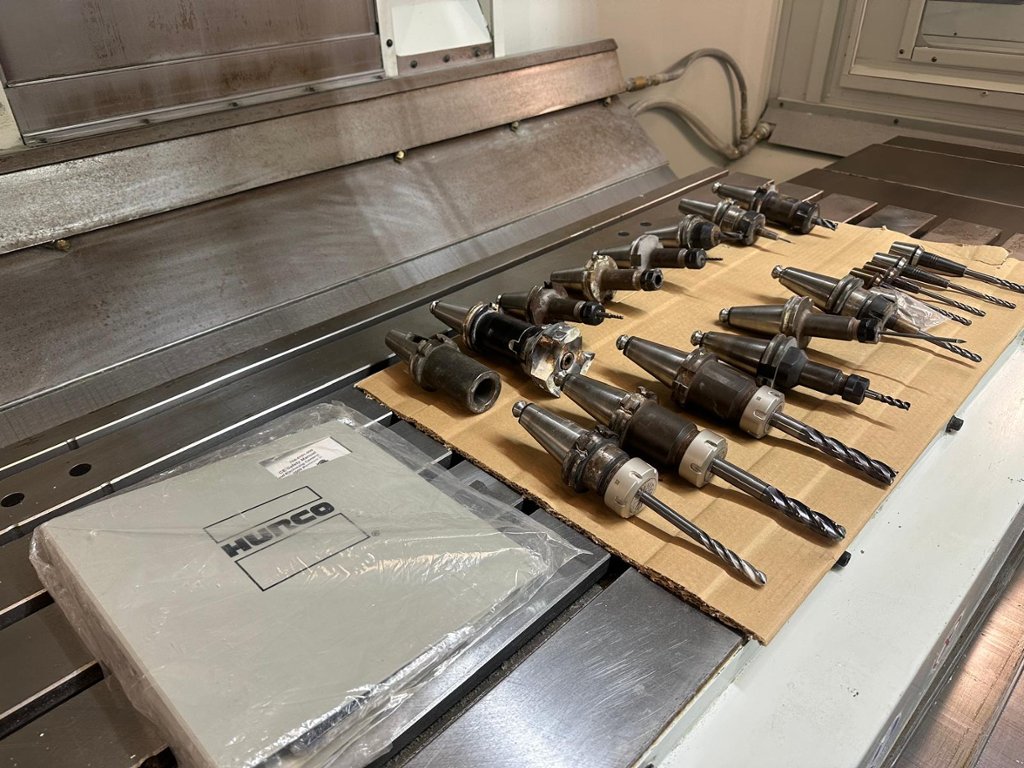

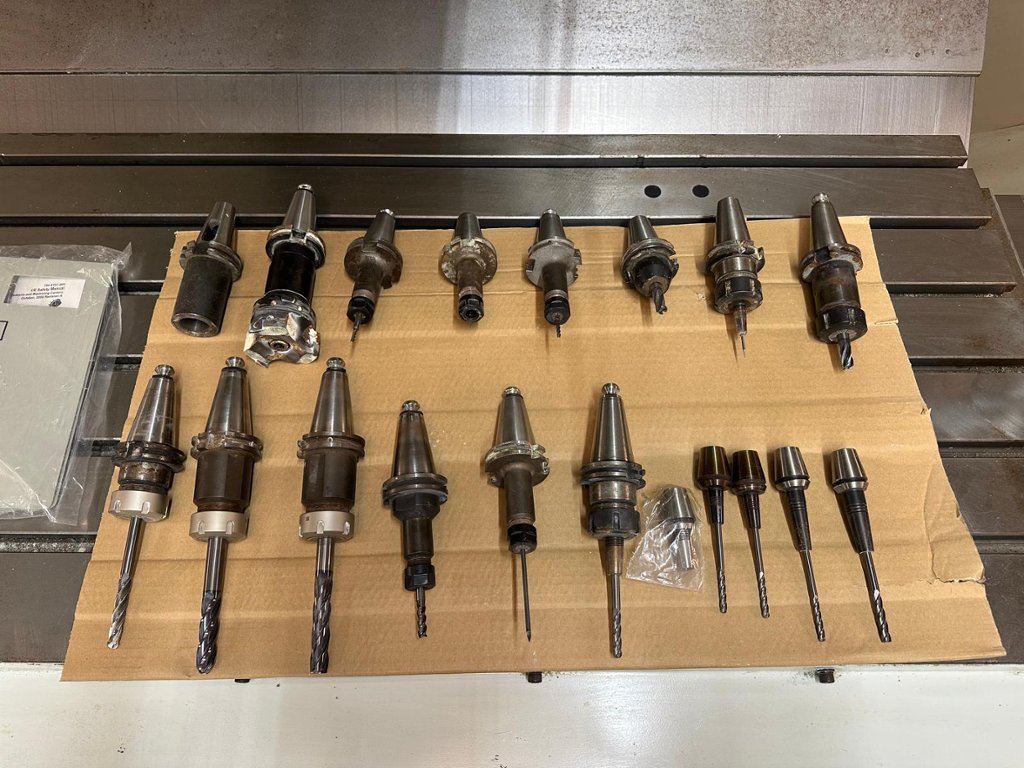

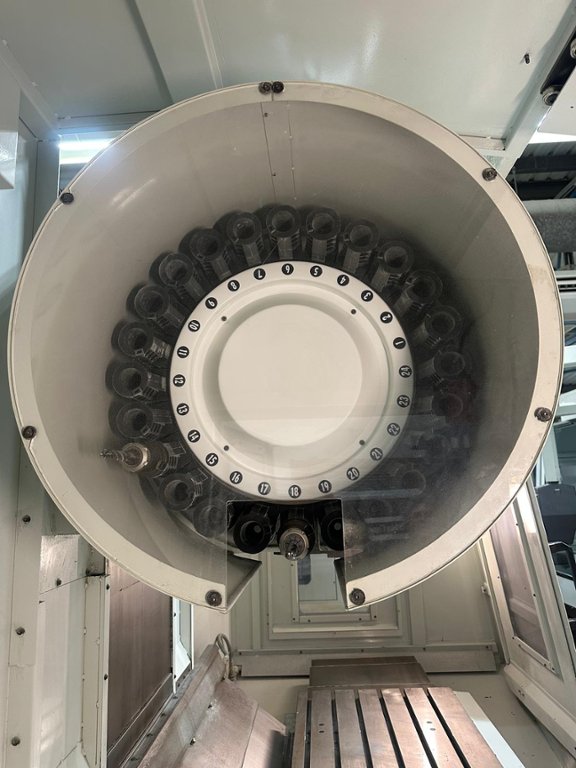

Auto toolchanger 24, Maximum tool dia. 3.2” 80mm, Maximum tool dia (Adj sides empty) 4.72” 120mm, Tool pocket pitch 3.2” 81mm

Maximum Tool Length 11.8” 300mm, Maximum Tool Weight 15 lb. 7.0 kg., Maximum Tool Weight in Magazine 180 lb. 82 kg, Adapter ANSI Standard V-Flange

ATC Time, Tool to tool next station Chip-to-Chip Tool Selection System 3 seconds, 2000 rpm 12” Z travel 7 seconds, Random pot, bi-directional, swing arm, Coolant Tank Capacity 115 gallons 435 litres, Flood Pump Rating 11 gallons/minute 41 litres/minute, Flood Pump Size 0.89 HP 0.66 kW, Wash Down Pump Rating 71 gallons/minute 270 litres/minute, Wash Down Pump Size 3.6 HP 2.73 kW

Spindle HP-Peak (1 min. Rating) 29 HP 21.6 kW, Spindle HP (Continuous) 15 HP 11 kW

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
