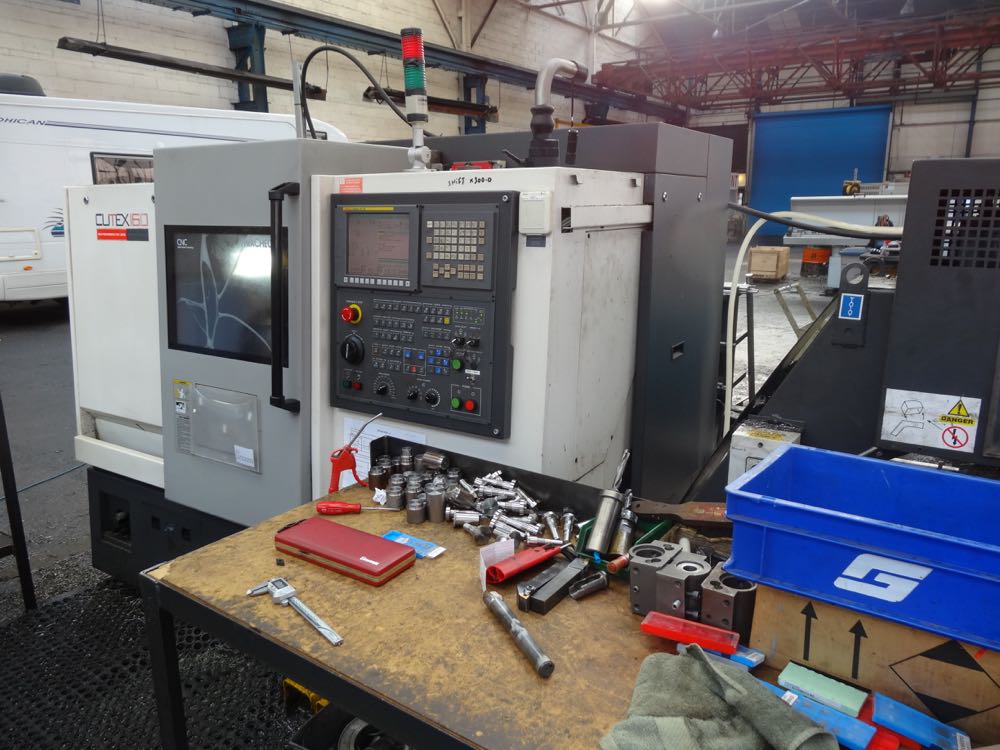

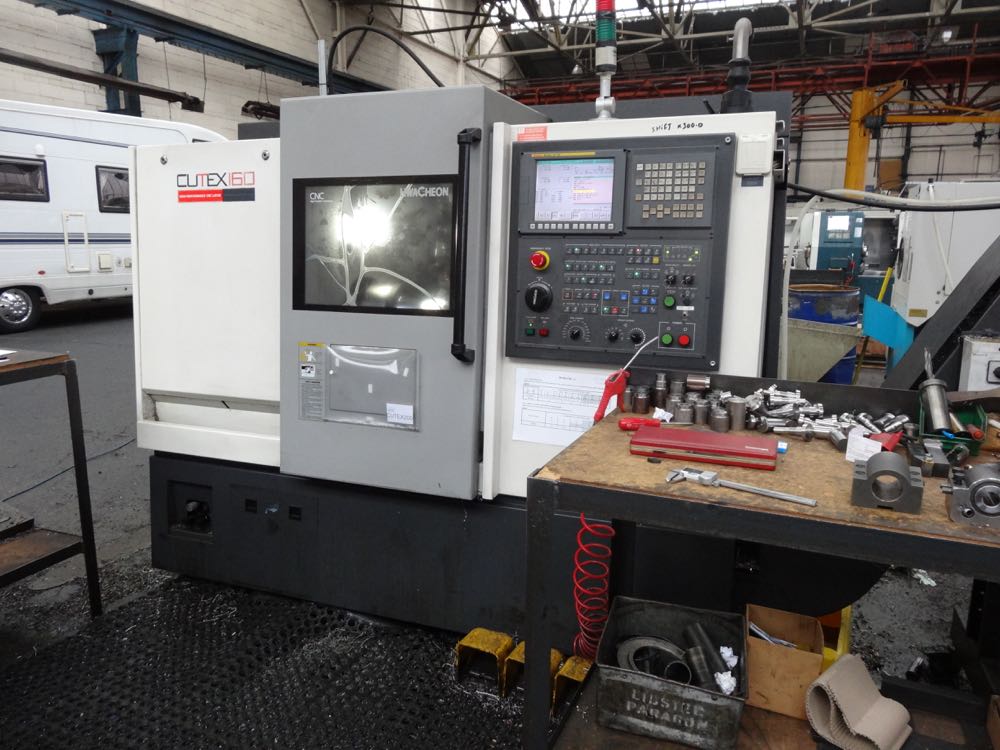

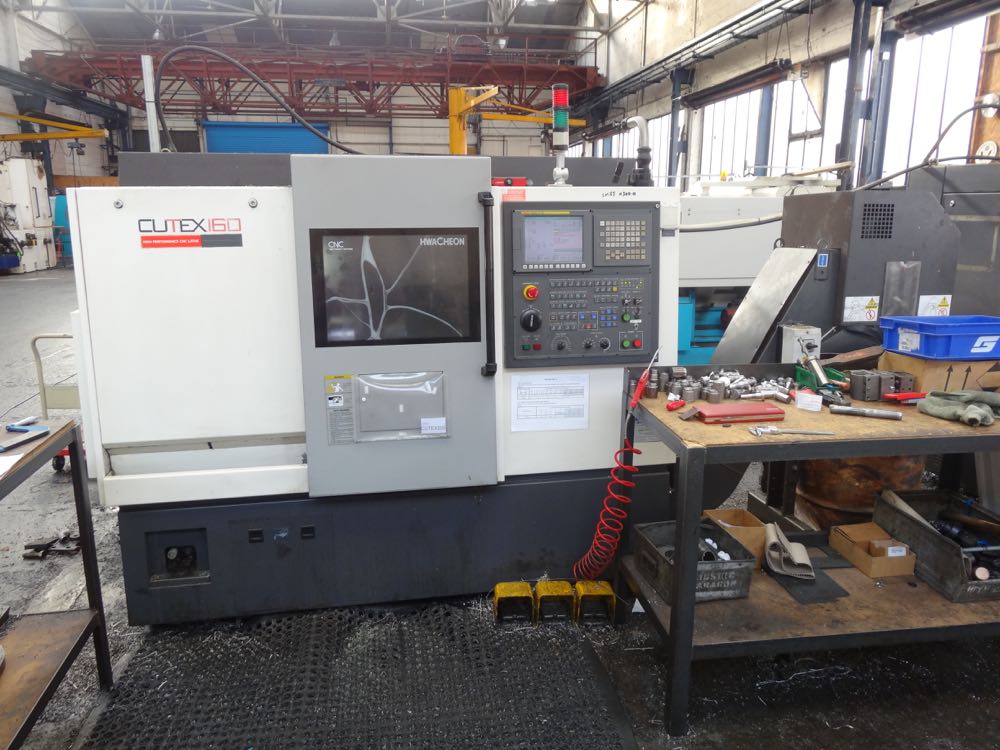

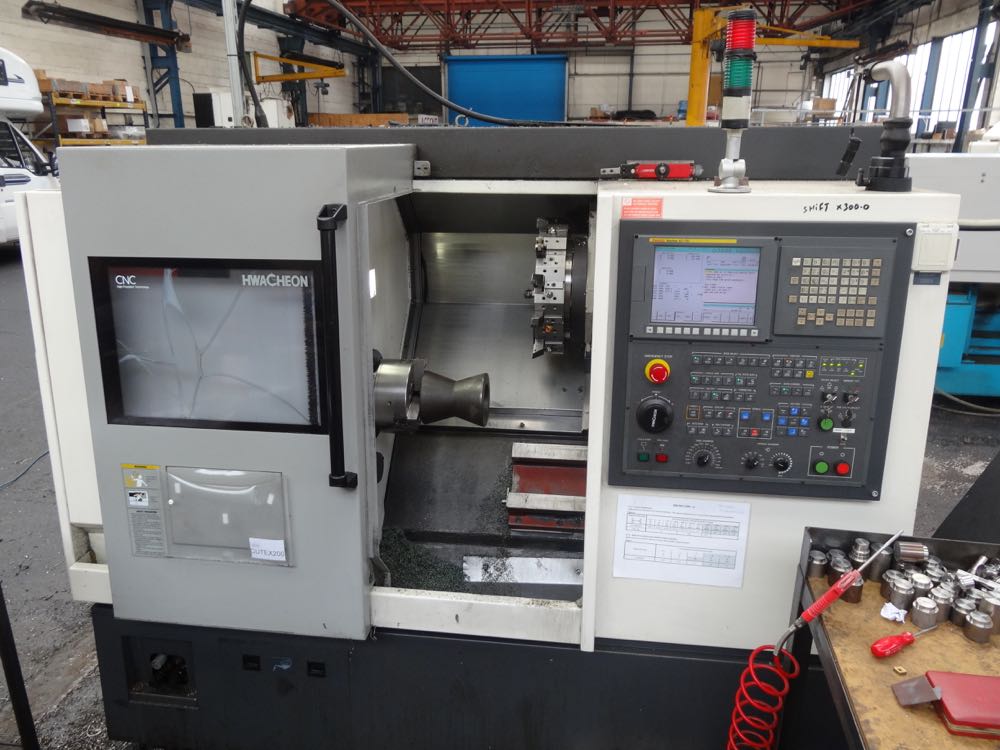

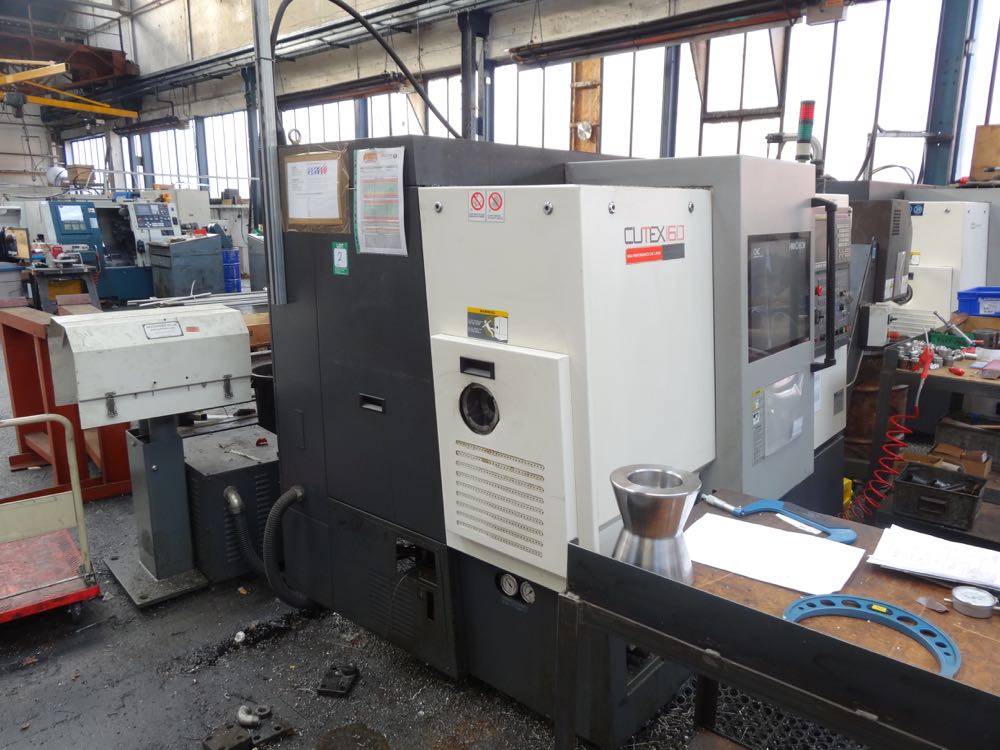

Lot 2 - Hwacheon Cutex 160 CNC Lathe

Description:

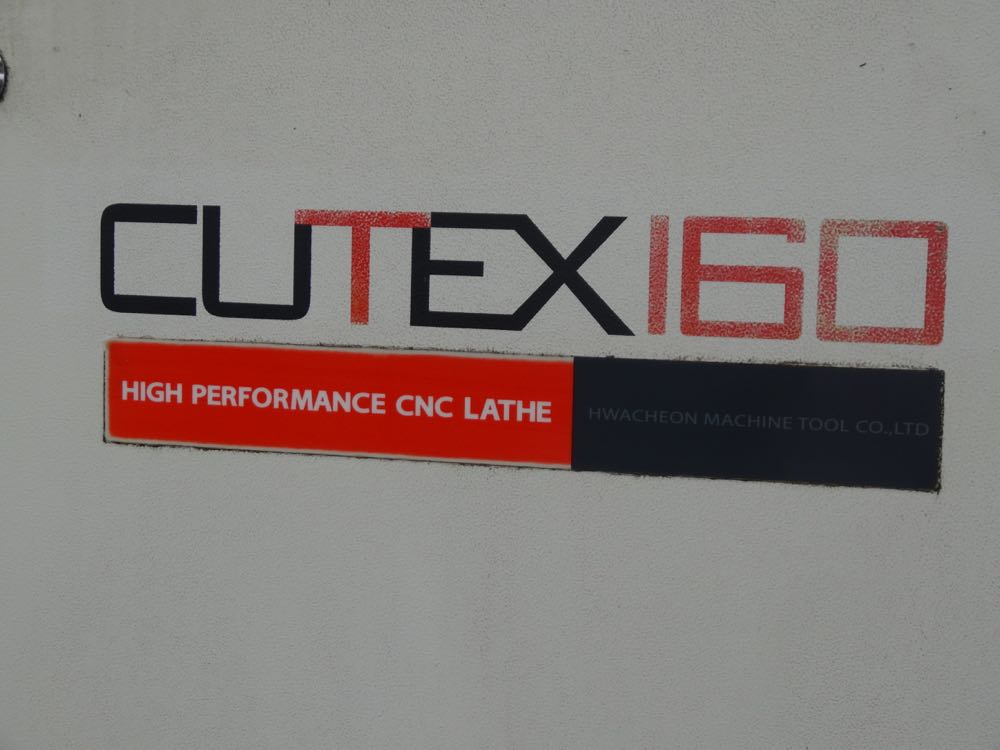

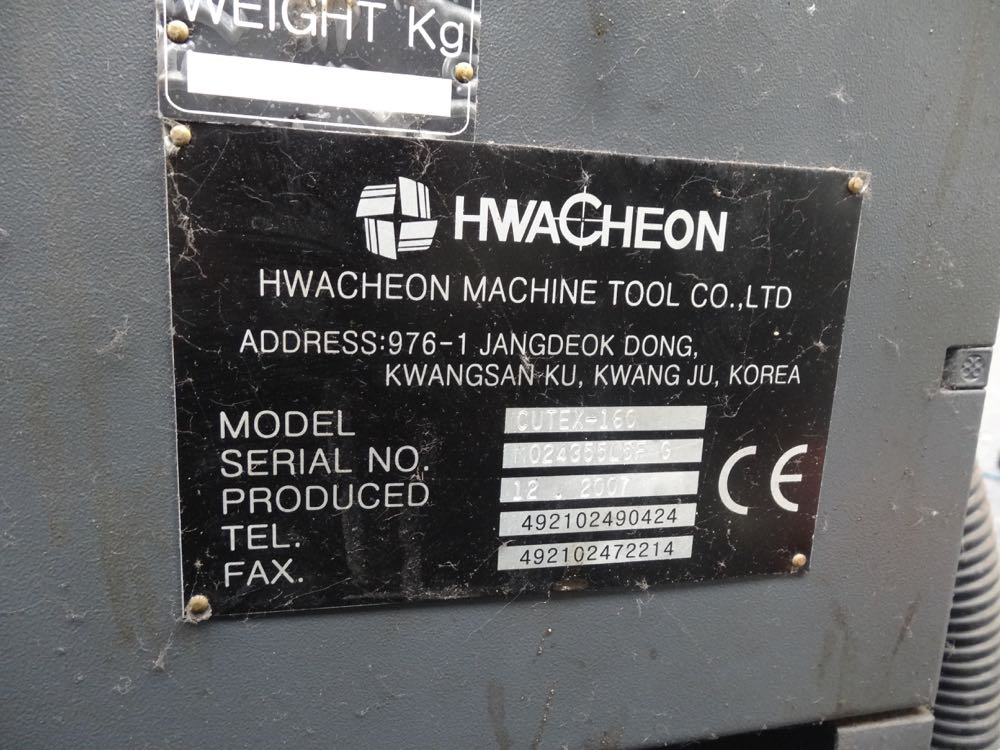

Hwacheon Cutex 160

S/n: M024355LSF
Date: 2007 - 12
Power Supply: 20kVA
Floorspace: 2100 x 1520mm
Height: 3200mm

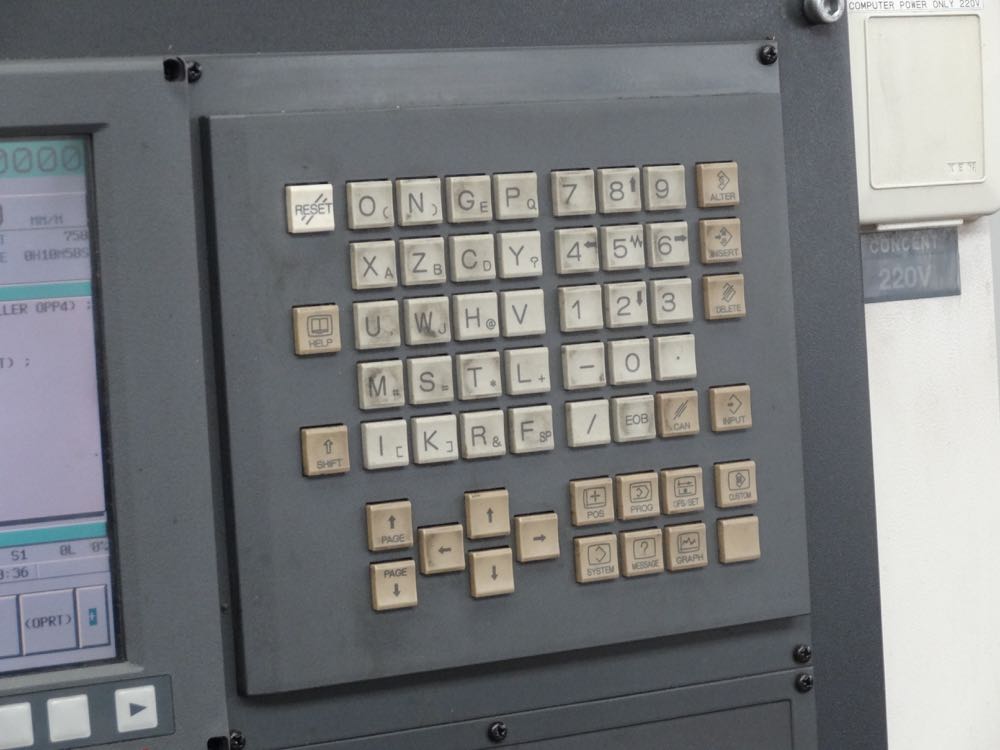

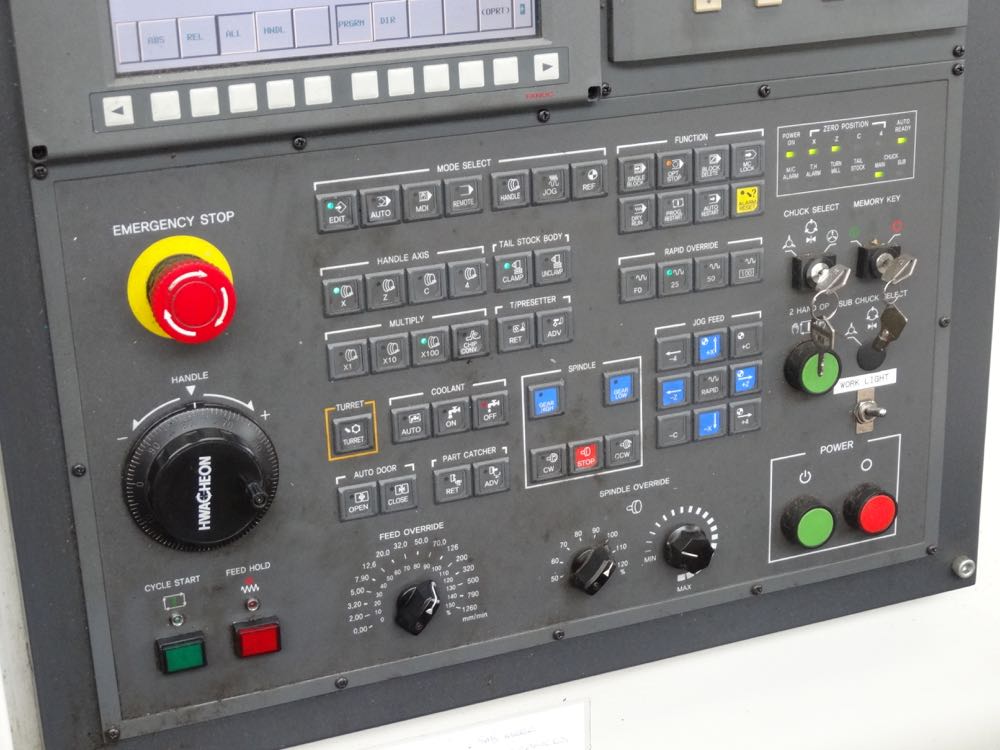

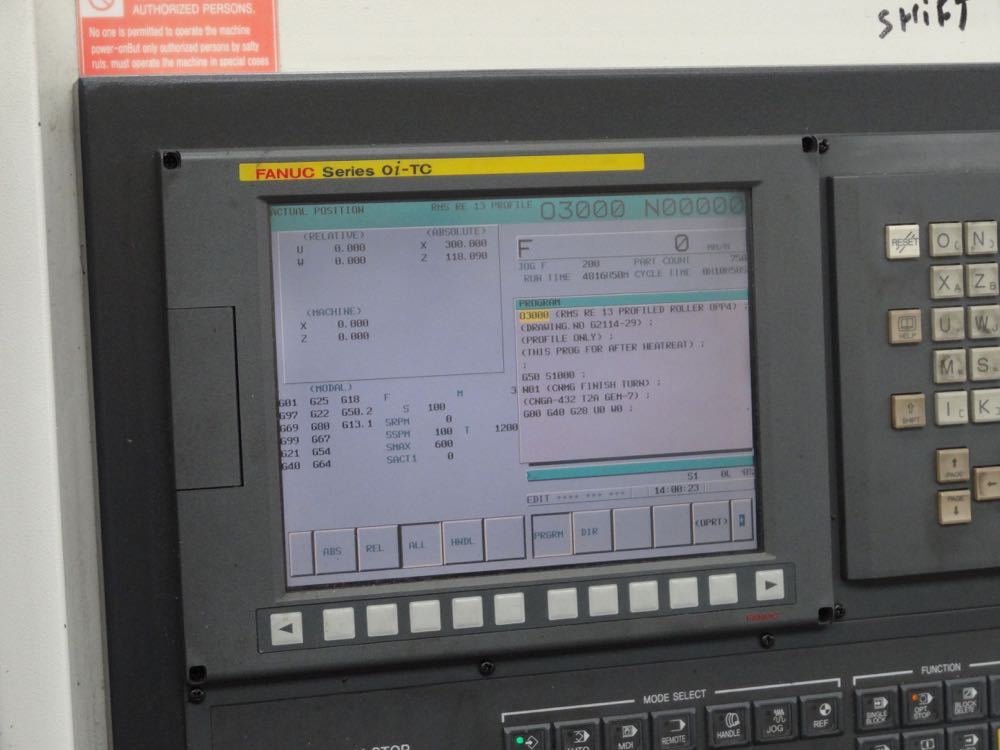

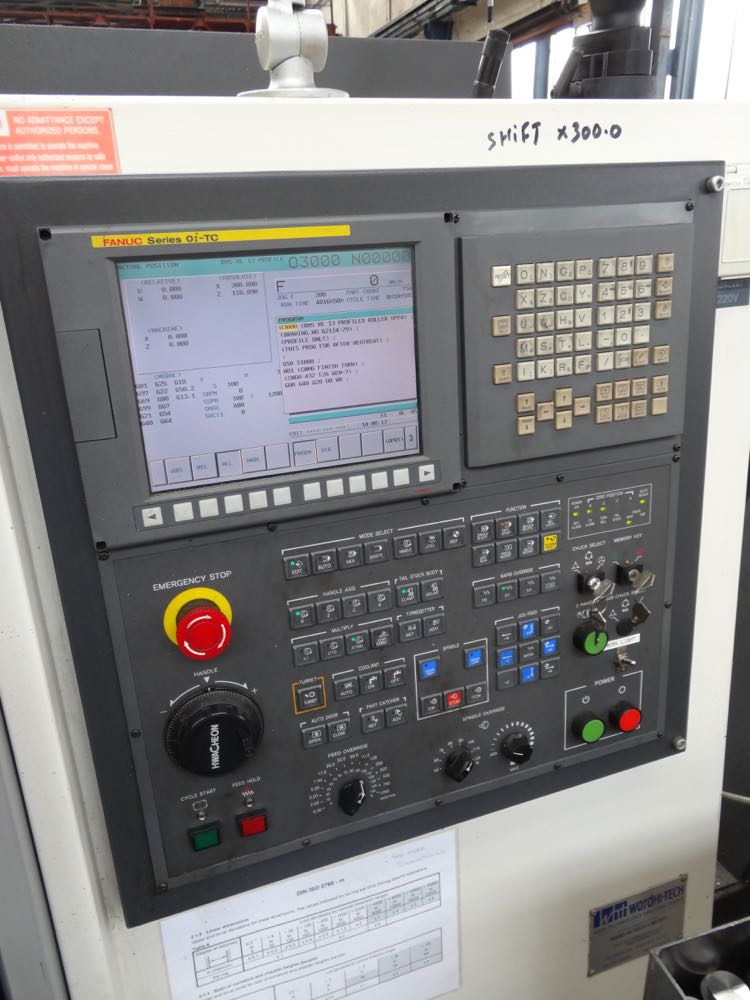

Fanuc S Oi-TB control

Capacity:
Swing over bed: 550mm
Max turning dia: 220mm
Std turning dia: 170mm
Max turning length: 170mm

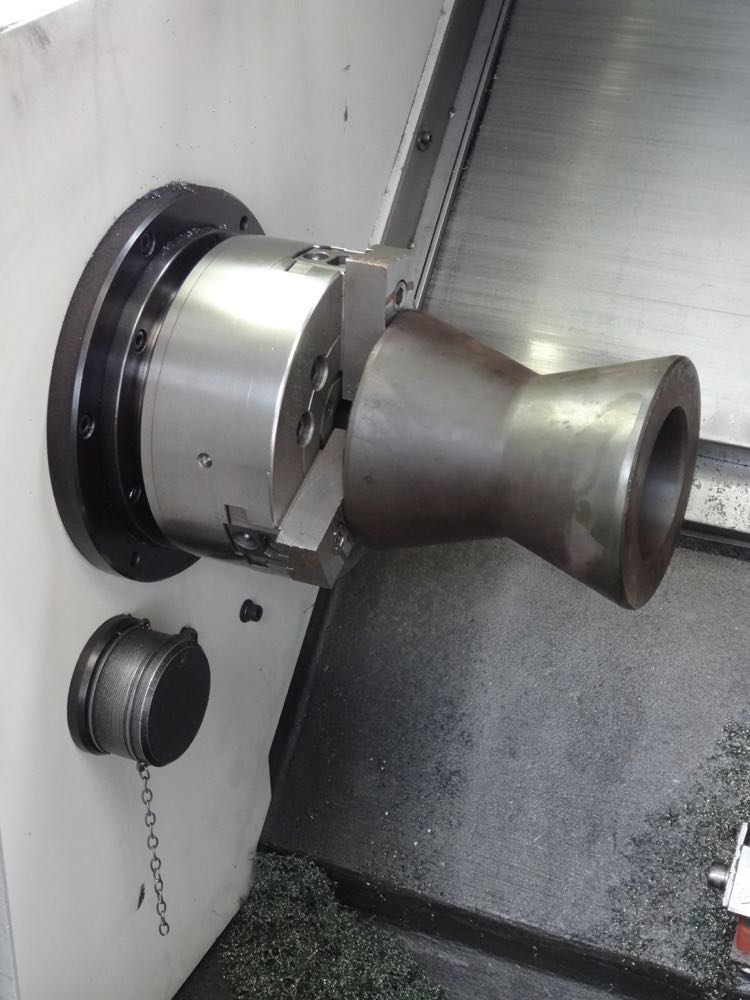

Chuck size: 6"

Spindle:
Spindle nose: A2-5
Max spindle speed: 6000rpm
Hole through spindle: 52mm

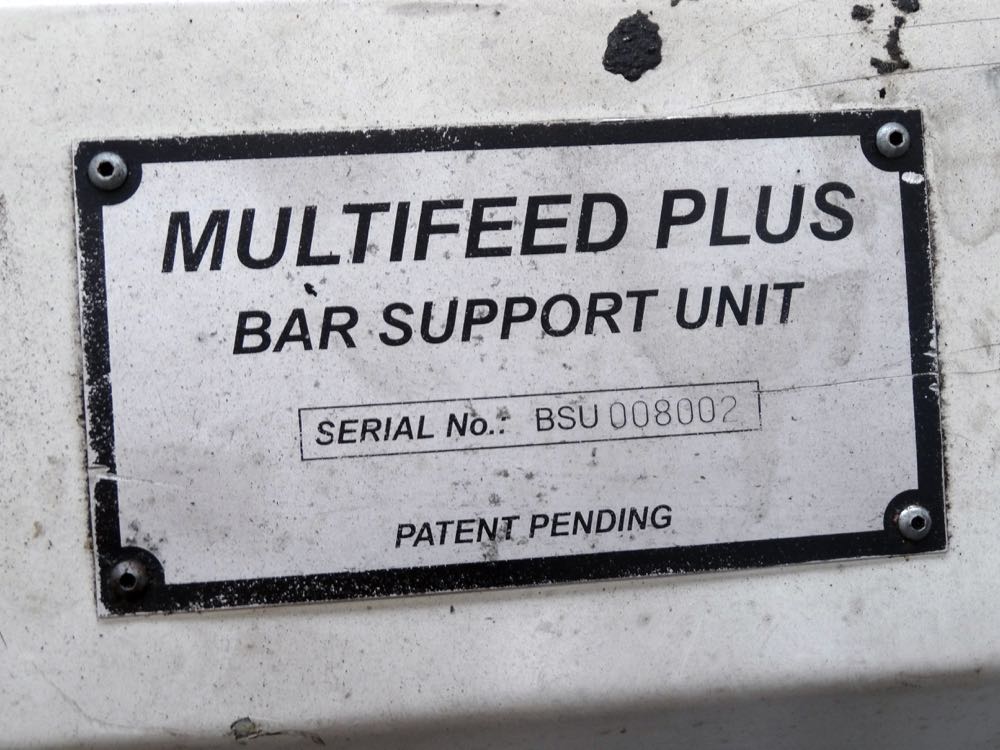

Bar size: 45mm
Spindle motor: 5.5/7.5kW
Spindle bearing size: 90mm

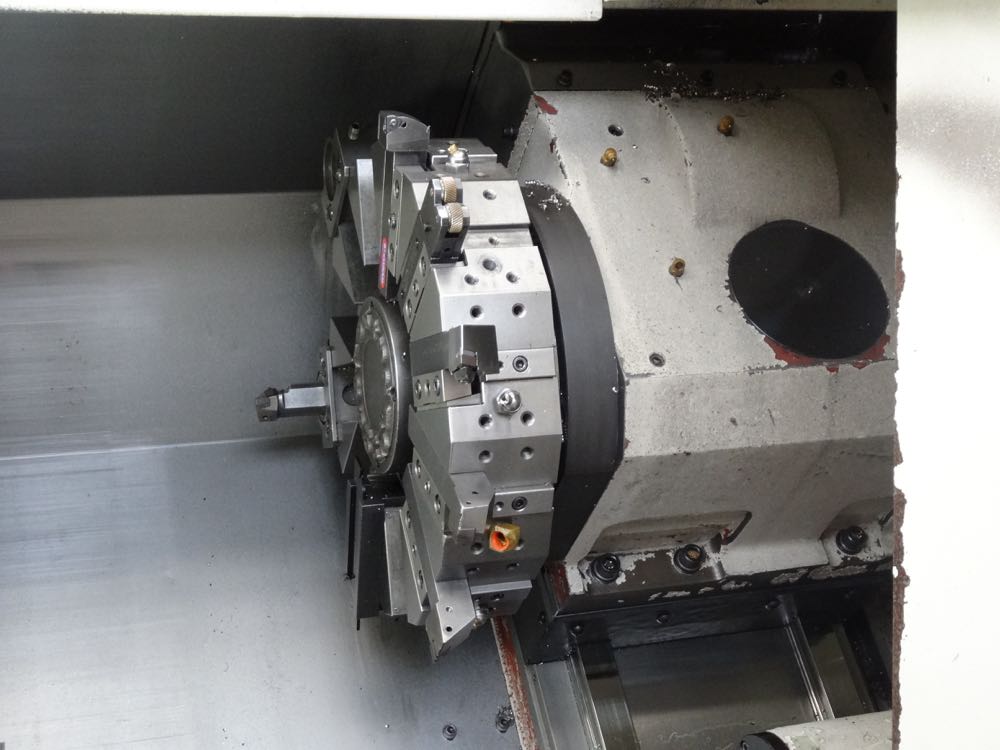

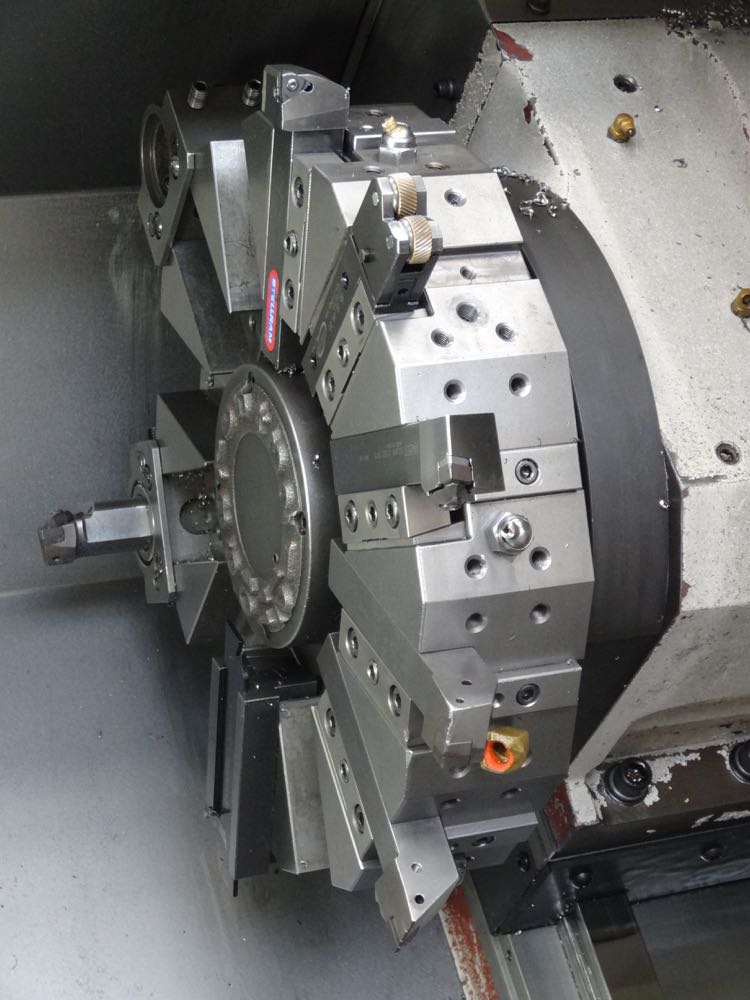

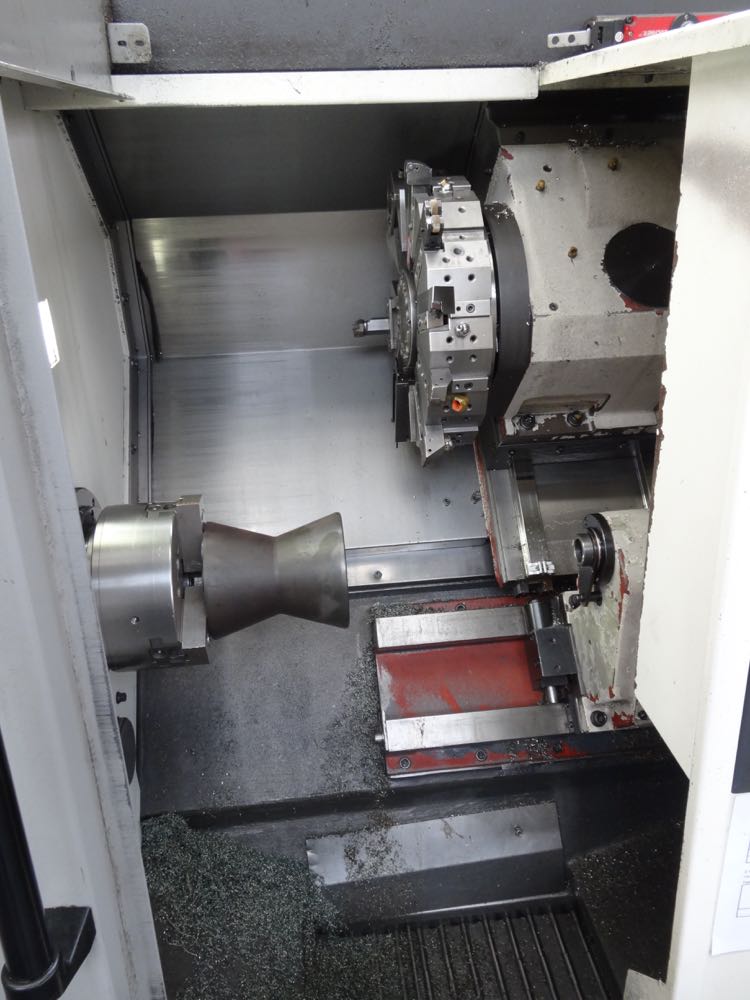

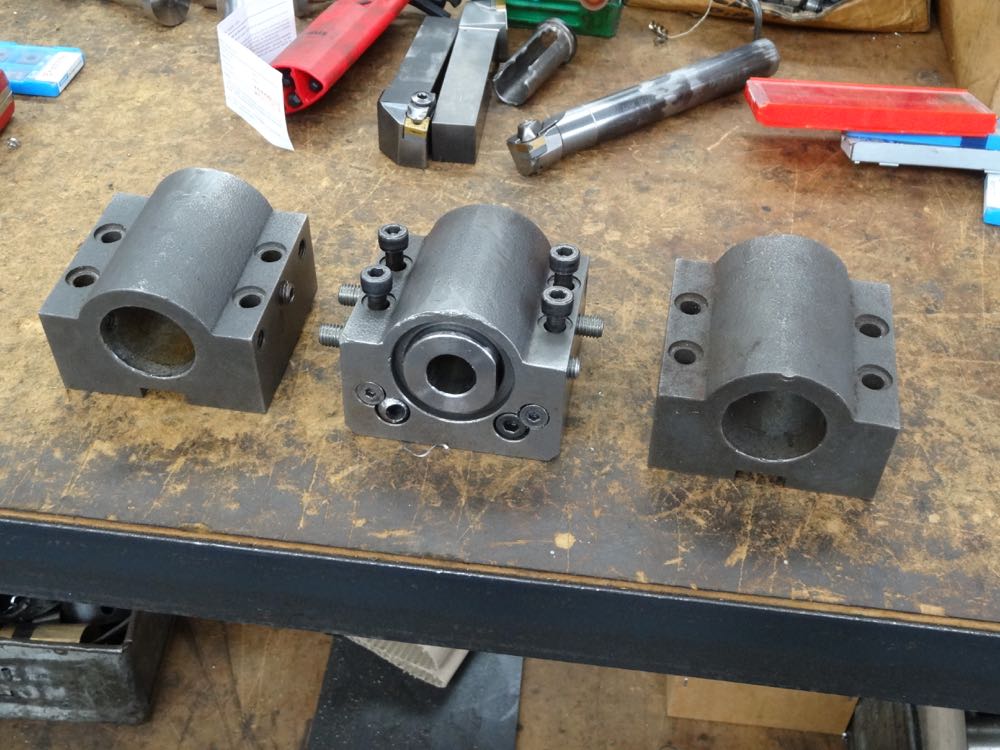

Turret:
No of tools: 12

Feed:
Rapid (XYZ) 26 m/min
Ball Screw lead (X/Y): 12mm
Traverse (X/Z): 170/335mm
Servo motor: (X/Y) 1.6 kW

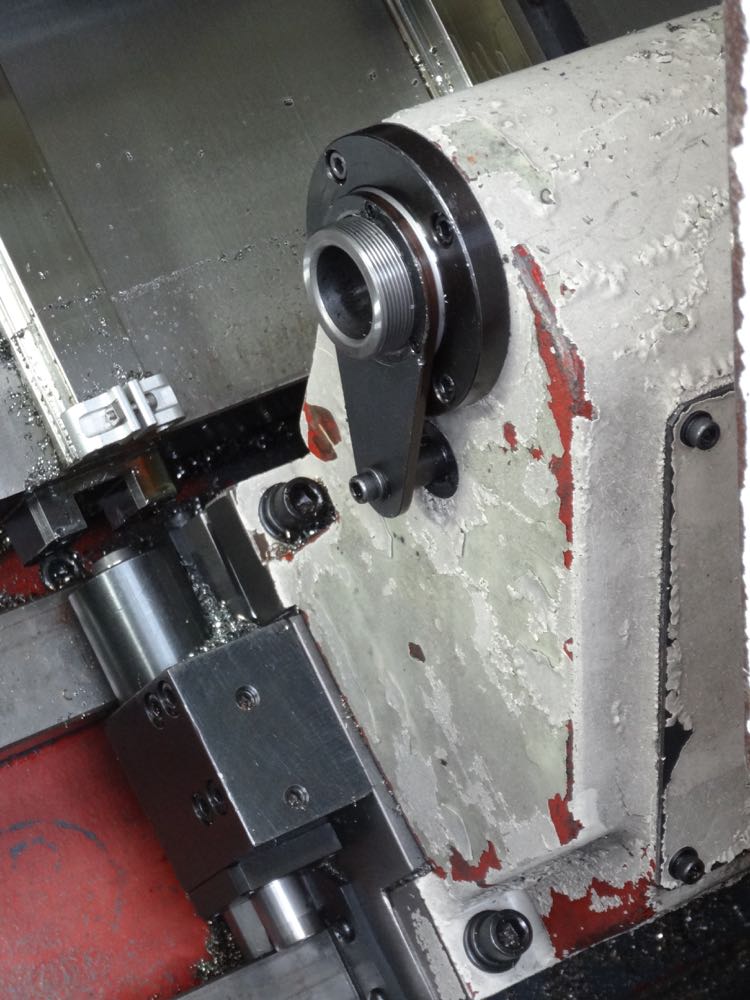

Tailstock:
Quiill dia: 60mm
Quill stroke: 80mm
Quill taper: 4MT

Coolant:
Tank cpacity: 82t
Coolant Pump: 0.4kW





Transformer:
L x W x H: 570 x 470 x 600mm approx

Location: Sheffield

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
