Lot 18 - Hydravane Compressor Complete System
Description:

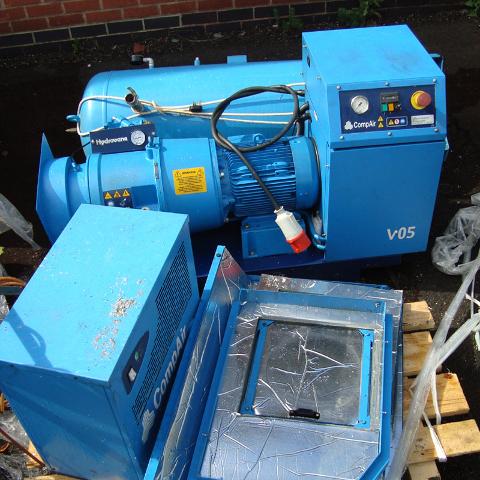

Hydravane compressor - 3 parts (Drier, Compressor, Receiver tank)

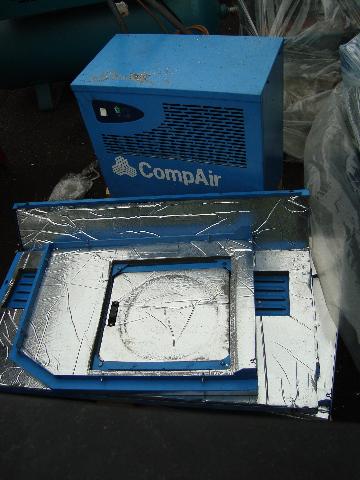

Drier: CompAir F9T (2007)
Serial no. 2200094065
Max absorbtion 1.9A
Cooling circuit: max working pressure: 26 bar, max temp 80 degrees C
Flow Circuit: max pressure 16 bar, max temp 70 degrees C

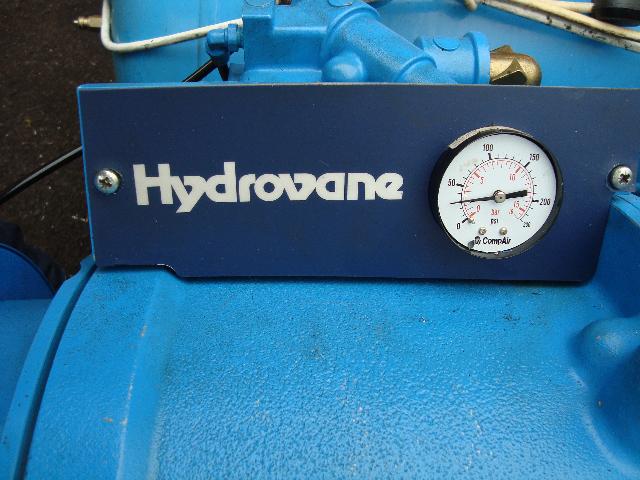

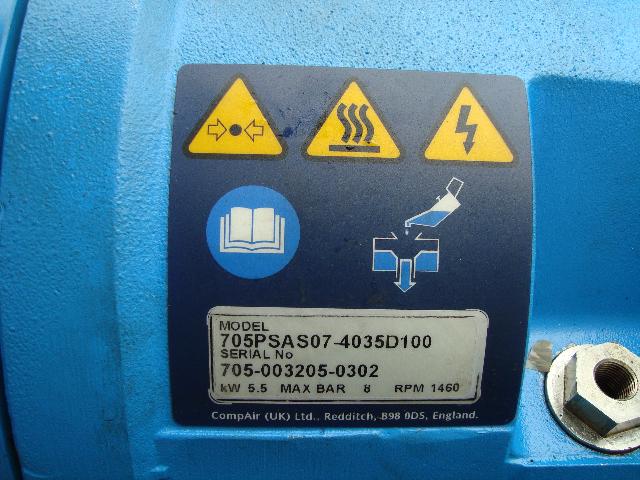

Compressor: Hyrdovane/CompAir 705 PSA (19,786 hrs)
7.5kW motor, max bar: 8, 1,460 max rpm, serial no. 705-003205
Size: 1.3m x 0.5m

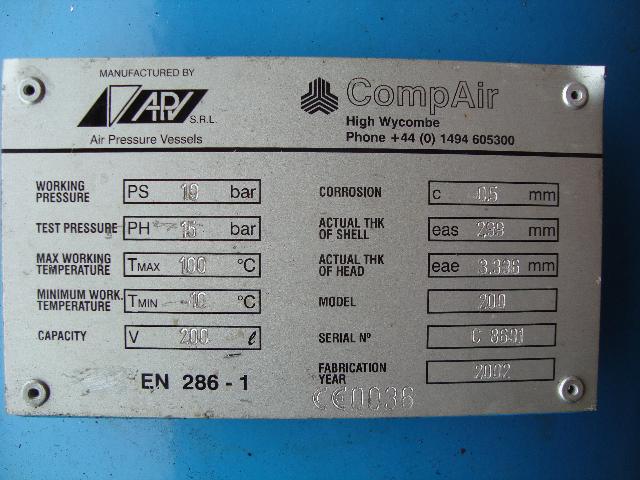

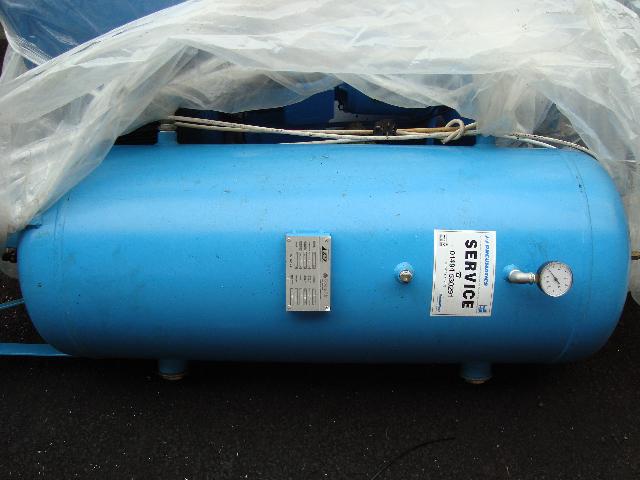

Receiver Tank (2002) Model 200
Working pressure 10 bar, test pressure 15 bar, max working temp 100 degrees C, min working temp -10 degrees C, max capacity 200ltr
Serial no. 8601
Size: 1.6m (H) x 0.45m
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
