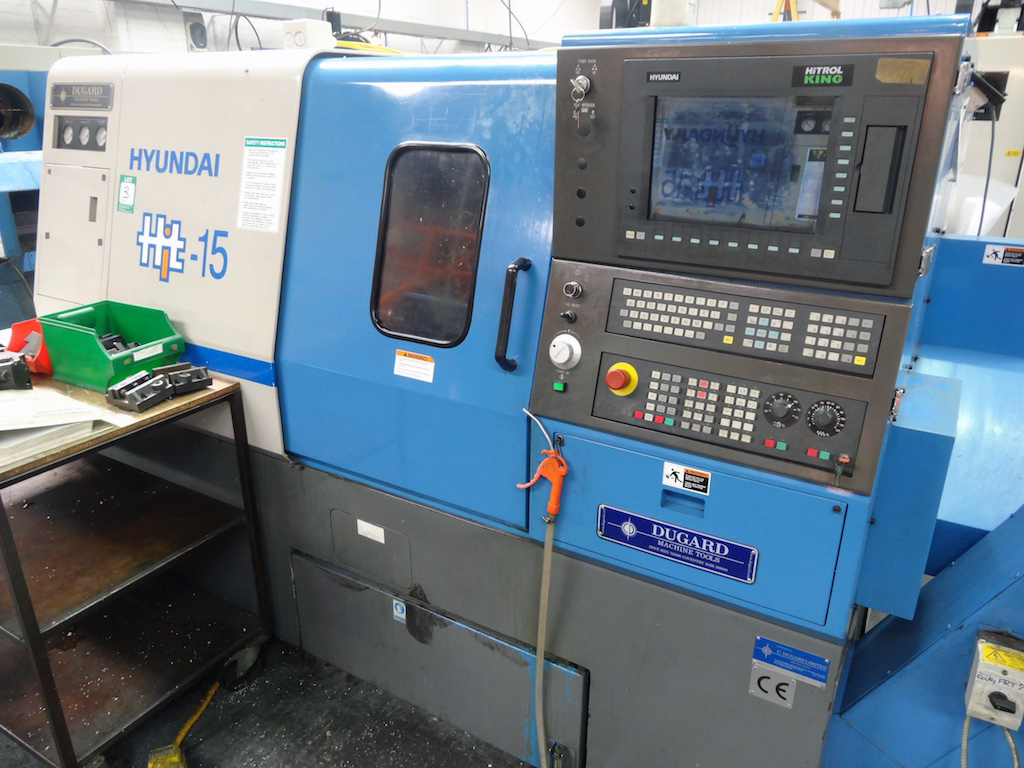

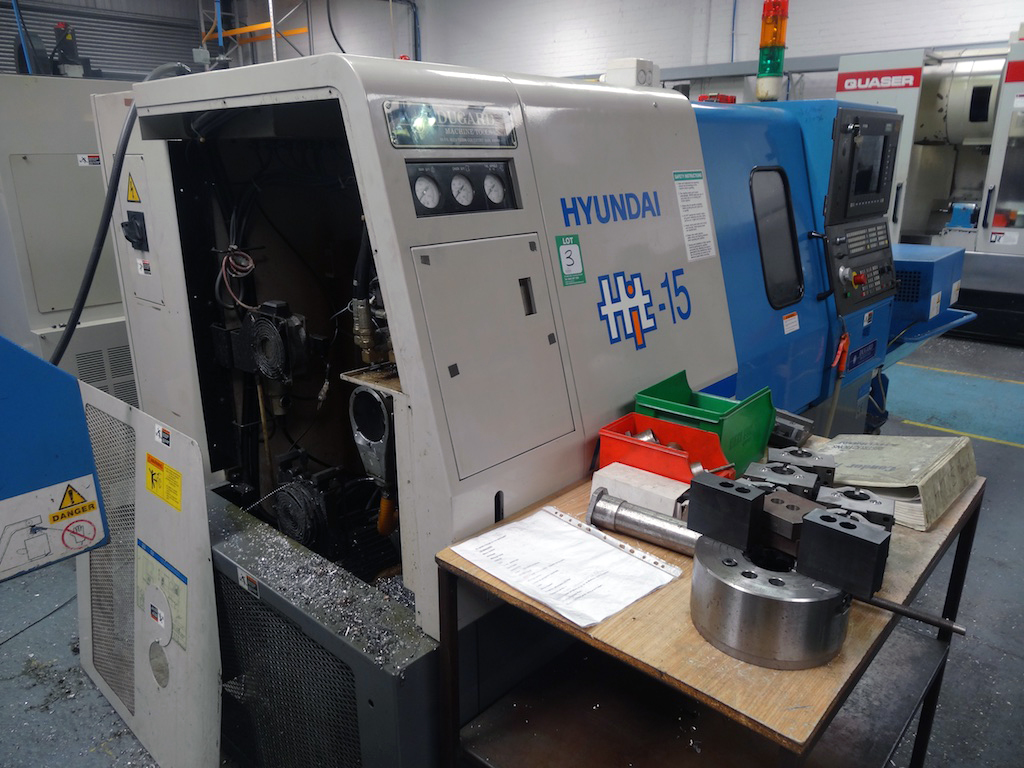

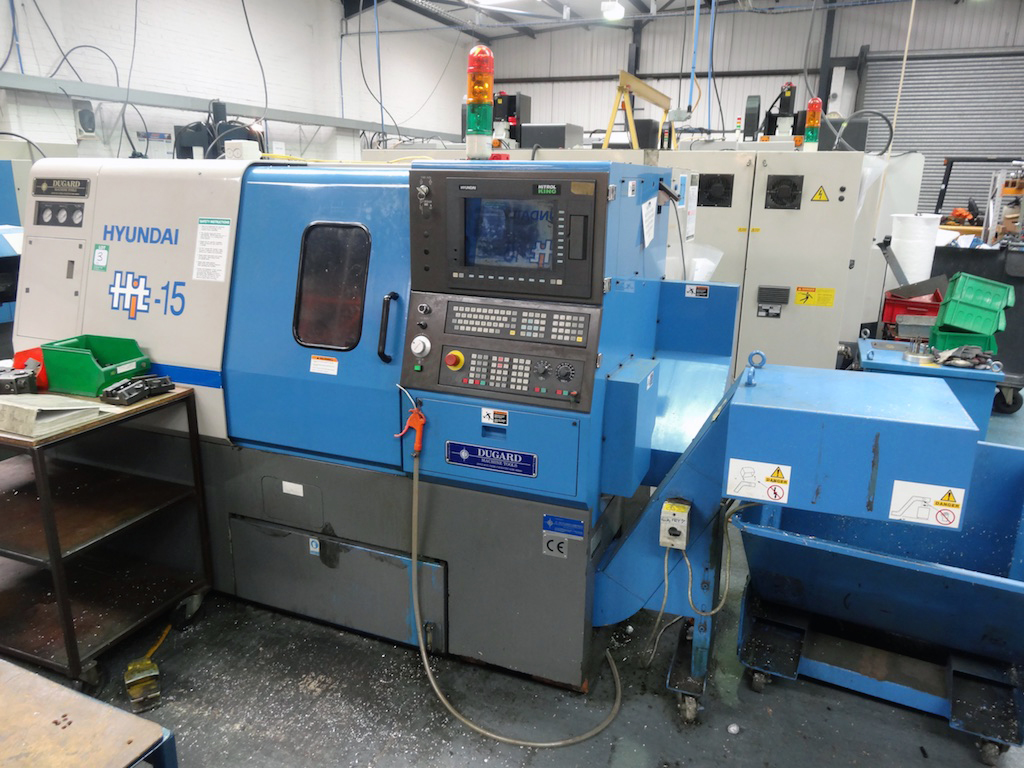

Hyundai Hit 15 CNC Lathe

Lot 3 - Hyundai Hit 15 CNC Lathe

Description:

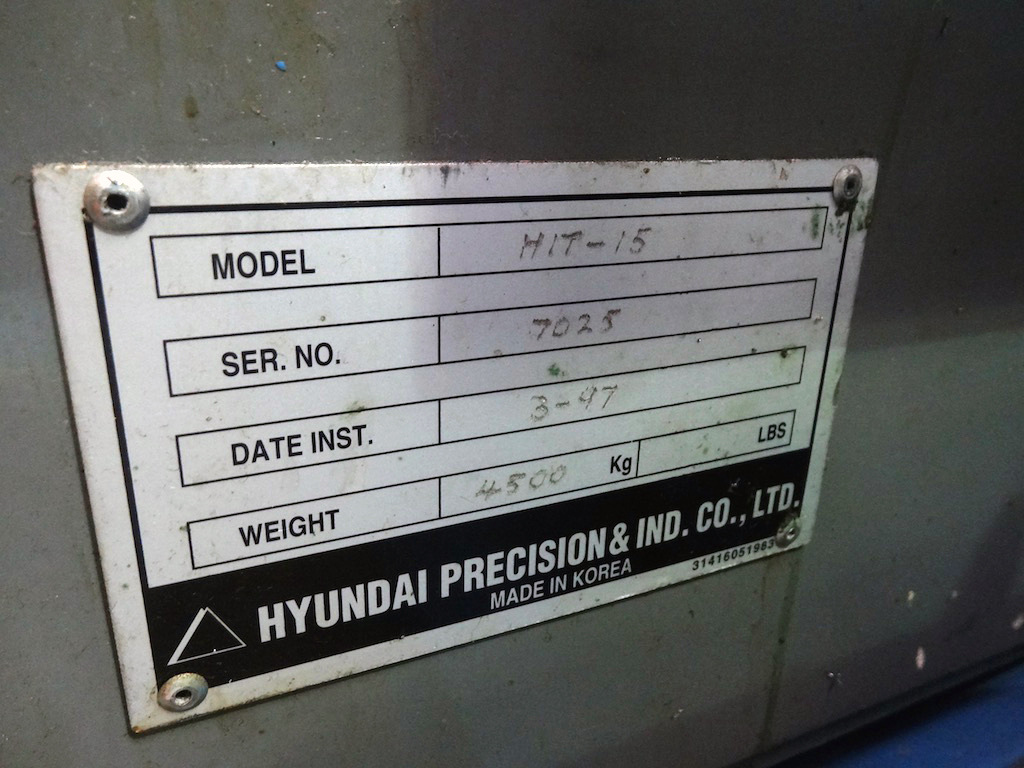

S/n: 7025
Date: 3-97
L x W x H: 2765 x 1680 x 1712mm
Weight: 4300kgs

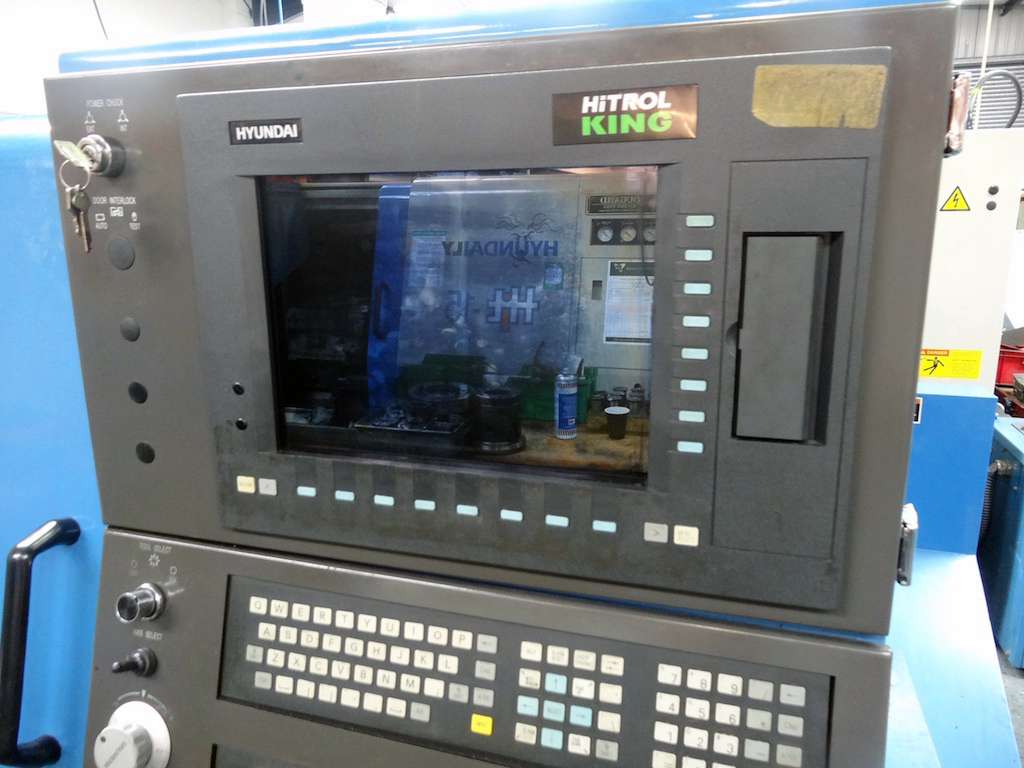

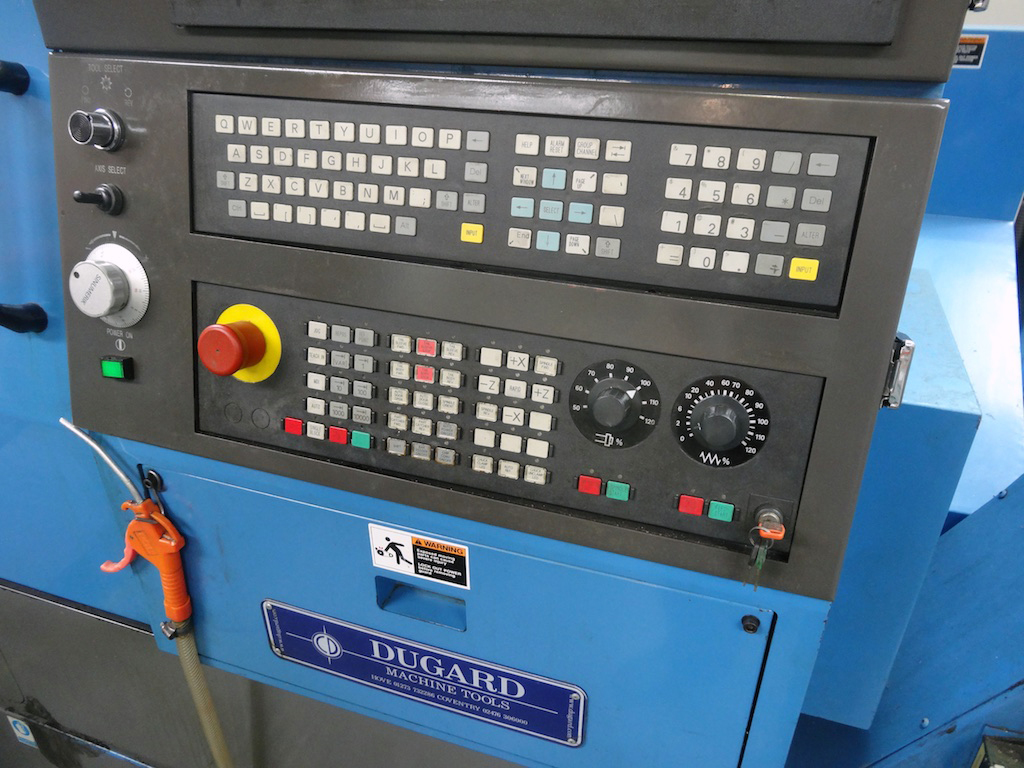

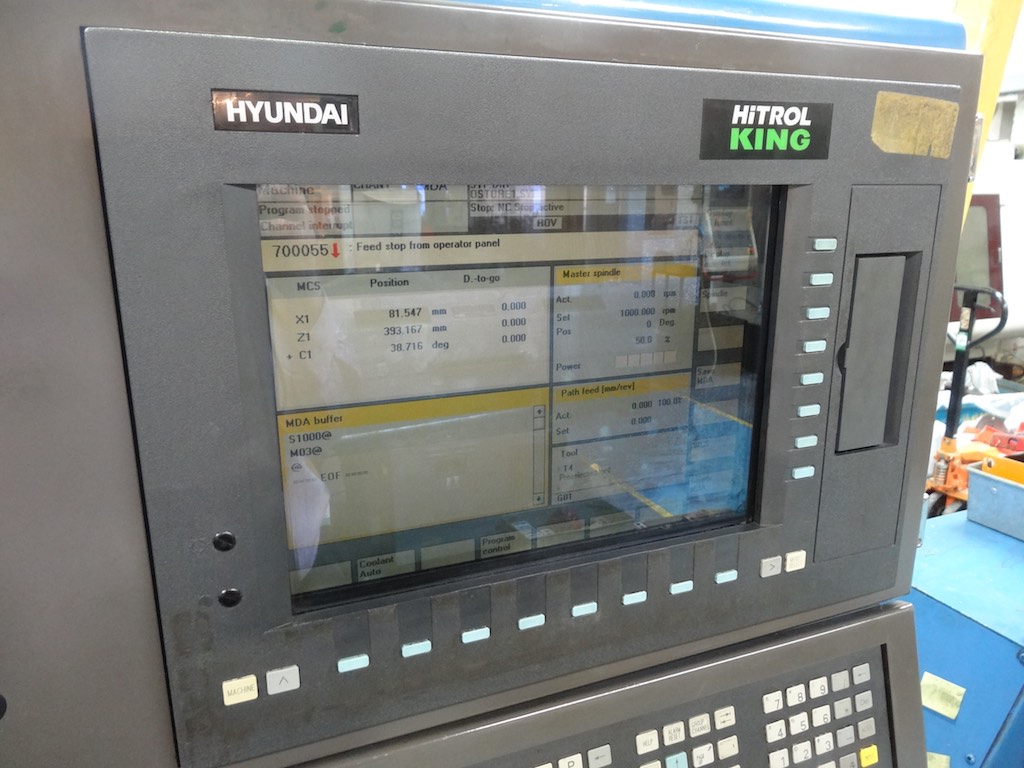

Hyundai Hitrol King control

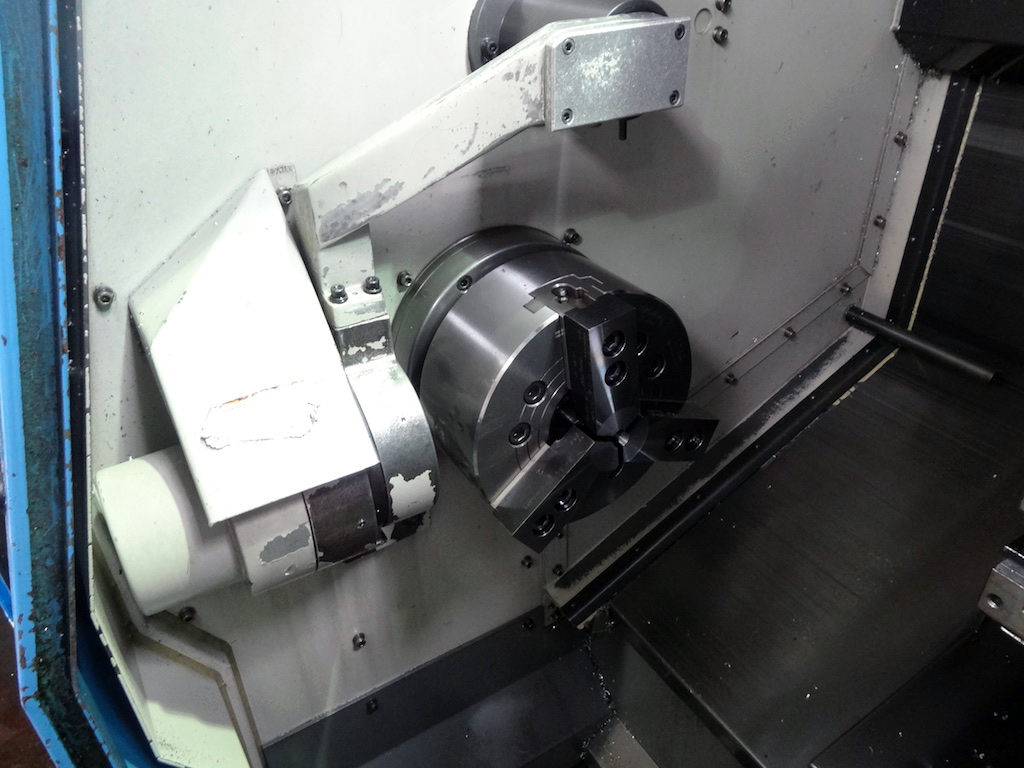

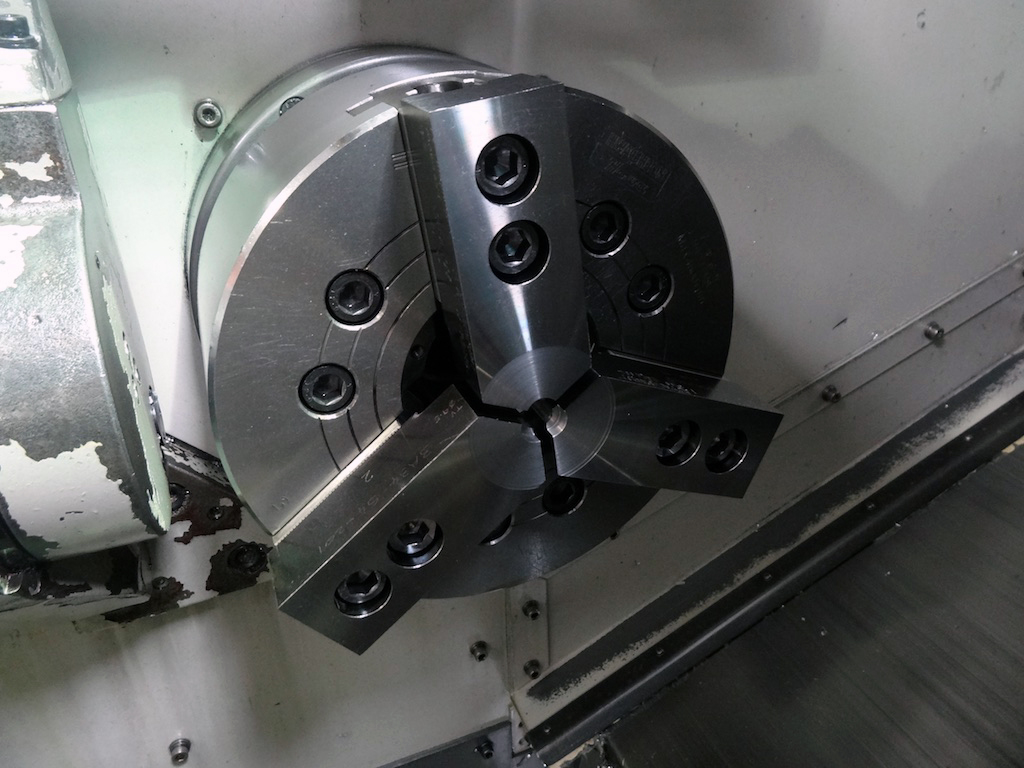

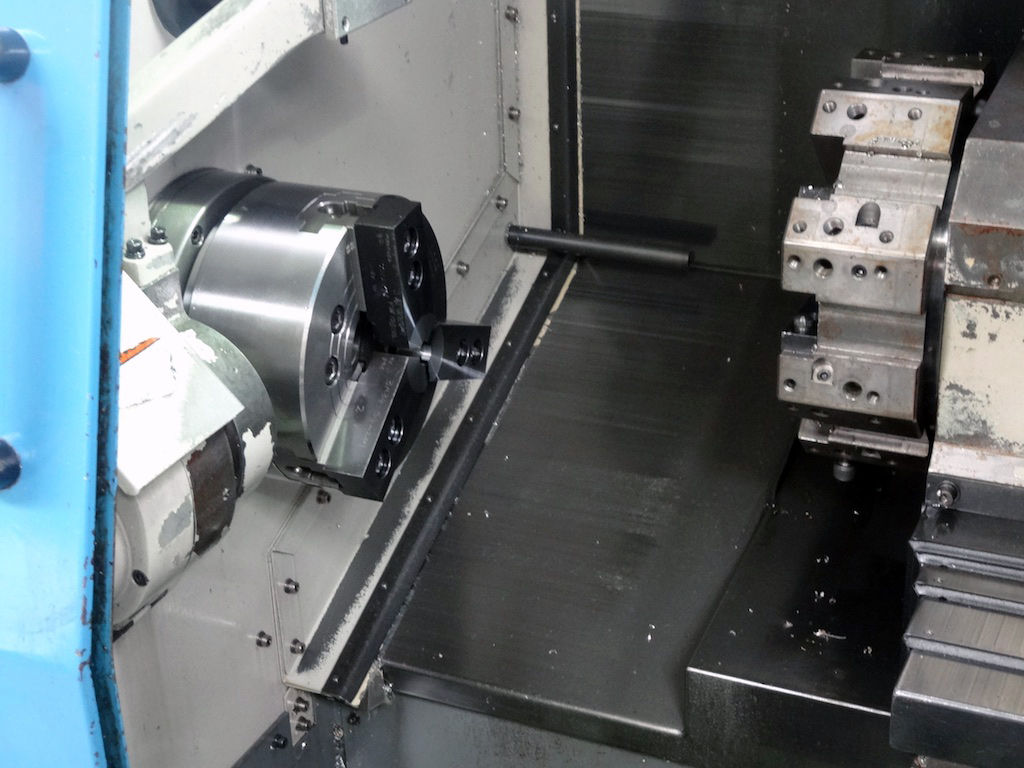

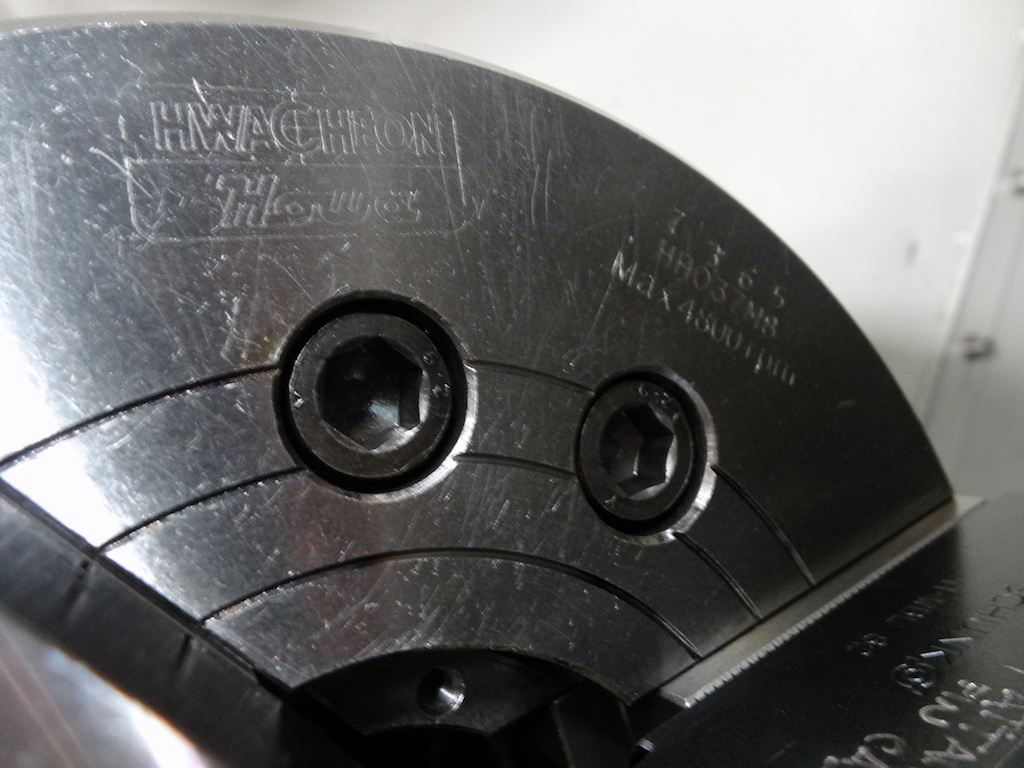

Hwacheon 8” 3 Jaw chuck
Max Rpm: 4800
Max swing: 440mm
Swing on the carriage: 254mm
Max Cutting Dia: 254mm
Max cutting length (shaft): 445mm
Standard cutting dia: 150mm
Distance between section of main spindle and section of turret: 90-590mm
Max bar machinomg dia: 50mm
Centre height (from ground): 1000mm
Max support weight: 150kg
Main spindle nose: ASA A2-6
Main spindle taper: 1/20
Penetration dia of main spindle: 62
Speed range of main spindle: 40-4500rpm

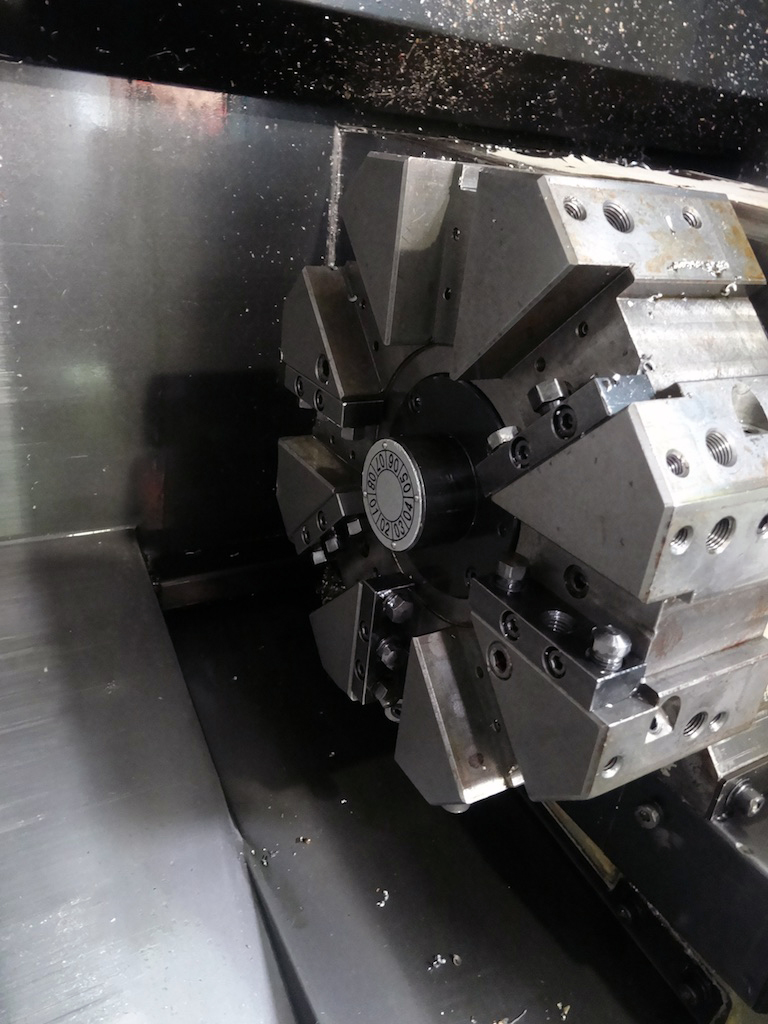

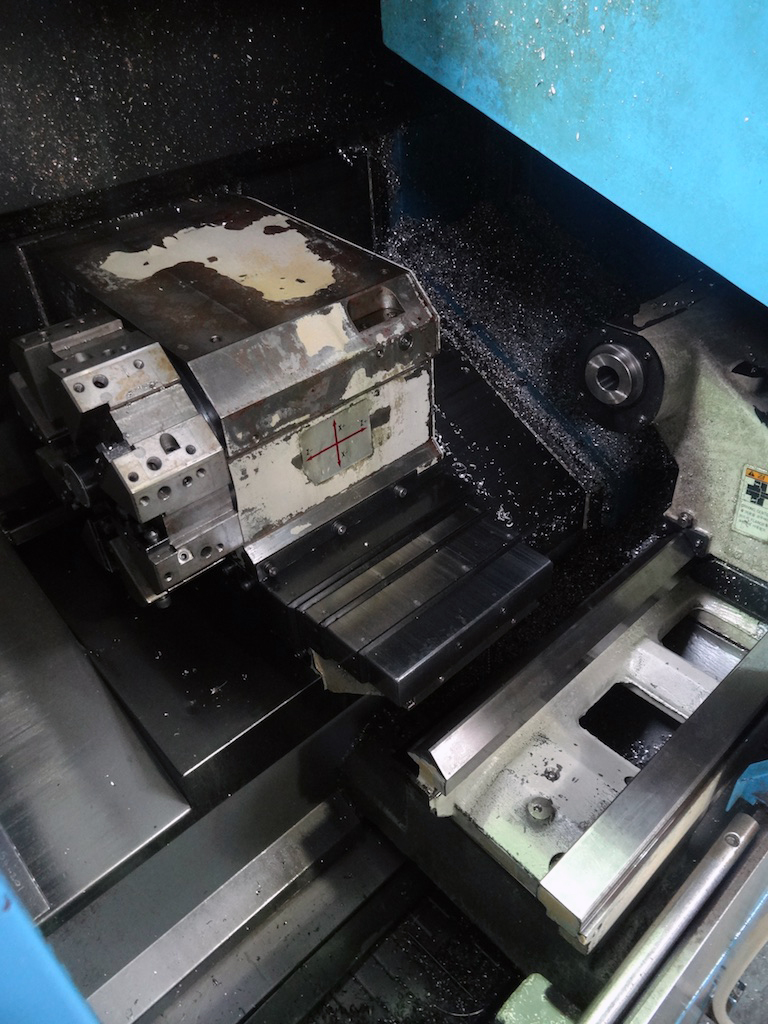

Type of turret: Octagonal
Number of tools: 8
Seqregation time (index): 0.48 sec/ 1 step
Tool size (outer dia): 25 x 150mm
Tool size (inner dia): max 40mm
Index coupling dia: 210mm
Travel:
X axis: 180mm
Z axis: 510mm
Rapid travelling speed X: 33m/min
Rapid travelling speed Z: 33m/min
Distance of travelling: 130

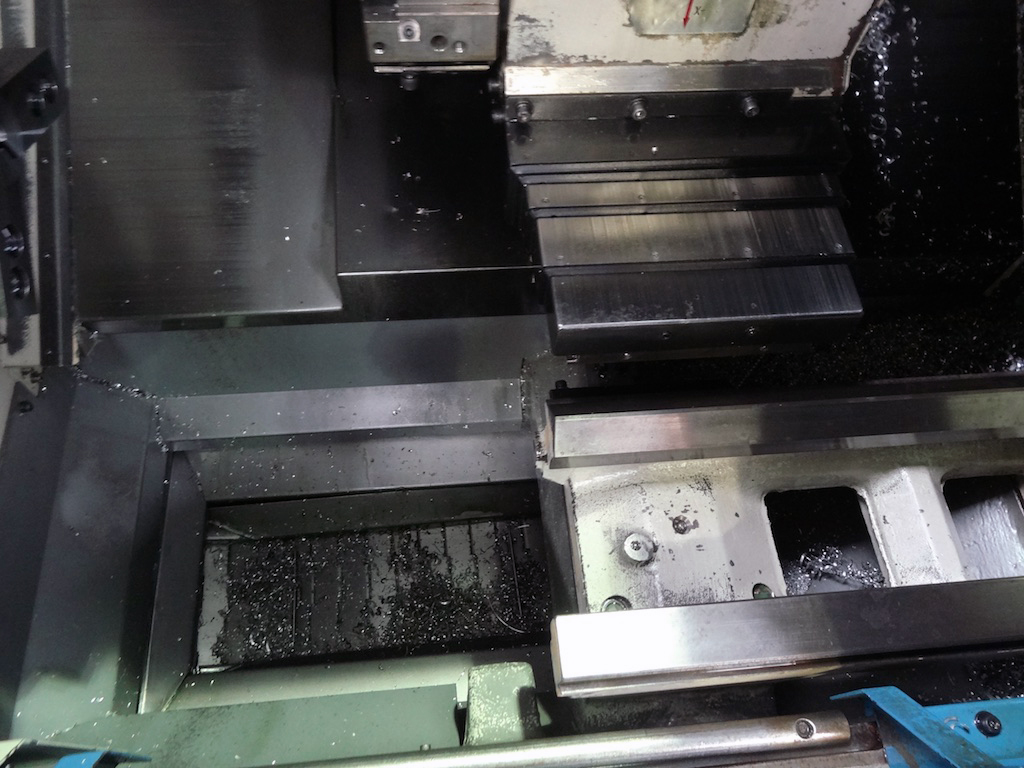

Bed shape: Flat

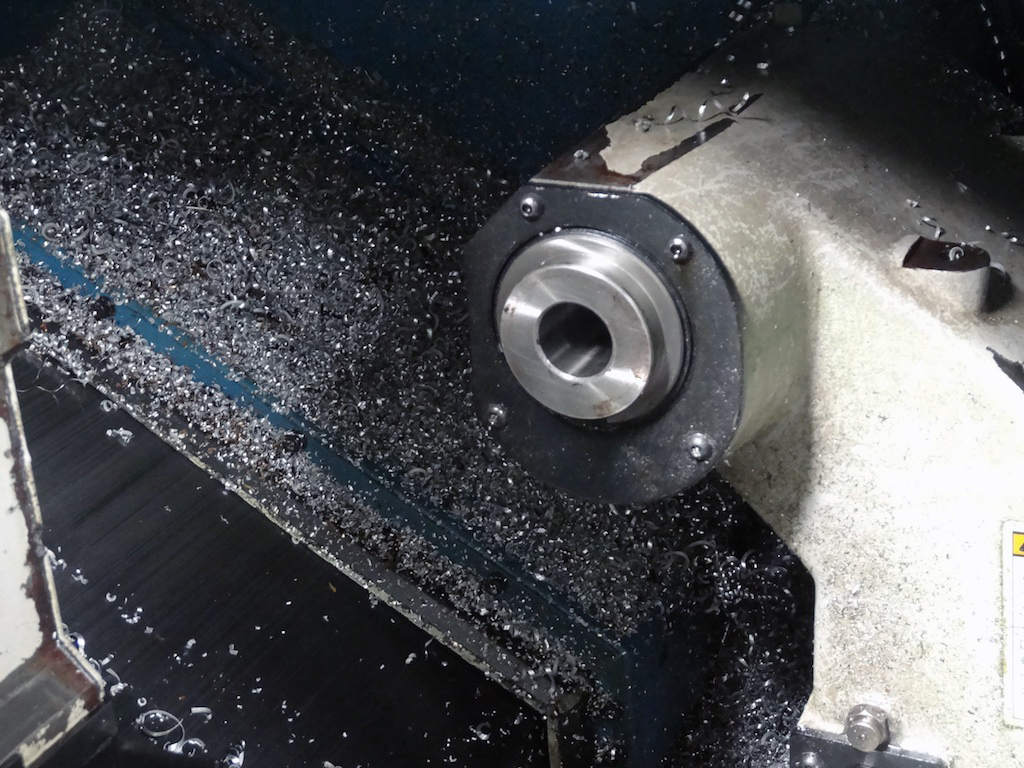

dia sleeve: 80mm
Taper (sleeve): MT No4

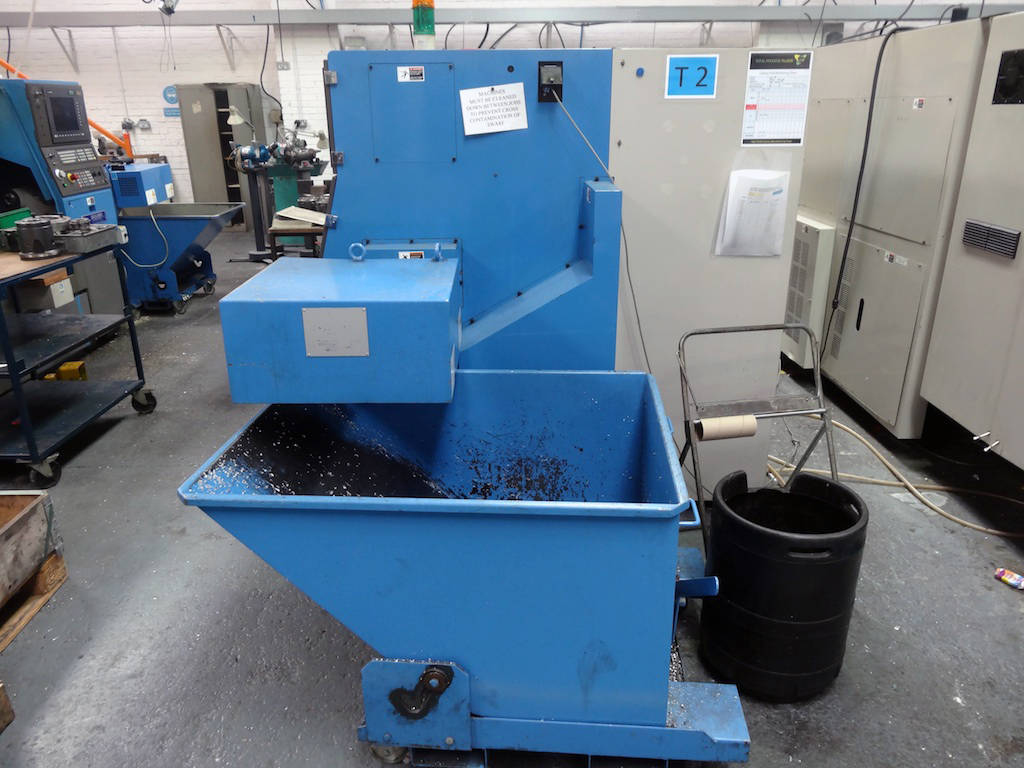

Swarf Conveyor

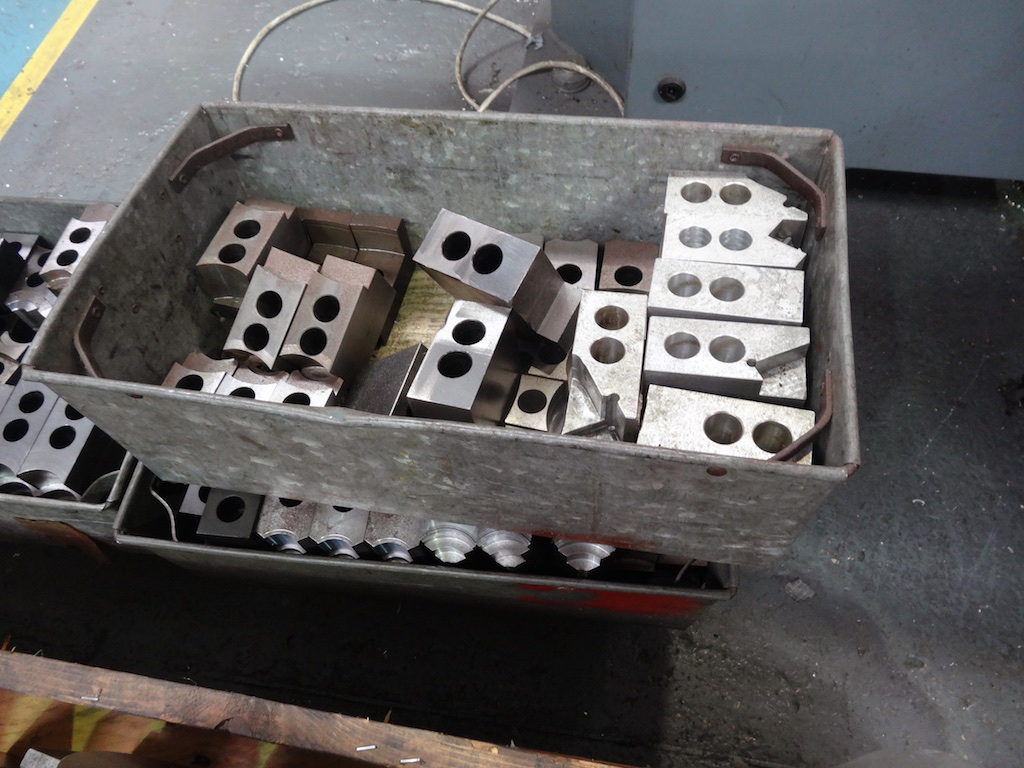

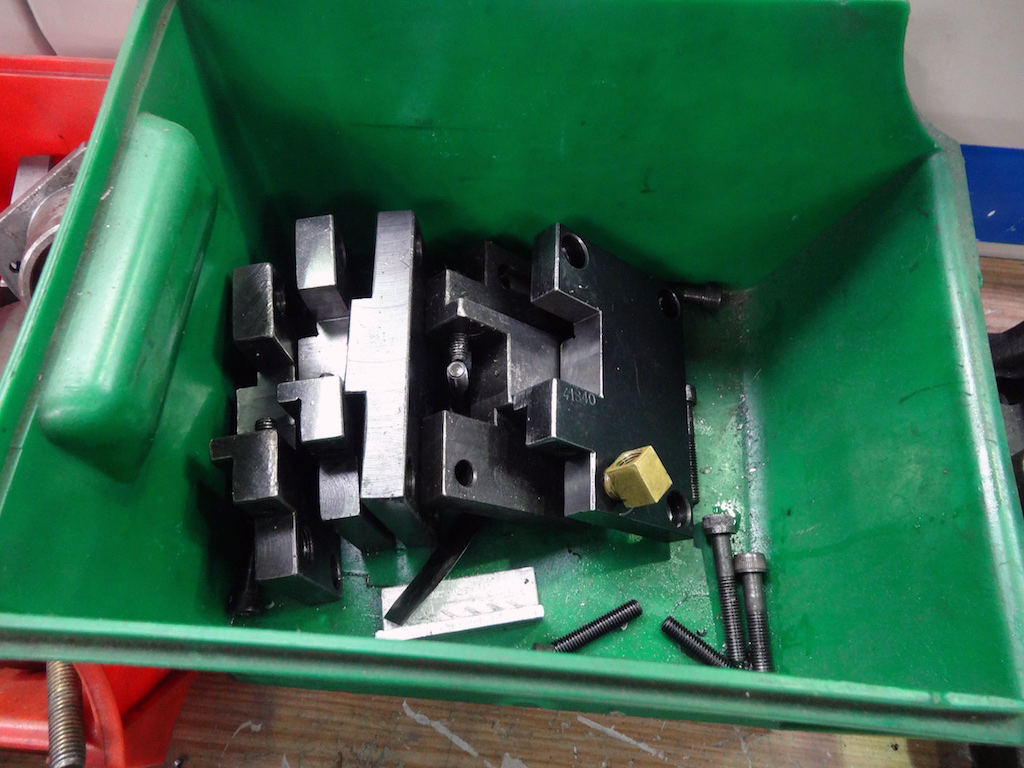

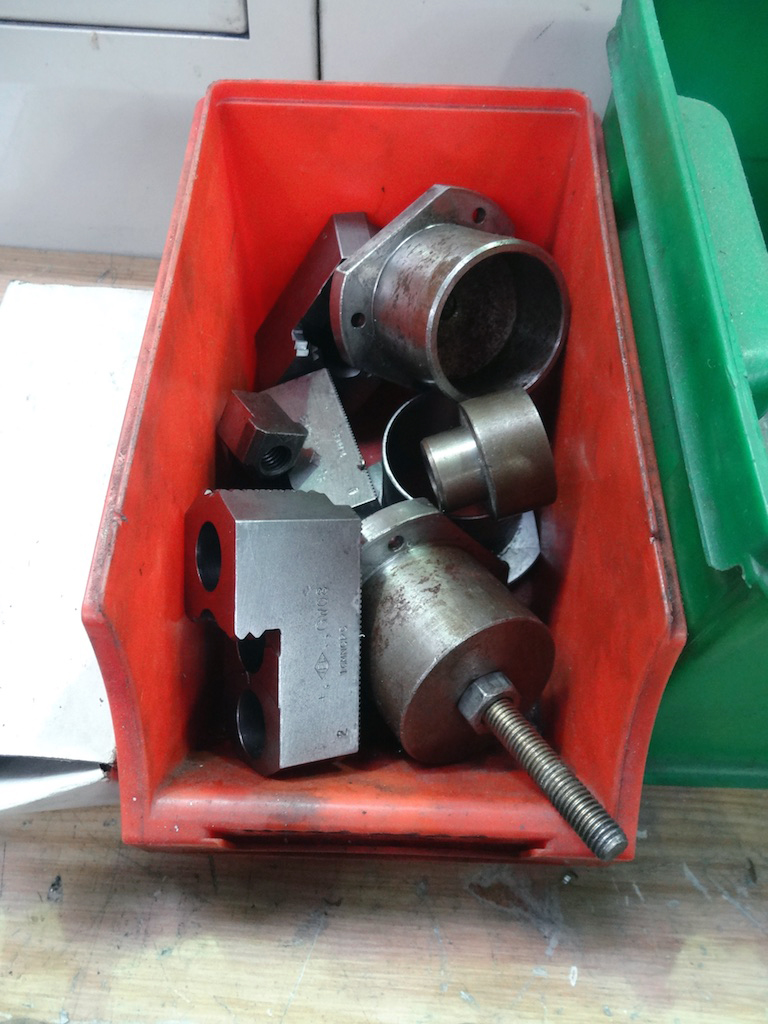

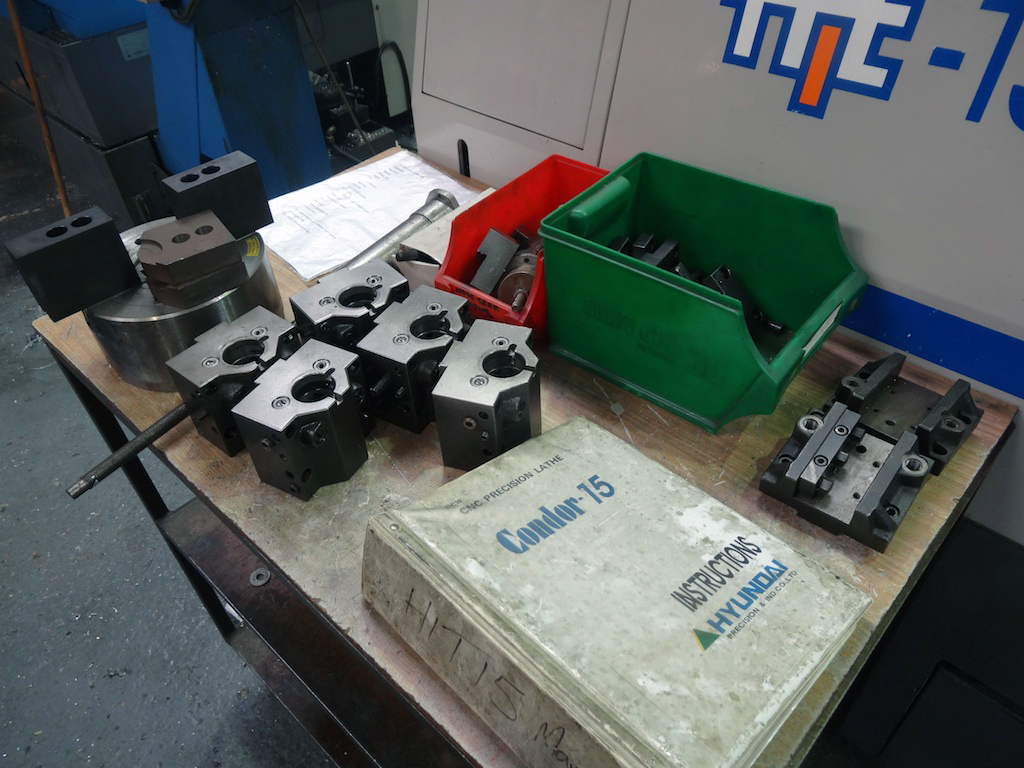

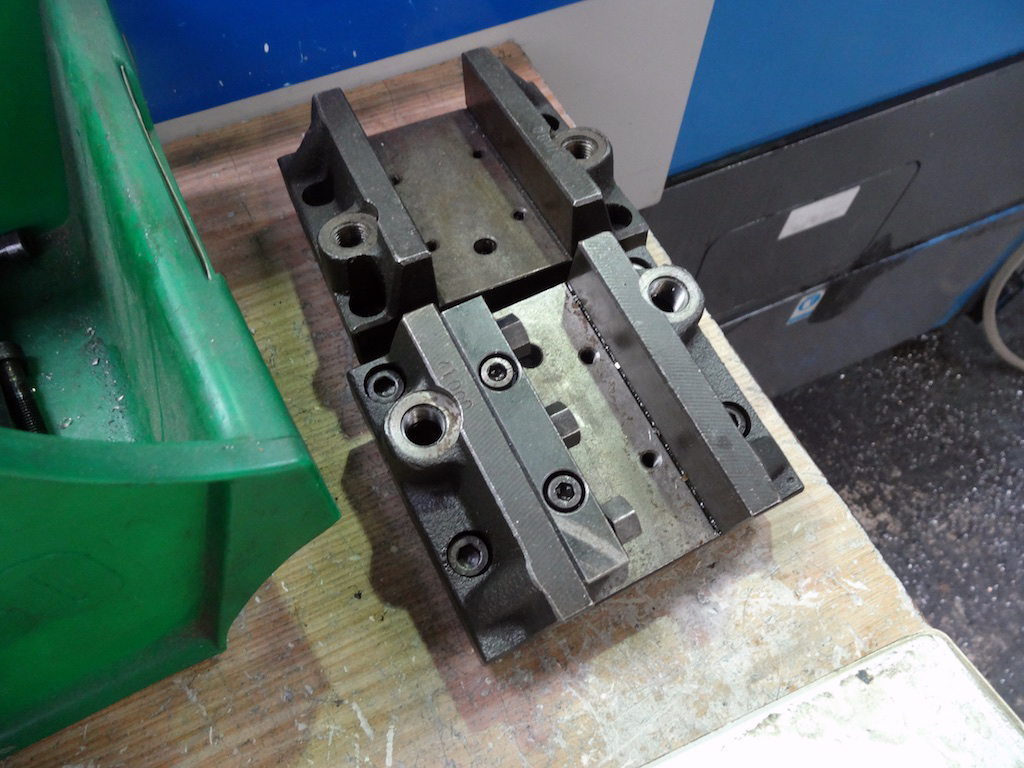

Tooling and tool holders as per photos

Video to be taken on Open Day and will be added to site after the 17th June

Location: Poole

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
