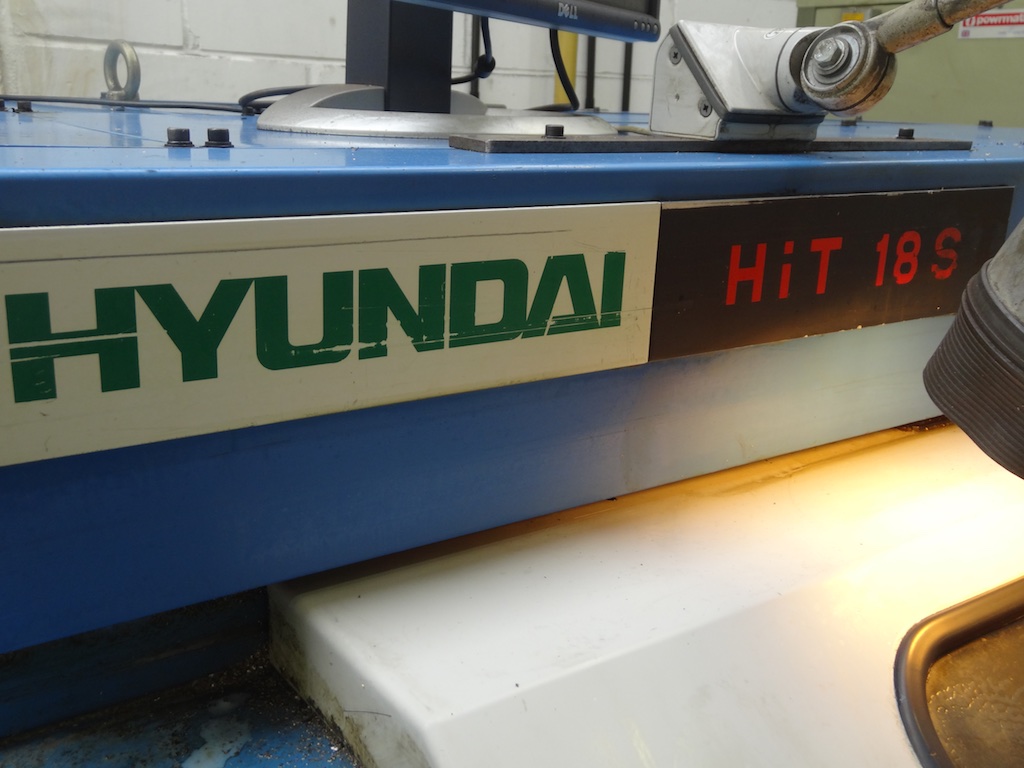

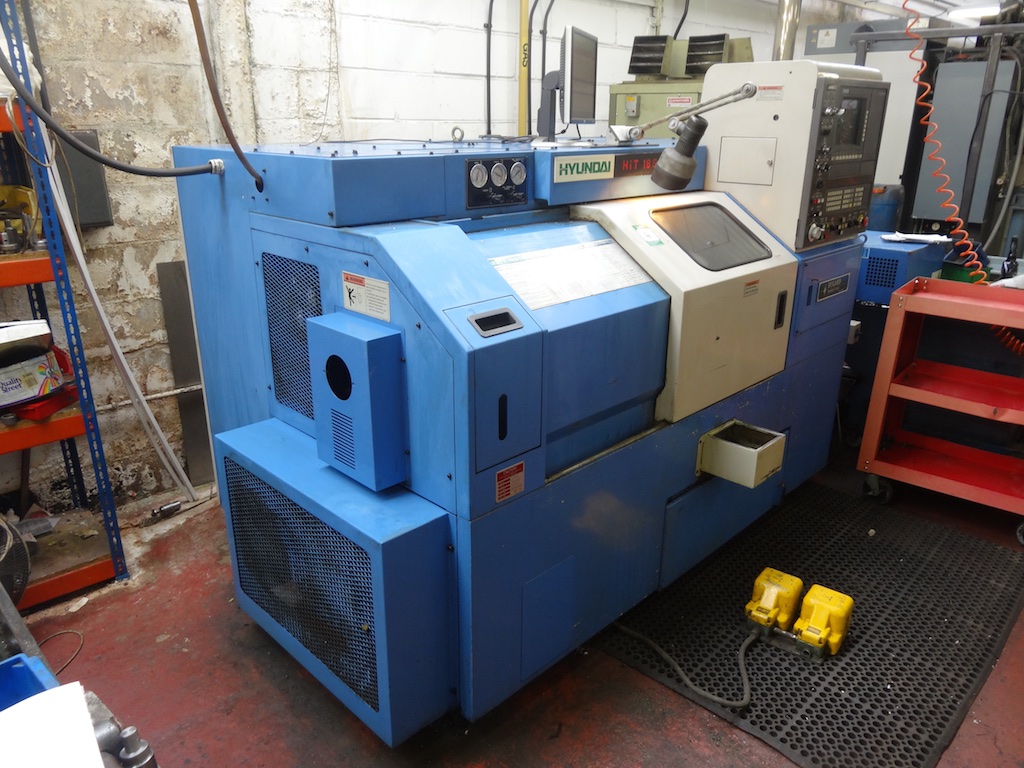

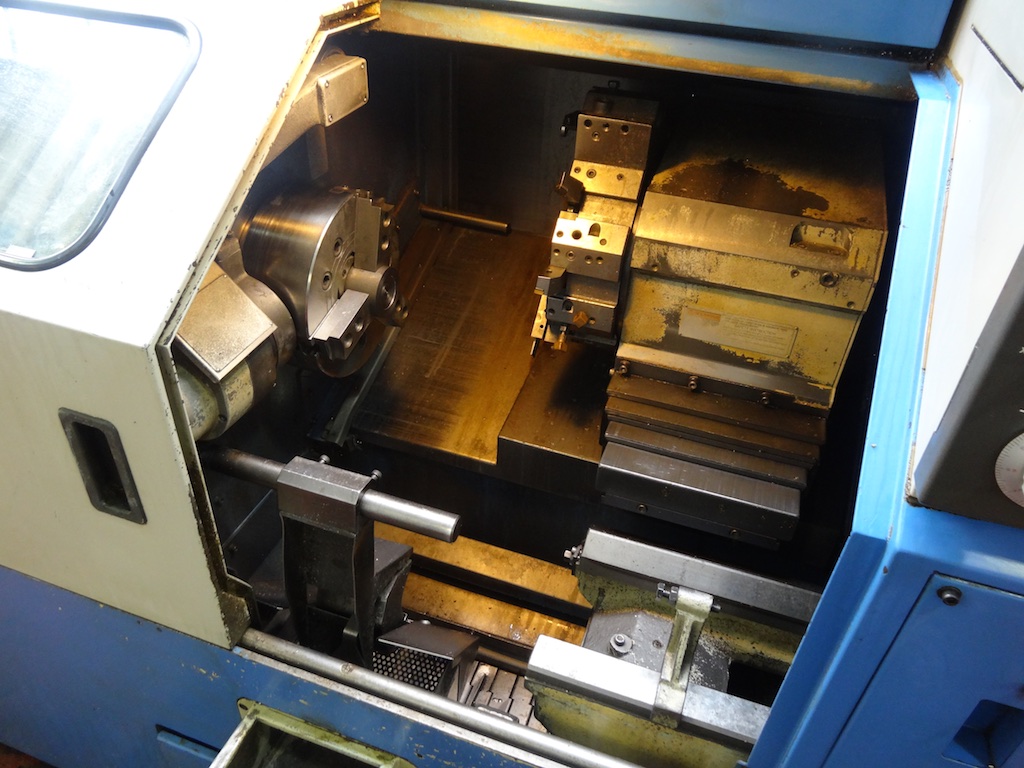

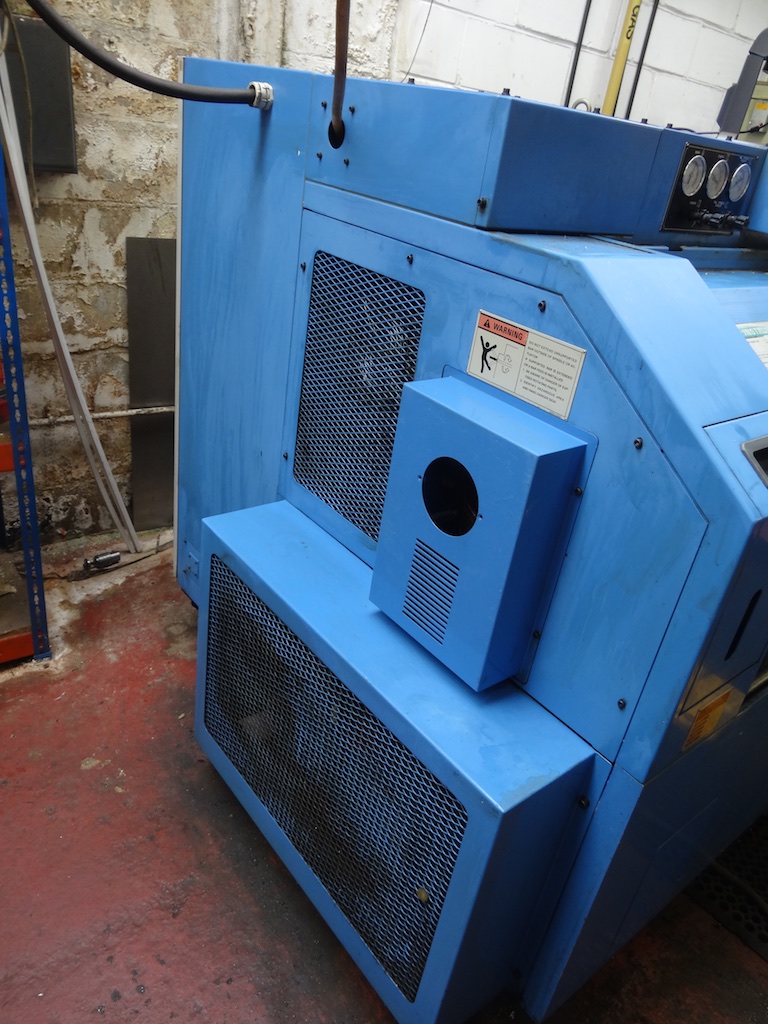

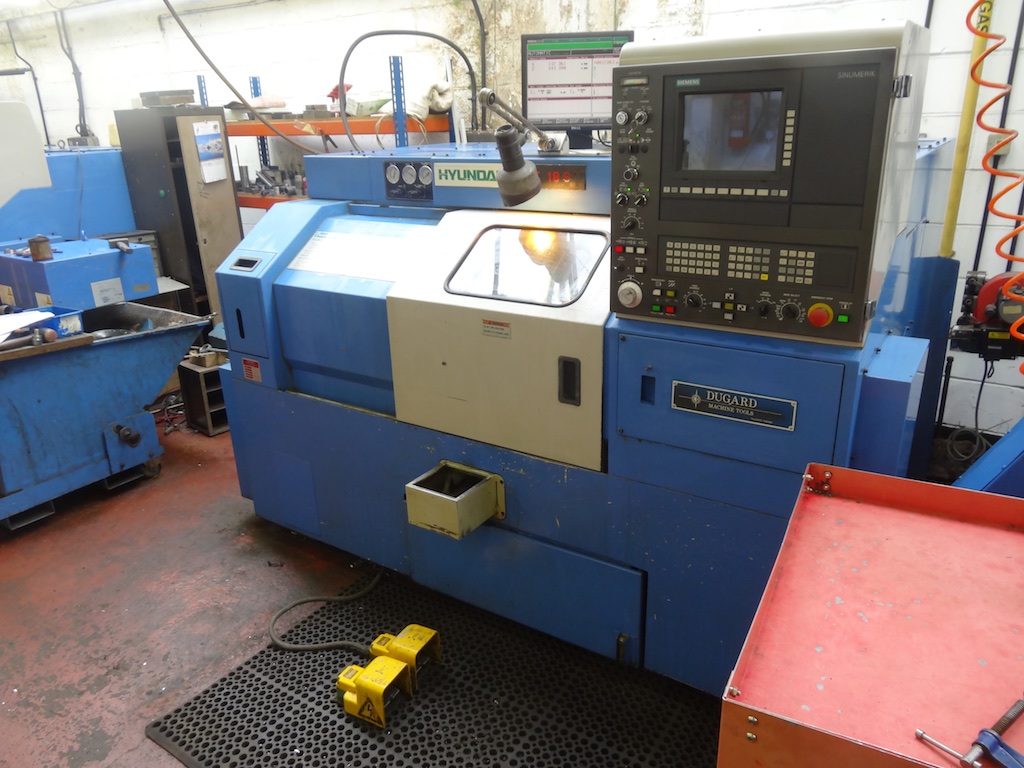

Hyundai Hit 18S CNC Lathe

Lot 4 - Hyundai Hit 18S CNC Lathe

Description:

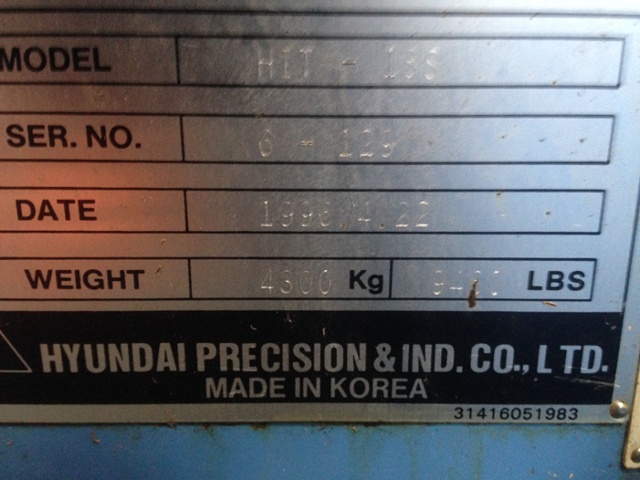

S/n: 6-129
Date: 1996, Installed New in 1997

X axis: 180mm
Z axis: 510mm
Swing over bed 440mm dia
Standard cutting dia: 150mm
Max cutting dia: 254mm
Max cutting length: 434mm
Between centres: 637mm
Max weight( includes chuck weight):
Chuck work: 100kg
Shaft work: 150kg
Bar cap: 70mm
Spindle speed 36- 3600rpm
spindle nose: JIS A2 - 8
Spindle bore dia: 80mm
Max torque: 32.5 kg fm

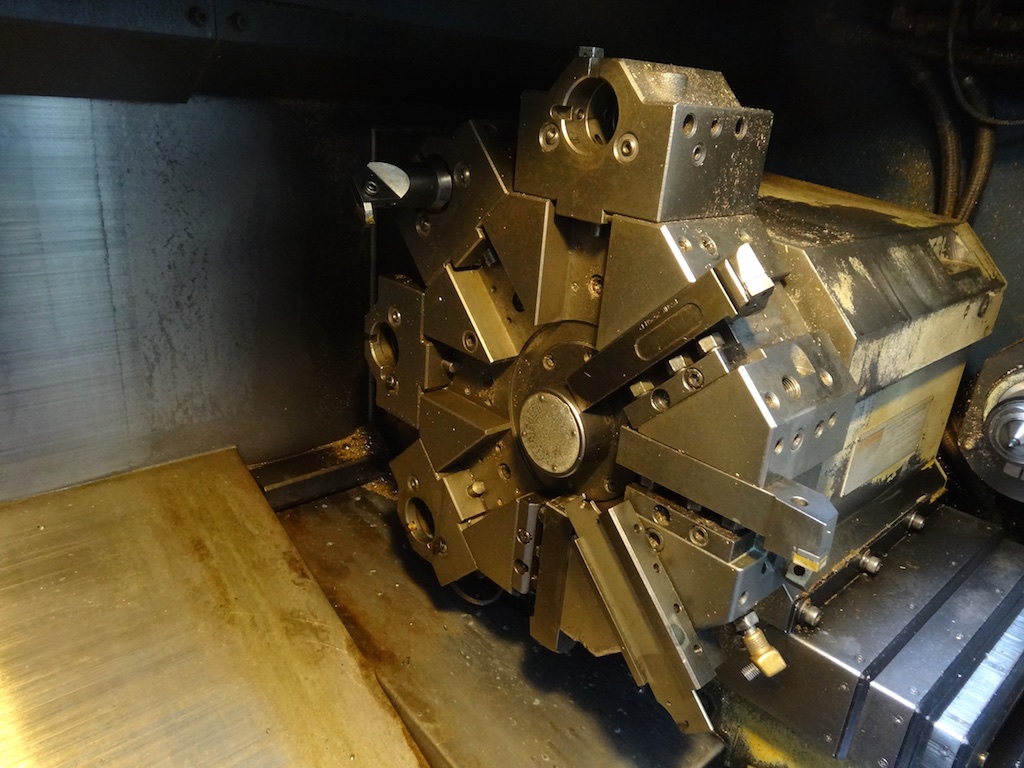

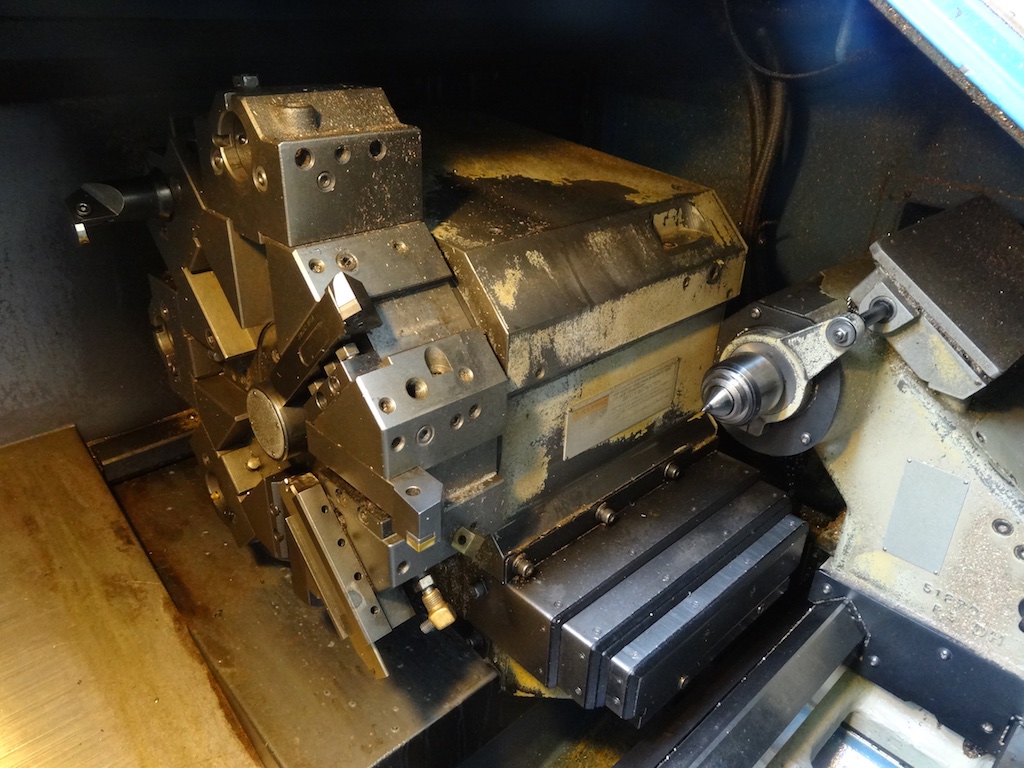

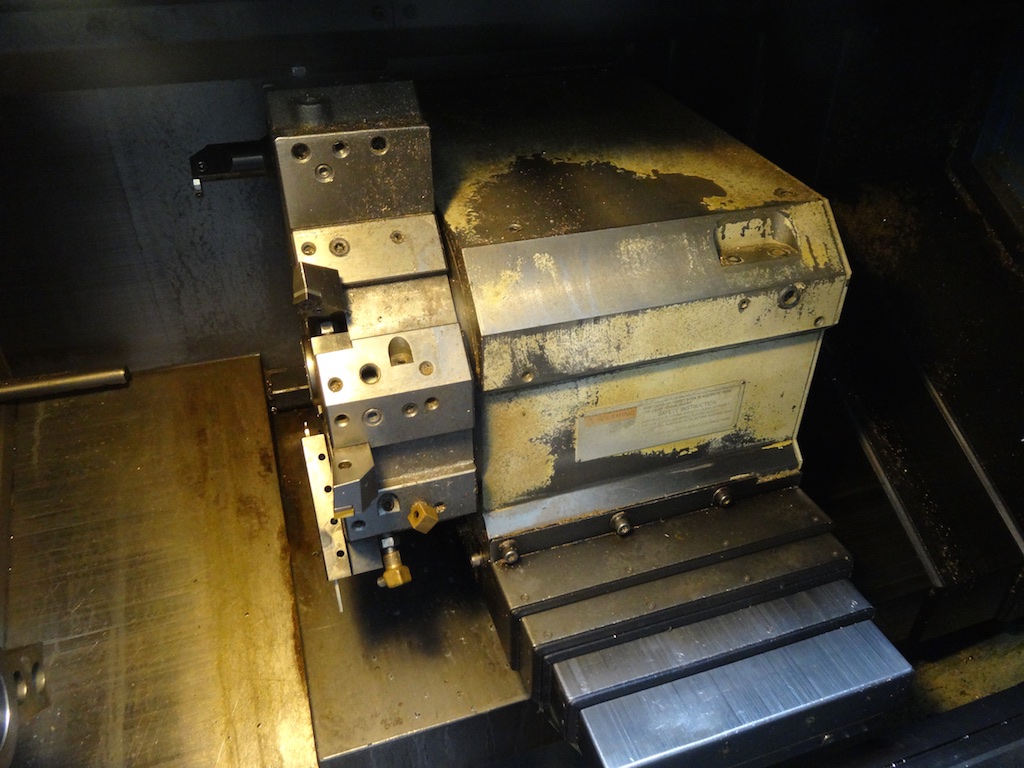

Turret type: octagonal 8 position drum, 8 stations
Dia of quill: 80mm

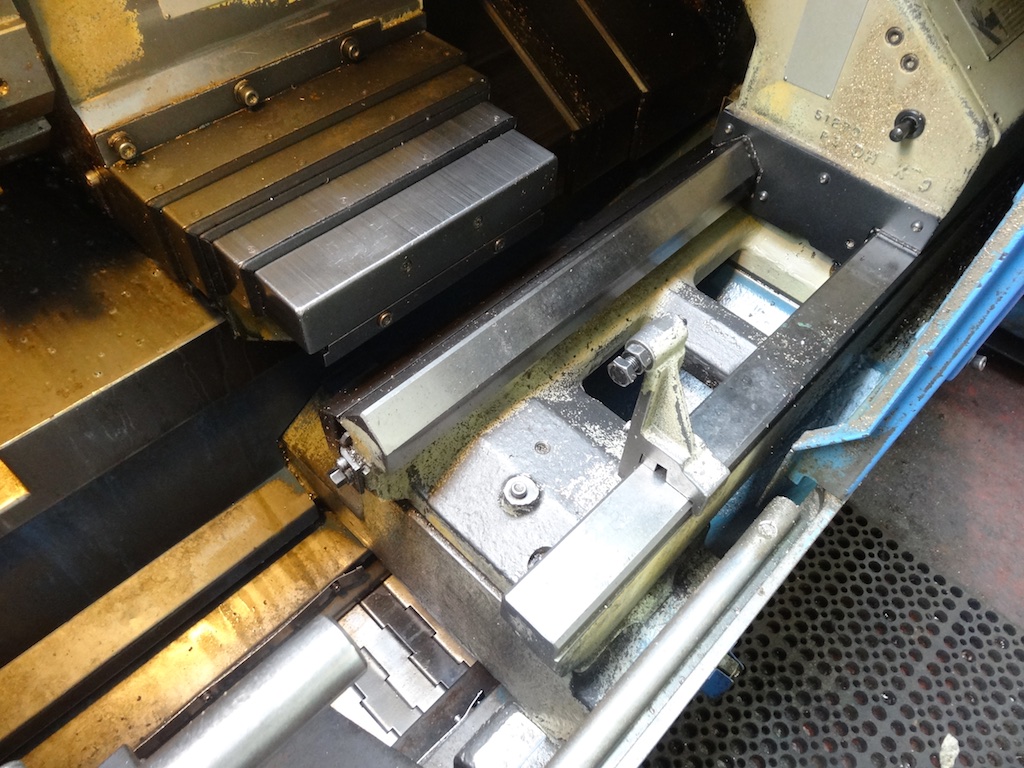

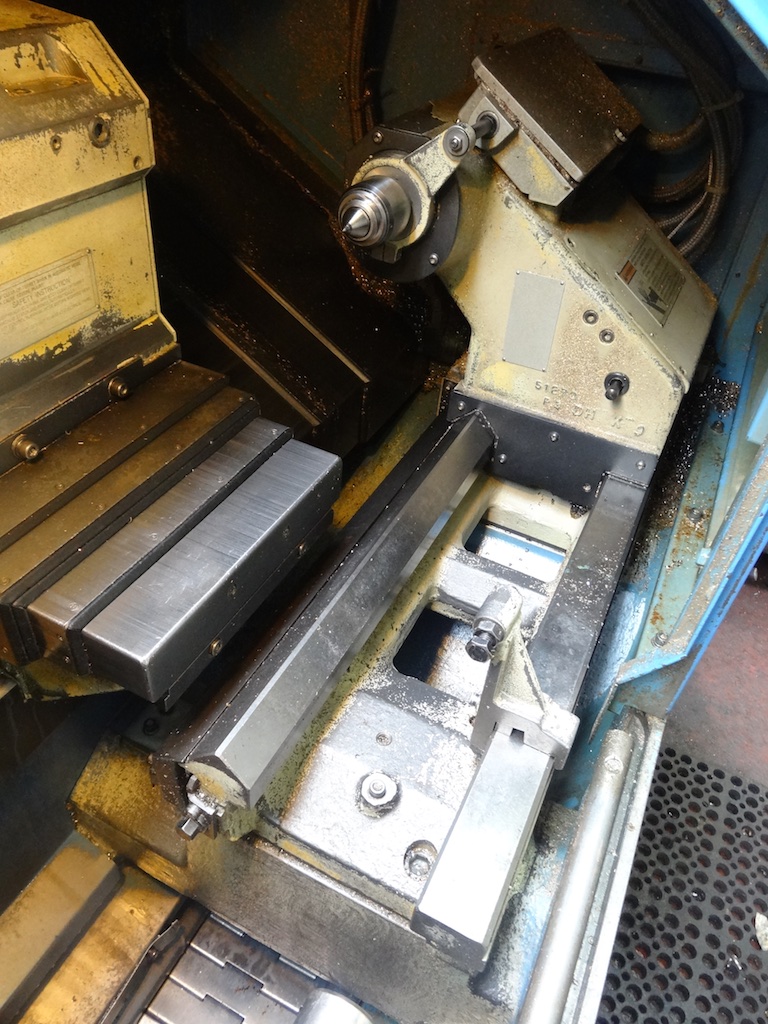

Stroke of tailstock quill: 130mm
Tailstock center: MT NO 4
Sroke of tailstock body (manual): 480mm
Rapid traverse: X axis: 30m/min Z axis: 30m/min
Cutting federate: X & Y axis: 5000m/min

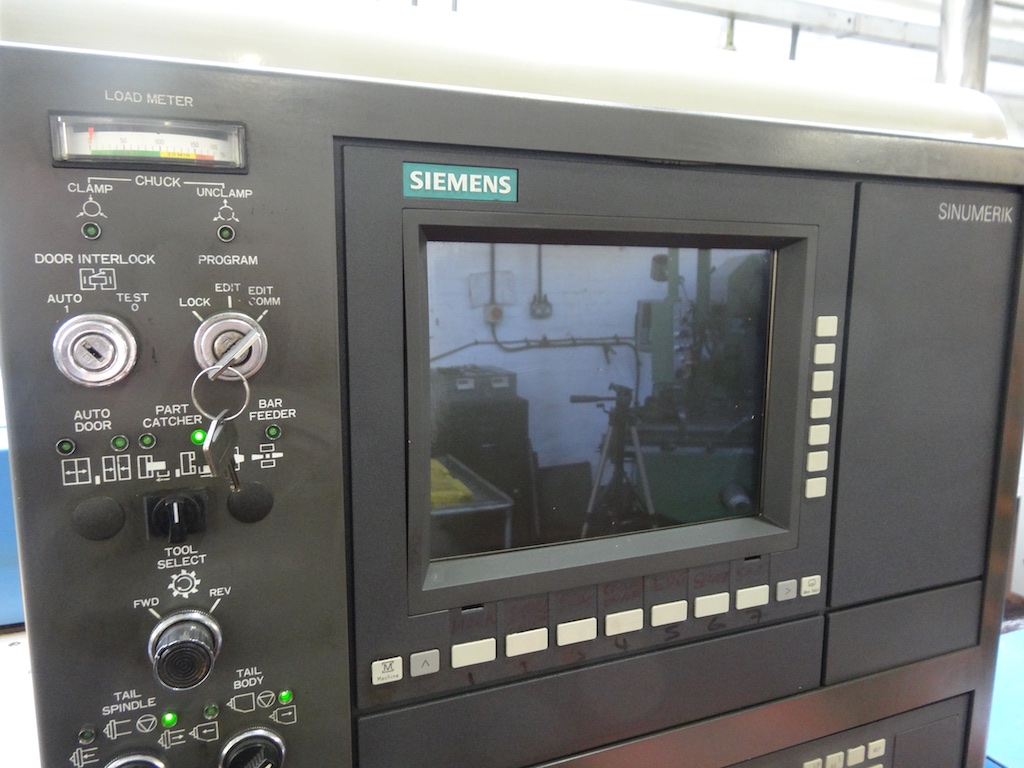

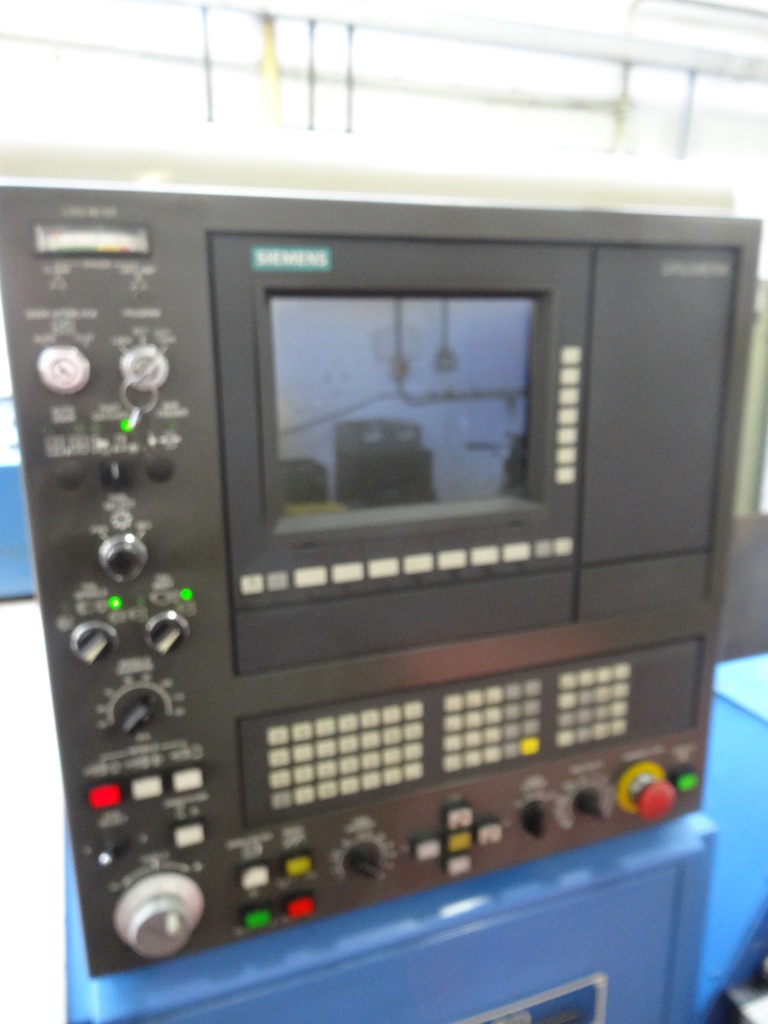

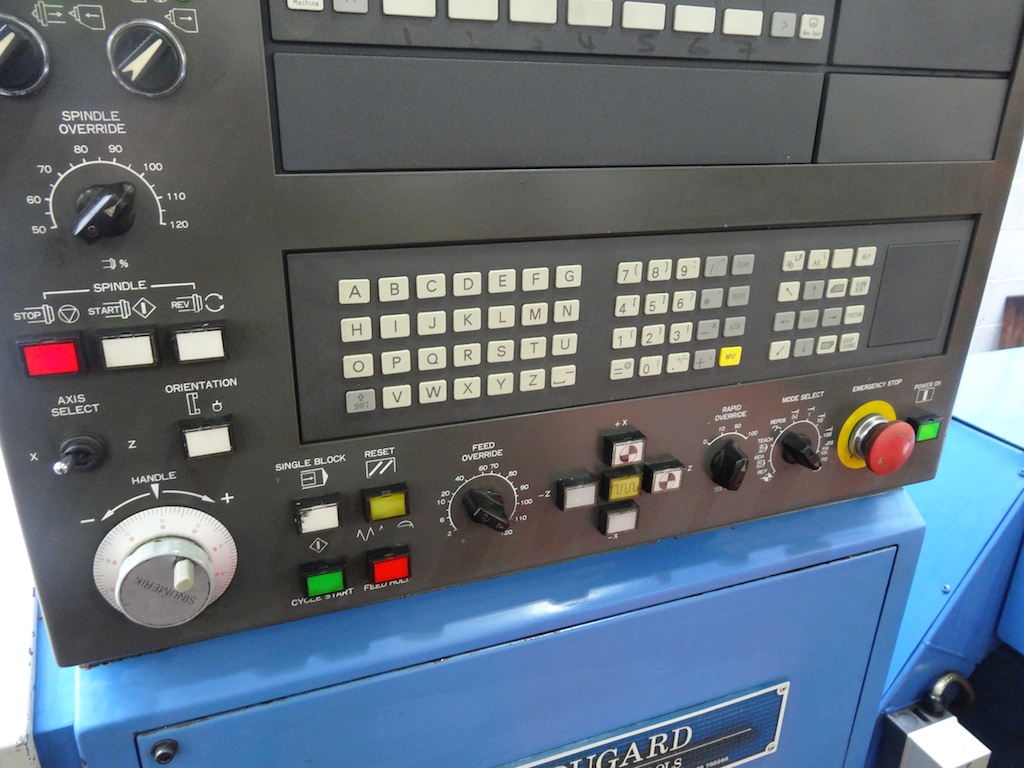

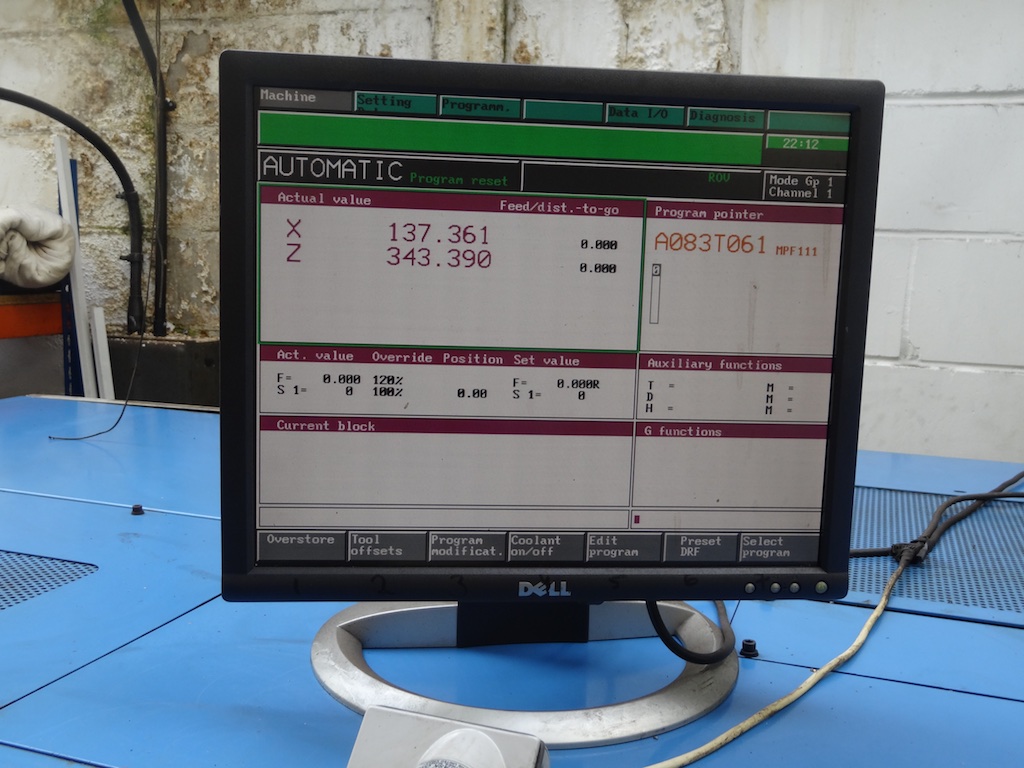

Siemens Sinumerik Control

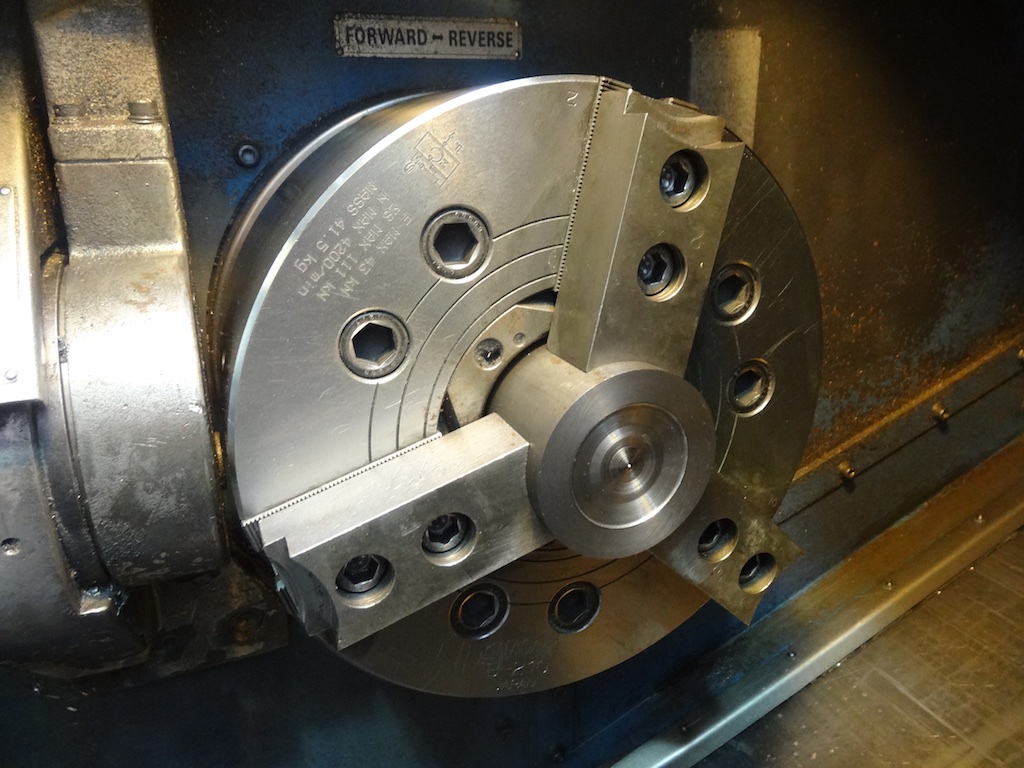

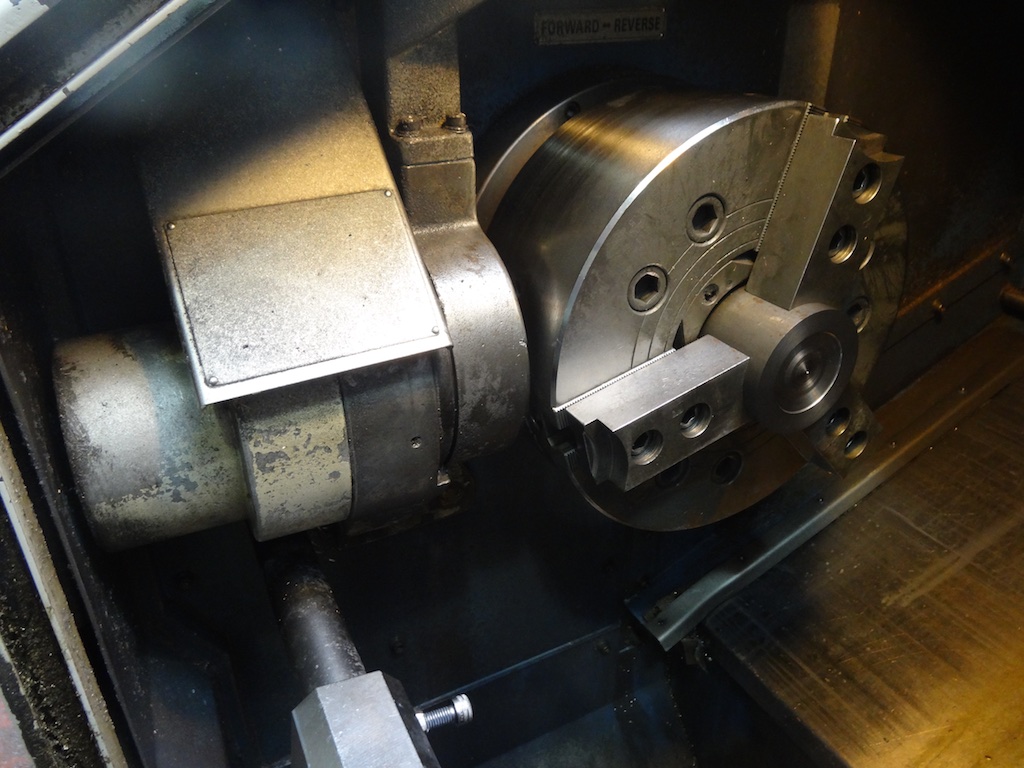

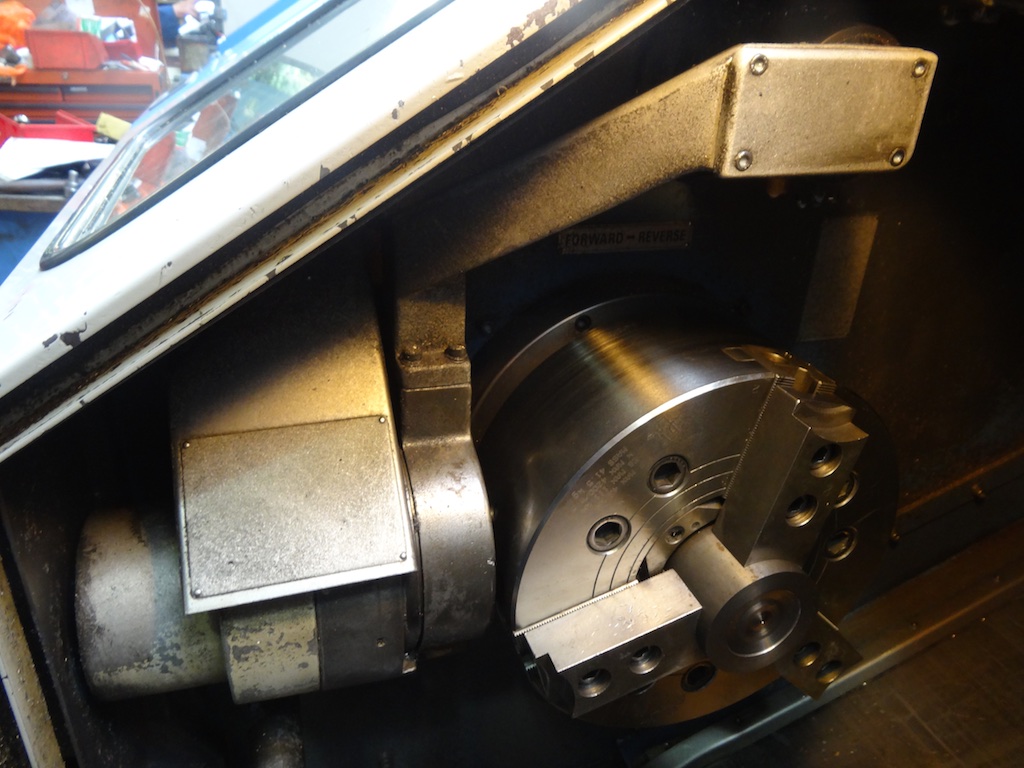

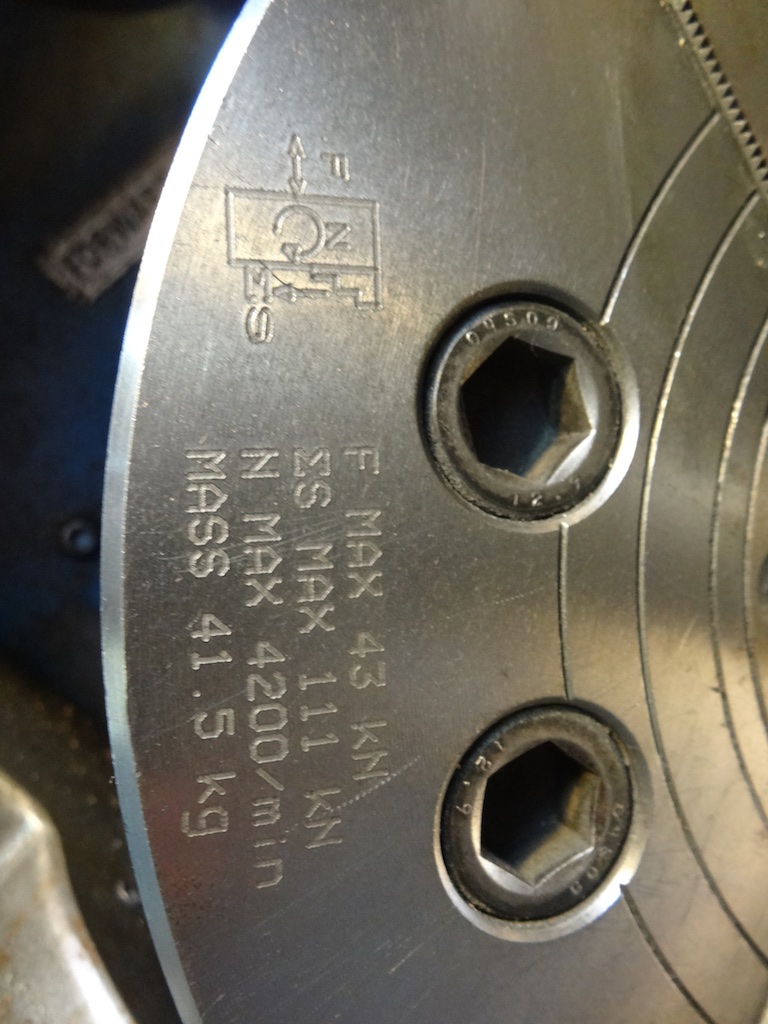

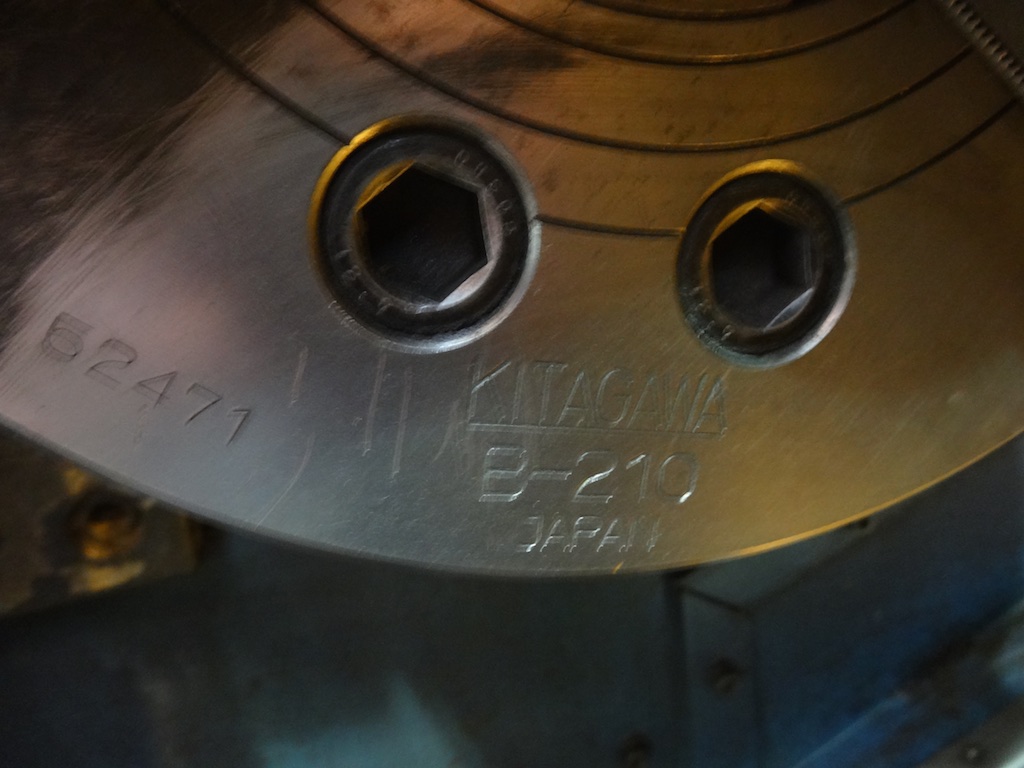

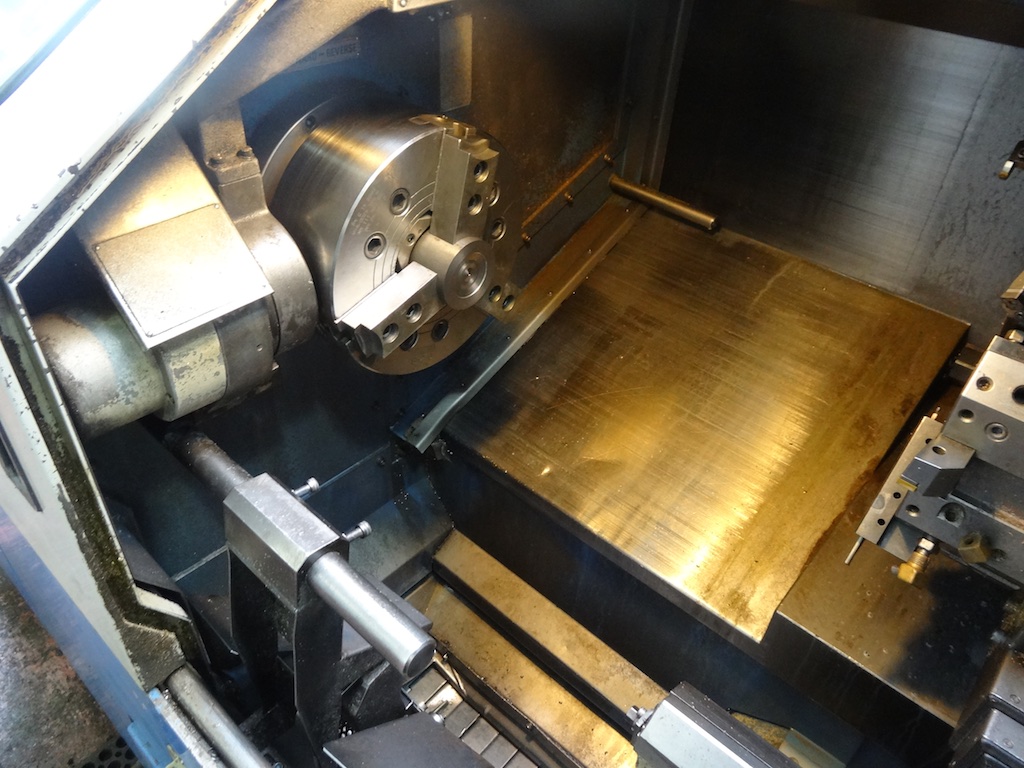

Kitigawa 10” Chuck
L x W x H: 2568 x 1630 x 1830mm
Weight: 4300kg

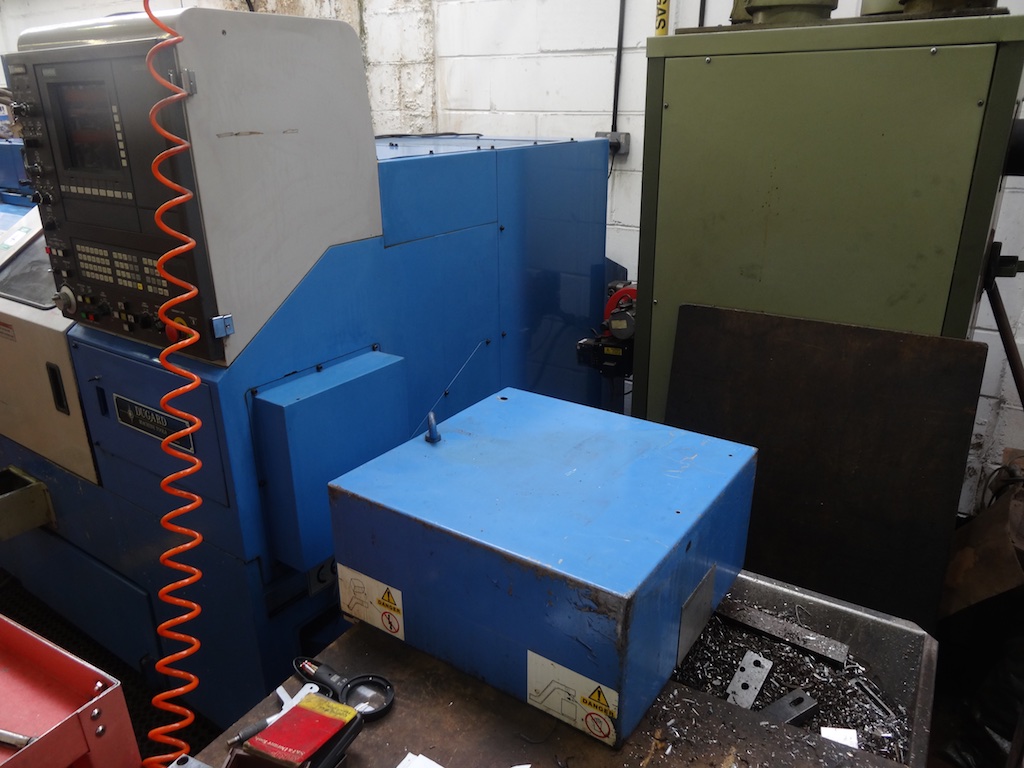

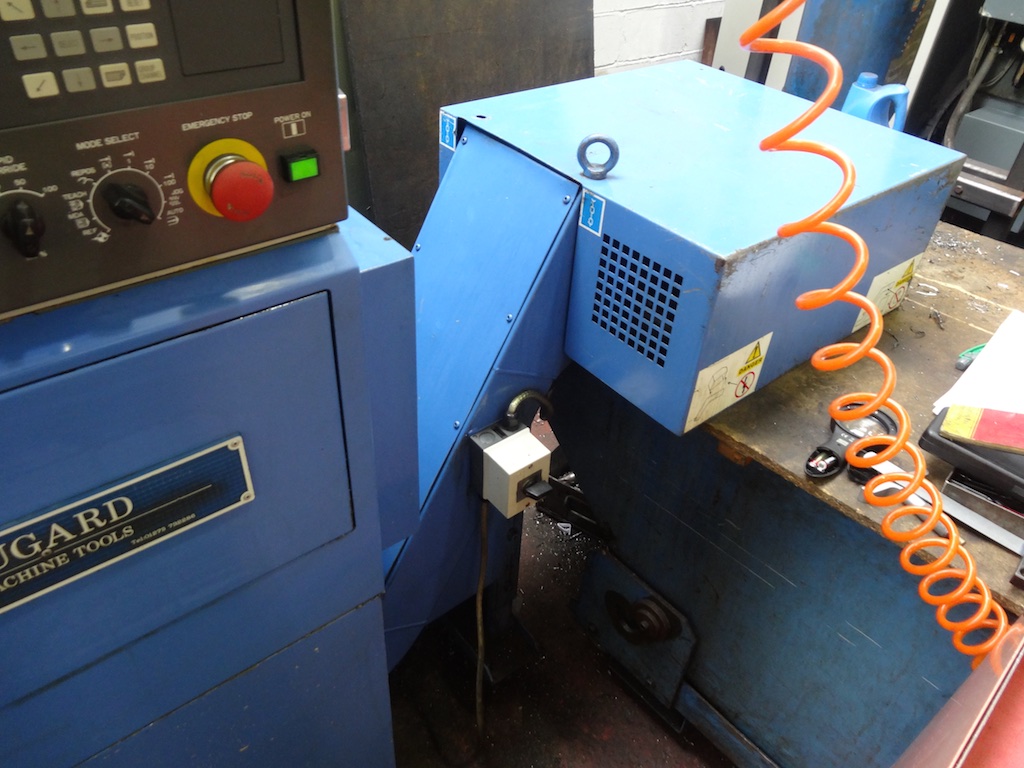

Cromar swarf conveyor and swarf bin

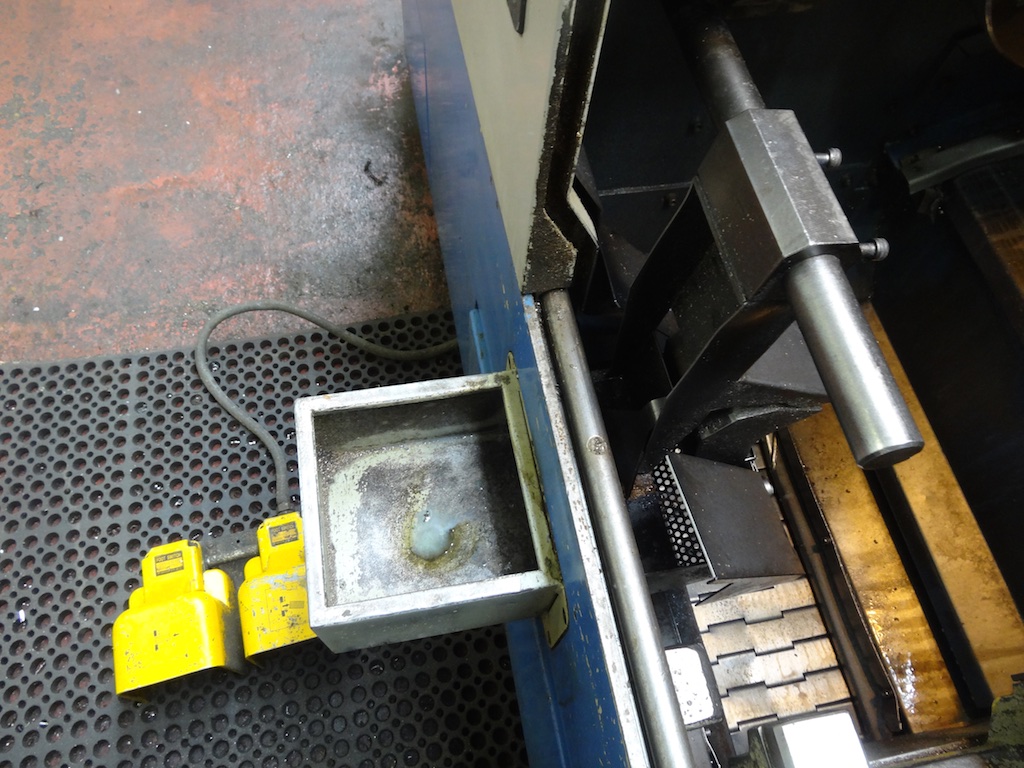

Parts catcher

Location: Bishops Stortford

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
