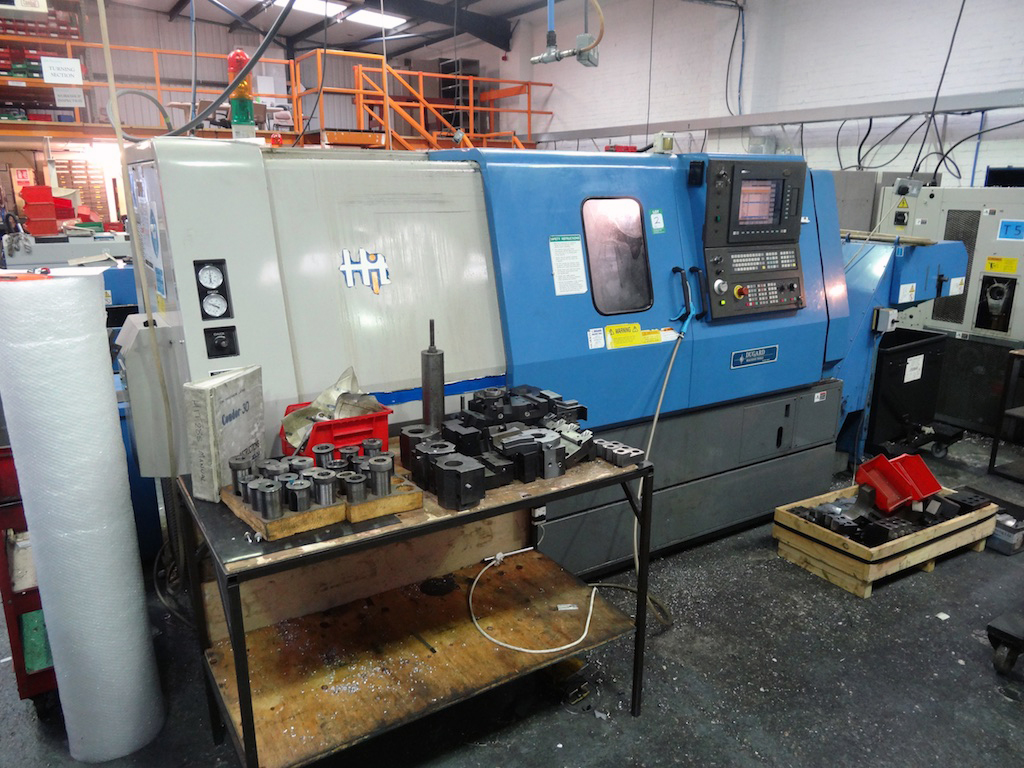

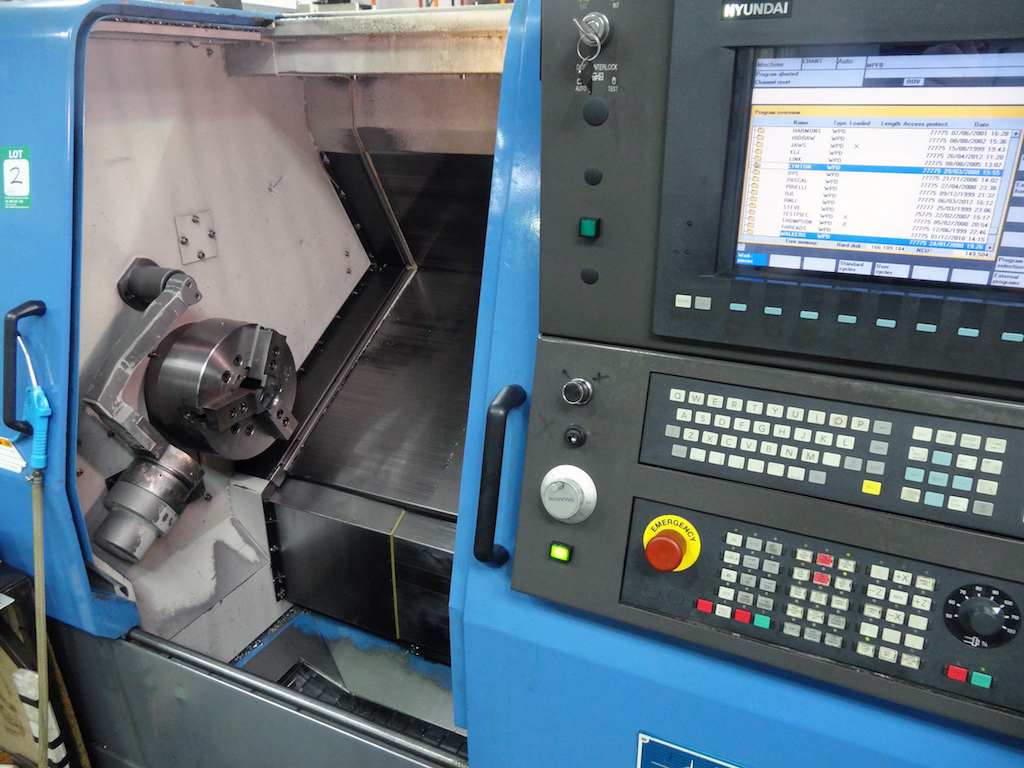

Hyundai Hit 28 CNC Lathe

Lot 2 - Hyundai Hit 28 CNC Lathe

Description:

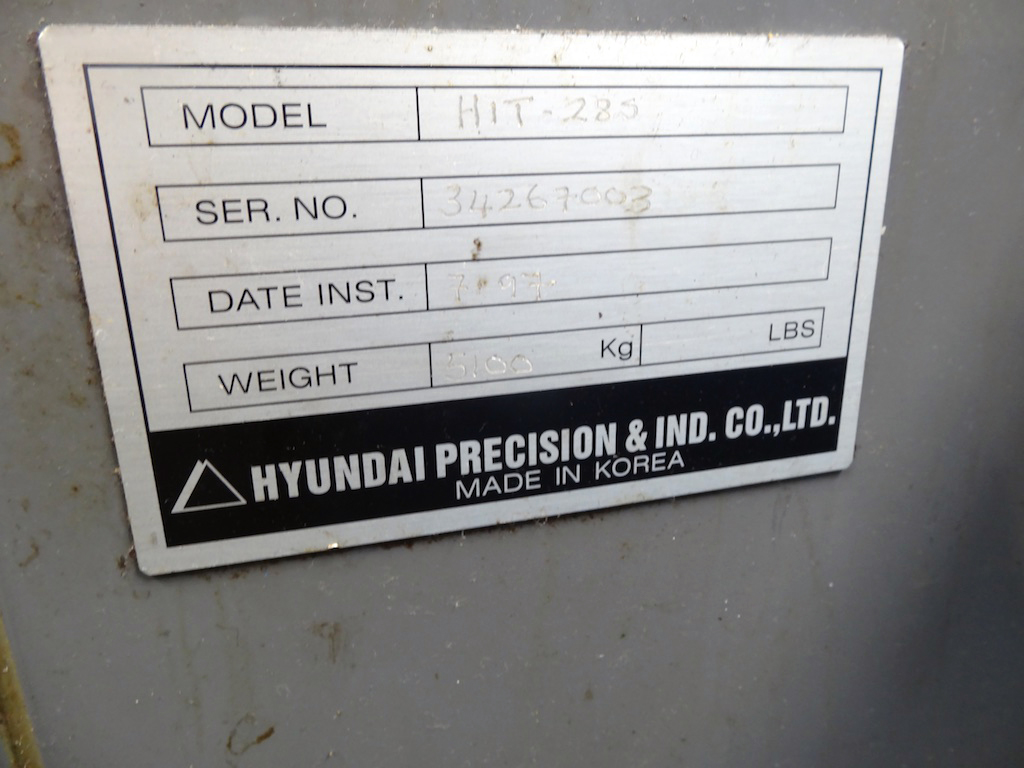

S/n: 34267003
Date: 7-97
L x W x H: 2740 x 1770 x 1835mm
Weight: 5300kgs

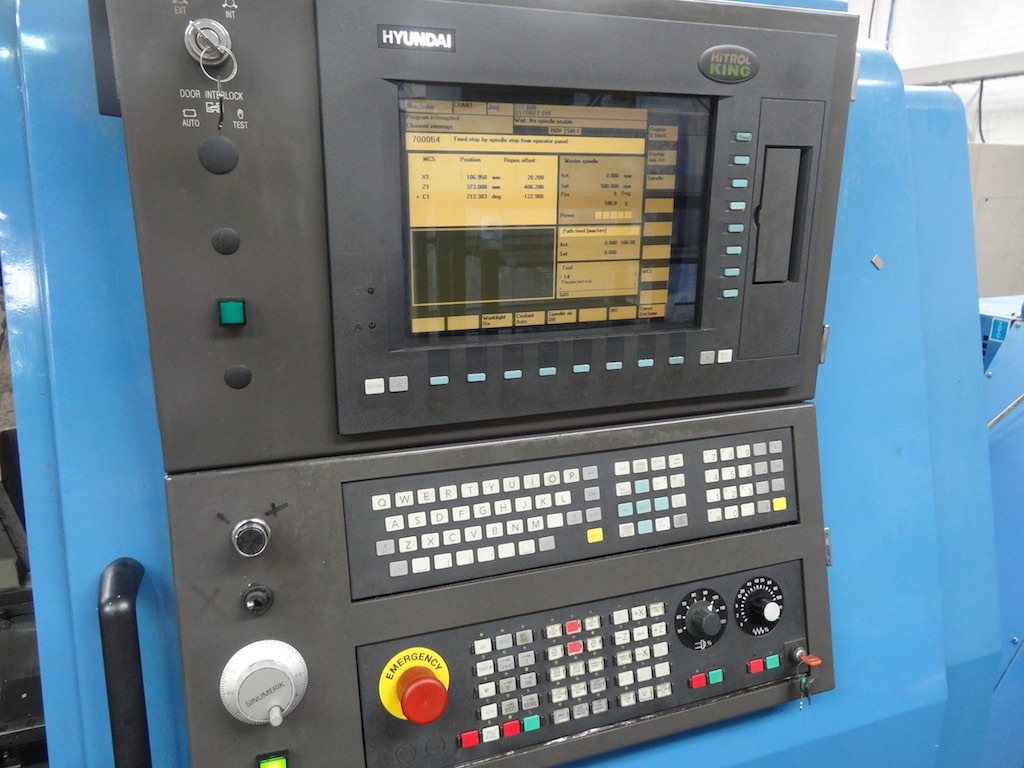

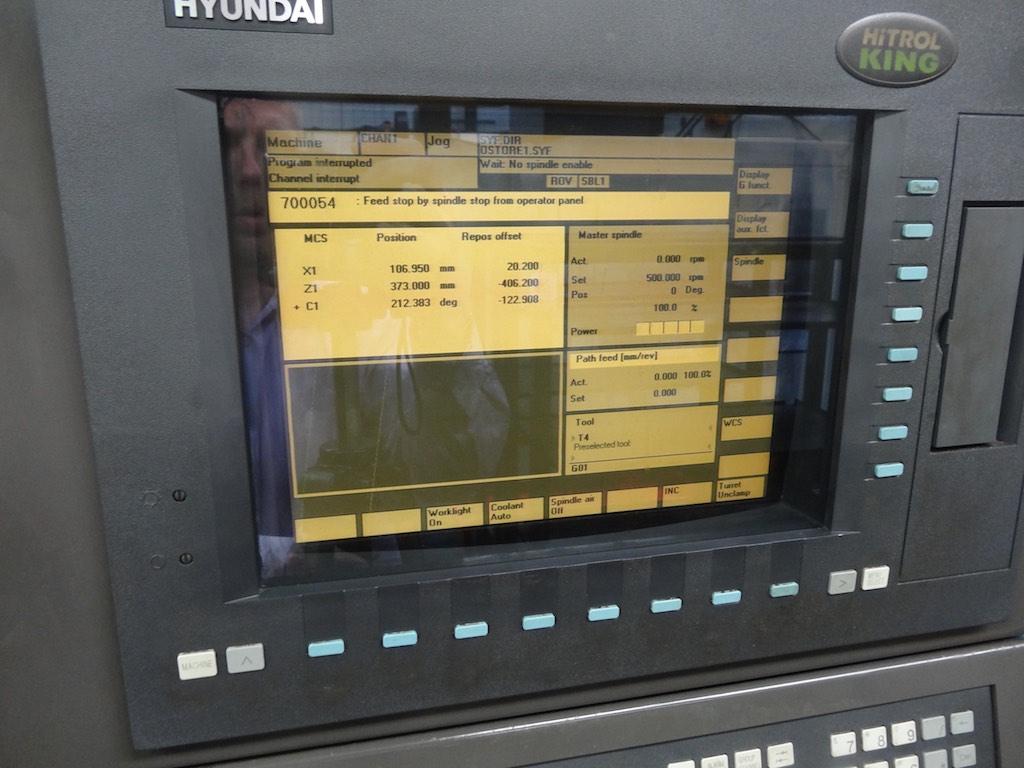

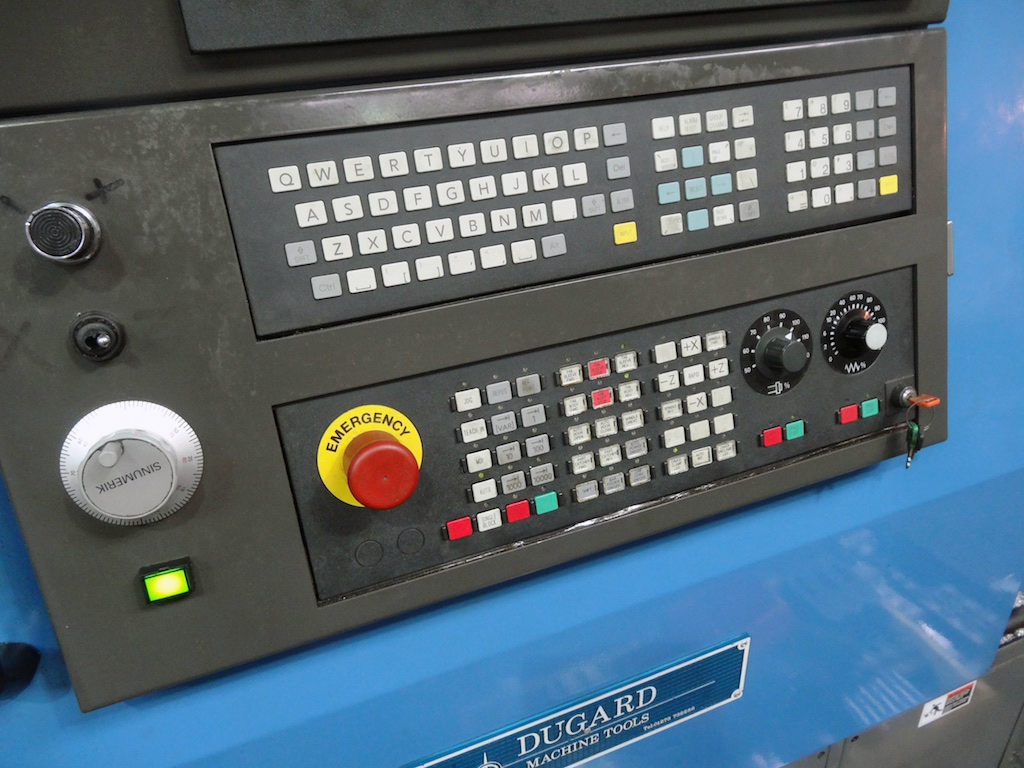

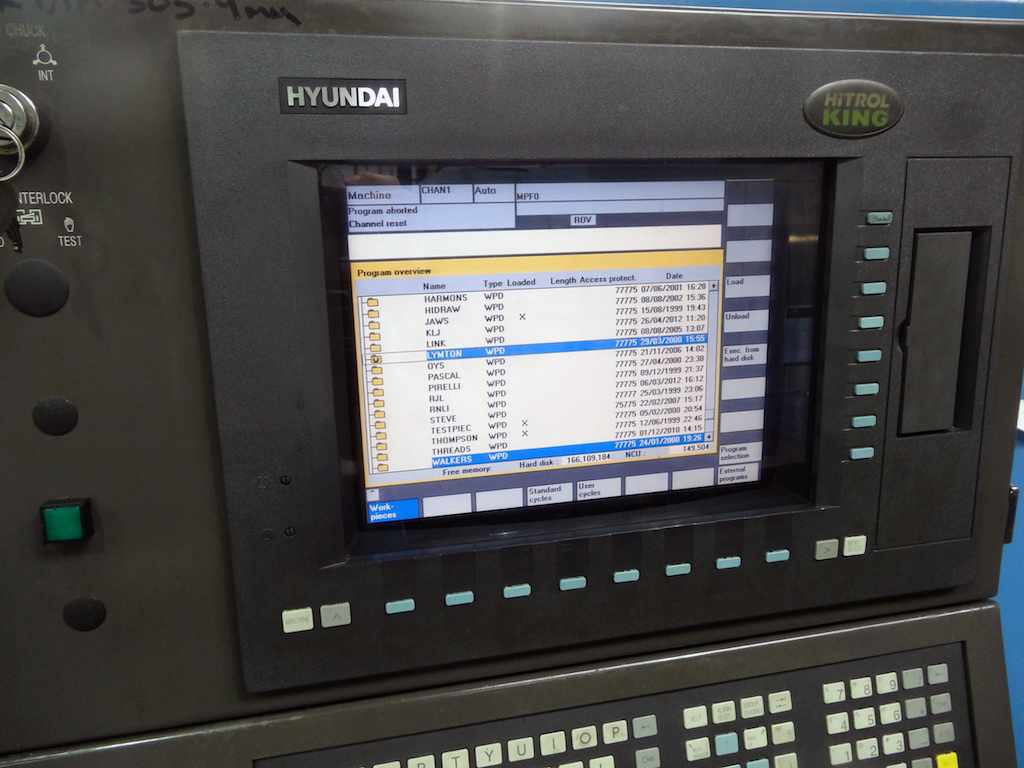

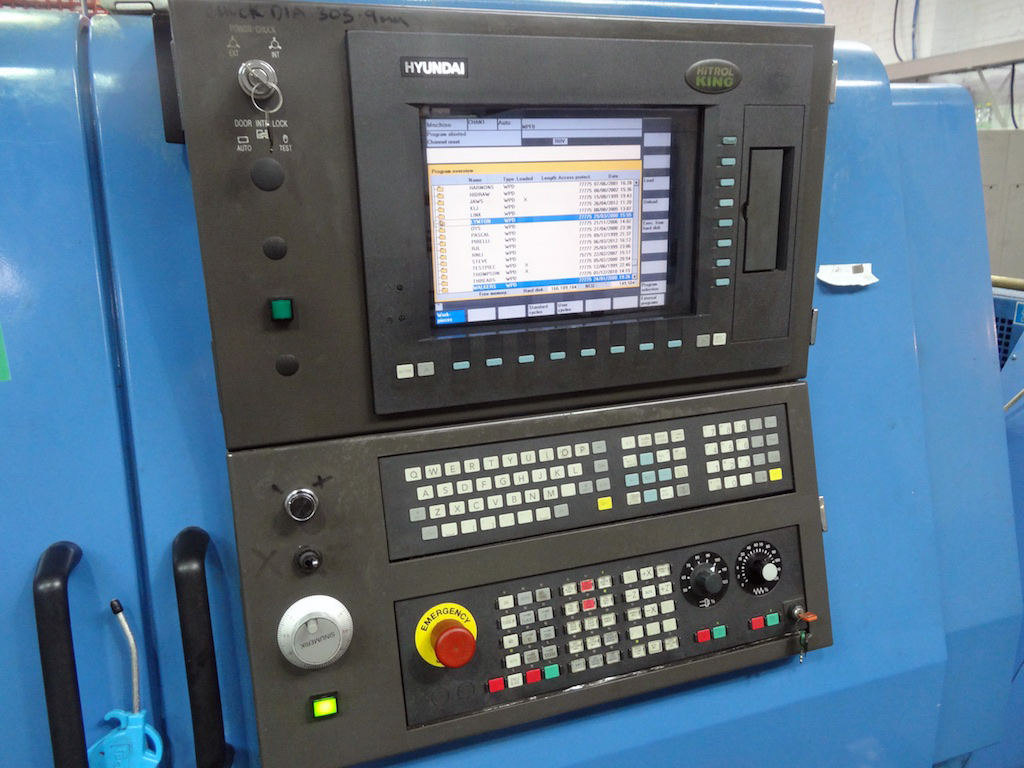

Hyundai control

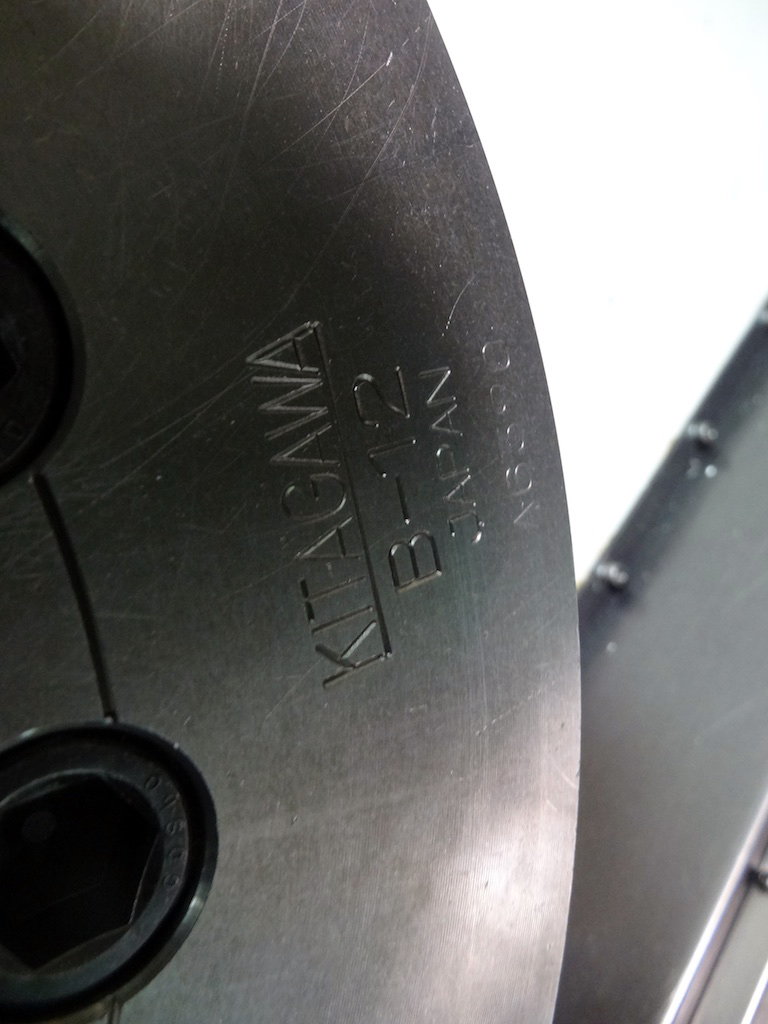

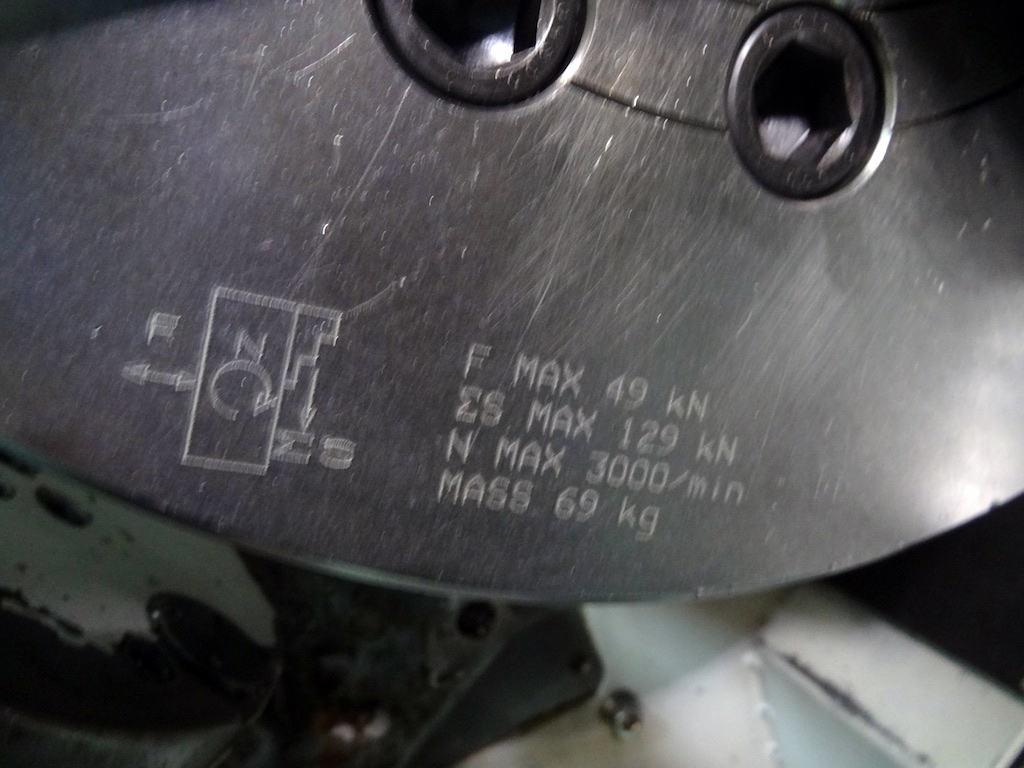

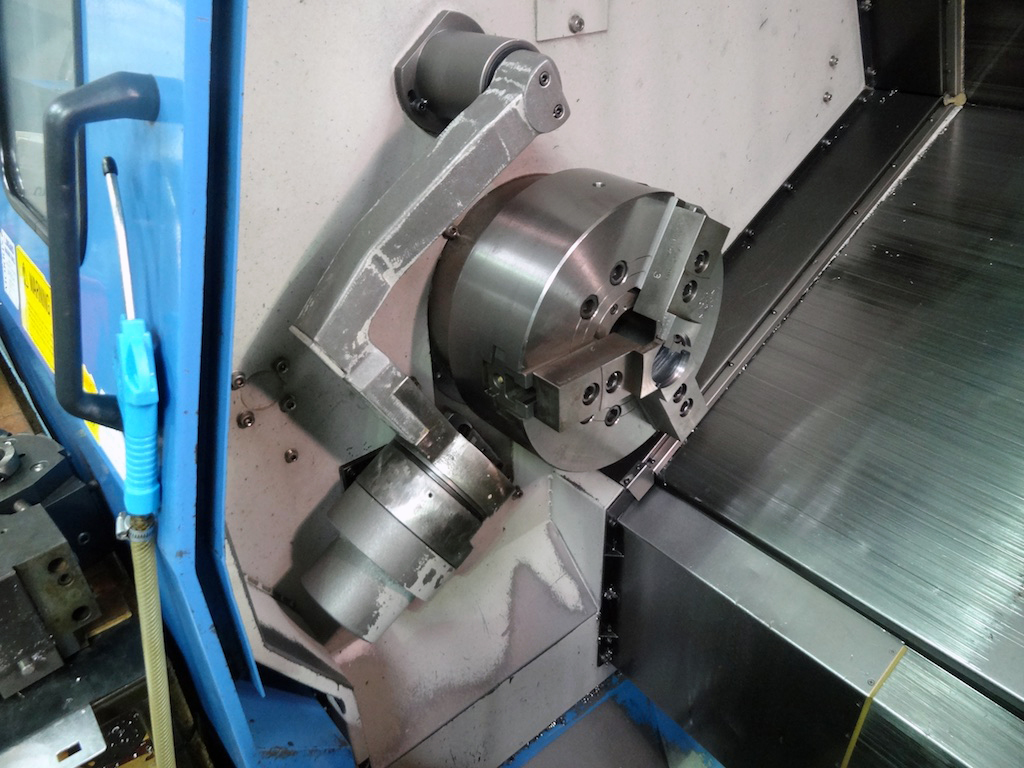

Kitagawa 12” 3 Jaw chuck
Max Rpm: 3000
Bore 2.5”
Max swing: 510mm
Swing on the carriage: 400mm
Max Cutting Dia: 310mm
Max cutting length (shaft): 1010mm
Standard cutting dia: 240mm
Distance between section of main spindle and section of turret: 174-1016mm
Max bar work capacity: 70mm
Centre height (from ground): 1050mm
Max support weight: 1000kg
Main spindle nose: ASA A2-8
Main spindle taper: 1/16
Penetration dia of main spindle: 80mm
Speed range of main spindle: 30-3000rpm

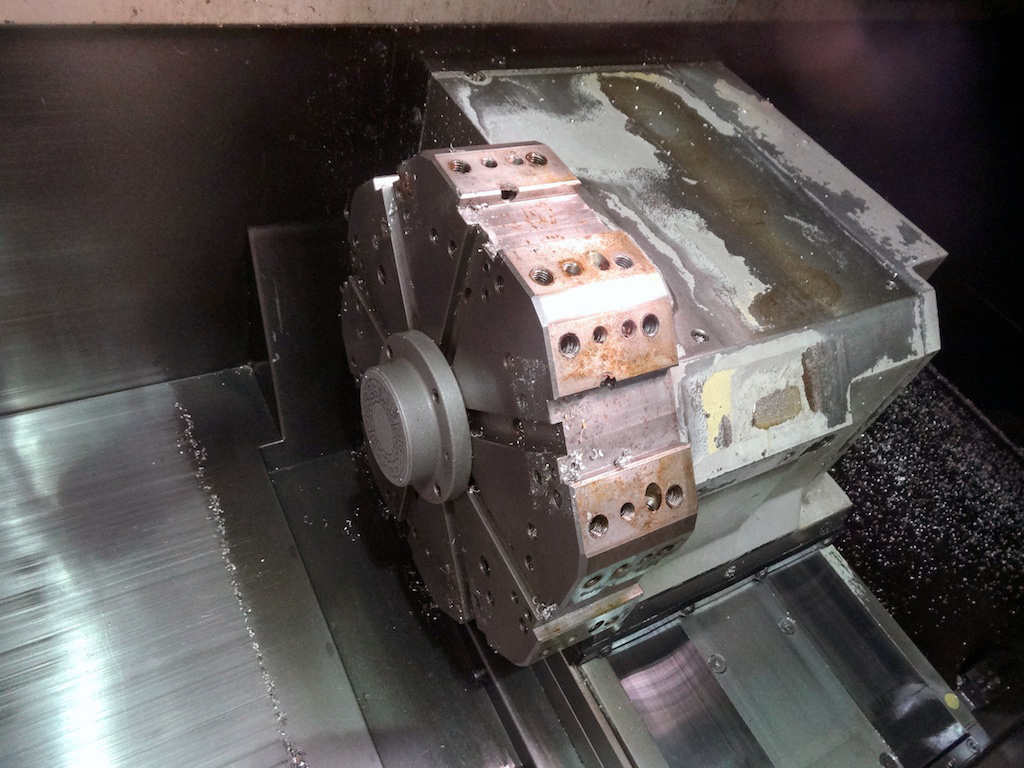

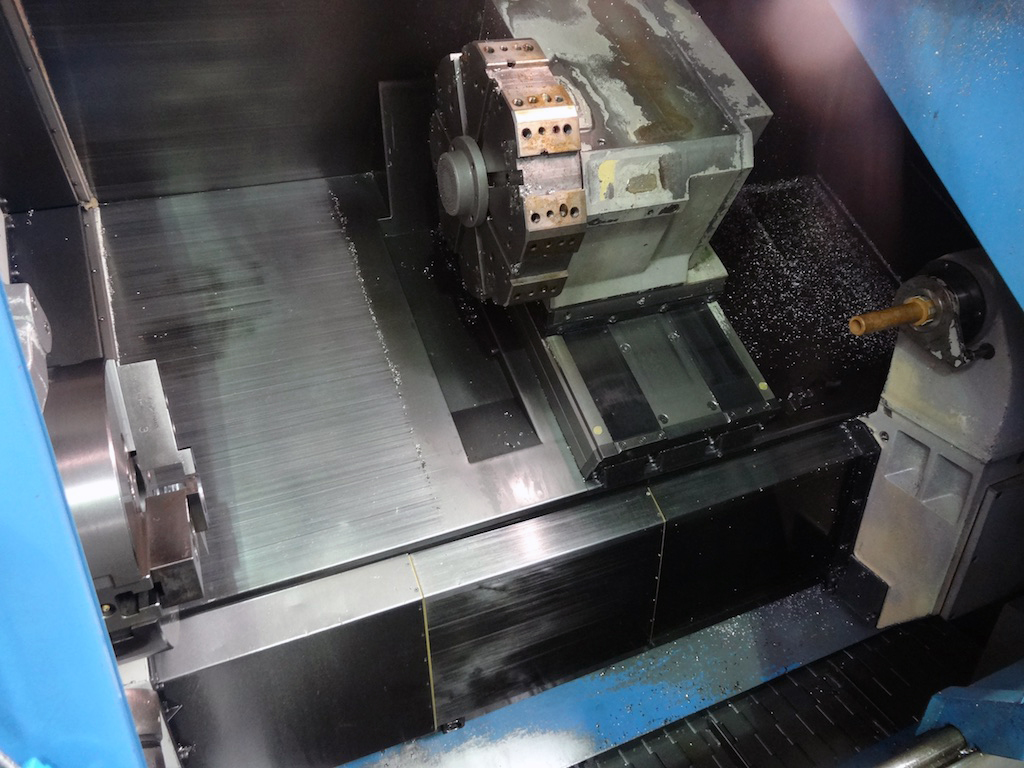

Type of turret: 8 angle 16 drum turret
Number of tools: 16
Tool size (outer dia): 25 x 150mm
Tool size (inner dia): max 50mm
Index coupling dia: 252mm
Travel:
X axis: 200mm
Z axis: 1020mm
Rapid traveling speed of X: 33m/min
Rapid Traveling speed of Z: 33m/min
Bed shape: Flat
Bed width: 405mm

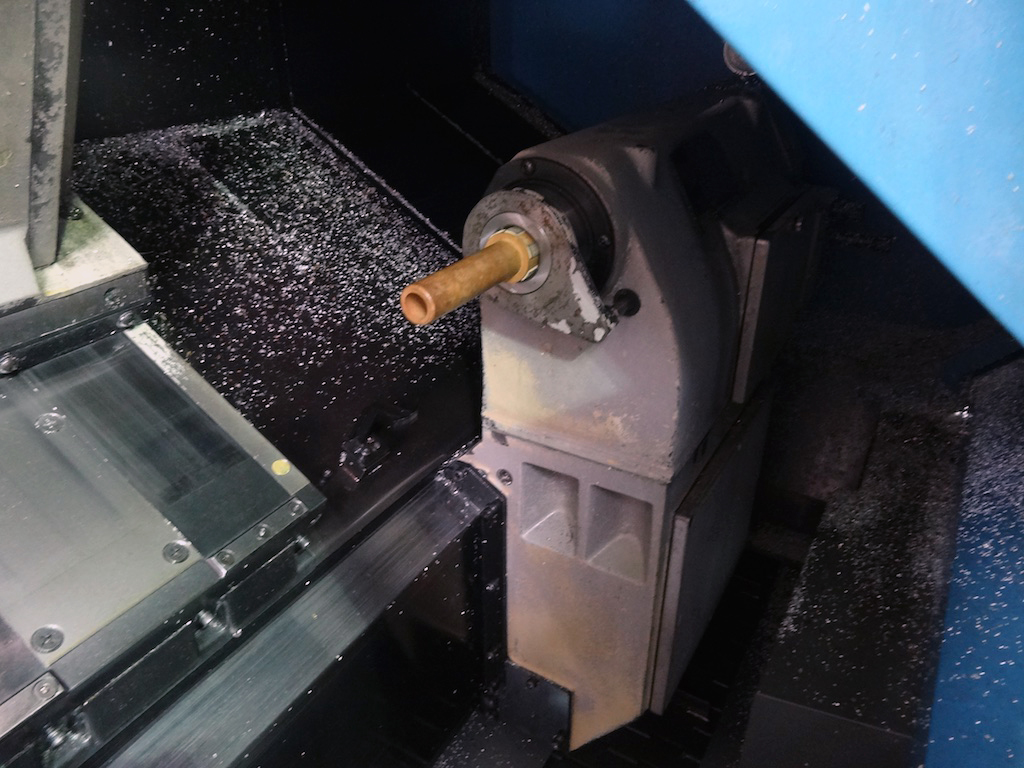

Fully automatic tailstock
Distance of traveling sleeve: 130mm
Tailstock quill dia: 100mm
Taper (sleeve): MT No5
Maximum thrust: 10kN

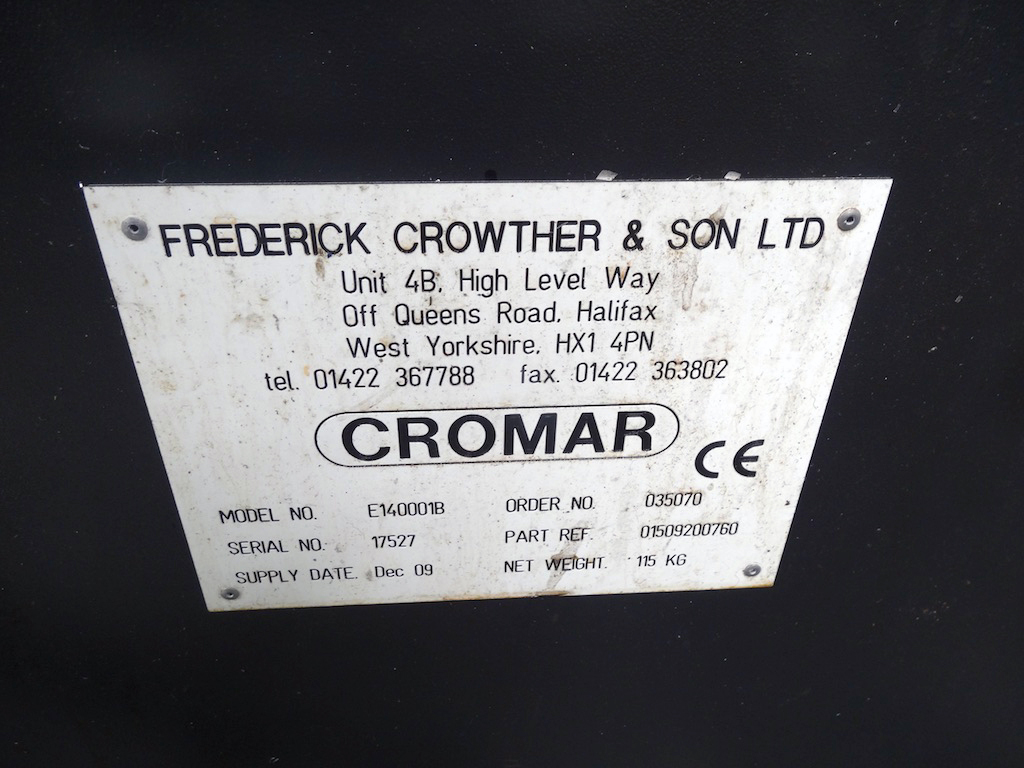

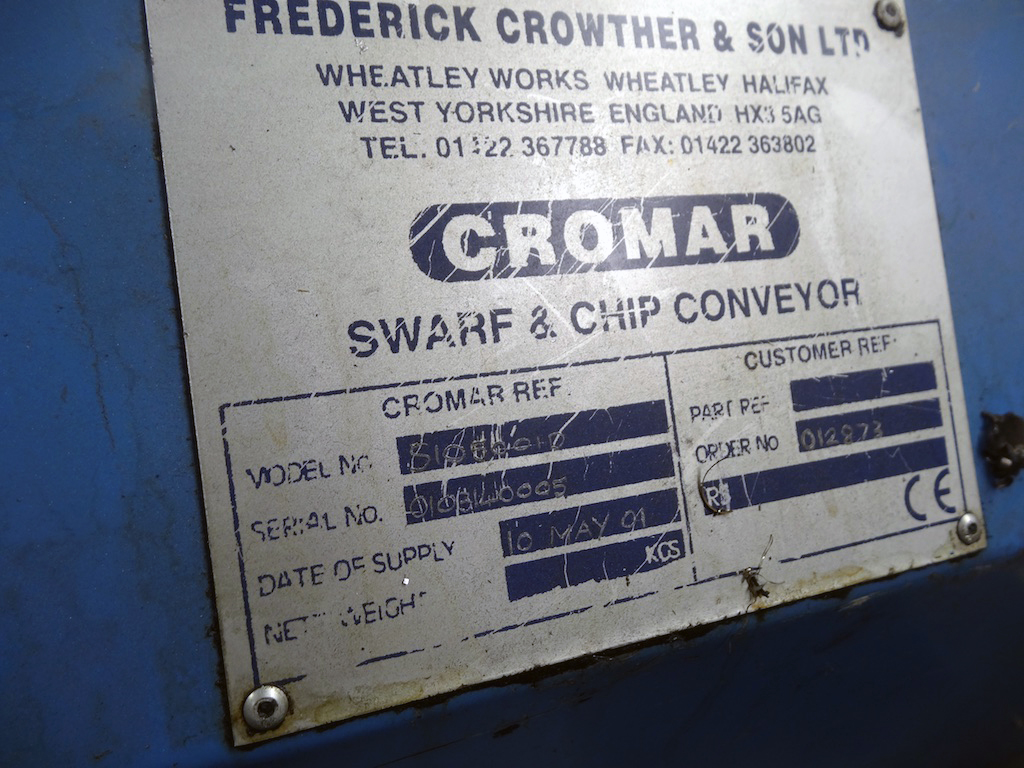

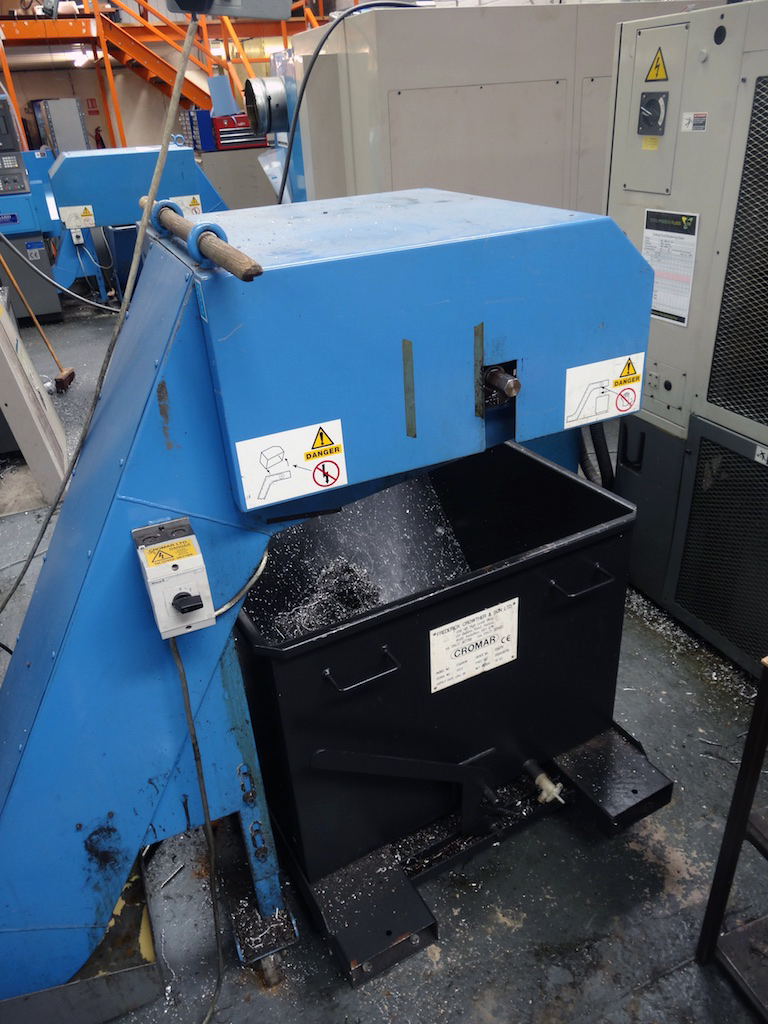

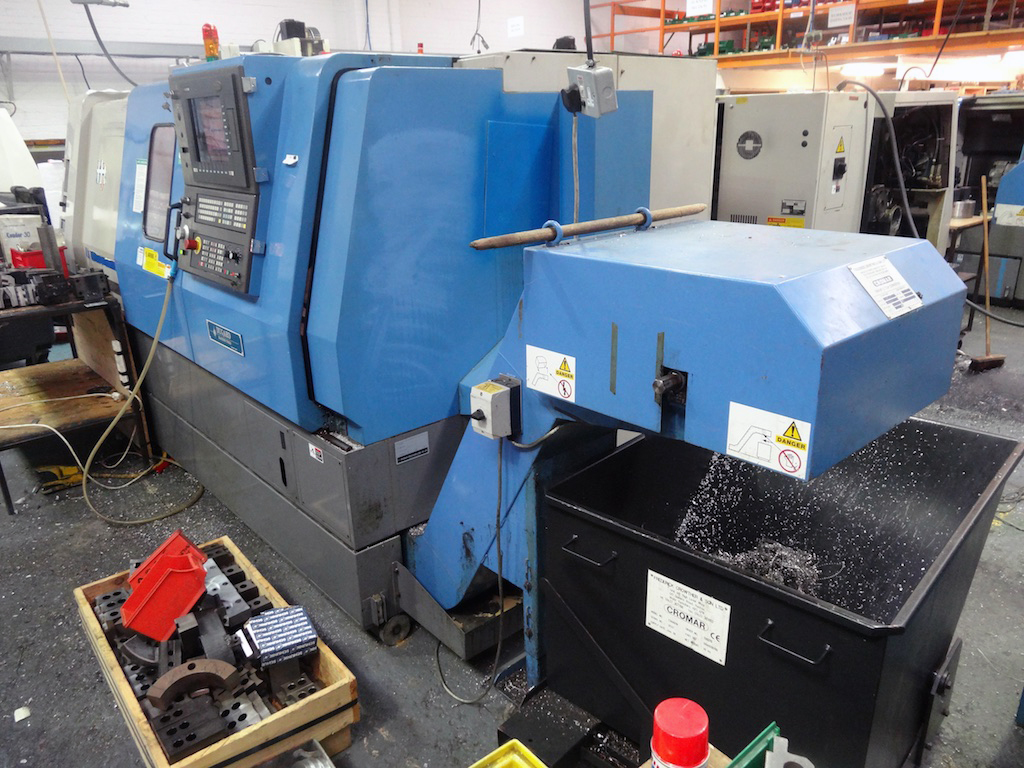

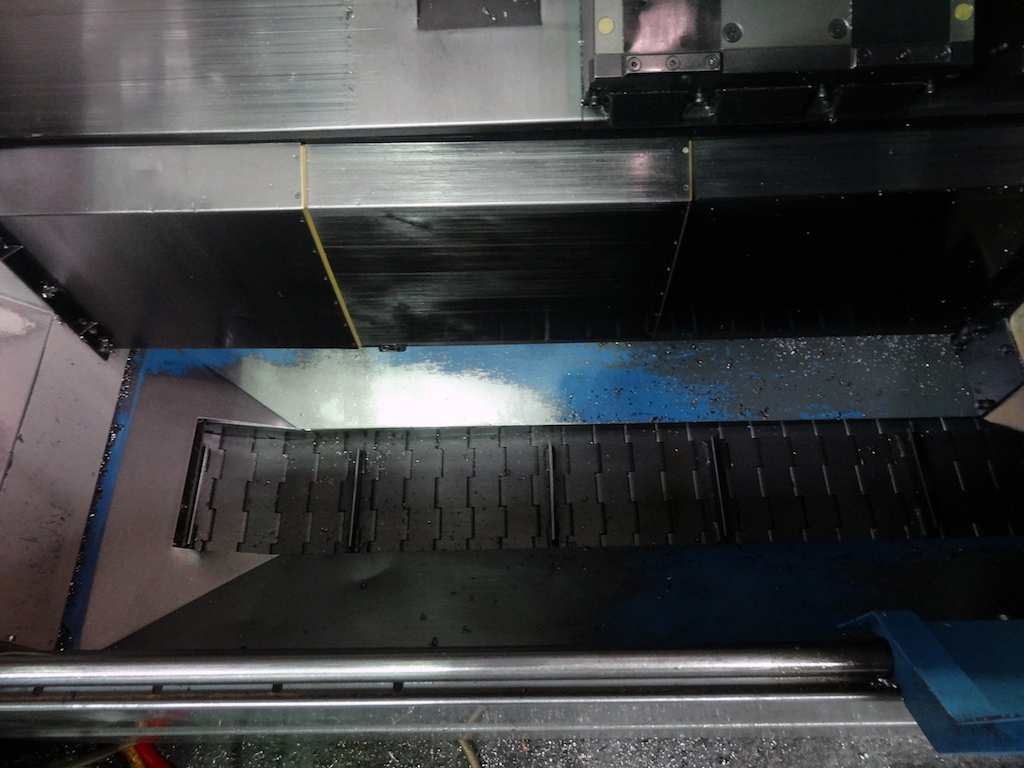

Swarf Conveyor

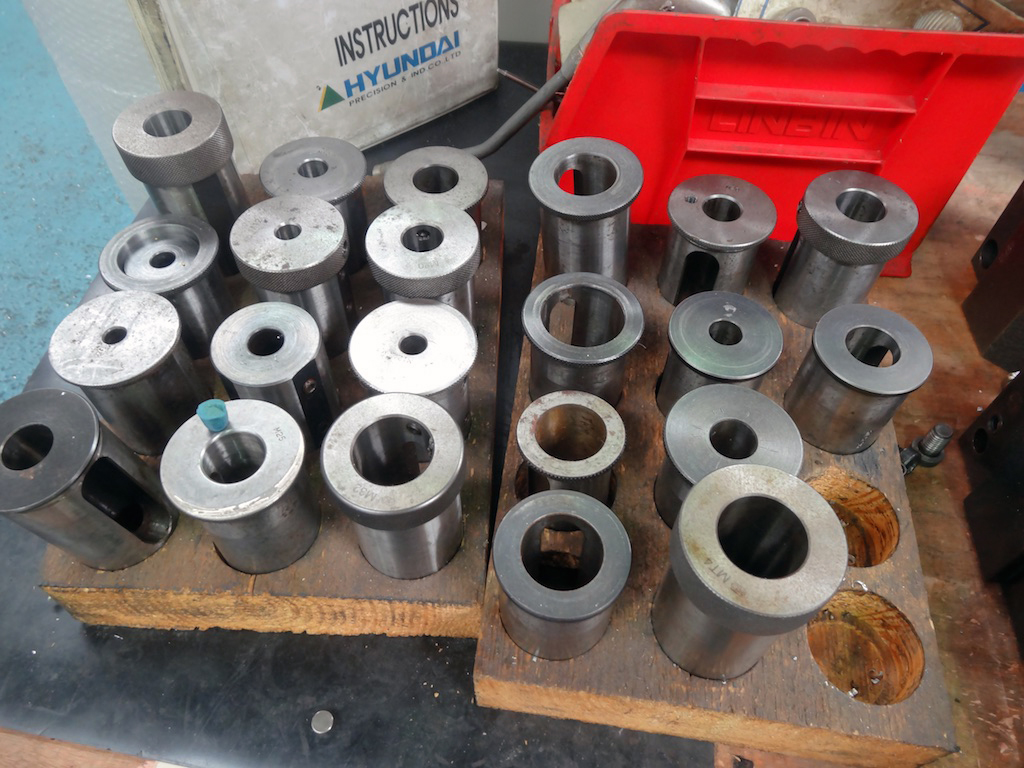

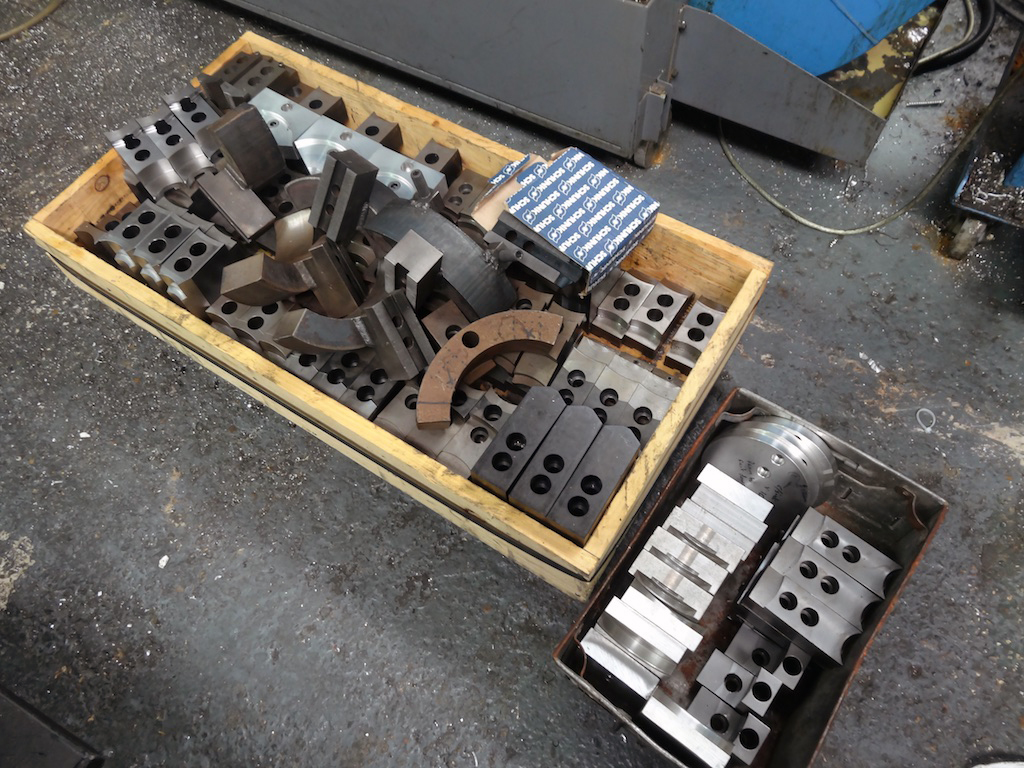

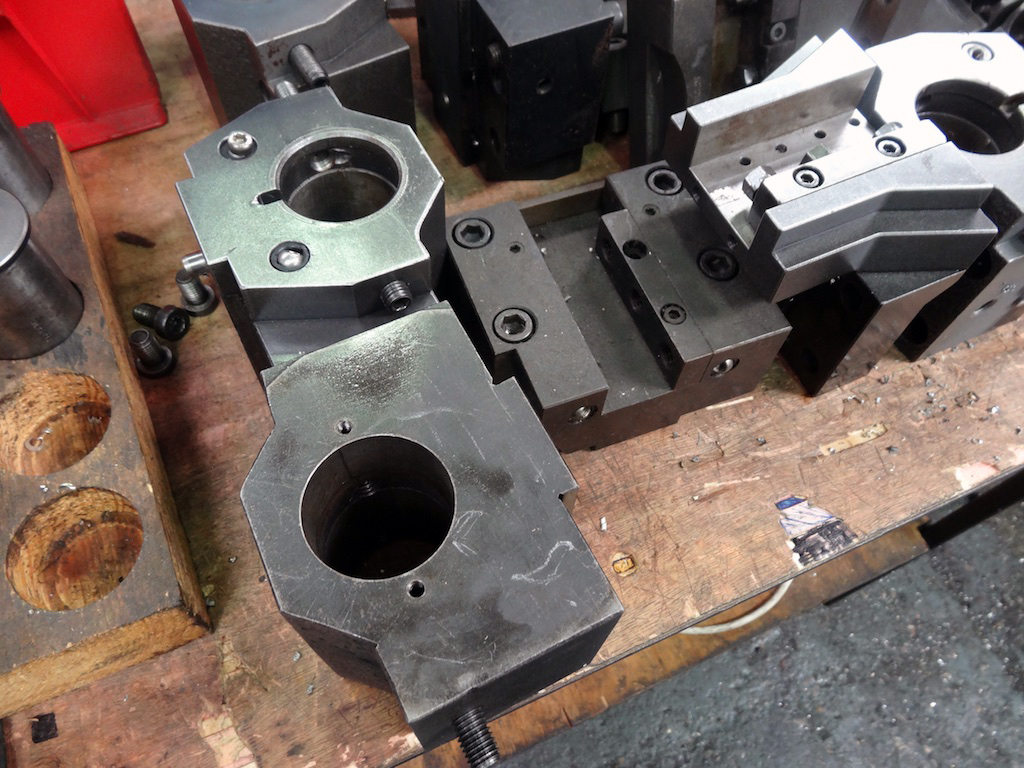

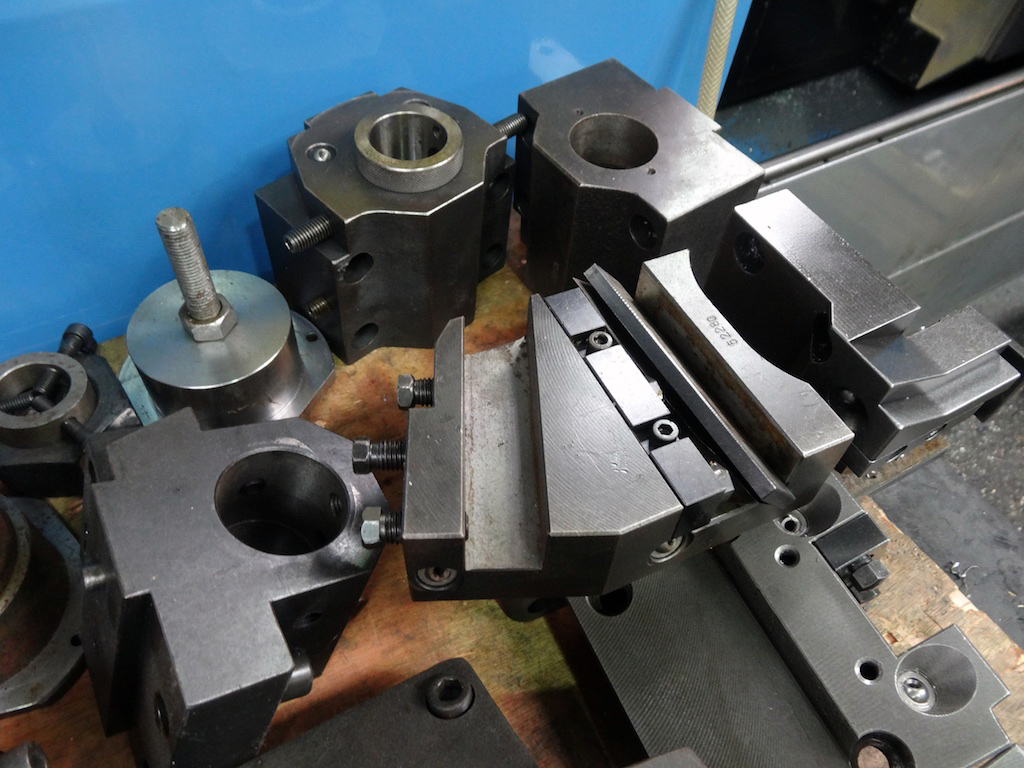

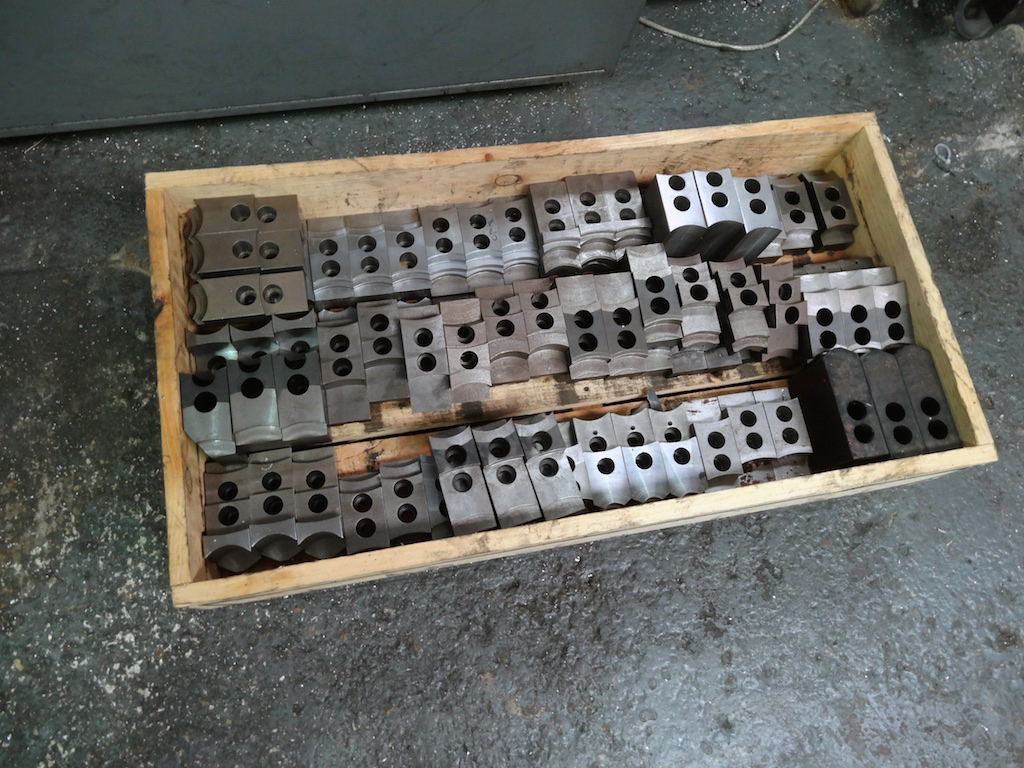

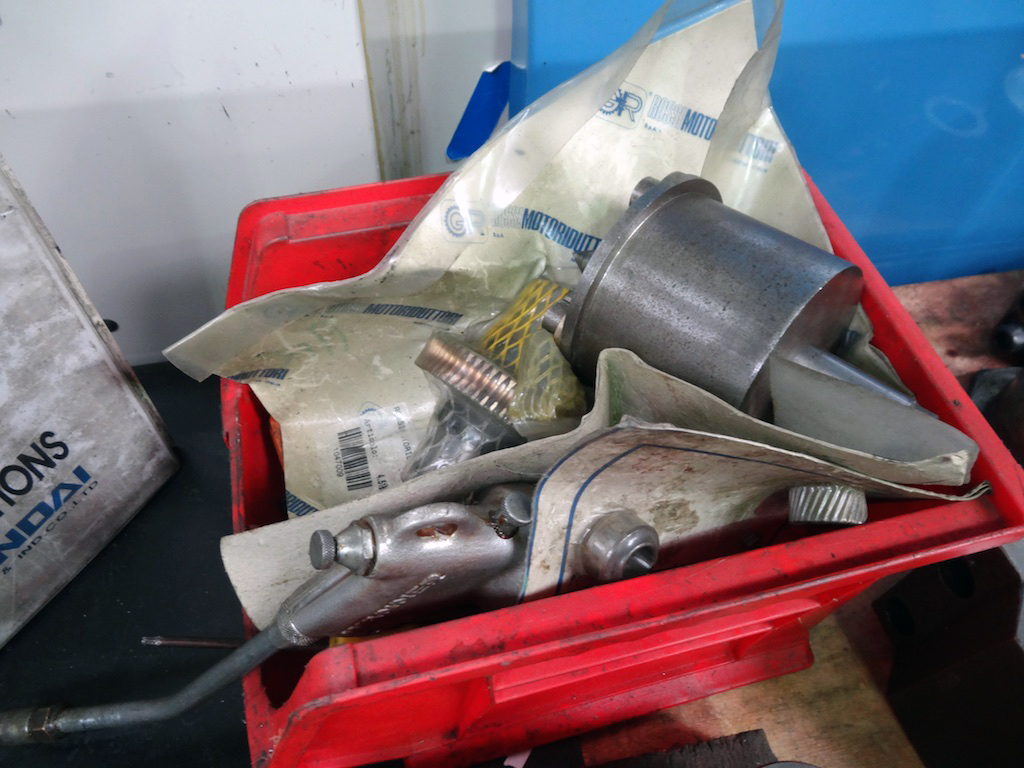

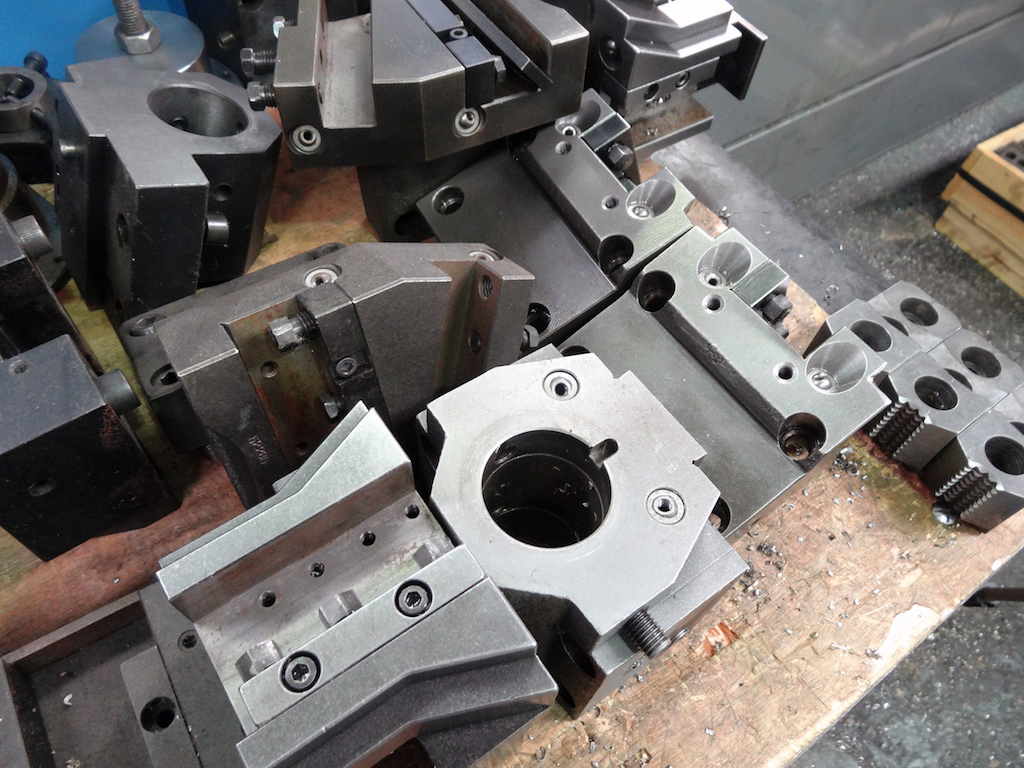

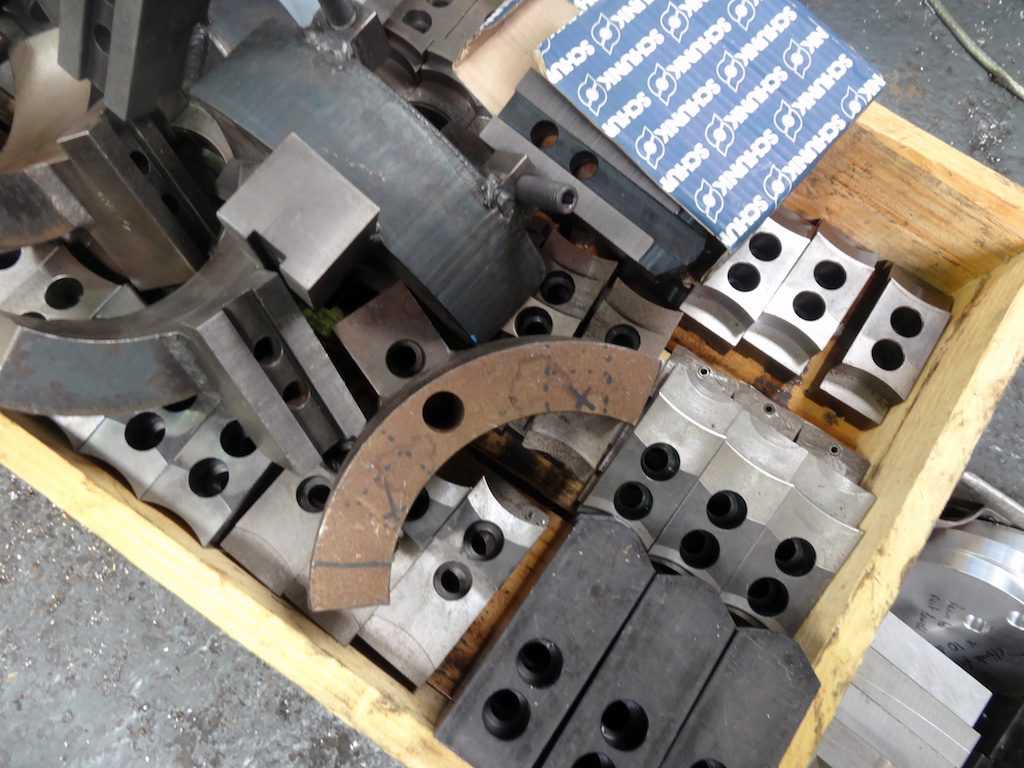

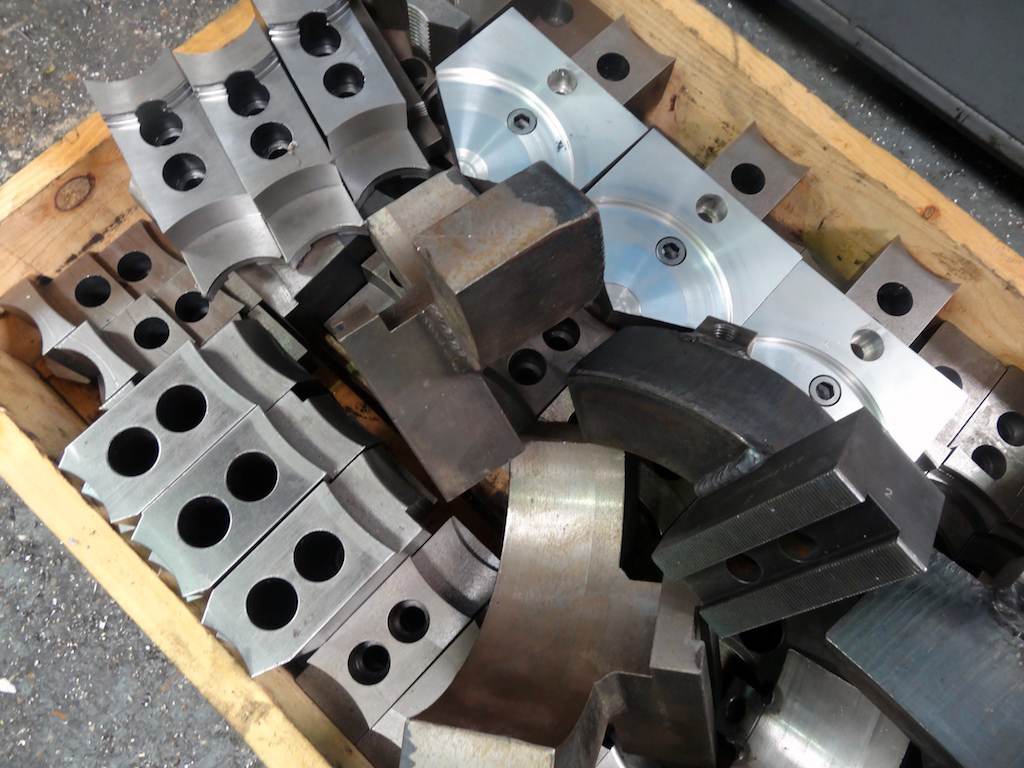

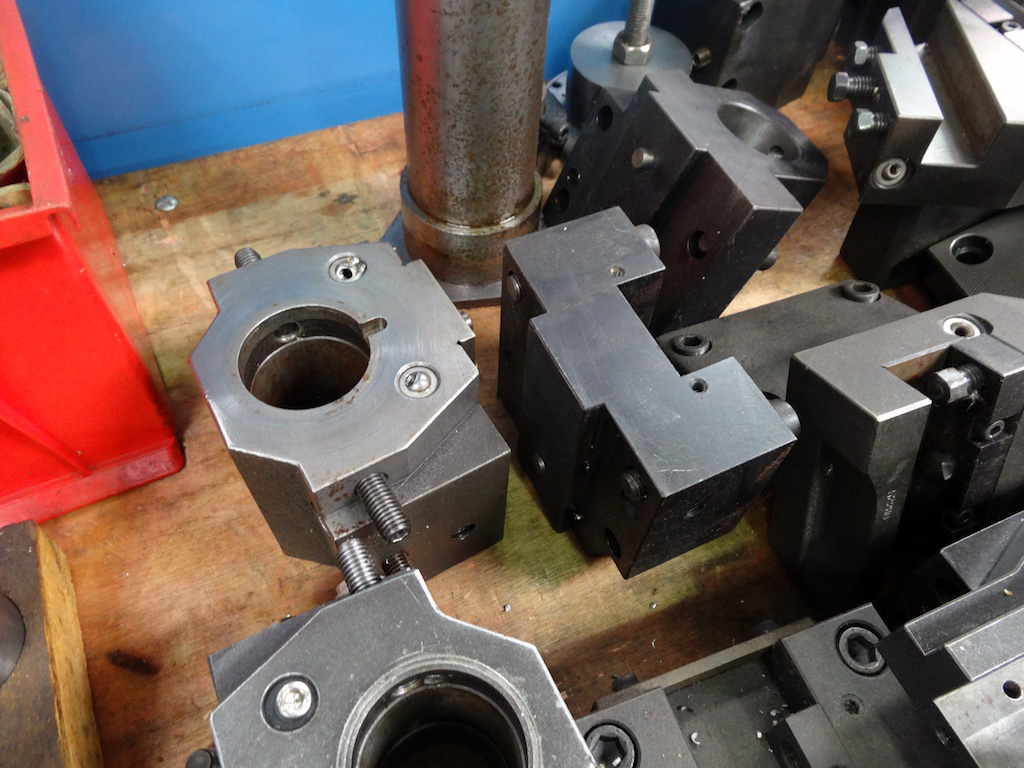

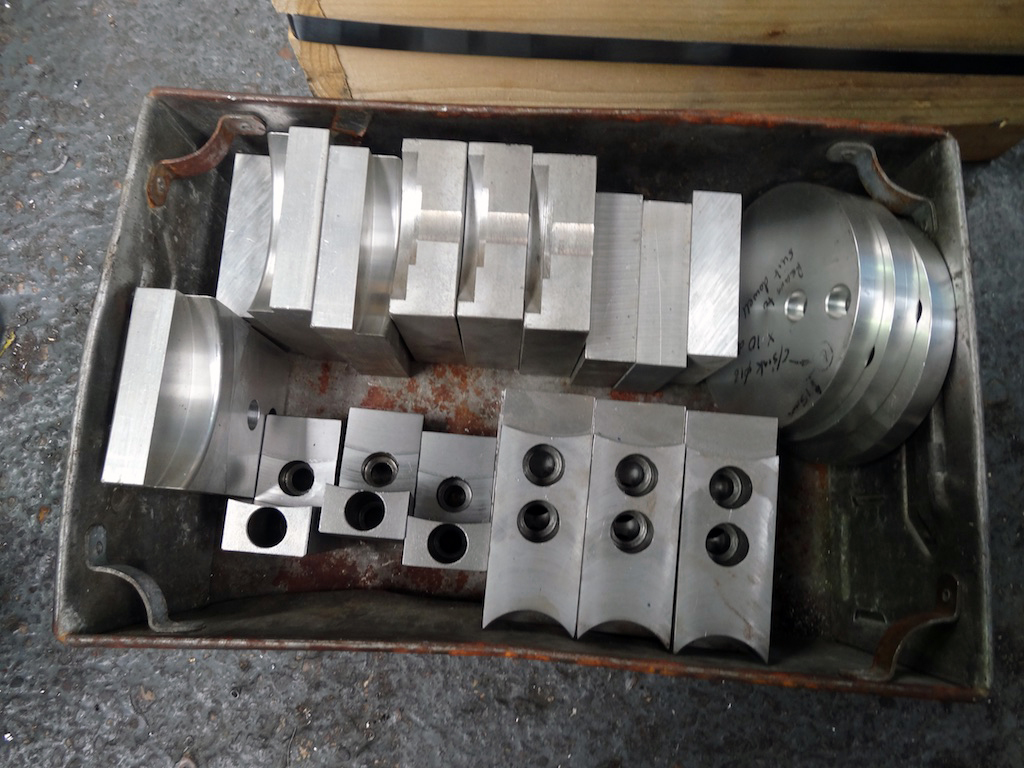

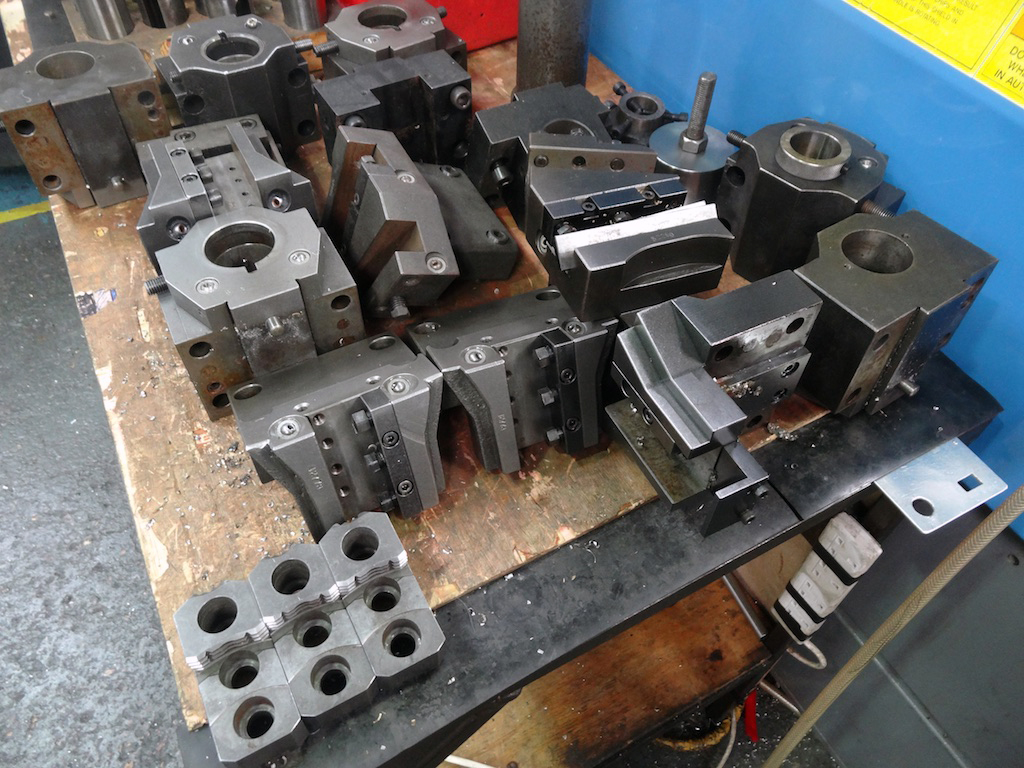

Tooling and tool holders as per photos

Location: Poole

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
