PLEASE NOTE: AVAILABLE FOR COLLECTION IN APRIL 2020
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

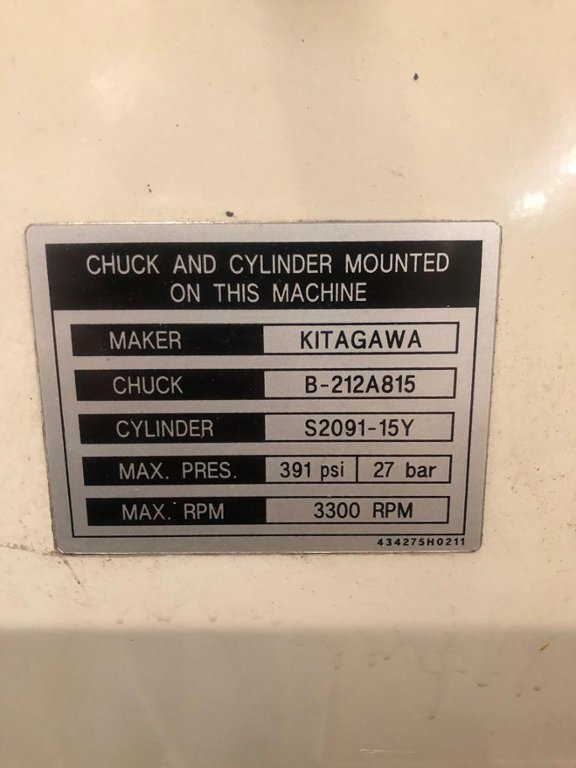

Chuck Size 12"
Max Diameter Bar Capacity 2.75"
Max Swing Over Bed / Carriage 22.8" / 15.7"
Turning Diameter (Max / Std) 13.1" / 11.4"
Distance Between Centers 39.4"
Max Machining Length 38.9"
Spindle Speed 30 - 3000 RPM
Spindle Bore 3.15"
Spindle Nose A2-8
Spindle Motor 30 HP
Tools 8 D / 16 P
Rapid Traverse Rates (X / Z) 787 / 945 IPM
X-Axis Travel 7.87"
Z-Axis Travel 40.15"
Turret Index (Single Step / Full) 0.52 / 2.12 Seconds
Tailstock Taper MT#4
