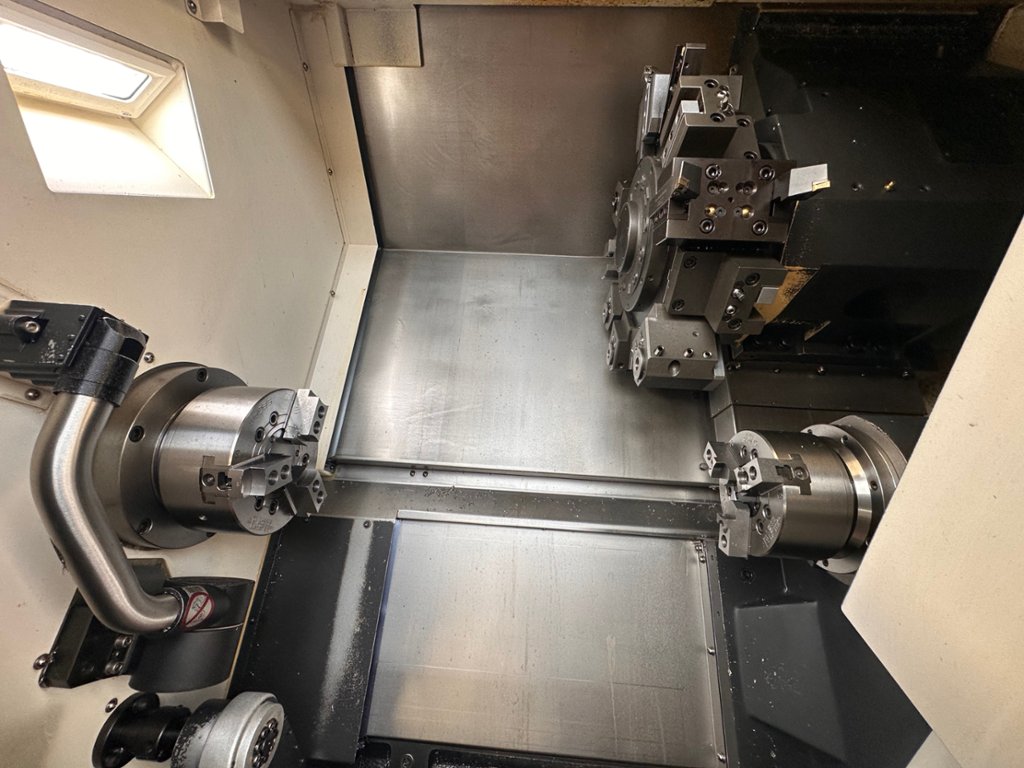

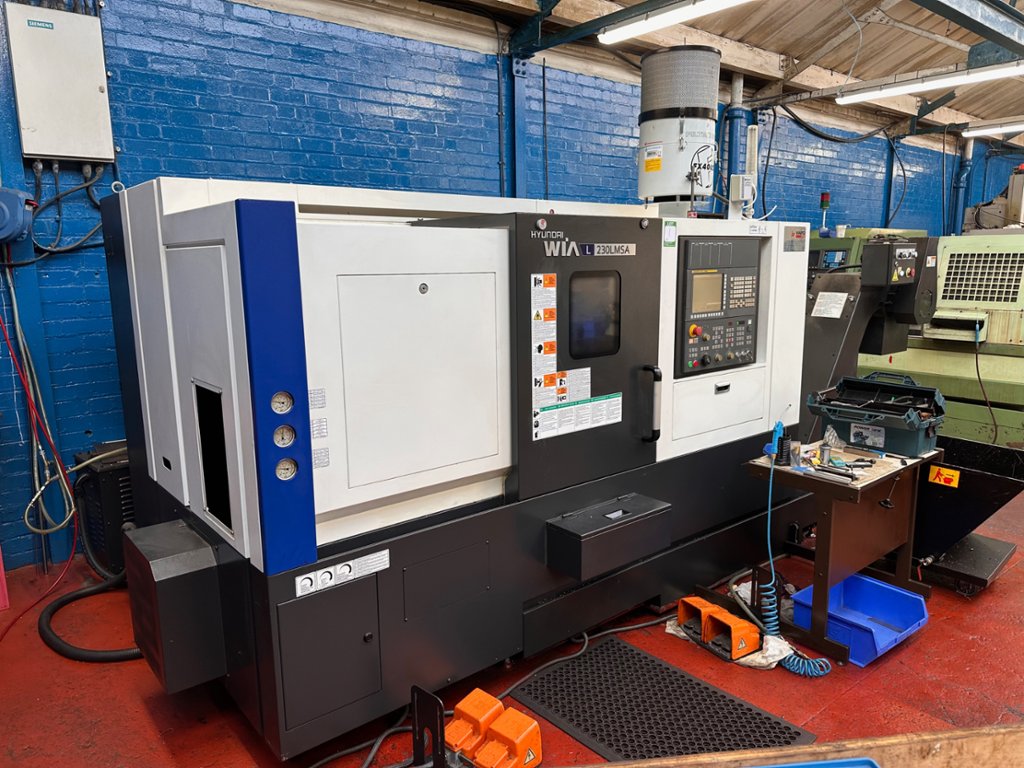

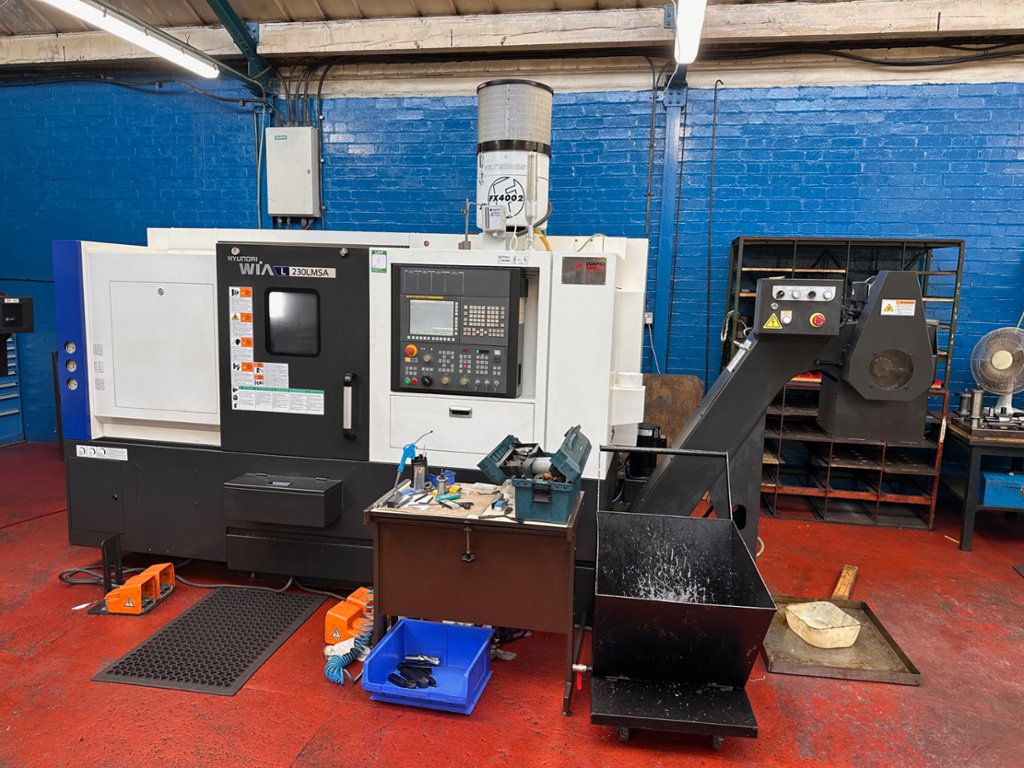

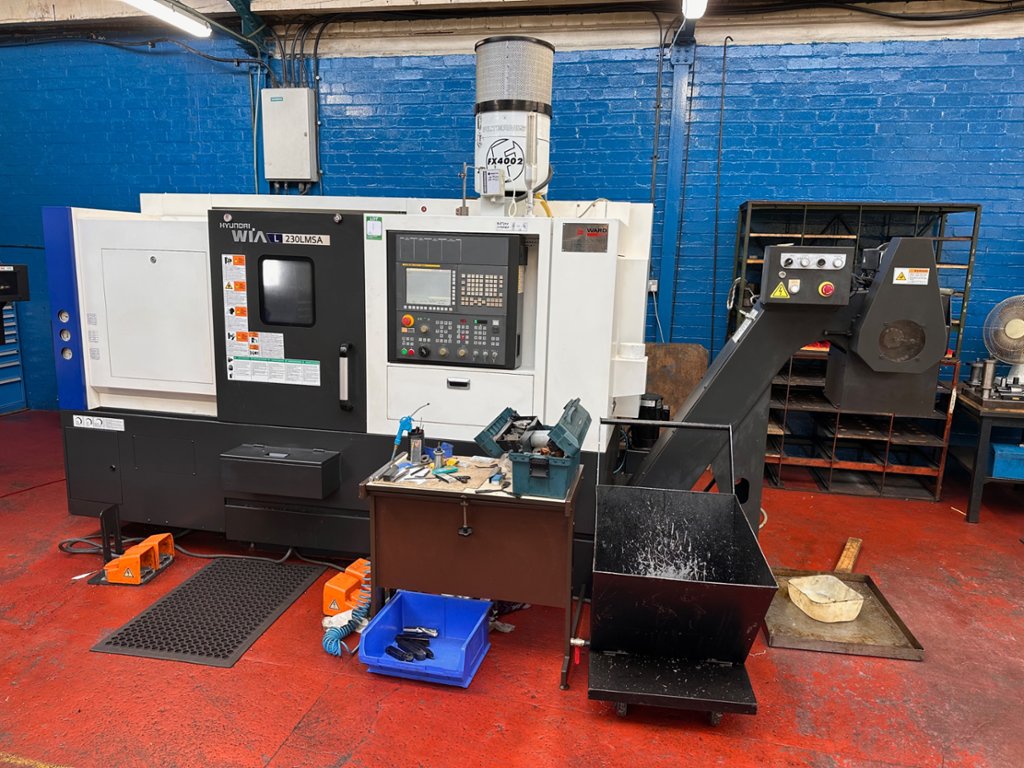

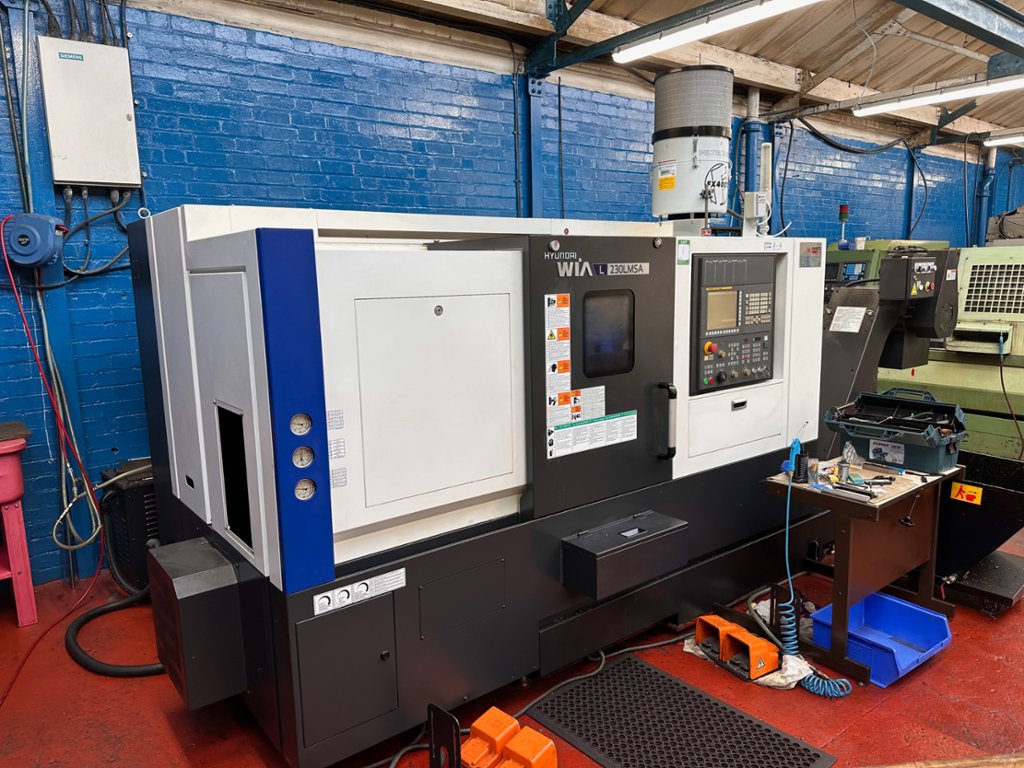

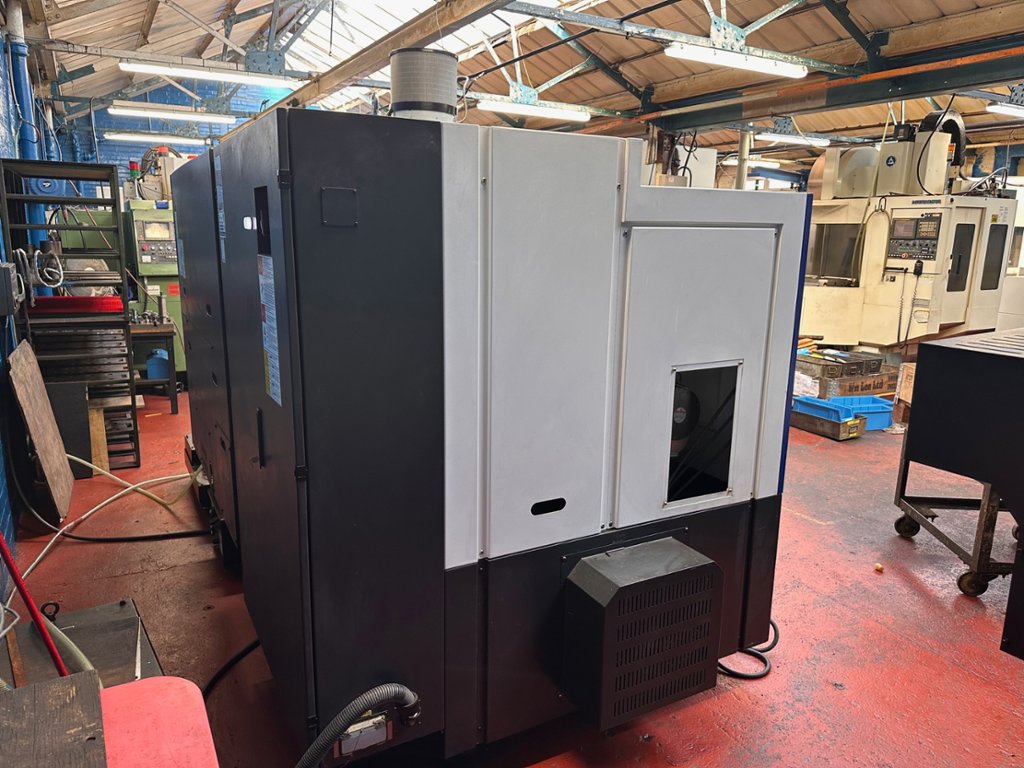

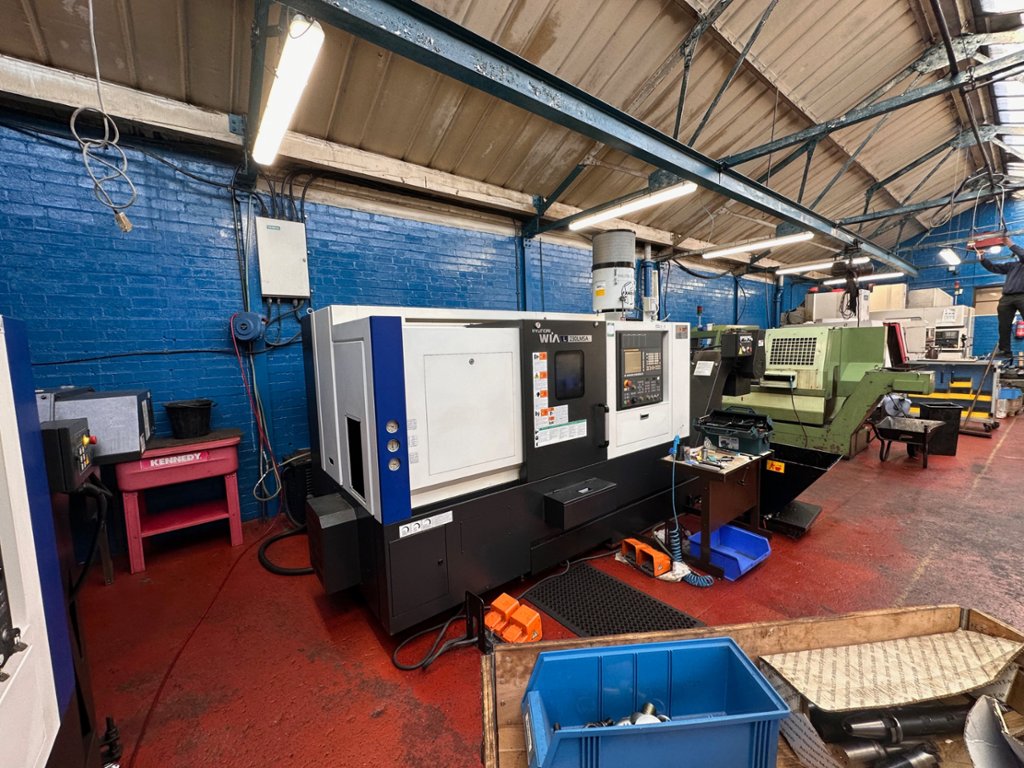

Hyundai L230LMSA CNC Turning Centre (2017)

Lot 1 - Hyundai L230LMSA CNC Turning Centre (2017)

Description:

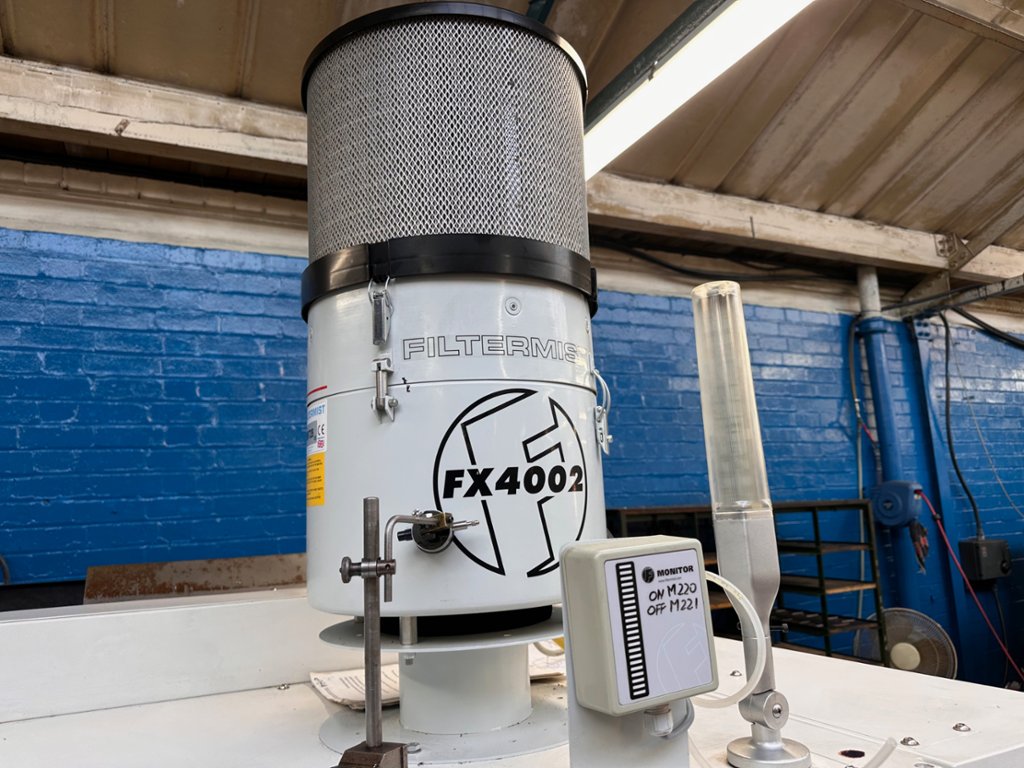

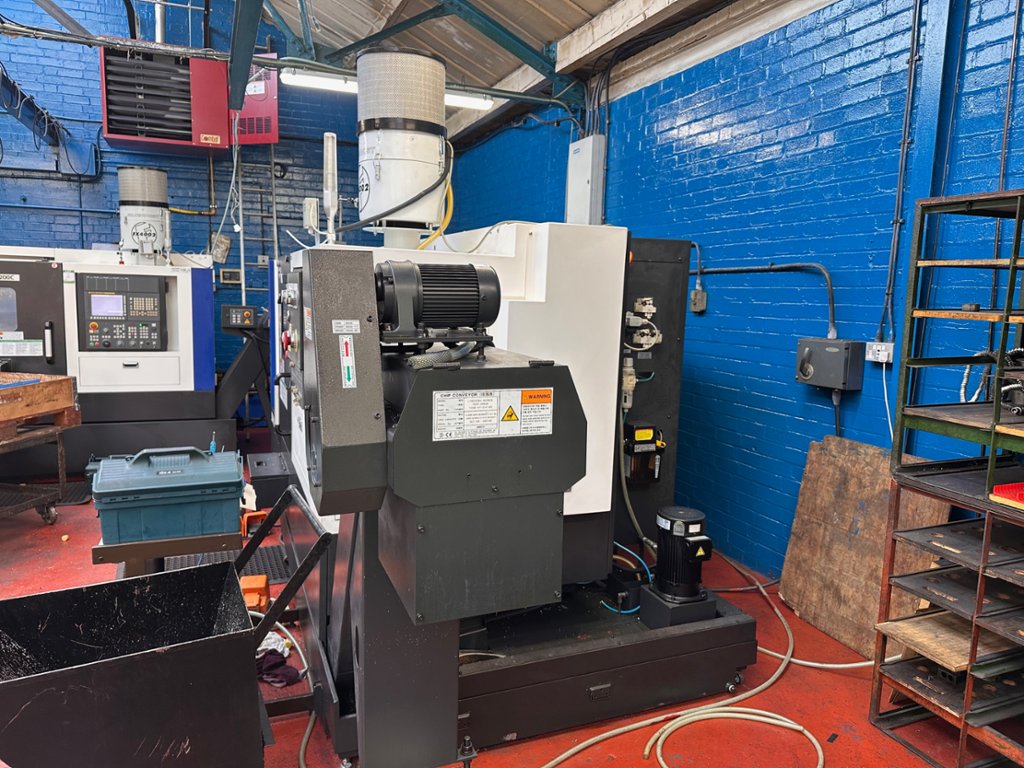

Comes with a selection of tooling and a filtermist.

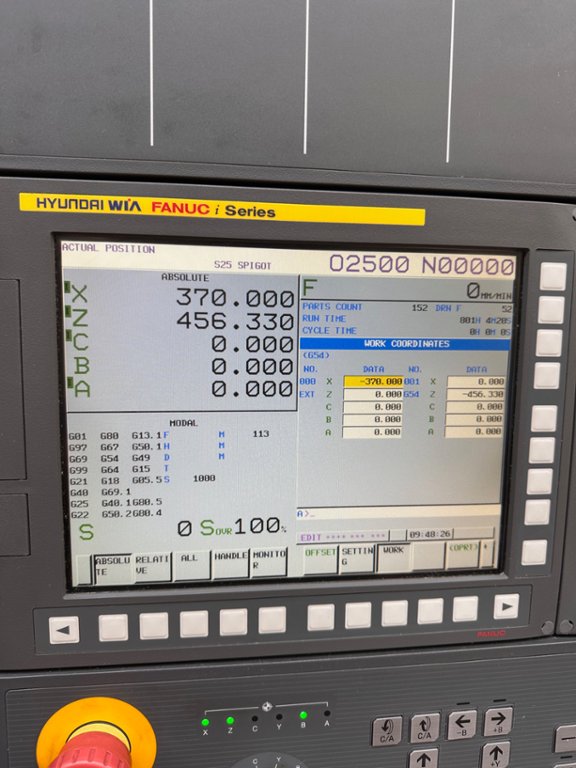

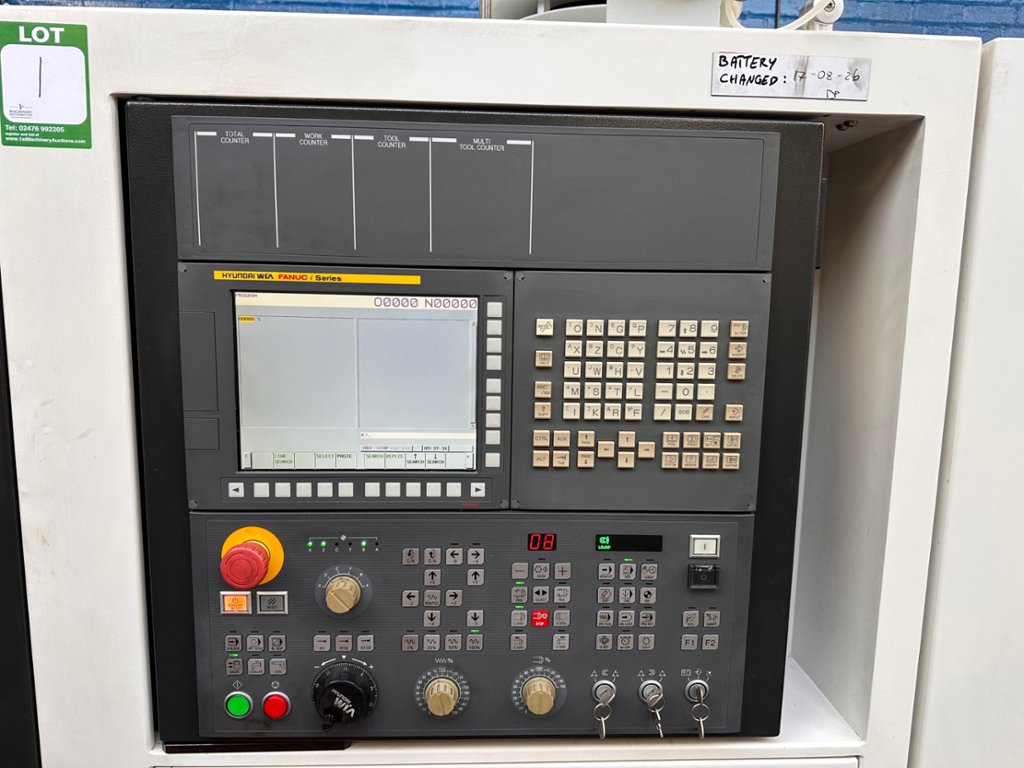

Controller: HYUNDAI WIA FANUC i Series

Capacity

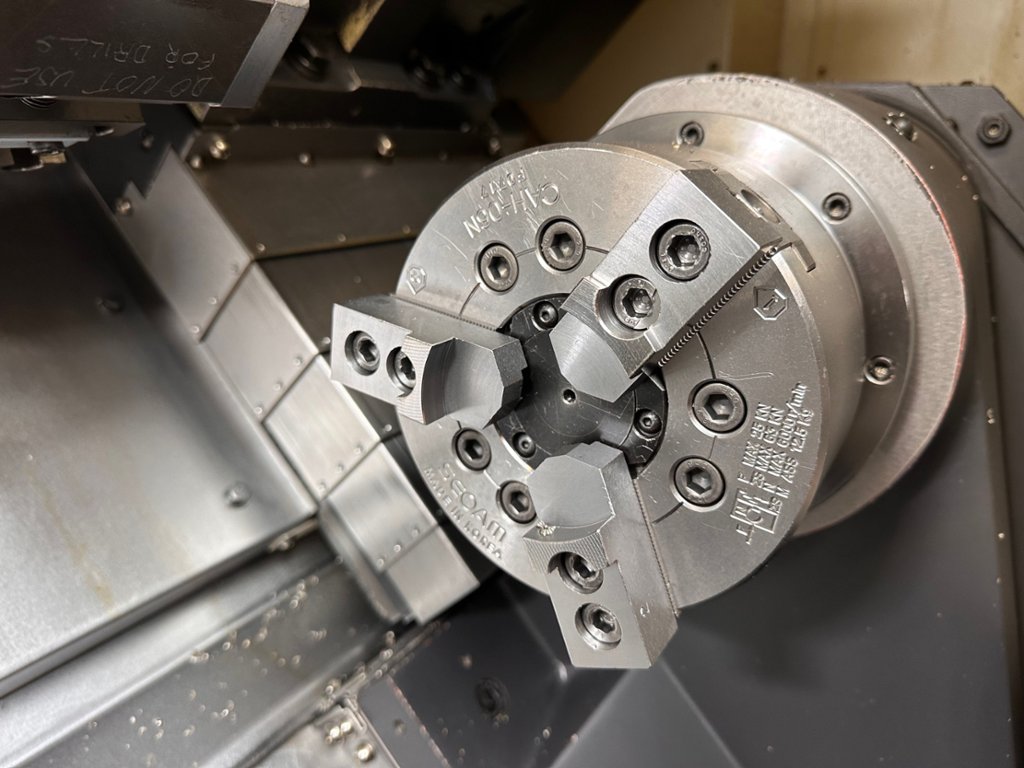

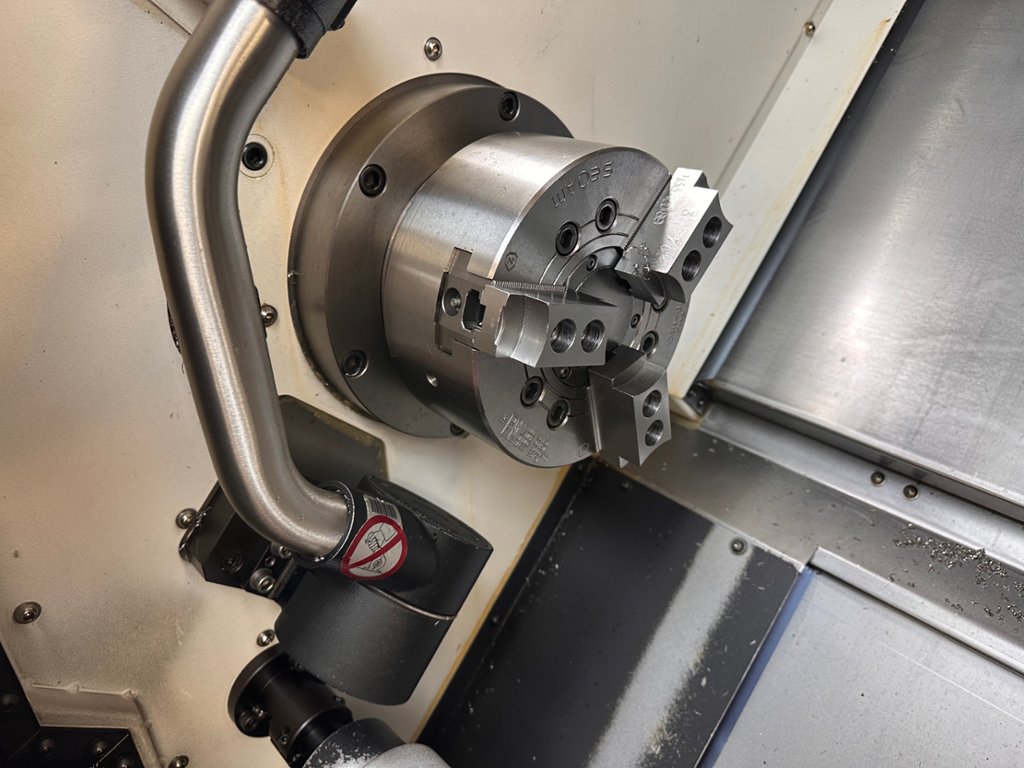

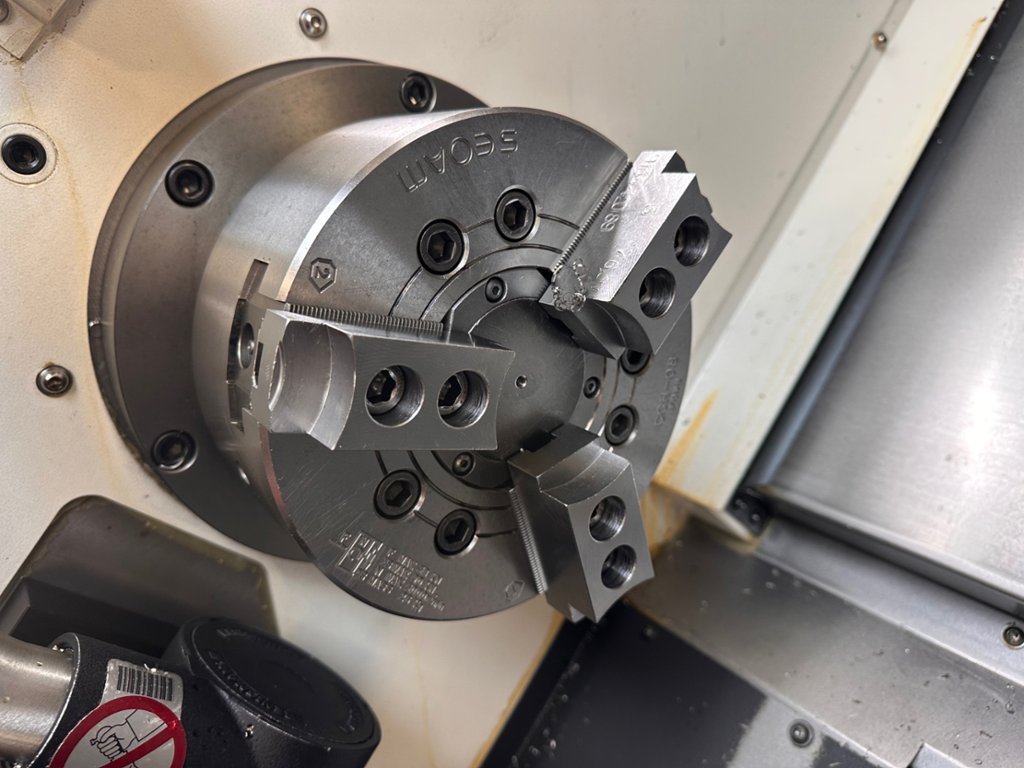

Swing Over the Bed: 600 mm, Swing Over the Carriage: 355 mm, Max. Turning Diameter: ∅310 mm, Max. Turning Length: 521 mm, Bar Capacity (Main / Sub): ∅65 mm / ∅43 mm, Chuck Size (Main / Sub): ∅210 mm / ∅169 mm

Spindle & Motor

Spindle Bore (Main / Sub): ∅78 mm / ∅53 mm, Spindle Speed (Main / Sub): 4,000 r/min / 5,000 r/min, Motor Power (Main / Sub): 15/11 kW / 5.5/3.7 kW (Max/Continuous), Torque (Main / Sub): 286/210 N·m / 47.3/31.8 N·m (Max/Continuous), Spindle Type (Main / Sub): BELT / BELT, Spindle Nose (Main / Sub): A2-6 / A2-5C-axis Indexing: 0.001 °

Feed & Axis Travel

Travel (X / Z / ZB): 220 / 560 / 590 mm, Rapid Travel (X / Z / ZB): 36 / 36 / 30 m/min, Slide Type: LM GUIDE

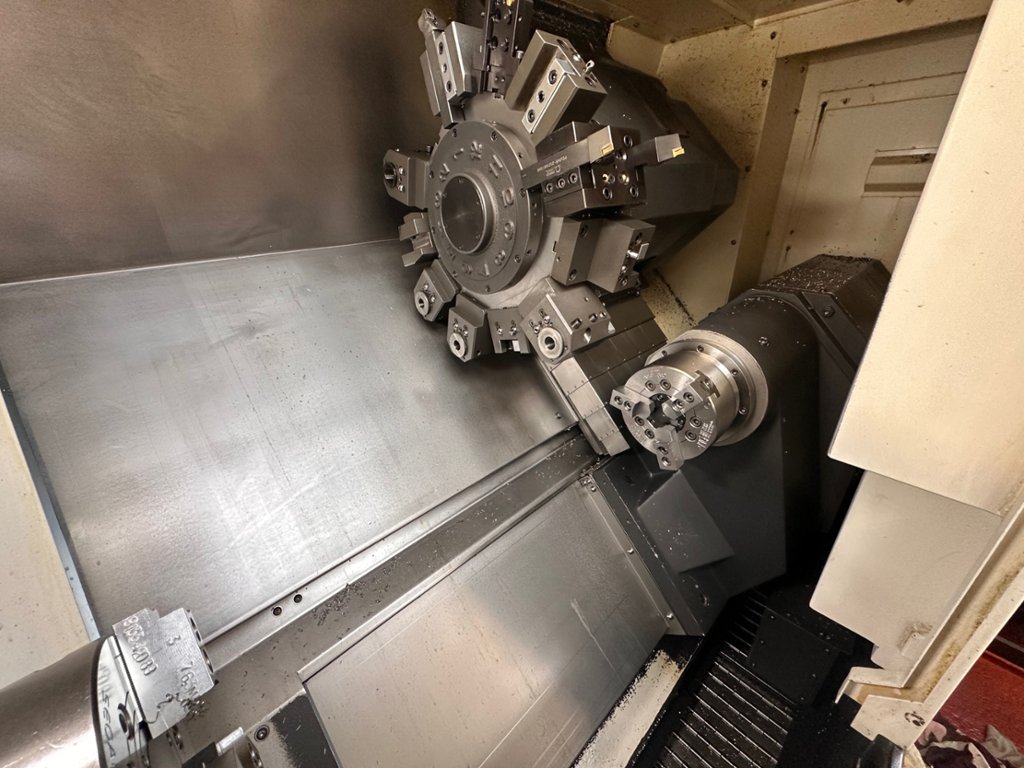

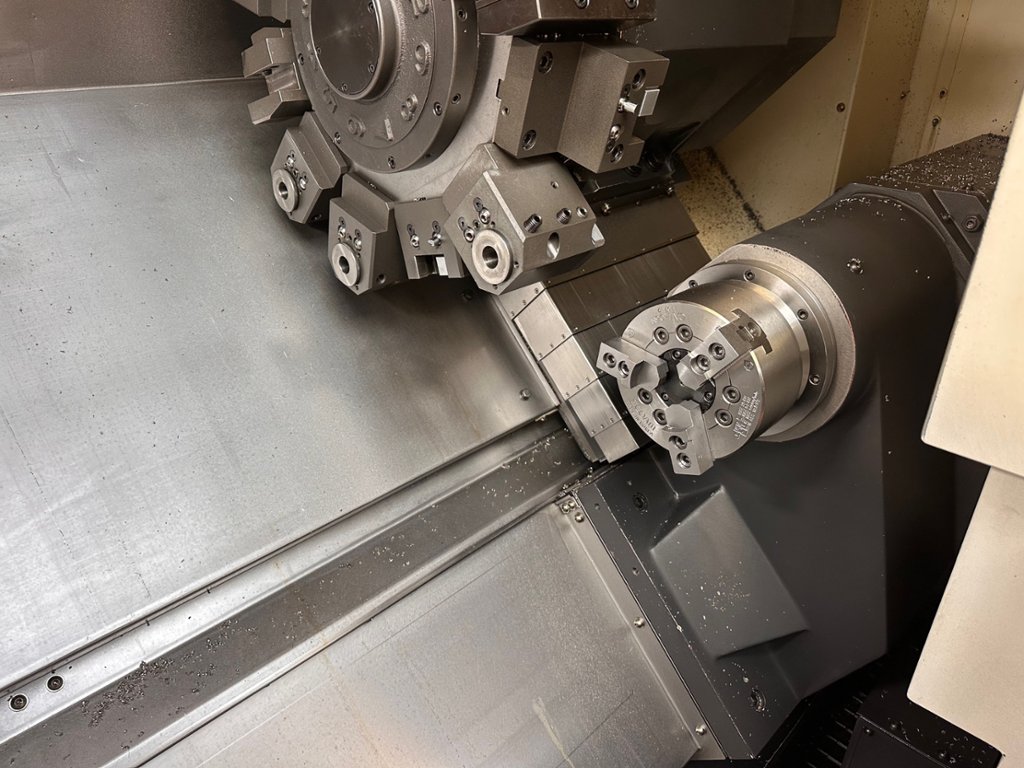

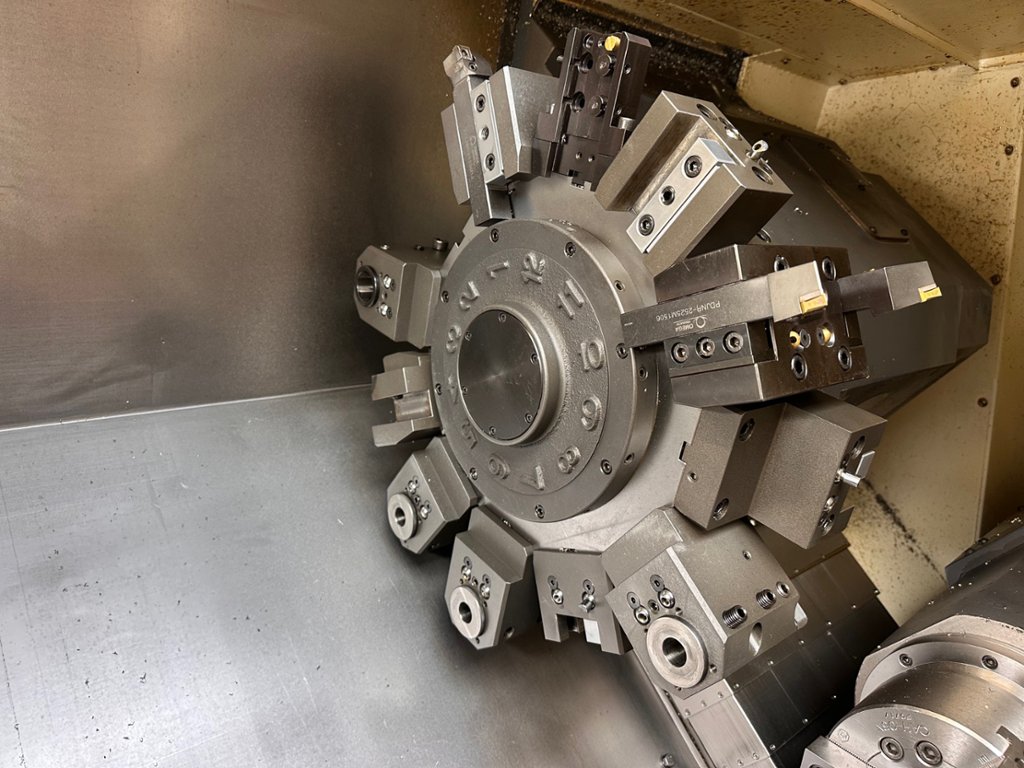

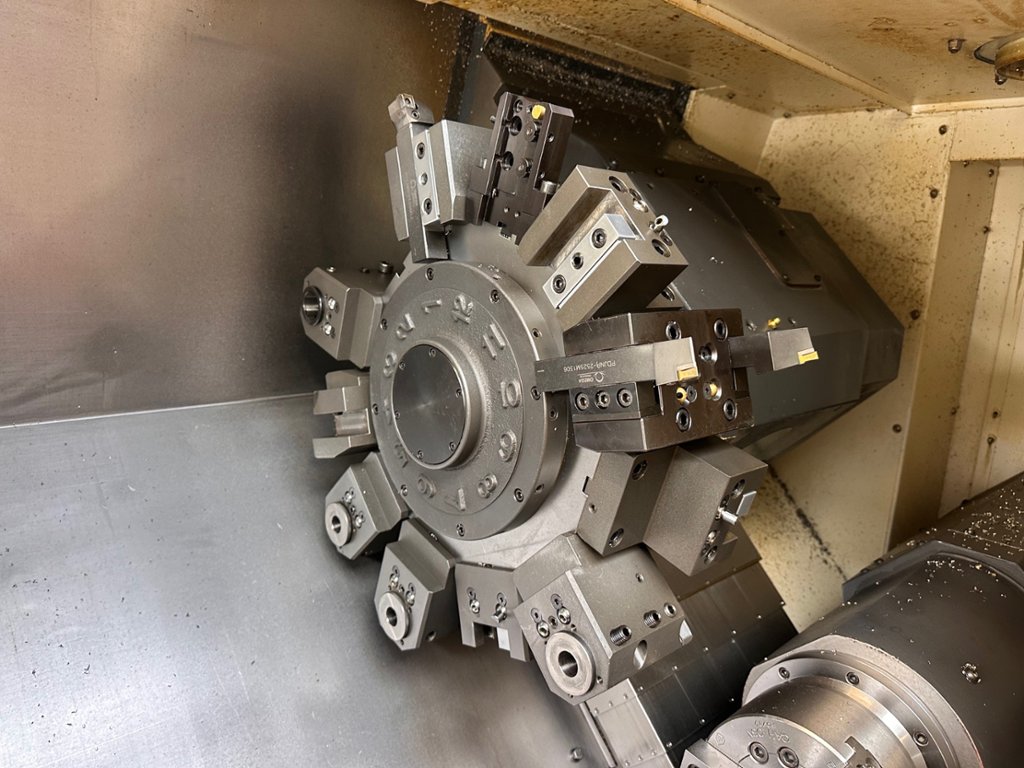

Turret

Number of Tools: 12 EA, Tool Size (OD / ID): 25×25 mm / ∅40 mm, Indexing Time: 0.2 s

Live Tool

Motor Power: 3.7 / 2.2 kW (Max/Continuous), Milling Tool Speed: 5,000 r/min, Torque: 25 / 14 N·m (Max/Continuous), Collet Size: ∅16 mm (ER25), Type: BMT55

Tail Stock

Taper: MT4

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
