Lot 1 - JOBS JOMACH 131 5 axis
Description:

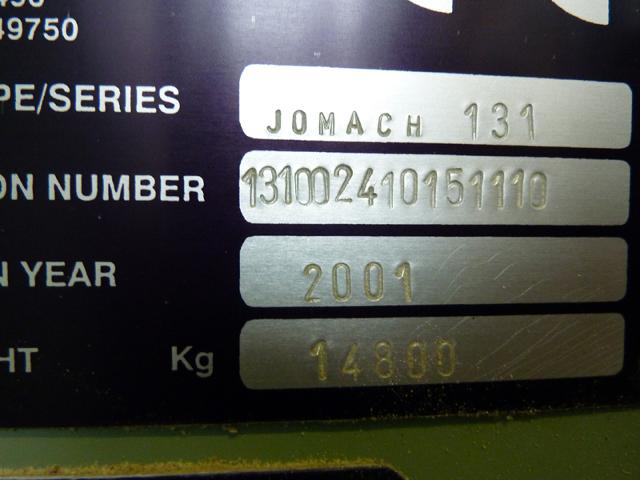

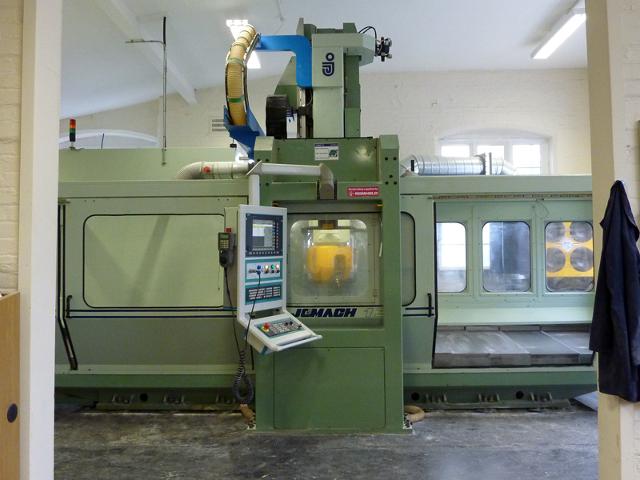

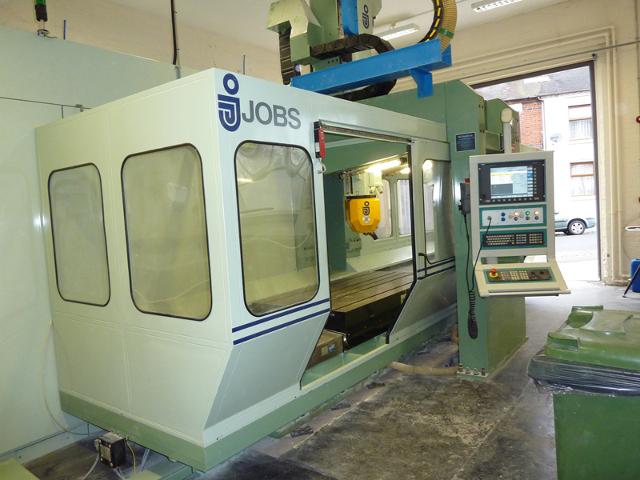

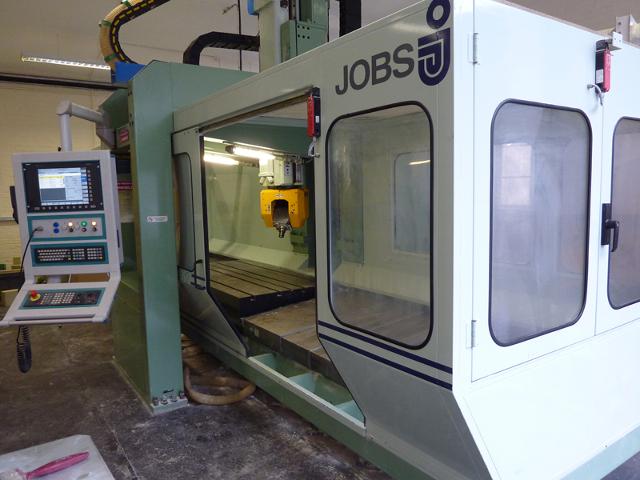

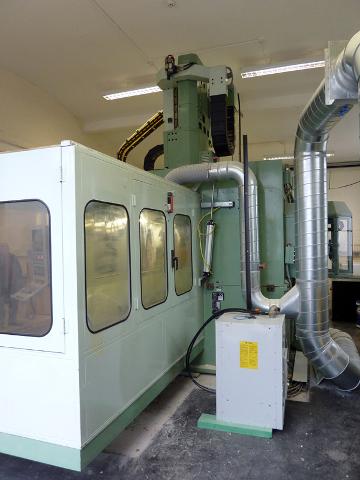

JOBS JOMACH 131 5 axis (Purchase New 2001 - installed April 2003)

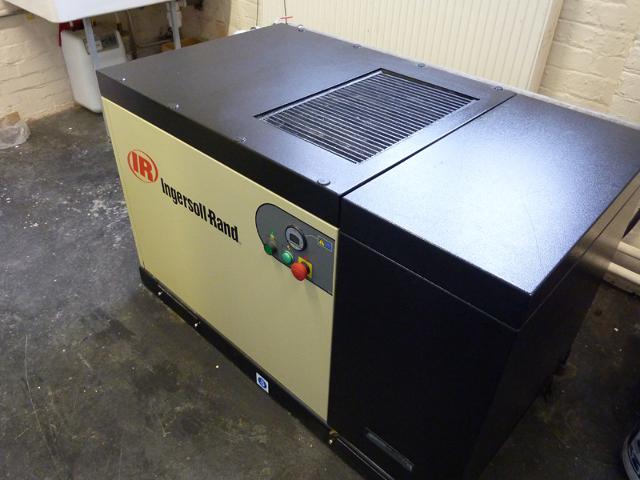

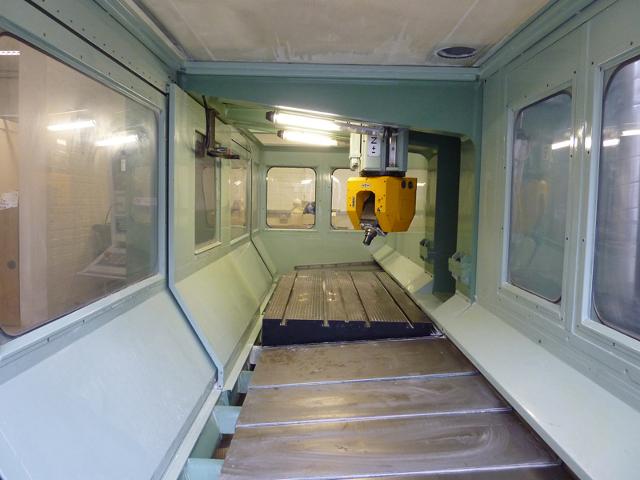

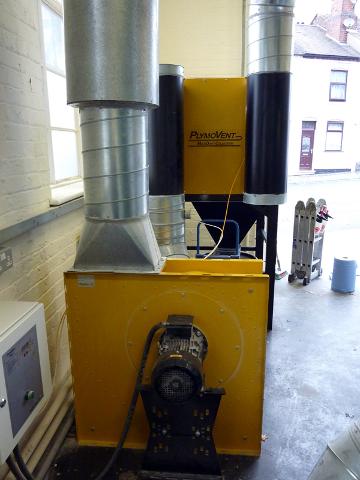

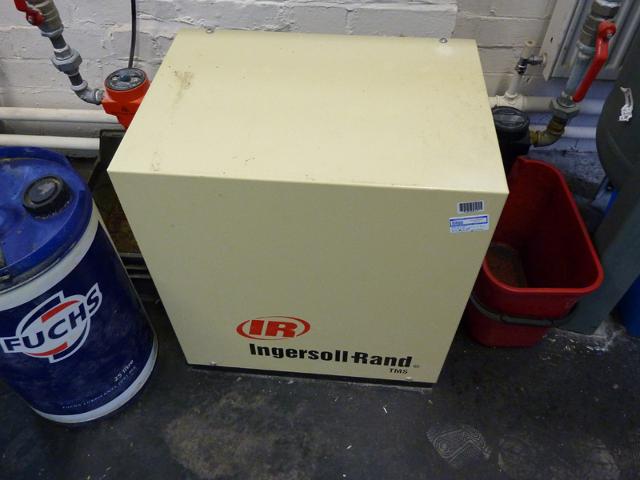

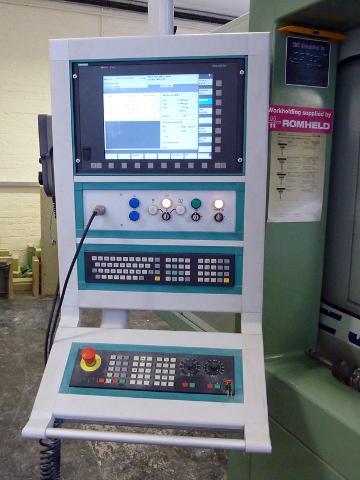

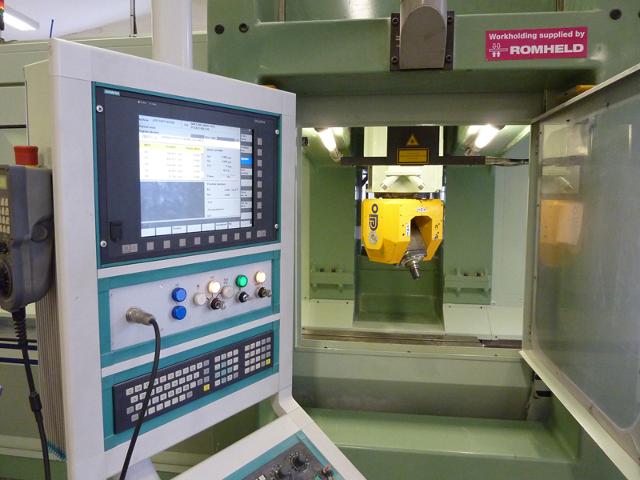

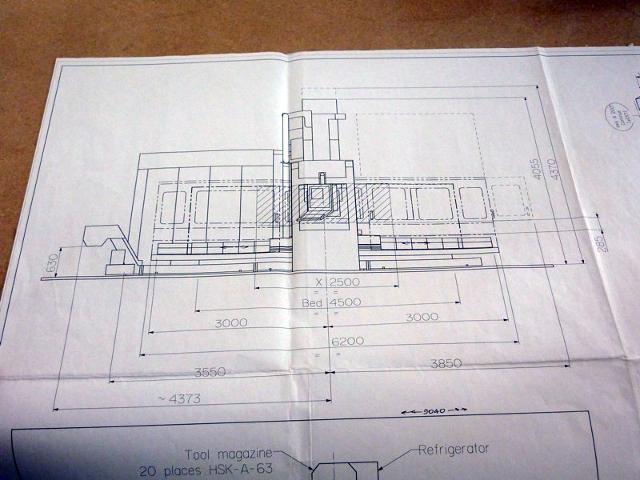

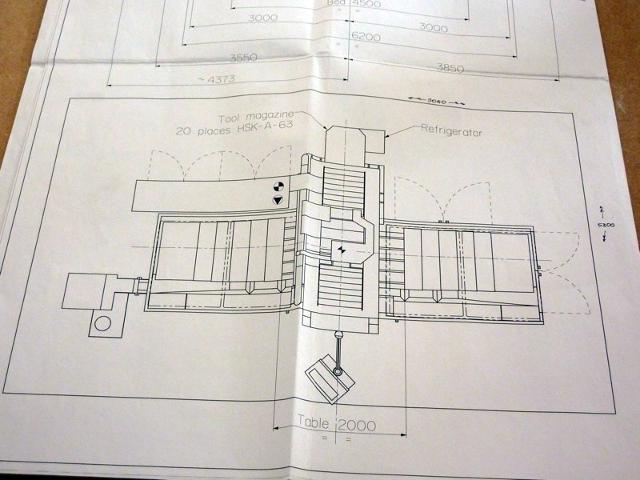

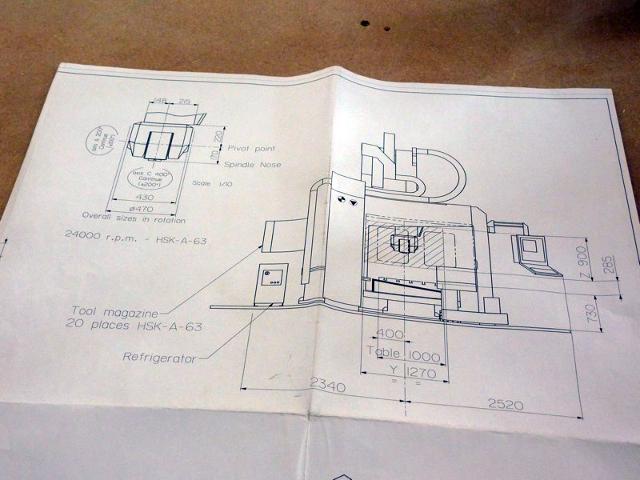

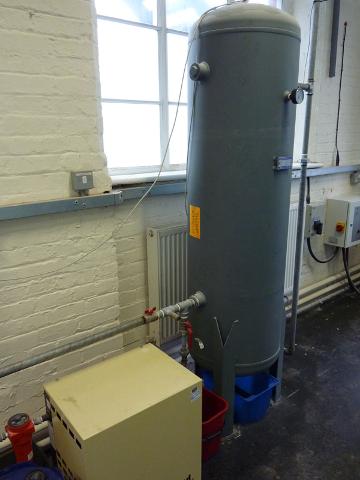

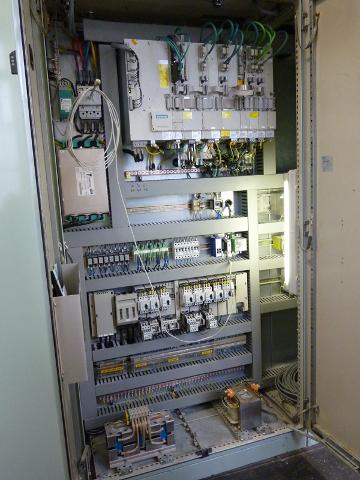

Traverses XYZ: 2500 x 1270 x 900mm, A axis Tilt + / -100 o, C axis Rotation + / -200 o, Table Size 2000 x 1000mm, Table load 5000kg, Spindle Speeds 24000rpm, Spindle Taper HSK63, Spindle Motor 11.5kW, Toolchanger capacity:20, Siemens 840 Control, PlymoVent Dust Extraction & Ingersoll Rand Compressor with Refridgerant Dryer and Pressure Vessel.

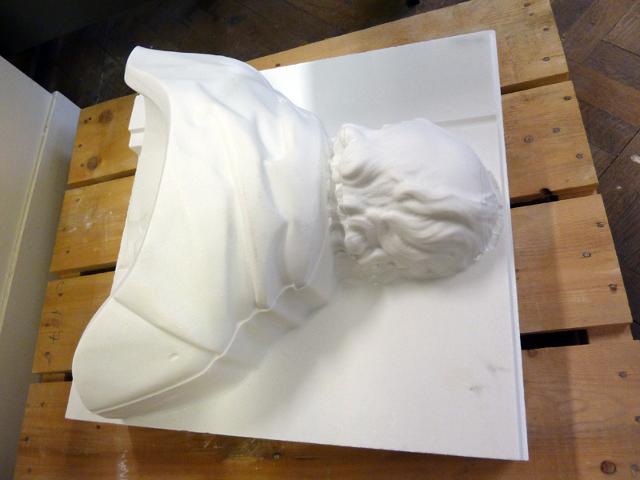

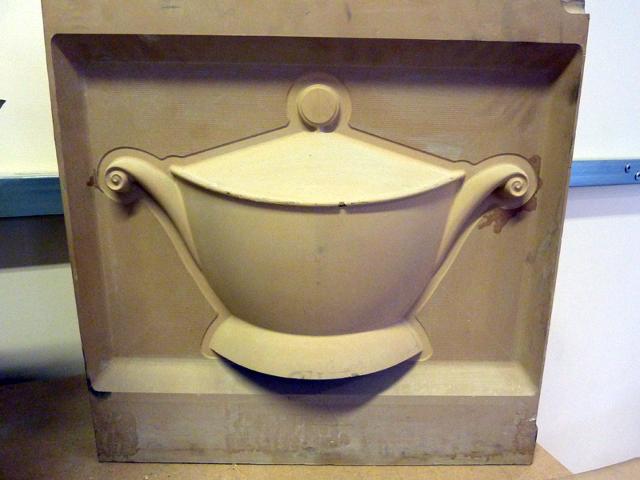

Machine never cut metal - has only machined resin from new
Machine Sold on Behalf of The Hothouse Centre for Ceramic Design, Stoke-On-Trent City Council.

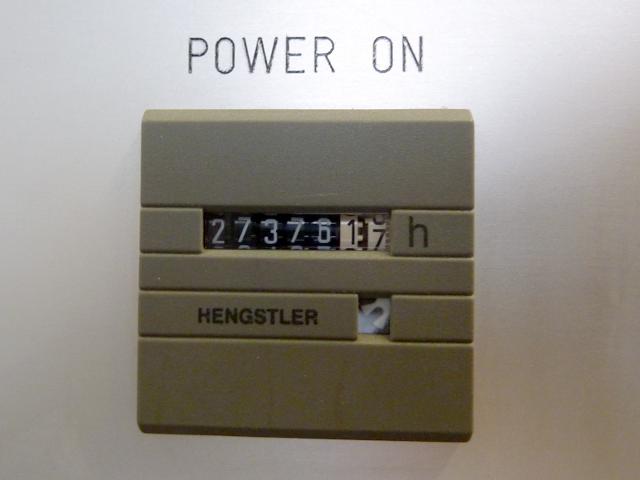

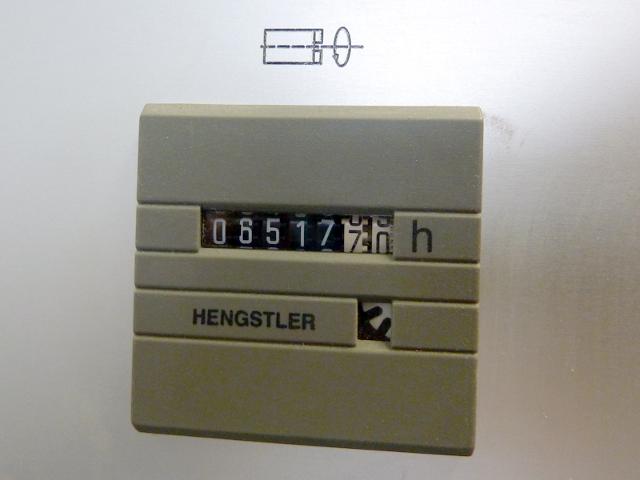

Full Service history
Manuals

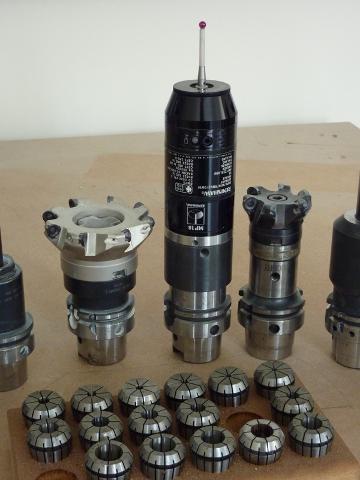

Selection of HSK Tooling

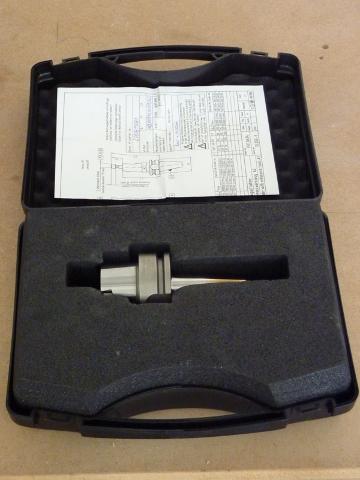

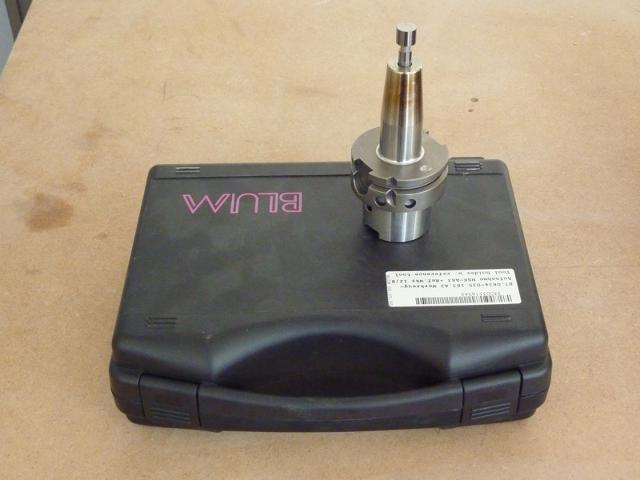

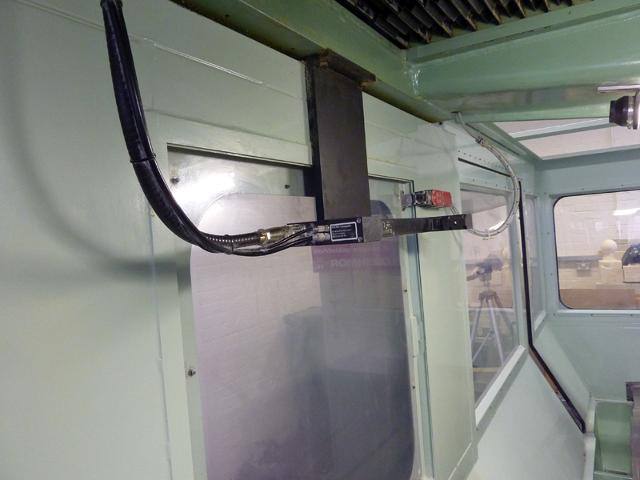

BLUM Laser Measuring Technology with Calibration Tool

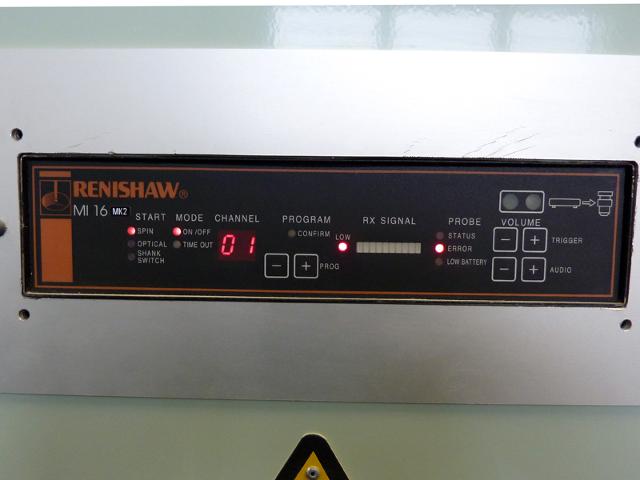

Renishaw Mi16 MkII system
Renishaw Probe

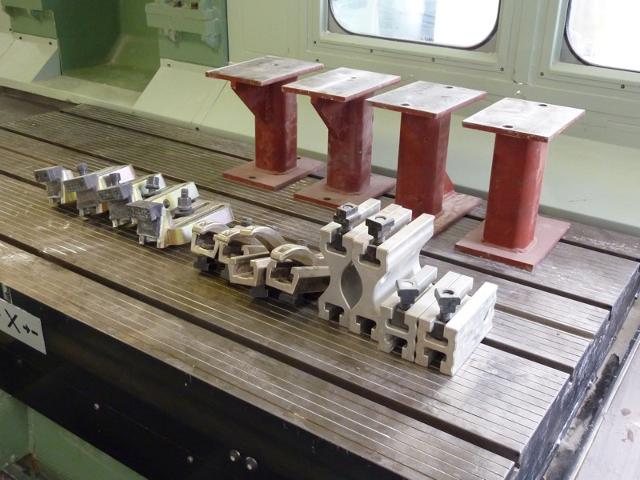

Stands and Clamps
Download Technical Specification Sheets
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
