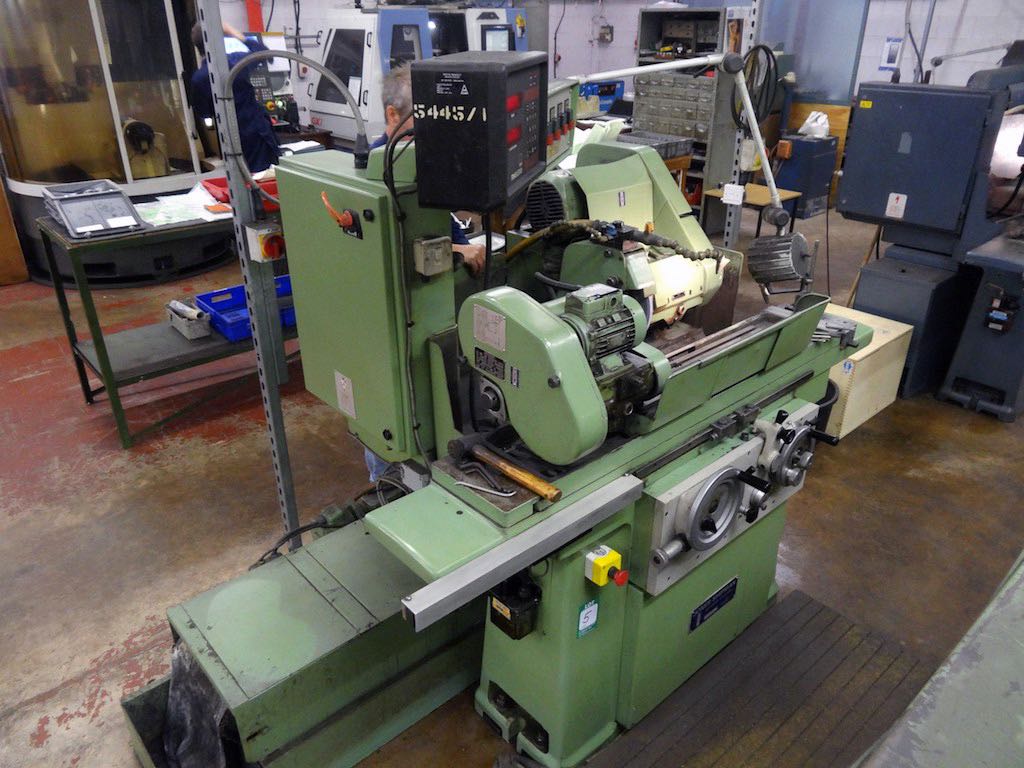

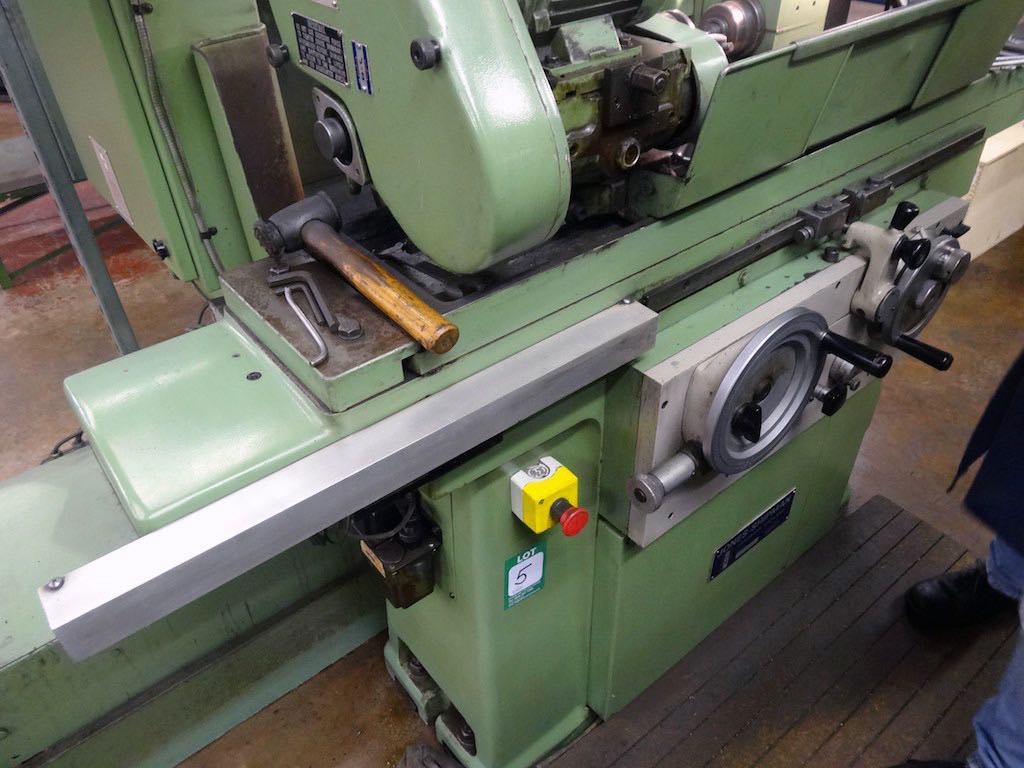

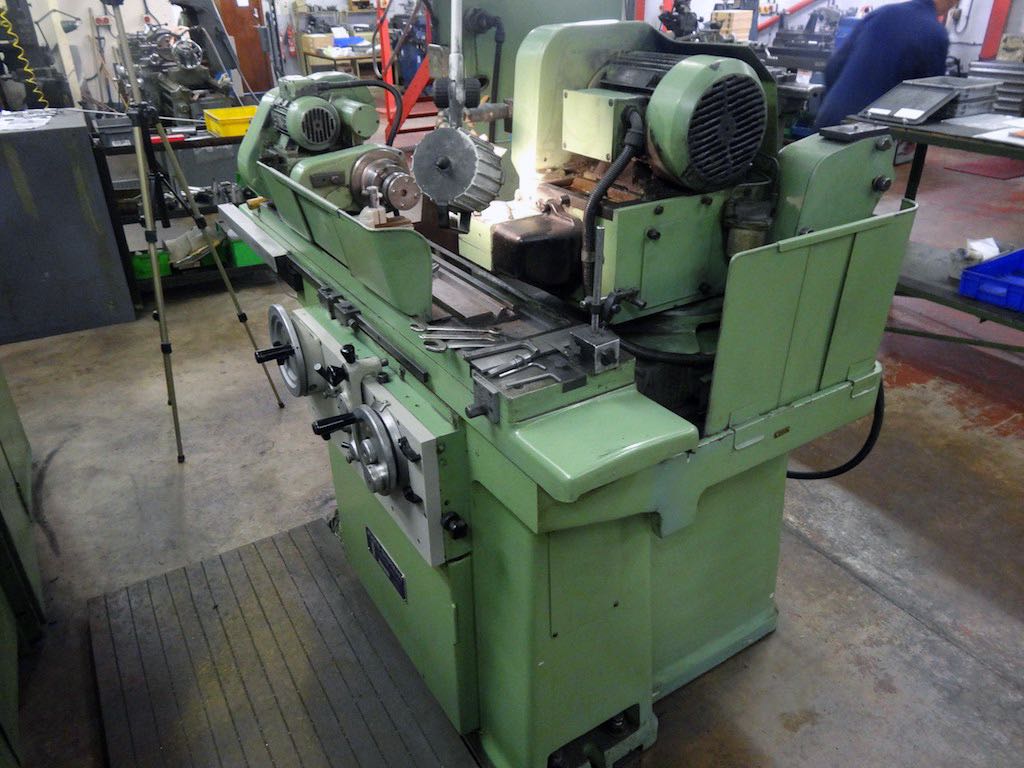

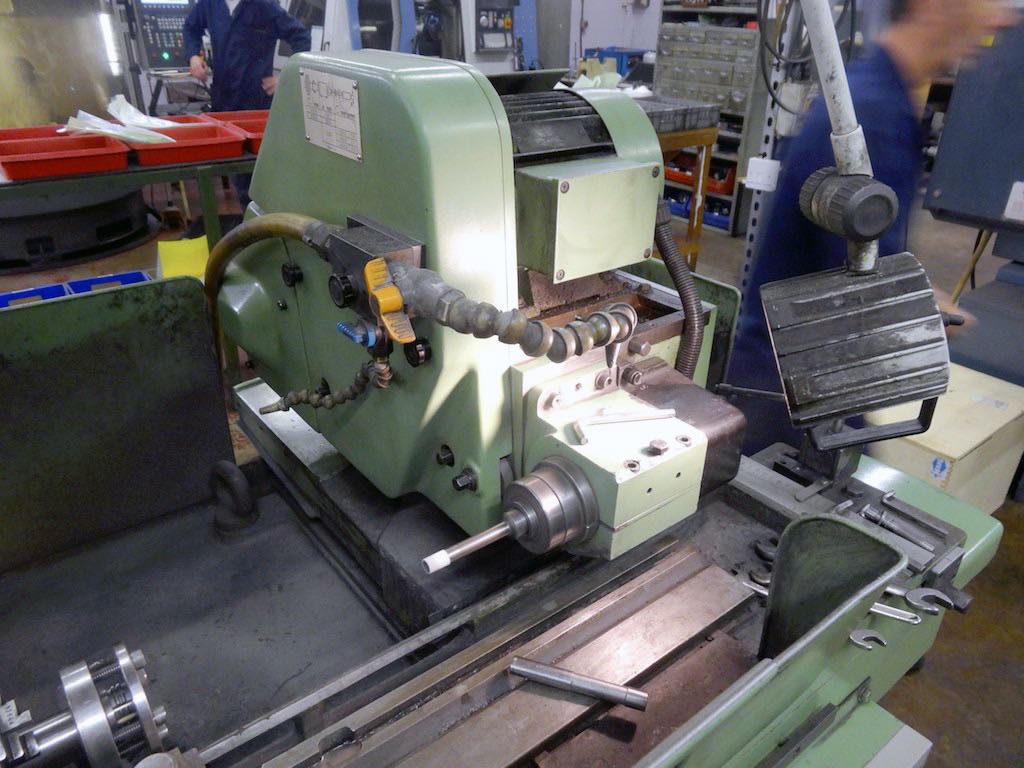

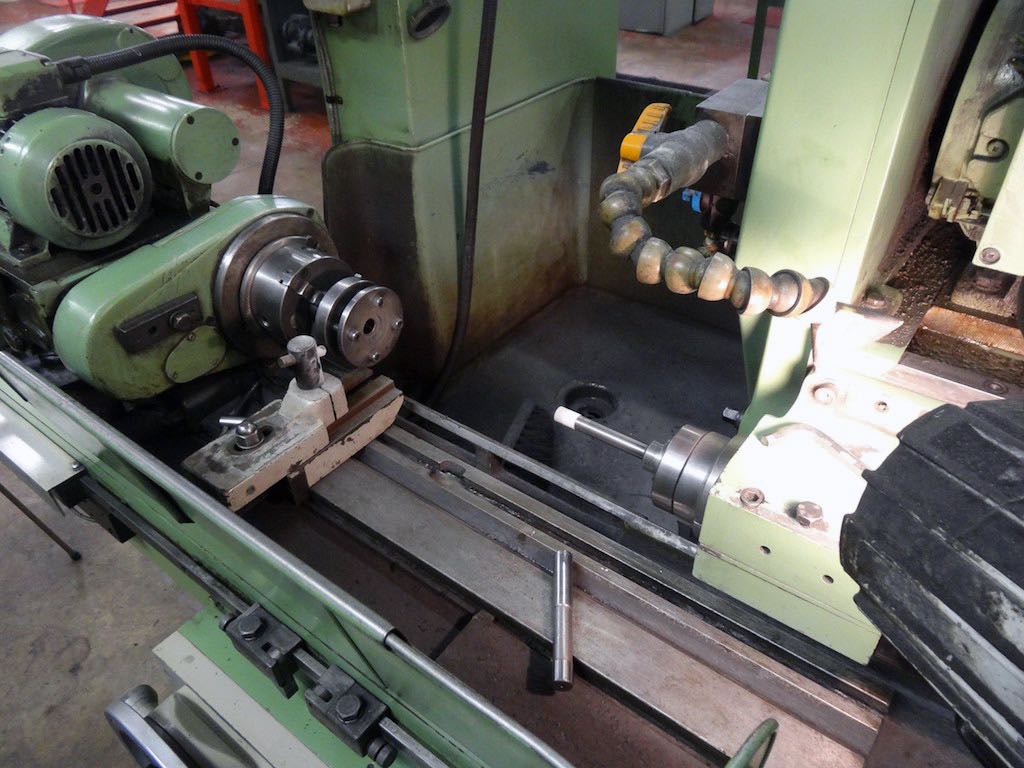

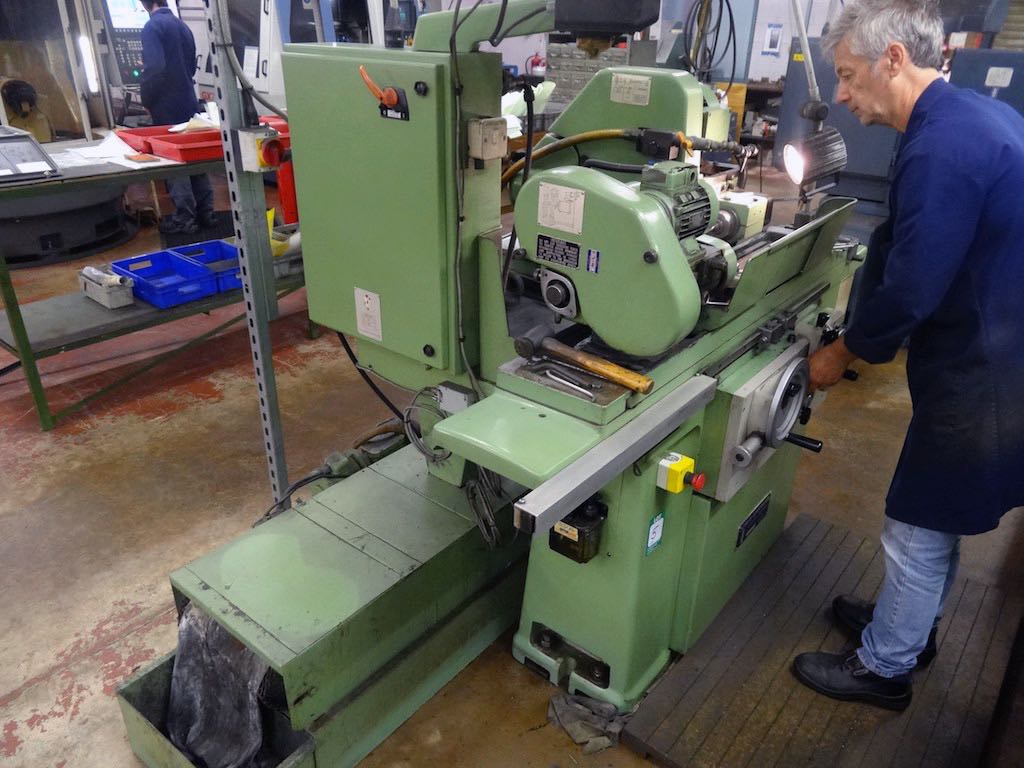

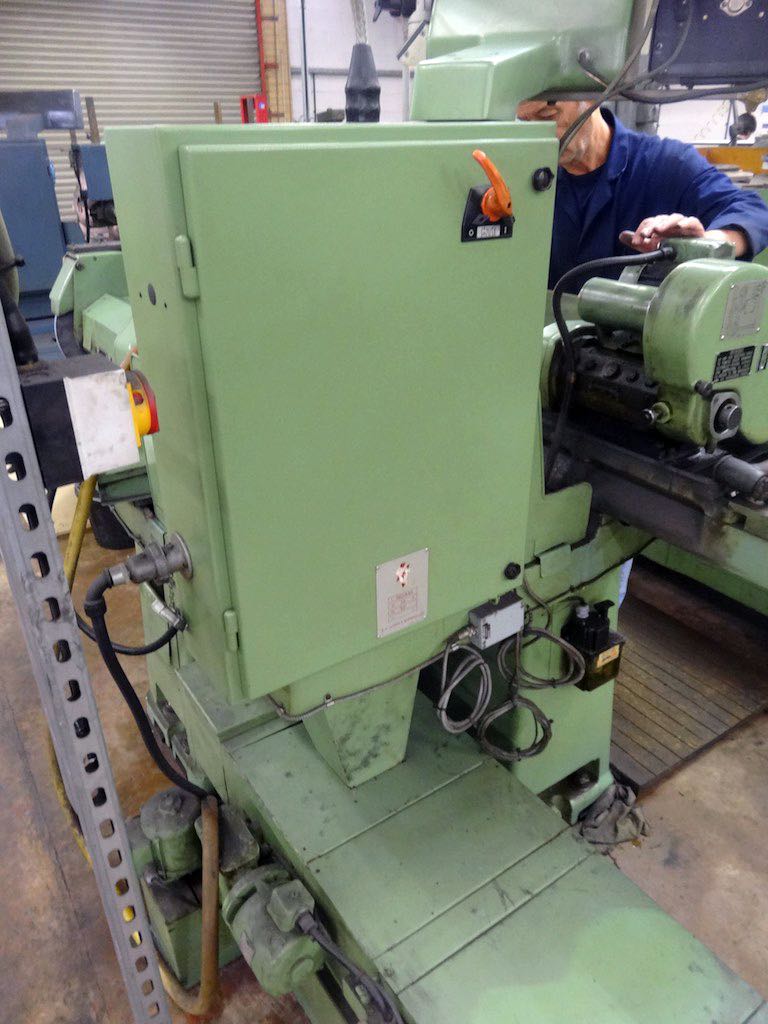

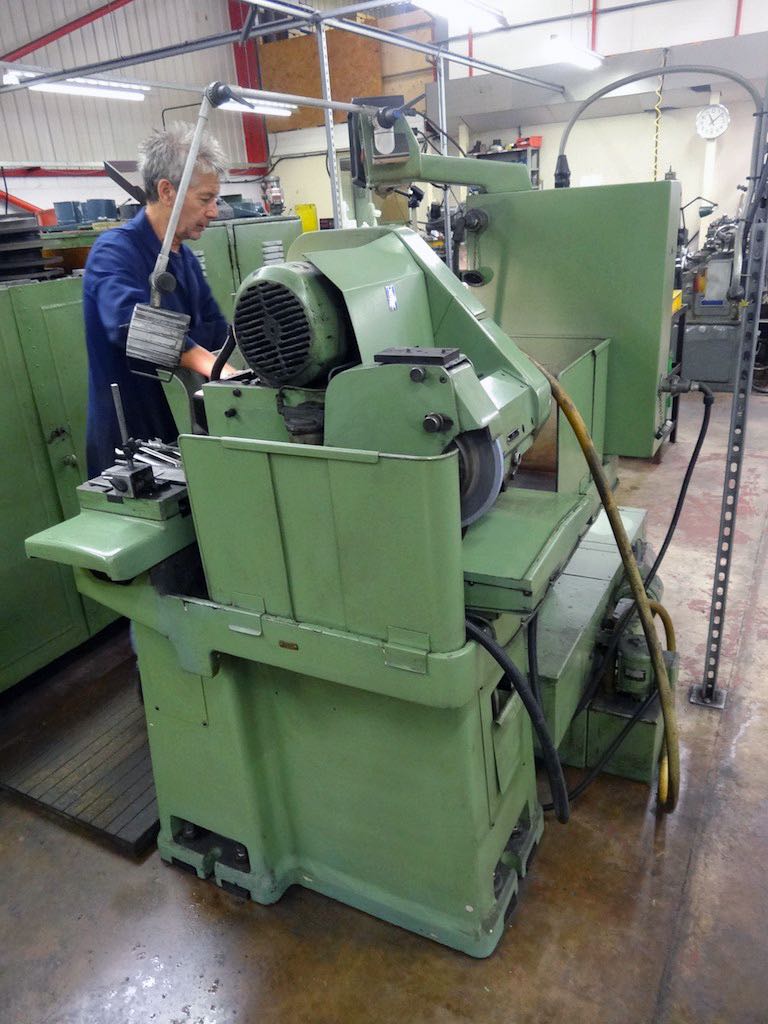

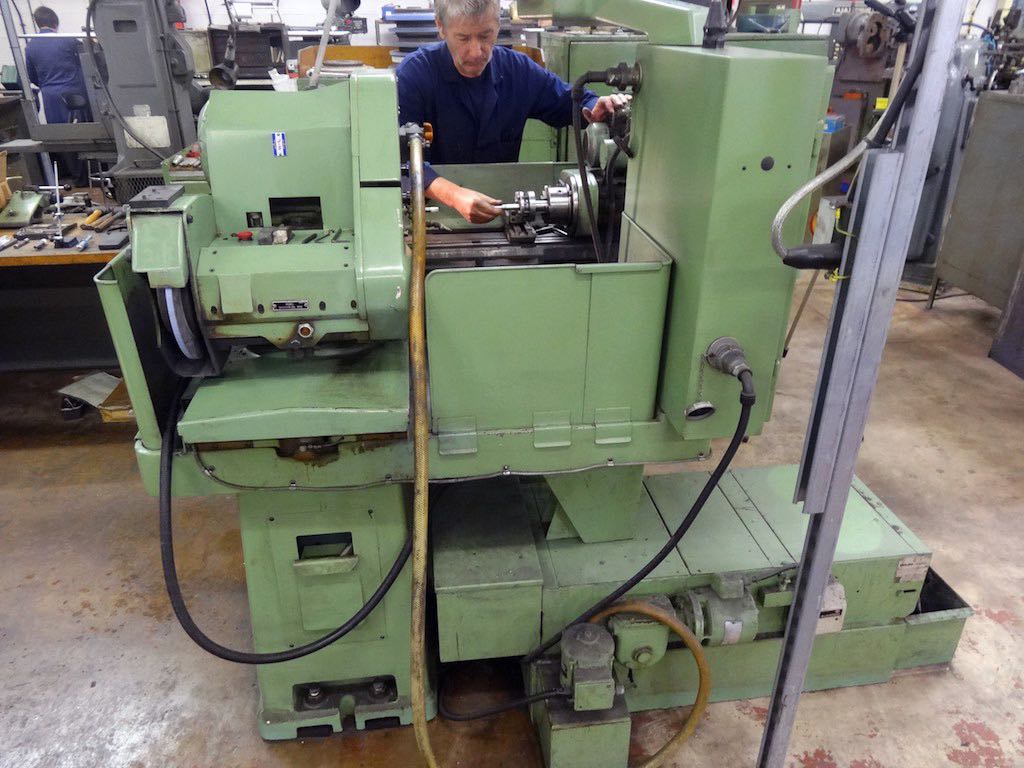

Lot 5 - Jones & Shipman 1310 Universal Internal and External Cylindrical Grinder
Description:

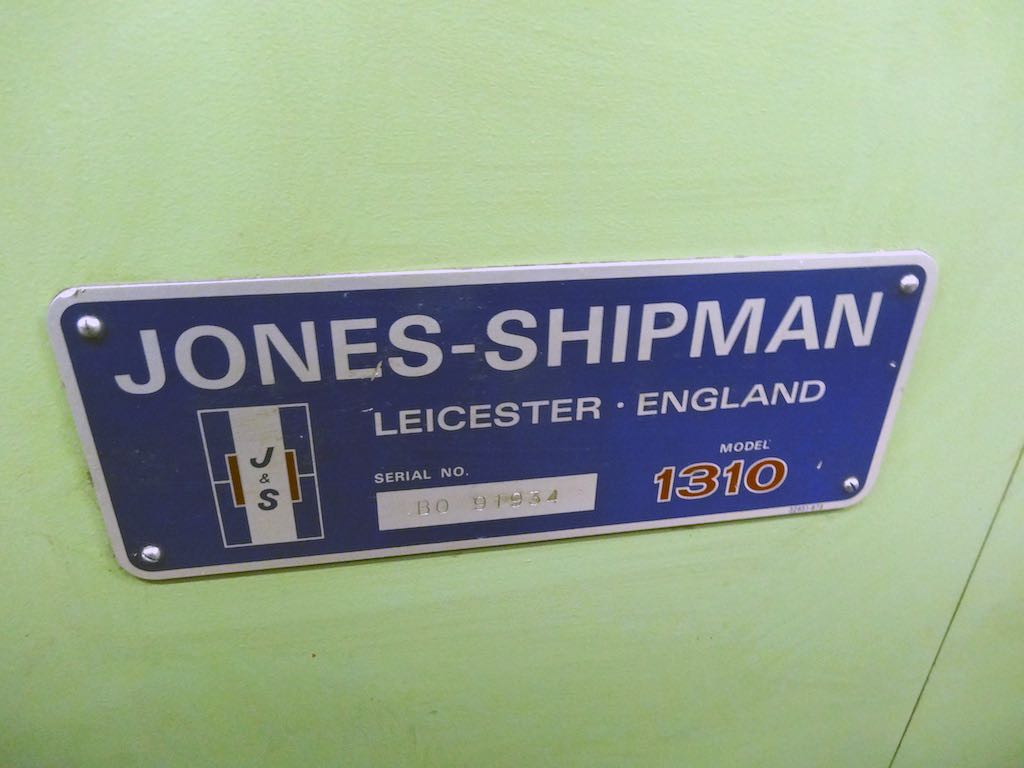

Jones & Shipman 1310
S/n: B091934
L x W x H: 1880 x 1360 x 1800mm
Weight: 2186kg
Shipping dia 4.6M3
26" Table with 3cm T slot and V Slot table
Max dia ground with new wheel: 8"
Grinding length between centres: 457mm
Height from table top to centres: 102mm
Adjustment of table, included angle: 20"
HP of hydraulic pum motor: 0.75cv
Table travere rates steplessly variable per min: 76 to 3658mm
Feed range at reversal of table reduction in dia: 0,005 ti 0,030min
Vertical traverse of wheelhead: 159mm
Wheel spindle centre to table top max: 86mm
Cross traverse of wheelhead: 179mm

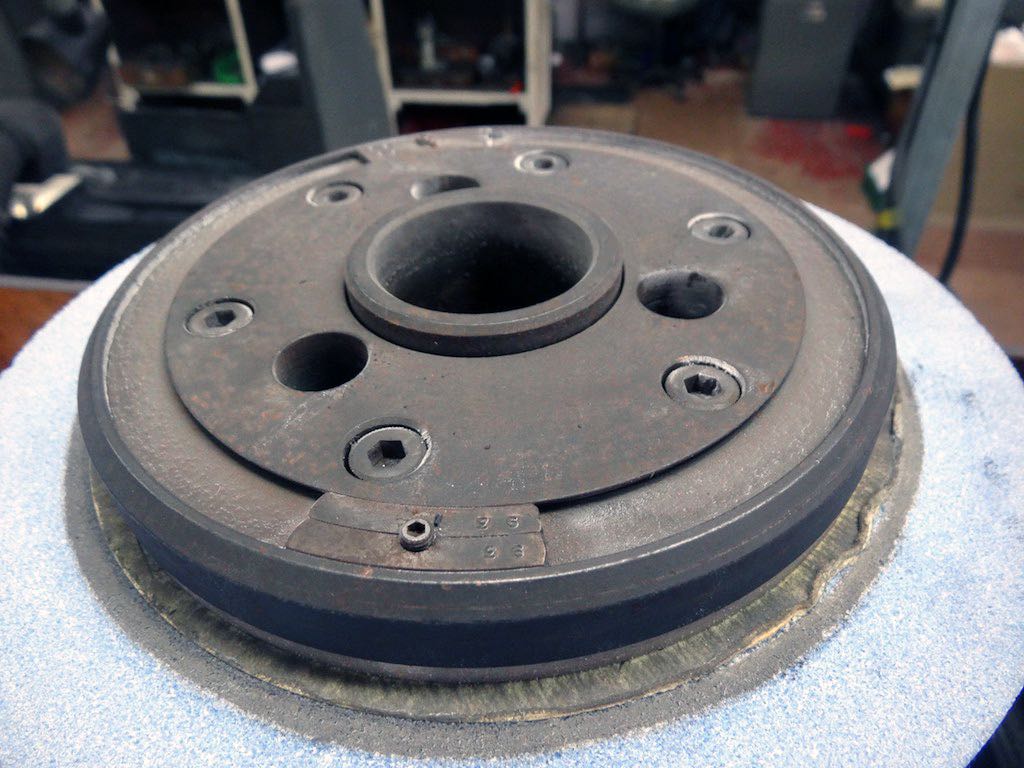

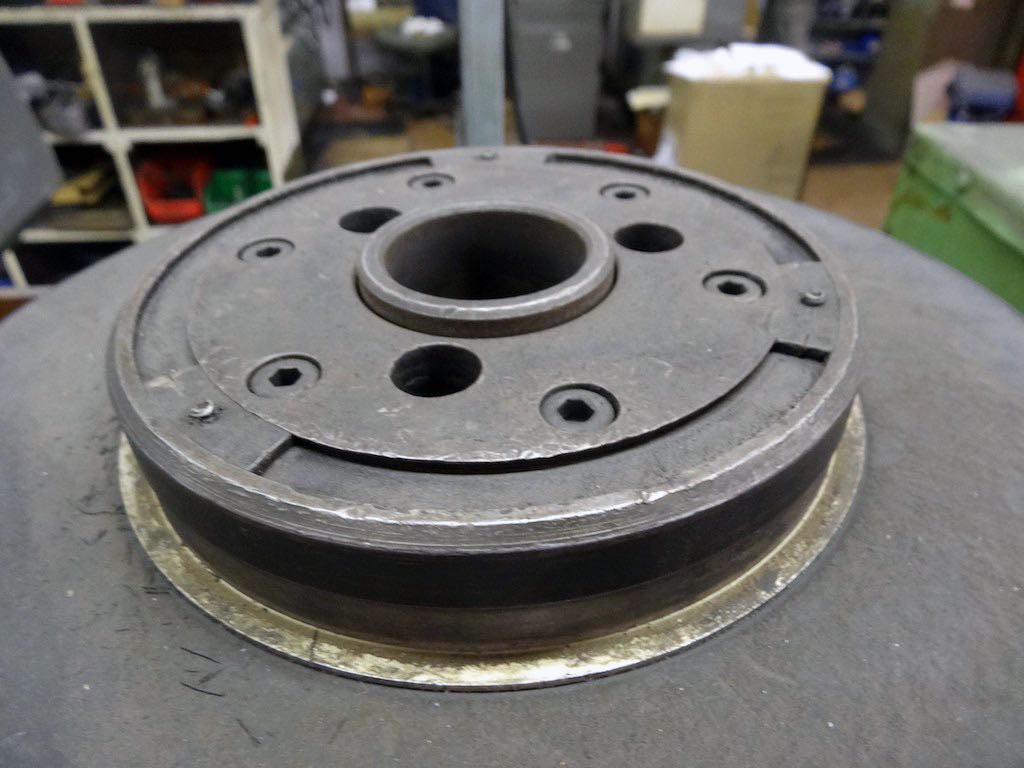

Size of external grinding wheel: 254 x 25 x 120mm
External grinding wheel speeds rpm: 2100 - 2550
Work light

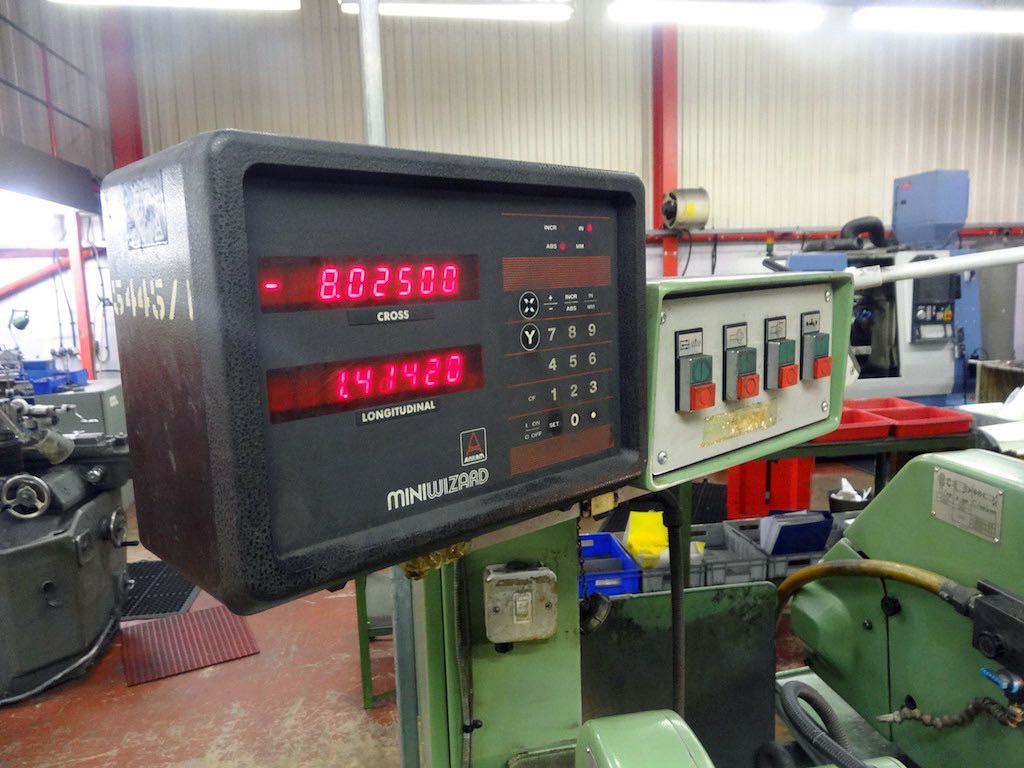

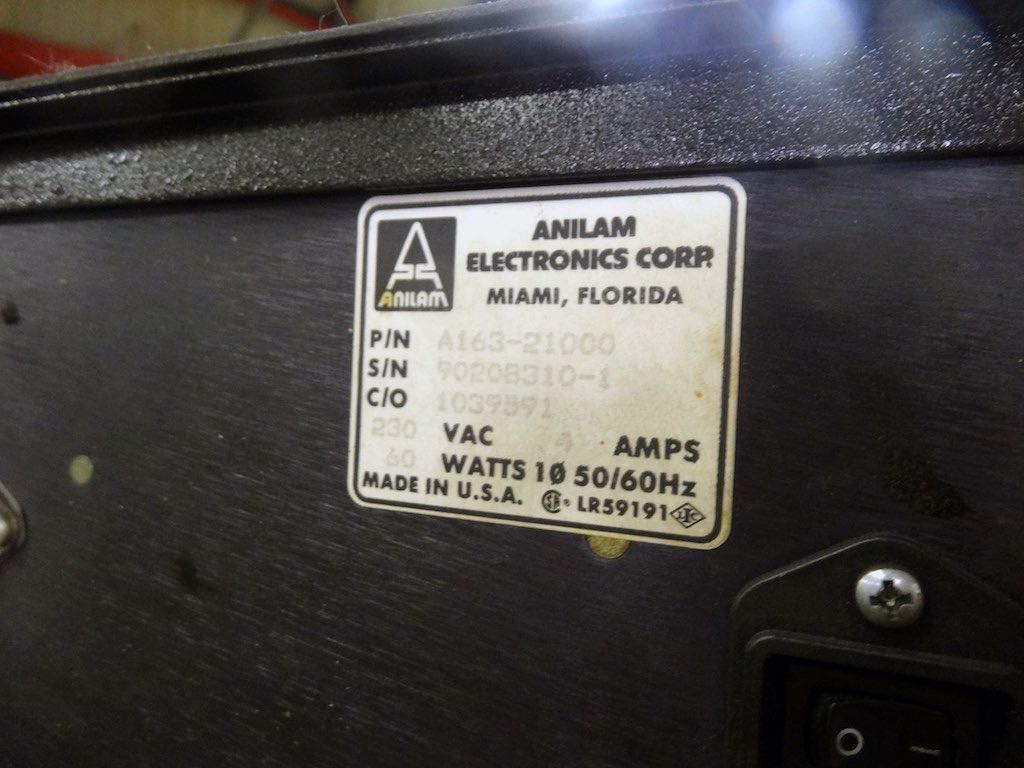

Mini Wizard 2 Axis DRO
S/n: 90208310-1

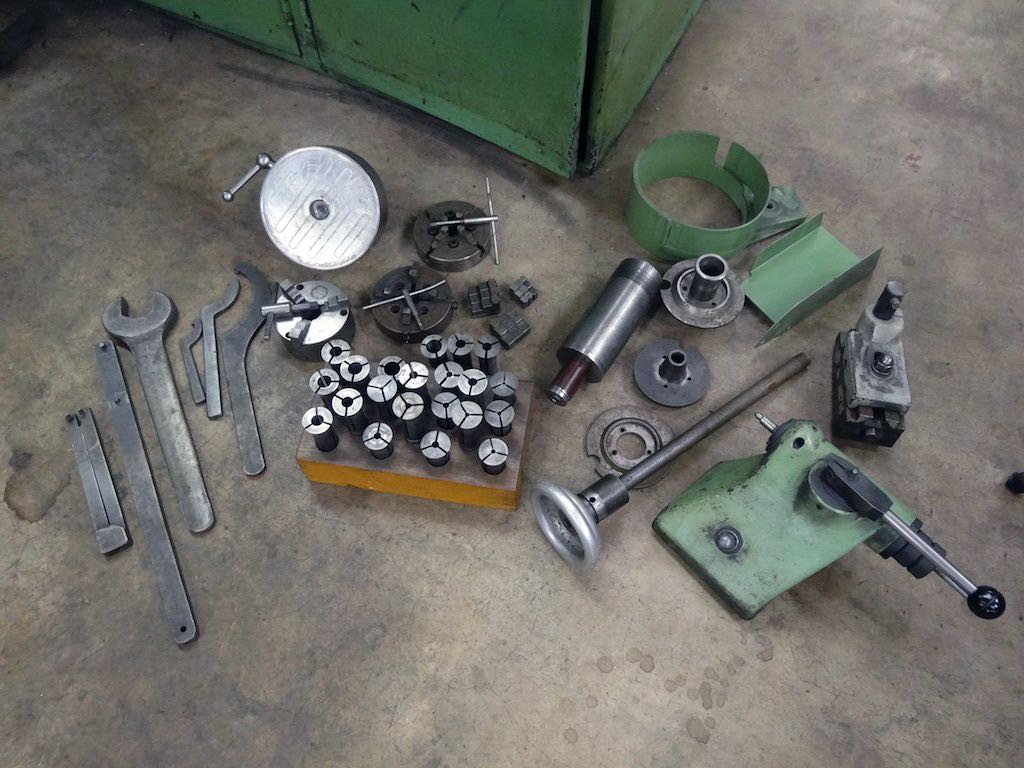

included with the machine:

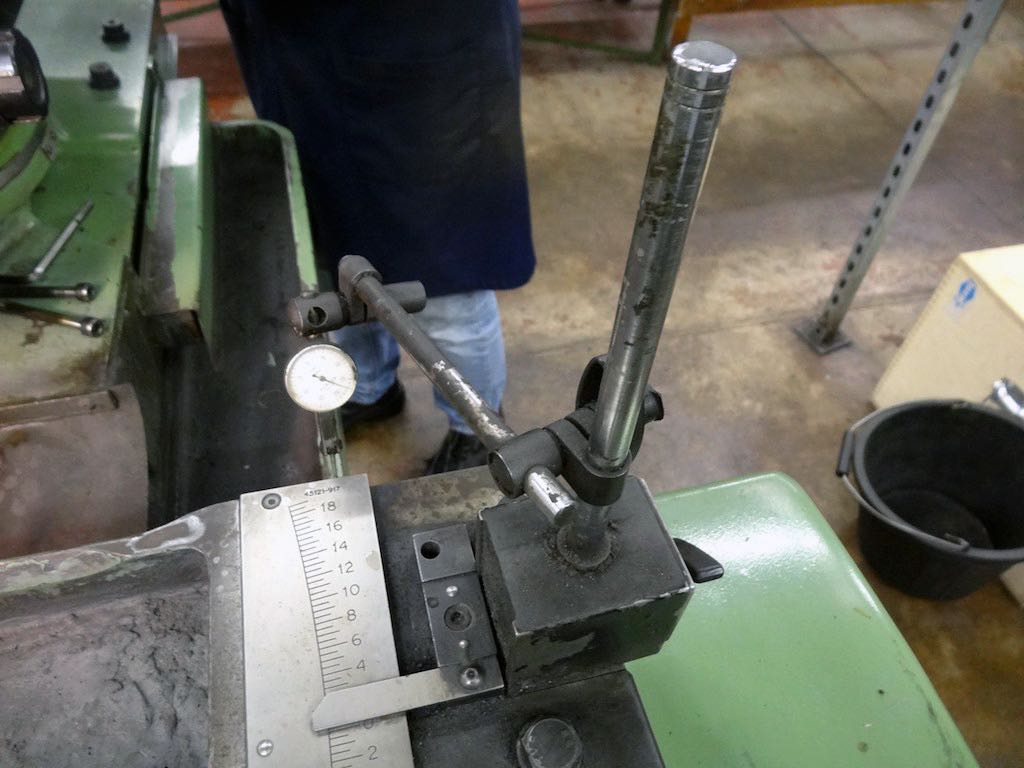

Clock and Mag work stand

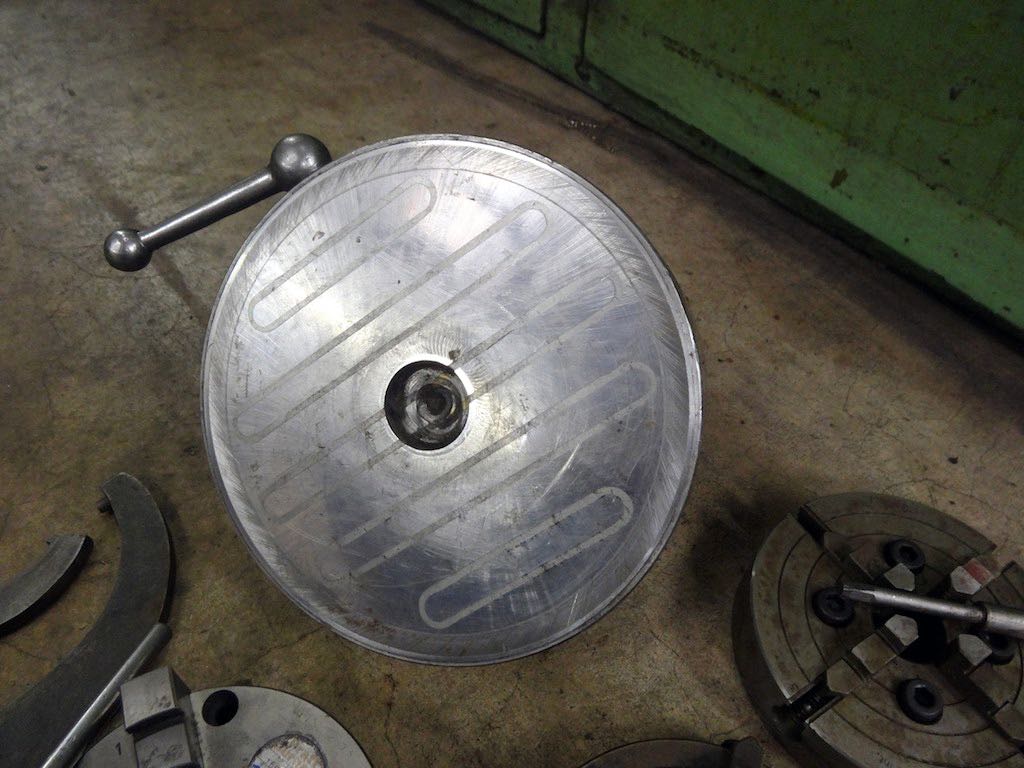

Eclipse 6.5" Magnetic chuck

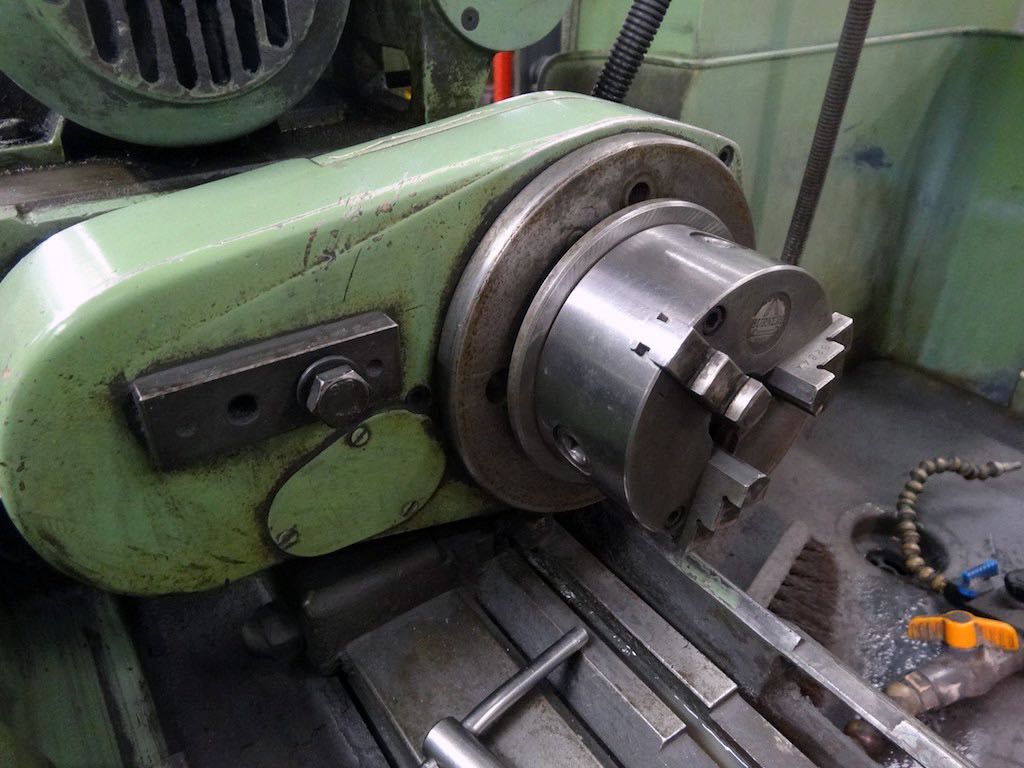

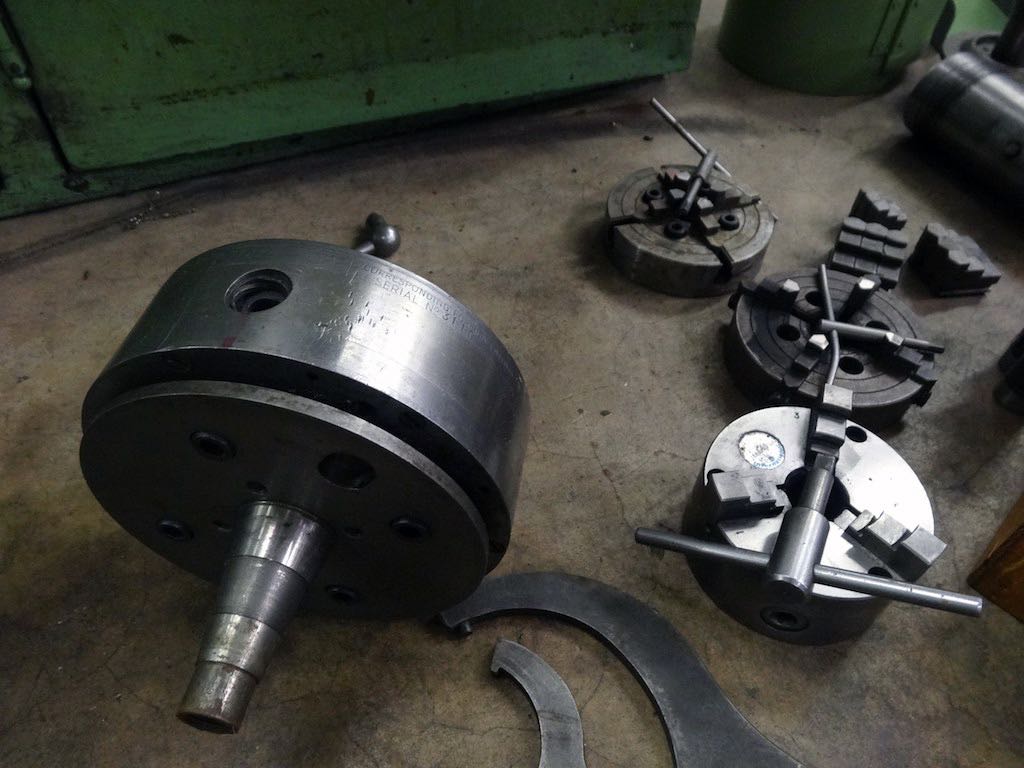

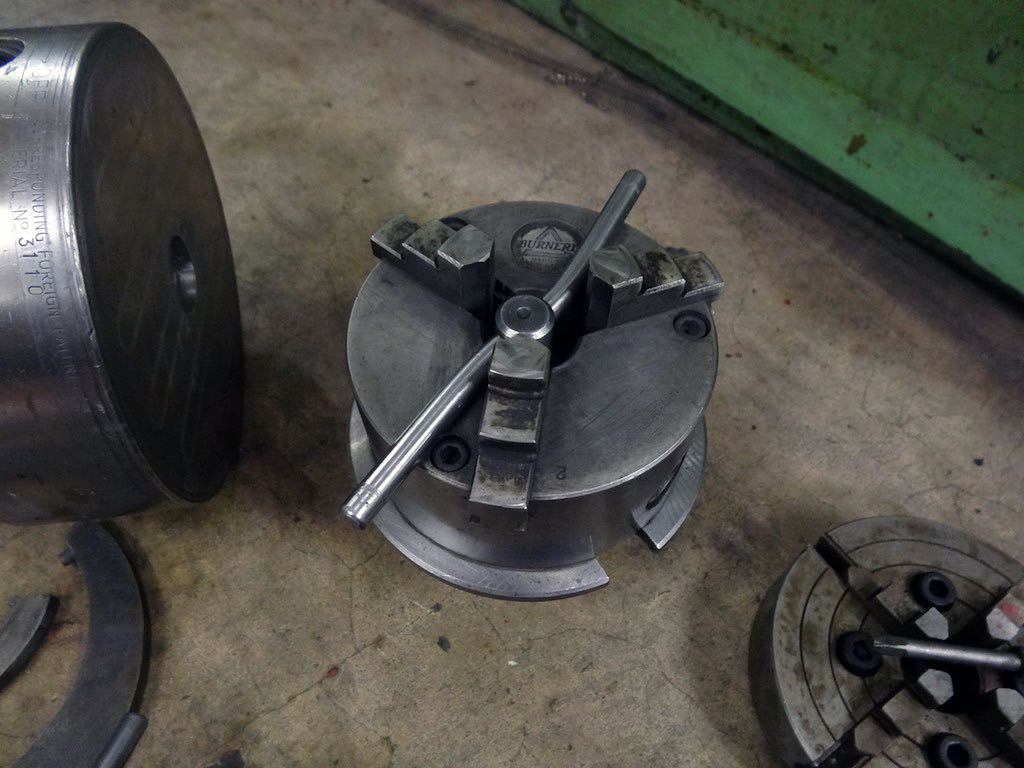

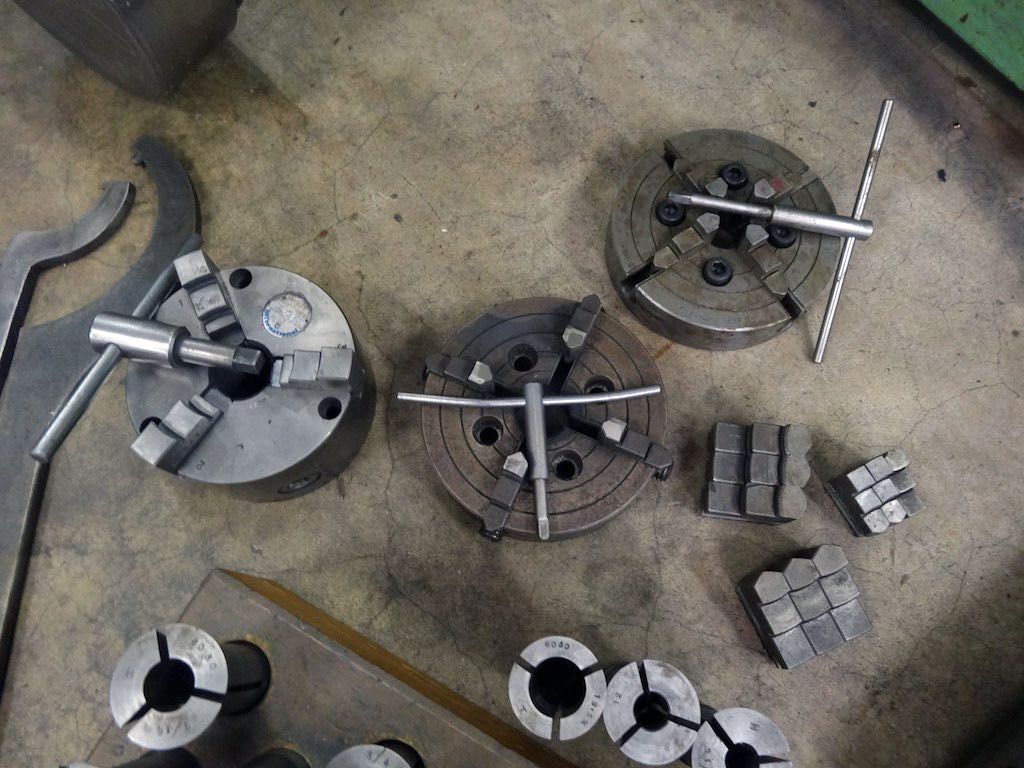

3 x 3 Jaw 4"Chucks
2 x 4 Jaw 4.5" Chucks
Hard jaws and extra Jaws x 3

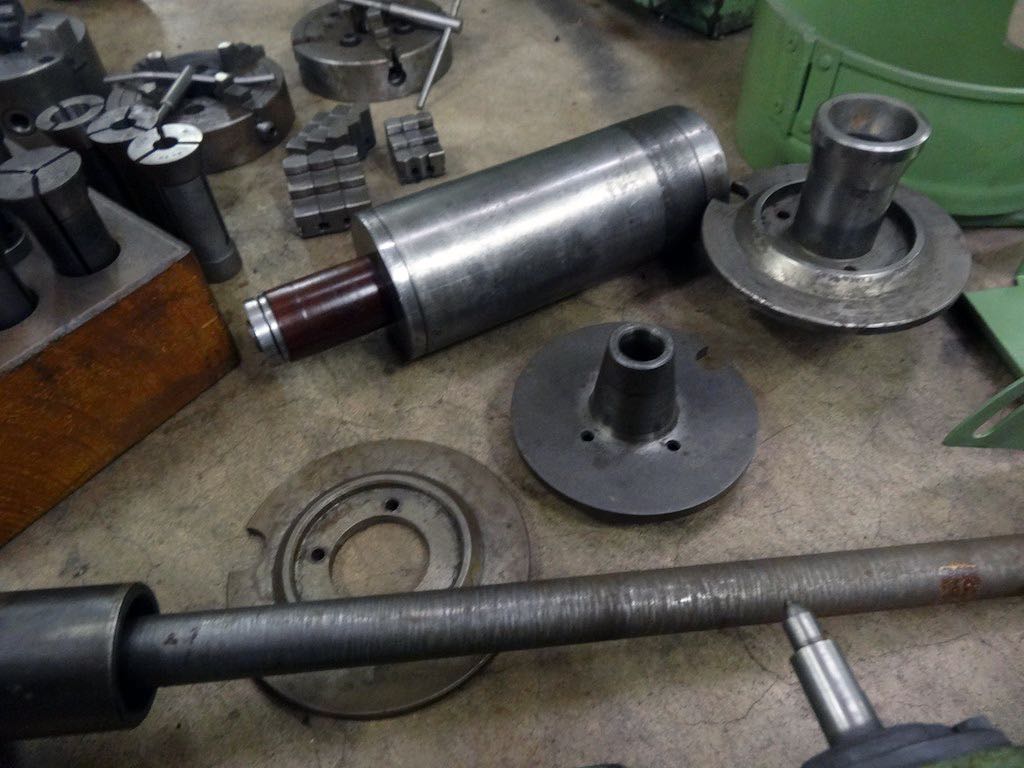

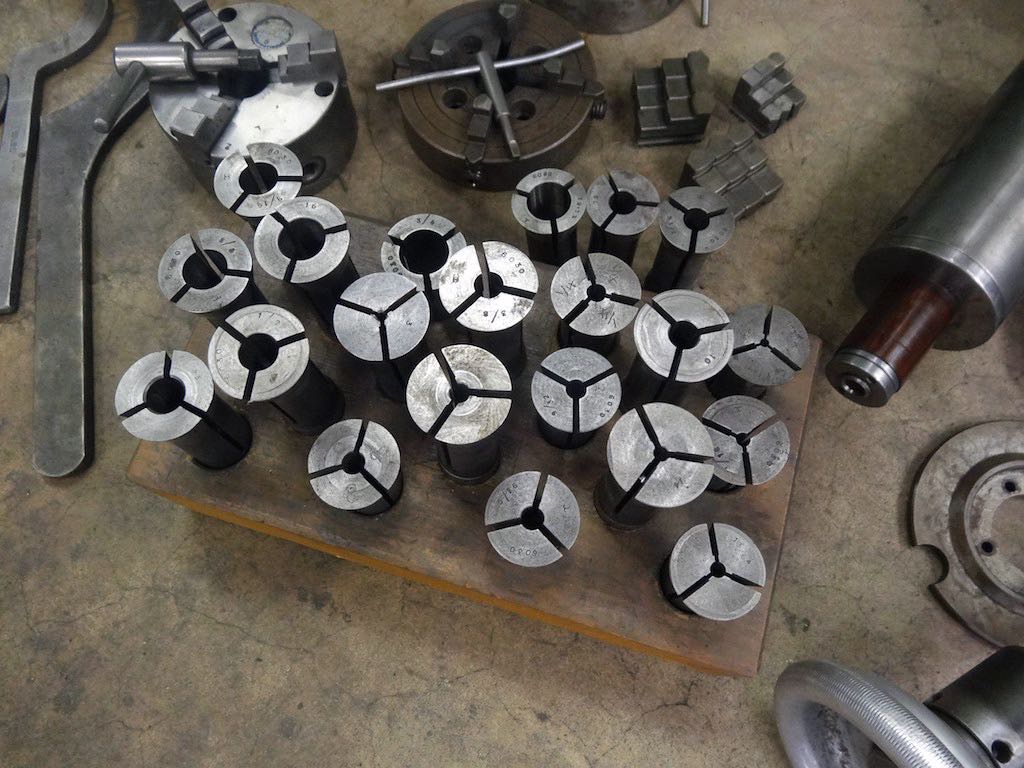

Set of Collets
Min of 2 Arbours

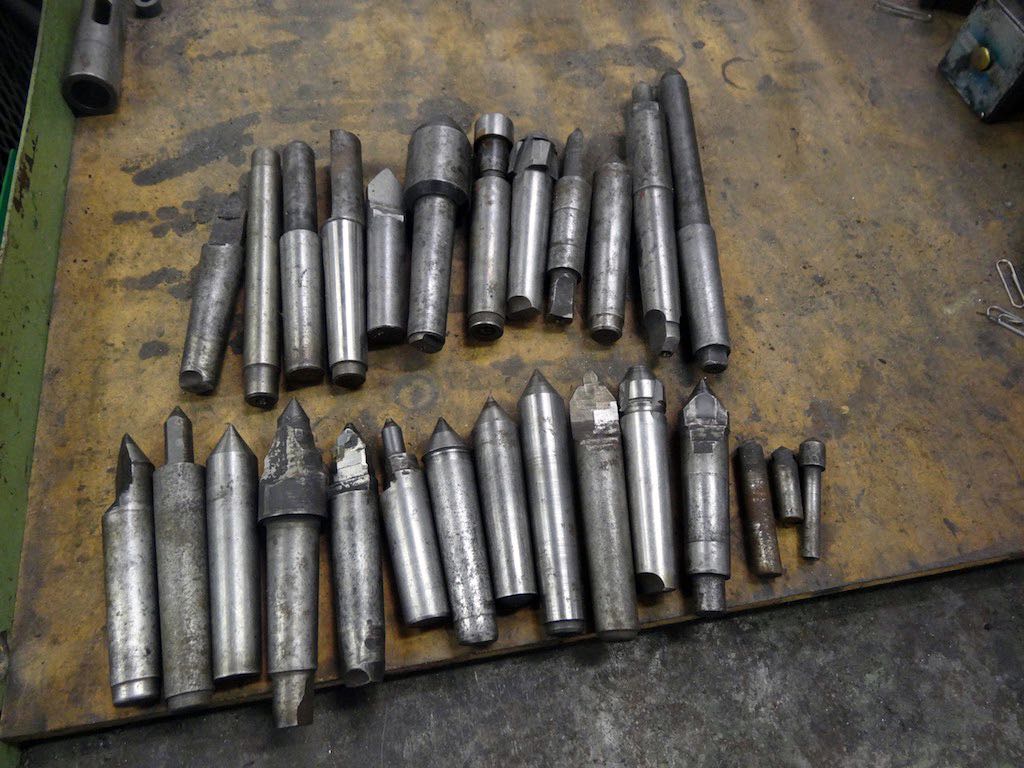

Running centres
Diamond Dresser

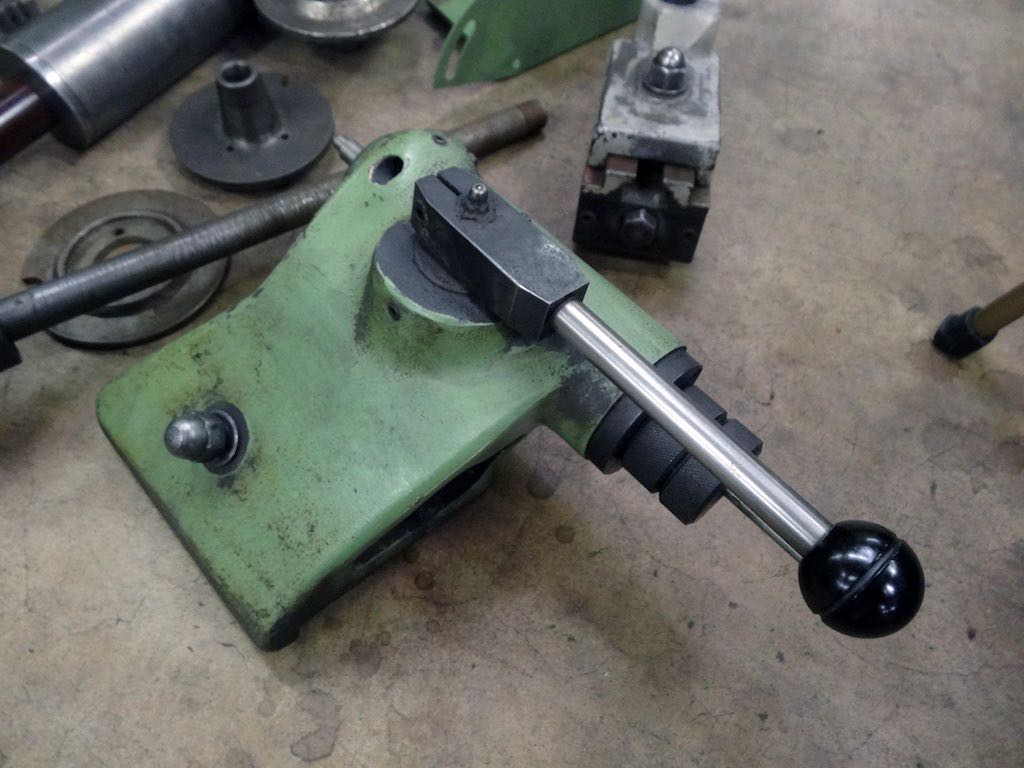

Tailstock attachments
Location: Telford
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
