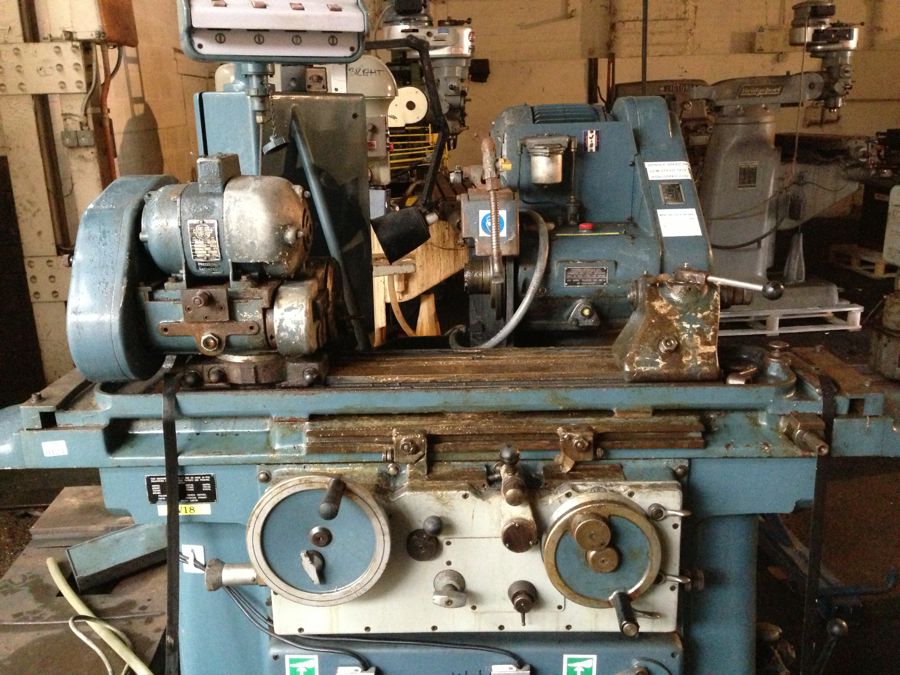

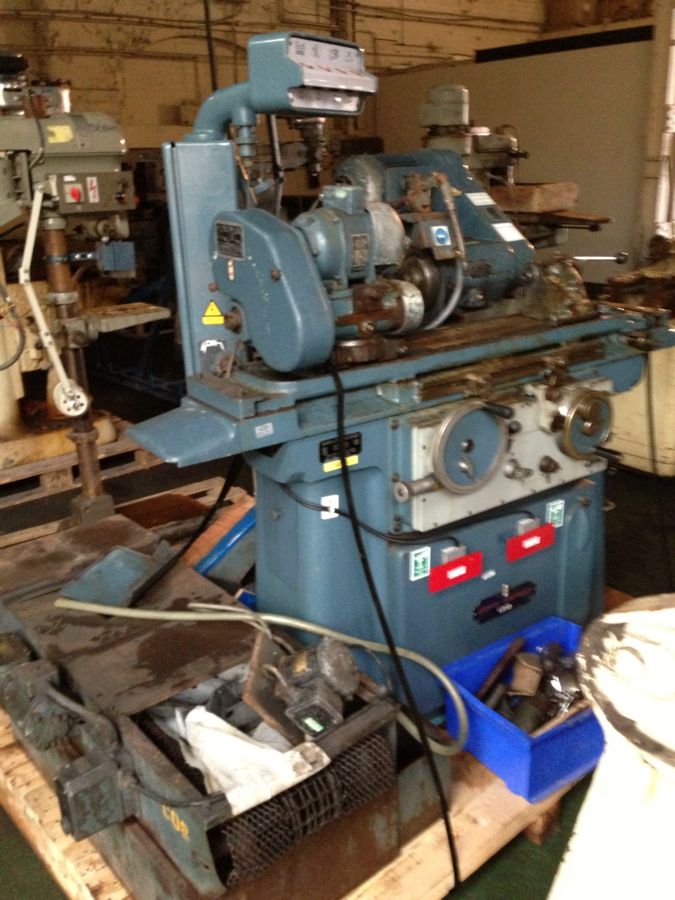

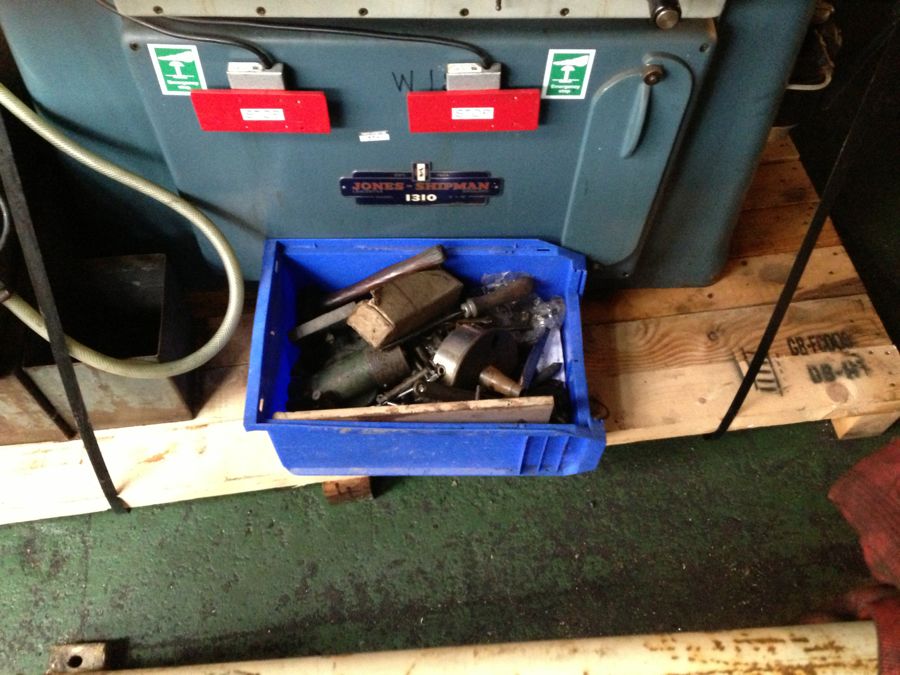

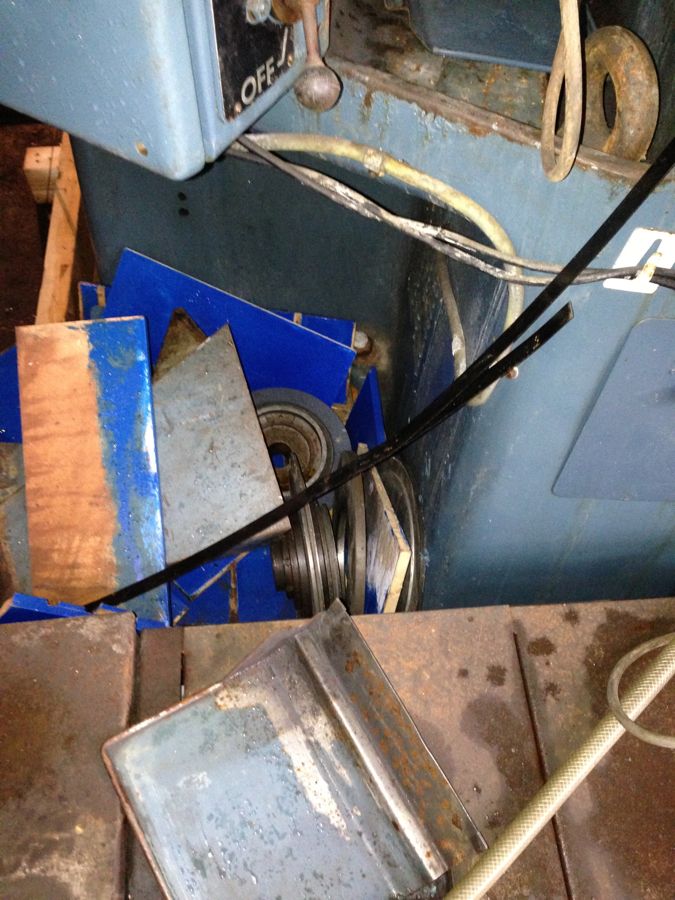

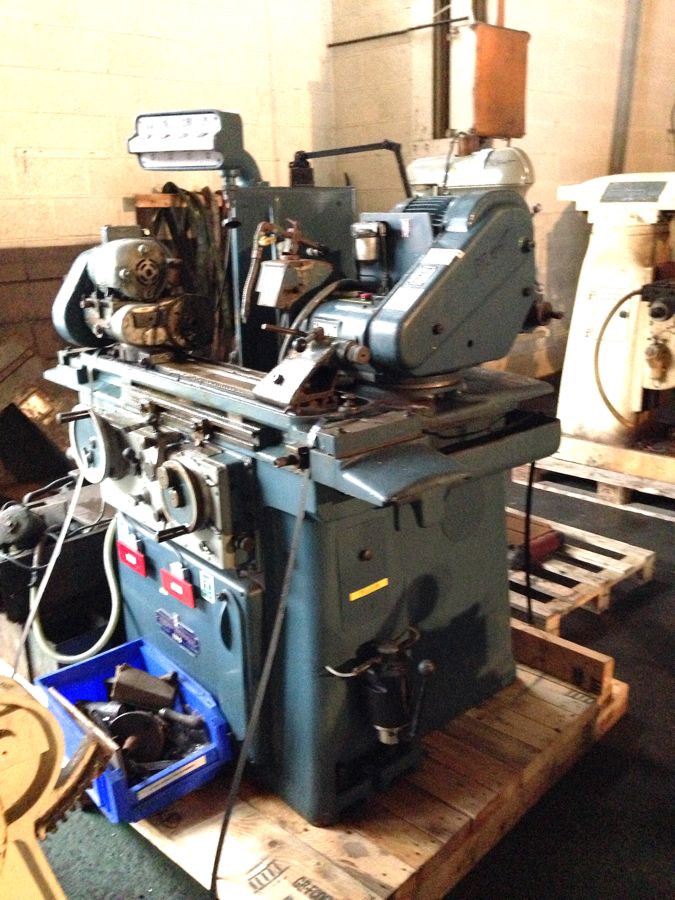

Lot 13 - Jones & Shipman 1310 EIUR Universal Cylindrical Grinder
Description:
Jones & Shipman 1310 EIUR Universal Cylindrical Grinder
Specification:
Maximum diameter ground with new wheel: 200mm
Maximum grinding length between centres: 457mm
Adjustment of table, included angle: 20 degrees
Vertical traverse of wheelhead 158mm
Wheelhead centre to table minimum/maximum: 111-270mm
Wheelhead motor: 1.1kw
Wheel size: 230mm
Speed of external grinding wheel: 2100/2550rpm
Work head speeds (6): 30-415rpm
Approximate weight: 1800kg
Location: West Midlands
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
