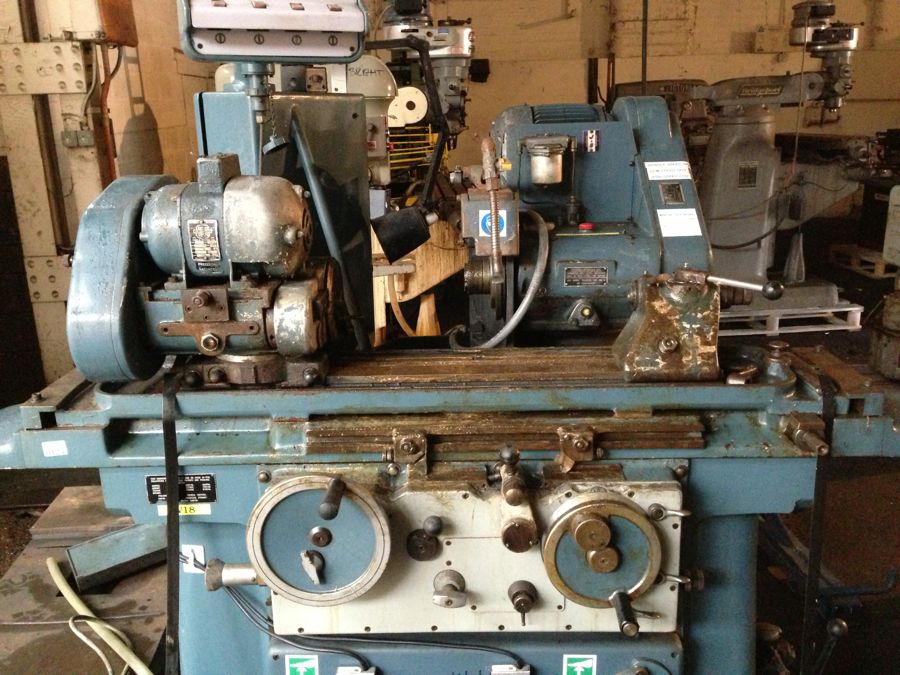

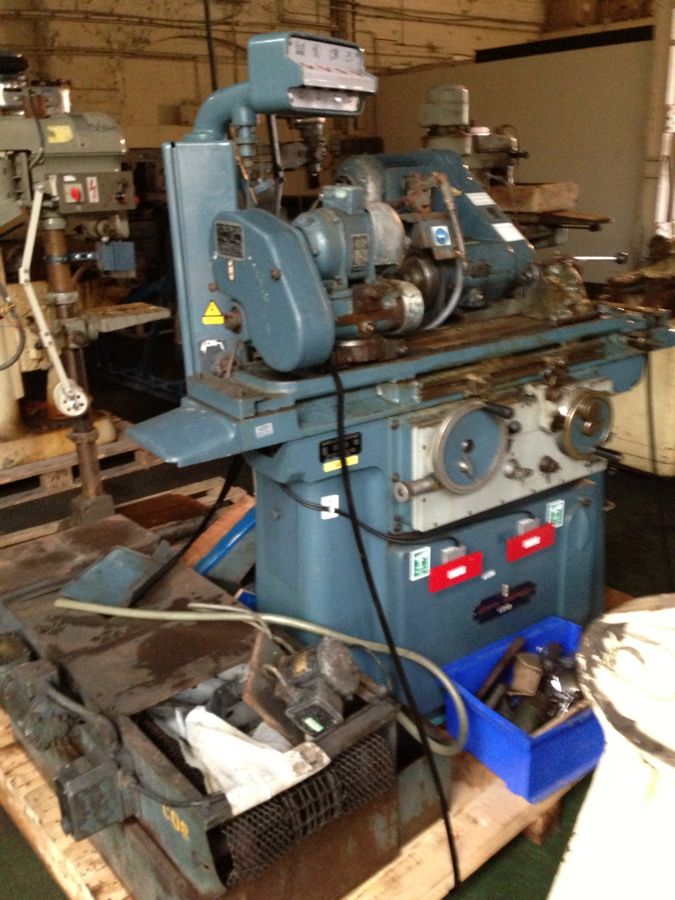

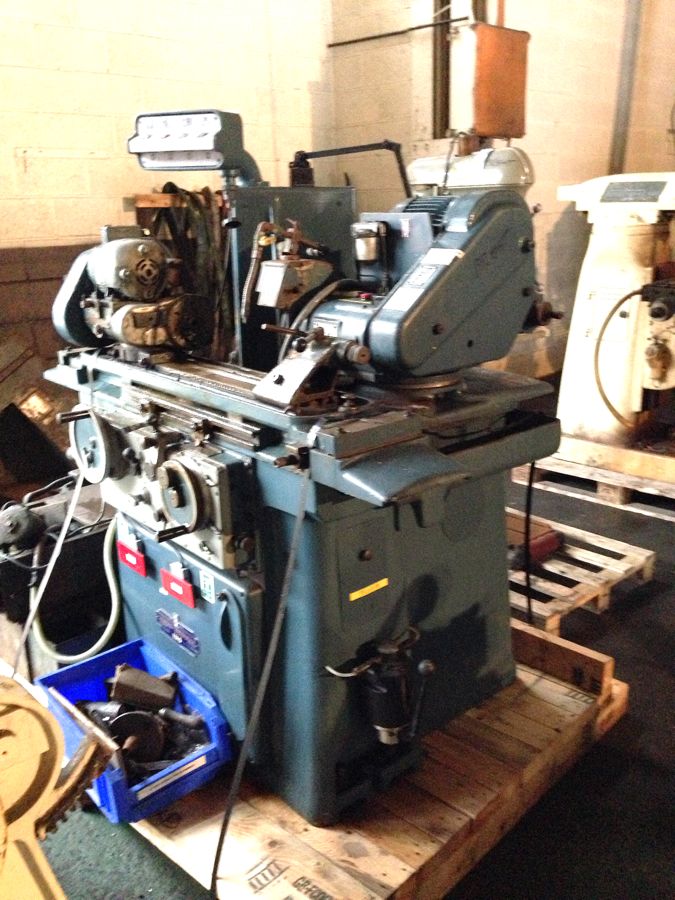

Lot 29 - Jones & Shipman 1310 EIUR Universal Cylindrical Grinder

Description:

Jones & Shipman 1310 EIUR Universal Cylindrical Grinder

Specification:
Maximum diameter ground with new wheel: 200mm
Maximum grinding length between centres: 457mm
Adjustment of table, included angle: 20 degrees
Vertical traverse of wheelhead 158mm
Wheelhead centre to table minimum/maximum: 111-270mm
Wheelhead motor: 1.1kw
Wheel size: 230mm
Speed of external grinding wheel: 2100/2550rpm
Work head speeds (6): 30-415rpm
Approximate weight: 1800kg

Location: West Midlands

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
