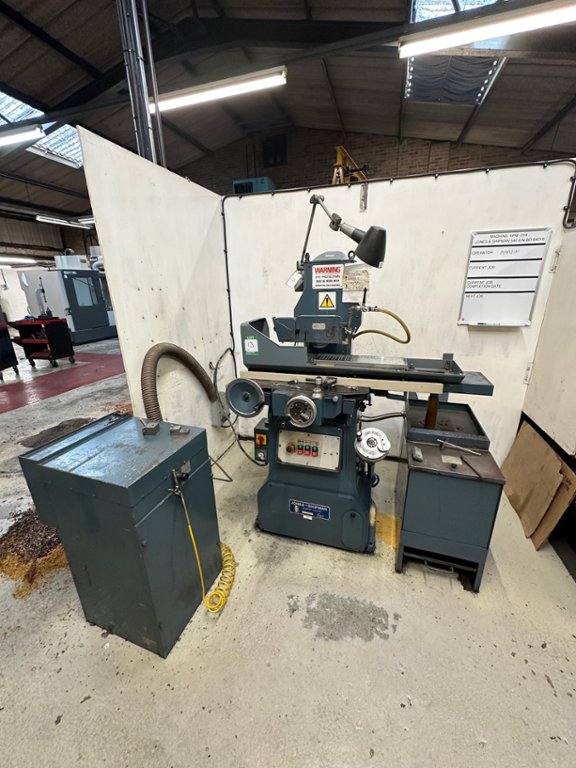

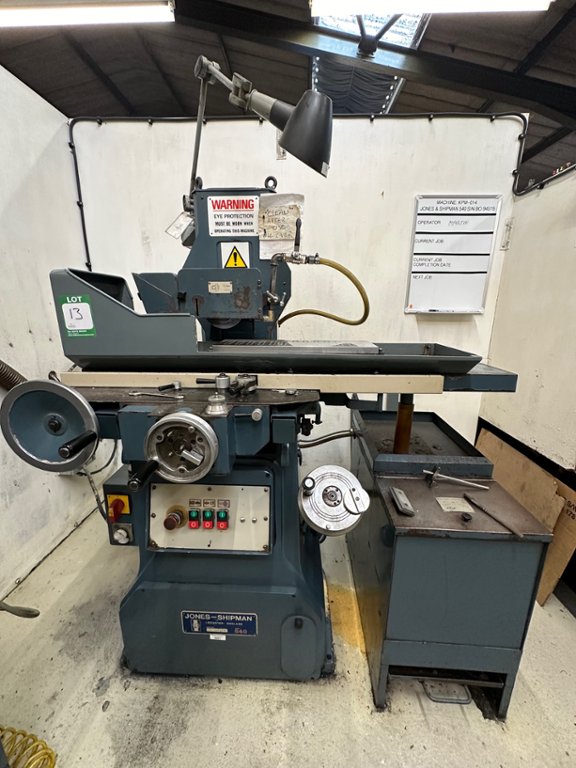

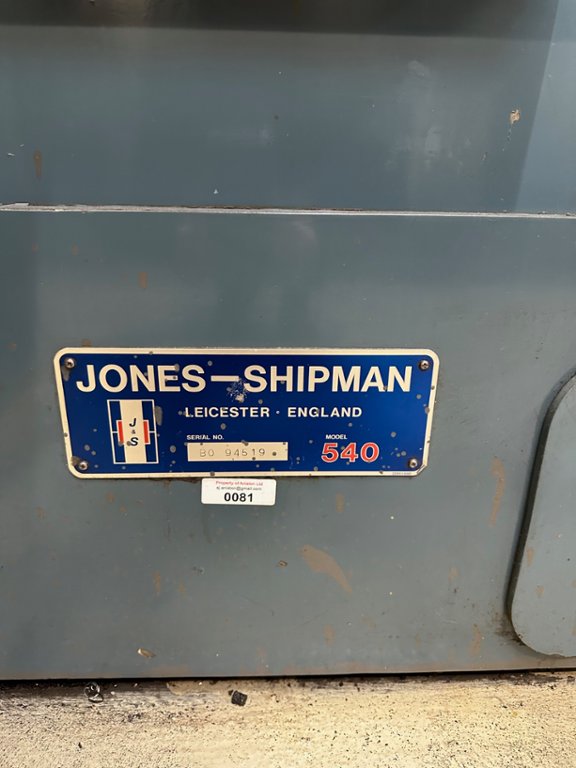

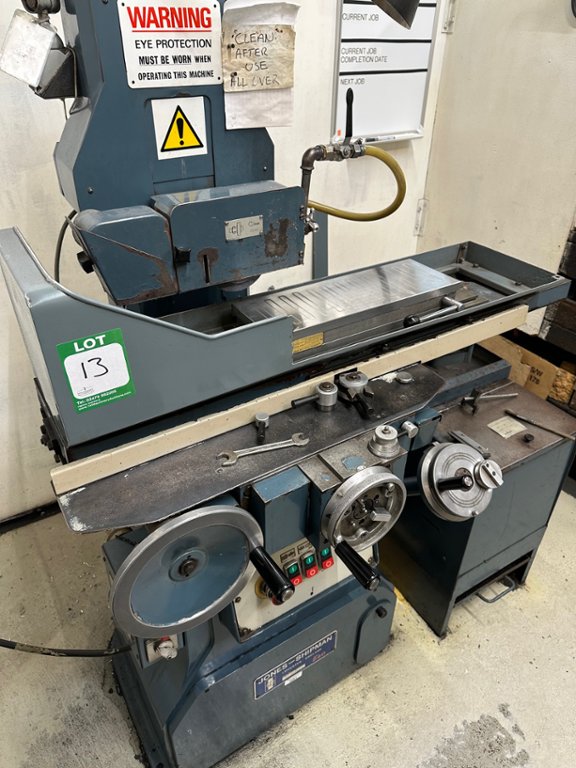

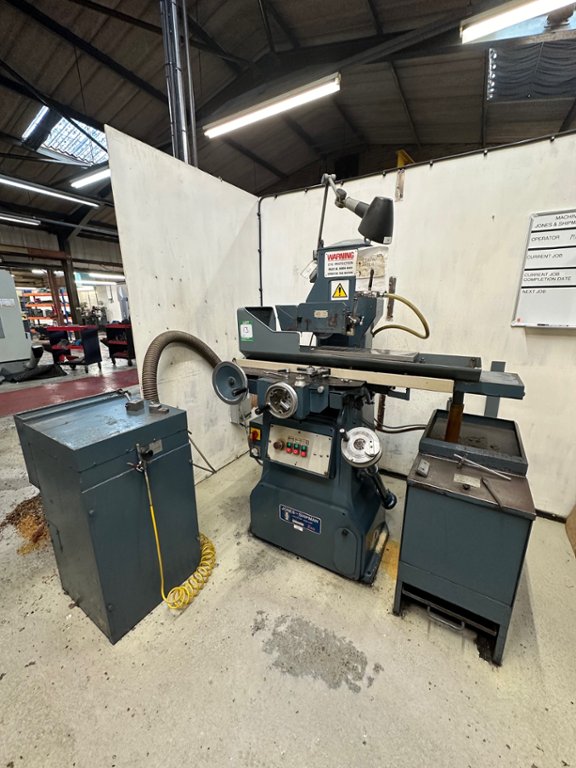

Jones & Shipman 540 Surface Grinder

Lot 13 - Jones & Shipman 540 Surface Grinder

Description:

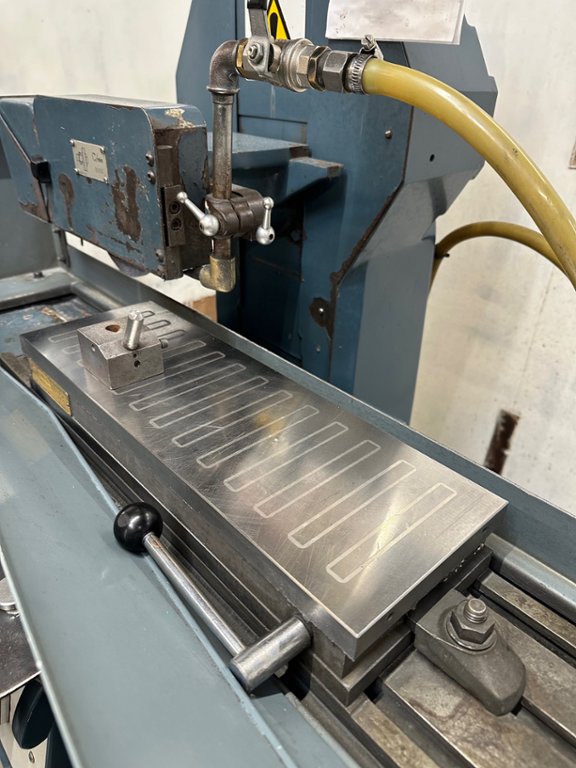

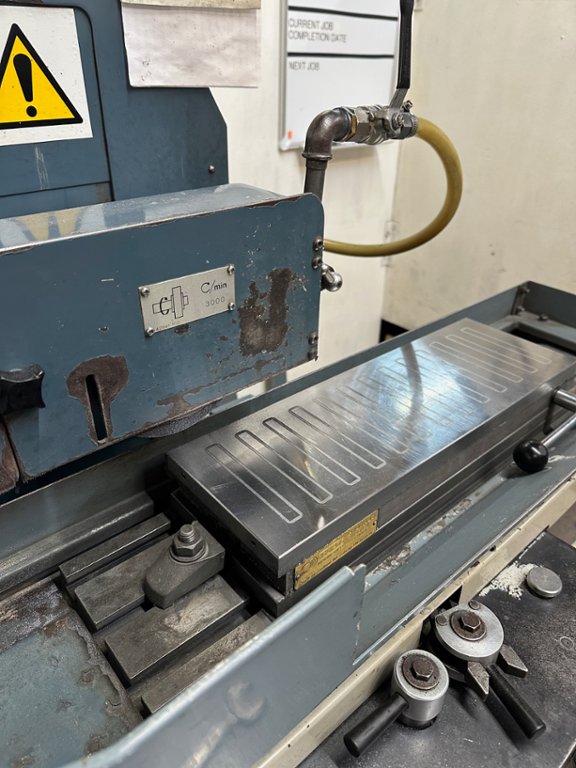

Eclipse Magnetic Chuck - 18" x 6"

Working Surface of table 457 x 152mm
Longitudinal traverse of table, hand and hydraulic 483mm
Total cross traverse of table, hand and hydraulic 168mm
Floor to table height 1035mm
Table traverse speed range per min 1.5 – 18m
Cross feed range per stroke at each reversal 0.178 – 1.78mm
Micrometer cross feed graduated in Vertical feed adjustment in increments of 0.002mm
Vertical movement of wheelhead (max) 280mm
Wheel spindle center to table (min) 50mm
Size of grinding wheel 180 x 13 x 31.75mm bore
Speed of wheel 2880rpm
Wheelhead motor 1.5kW
Hydraulic pump motor 0.55kW

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
