Jones & Shipman Format 15-700 CNC Grinder

Lot 21 - Jones & Shipman Format 15-700 CNC Grinder

Description:

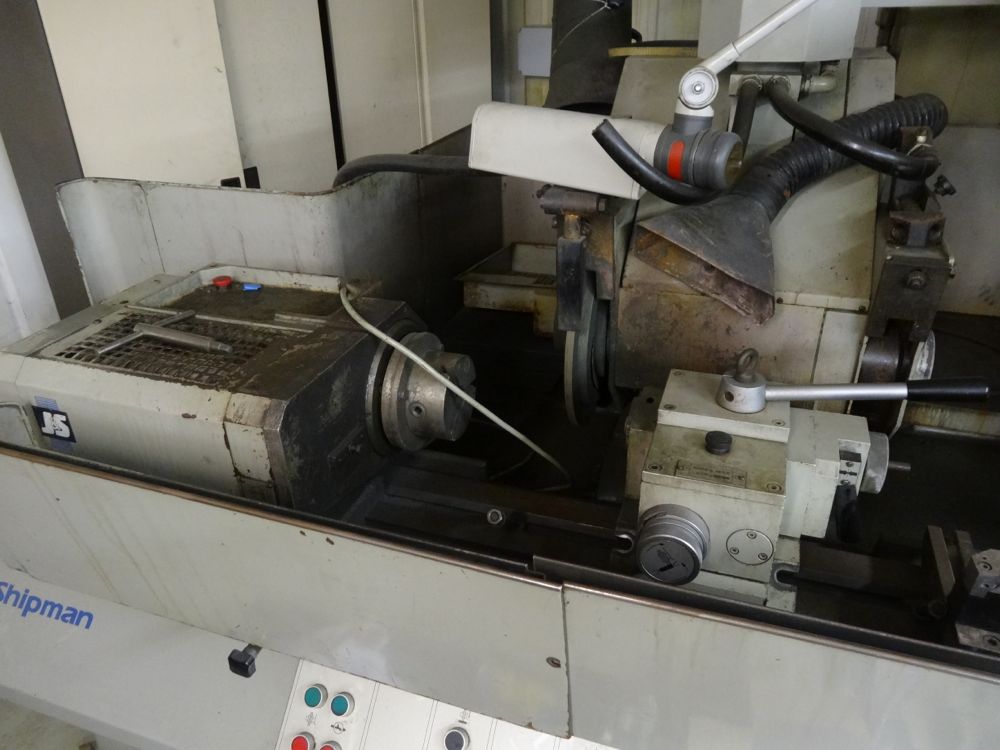

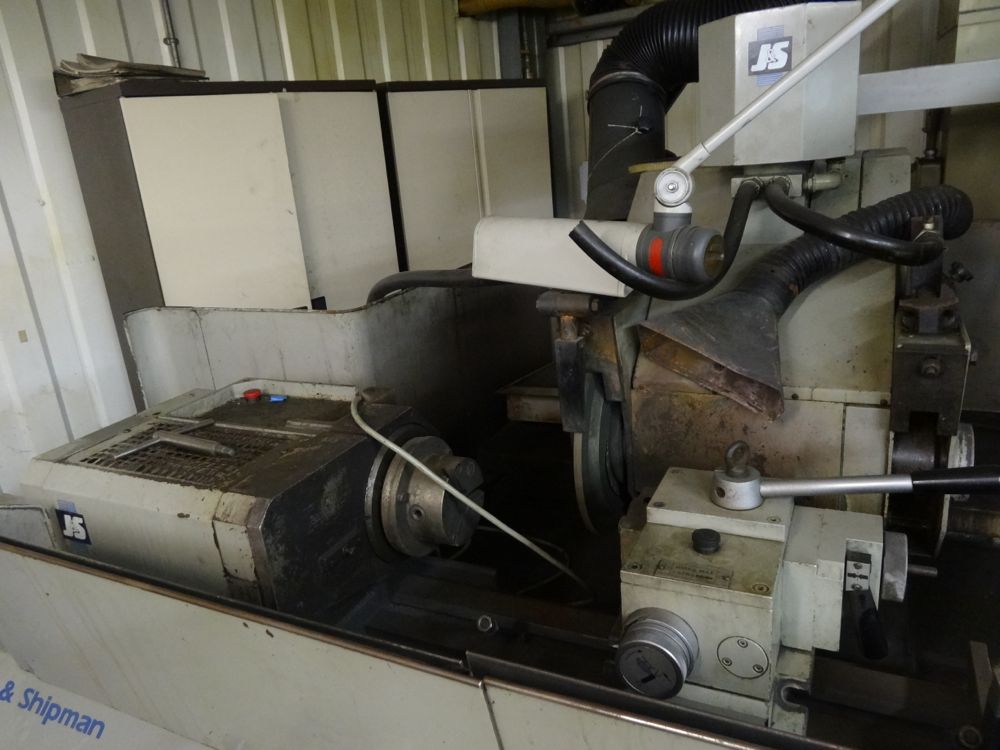

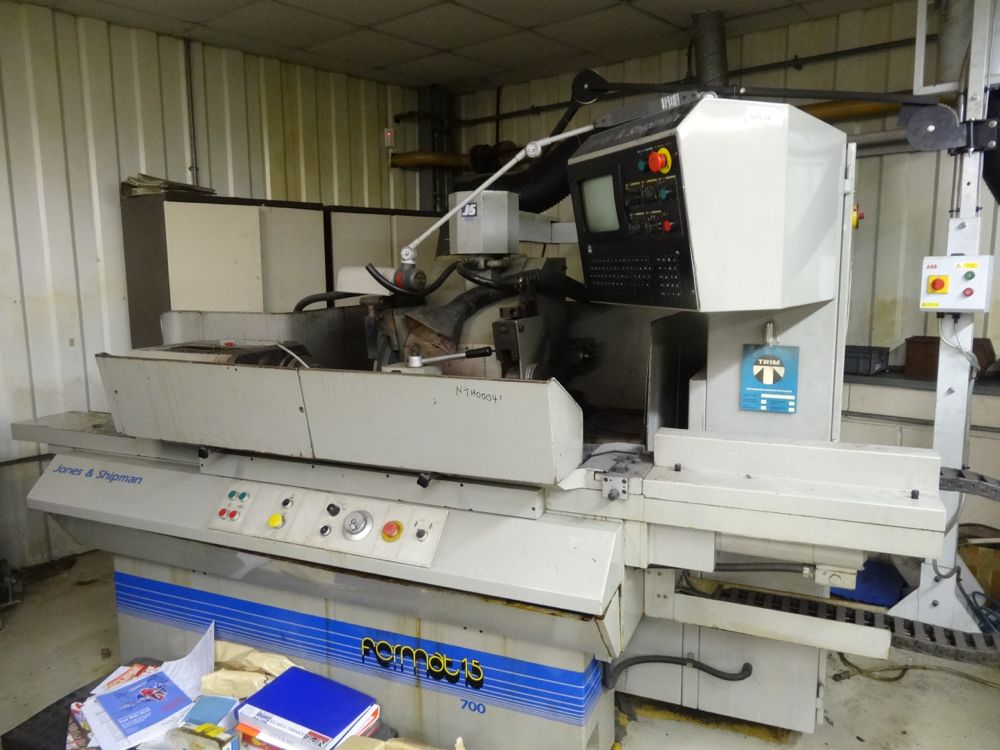

Jones & Shipman Format 15 - 700 CNC Universal grinder
May have Issue with controller, Not under power

Had £12,000 spent on a Head rebuild by Jones and Shipman in 2012/13

Specification

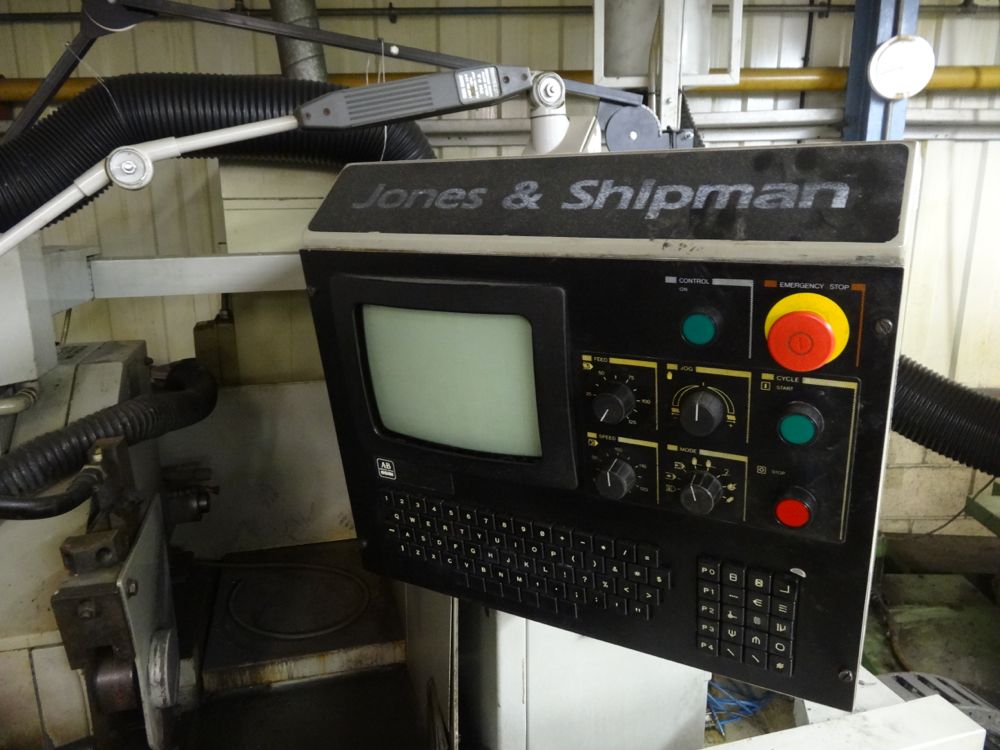

Allen Bradley CNC Control

Capacity
Maximum Diameter Ground 250mm
Distance between Centres 750mm
Centre Height 127mm
Maximum Weight Between Centres 100kgs

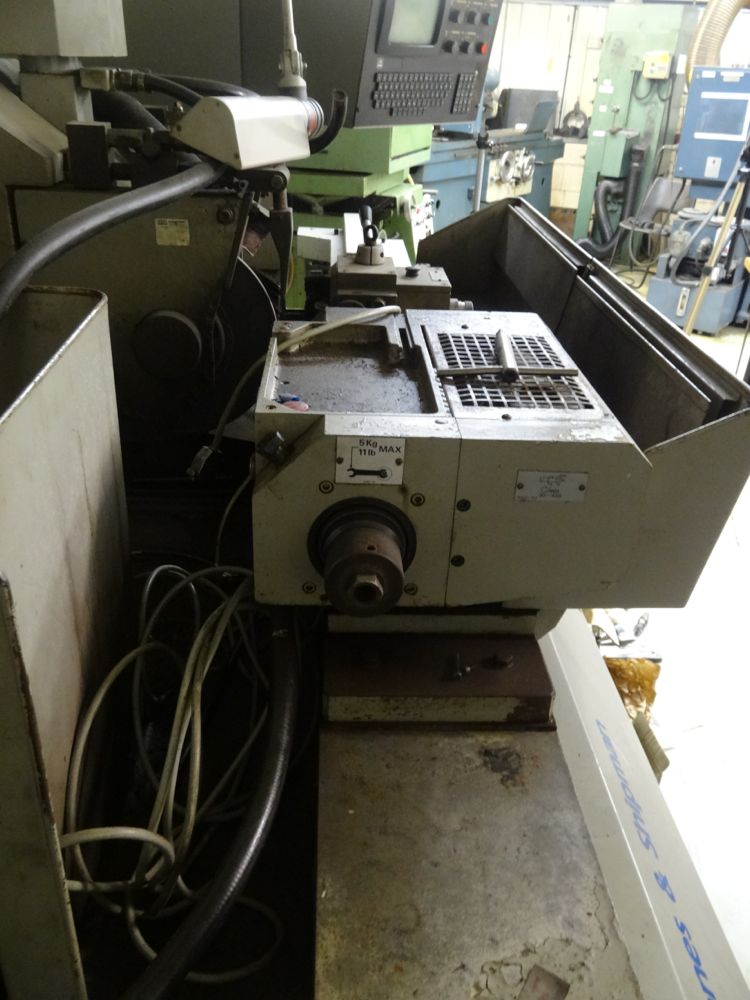

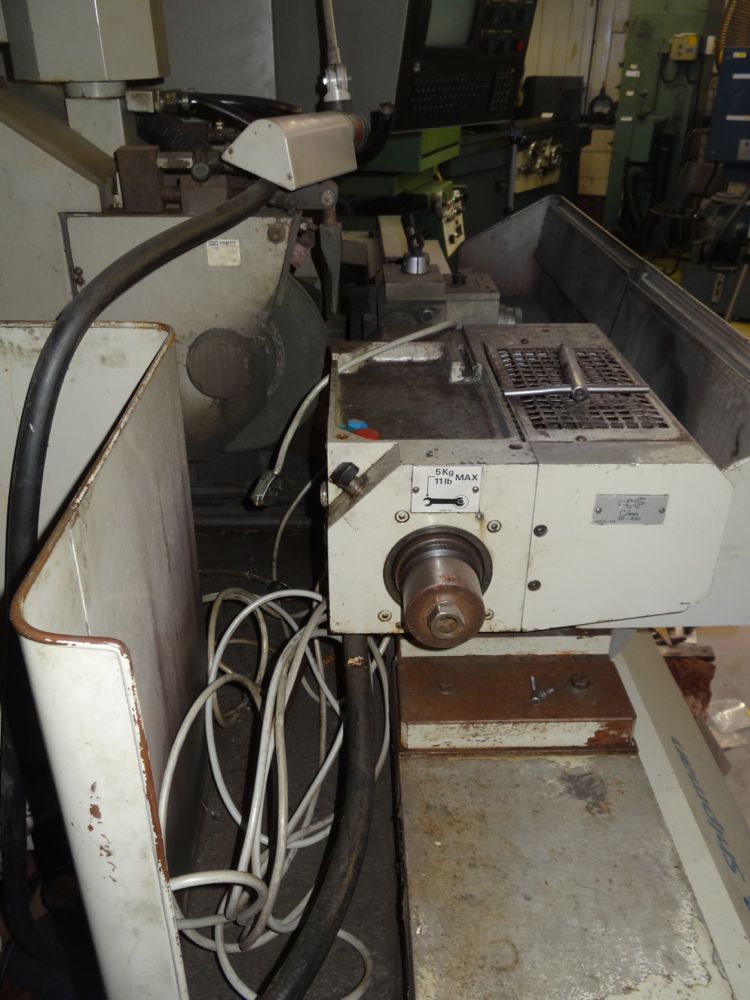

Workhead
Fixed base, dead centre type
Speed range 30 to 450rpm
(continuously variable) Centre 5MT
D.C Motor 1.1kW
Swivel angle + & - 15
Swivel encoder resolution (option) 0.001

Table (Z Axis)
Traverse Speed 0.06 to 120000mm/min
Min programmable increment 0.001
Servo input resolution 0.001mm
Table swivel + & - 16 & 18 degrees
Swivel encoder resolution (option) 0.001

Wheelheads (X axis)
Total in feed 205mm
Infeed speed 0.006 to 6000mm/min
Min programmable increment 0.001
Servo input resolution 0.001mm
Grinding Wheel Size 450mm x 50 x 127mm bore
Wheel speeds (2) 1400 & 1689rpm Motor 5.5kW

External Grinding Wheels
Wheel size (left) 350 x25 x 127mm bore
Wheel size (right) 300 x25 x 127mm bore
Wheelspindle speeds (3) 2395 – 2068 & 115rpm
Motor 4kW

Internal Grinding Wheels
Wheel size 12-38mm
Wheelspindle capacity (bores,min to max) 19-50mm
Wheelspindle speeds 16 – 500rpm Motor 1.1kW

Location: Neath

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
