Lot 23 - Jones & Shipman Promat 10-700-AB CNC Cylindrical Grinder

Description:

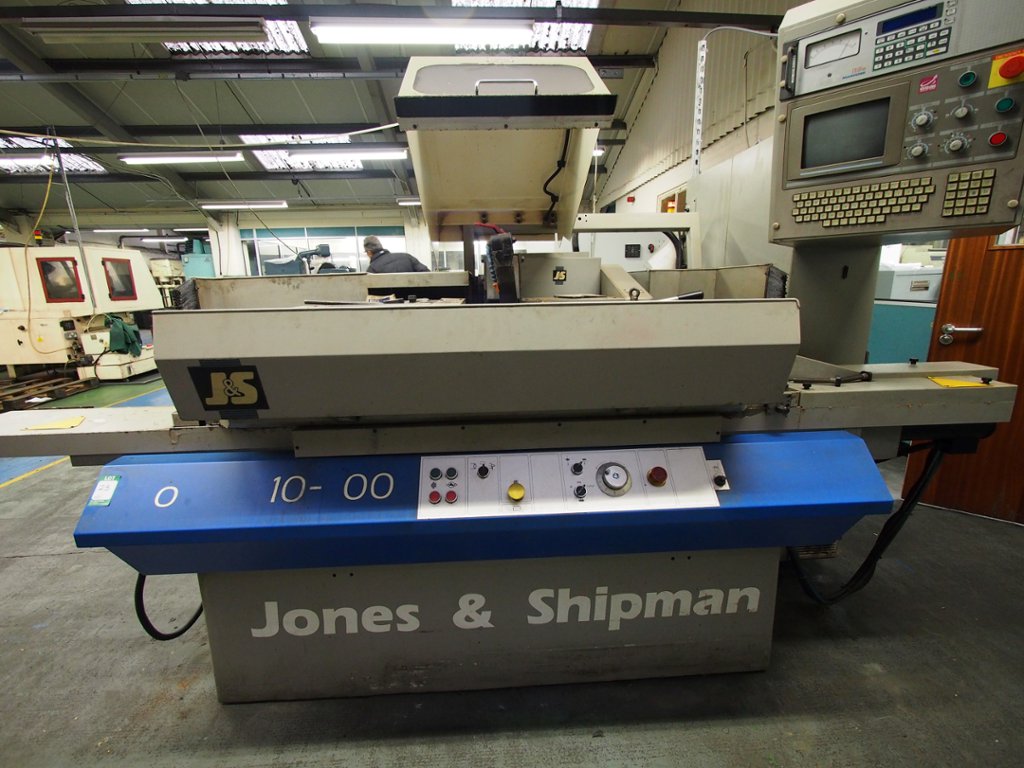

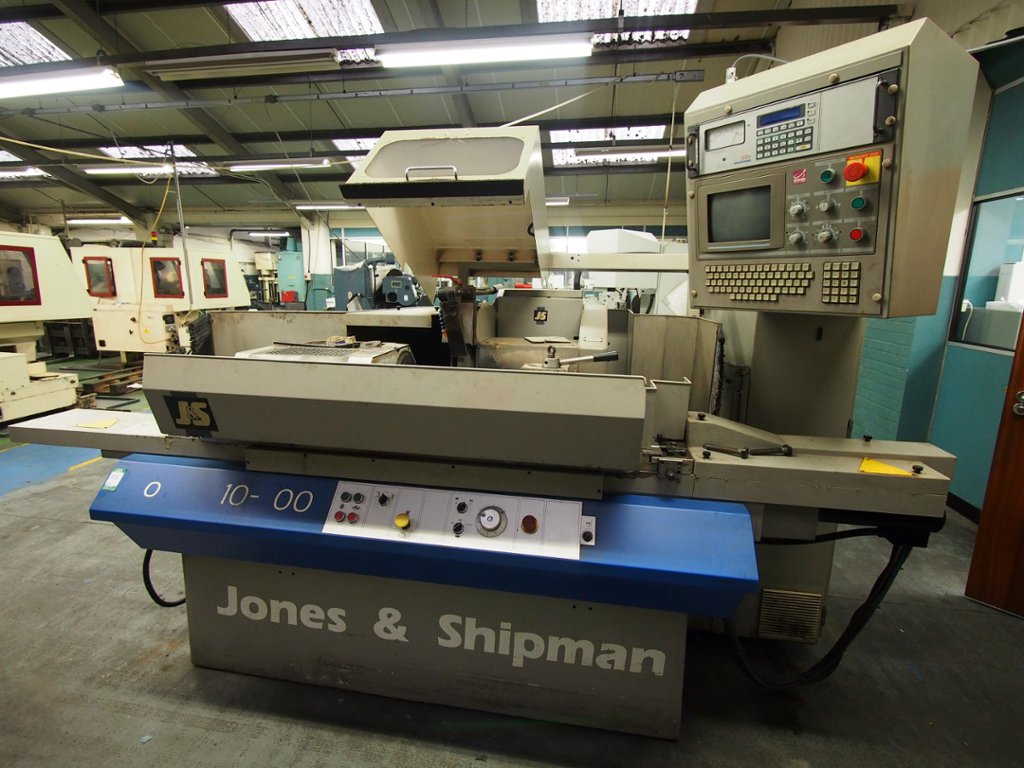

Jones & Shipman Promat 10-700-AB CNC Cylindrical Grinder

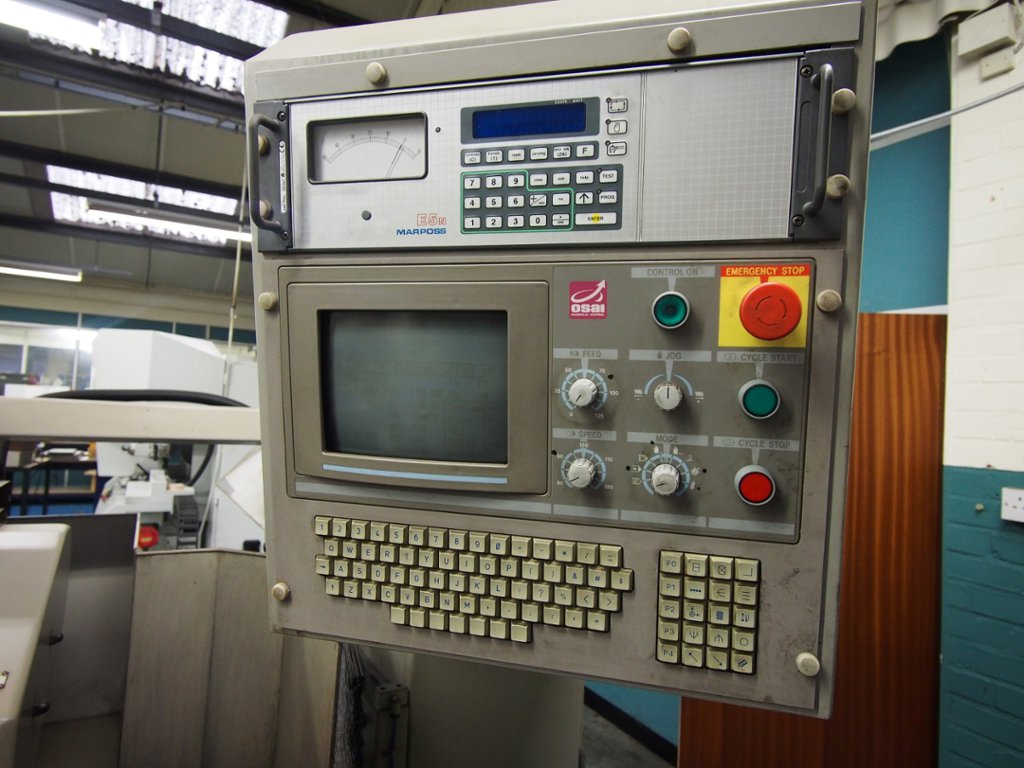

Allen Bradley 8601G CNC Control

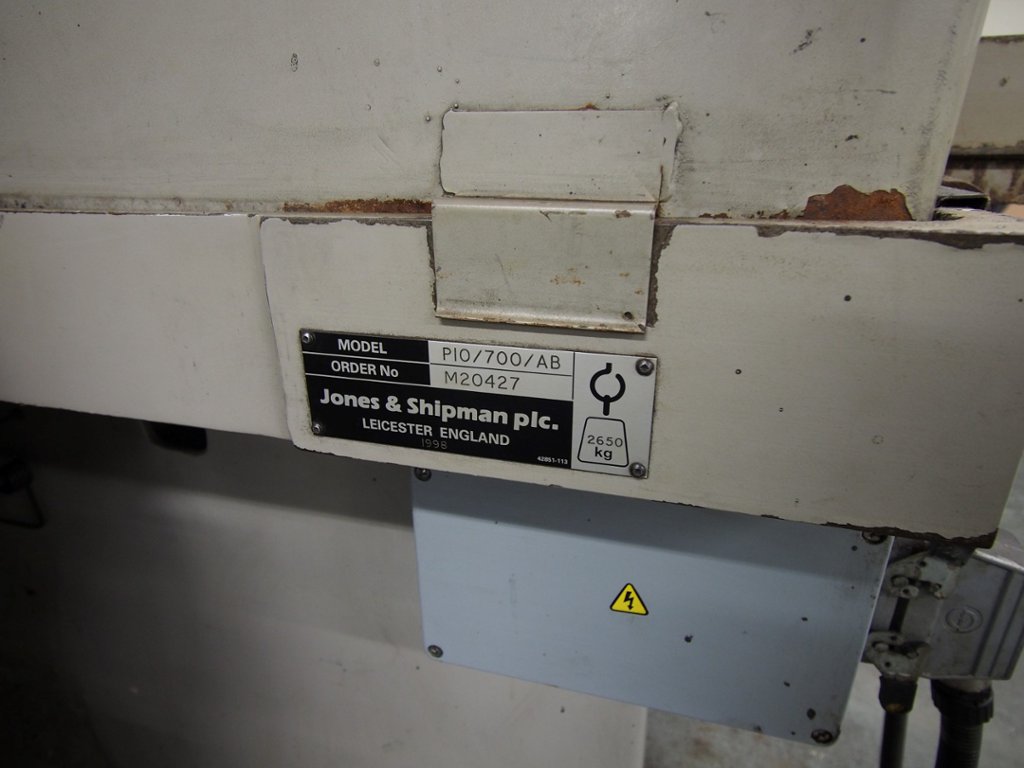

Serial number M20427

Capacity
Maximum Diameter Ground 250mm
Distance between Centres 700mm
Centre Height 127mm
Swing 254mm

Workhead
Speed range 40 to 450rpm
(continuously variable) Centre 5MT
D.C Motor 1.1kW
Swivel angle + & - 15
Swivel encoder resolution (option) 0.001
Table (Z Axis)
Traverse Speed 0.06 to 12000mm/min
Min programmable increment 0.001
Servo input resolution 0.001mm
Table swivel + & - 16 & 18 degrees
Swivel encoder resolution (option) 0.001
Wheelheads (X axis)
Total in feed 205mm
Infeed speed 0.006 to 6000mm/min
Min programmable increment 0.001
Servo input resolution 0.001mm
Grinding Wheel Size 450mm x 50 x 127mm bore
Wheel speeds (2) 1400 & 1689rpm Motor 5.5kW
Motor 4kW

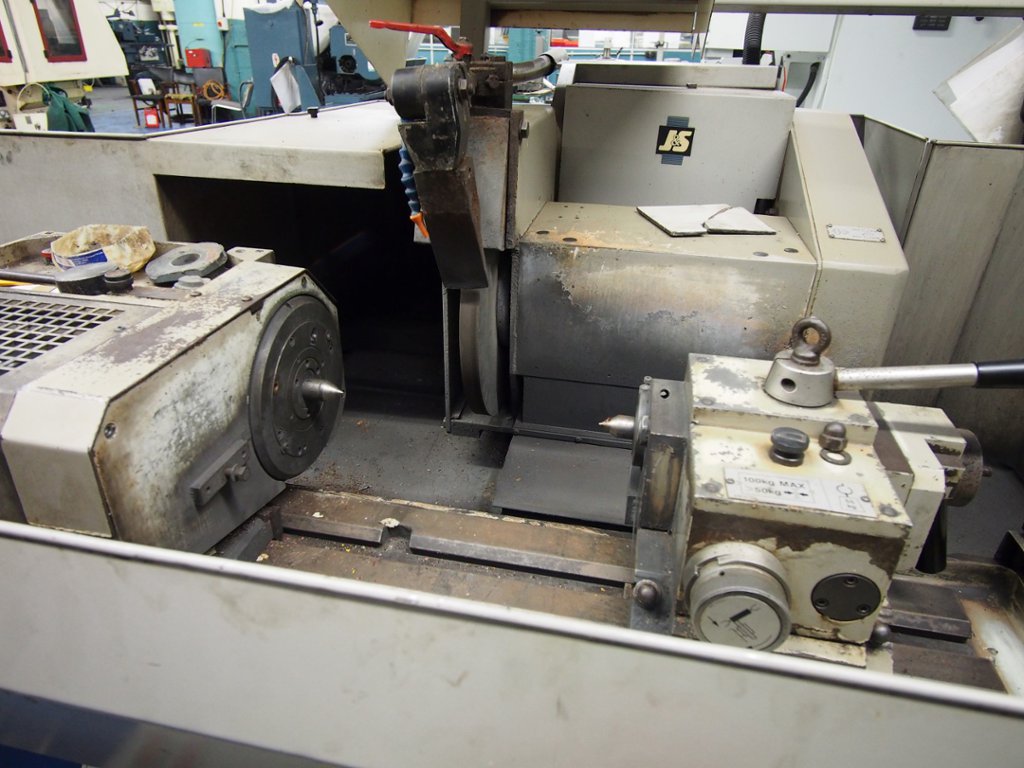

Swivel workhead
Tailstock with manually adjusting taper control

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
