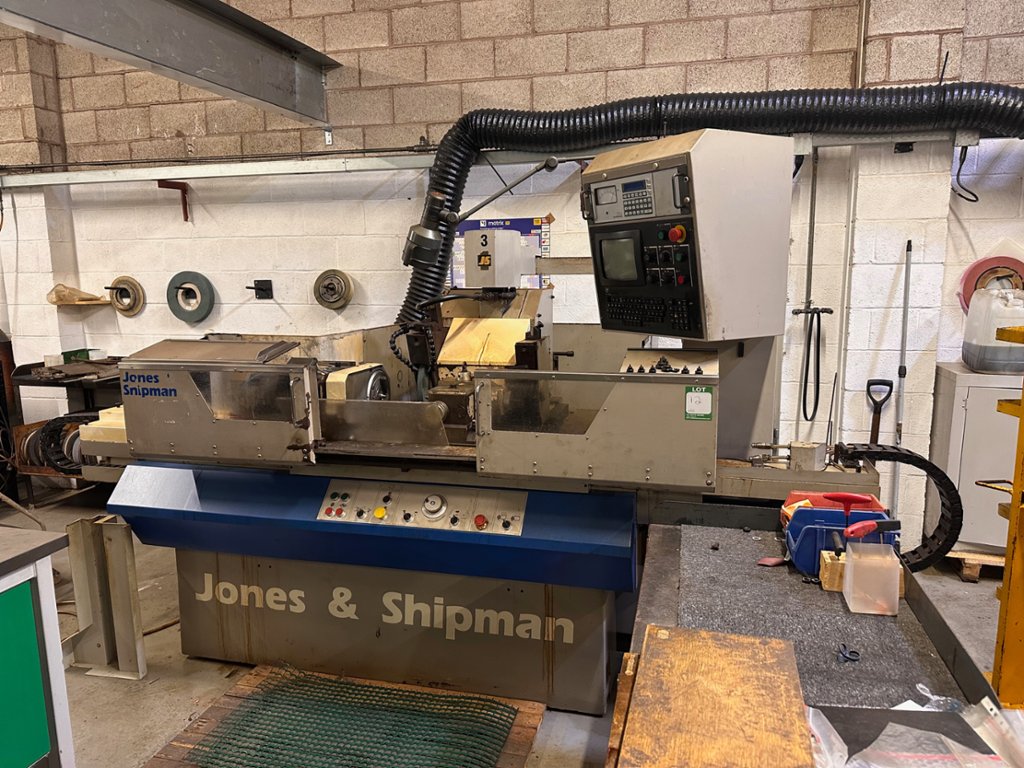

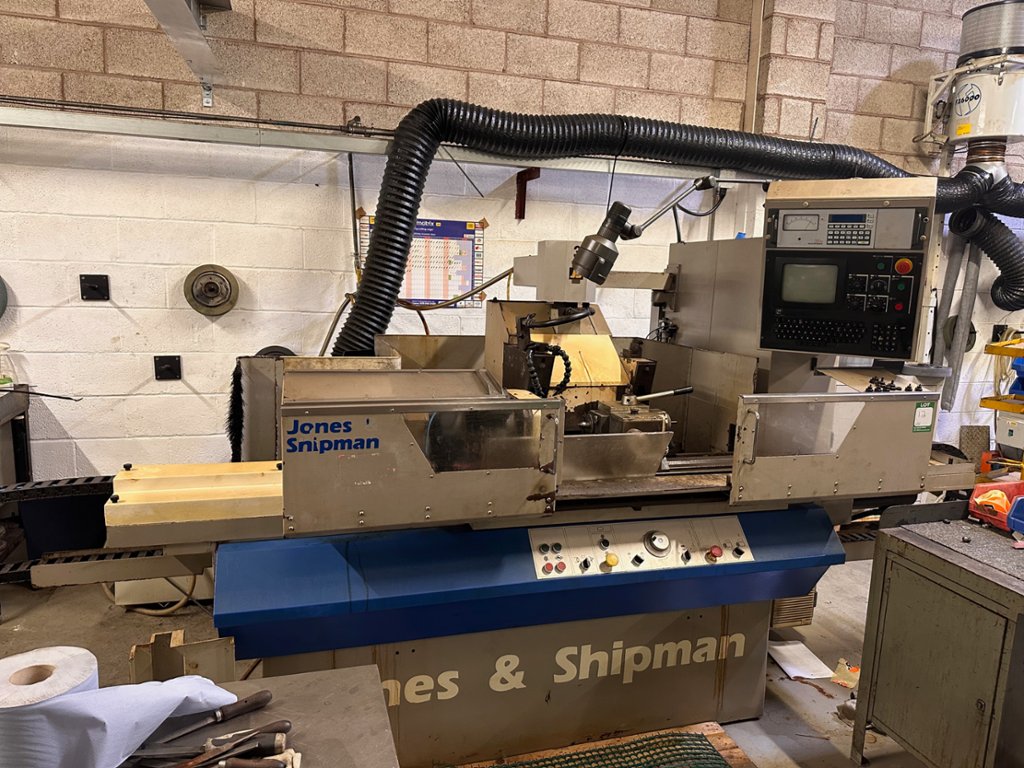

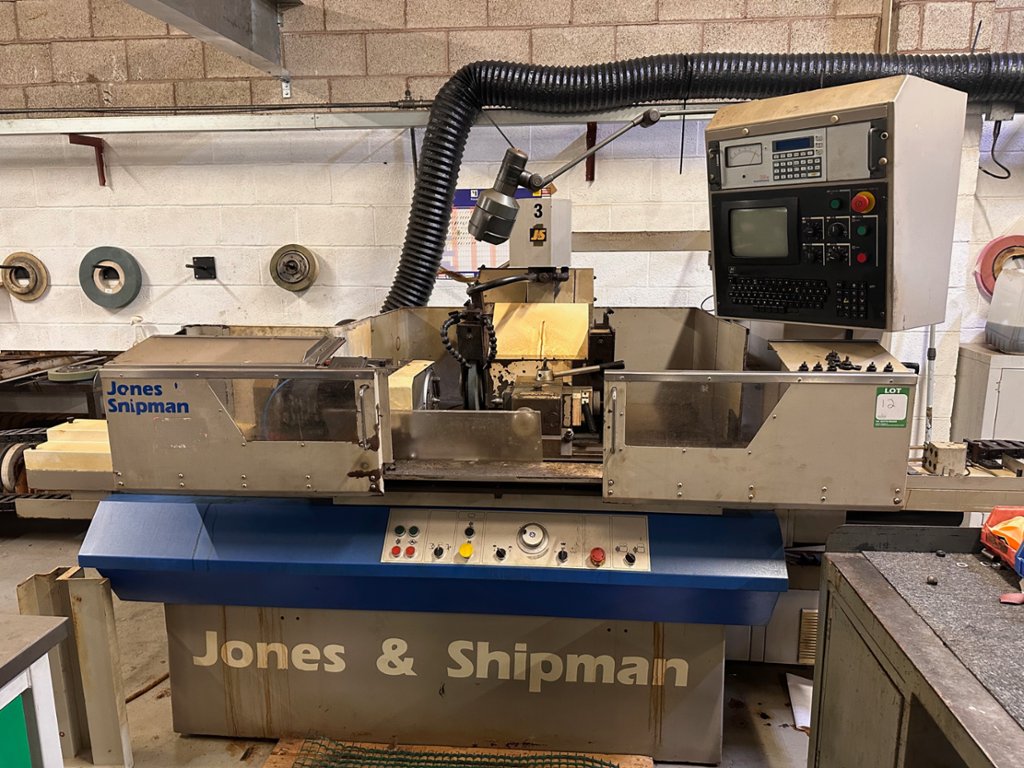

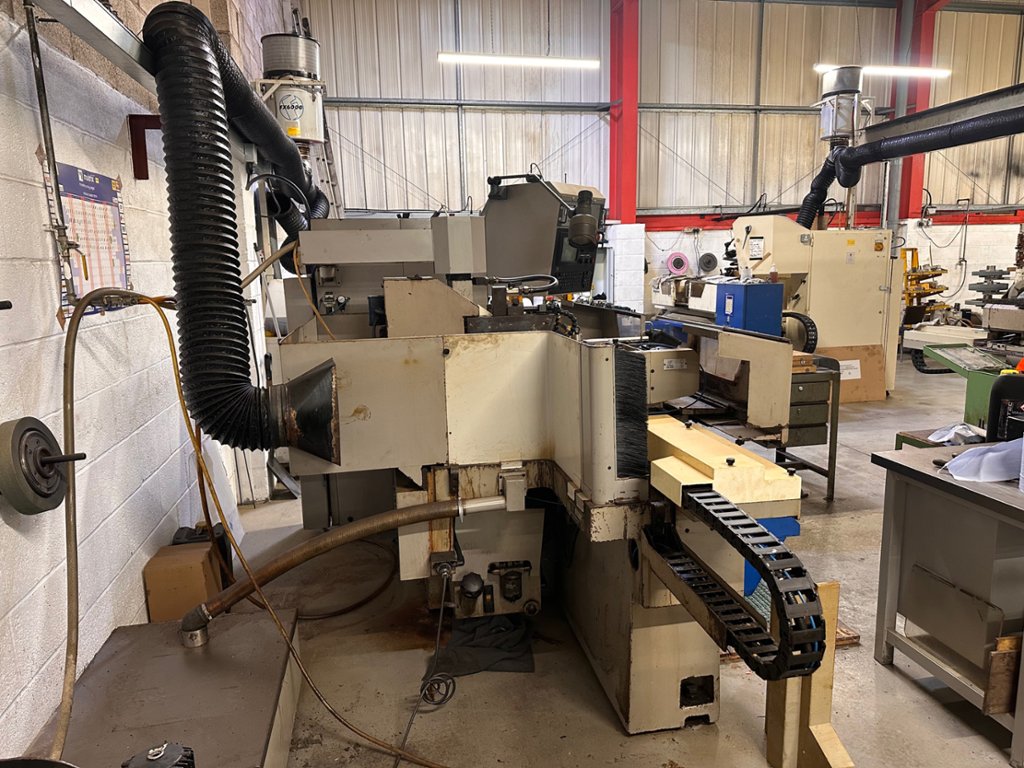

Jones and Shipman F15-700m CNC Universal Cylindrical Grinder

Lot 12 - Jones and Shipman F15-700m CNC Universal Cylindrical Grinder

Description:

Component Capacities

Maximum Distance Between Centres: 700 mm to 750 mm (approx. 27.5"), Centre Height: 127 mm (5"), Maximum Grinding / Swing Diameter: 250 mm (9.45"), Maximum Workpiece Weight between Centres: 100 kg (220 lbs)

Workhead & Table Axis Feeds

Workhead Speed Range: Continuously variable from 30 to 450 RPM, Workhead Spindle Taper: Morse Taper 5 (5MT) dead/live centre configuration, Workhead Swivel Range: ±15° to ±90° (depending on toolroom configuration options), Table (Z-Axis) Traverse Speed: Fast hydraulic/servo traverse speeds up to 12,000 mm/min, Minimum Programmable Increment: Precise linear steps down to 0.001 mm (1 micron).

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
