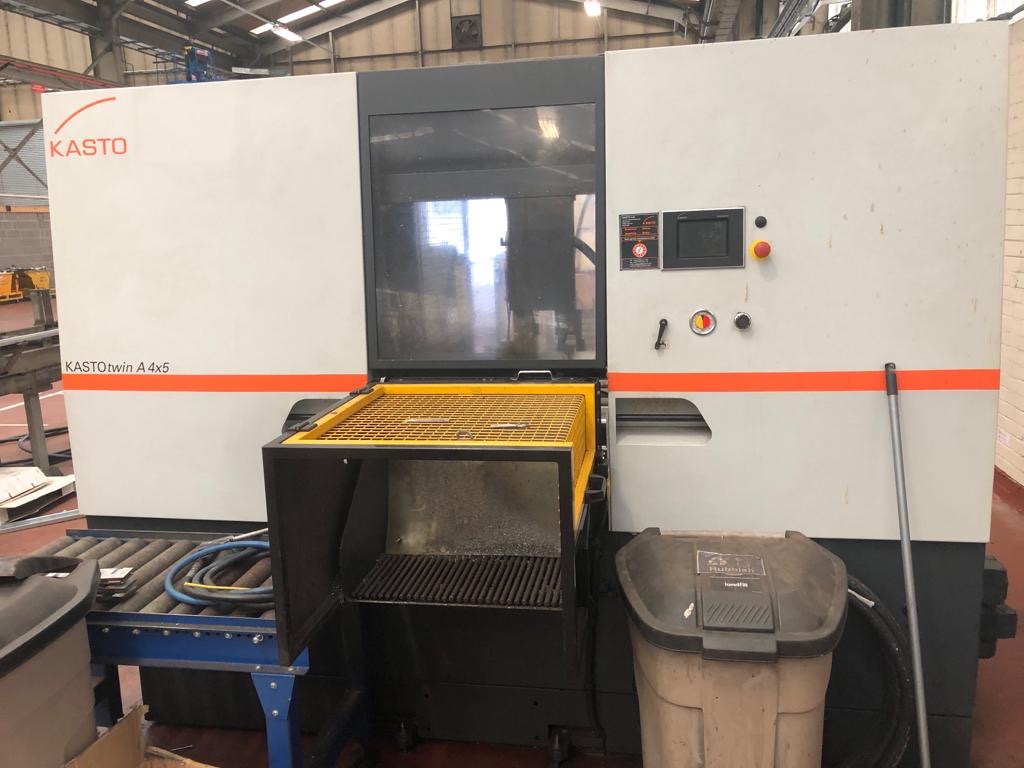

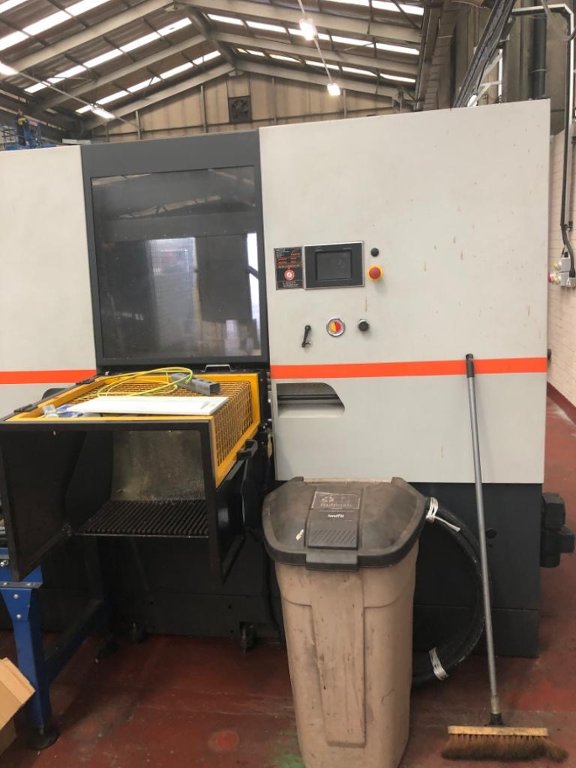

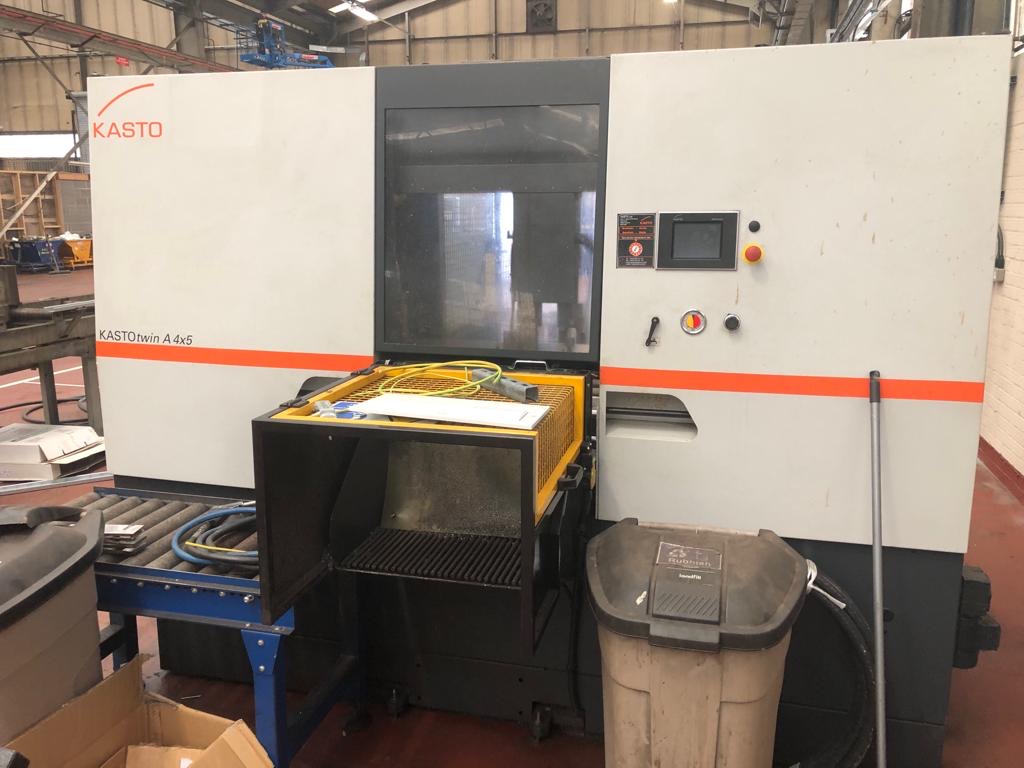

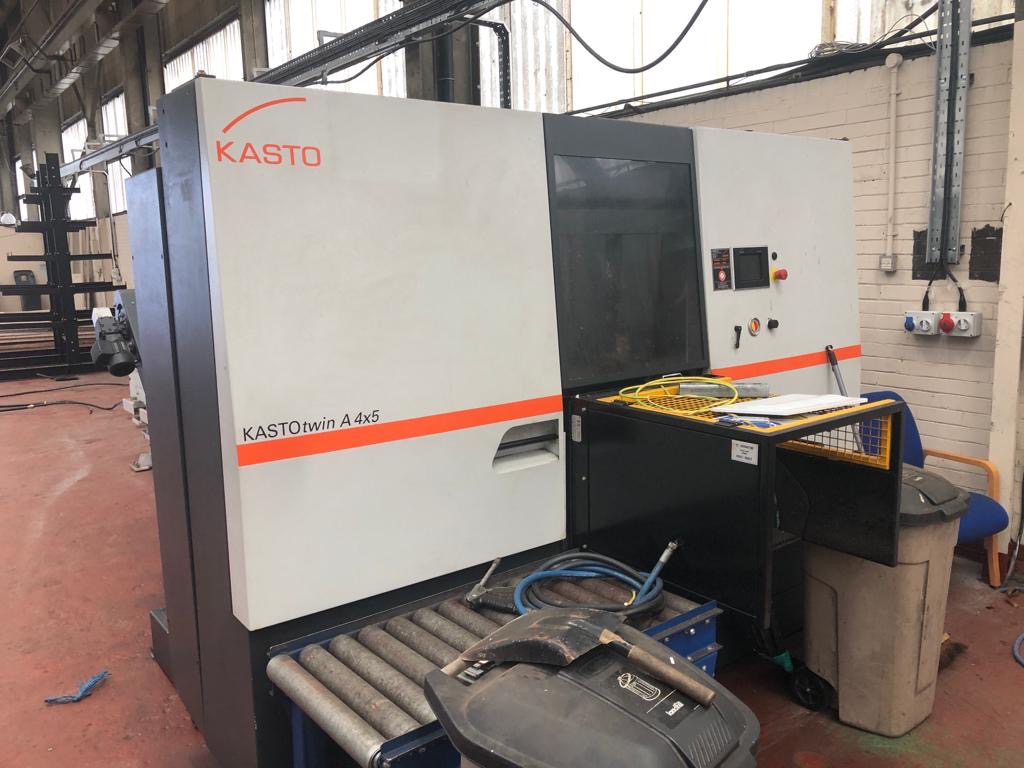

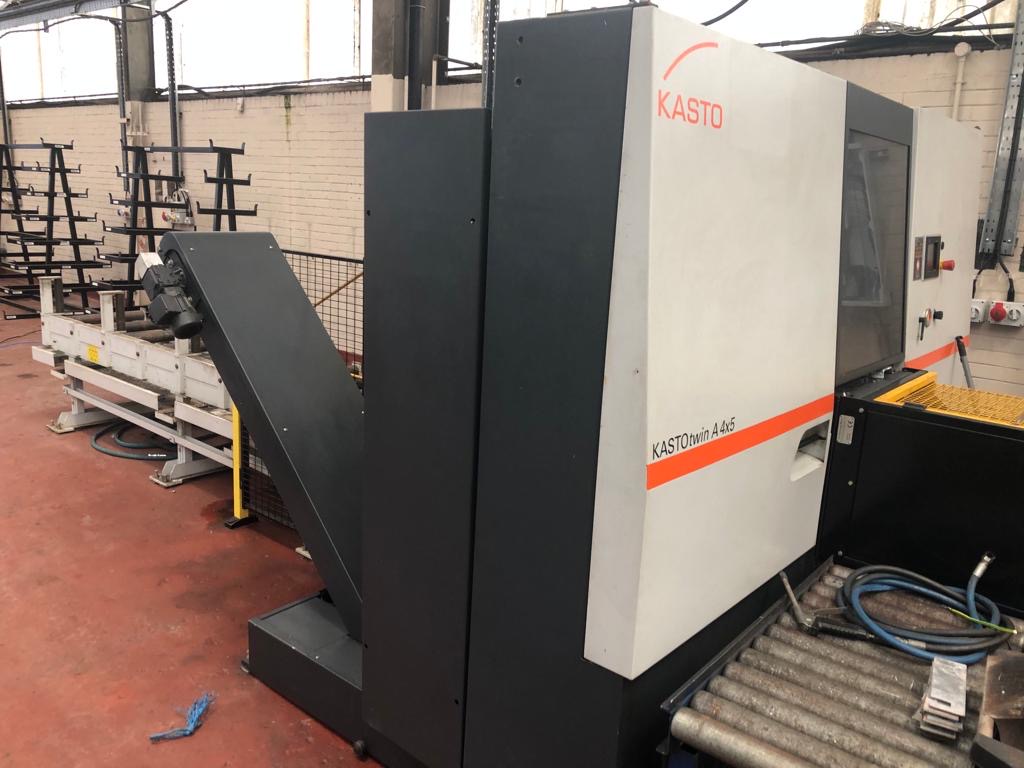

Kasto Twin A 4x5 is a Heavy Duty, Double Column, High Performance Bandsaw (2012)

Lot 1 - Kasto Twin A 4x5 is a Heavy Duty, Double Column, High Performance Bandsaw (2012)

Description:

440 x 520 mm cutting capacity

(offering rugged cutting performance when processing solids, tubes and profiles, including tough alloys)

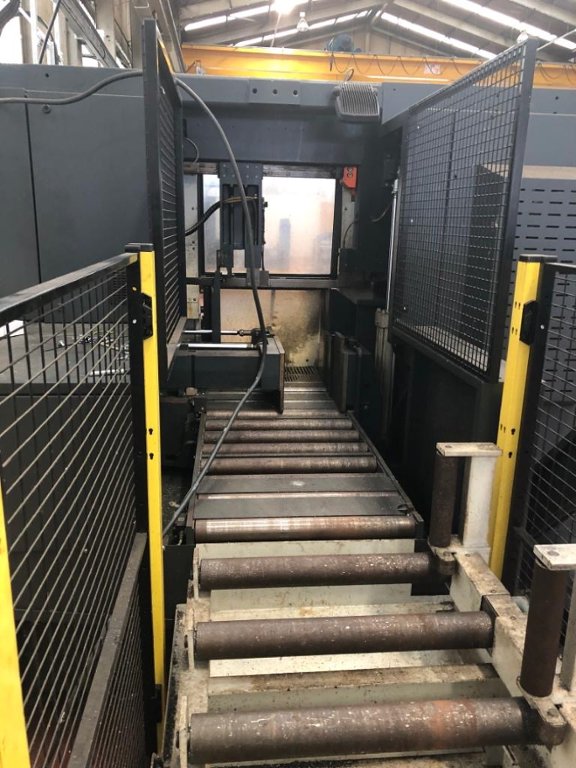

The 850 mm infeed stroke of the material is driven by a ballscrew for accurate positioning. Cut lengths shorter than 250 mm can be achieved using an incremental feed feature that reduces cycle times and increases output. Material height is detected automatically. To achieve optimum results when cutting different types and shapes of material, the machine is equipped with a frequency controlled saw blade drive with infinitely adjustable cutting speed from 15 to 150 m/min. The hydraulic downfeed valve can be set for constant infeed rate, constant cutting force, or a combination of the two. Carbide band guides with anti-vibration rollers and heavy duty guide arms contribute to the high precision and longevity of the 38 mm wide. Hydraulic saw blade tensioning is electrically monitored, with automatic pressure reduction. All functions of the KastoTwin A 4x5 are executed from the Kasto PLC system, Basic Control. This can store up to 99 programs, selectable by a keystroke, to define material size and type, length of billets and number required. Infeed and cutting cycles are automatic and require no operator involvement once the machine is set up and started.

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
