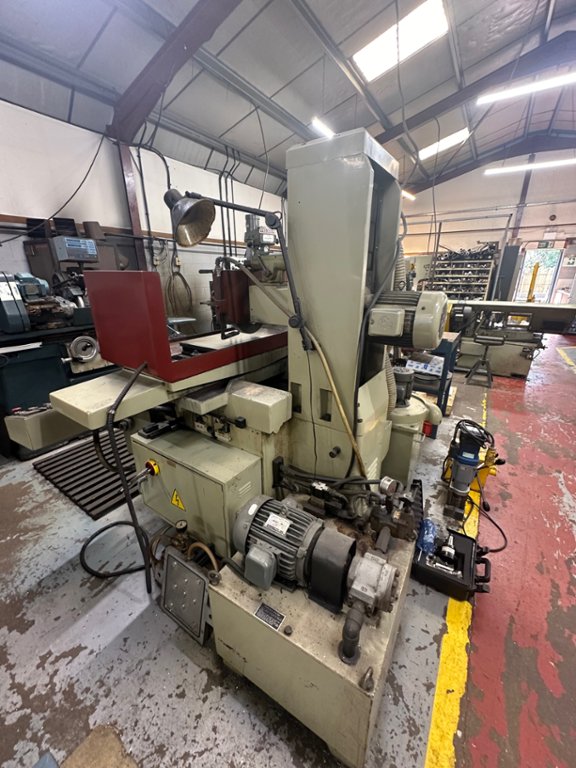

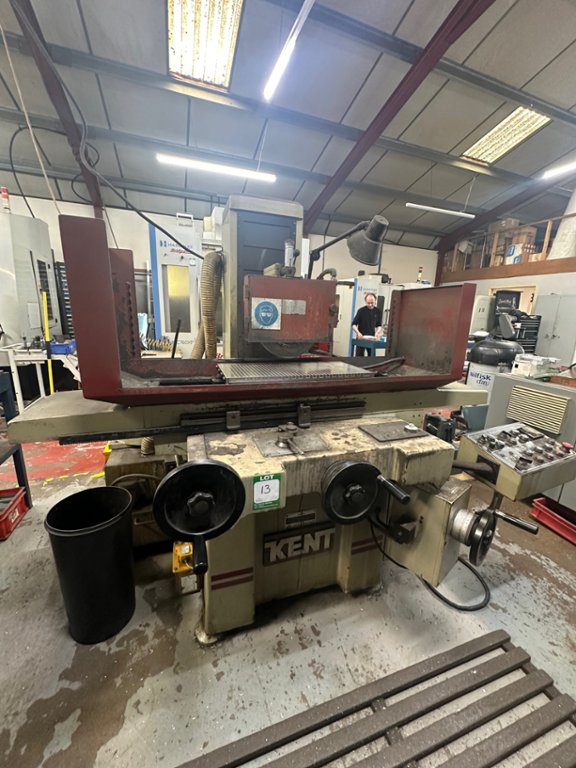

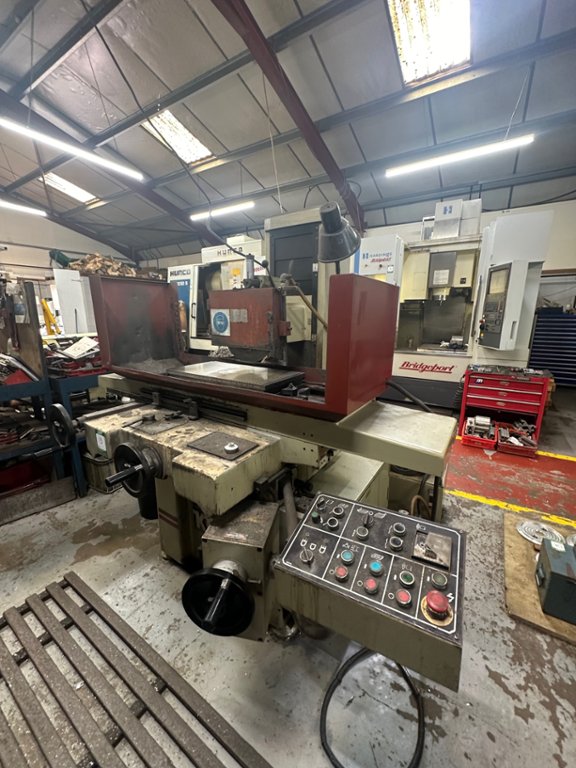

Lot 13 - Kent KGS-63AHD Hydraulic Surface Grinder (1990)

Description:

With 24" x 12" Magnetic Chuck

Table working surface 25 9/16" x 11 13/16"
Maximum table travel 29 1/8" x 14 9/16"
Maximum surface ground 25 1/2" x 12 5/8"
Maximum distance center of spindle to table 19 5/8"
Grinding wheel 14" x 1 1/2" x 5"
Spindle speed 1740 RPM
Automatic downfeed increments 0.0002" - 0.002"
Vertical downfeed on handwheel 1 revolution 0.02"
1 graduation 0.0002"
Table speed 6 - 72 FPM
Cross feed on handwheel 1 revolution 0.2"
1 graduation 0.001"
Power crossfeed of saddle 39 3/4 IPM
Automatic crossfeed increments 0.001" - 0.6"
Power head elevation 9 IPM
Spindle motor 5 HP
Hydraulic motor 2 HP

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Bid information

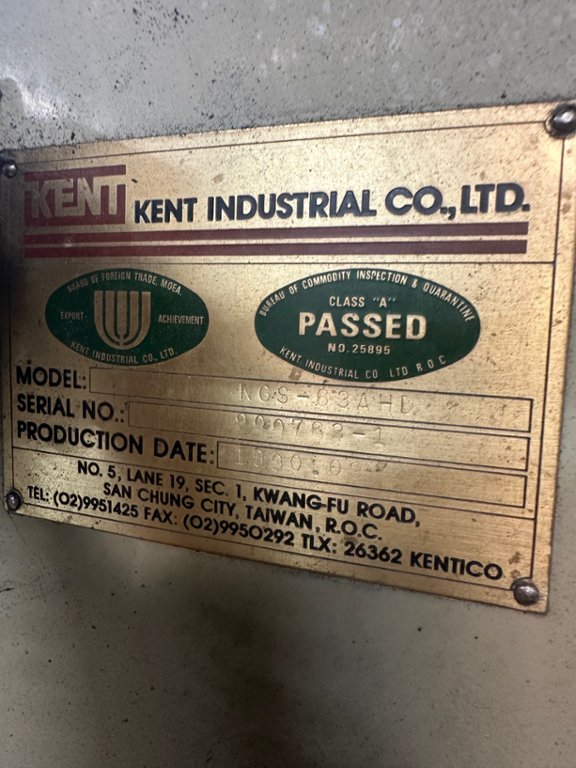

Serial Number: 900763-1

Location: Wantage

Transport information

• Width: 2540mm
• Depth: 2083mm
• Height: 1905mm
• Weight: 2132kg
• Other Transport Details: Drained & Loaded to suitable Transport : £250
