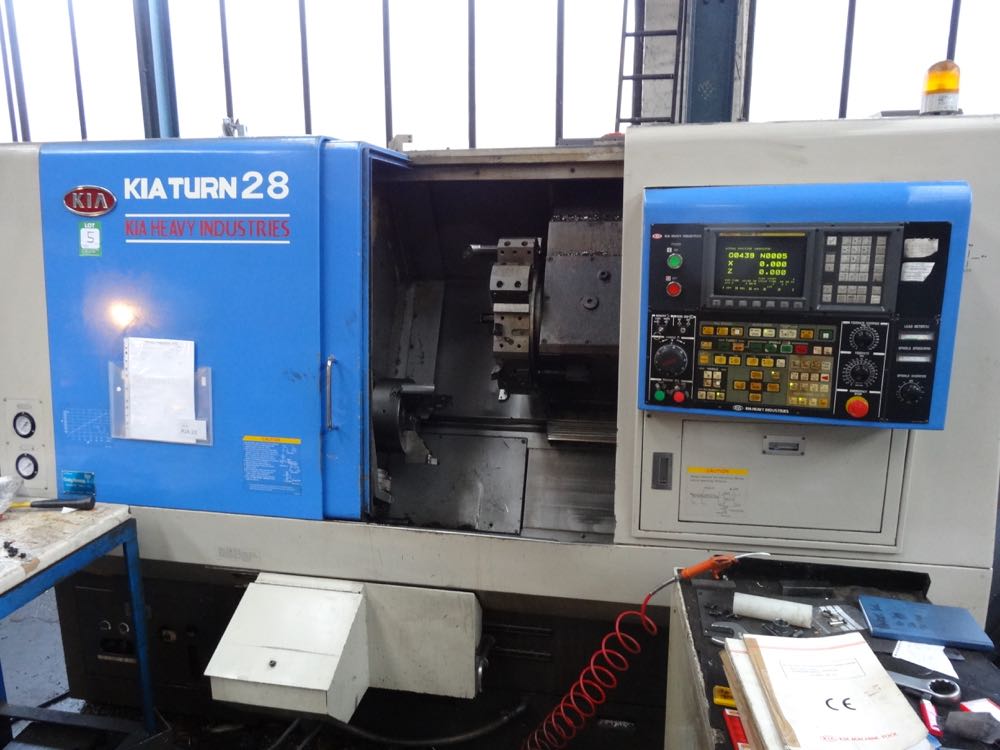

Lot 4 - Kia Turn 28 CNC Lathe

Description:

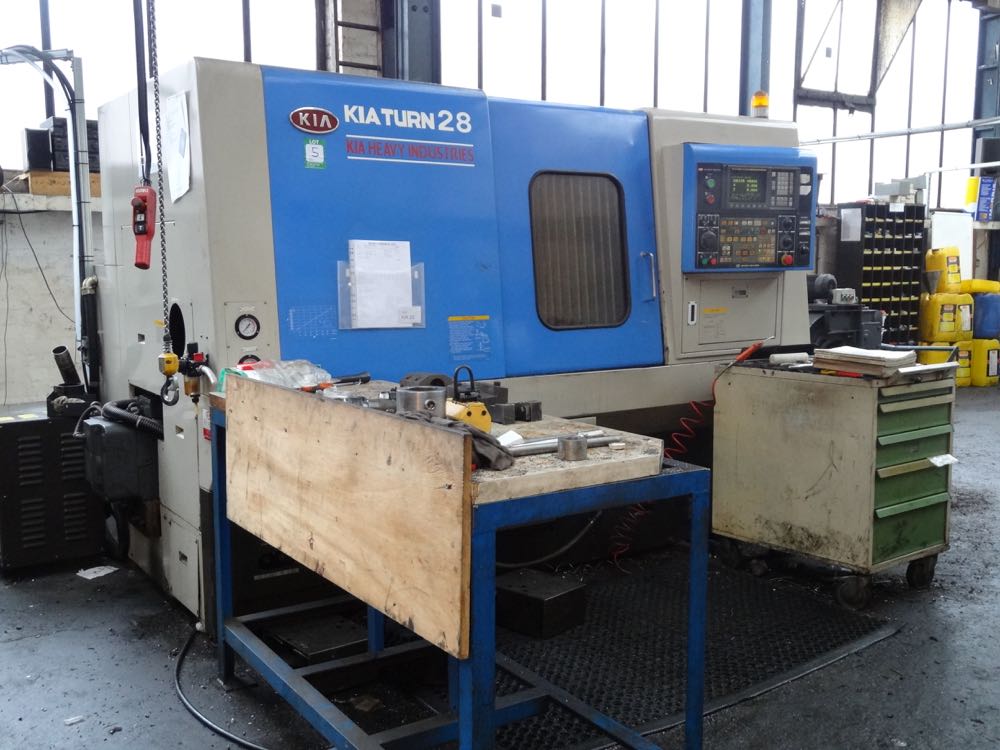

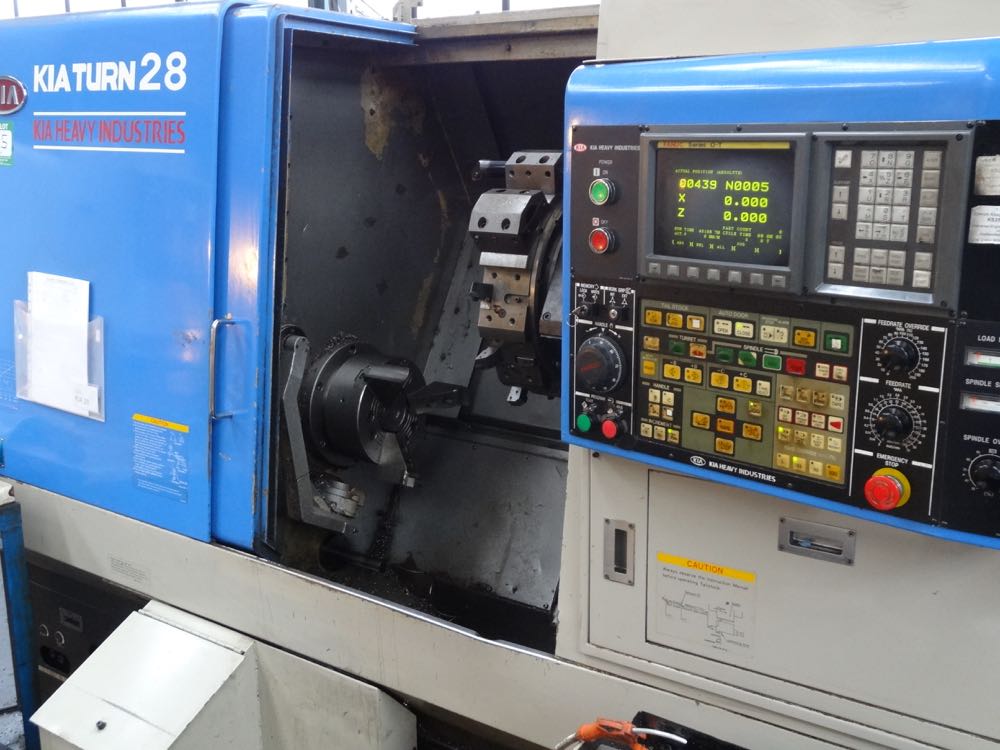

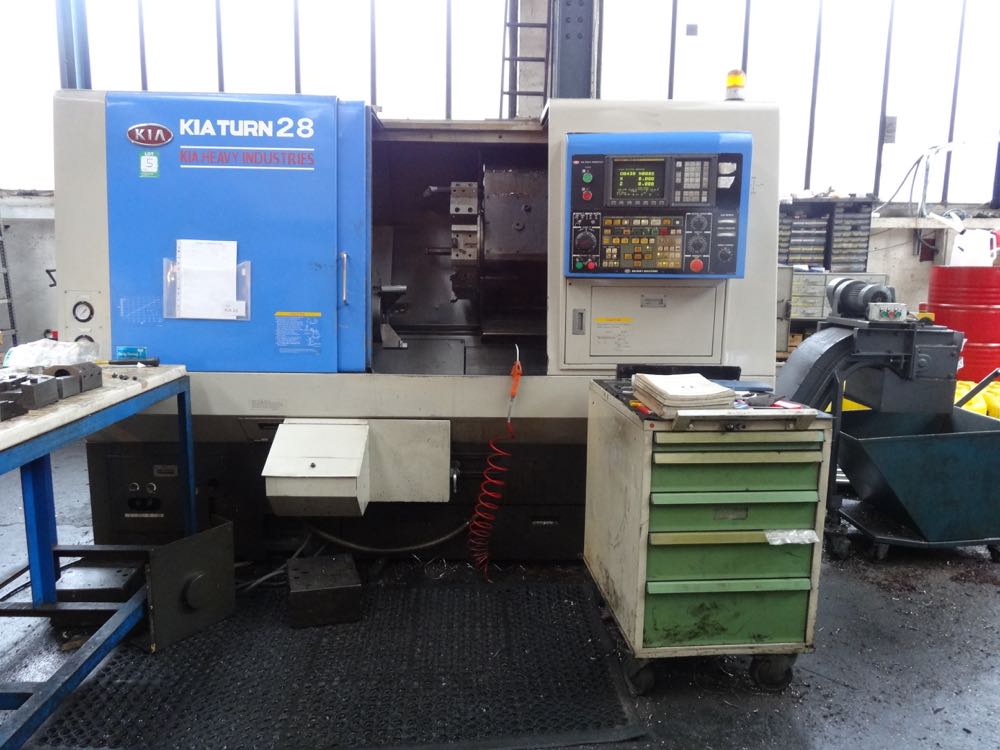

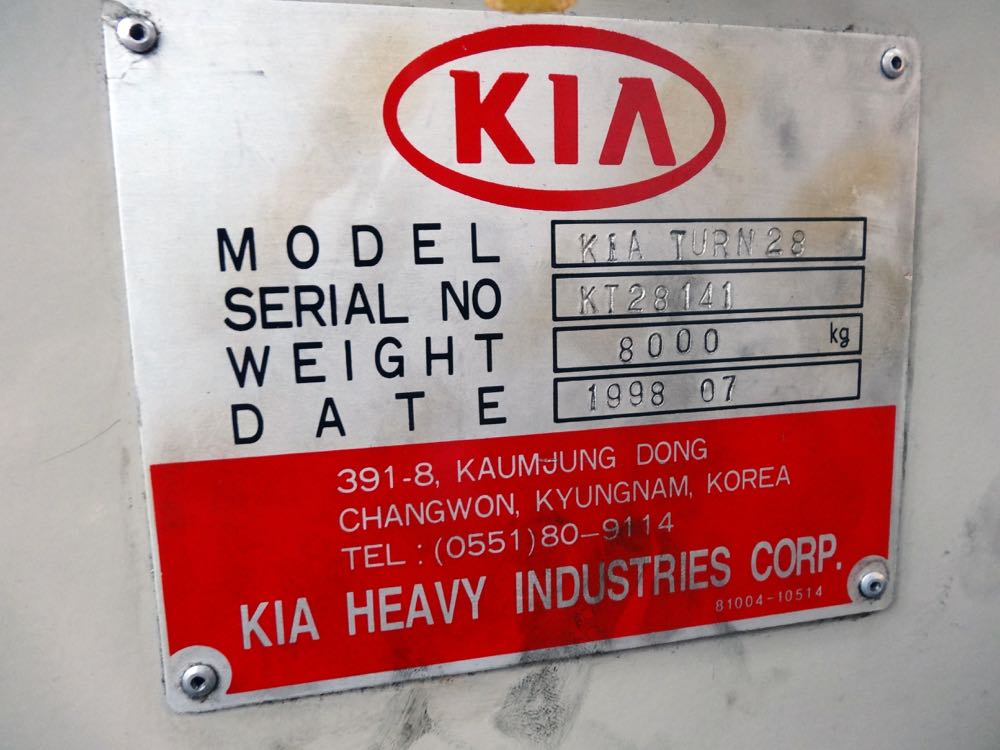

Kia Turn 28

S/n KT28141
Weight: 8000kg
Date: 1998/07
L x W x H: 2000 x 4200 x 2300mm approx.

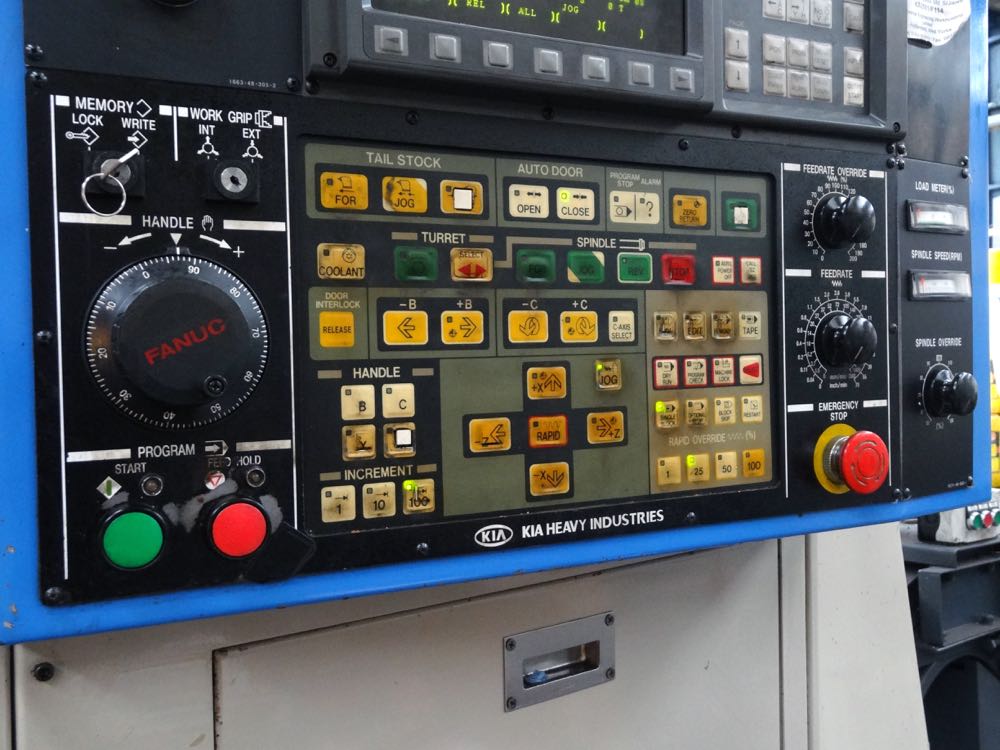

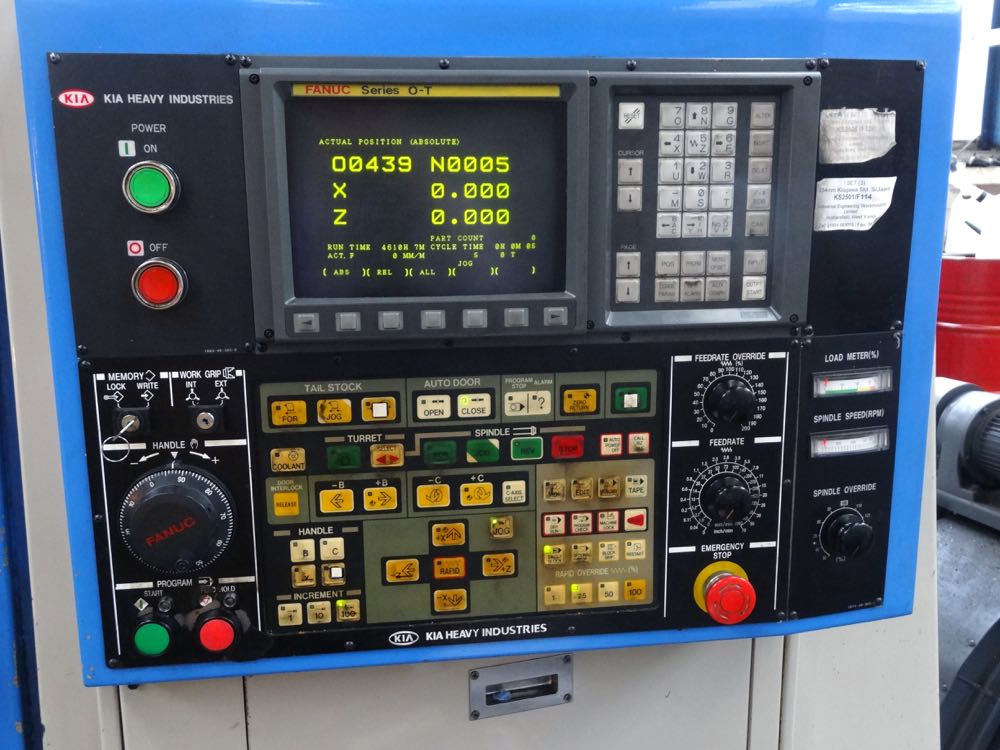

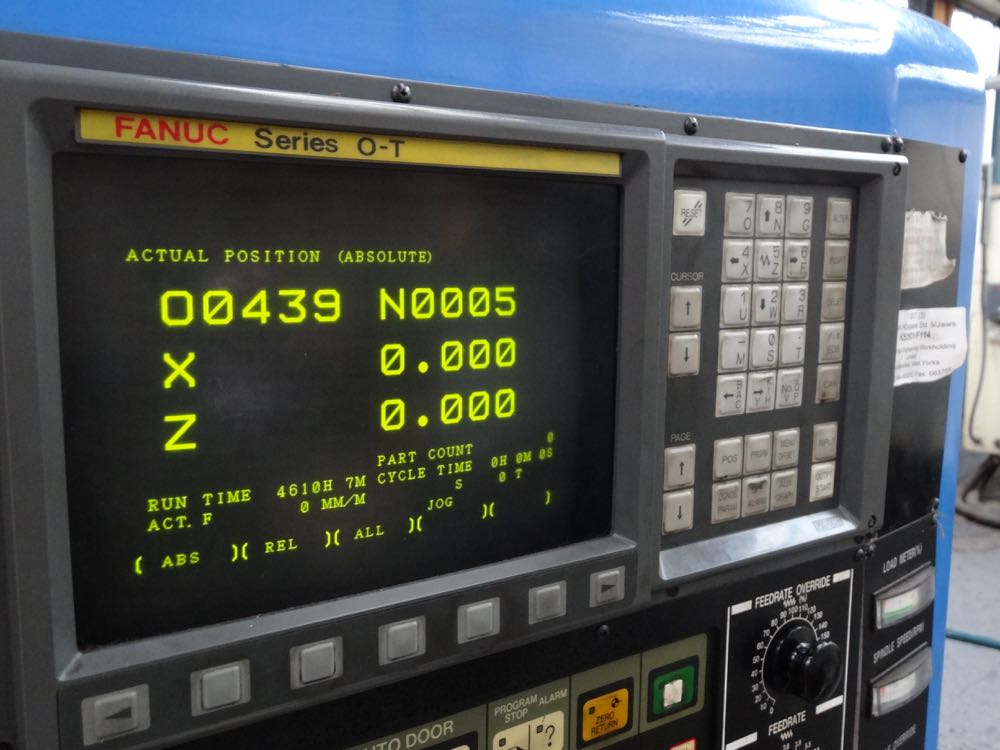

Fanuc series O-T Control

Capacity:
Max. swing: 590mm

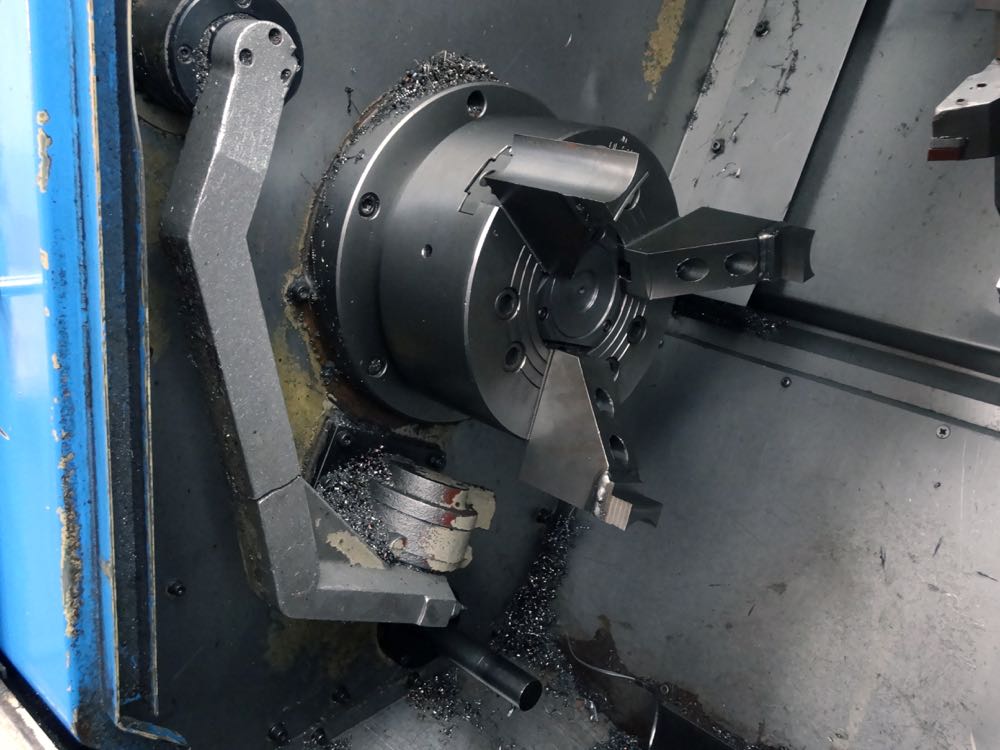

Chuck size: 255mm
Standard machining: 255mm
Max machining lengh: 600mm
Bar capacity: 65mm

Feed:
X axis feed: 220mm
Z axis feed: 630mm

Spindle:
Spindle speed: 26 - 3150 rpm
Spindle speed variation: stepless
Spindle nose: A2-8 JIS
Spindle throughhole dia: 78mm
Bearing dia of spindle: 120mm

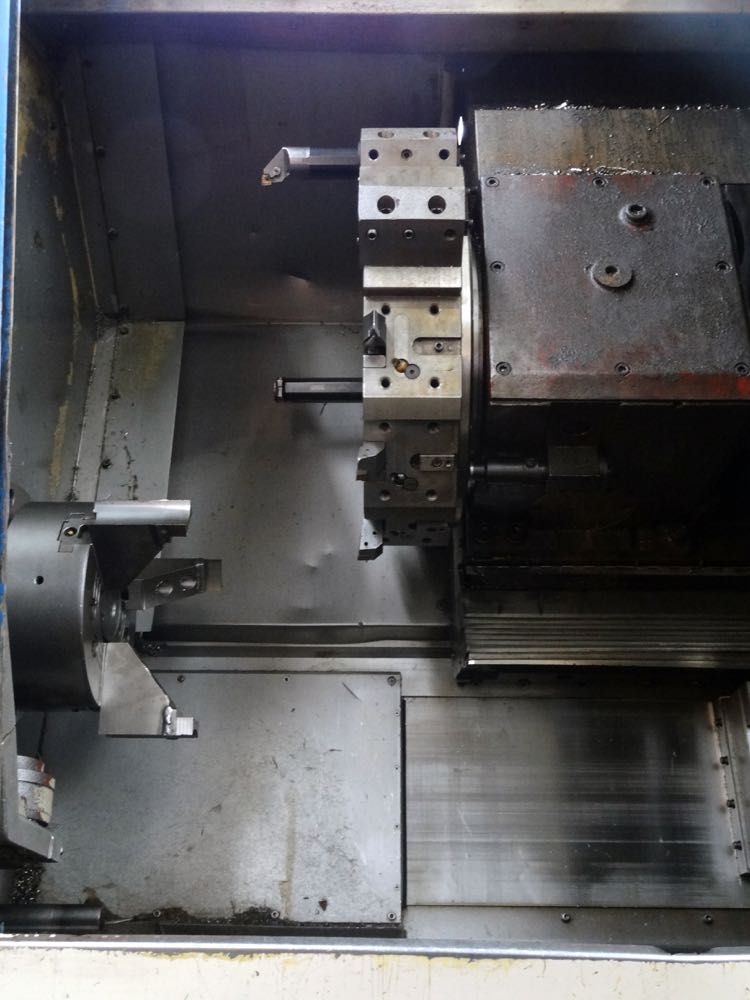

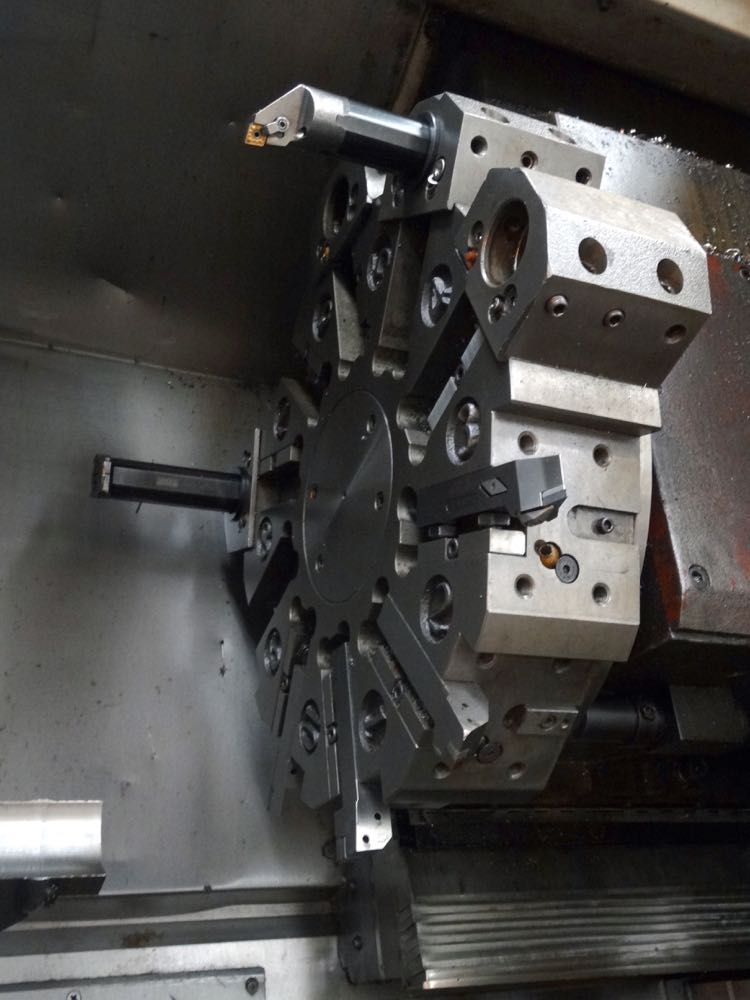

Tool post:
Turret no: 10
Tool size: OD Tool: 25mm
Tool size: ID Tool: 50mm
Turret index time: 0.5 second

Feedrate:
Rapid speed X-axis: 20m/min
Rapid speed Y-axis: 24m/min

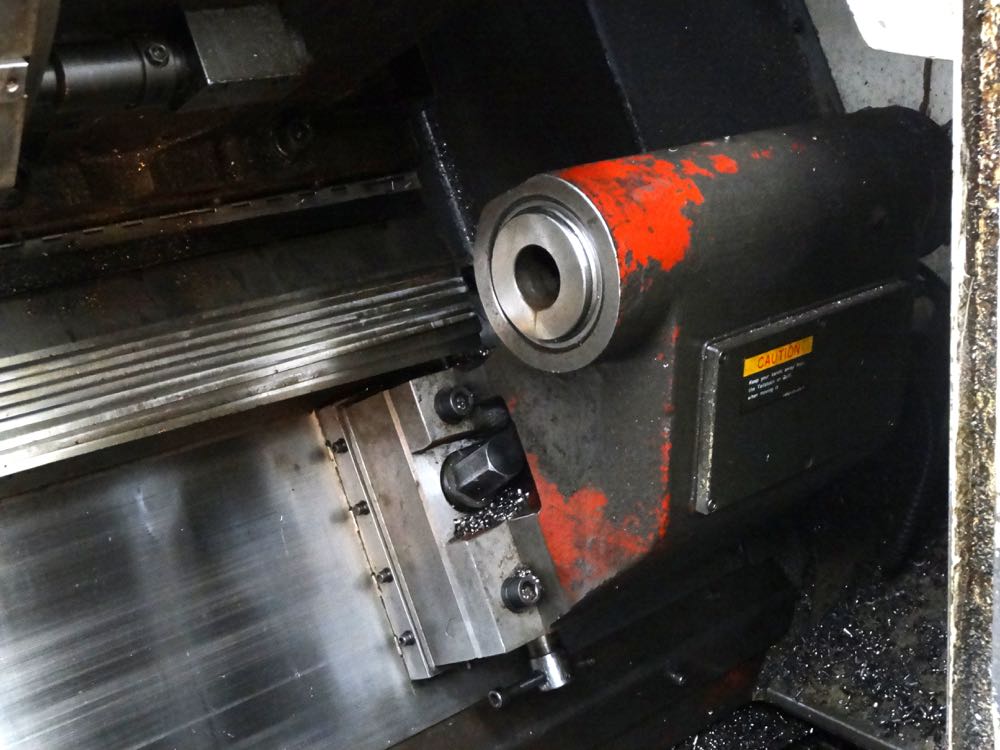

Tail Stock:
Tail stock: MT5

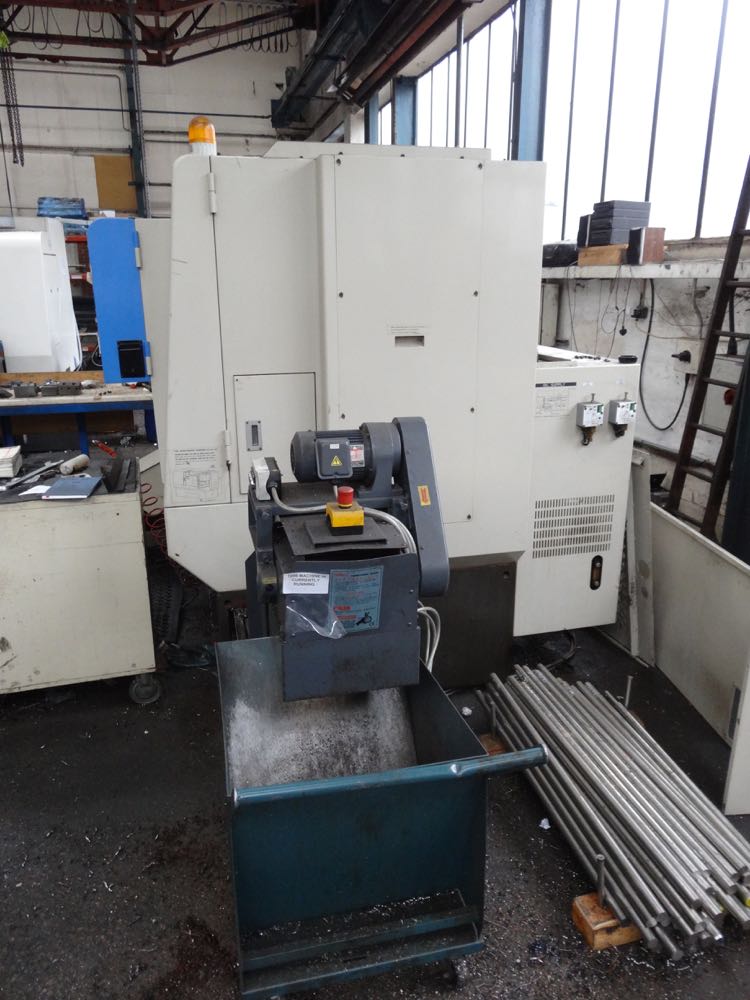

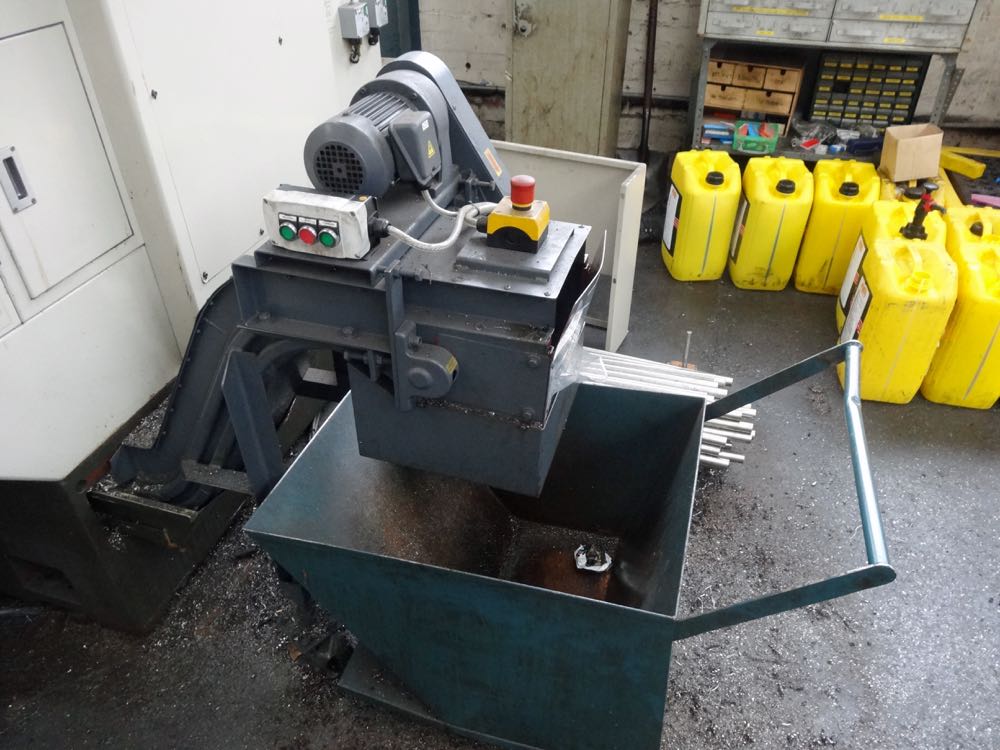

Swarf Conveyor:
FongeX SH-12
Swarf bin not included

Transformer: 1997-7
S/n: 1179
L x W x H: 400 x 500 x 670mm

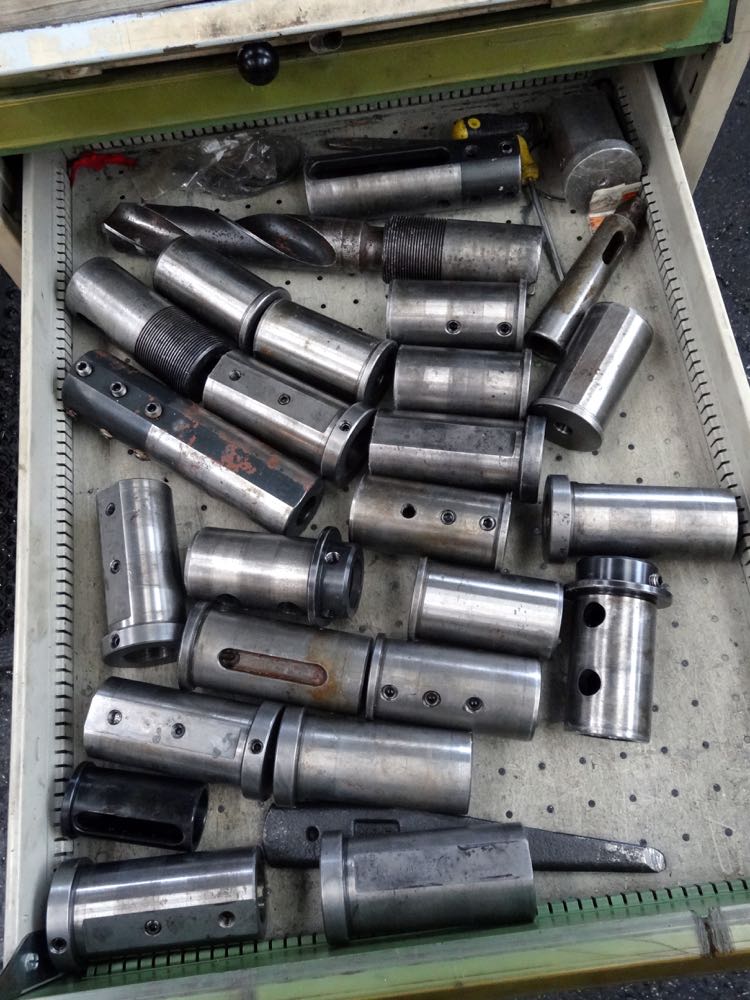

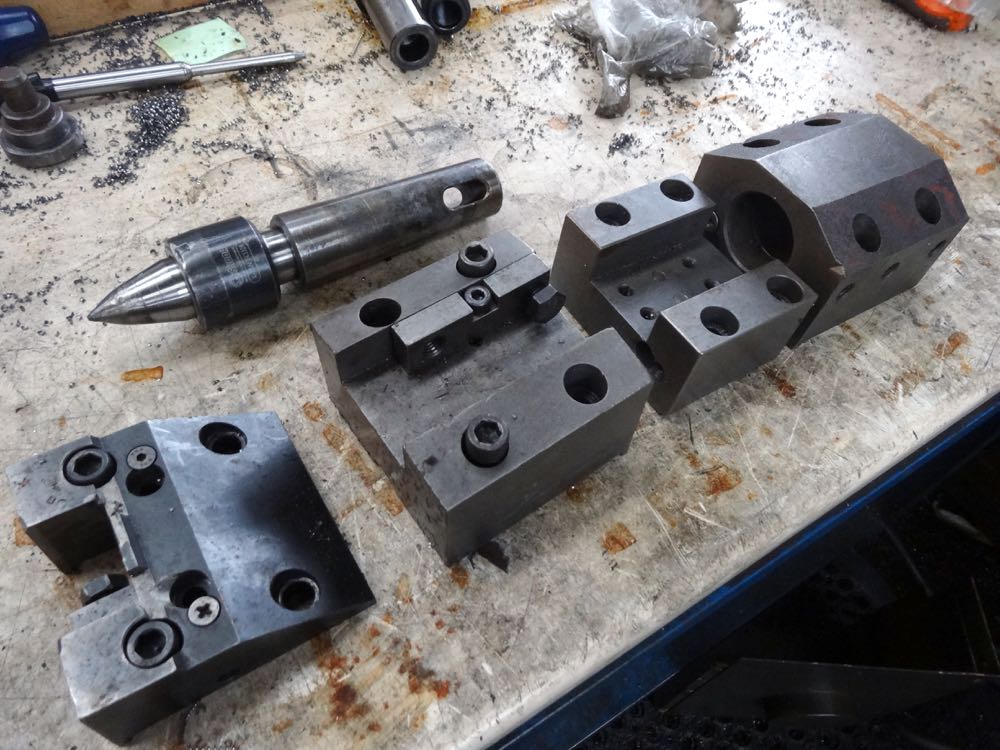

Tool Holders included

Location Sheffield

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
