Lot 21 - Kitagawa CRS 66 Short Series Power Collet Chuck
Description:

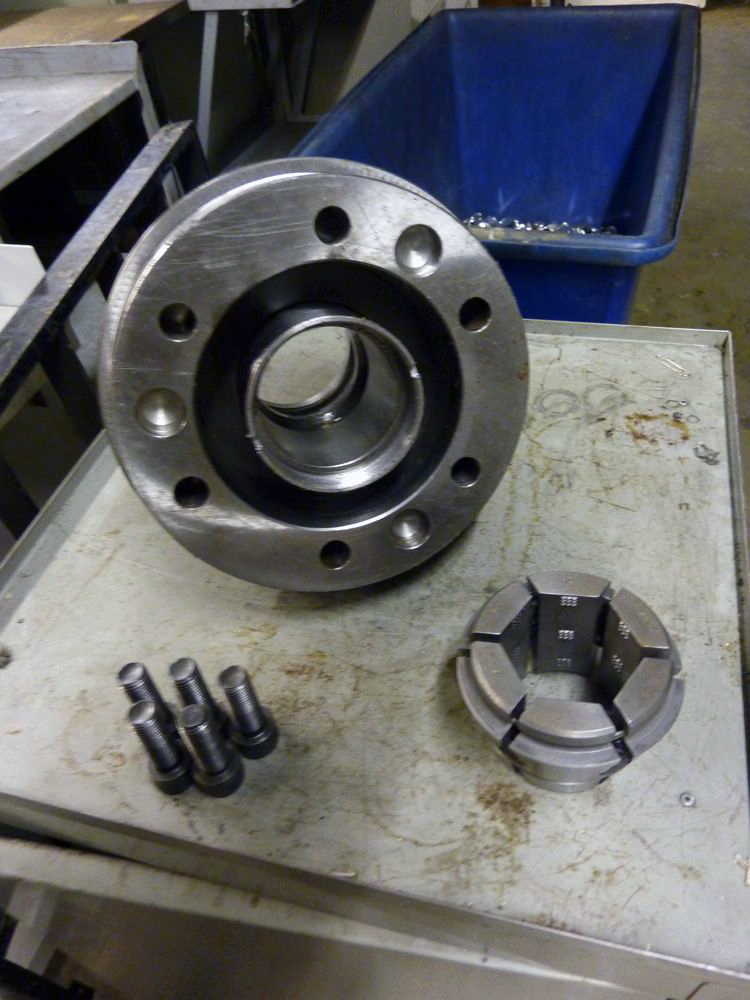

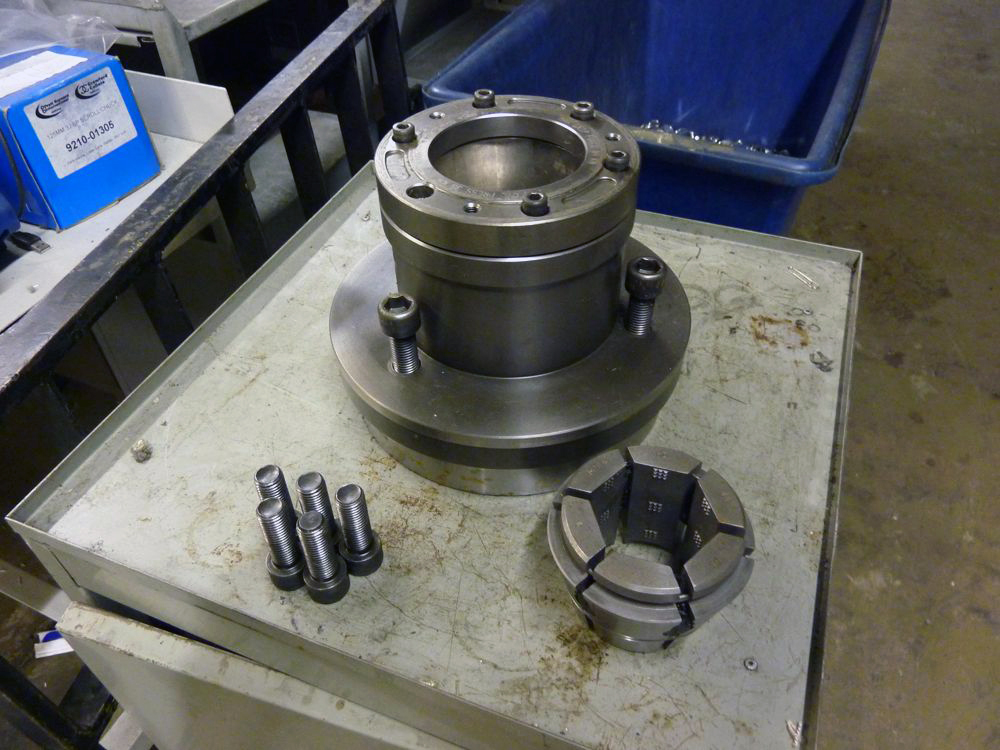

Kitagawa CRS 66 Short Series Power Collet Chuck
Gripping Range Max 66mm, Min 4mm
Collet Increment 3 mm
Sleeve Stroke 10mm
Max Input Force 84kN
Max Gripping Force 84kN
Max Speed (rpm) 4500
Net Weight 19kg
Matching Cylinder S1875
Collet Ref: D-285

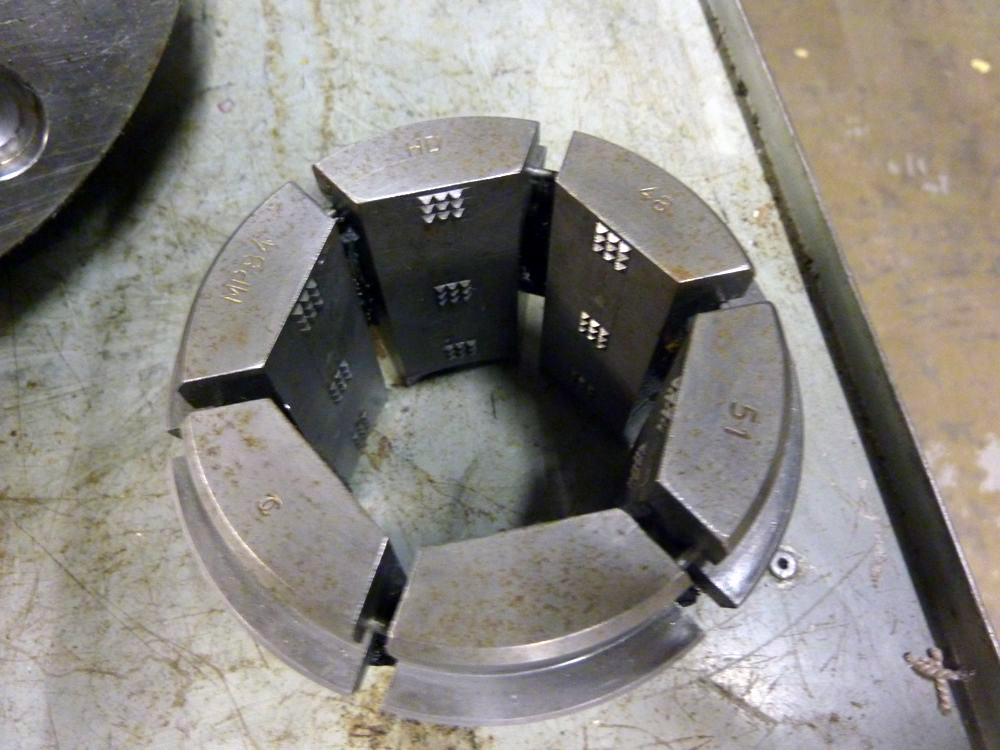

Includes Collet (ref: MP84 - HD - 48 - 51)
Click here to Download full Spec and Dimensions
Location: Coventry CV7 9EL
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
