Lot 1 - KITAMURA MYCENTER HX400 4 Axis HMC (1999) With Fanuc 16iM
Description:

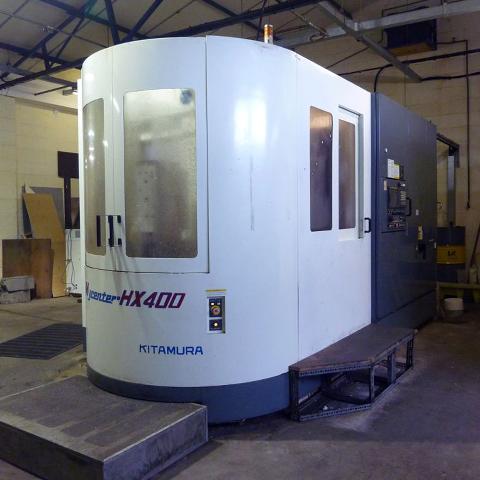

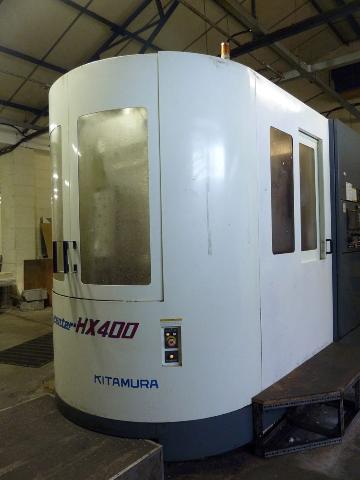

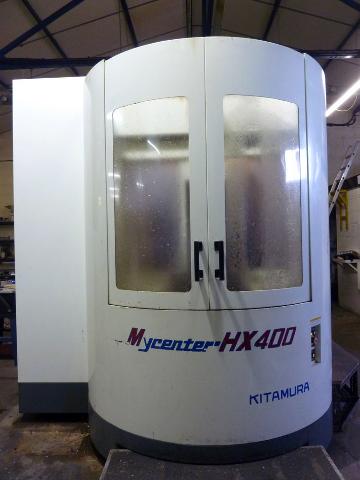

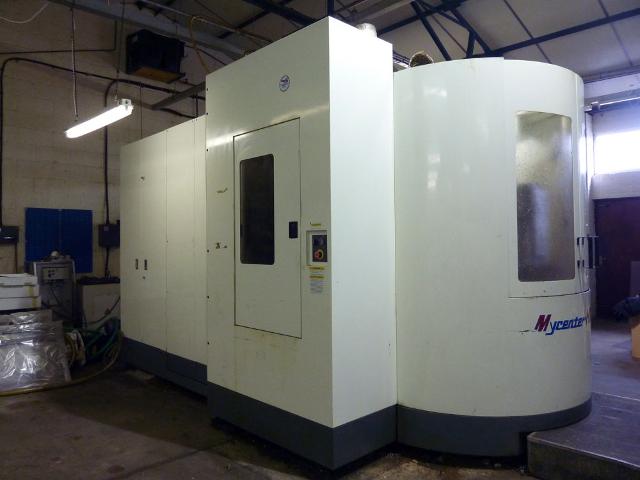

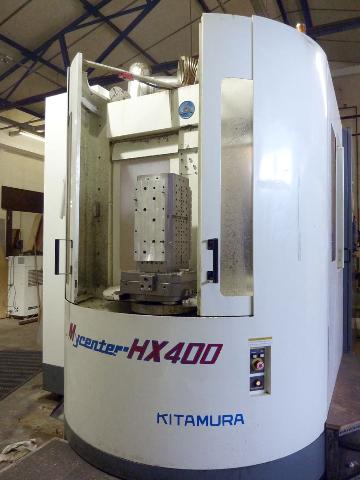

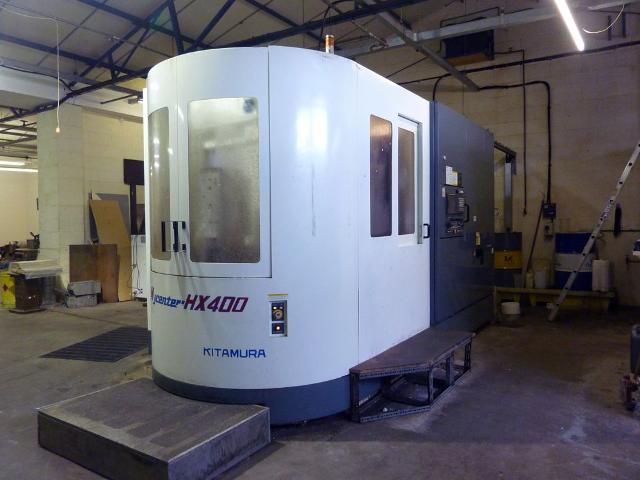

KITAMURA MYCENTER HX400 4 Axis HMC (1999)
With Fanuc 16iM

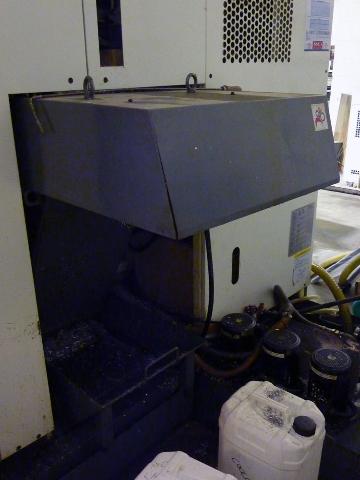

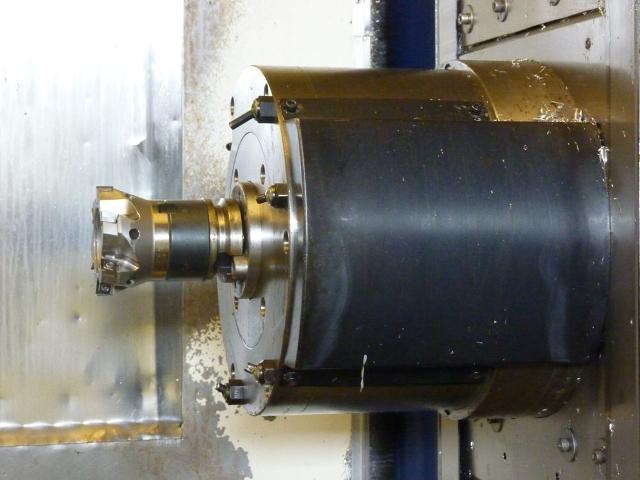

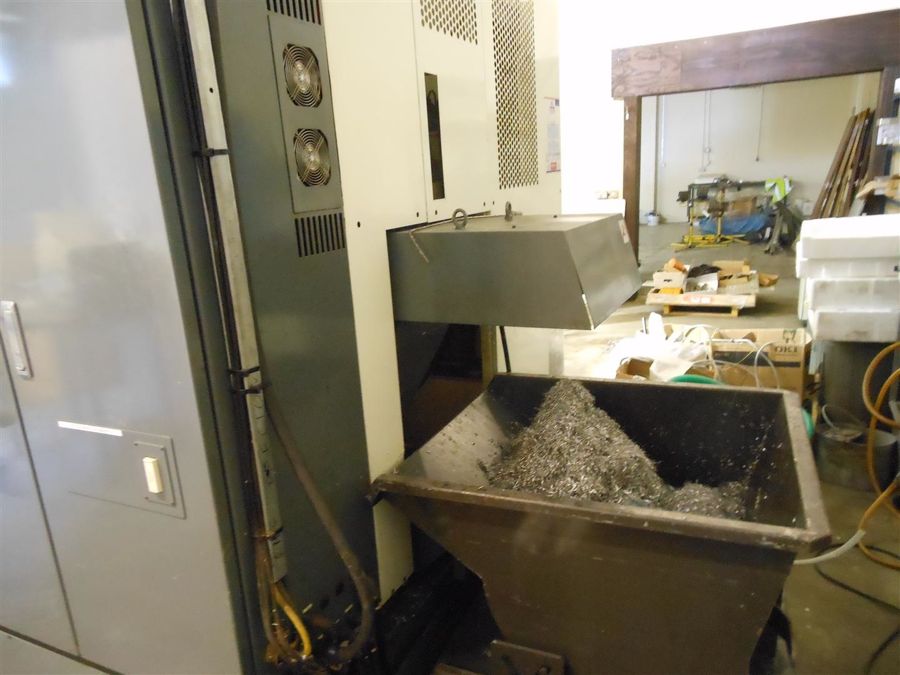

Full 4th Axis, Through Collant Spindle, Chip Conveyor, Ethernet
X: 660 mm
Y: 610 mm
Z: 560 mm
Power: 30hp / 22.4 kW
RPM: 40-13,000 rpm

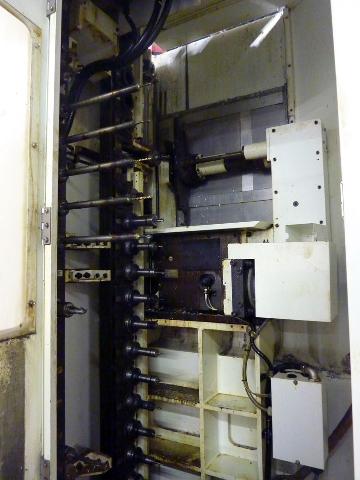

ATC: 50
Pallet-W: 15.700 " / 398.8 mm
Pallet-L: 15.700 " / 398.8 mm
Taper: CAT-40
Table Work Area: 400mm x 400mm
Table Indexing 4th Axis 0.001mm
Max Work Size: 610mm x 700mm
Table Load Capacity: 400kg
Distance from table to centre to spindle nose: 150-710mm
Distance from table to surface of spindle centre: 50-660mm
Dimensions: 4m x 2.5m x 3.2m
Weight: 16,300kg

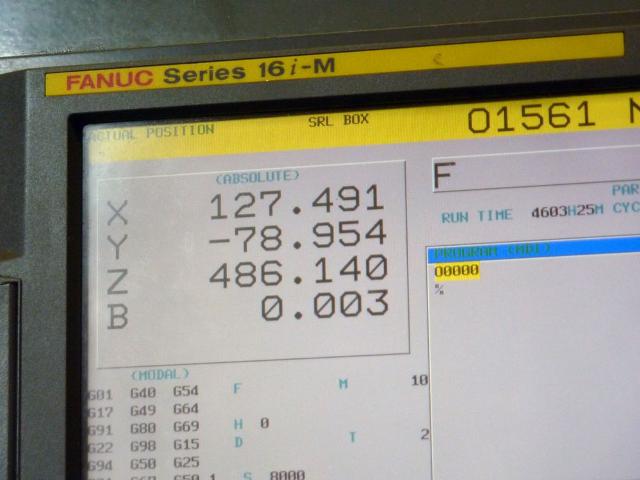

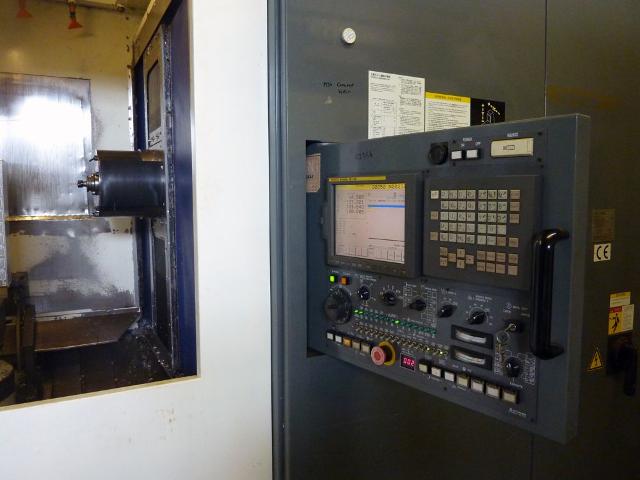

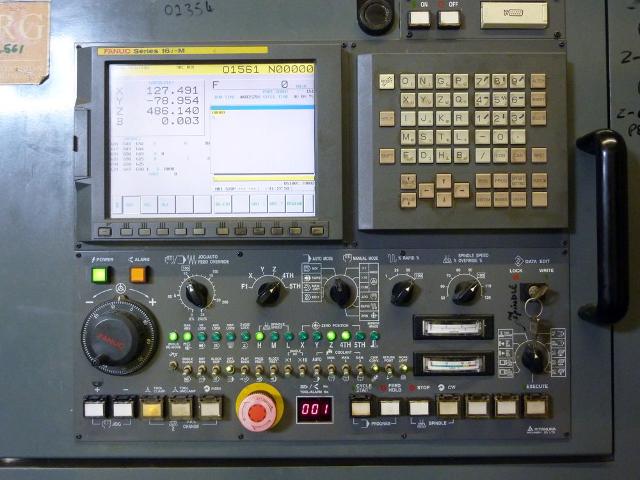

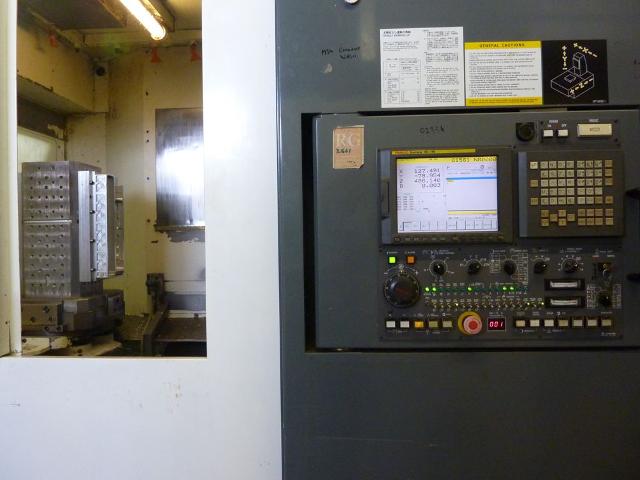

Control:Fanuc 16iM

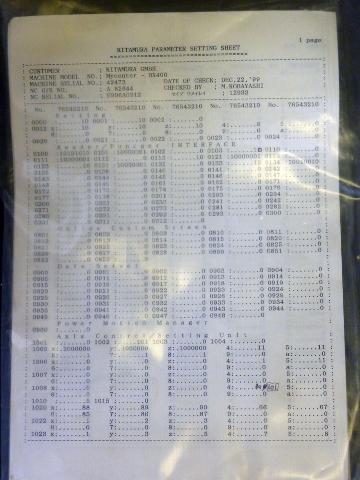

Manuals

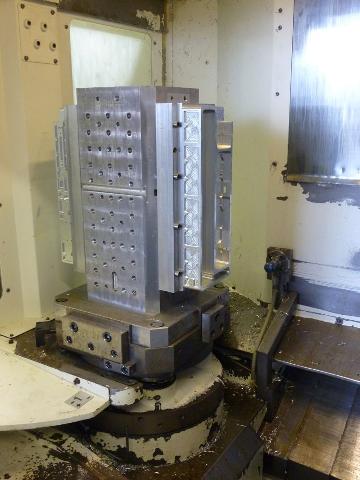

4 Cubes included
Location: Ruston,Wellingborough
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
