Lot 1 - Kitamura Mycenter Zero Twin Pallet VMC (1998)
Description:

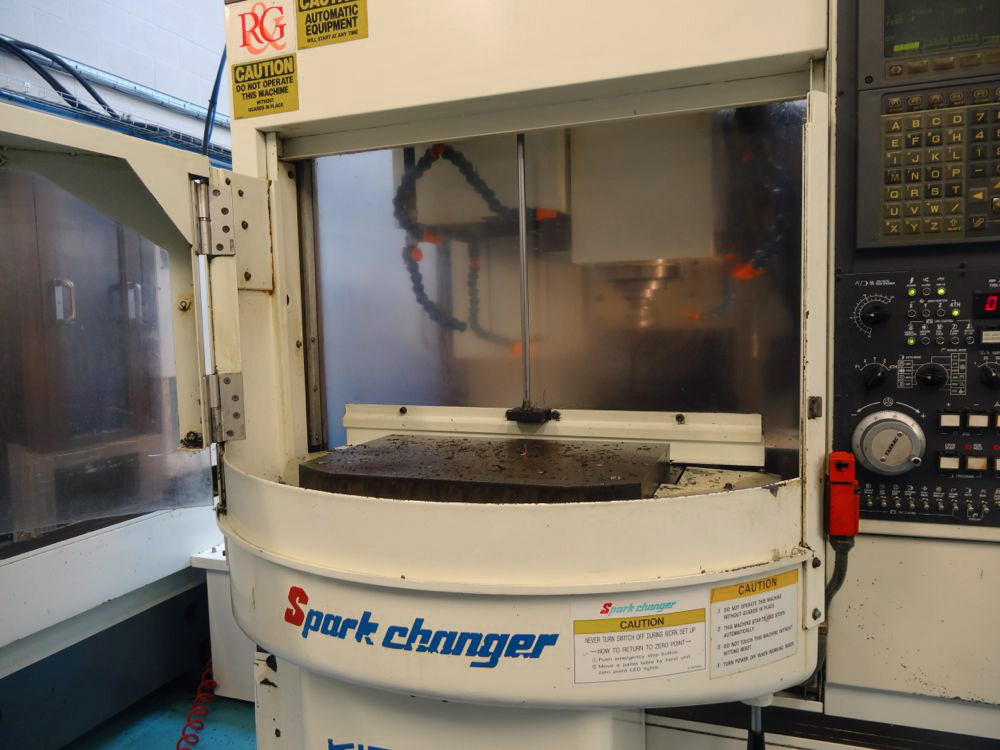

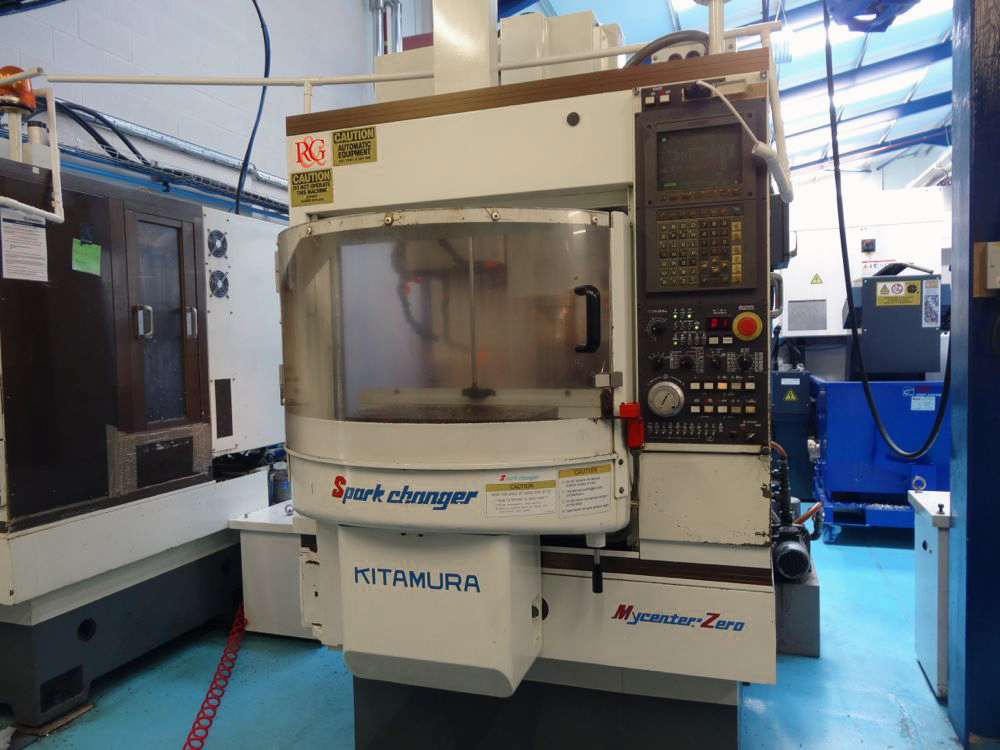

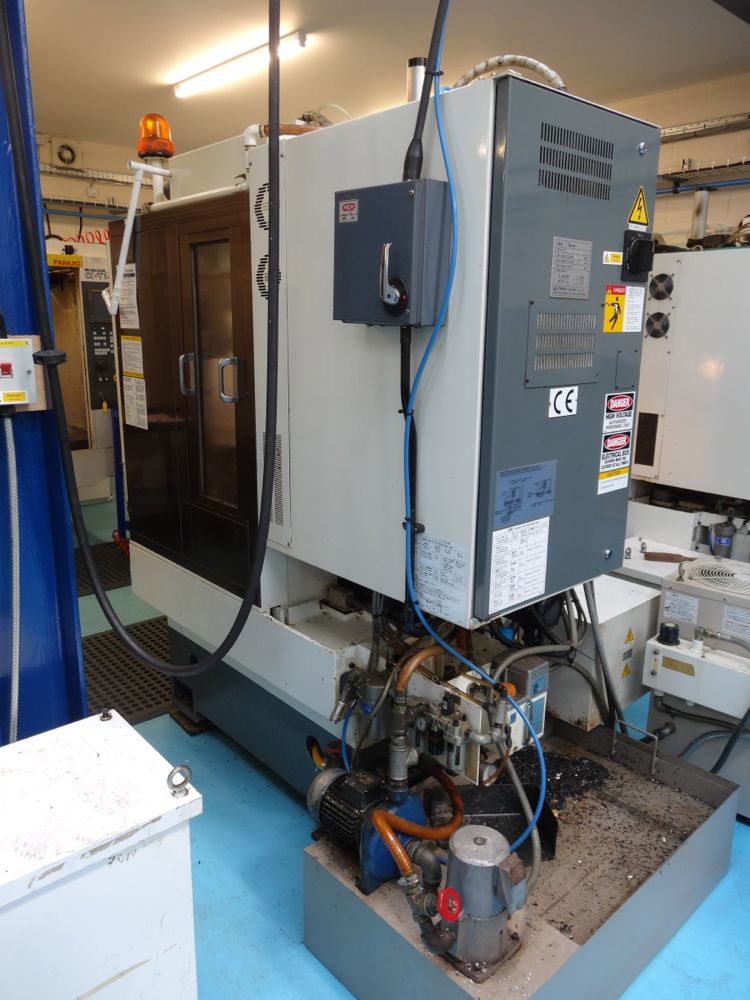

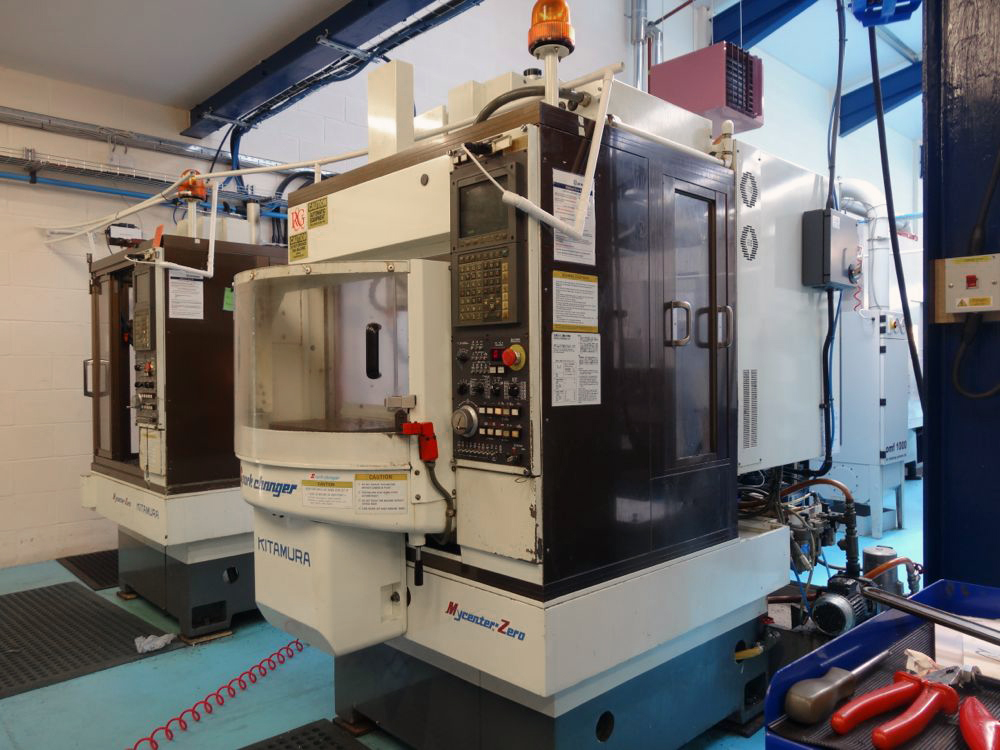

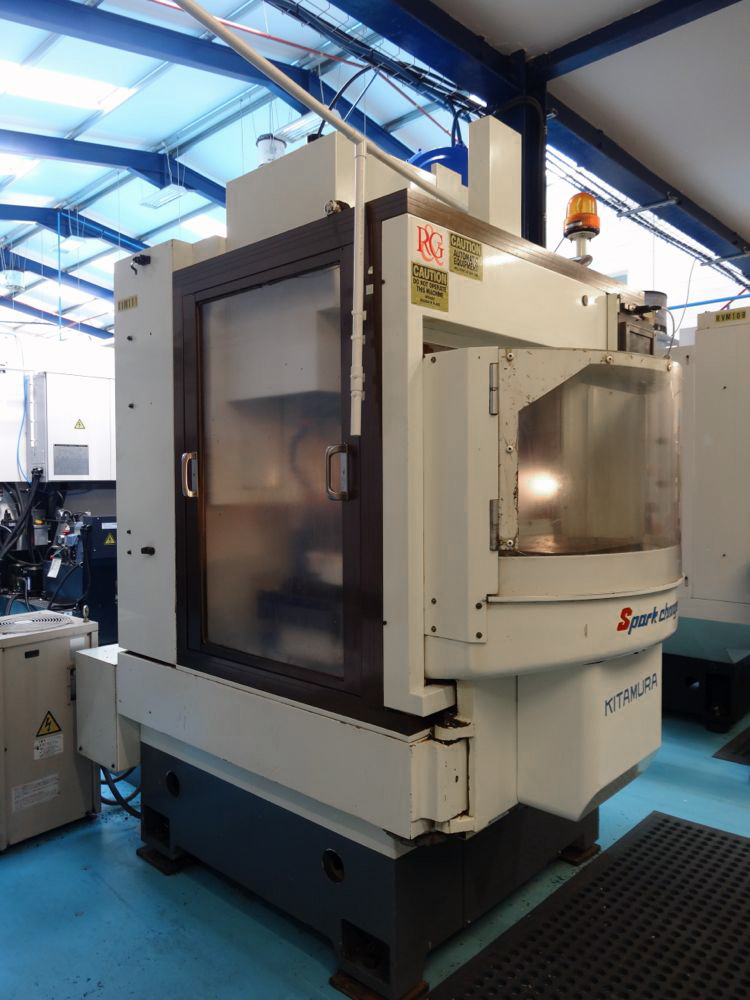

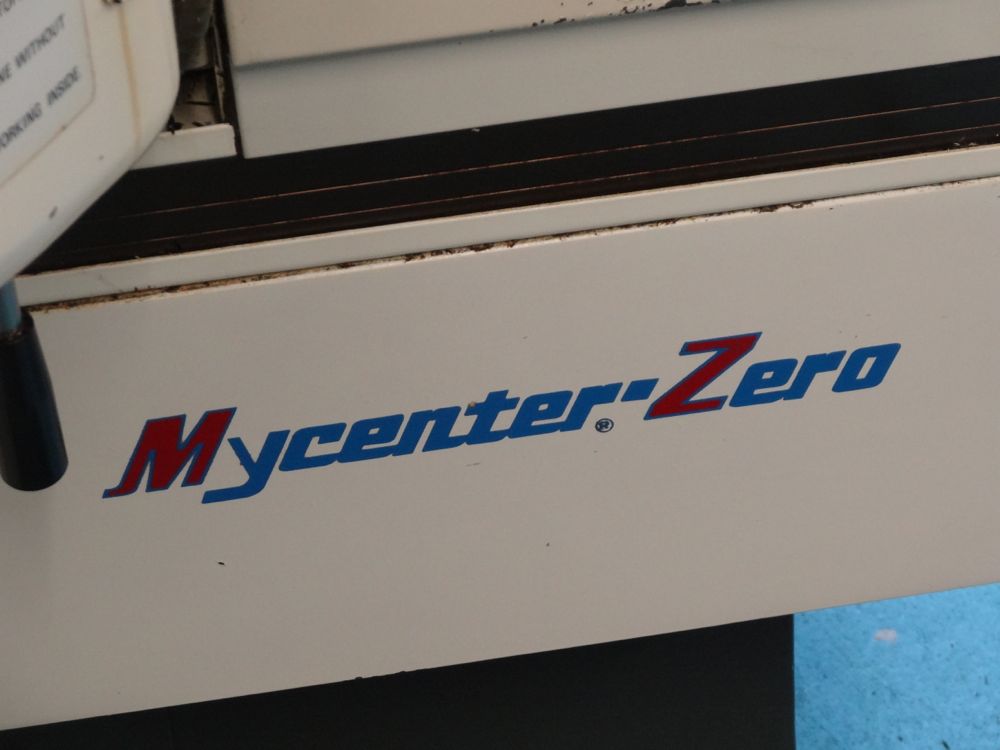

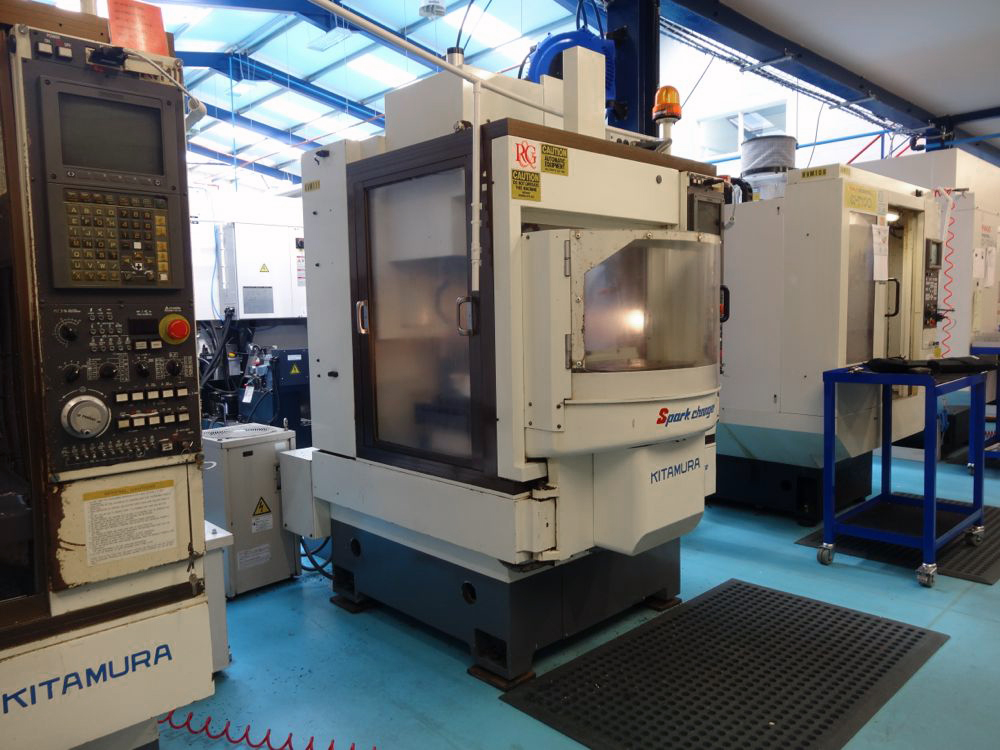

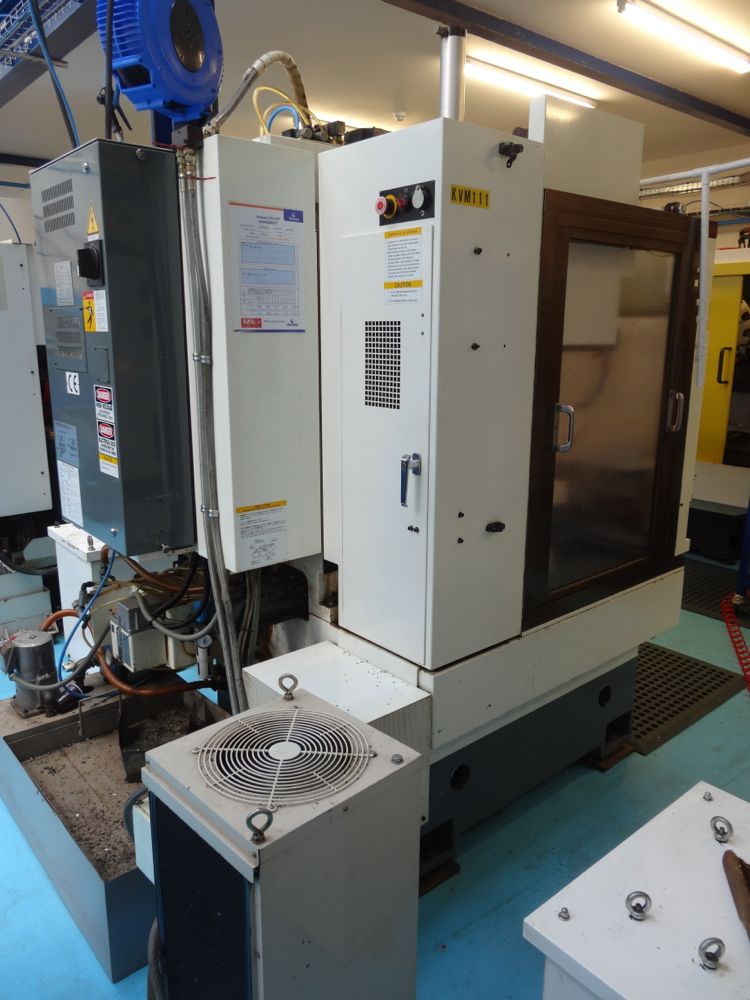

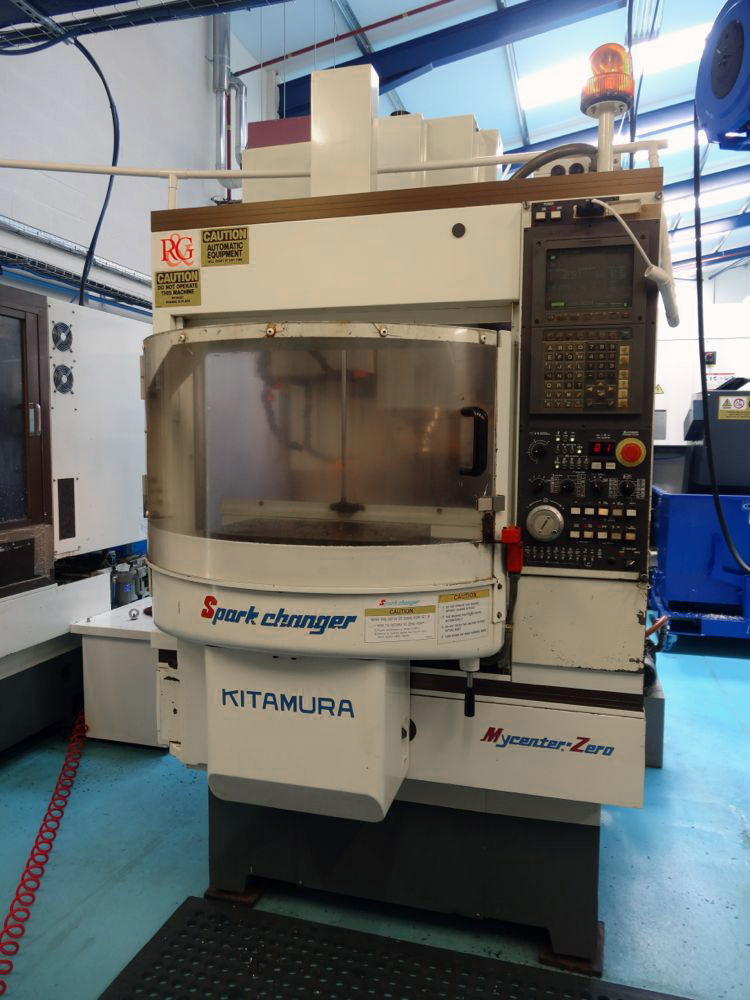

Kitamura Mycenter Zero Twin Pallet VMC
Year of manufacturer (1998)

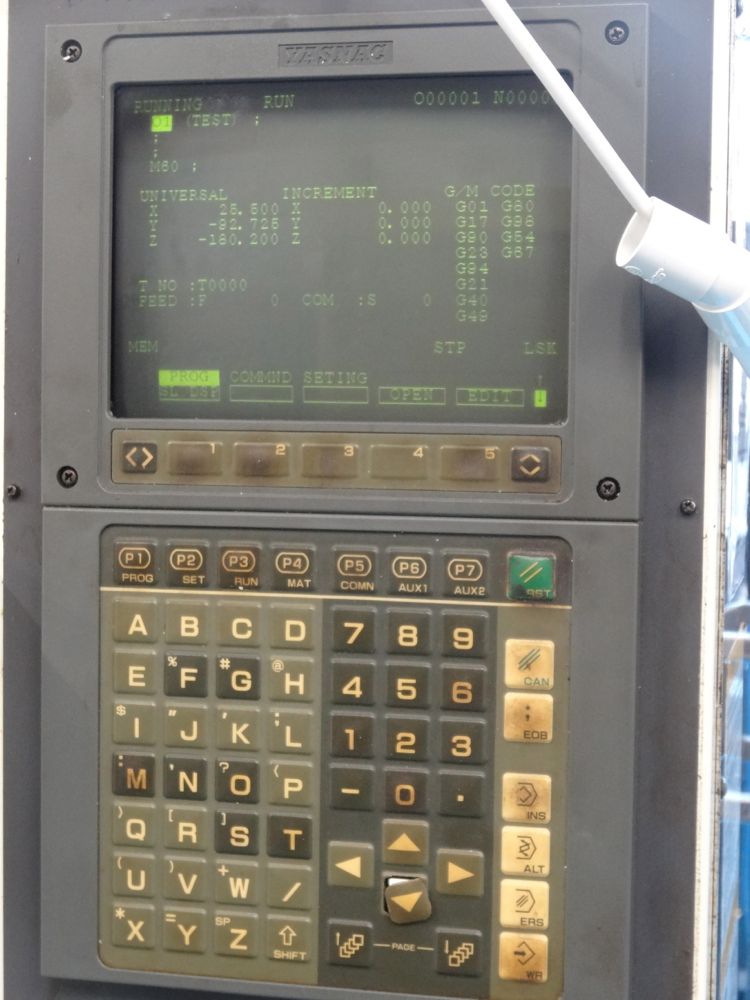

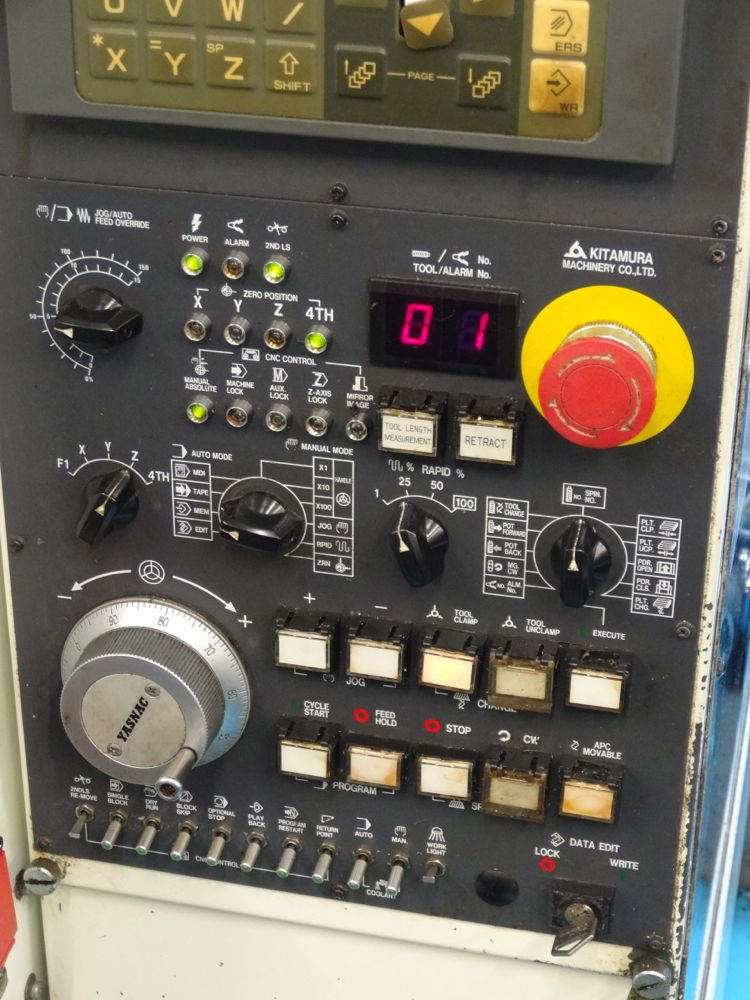

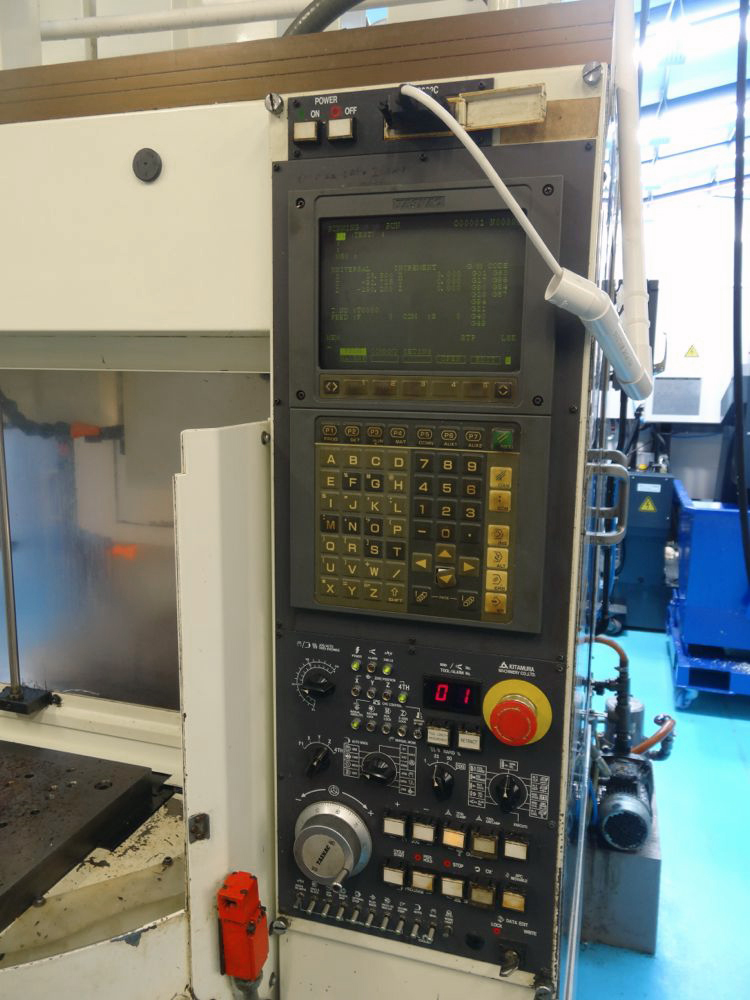

Yasnac I80MB Control

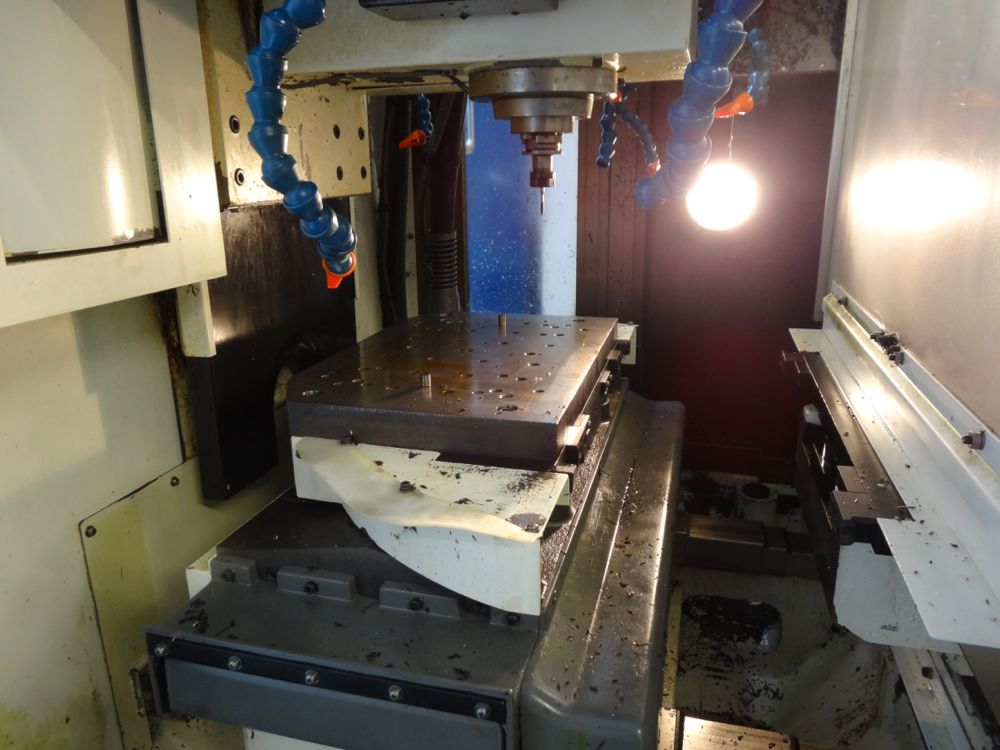

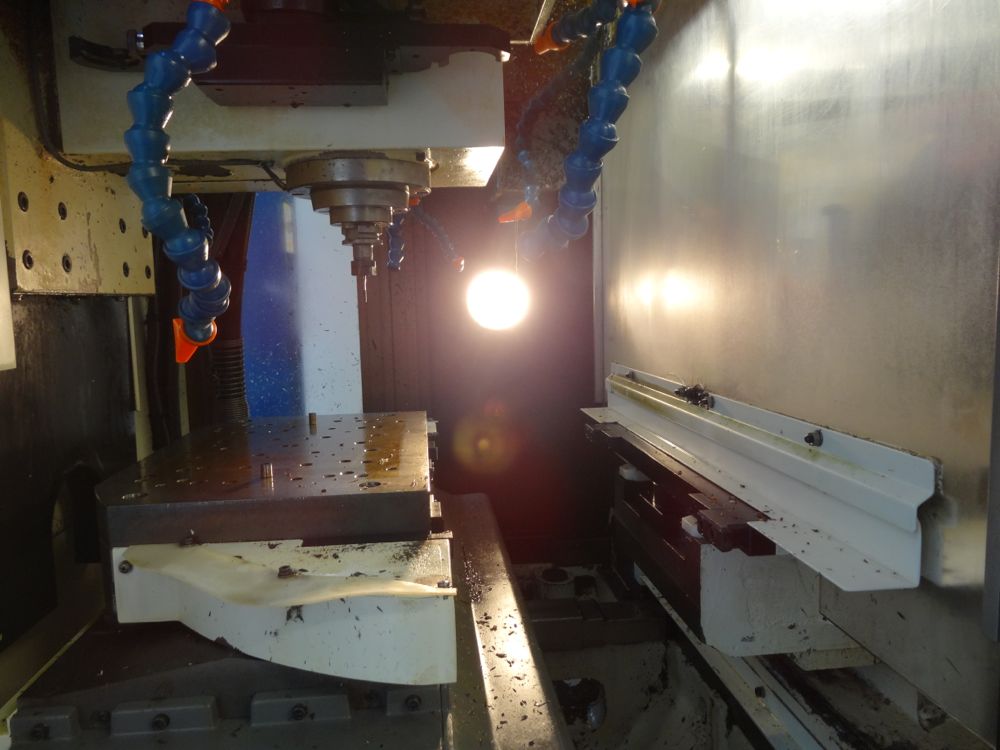

Table: 305 x 460mm
Table Load Capacity: 60Kg
Travel X Axis: 305mm Y: 254mm Z: 305mm
Distance from table surface to Spindle nose: 135mm-440mm
Distance from colum to table center line 198-452mm

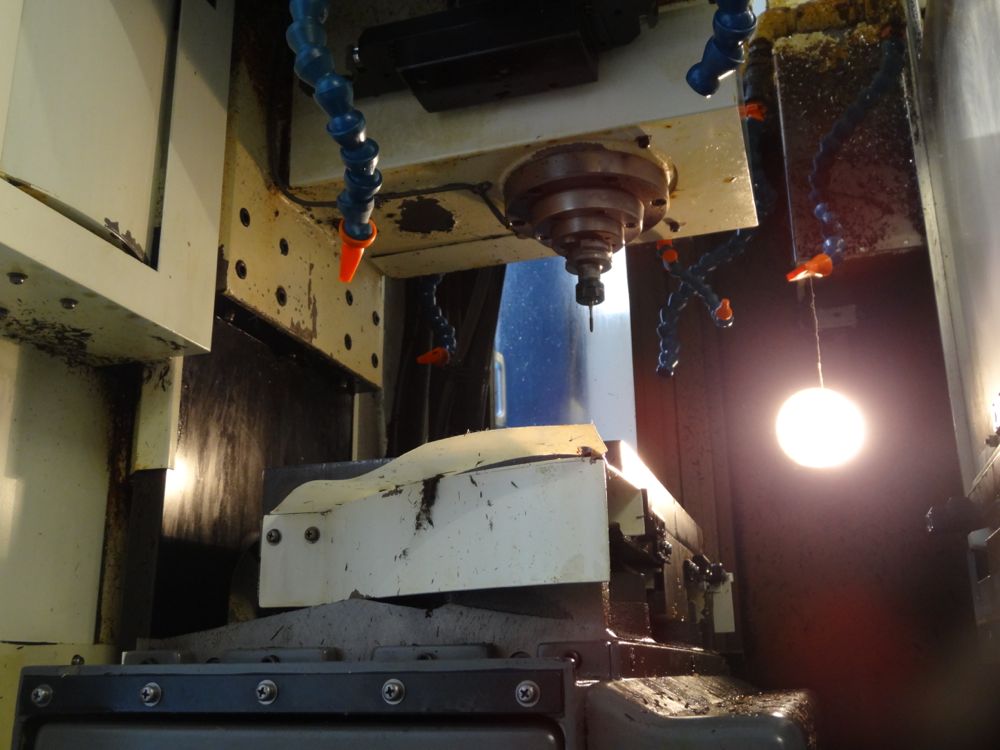

Spindle Taper: N.S.T No 30BT30 Taper
Spindle Speed 300-12000rpm (Option installed)
Upgraded Memory option installed

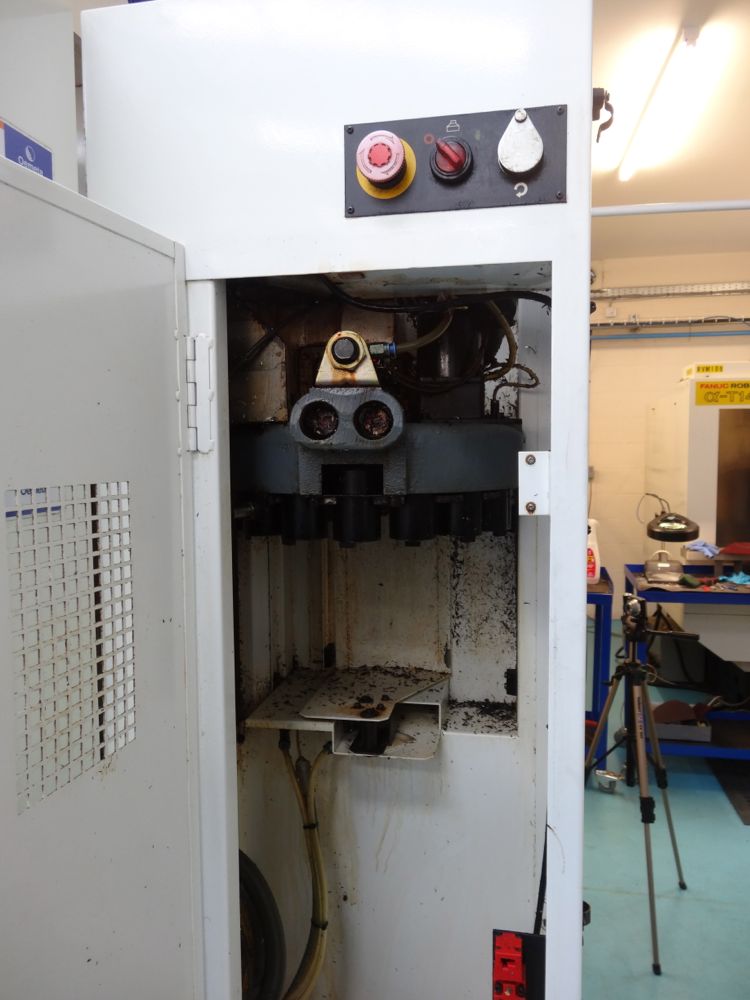

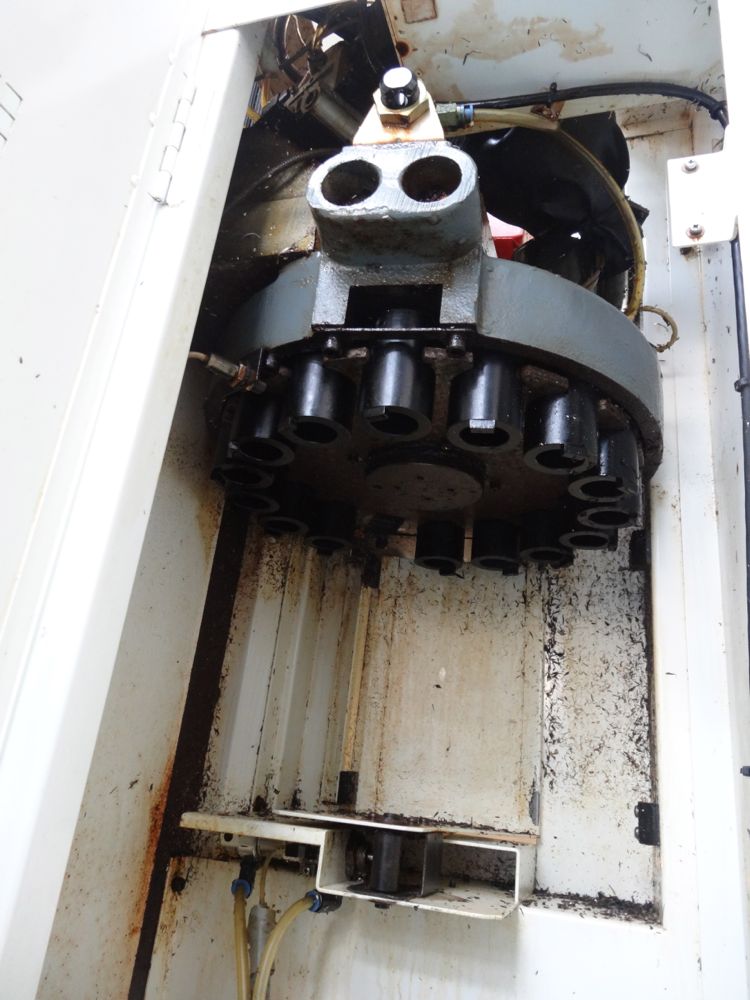

16 Tool ATC
Tool Time change: 0.9sec
Max Tool Diameter: 50mm x 200mm
Spindle Motor AC 3.7kw (AC 5 HP)
Continous Operation (2.2kw (AC 3HP)
Machine Weight with NC: 3250kg + Pallet Changer
MANUALS

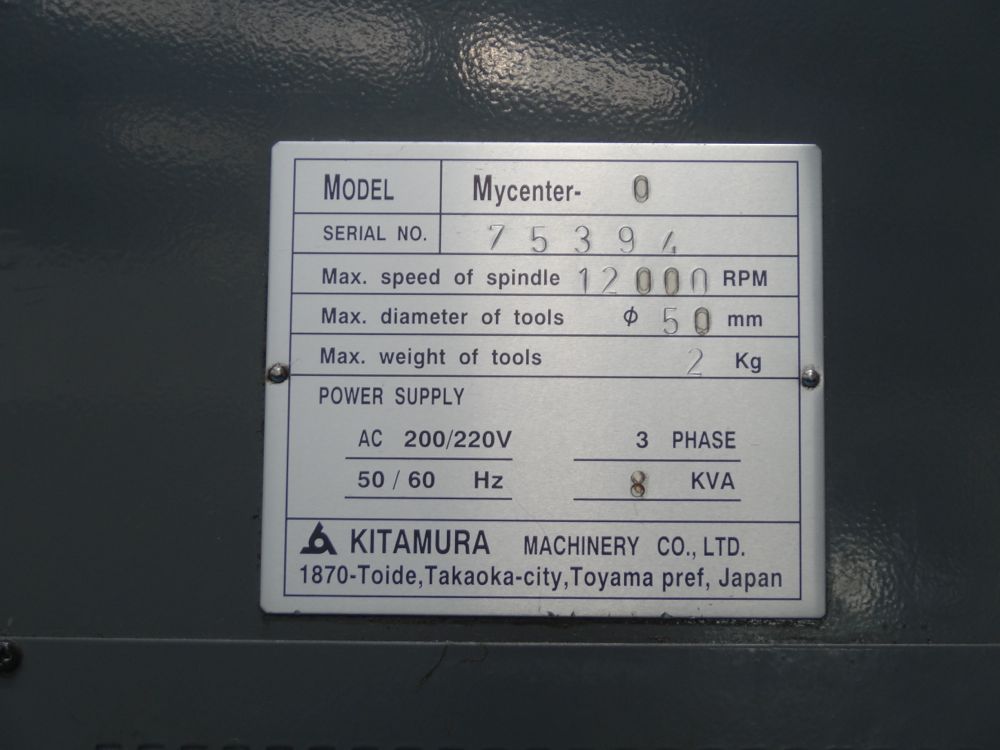

Sn. 75394
This machine was bought from new and available from a Leading Aerospace company.
Located in Wellingborough, UK.
It has been fully serviced and maintained by Leader CNC Technologies Ltd
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
