Description:

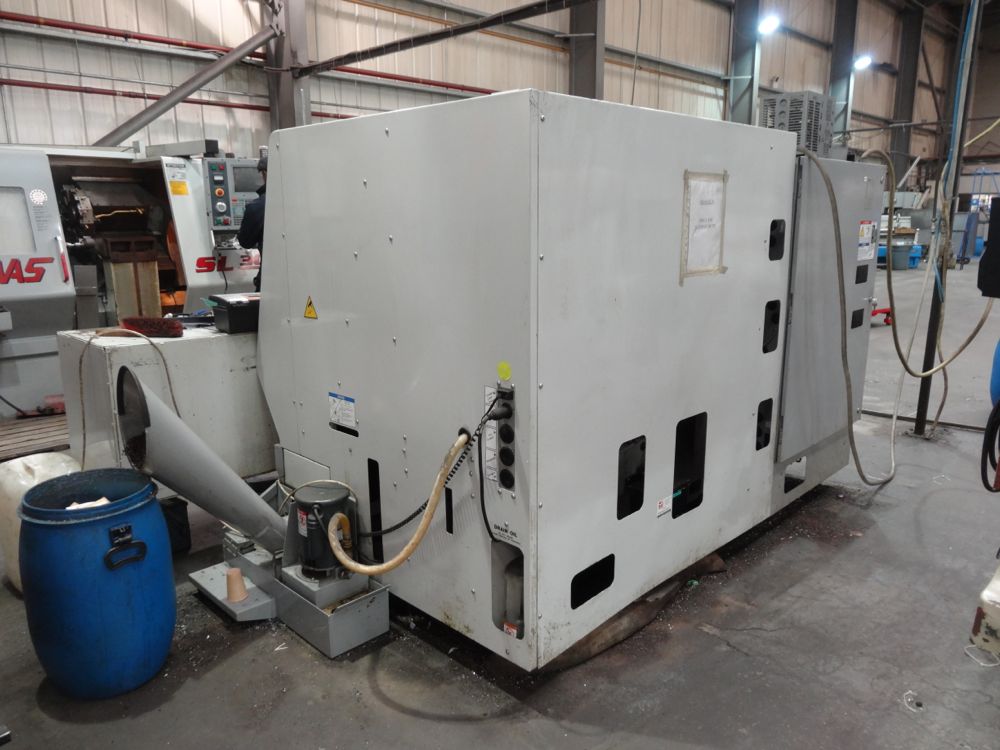

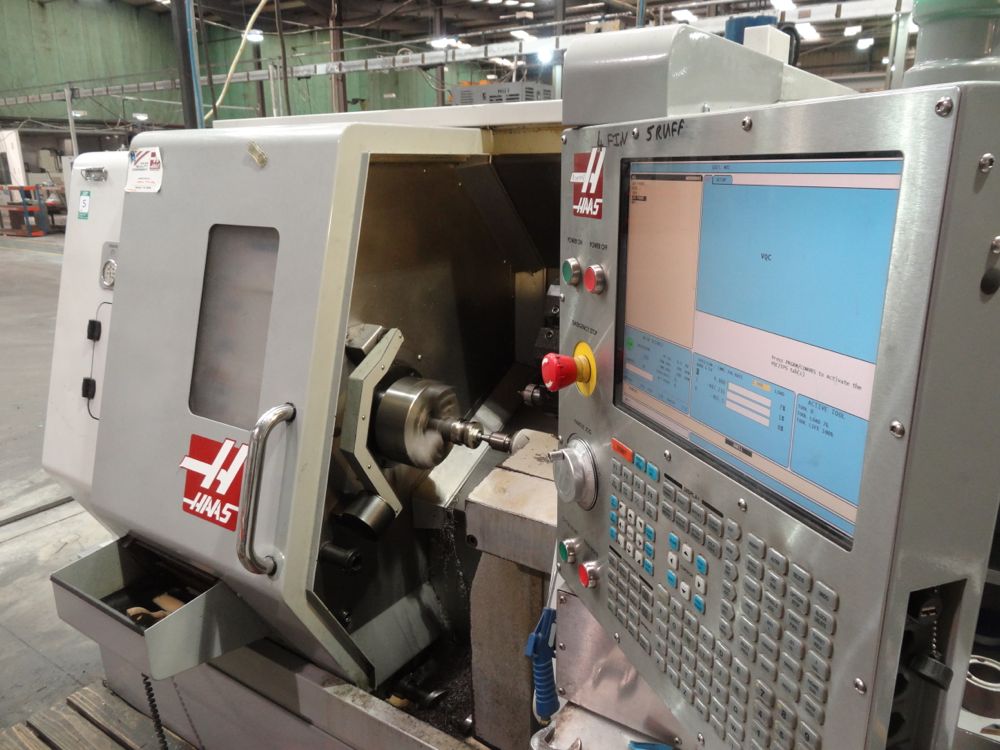

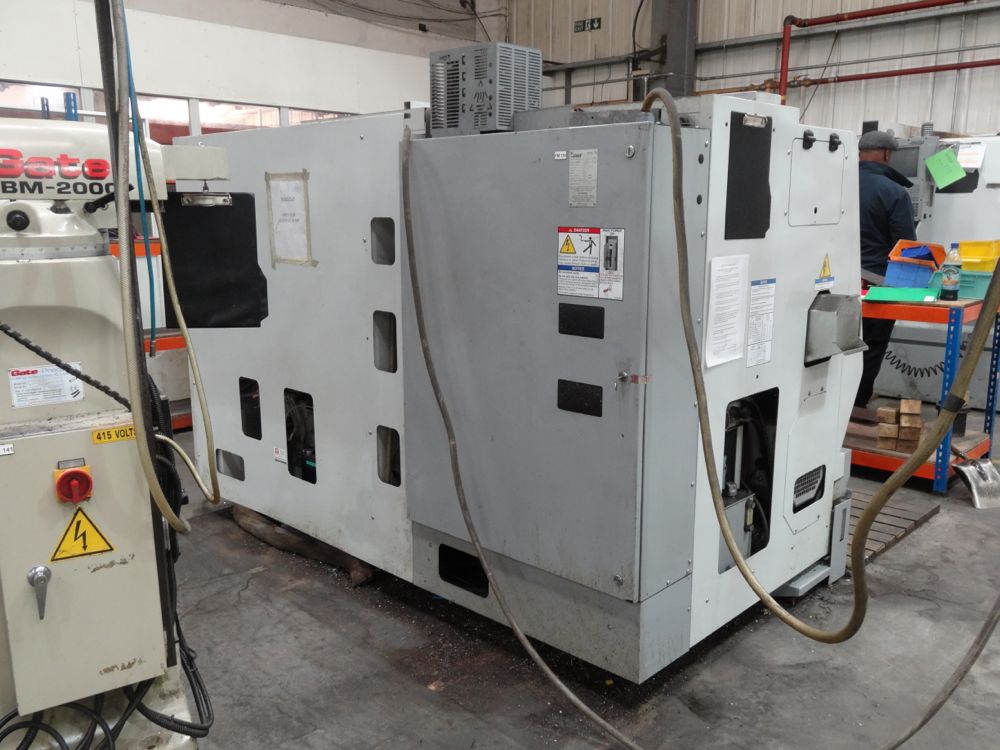

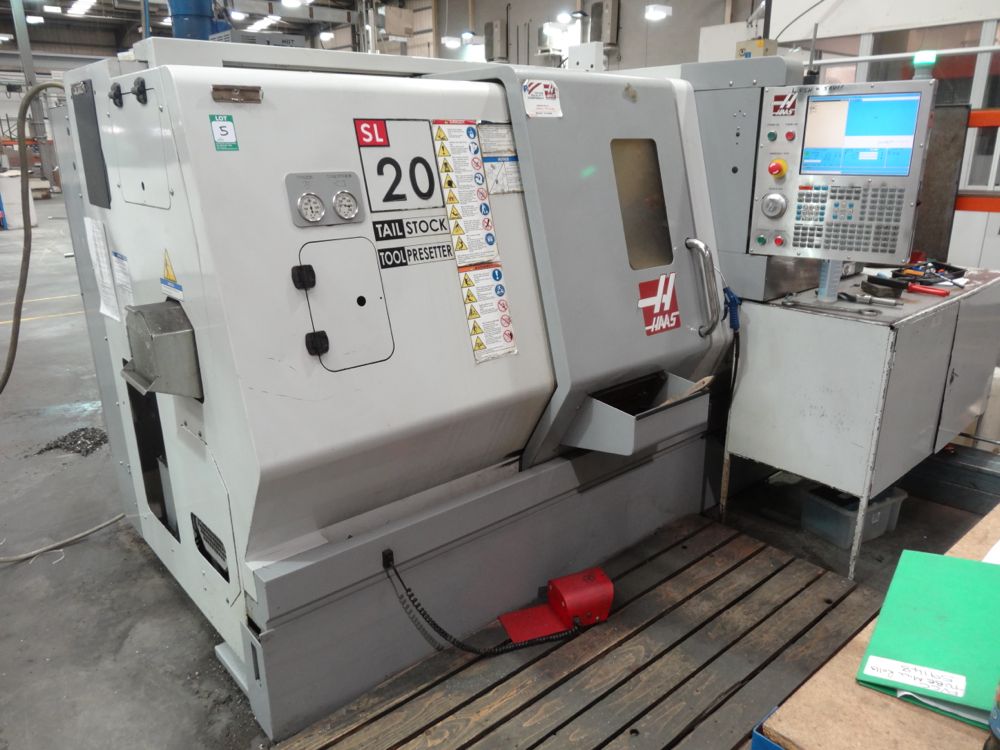

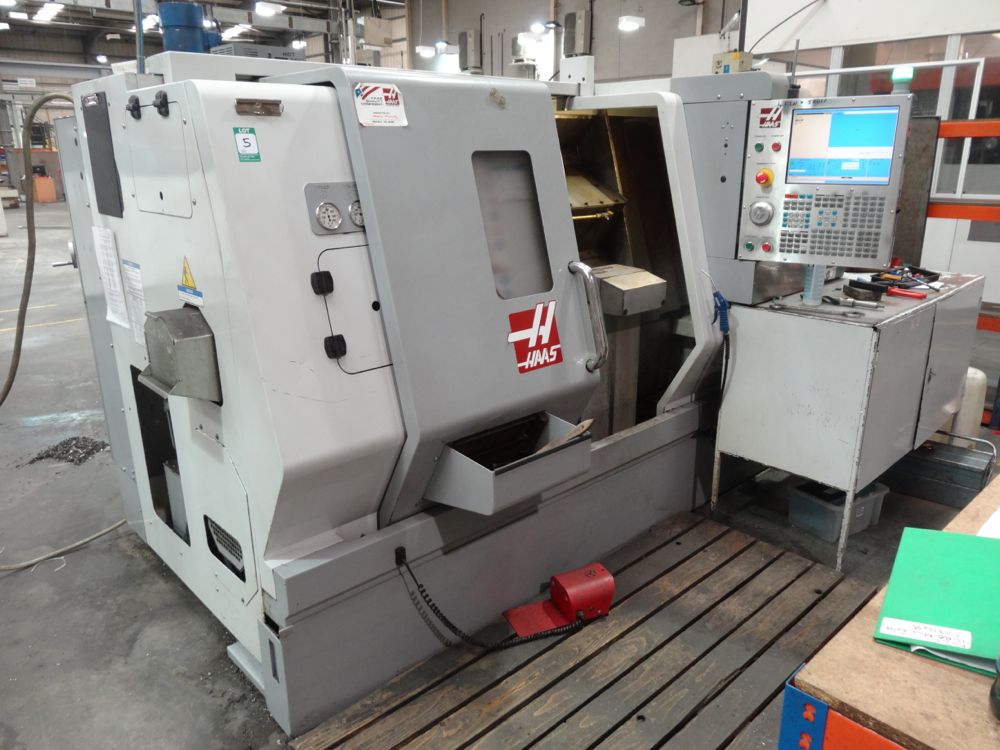

LATHES HAAS SL20 CCE CNC Lathe (2006)
Swing Diameter
Over front apron: 508mm
Over cross slide: 241mm
Capacities

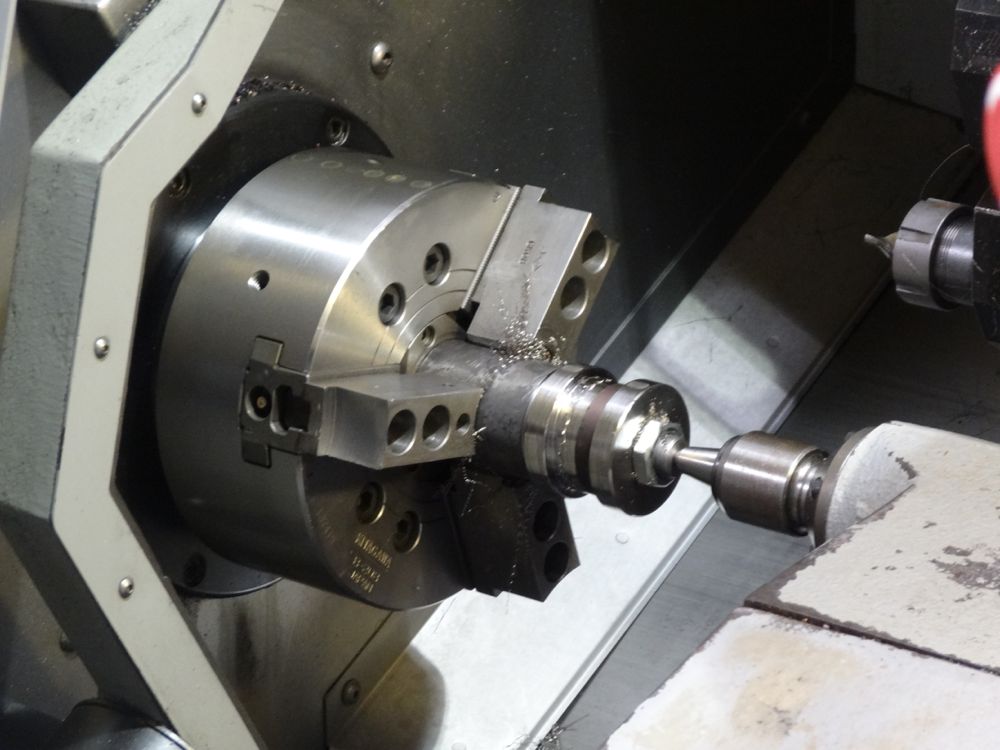

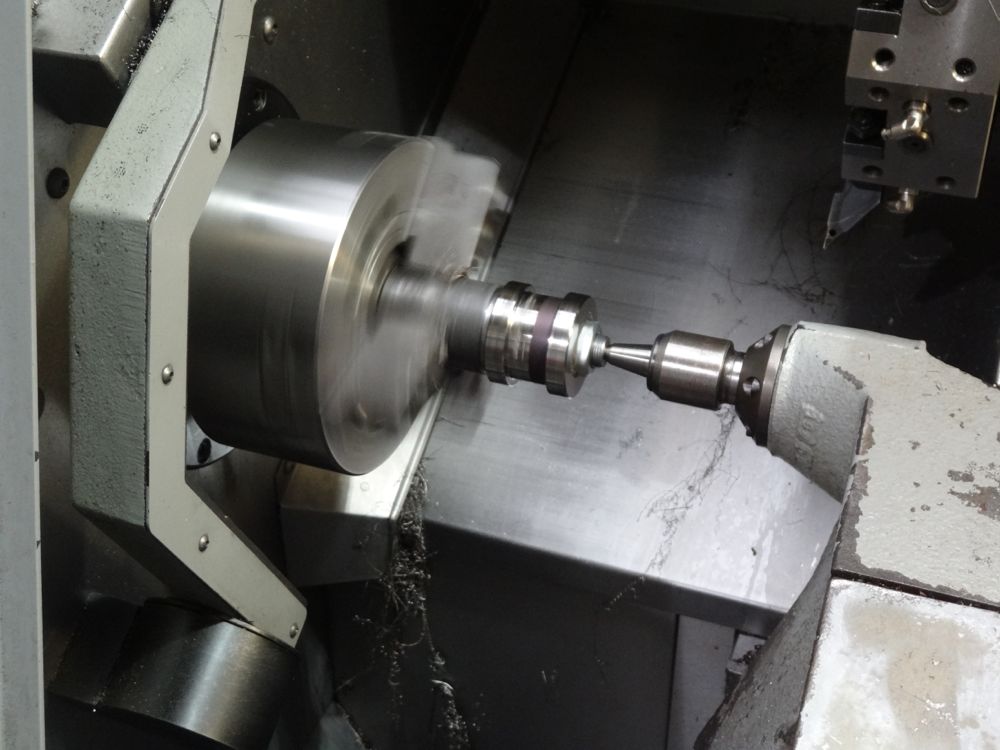

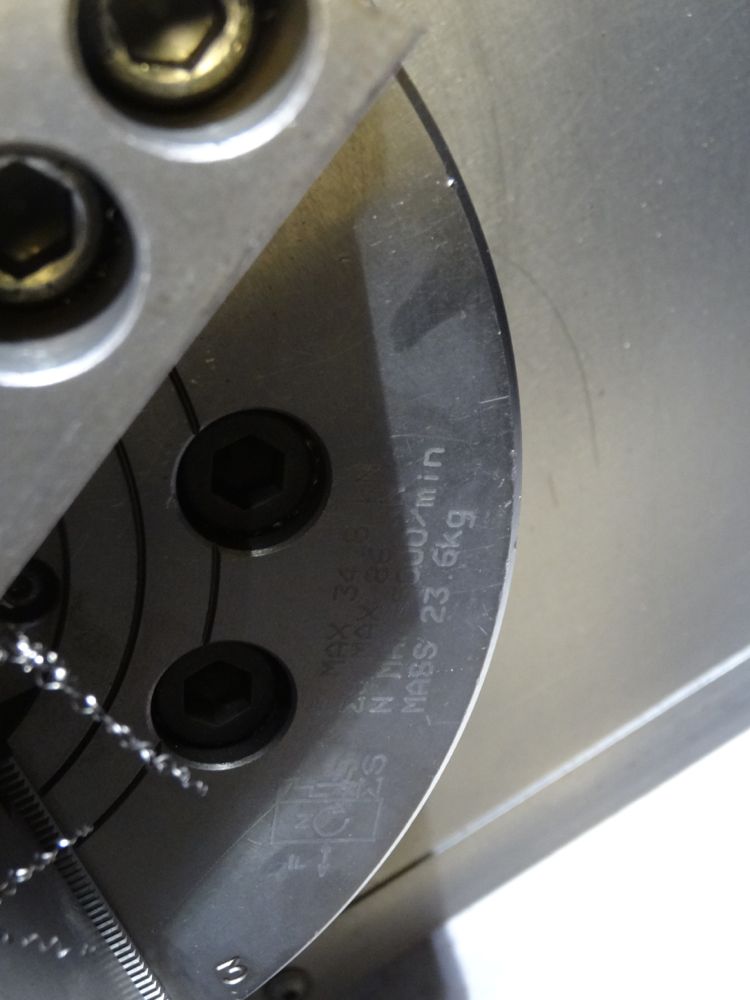

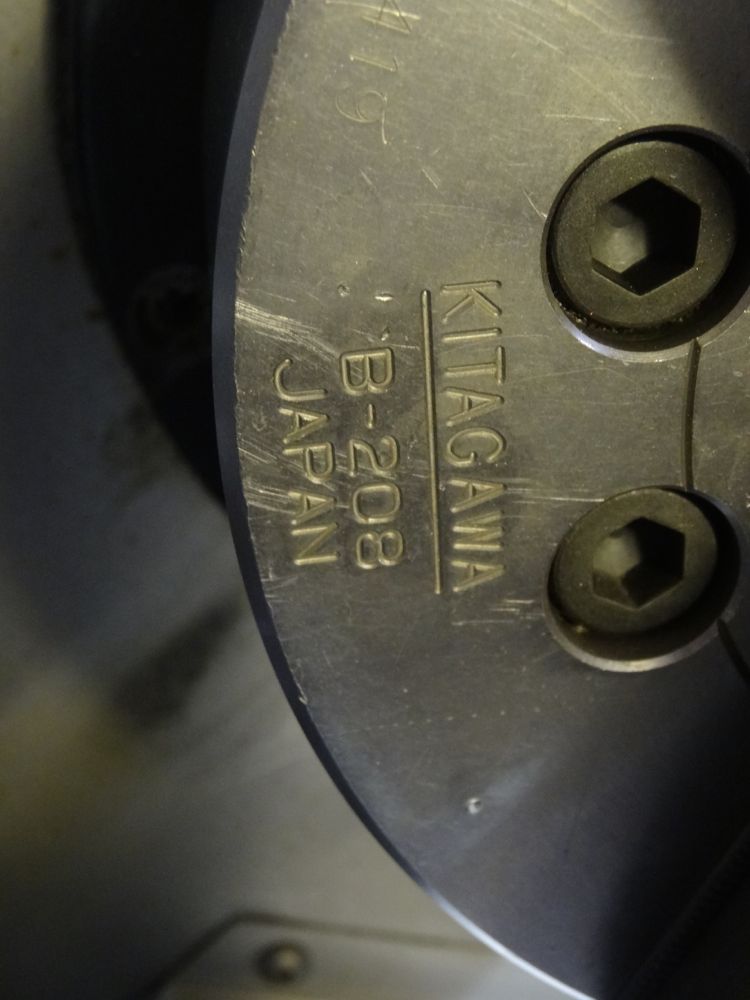

Chuck size: 203mm
Standard Bar Capacity: 51mm
Between centers: 610mm
Max cutting diameter: 254mm
Max cutting length: 508mm
Spindle
Max speed: 4000rpm
Torque: 209Nm @ 650rpm
Peak Horsepower: 15kW
Spindle nose: A2-6
Spindle bore: 76.2mm
Draw tube bore: 52.3mm
Travels & Feedrates
X- Axis: 215mm
Z- Axis: 508mm
Axis motor max. thrust: 15124N
Rapids (AC brushless): 710ipm

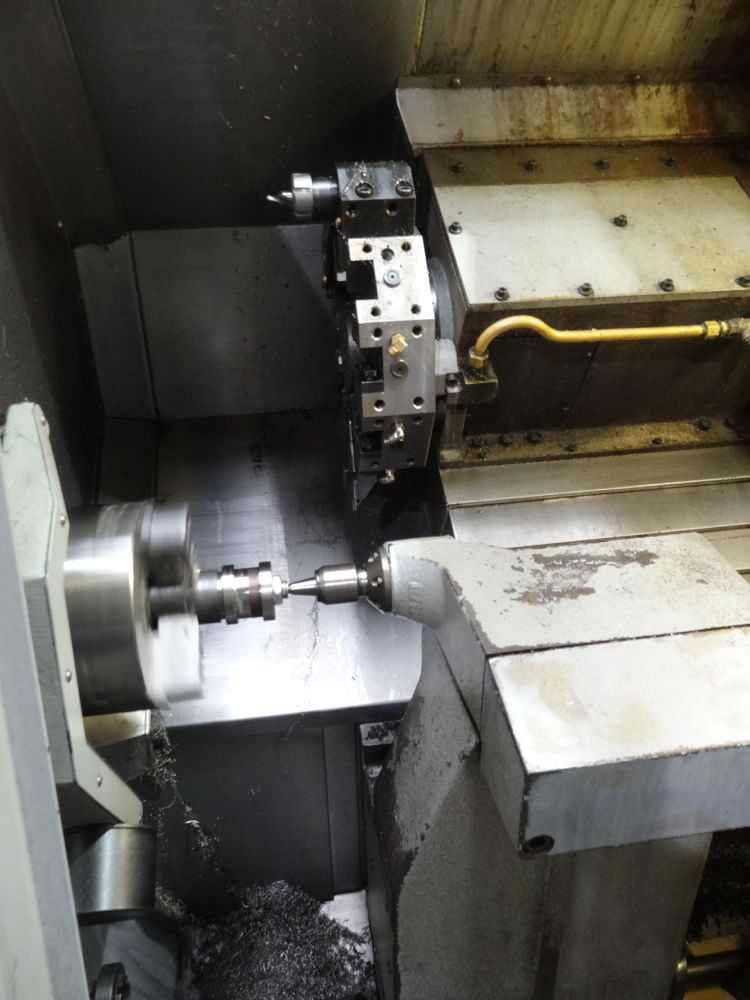

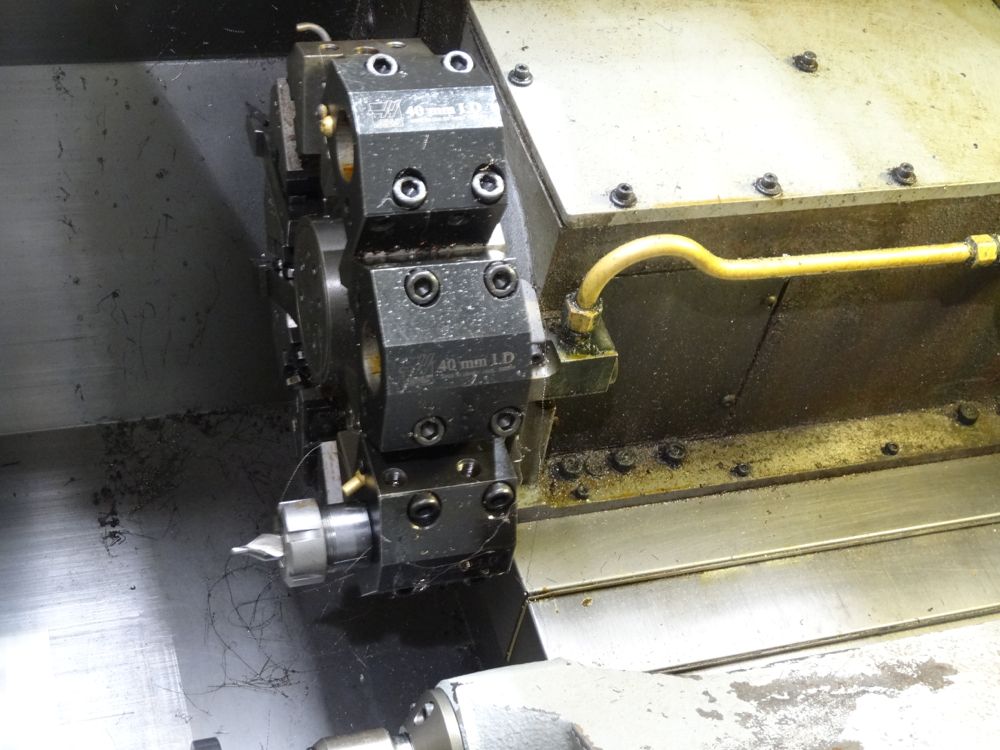

Turret
Number of tools: 10
Tool hole in turret: 50.8mm
Tool size (OD. turning): *1”
Boring bar rear clearance (from turret face):108.0mm
Index time (one tool): 1 second
Accuracy
Positioning: +0051mm
Repeatability: 00.25mm
Miscellaneous
Weight: 4082kg
Power Requirement: 12kVA
Volts/phase: 200-250 VAC, 3 phase 60Hz
Coolant: 151L
Air Requirement: 1.42lps @ 6.9 bar
Standard Features
Massive cast iron construction
Anti-flex torque-tube base casting
Double anchored ballscrews
High speed brushless servo motors
12 position fast change turrets
Haas quick change tool holders
Direct coupled servo motors
Enhanced thermal stability
Massive ribbed castings
Symmetrical design for rigidity & stability
Double wall safety door design
Embedded coolant collection tray
Location: Seaham, County Durham
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
