Lot 4 - Lead V42i VMC (Installed Feb 2013)
Description:

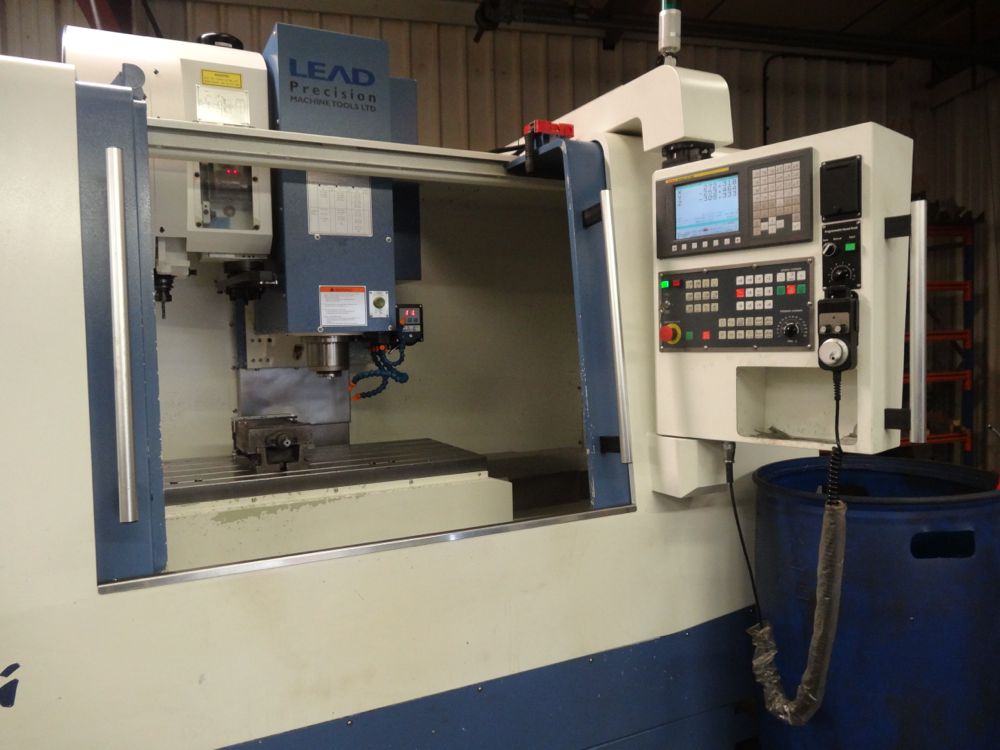

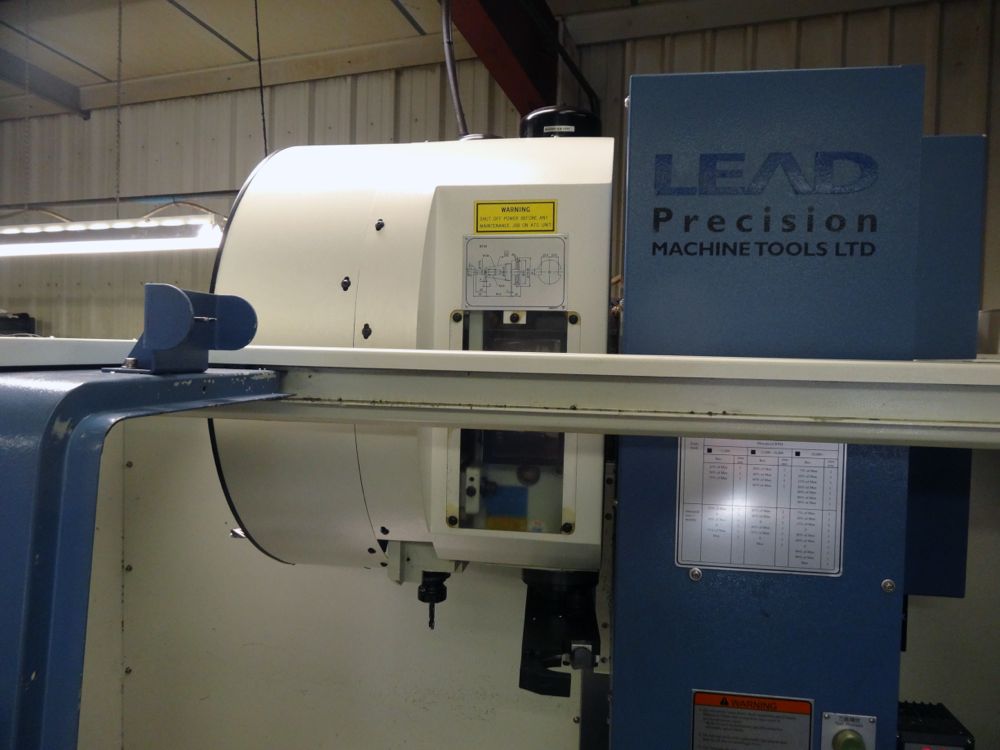

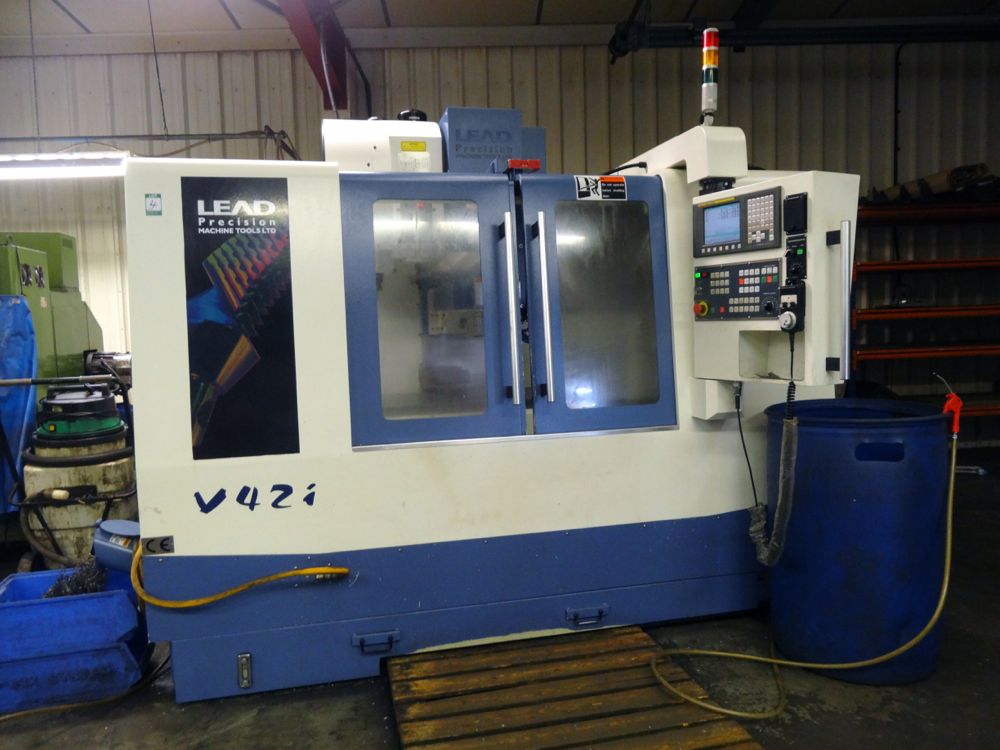

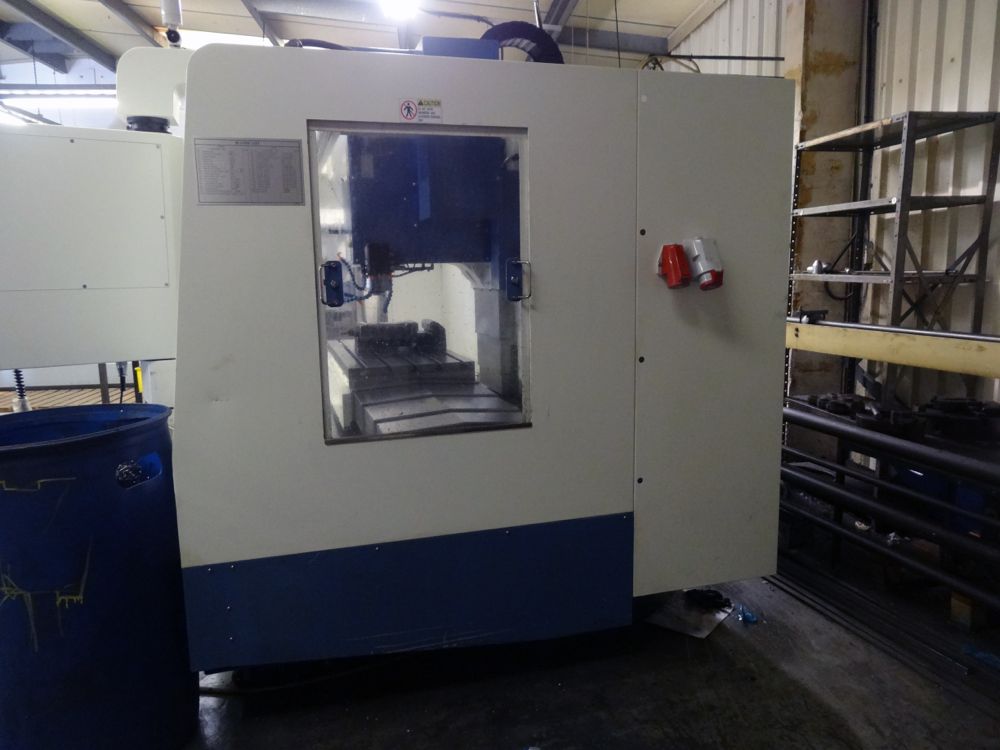

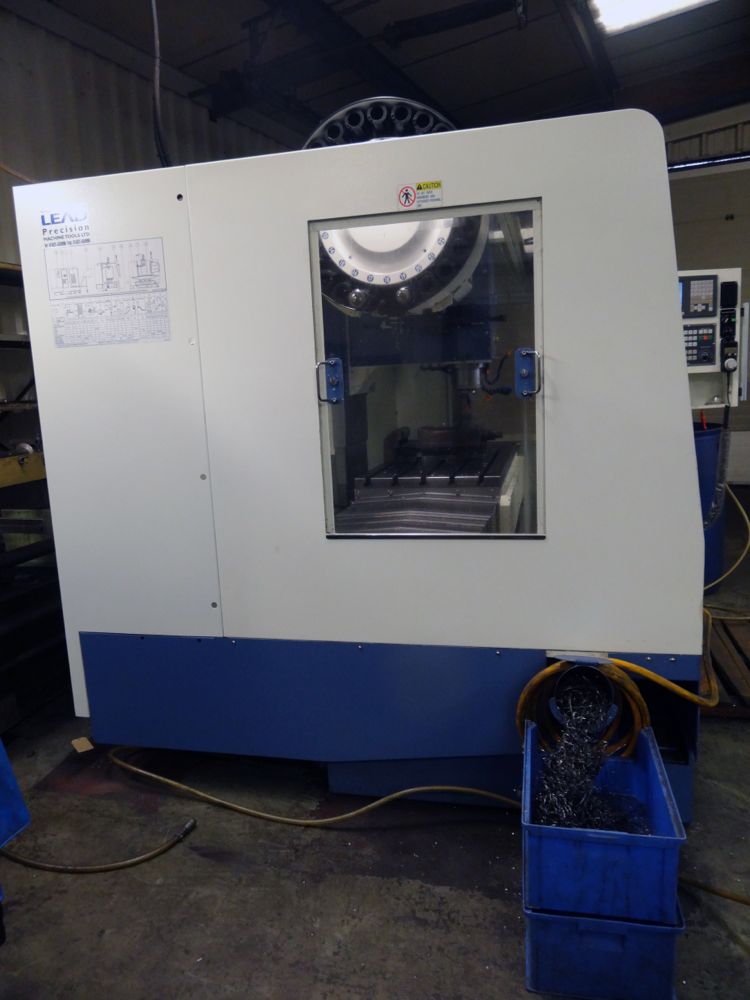

Leaderway V42i VMC

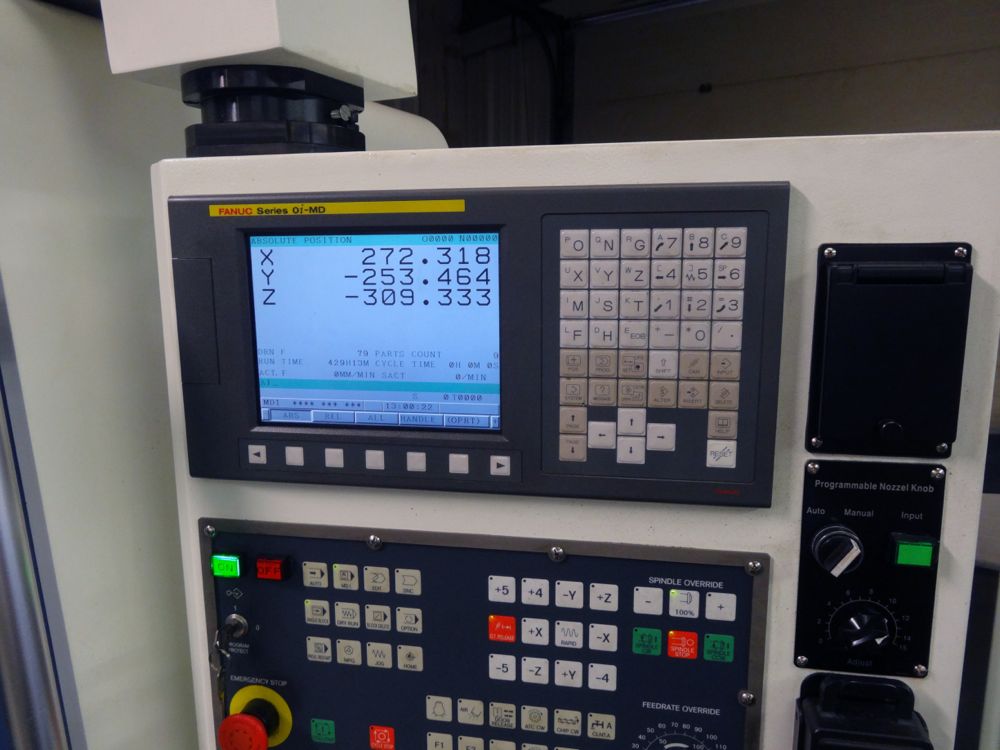

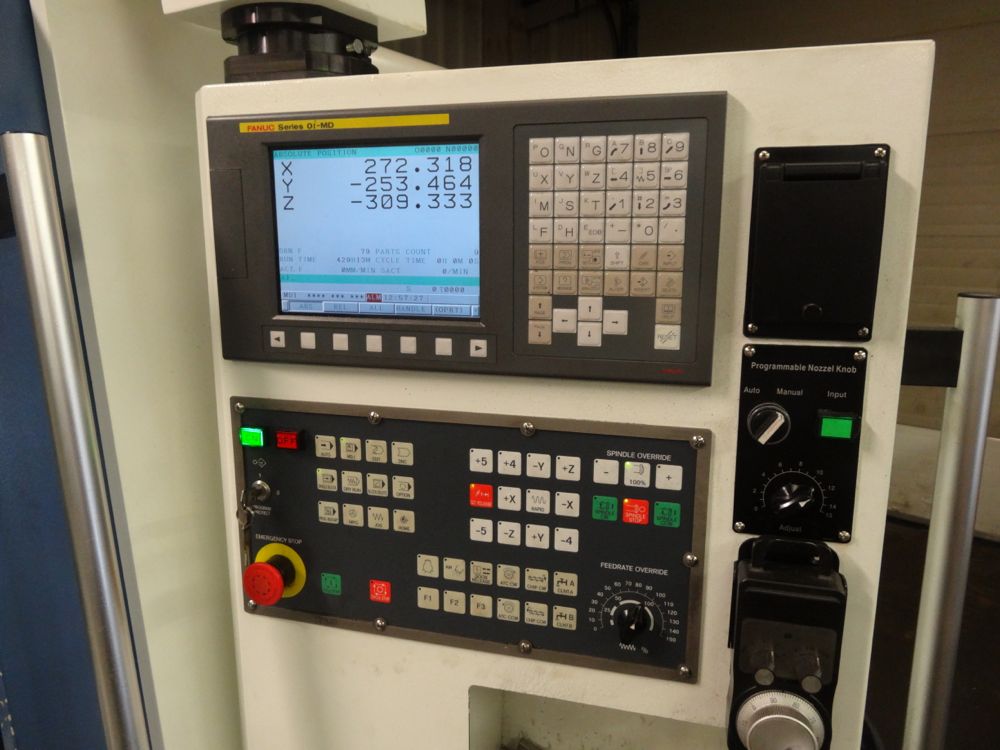

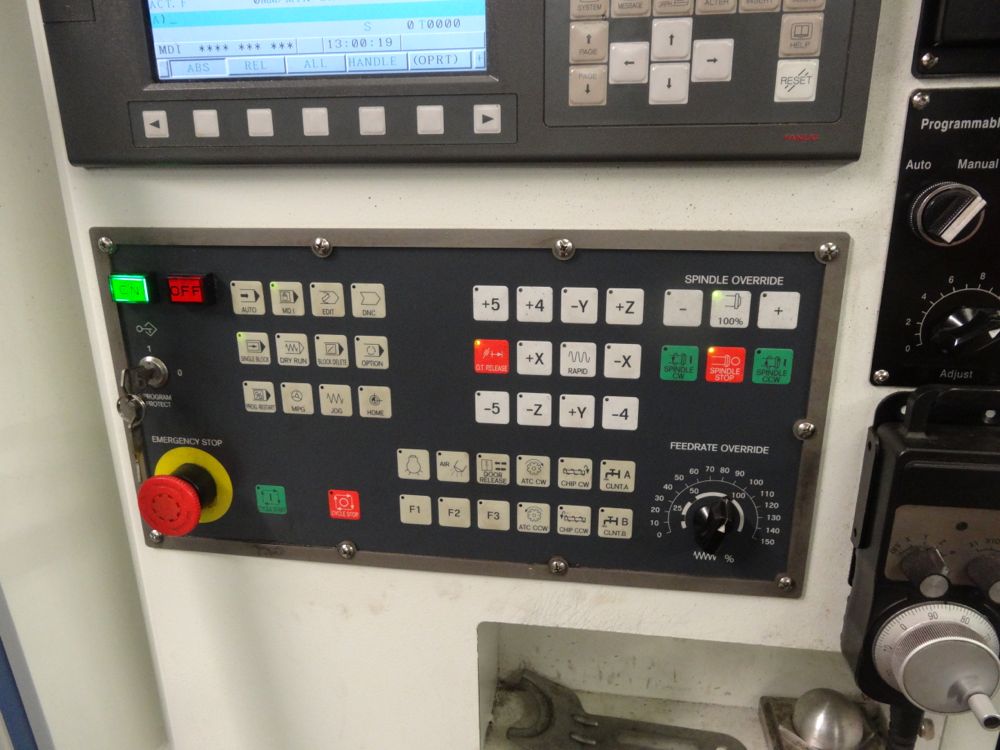

Controller: Fanuc OiMD (8.4” Colour)
X Axis travel: 1066mm
Y Axis travel: 510mm
Z Axis travel: 500mm
Spindle nose to table: 85 - 585mm
Spindle center to column: 520

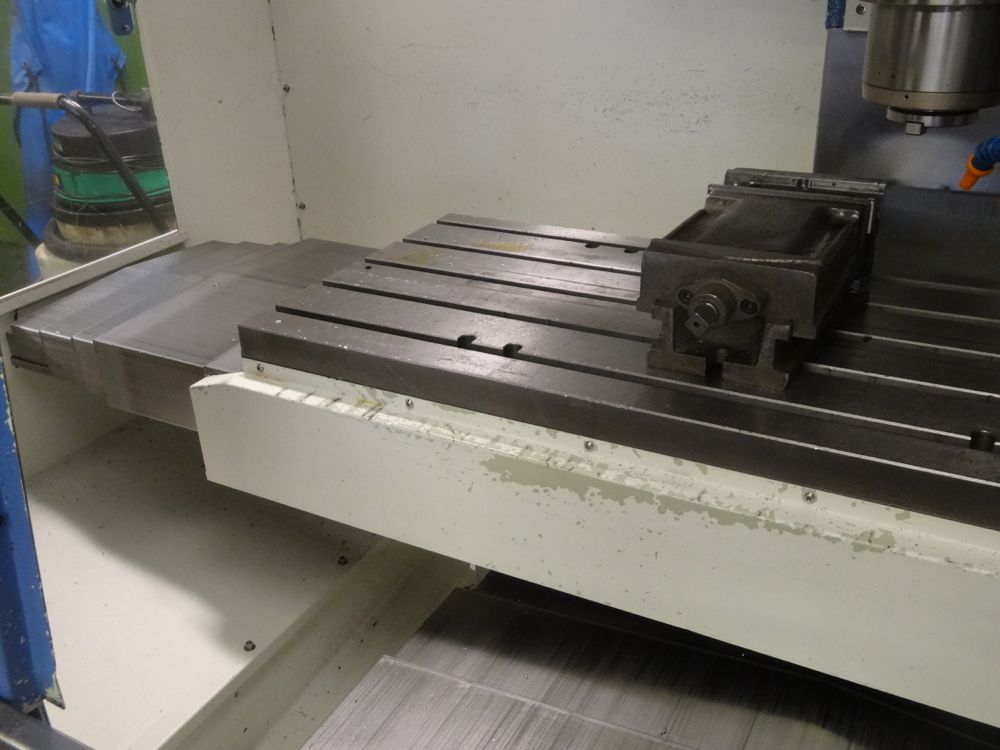

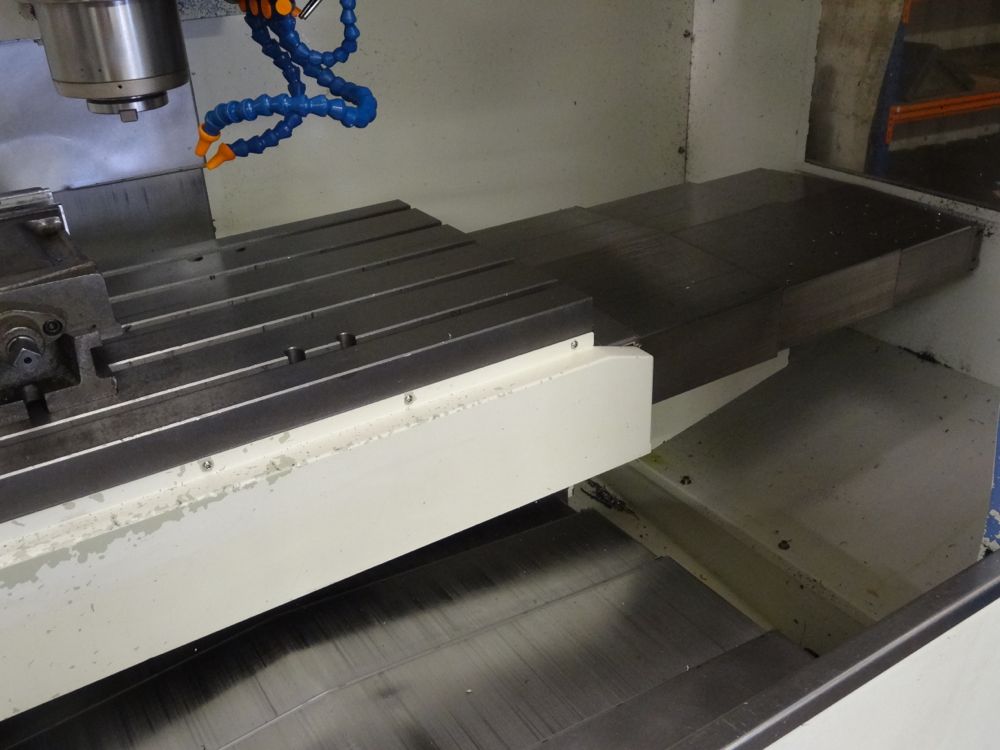

Table size: 1200 x 515mm
Table height: 875mm
T solt size: 5 - 18T x 100mm
Table max load: 400kg
Spindle speed: 10,000rpm
Spindle taper: BT40
Spindle motor: 7.5/11
X/Y/Z rapid traverse: 30/30/20
X/Y/Z feed rate: 1-10
X/Y/Z servo power: 1.8kW

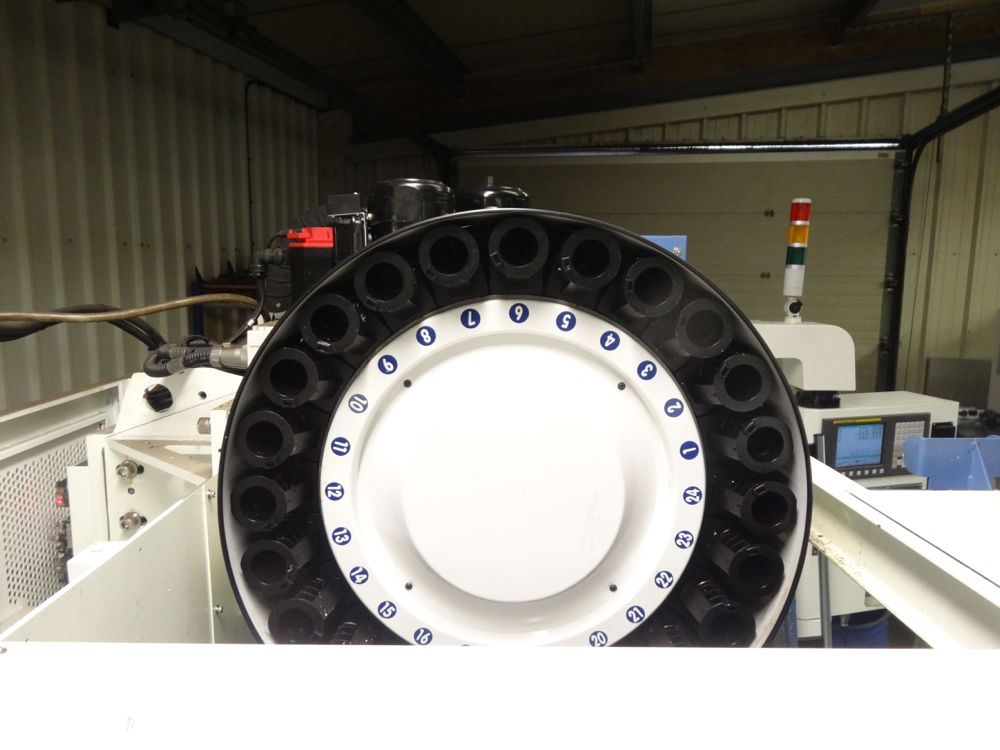

ATC: Drum type
No. of tools:16
ATC time (T - T): 8 seconds
ATC time (C - C): 14
Max tool weight: 7kg
Max tool diameter: 100mm
Max tool diameter (no Adjacent): 125mm
Positioning X/Y/Z: VDI/DGQ 3441 0.015mm
Repeatability X/Y/Z: VDI/DGQ 3441 Ps max 0.01mm
Length: 3100mm
Width: 2200mm
Machine height: 2850mm
Weight: 4600kgs
Pneumatic source requirement: 6bar

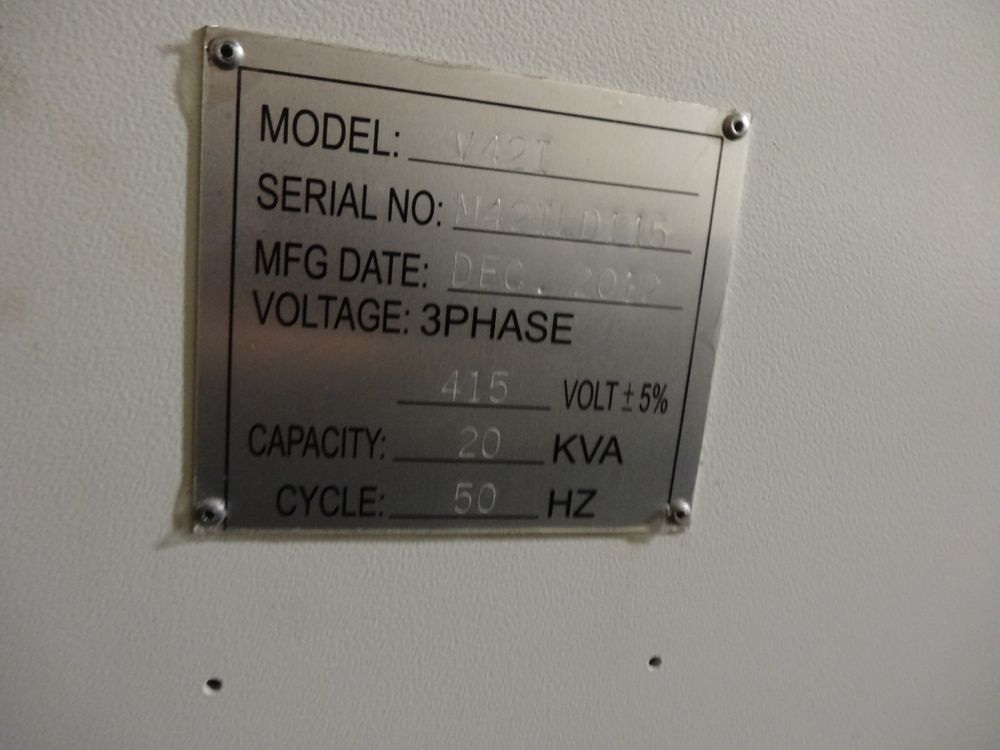

Power Capacity 20KVA
Location: Engments Ltd, Derby
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
