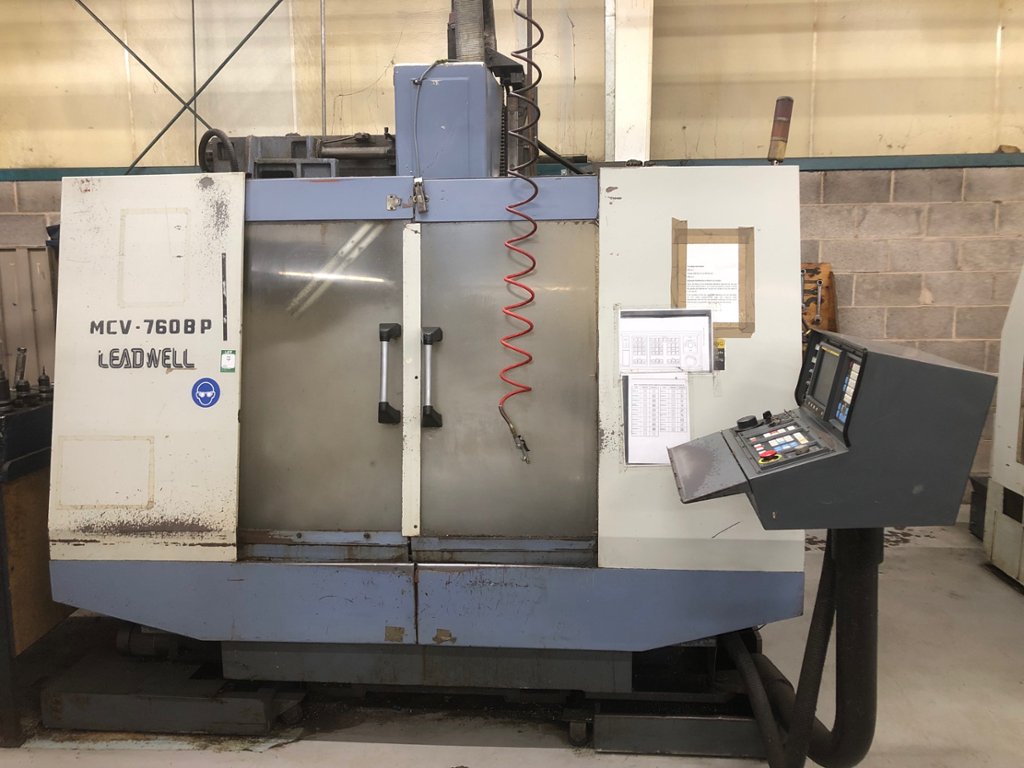

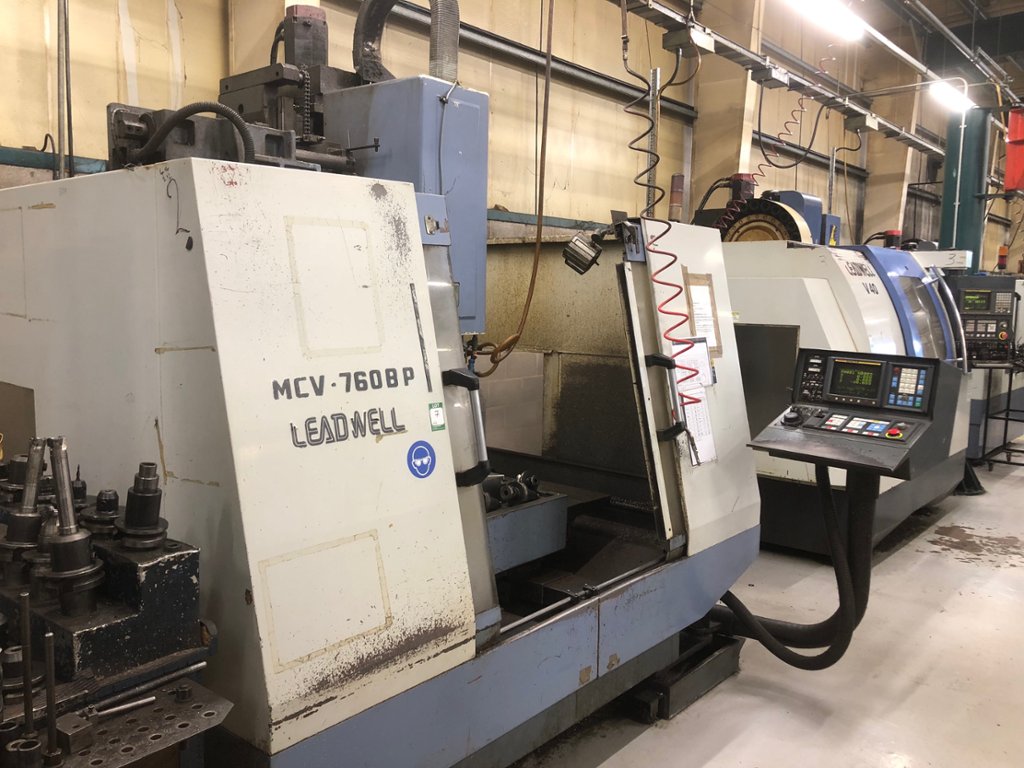

Lot 7 - Leadwell 760 BP Vertical Machining Centre (1991)


* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.


The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

SPINDLE POWER - Continuous - 14.7hp, 30 mins - 20.1hp

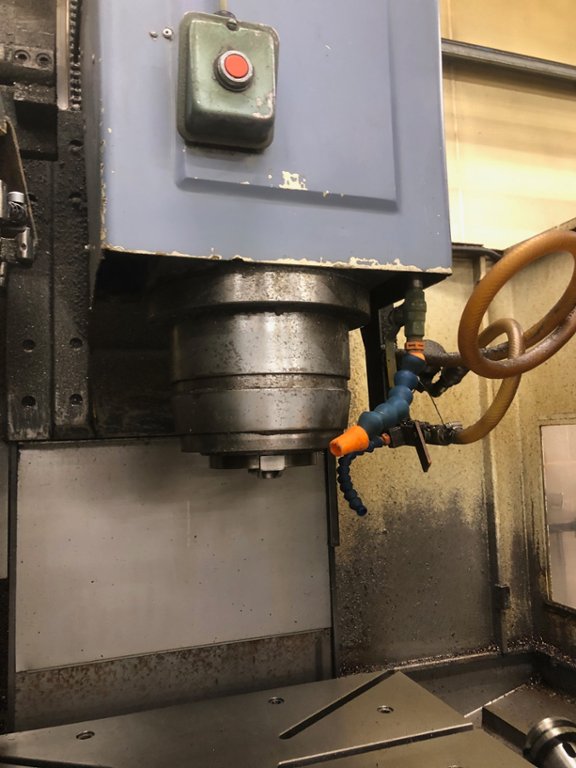

SPINDLE MOTOR - Continuous - 14.7hp, 30 mins - 20.1hp, Base Speed - 500 rpm, Max Speed - 6000 rpm

Spindle Speed Range - 40 - 4000 rpm, Spindle Taper - BT50, Spindle Diameter - 90mm

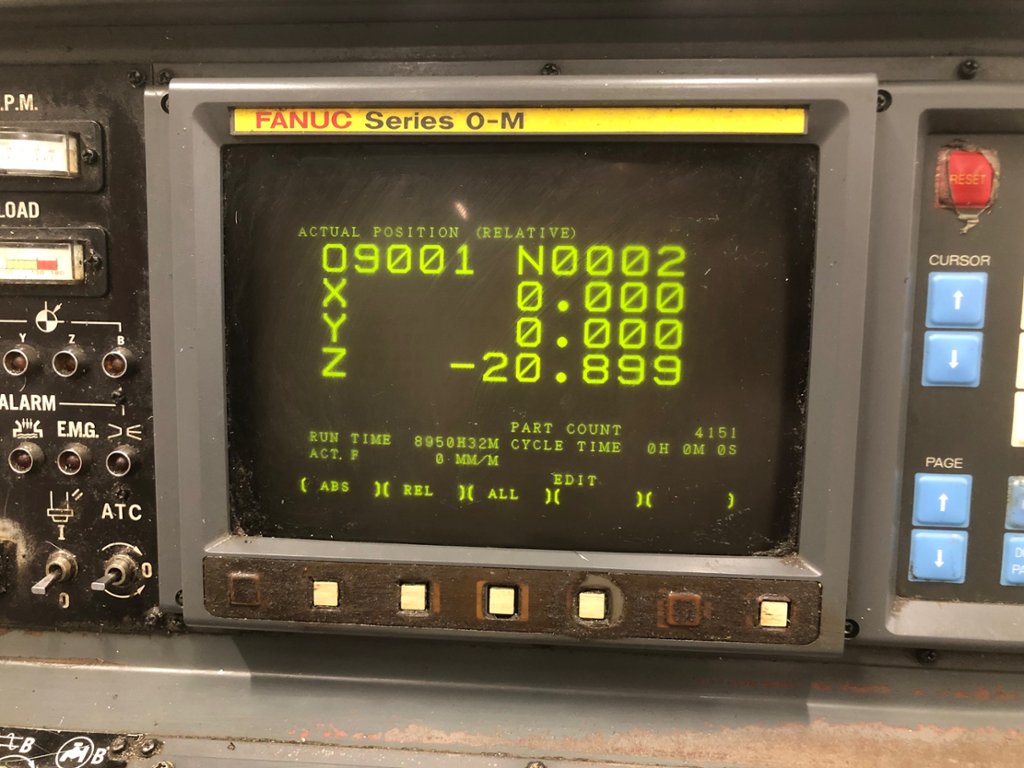

SPINDLE BEARING - Front - 2mm 9118 WIQUM, Rear - 2mm 9116 WIDUL, Spindle Transmission - 920-8m-85 H.T.D Belt, Spindle Draw Bar Power - 1400kg (+/- 10%), Disc Spring Type - DIA 50/DIA 25.4/T3mm, Spindle Orientation - Standard (Fanuc Built in Motor), Spindle Air Supply - Standard, Spindle Coolant System - Option (Oil Cooler)

Bid information

Time remaining


05 Sep 2019 17:00:00 BST

Final remove by date: 19/Sep/2019

Location: Cheltenham

Lot location

Transport information

  • Width: 101"
  • Depth: 83"
  • Height: 78"
  • Weight: 5000kg
  • Other Transport Details: Loaded to transport £150
