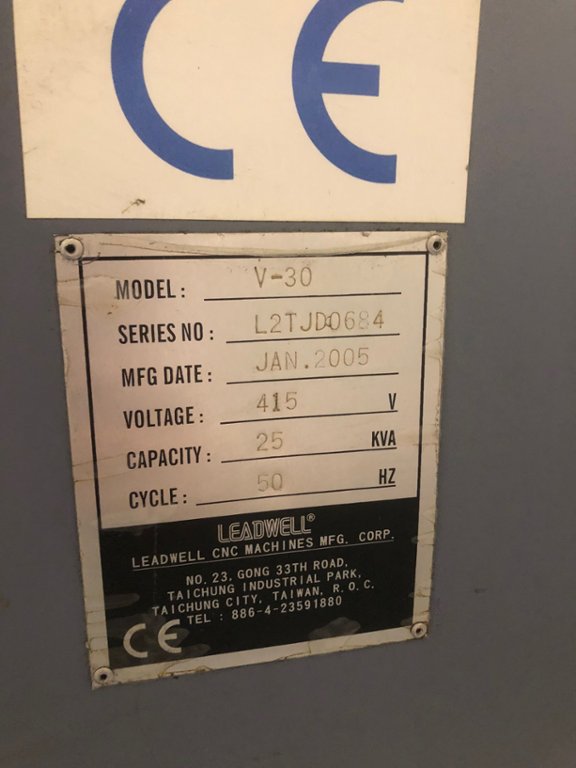

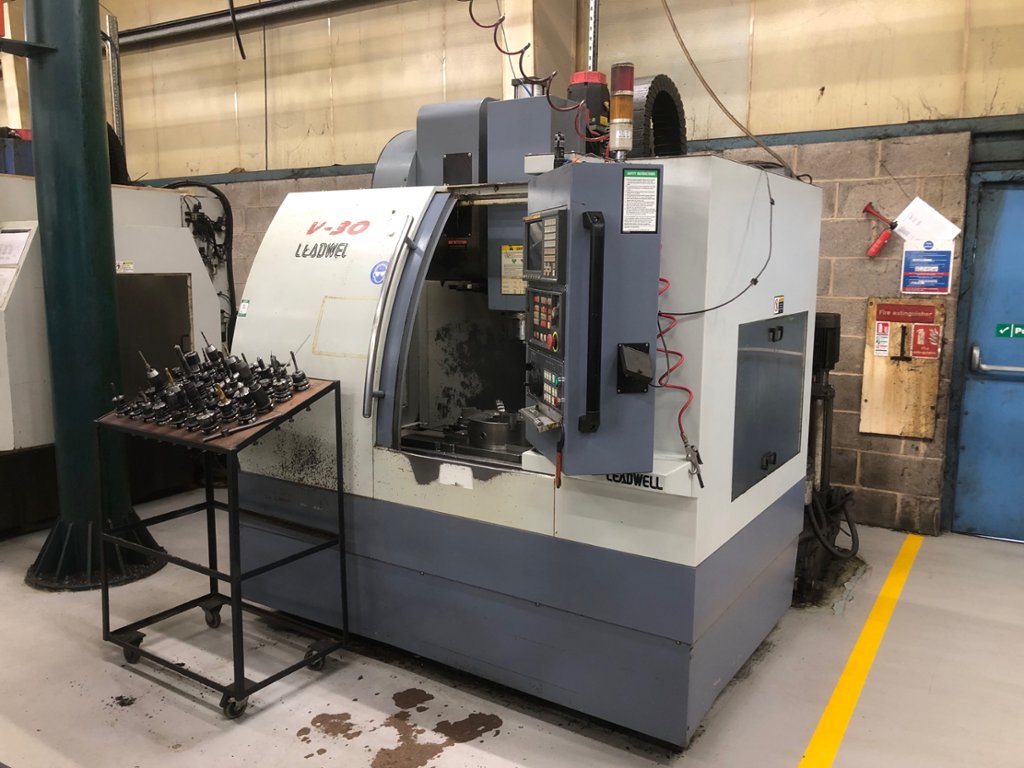

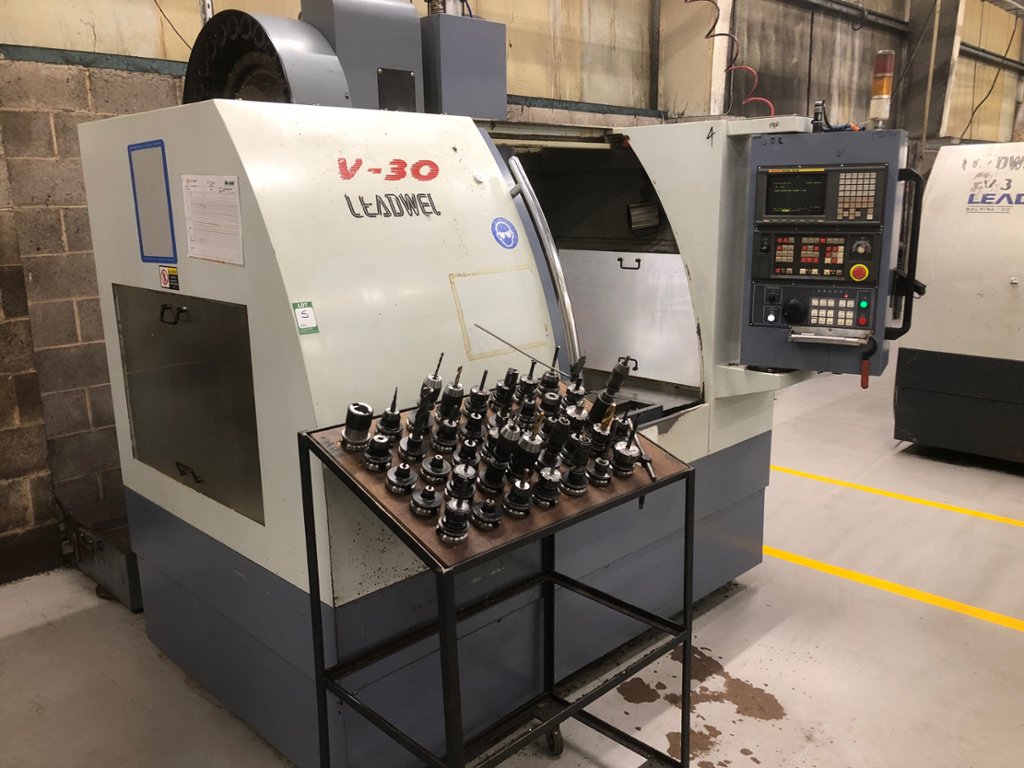

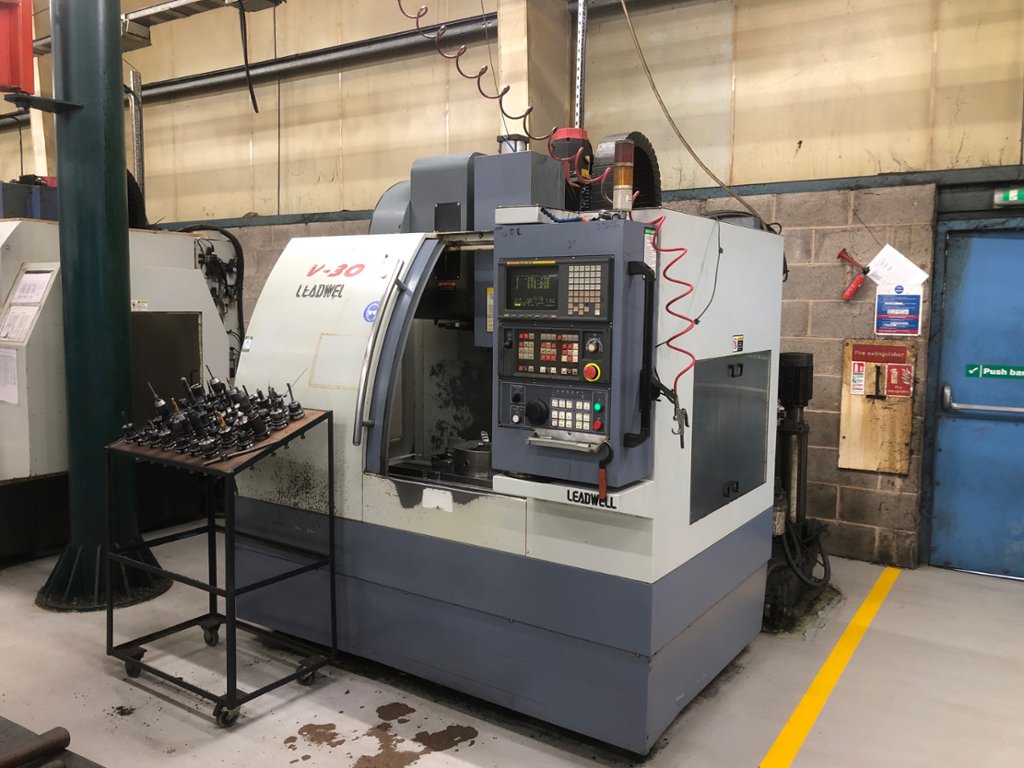

Lot 5 - Leadwell V-30 Vertical Machining Centre (2005)


* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.


The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

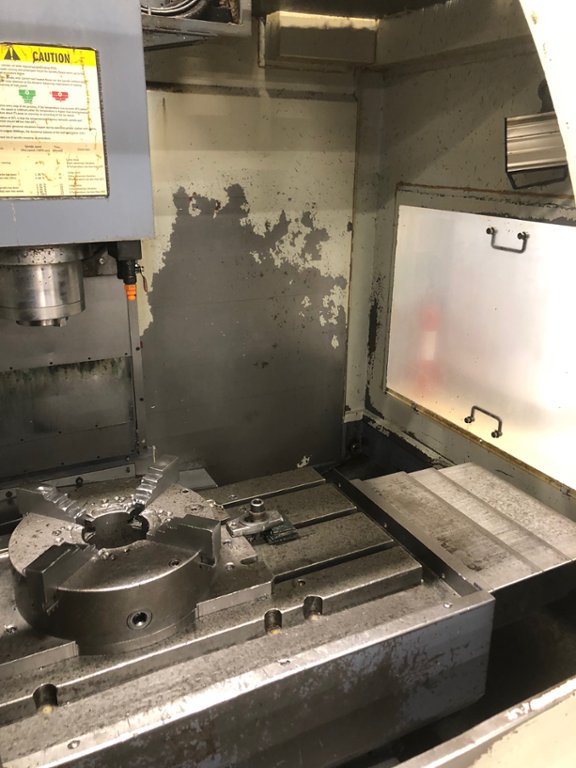

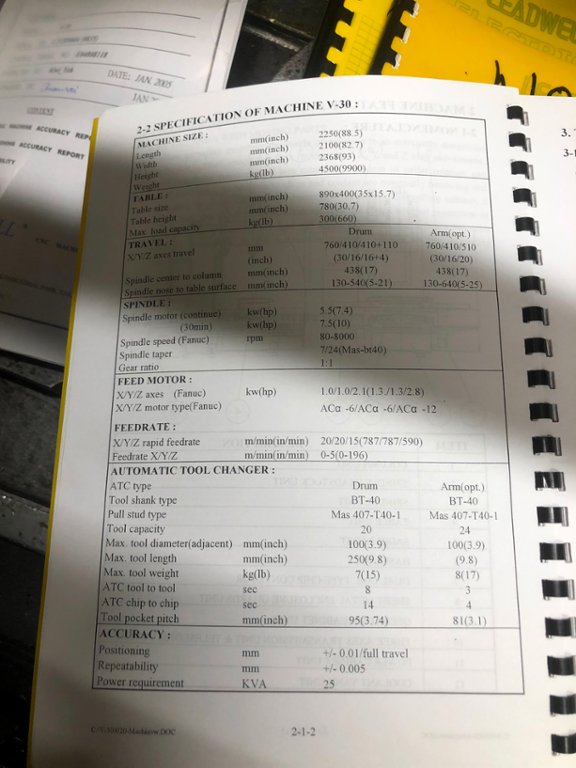

Table Size - 890 x 400mm, Table Height - 780mm, Max Load Capacity - 300kg.

TRAVEL - X/Y/Z Axis Travel - 760/410/410+110mm, Spindle Centre to Column - 438mm, Spindle Nose to Table Surface - 130-540mm

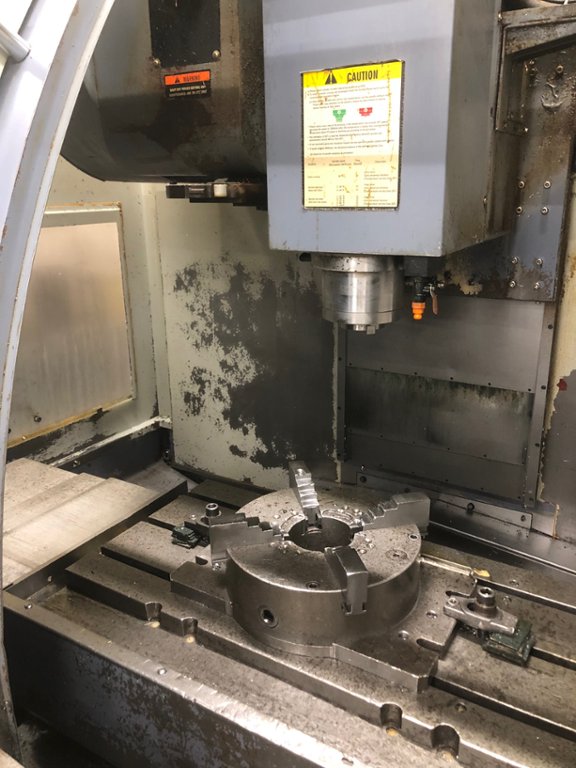

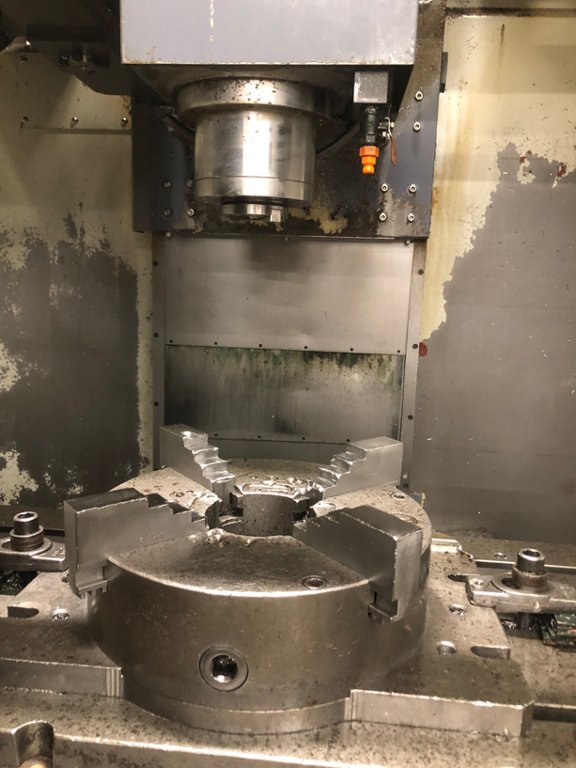

SPINDLE - Spindle Motor - continue - 5.5kw - 30 mins - 7.5kw, Spindle Speed (Fanuc) - 60-8000rpm, Spindle Taper - 7/24, Gear Ratio - 1:1

FEED MOTOR - X/Y/Z Axis (Fanuc) - 1.0/1.0/2.1kw, X/Y/Z Motor Type (Fanuc) - AC - 6/AC-6/AC-12

FEEDRATE - X/Y/Z Rapid Feedrate - 20/20/15m/min, Feed Rate X/Y/Z - 0-5m/min

AUTOMATIC TOOL CHANGER - ATC Type - Drum, Tool Shank Type - BT-40, Pull Stud Type - Mas 407-T40-1, Tool Capacity - 20, Max Tool Diameter - 100mm, Max Tool Length - 250mm, Max Tool Weight - 7kg, ATC Tool to Tool - 8 seconds, ATC Chip to Chip - 14 seconds, Tool Pocket Pitch - 95mm

ACCURACY - Positioning - +/- 0.01/full travel mm, Repeatability - +/-0.005mm, Power Requirement - 25KVA

Bid information

Time remaining


05 Sep 2019 15:50:00 BST

Final remove by date: 19/Sep/2019

Location: Cheltenham

Lot location

Transport information

  • Width: 2100mm
  • Depth: 2250mm
  • Height: 3368mm
  • Weight: 4500kg
  • Other Transport Details: Loaded to transport £150
