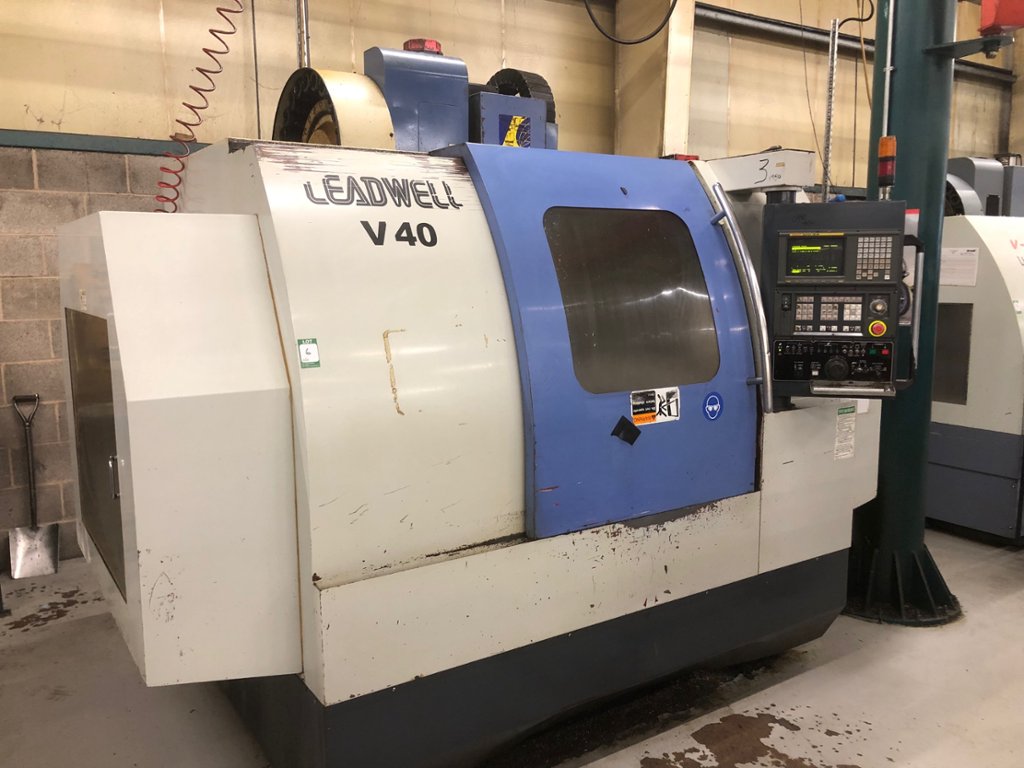

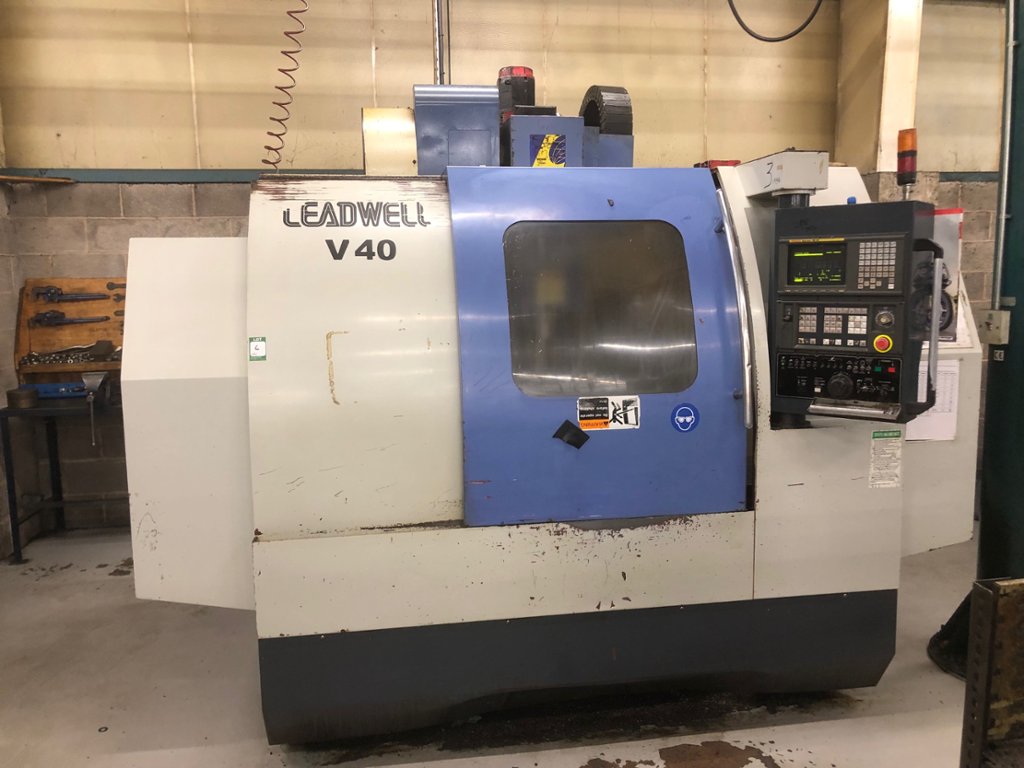

CAPACITY - X Axis Travel - 1020mm, Y Axis Travel - 510mm, Z Axis Travel - 510mm, Distance from Table Top to Spindle End - 160-670, Distance from Column Front to Spindle Centre - 515mm

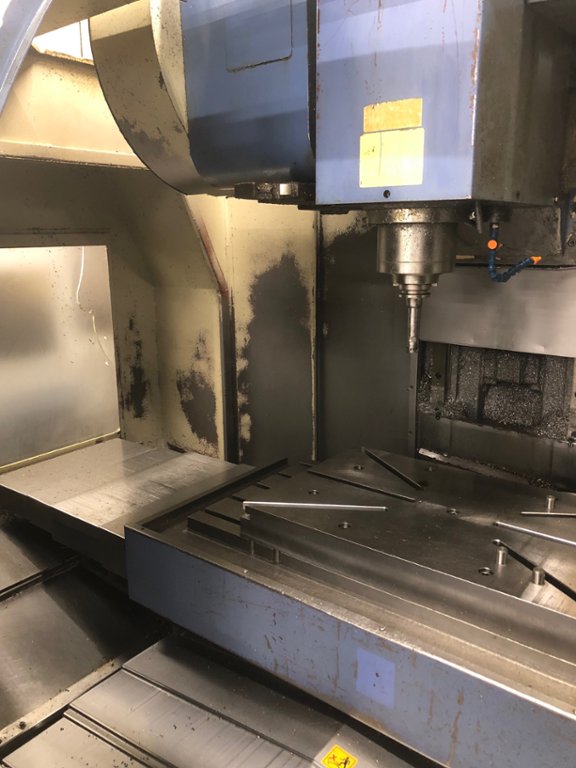

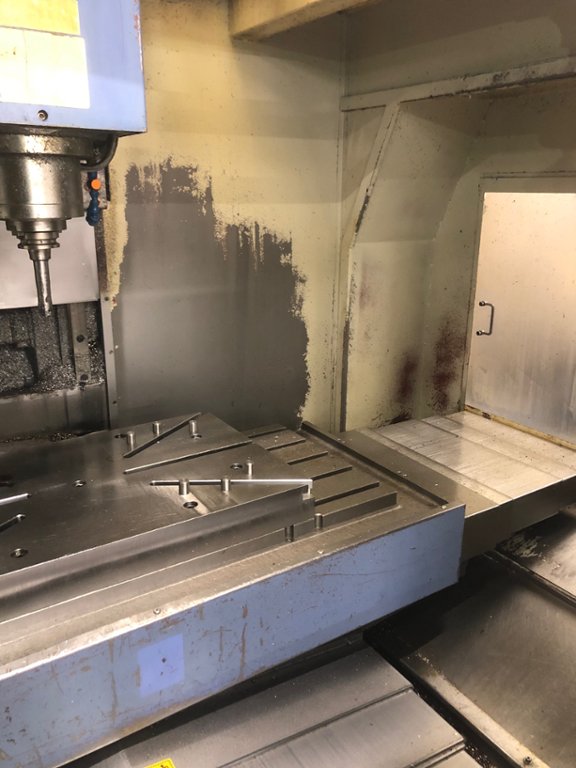

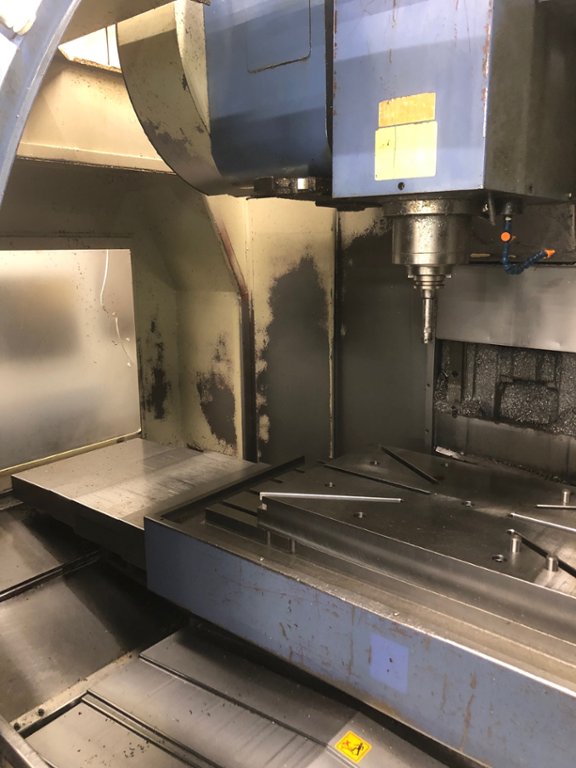

TABLE - Size of Working Surface - 1200x510mm, Permissable Mass of Workpiece - 500kg, Table Working Surface Configuration - 18Tx100x5, Height from Floor to Table Top - 830mm

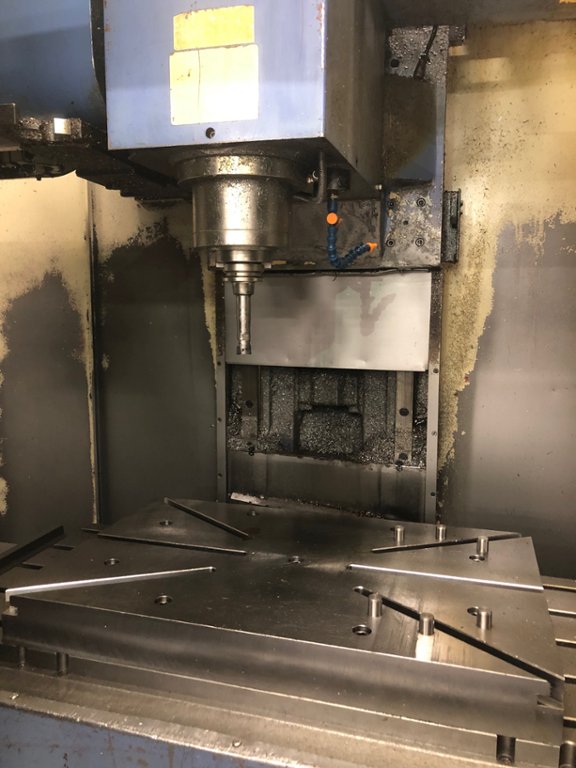

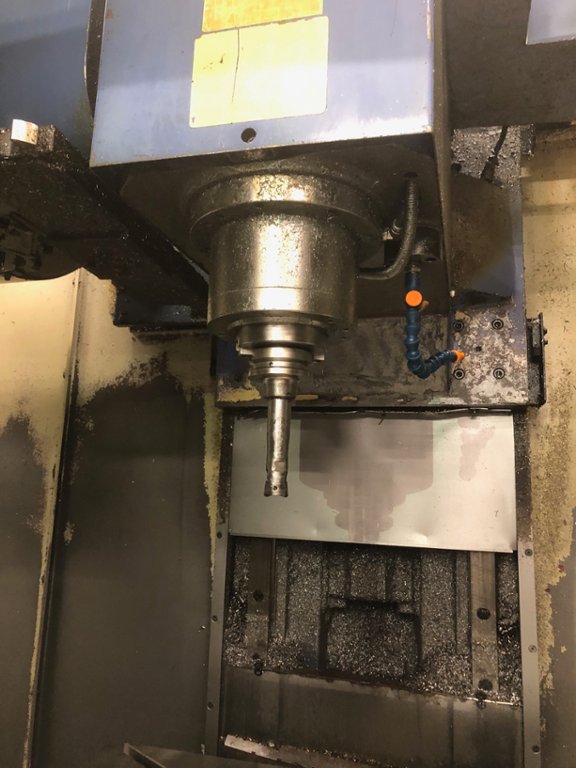

SPINDLE - Spindle Speeds - 8000min, Number of Spindle Speed Ranges - 1, Spindle Nose - 7/24Taper.NO40, Spindle Bearing Inner Diameter - 70mm, Ratios - 1:1, Max Spindle Torque - 114.6 NM, Transmission - H.T.D Belt, Tool Clamping Force - 850kg
FEEDRATE - Rapid Traverse - 20/20/15m/min, Feedrate - 5m/min, Jog Feedrate - 1260mm/min
A.T.C - Tool Shank - BT40, Retention Knob - MAS-P40T-I, Tool Storage Capacity - 20, Max Tool Diameter (with adjacent tools) - 95mm, Max Tool Diameter (without adjacent tools) - 150mm, Max Tool Mass - 7kg, Max Tool Length - 250mm, Tool Change Time (Tool to Tool) - 7.5 seconds, Tool Change Time (Chip to Chip) - 13 seconds, Tool Selection - Random.
