Lillian 3VH Mill with Acu-Rite Millvision DRO

Lot 5 - Lillian 3VH Mill with Acu-Rite Millvision DRO

Description:

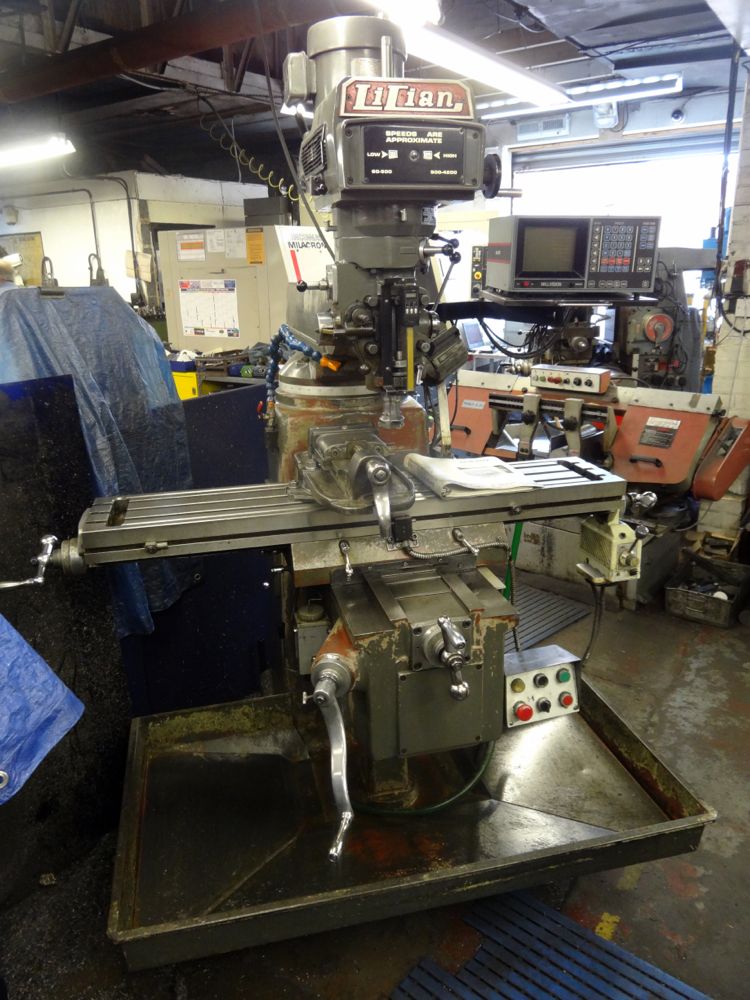

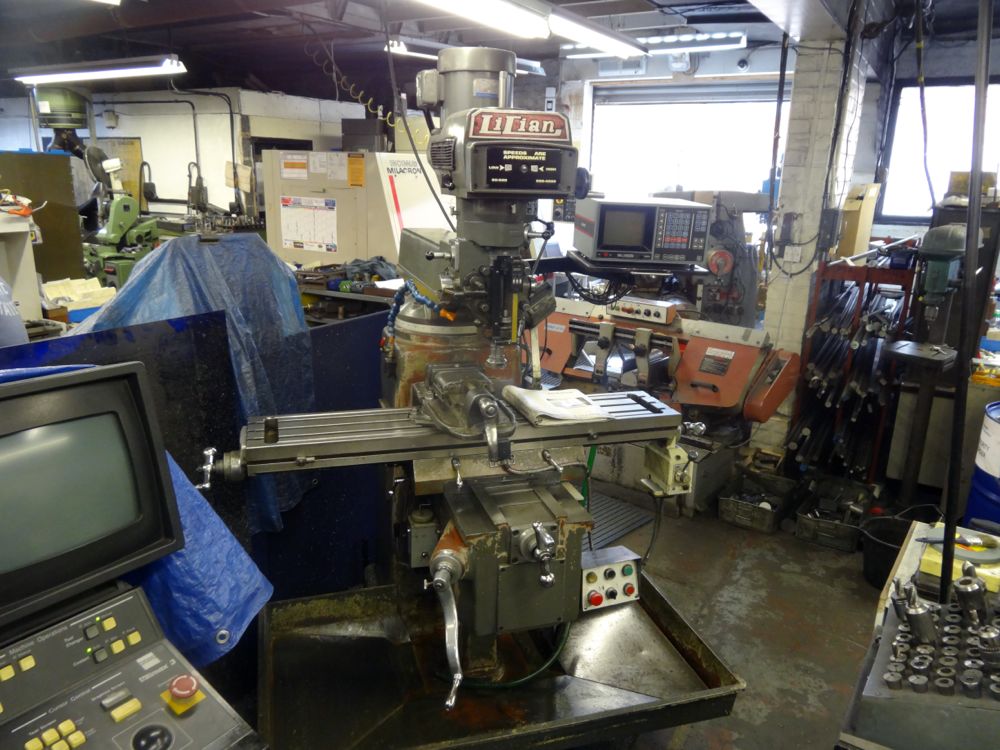

Lillian 3VH Mill

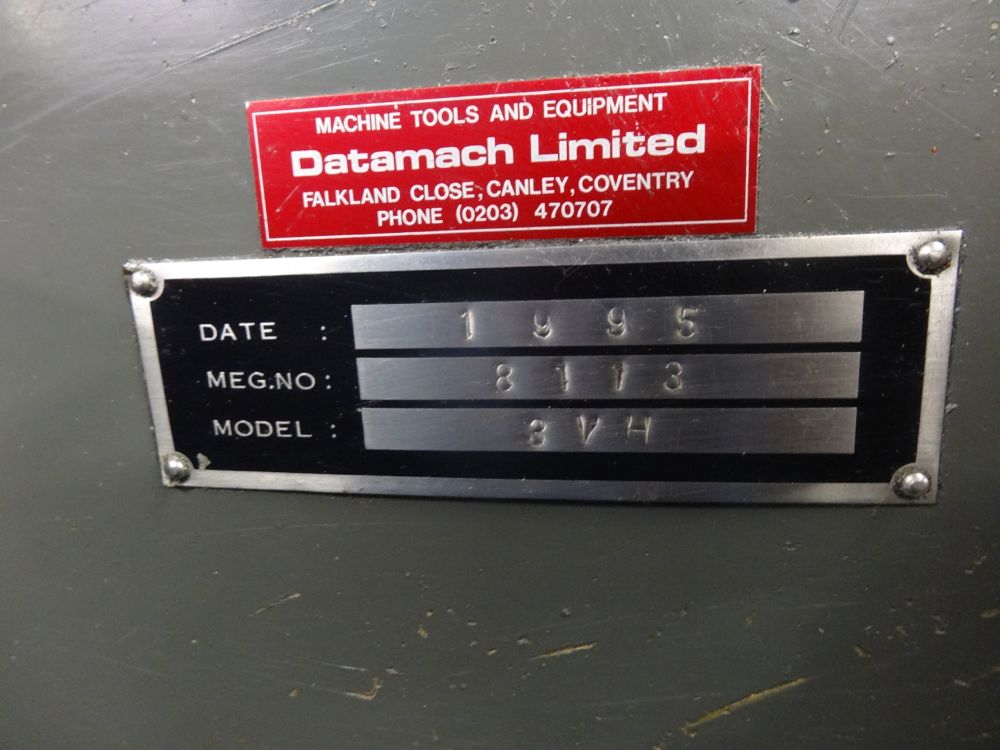

Meg No: 8113
Model: 3VH
Date: 1995

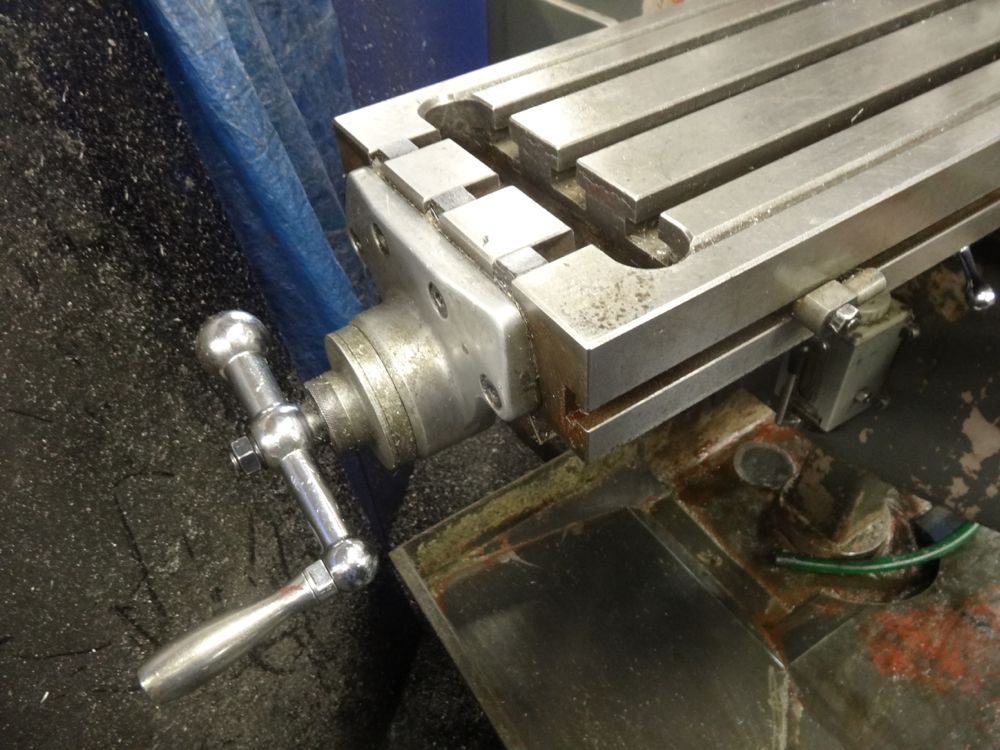

Table 254 x 1.270 mm
X Travel: 914 mm
Y Travel:  406 mm
Z Travel:  406 mm
Throat depth: 0 - 520 mm
Quill Power feeds: 0.076, 0.038, 0.15 mm/rev
Spindle taper: R8

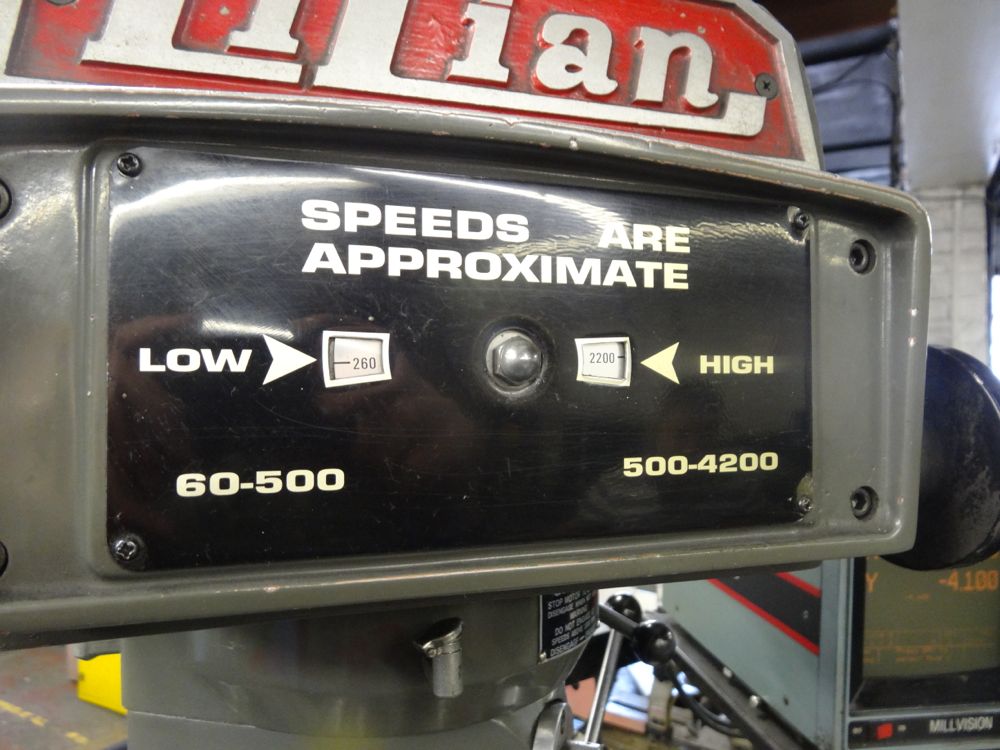

Speeds (Variable): 60 - 4200 RPM
Motor: 3 HP (2.2 kW)

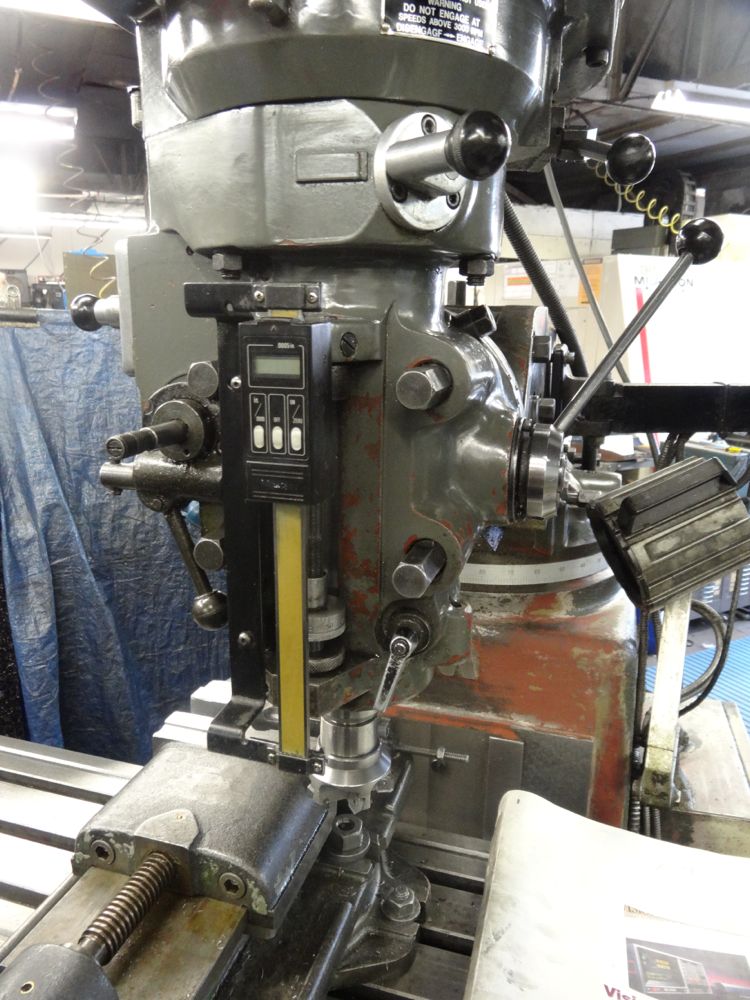

Travel of Spindle Sleeve: 127 mm
Feed of Spindle Sleeve: Three-step
Net Weight: 1.250 kg
Floor Space: 1.720 x 1.640 x 2.150 mm
Power Consumption: 2,2 kW
Central Lubrication System: Yes
Halogen Work Light

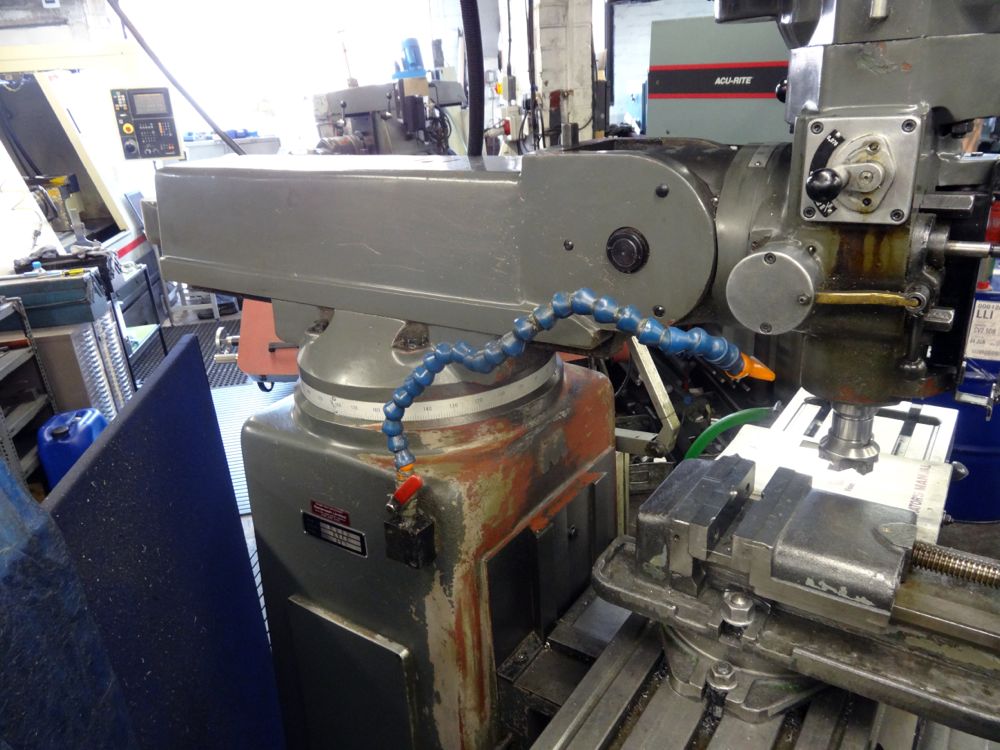

Coolant

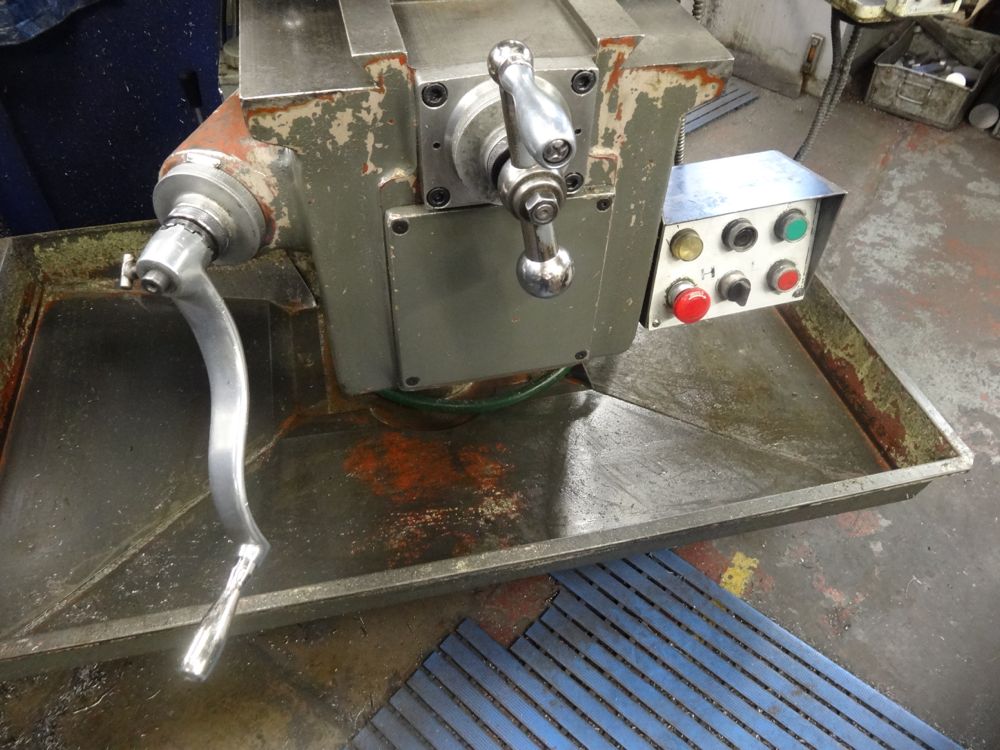

Base Splash Tray

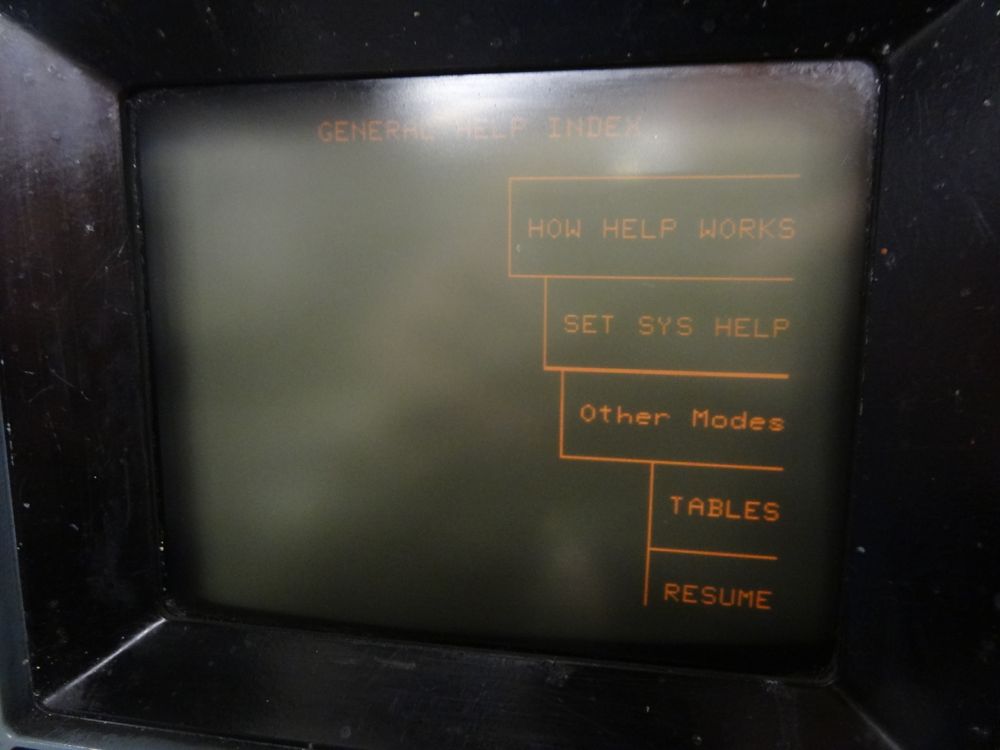

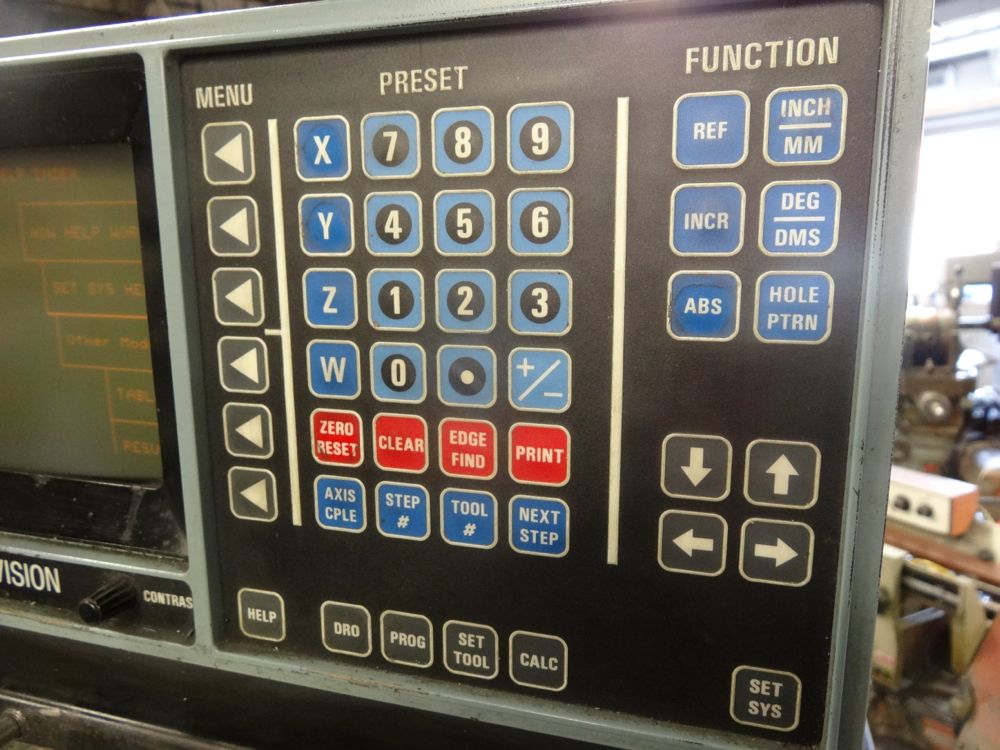

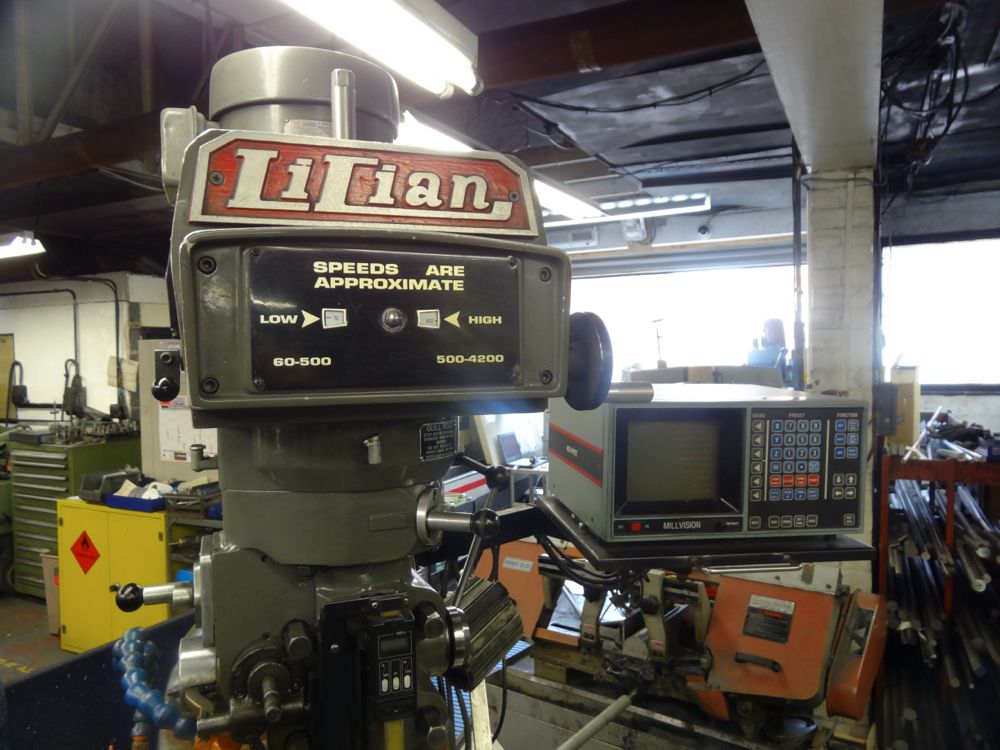

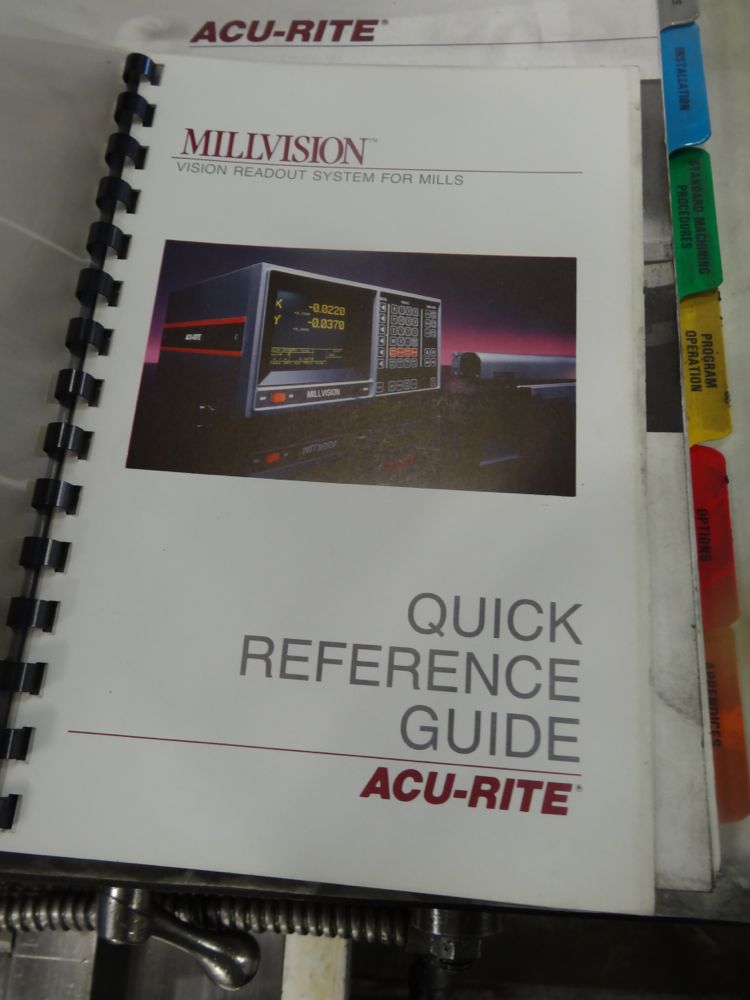

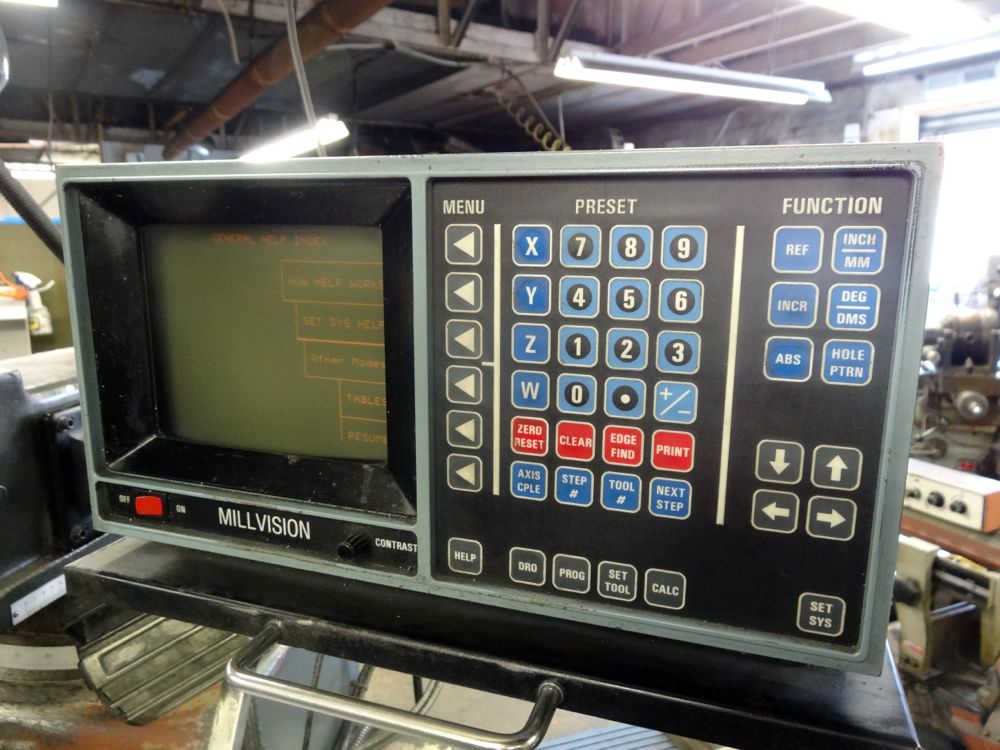

DRO System: Acu-Rite, Millvision DRO

Vice is not included
Tooling is not included

Location: Coventry

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
