Lot 1 - LVD laser Orion 3015 Plus (New April 2012)
Description:

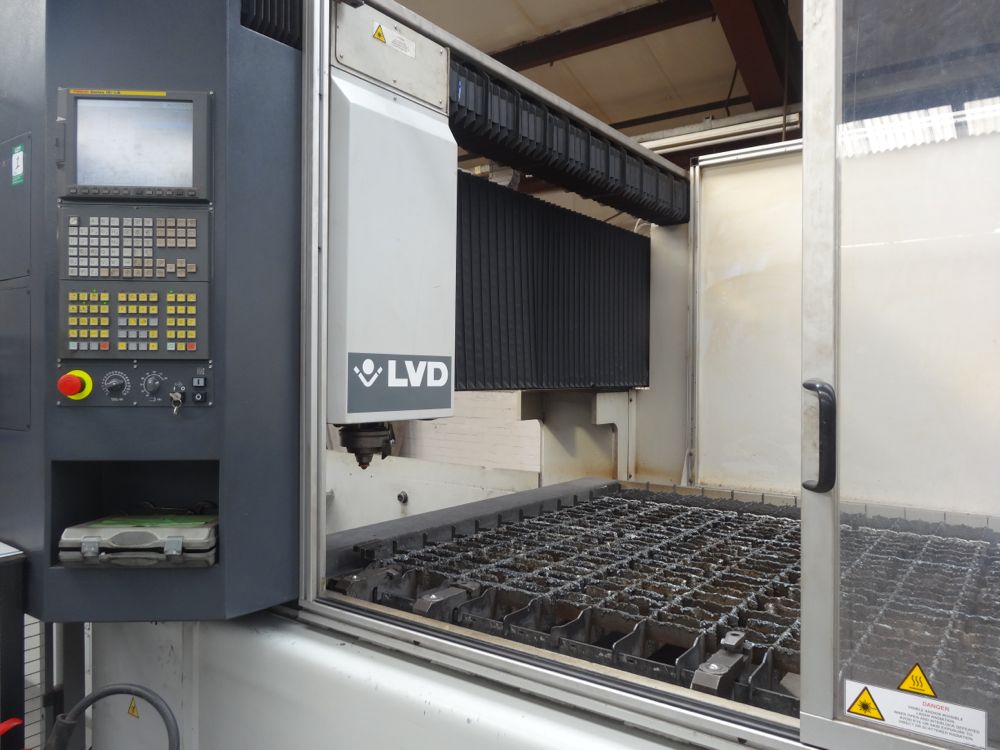

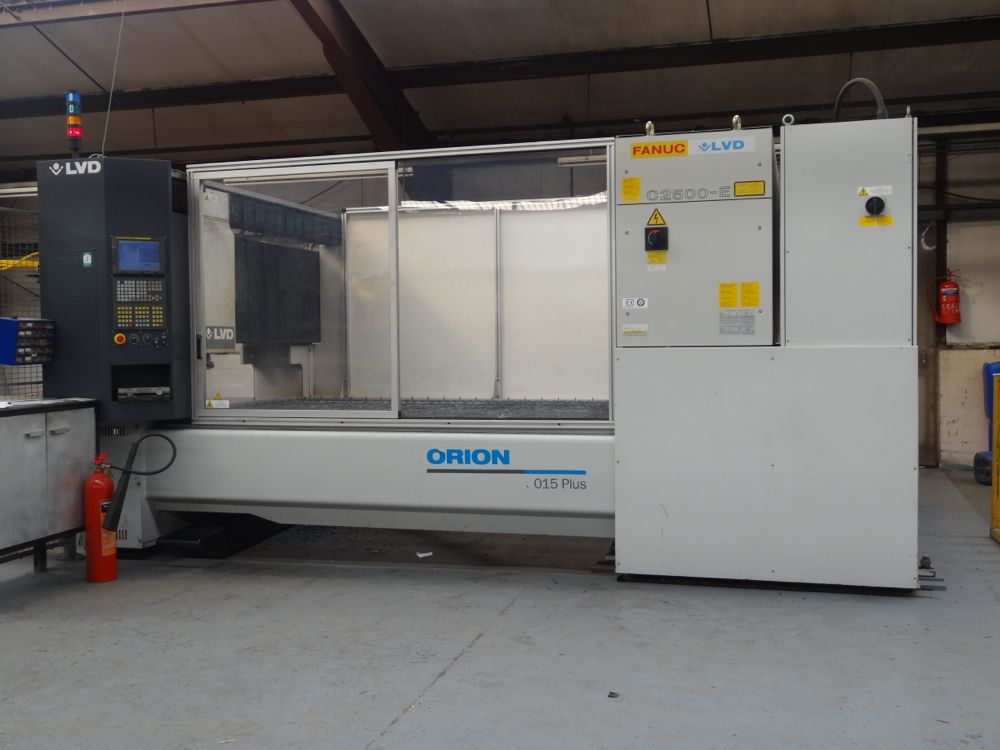

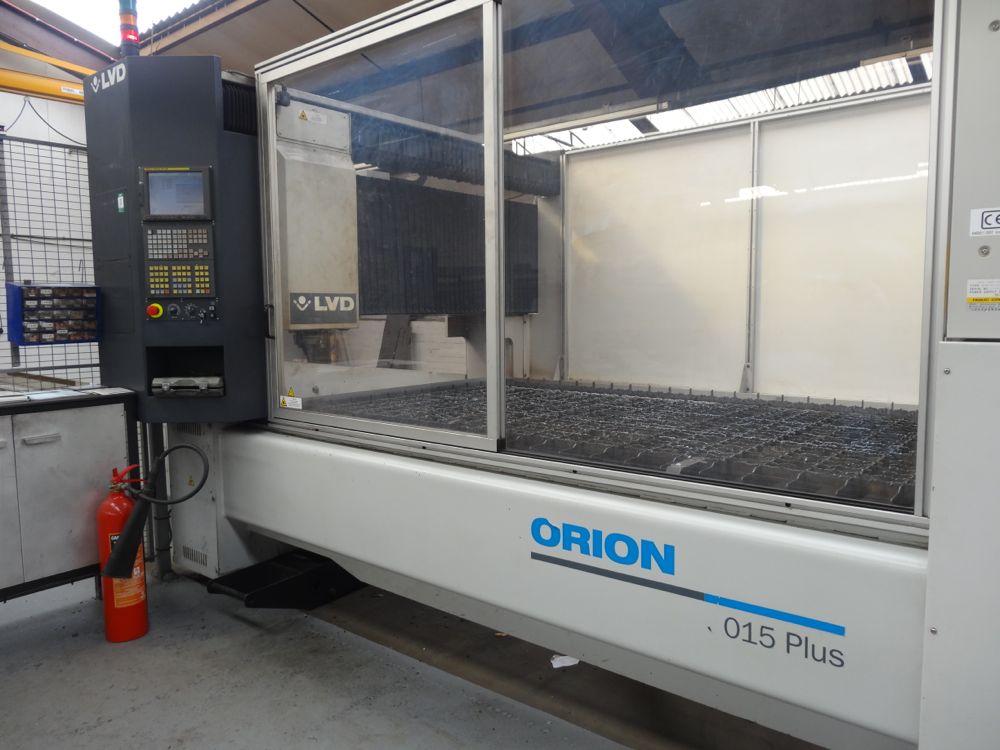

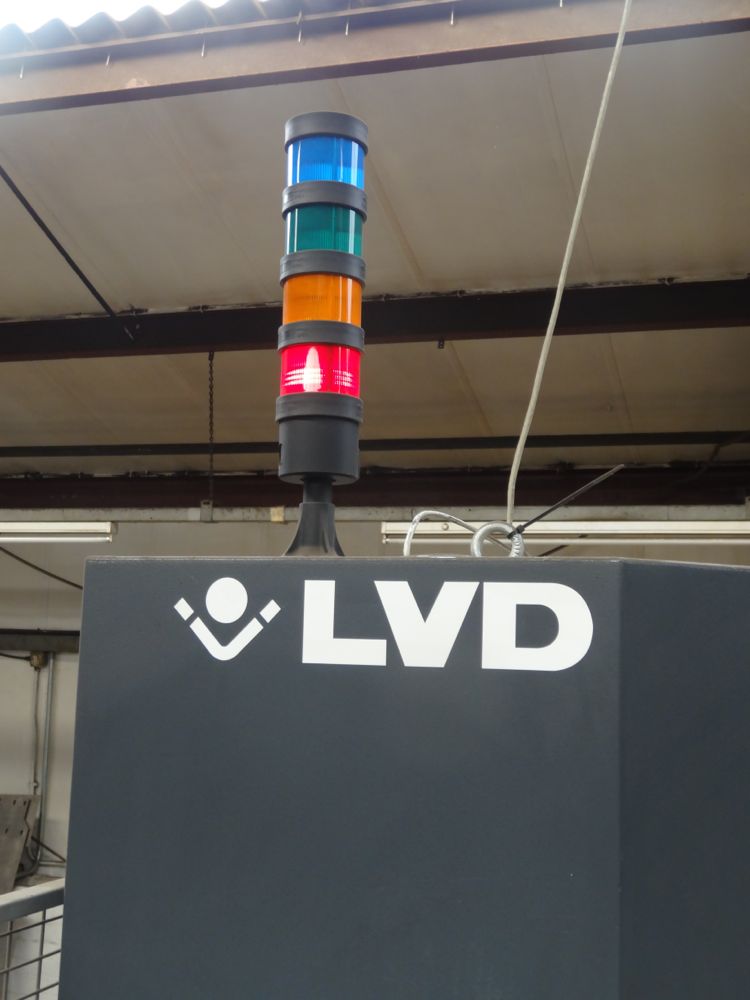

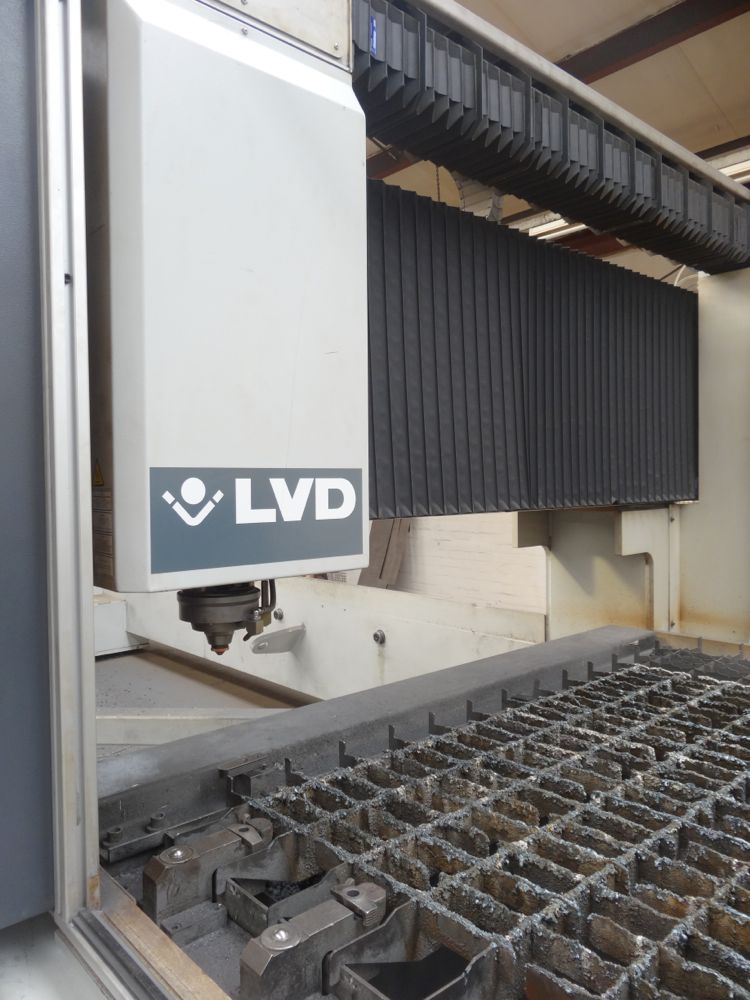

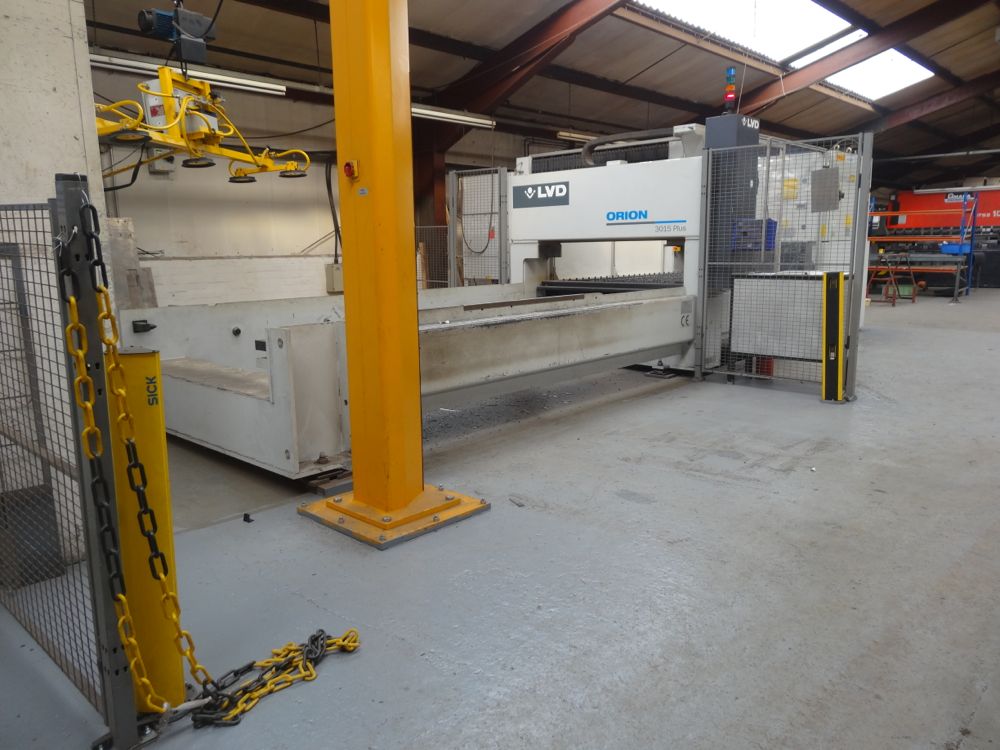

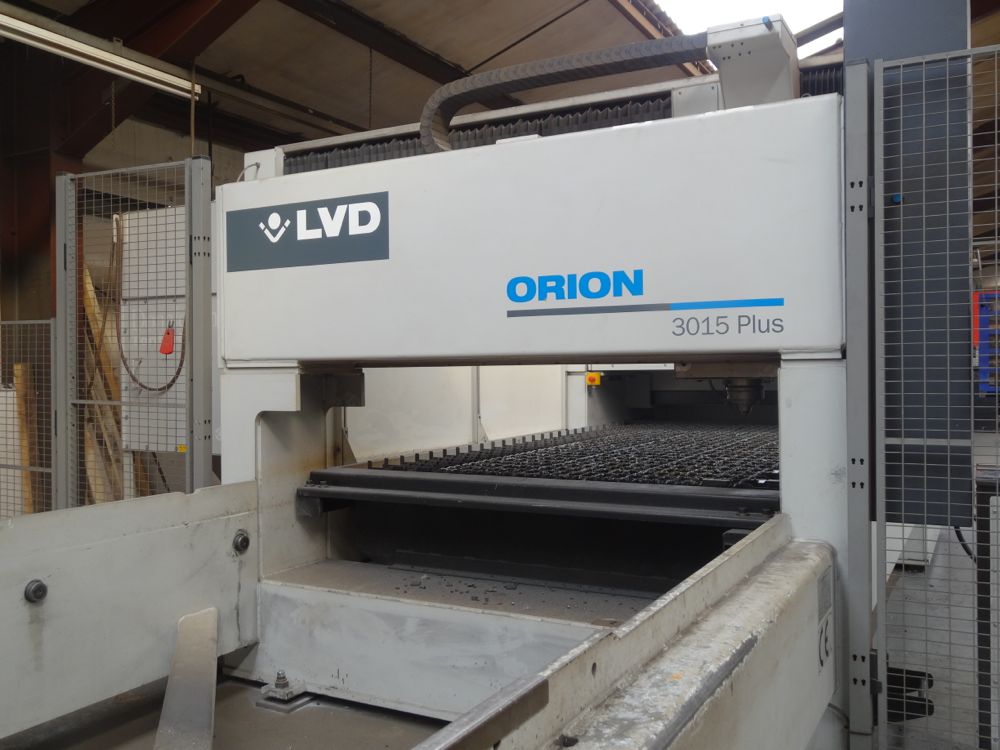

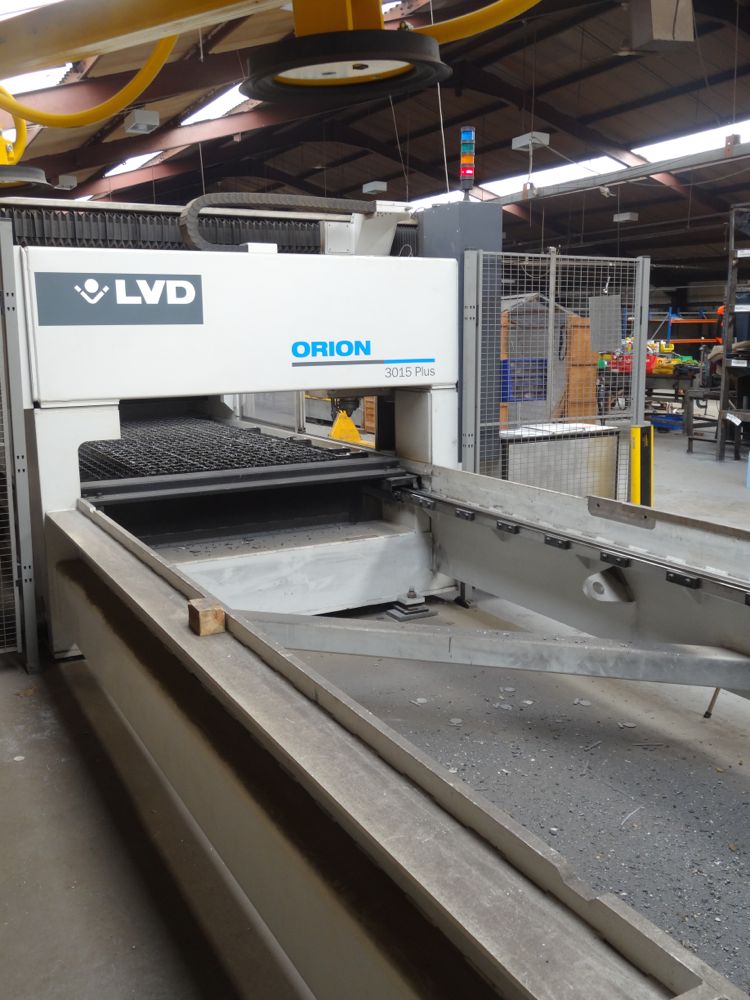

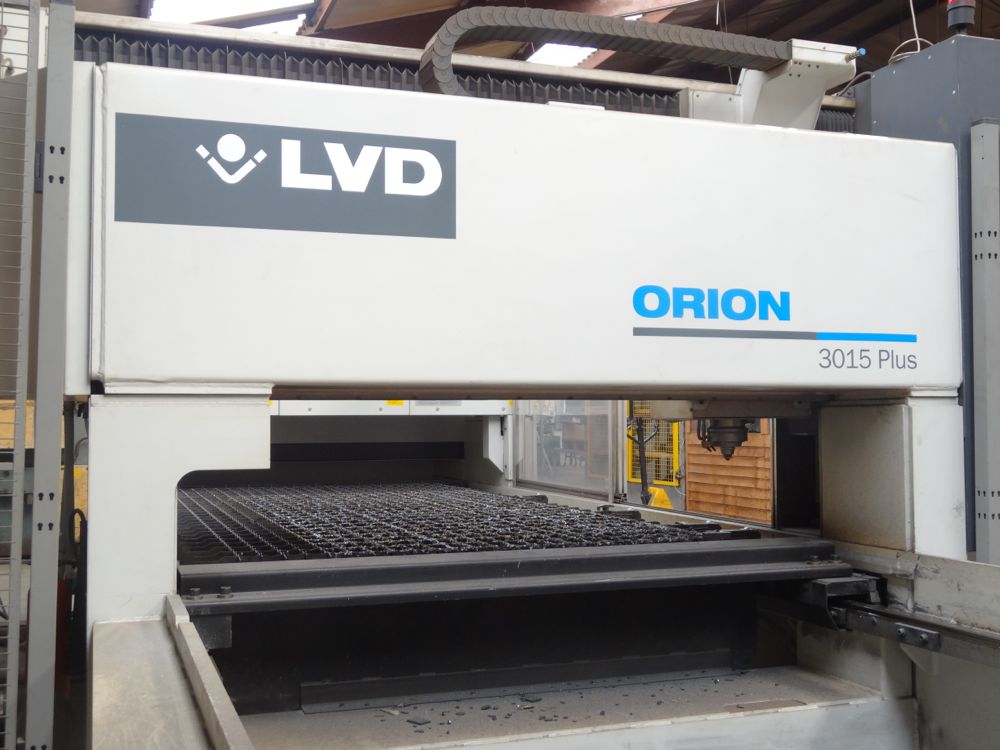

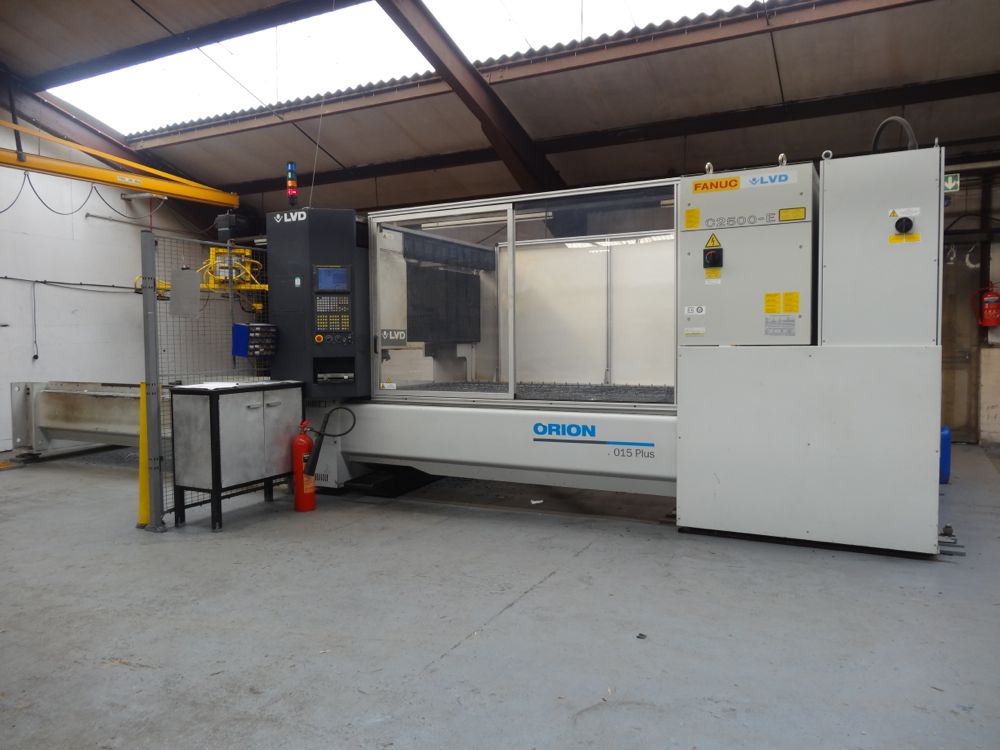

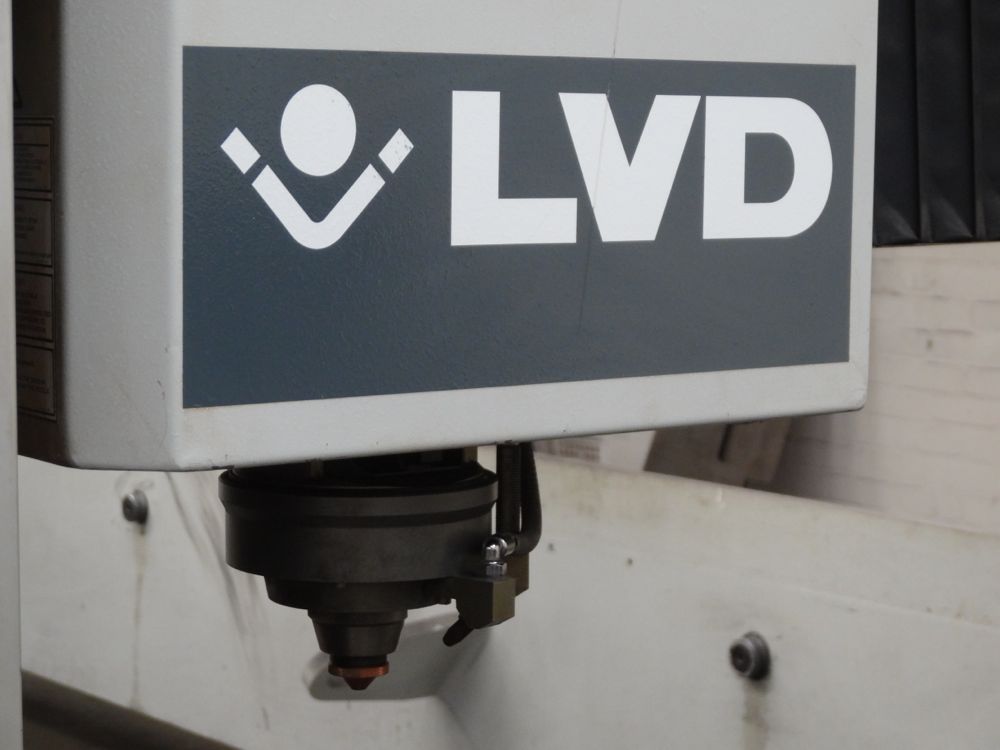

LVD laser Orion 3015

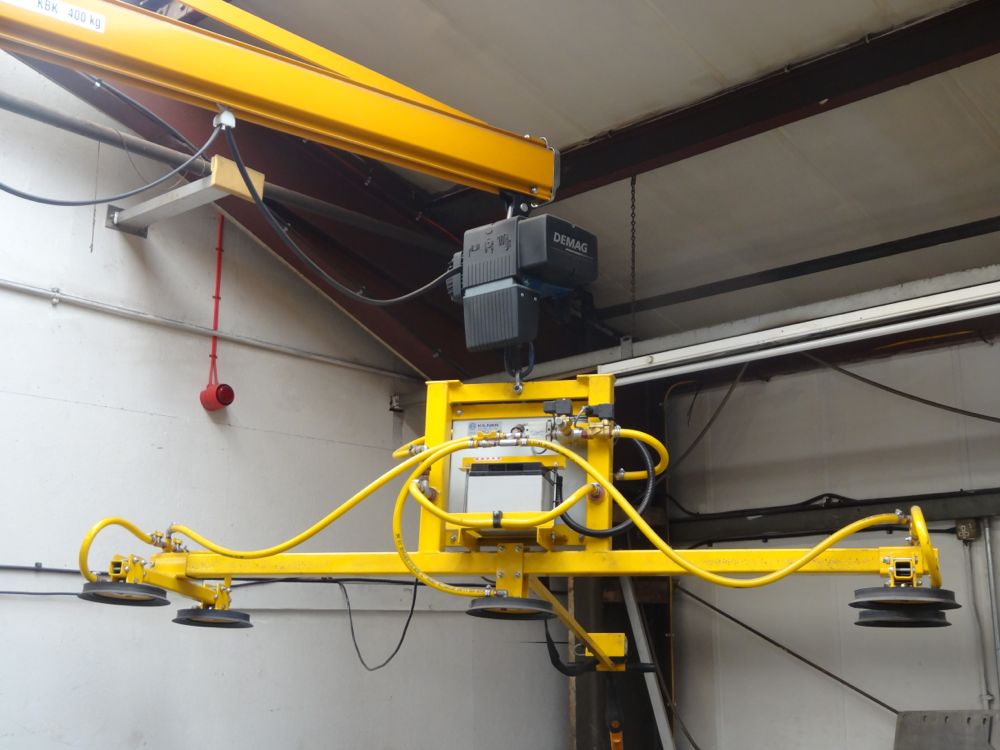

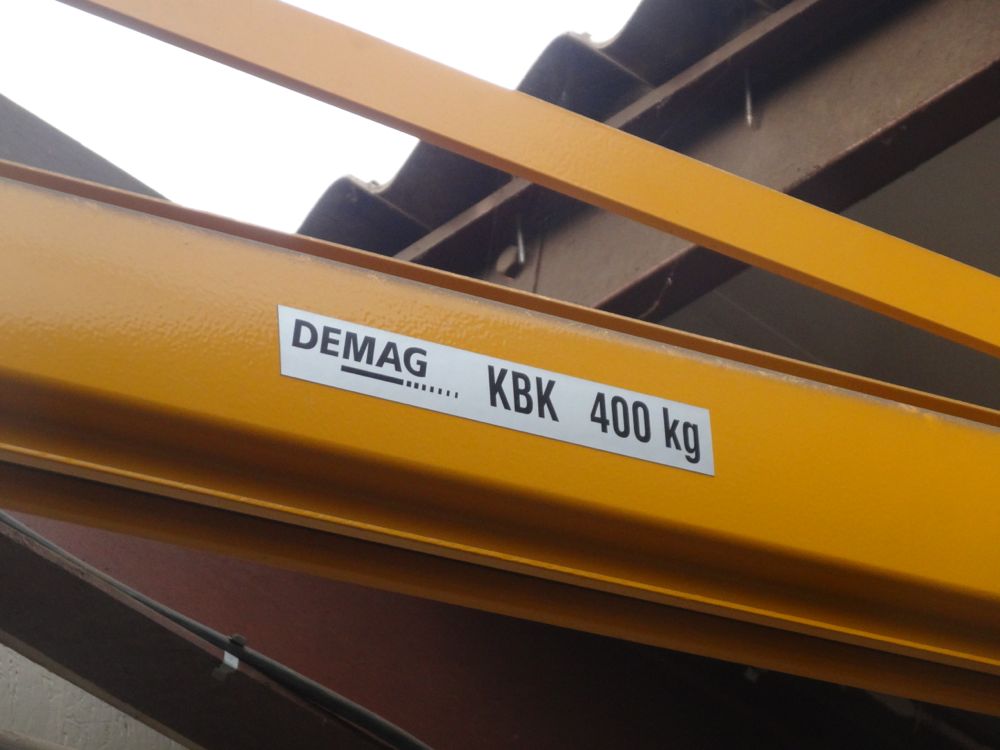

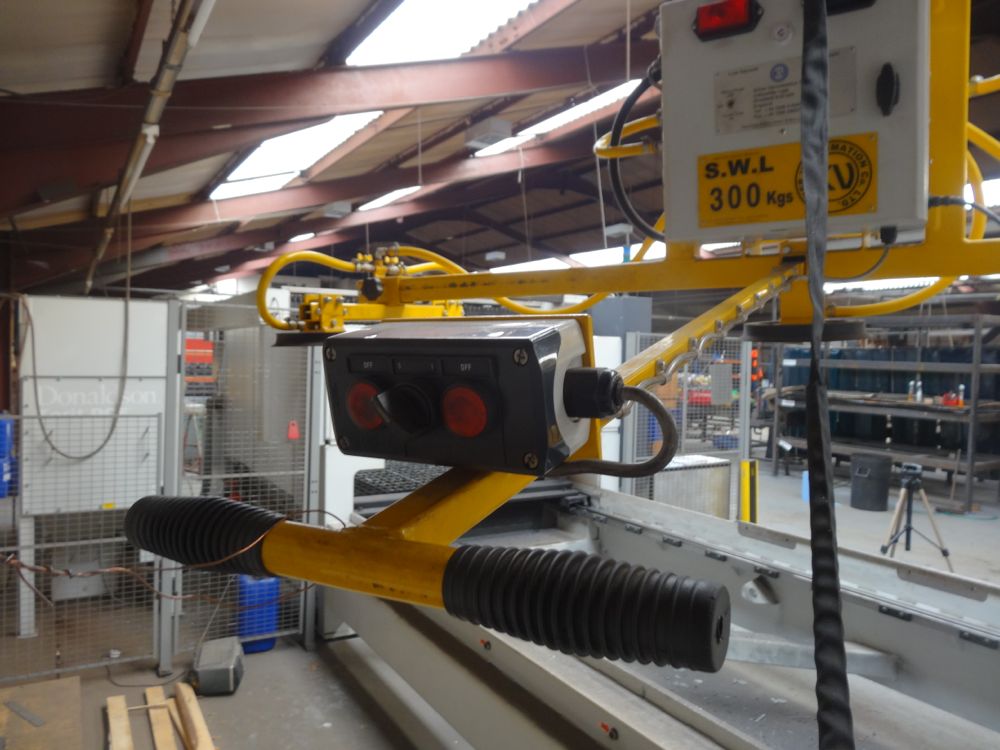

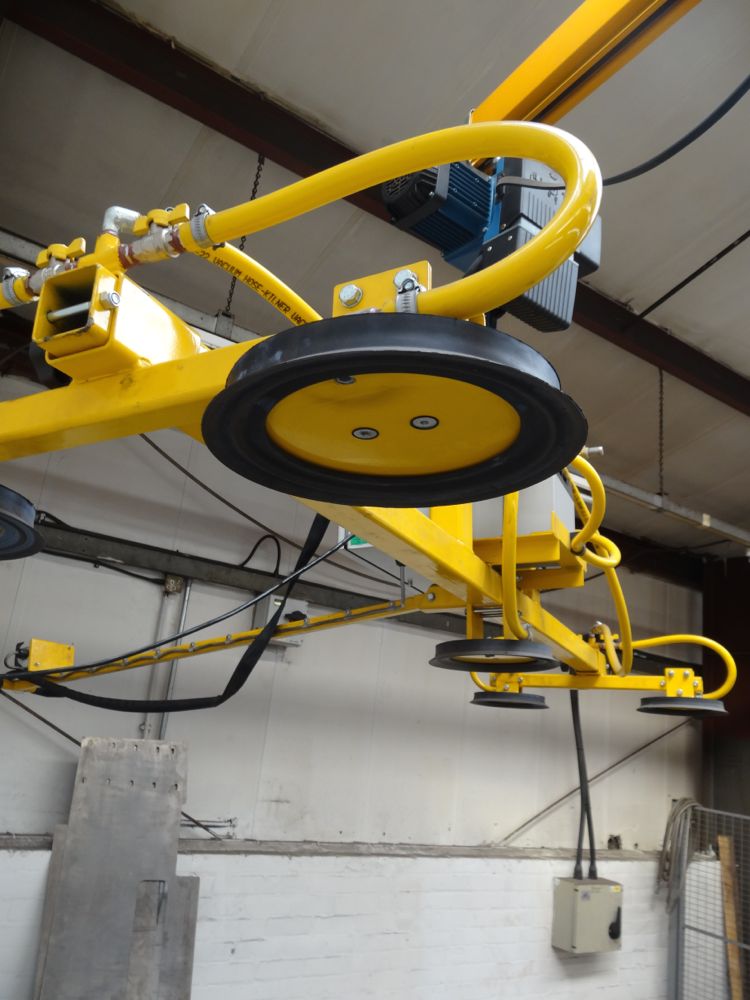

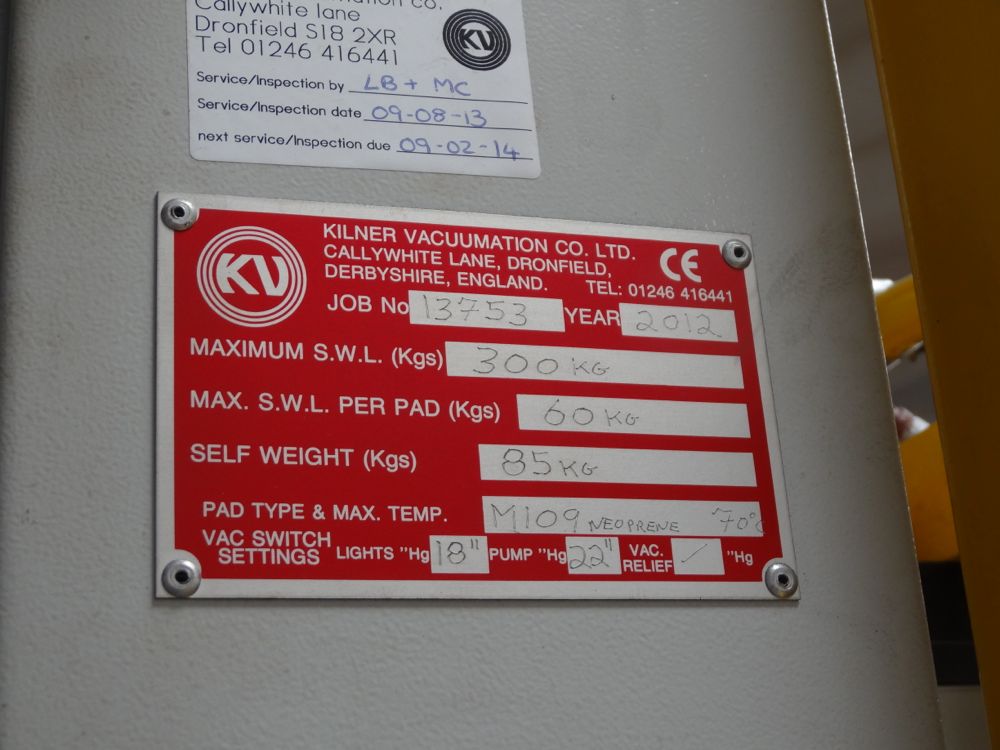

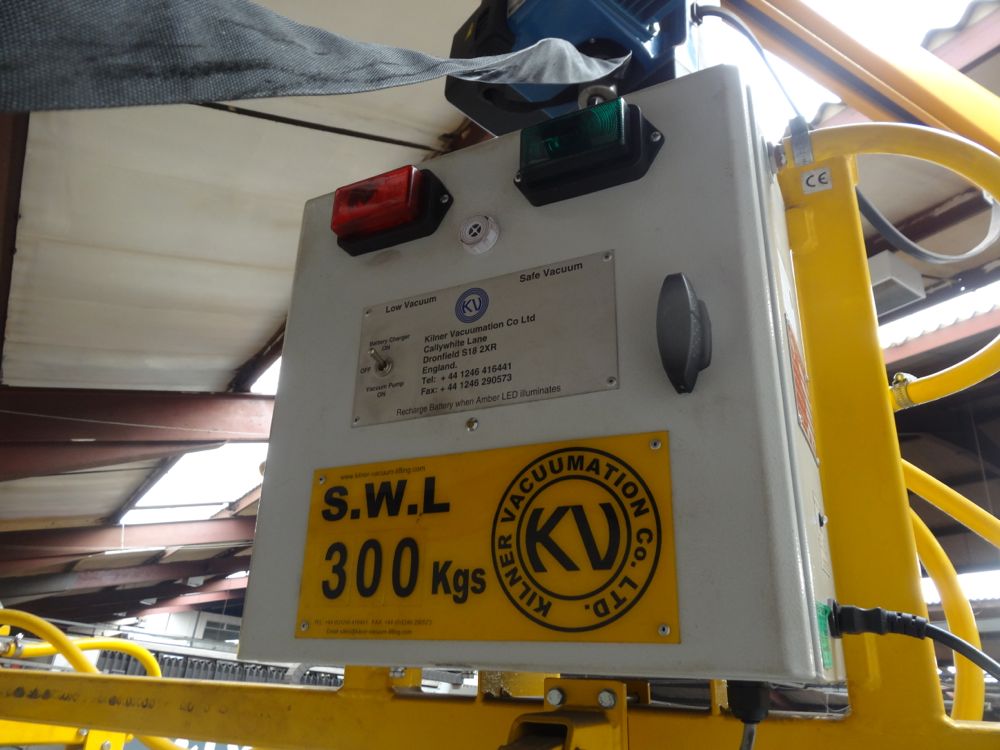

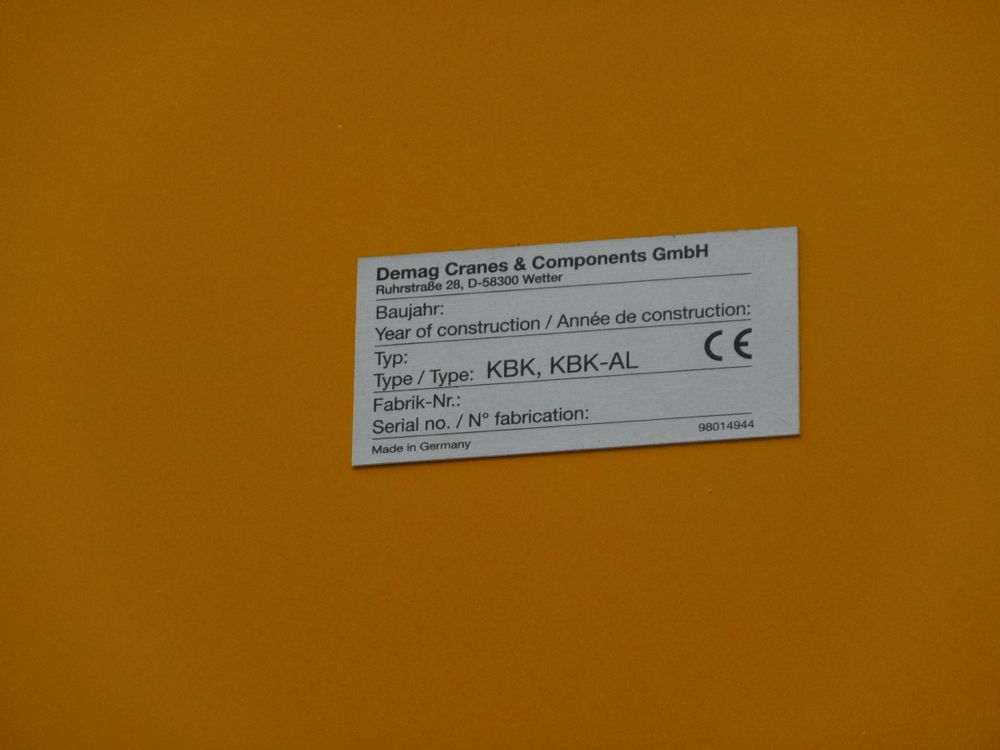

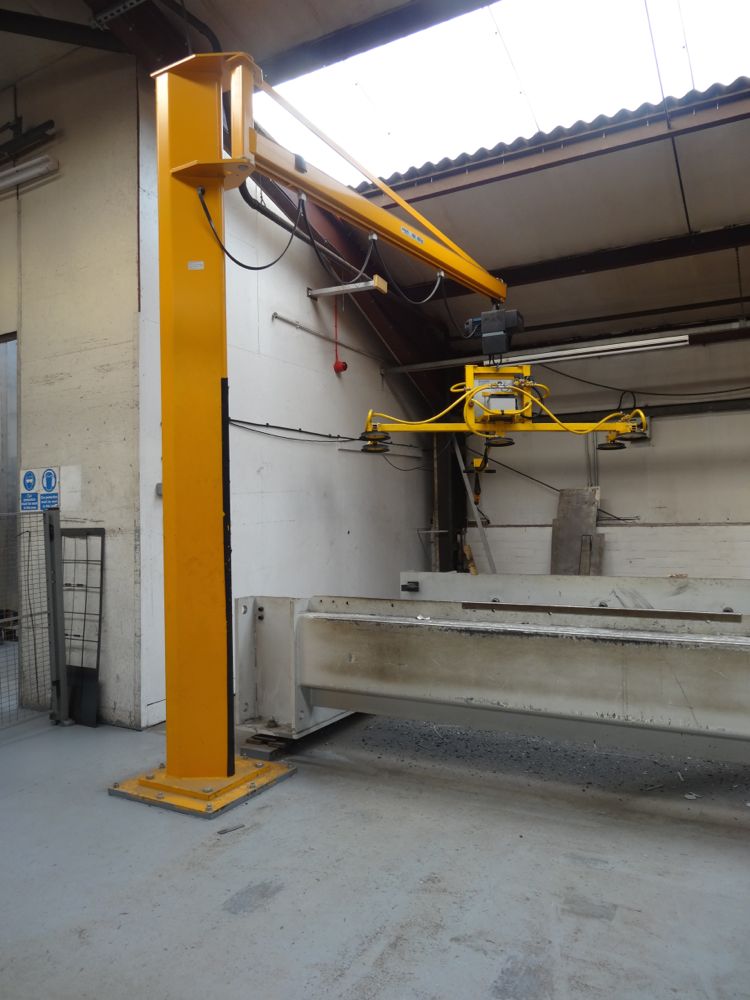

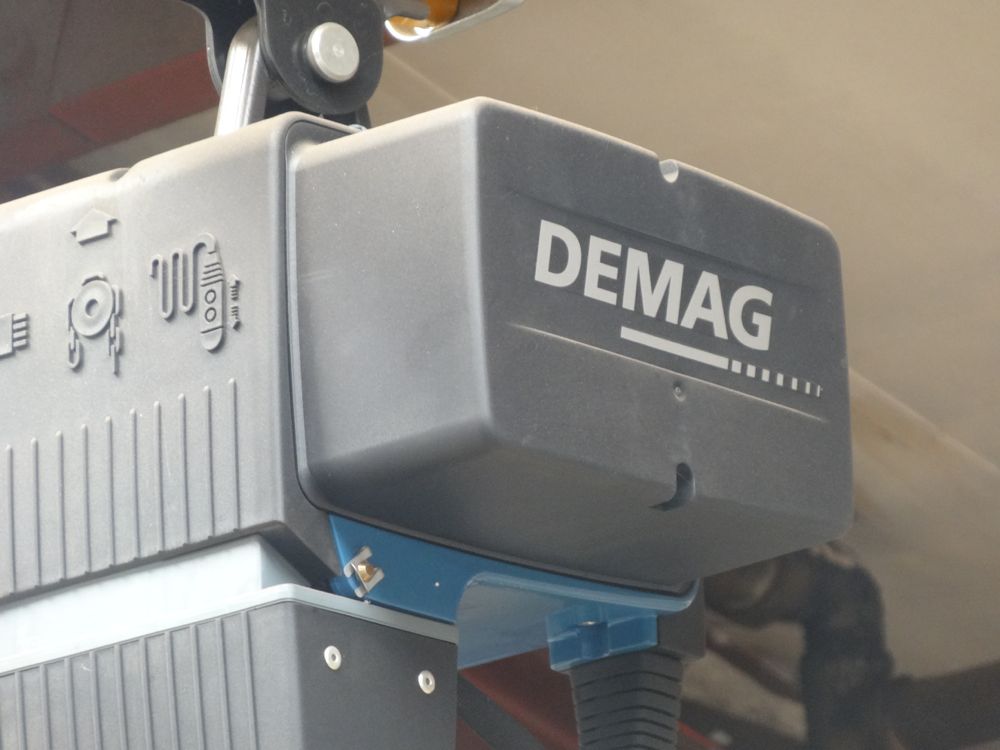

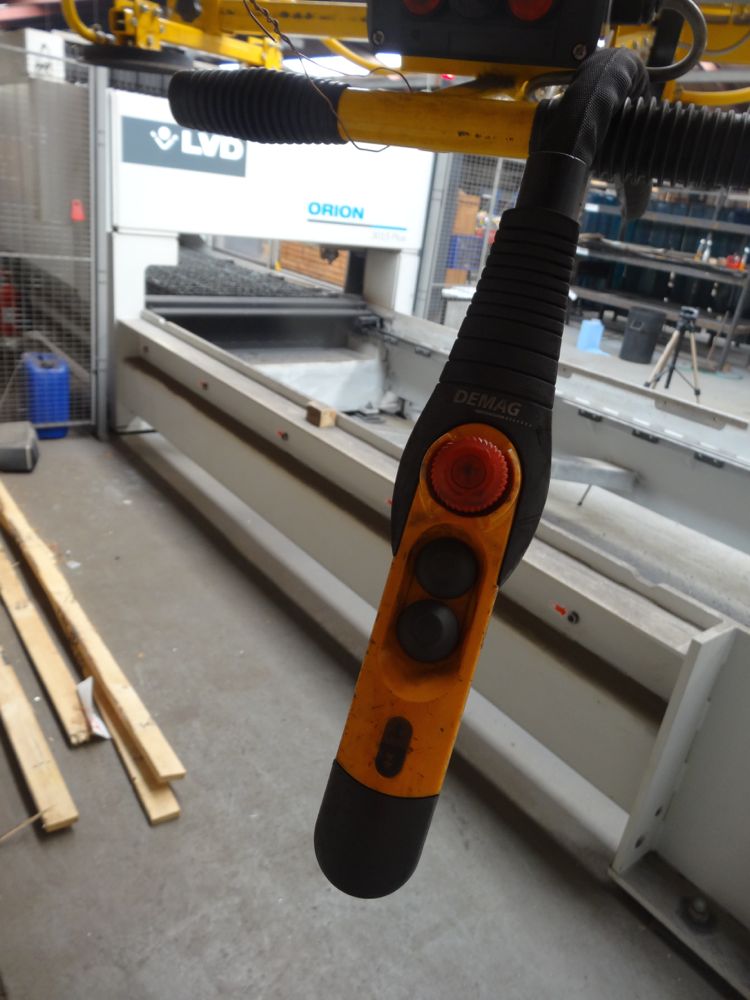

Plus with Kilner/Demag 400kg vacuum hoist etc with programming system
2.5Kw
New April 2012
Machine
Max. Sheet Size: 1524mm x 3048mm
Max. Sheet Weight: 566.990 kgs .
X-Axis Travel: 3073.4mm
Y- Axis Travel: 1549.4mm
Z-Axis Travel: 241.3mm (1)(99.06mm)

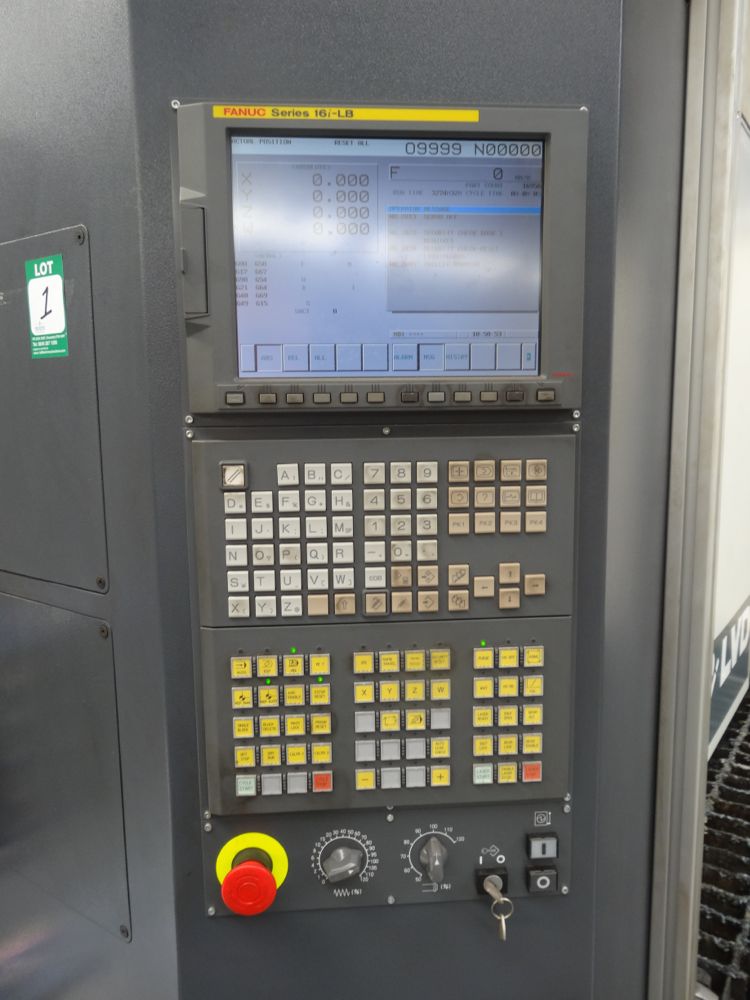

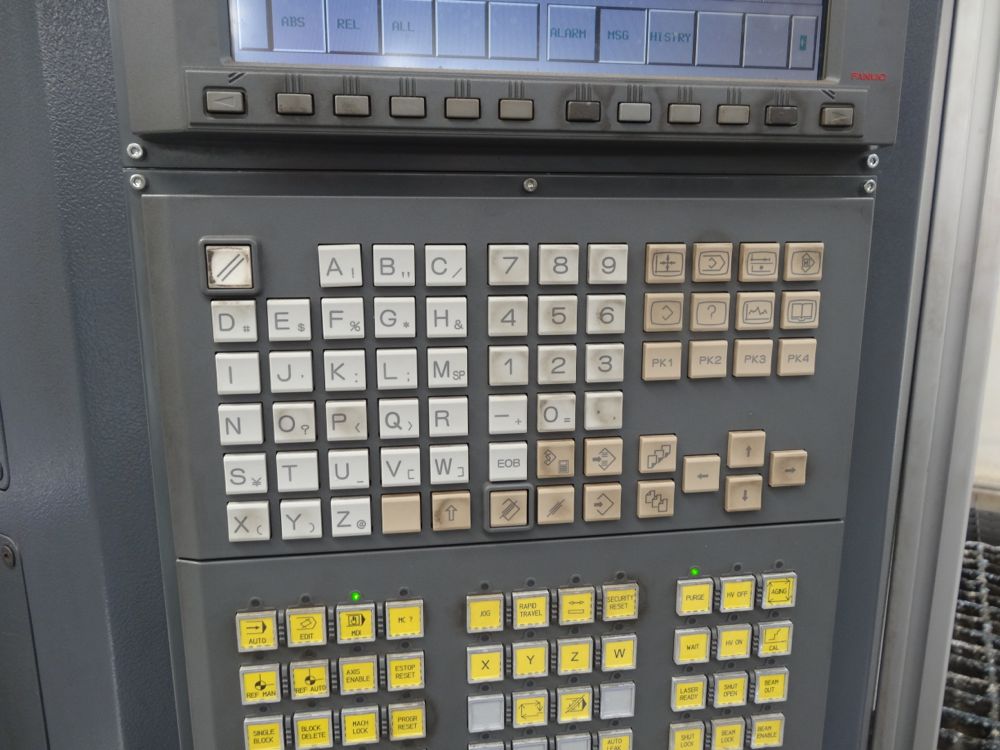

Memory: 2Mb
Display: Color
Max. Positioning Speed:
X,Y-axis: 99949mm/min.
Z-axis: 17780mm/min.
Repetitive Accuracy: ± 0.02032mm
Positioning Accuracy (2) Laser: ± 0.0508mm

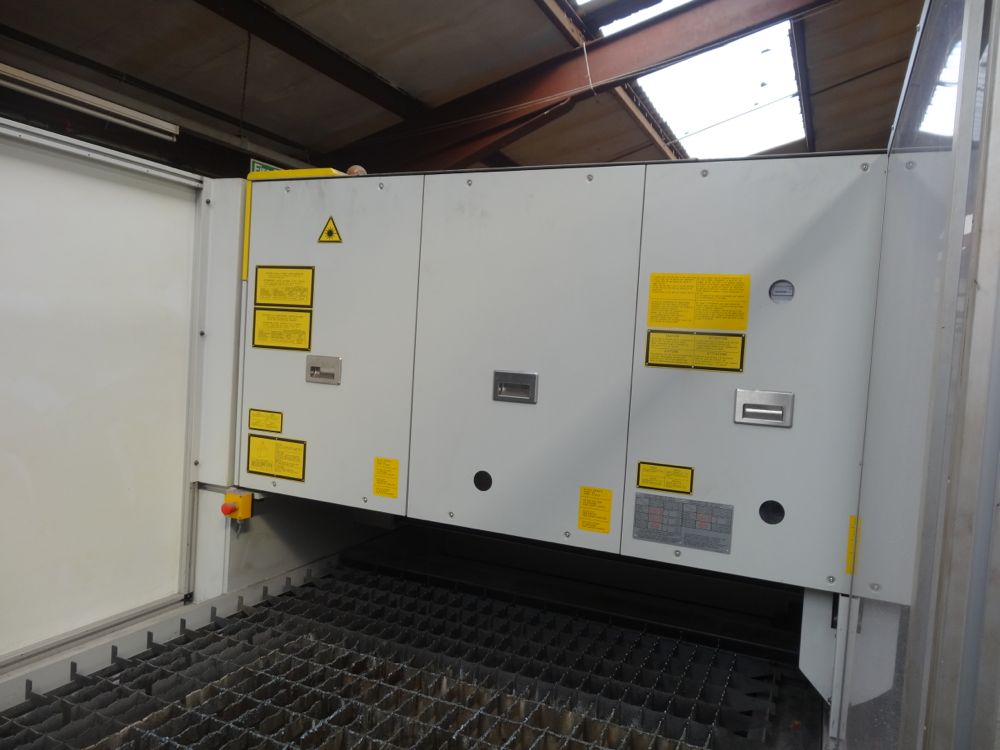

Laser 2500 W
Type: GE-Fanuc H Fexcited CO2 laser
Laser Power: (± 2 %): 2500W
Range: 100-2500W
Output Stability: ± 1 % ± 2 %
Wave Length: 10,6 μm
Pulse Frequency : 5 Hz - 2 kHz
Laser Gas: 10 l/hour

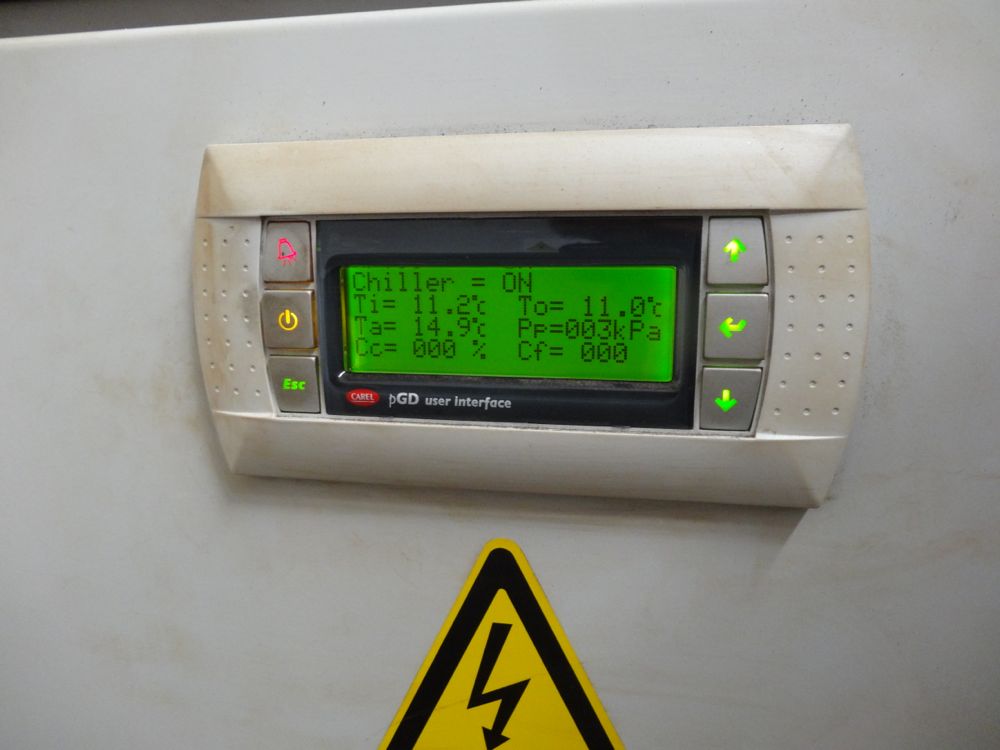

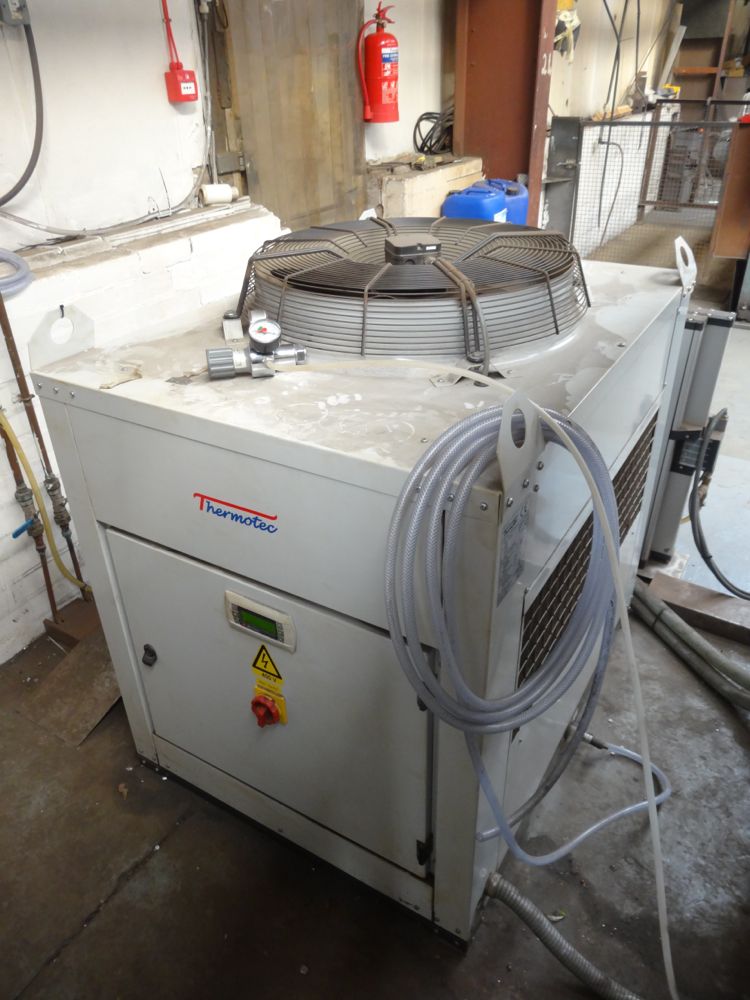

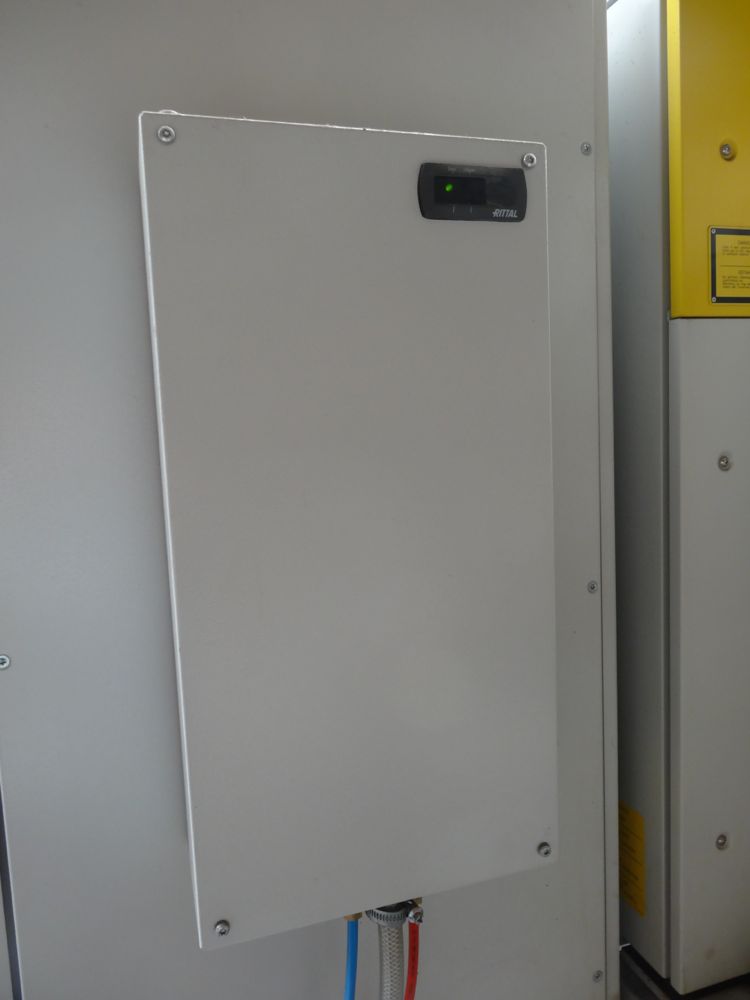

Cooling Water: Sealed circuit
Material Capacities
Steel: 15.87500mm
Stainless Steel (N2): 9.52500mm
Aluminum: 4.7625mm
General Specifications (For stand alone machines)
Machine Dimensions
L: 9347.2mm
W: 4394.2mm
H: 2311.4mm
13000kg

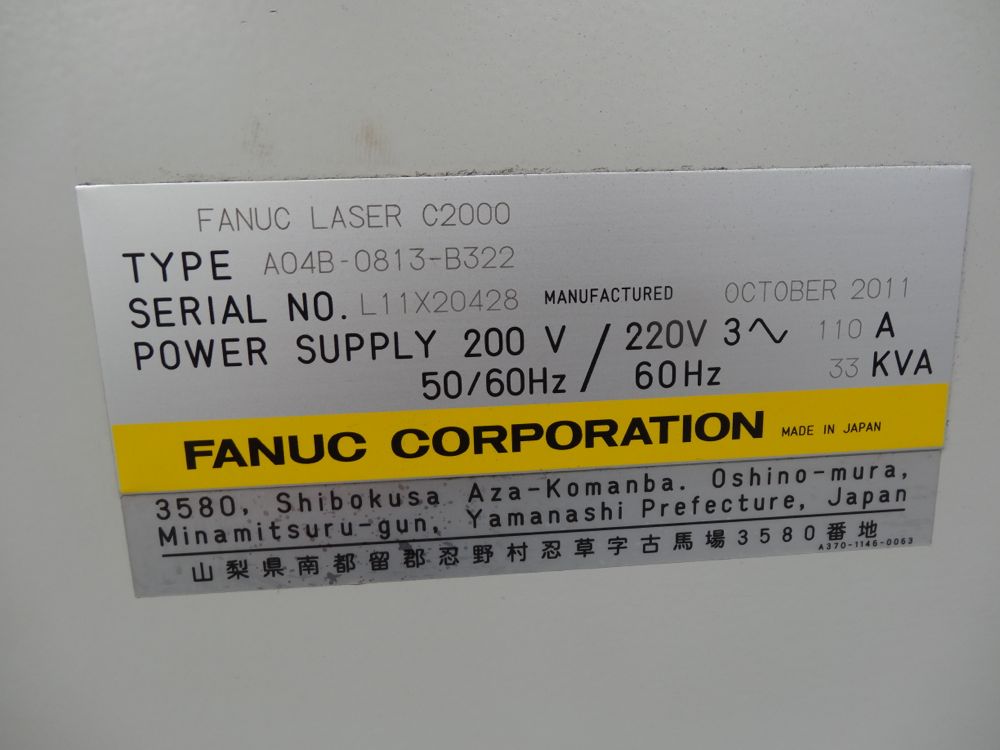

Serial Number: L11X20428
October 2011
Location: Engments Ltd, Derby
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
